OCCUPANT RESTRAINT SYSTEMS
154
Do not allow the child to lean his/her head or any part
of his/her body against the door or the area of the
seat, front or side pillar or roof side rail from which
the side airbags or curtain shield airbags deploy even
if the child is seated in a child restraint system. It is
dangerous if the side airbag and curtain shield airbag
inflate, and the impact could cause death or serious
injury to the child.
SV16045
1. Sit the child on a booster seat. Run the lap and shoulder belt
through or around the booster seat and child following the
instructions provided by its manufacturer and insert the tab into
the buckle, taking care not to twist the belt.
Make sure the shoulder belt is correctly across the child's
shoulder and that the lap belt is positioned as low as possible
on the child's hips. See ªSeat beltsº on page 110 for details.
CAUTION
 Always make sure the shoulder belt is positioned
across the center of child's shoulder. The belt should
be kept away from child's neck, but not falling off
child's shoulder. Otherwise, the child may be killed or
seriously injured in case of sudden braking or a
collision.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
155
Both high±positioned lap belts and loose±fitting
belts could cause death or serious injuries due to
sliding under the lap belt during a collision or other
unintended event. Keep the lap belt positioned as low
on a child's hips as possible.
 For child's safety, do not place the shoulder belt
under child's arm.
 After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent your child from properly latching the tab
and buckle.
 If the seat belt does not function normally, it cannot
protect your child from death or serious injury.
Contact your Lexus dealer immediately. Do not install
the child restraint system on the seat until the seat
belt is fixed.
SV16056
2. To remove the child restraint system, press the
buckle±release button and allow the belt to retract.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
156
Using a top strap (Sedan)
SV16047
Follow the next procedure for a child restraint system that
requires the use of a top strap.
SV16072

Anchor brackets
Use the anchor bracket on the filler panel behind the rear seat
to attach the top strap.
Anchor brackets are installed for each rear seating position.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
157
SV16062

Center seat position
1. Lower the head restraint.
2. Fix the child restraint system with the seat belt.
3. Latch the hook onto the anchor bracket and tighten the
top strap.
For instructions to install the child restraint system, see ªT ypes
of child restraint systemº on page 143.
CAUTION
Make sure the top strap is securely latched, and check
that the child restraint system is secure by pushing and
pulling it in different directions. Follow all the
installation instructions provided by its manufacturer.
SV16118

Side seat position
1. Remove the head restraint.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
158
SV16153a
2. Fix the child restraint system with the seat belt.
Latch the hook onto the anchor bracket and tighten the
top strap.
For instructions to install the child restraint system, see ªTypes
of child restraint systemº on page 143.
CAUTION
Make sure the top strap is securely latched, and check
that the child restraint system is secure by pushing and
pulling it in different directions. Follow all the
installation instructions provided by its manufacturer.
SV16119
3. Replace the head restraint.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
159
Installation with child restraint lower
anchorages
SV16100
The lower anchorages for the child restraint system
interfaced with the FMVSS225 specification are installed
in the rear seat.
The anchorages are installed in the gap between the seat
cushion and seatback of both outboard rear seats.
Child restraint system interfaced with the FMVSS213
specification can be fixed with these anchorages. In this case,
it is not necessary to fix the child restraint system with a seat
belt on the vehicle. CHILD RESTRAINT SYSTEM INSTALLATION
SV16187b
Canada only

Type A
04 06.30

OCCUPANT RESTRAINT SYSTEMS
160
SV16188b
Canada only

Type B
For owners in Canada
The symbol on a child restraint system indicates the presence
of a lower connector system.
Type A:
1. Widen the gap between the seat cushion and seatback
slightly and confirm the position of the lower anchorages
below the button in the seatback.
2. Latch the hooks of lower straps onto the anchorages
and tighten the lower straps.
Type B:
1. Widen the gap between the seat cushion and seatback
slightly and confirm the position of the lower anchorages
below the button in the seatback.
2. Latch the buckles onto the anchorages.
If your child restraint system has a top strap, it should be
anchored. (For the installation of the top strap, see ªUsing a top
strapº on page 156 in this Section.)
For installation details, refer to the instruction manual
equipped with each product.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
161
CAUTION
When using the lower anchorages for the child
restraint system, be sure that there are no irregular
objects around the anchorages or that the seat belt is
not caught.
 Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its
manufacturer.
 Do not install a child restraint system on the rear seat
if it interferes with the lock mechanism of the front
seats. This can cause death or severe injury to the
child and front passenger in case of sudden braking
or a collision.
Using a top strap (SportCross: Type A)
SV16109
Follow the next procedure for a child restraint system that
requires the use of a top strap.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
162
SV16144

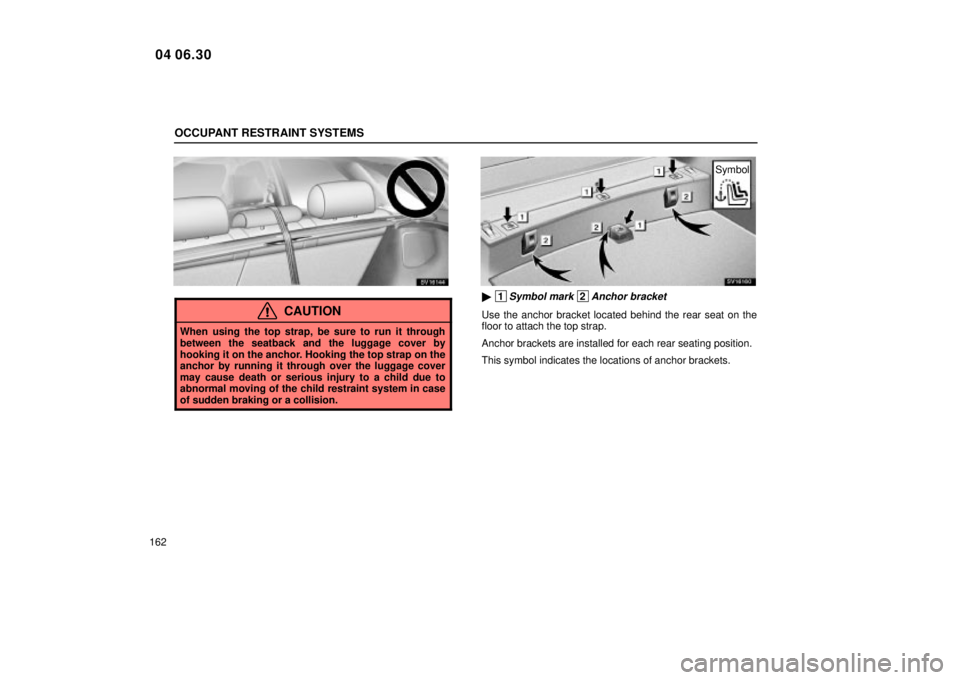

CAUTION
When using the top strap, be sure to run it through
between the seatback and the luggage cover by
hooking it on the anchor. Hooking the top strap on the
anchor by running it through over the luggage cover
may cause death or serious injury to a child due to
abnormal moving of the child restraint system in case
of sudden braking or a collision.
SV16160
Symbol


1Symbol mark 2Anchor bracket
Use the anchor bracket located behind the rear seat on the
floor to attach the top strap.
Anchor brackets are installed for each rear seating position.
This symbol indicates the locations of anchor brackets.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
163
SV16163

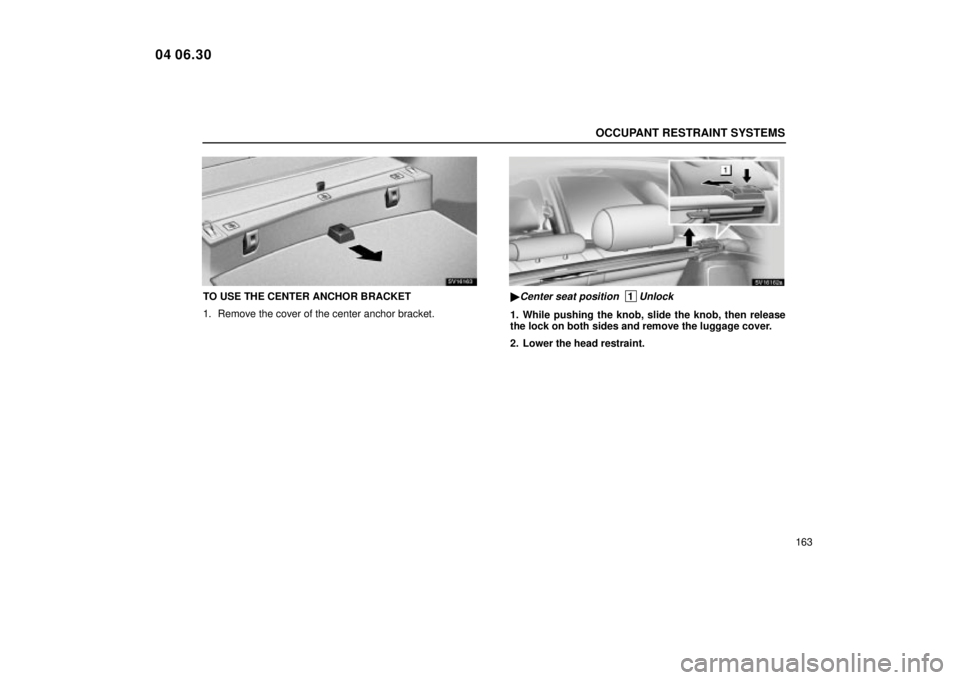

TO USE THE CENTER ANCHOR BRACKET
1. Remove the cover of the center anchor bracket.
SV16162a

Center seat position 1Unlock
1. While pushing the knob, slide the knob, then release
the lock on both sides and remove the luggage cover.
2. Lower the head restraint.
