Lexus IS300 2005 Electrical Components / LEXUS 2005 IS300 OWNER'S MANUAL (OM53489U)

OCCUPANT RESTRAINT SYSTEMS
174
Installation with child restraint lower
anchorages
SV16117
The lower anchorages for the child restraint system
interfaced with the FMVSS225 specification are installed
in the rear seat.
The anchorages are installed in the gap at the lower seatback
of both outboard rear seats.
Child restraint system interfaced with the FMVSS213
specification can be fixed with these anchorages. In this case,
it is not necessary to fix the child restraint system with a seat
belt on the vehicle. CHILD RESTRAINT SYSTEM INSTALLATION
SV16189a
Canada only

Type A
04 06.30

OCCUPANT RESTRAINT SYSTEMS
175
SV16190a
Canada only

Type B
For owners in Canada
The symbol on a child restraint system indicates the presence
of a lower connector system.
Type A:
1. Widen the gap at the lower seatback and confirm the
position of the lower anchorages below the button in the
seatback.
2. Latch the hooks of lower straps onto the anchorages
and tighten the lower straps.
Type B:
1. Widen the gap at the lower seatback and confirm the
position of the lower anchorages below the button in the
seatback.
2. Latch the buckles onto the anchorages.
If your child restraint system has a top strap, it should be
anchored. (For the installation of the top strap, see ªUsing a top
strapº on page 161 or 167.)
For installation details, refer to the instruction manual
equipped with each product.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
176

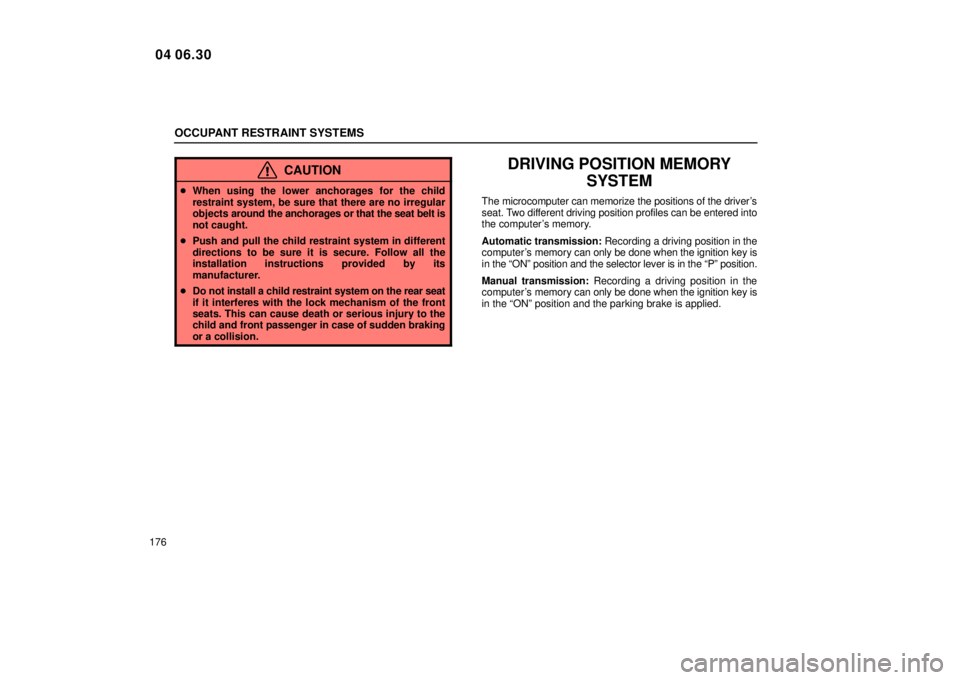

CAUTION
When using the lower anchorages for the child
restraint system, be sure that there are no irregular
objects around the anchorages or that the seat belt is
not caught.
 Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its
manufacturer.
 Do not install a child restraint system on the rear seat
if it interferes with the lock mechanism of the front
seats. This can cause death or serious injury to the
child and front passenger in case of sudden braking
or a collision.
DRIVING POSITION MEMORY
SYSTEM
The microcomputer can memorize the positions of the driver's
seat. Two different driving position profiles can be entered into
the computer's memory.
Automatic transmission: Recording a driving position in the
computer's memory can only be done when the ignition key is
in the ªONº position and the selector lever is in the ªPº posi\
tion.
Manual transmission: Recording a driving position in the
computer's memory can only be done when the ignition key is
in the ªONº position and the parking brake is applied.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
177
Setting the driving position
SV16170
1. Adjust the driver's seat to the desired position.
2. While pushing the ªSETº button, push button ª1º or ª2º
until the signal beeps.
The beep sound means that the positions are recorded in the
computer's memory.
By repeating these two steps and pressing the remaining
button, the driving position for another driver can be recorded.
To set a new memorized position, select the desired position
and perform step 2. The previous memory will be erased and
the new position will be set.
To make only slight changes to an already memorized position,
the easiest way is to first activate the memorized position, then
make the desired changes and perform step 2 above.
Recalling the memorized position
SV16171
Automatic transmissionÐ
When you push button ª1º or ª2º, the driving position will
be automatically adjusted to the position recorded for
that button.
Manual transmissionÐ
While button ª1º or ª2º is being pushed down, the driving
position will be automatically adjusted to the position
recorded for that button.
Conditions for memorized position activation
 Automatic transmission: Ignition key ªONº and selector
lever in ªPº position.
 Manual transmission: Ignition key ªONº and apply the
parking brake.
 Ignition switch off and within 30 seconds of opening driver's
door.
04 06.30

OCCUPANT RESTRAINT SYSTEMS
178If any driving position memory switch is pushed while one of
the memorized driving position profiles is being activated, the
operation will stop.
To activate the system, push the desired button (ª1º or ª2º)\
again.
The driving position memory control system cannot be
operated while the vehicle is moving.
If the vehicle's battery is disconnected, the computer's
memory will be erased and the memorized positions will have
to be set again.

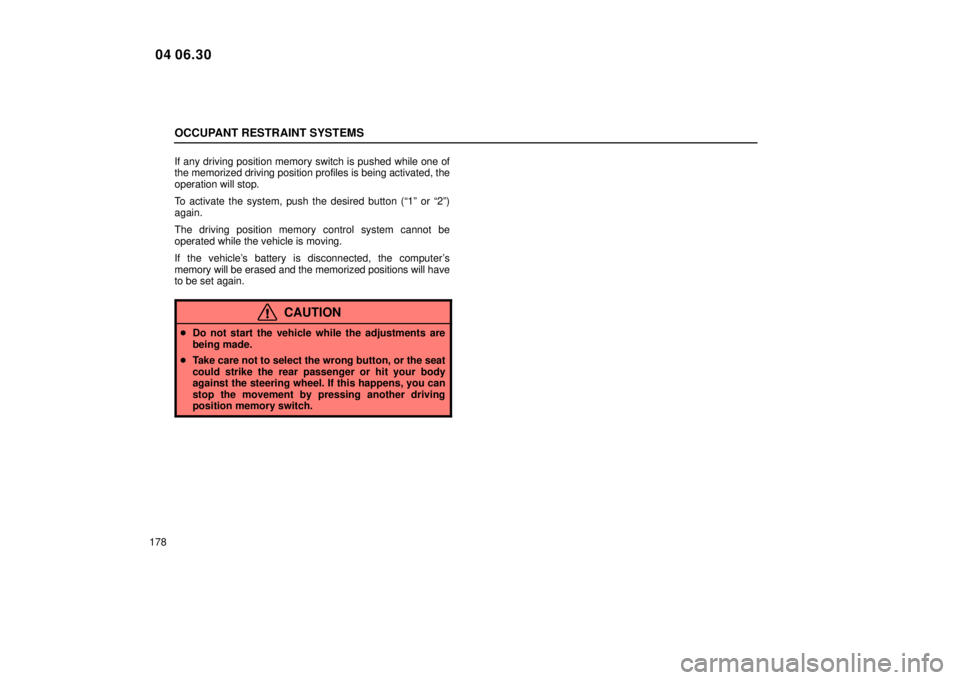

CAUTION

Do not start the vehicle while the adjustments are
being made.
 Take care not to select the wrong button, or the seat
could strike the rear passenger or hit your body
against the steering wheel. If this happens, you can
stop the movement by pressing another driving
position memory switch.
04 06.30

SECTION 1 ± 7
179
INSTRUMENTS AND CONTROLS
Steering wheel and mirrors
Tilt steering columnn 180
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors 180
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . .
Inside rear view mirror 182
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirrors 187
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
04 06.30

STEERING WHEEL AND MIRRORS
180
TILT STEERING COLUMN
SV16064
To change the steering wheel angle, hold the steering
wheel, pull the lock release lever toward you, tilt the
steering wheel to the desired angle and release the lever.
When the steering wheel is in a low position, it will spring up as
you release the lock release lever.
CAUTION
 Do not adjust the steering wheel while the vehicle is
moving. Doing so may cause the driver to mishandle
the vehicle and an accident may occur resulting in
death or injuries.
 After adjusting the steering wheel, try moving it up
and down to make sure it is locked in position.
OUTSIDE REAR VIEW MIRRORS
SV16010
Adjust the mirror so that you can just see the side of your
vehicle in the mirror.
Be careful when judging the size or distance of any object seen
in the outside rear view mirror on the passenger's side
because it is a convex mirror. Any object seen in a convex
mirror will look smaller and farther away than if seen in a normal
flat mirror.
When you push the rear window and outside rear view mirror
defogger switch or operate the wipers, the heater panels in the
outside rear view mirrors will quickly clear the mirror surface.
(See ª Rear window and outside rear view mirror defogger, and
windshield wiper deicer switchº on page 36.)
Some models: When the inside rear view mirror darkens in
ªAUTOº mode, the outside rear view mirrors also darken to
reduce the reflection of the headlights of the following vehicle.
For details, see ªInside rear view mirrorº on page 182.
04 06.30

STEERING WHEEL AND MIRRORS
181
CAUTION
Do not adjust the mirror while the vehicle is moving.
Doing so may cause the driver to mishandle the
vehicle and an accident may occur, resulting in
personal death or injuries.
 Since the mirror surfaces can get hot, keep your
hands off them when the rear window and outside
rear view mirror defogger switch is on or operate the
wipers.
Power rear view mirror control
SV16012

1Master switch 2Control switch
To adjust the power rear view mirror, first place the master
switch at ªLº (left) or ªRº (right), and push the contro\
l
switch on the desired side.
The power rear view mirrors can be adjusted when the key is
in the ªACCº or ªONº position.
NOTICE
If ice should jam the mirror, do not operate the control
or scrape the mirror face. Use a spray de±icer to free themirror.
Folding rear view mirrors
SS16030
To fold the rear view mirror, push backward.
The rear view mirrors can be folded backward for parking in
compact areas.
CAUTION
Do not drive with the mirrors folded backward. Both the
driver and passenger side rear view mirrors must be
extended and properly adjusted before driving.
04 06.30

STEERING WHEEL AND MIRRORS
182
INSIDE REAR VIEW MIRROR
SL16013

Type A 1Day 2Night
When driving at night, pull the lever toward you to reduce
the glare from the headlights of vehicles behind you.
Before adjusting the mirror to the position with most clarity,
push the day±night change lever forward (daylight driving
position).
Remember that by reducing glare you also lose some rear view
clarity.
CAUTION
Do not adjust the mirror while the vehicle is moving.
Doing so may cause the driver to mishandle the vehicle
and an accident may occur resulting in personal death
or injuries.
SV16128

Type B
Adjust the m irror so that you can just see the rear of your
vehicle in the mirror.
Pushing the switch changes the mode between ªAUTOº
and ªDAYº.
The indicator comes on when the ªAUTOº mode is selected.
ªDAYº mode: The mirror surface is normal.
ªAUTOº mode: If the mirror detects light from the
headlights of the vehicle behind you, the mirror surface
darkens slightly to reduce the reflected light.
When the inside rear view mirror surface changes, the outside
rear view mirror surfaces will also become darker.
When the ignition key is inserted and turned on, the inside rear
view mirror always turns on in the ªAUTOº mode.
When the outside air temperature is low, it may take a little
longer for the mirror to darken in response to the detection of
headlights.
04 06.30

STEERING WHEEL AND MIRRORS
183
CAUTION
Do not adjust the mirror while the vehicle is moving.
Doing so may cause the driver to mishandle the vehicle
and an accident may occur resulting in death or serious
injuries.
SV16185
To ensure correct functioning of anti±glare mirror sensors
located on both sides of the mirror, do not touch or cover the
sensors with your finger or a piece of cloth, etc.
