Lexus IS300 2017 Owner's Manual / LEXUS 2017 IS200T,IS300,IS350 OWNER'S MANUAL (OM53D76U)

5218-2. Steps to take in an emergency
8
When trouble arises
IS350/300/200t_U (OM53D76U)
WARNING
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recomm ended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label (tire and load information label). (If your
vehicle has tires of a different size than the size indicated on the vehicle placard or tire
inflation pressure label [tire and load in formation label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle ha s been equipped with a tire pressure moni-
toring system (TPMS-tire pressure warning system) that illuminates a low tire pressure
telltale (tire pressure warning light) when on e or more of your tires is significantly
under-inflated. Accordingly, when the low ti re pressure telltale (tire pressure warning
light) illuminates, you should stop and check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a si gnificantly under-inflated tire causes the
tire to overheat and can lead to tire failure . Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure wa rning system) is not a substitute for proper
tire maintenance, and it is th e driver’s responsibility to ma intain correct tire pressure,
even if under-inflation has not reached the le vel to trigger illumination of the TPMS low
tire pressure telltale (tir e pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS
(tire pressure warning system) malfunction indi cator is combined with the low tire pres-
sure telltale (tire pressure warning light). When the system detects a malfunction, the
telltale will flash for approximately one mi nute and then remain continuously illumi-
nated. This sequence will cont inue upon subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction in dicator is illuminated, the system may not
be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfun ctions may occur for a variety of reasons,
including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning system) from functioning properly. Always
check the TPMS (tire pressure warning system) malfunction telltale after replacing one
or more tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS (tire pressu re warning system) to continue to function
properly.
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with different specifications or makers, as the tire pressure warning
system may not operate properly.

5228-2. Steps to take in an emergency
IS350/300/200t_U (OM53D76U)
Master warning light
The master warning light also comes on or flashes in order to indicate that a
message is currently being displaye d on the multi-information display.
Multi-information display
If any of the warning lights come on again after the following actions have been
performed, contact your Lexus dealer.
If a warning message is displayed
If a warning is shown on the multi-info rmation display, stay calm and perform
the following actions:
Except F SPORT modelsF SPORT models (when the main
meter is in the center position)
F SPORT models (when the main
meter is in the right-side position)
1
2

5238-2. Steps to take in an emergency
8
When trouble arises
IS350/300/200t_U (OM53D76U)

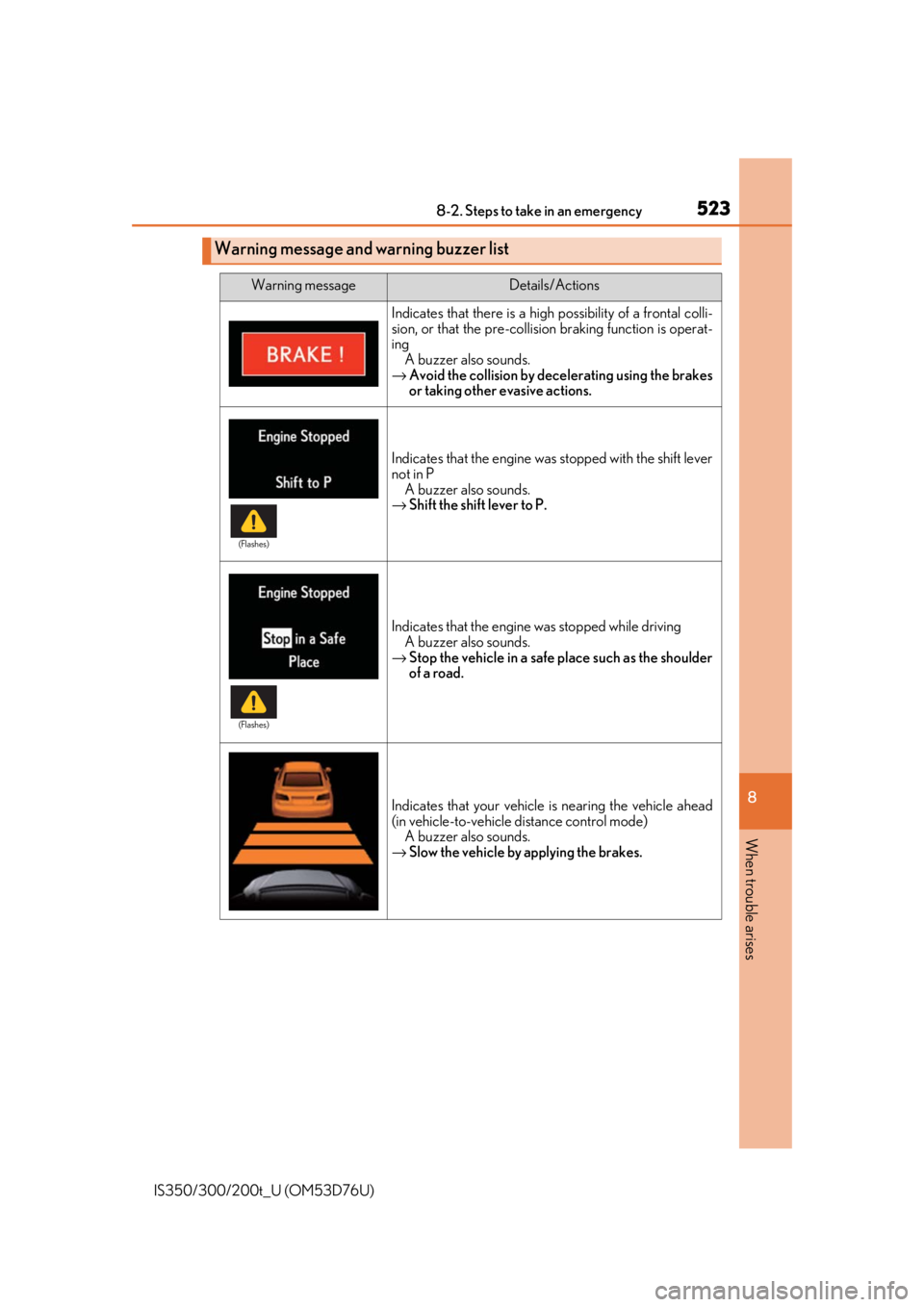

Warning message and warning buzzer list
Warning messageDetails/Actions
Indicates that there is a high possibility of a frontal colli-
sion, or that the pre-collision braking function is operat-
ing
A buzzer also sounds.
→ Avoid the collision by decelerating using the brakes
or taking other evasive actions.
Indicates that the engine was stopped with the shift lever
not in P
A buzzer also sounds.
→ Shift the shift lever to P.
Indicates that the engine was stopped while driving
A buzzer also sounds.
→ Stop the vehicle in a safe place such as the shoulder
of a road.
Indicates that your vehicle is nearing the vehicle ahead
(in vehicle-to-vehicle distance control mode)
A buzzer also sounds.
→ Slow the vehicle by applying the brakes.
(Flashes)
(Flashes)

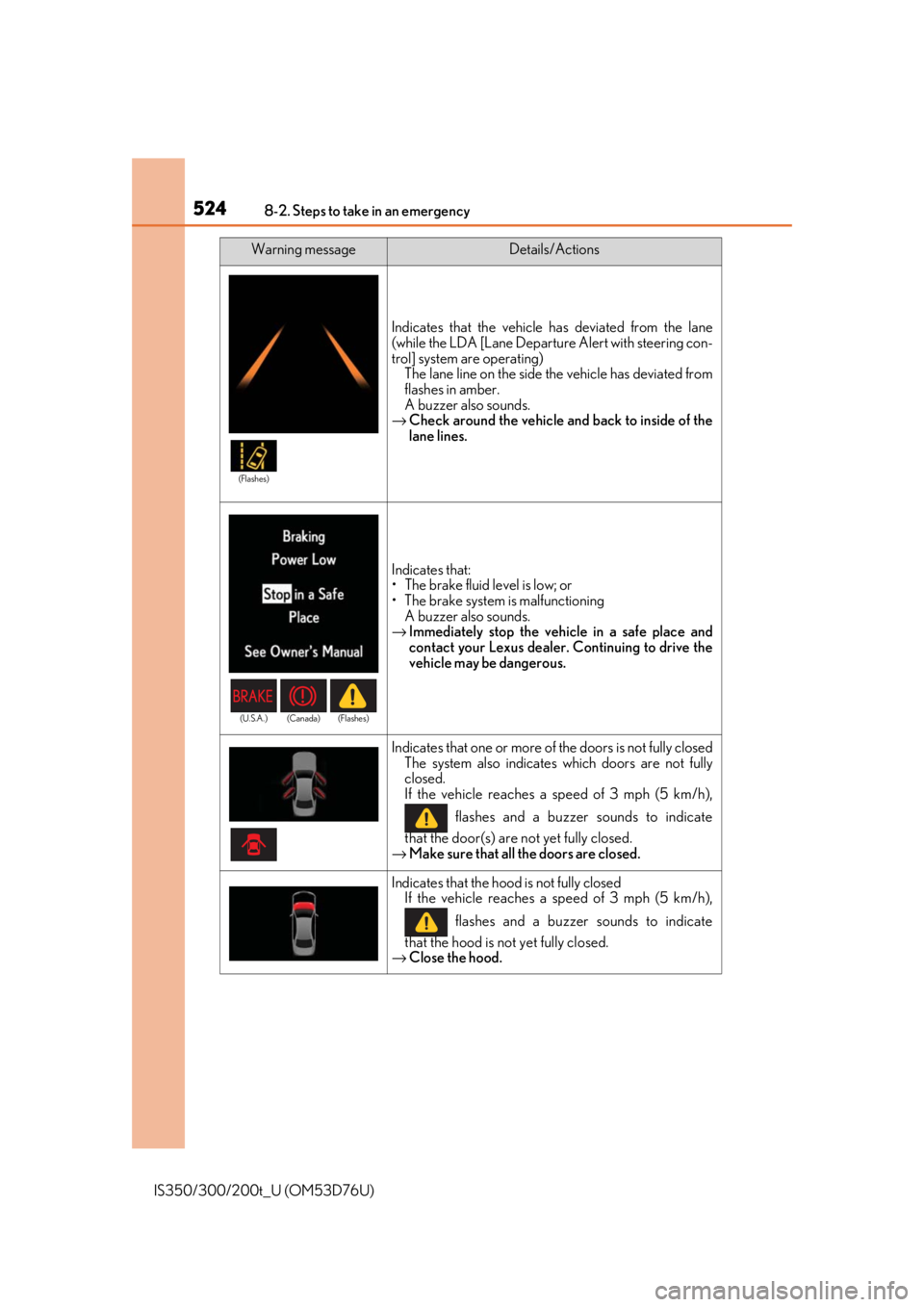

5248-2. Steps to take in an emergency
IS350/300/200t_U (OM53D76U)
Indicates that the vehicle has deviated from the lane
(while the LDA [Lane Departure Alert with steering con-
trol] system are operating)The lane line on the side the vehicle has deviated from
flashes in amber.
A buzzer also sounds.
→ Check around the vehicle and back to inside of the
lane lines.
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place and
contact your Lexus dealer. Continuing to drive the
vehicle may be dangerous.
Indicates that one or more of the doors is not fully closed The system also indicates which doors are not fully
closed.
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate
that the door(s) are not yet fully closed.
→ Make sure that all the doors are closed.
Indicates that the hood is not fully closed
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate
that the hood is not yet fully closed.
→ Close the hood.
Warning messageDetails/Actions
(Flashes)
(U.S.A.) (Canada) (Flashes)

5258-2. Steps to take in an emergency
8
When trouble arises
IS350/300/200t_U (OM53D76U)
Indicates that the trunk is not fully closedIf the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate
that the trunk is not yet fully closed.
→ Close the trunk.
(If equipped)
Indicates a malfunction in the intuitive parking assist-sen-
sor The assist-sensors flash.
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that an intuitive par king assist sensor is dirty or
covered with ice
A buzzer also sounds.
→ Clean the sensor.
Warning messageDetails/Actions

5268-2. Steps to take in an emergency
IS350/300/200t_U (OM53D76U)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates that the vehicle is being driven at 3 mph (5
km/h) or more with the pa rking brake still engaged.
A buzzer also sounds.
→ Release the parking brake.
Warning messageDetails/Actions
(U.S.A.) (Canada) (Flashes)

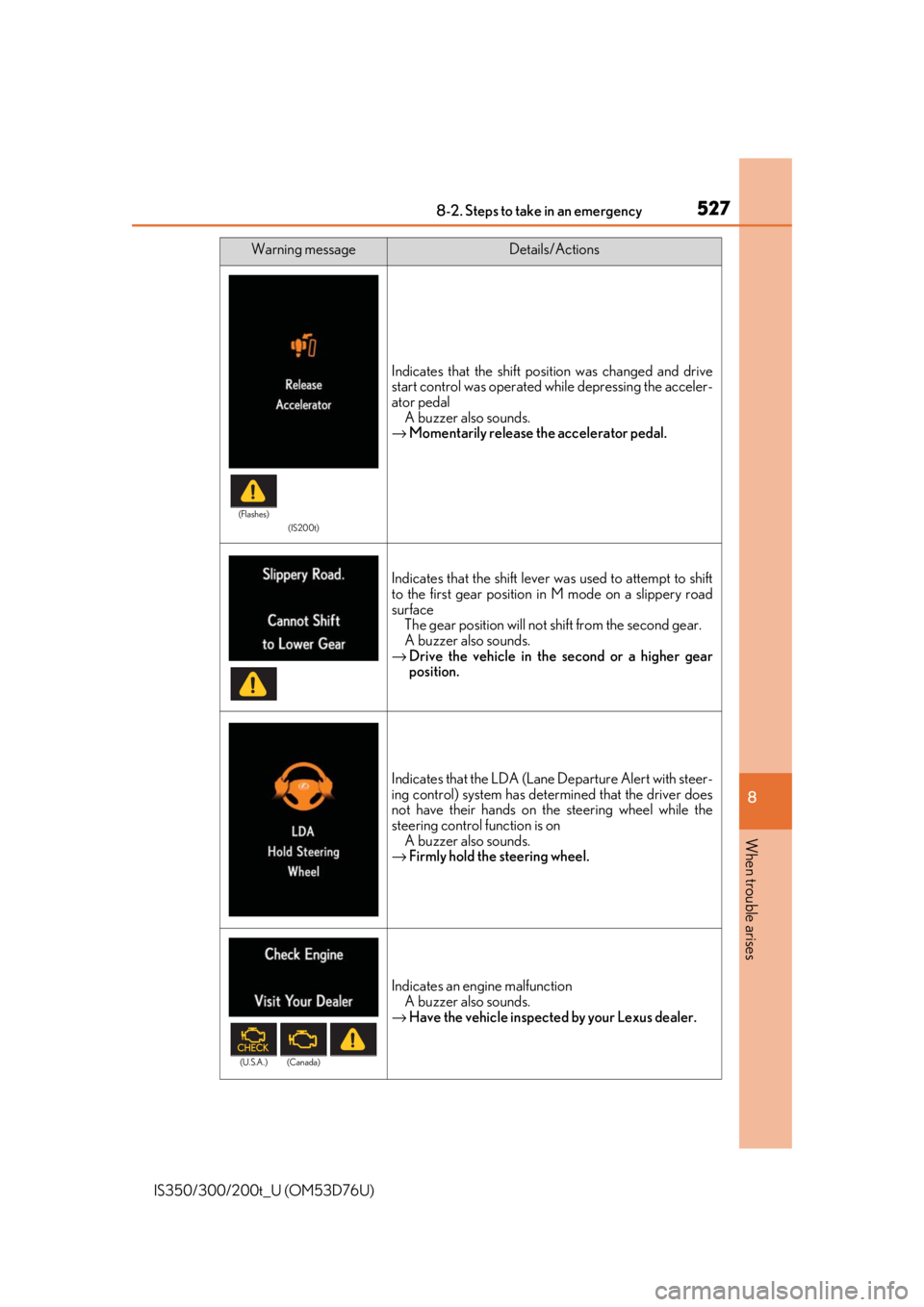

5278-2. Steps to take in an emergency
8
When trouble arises
IS350/300/200t_U (OM53D76U)
Indicates that the shift position was changed and drive
start control was operated wh ile depressing the acceler-
ator pedal A buzzer also sounds.
→ Momentarily release the accelerator pedal.
Indicates that the shift lever was used to attempt to shift
to the first gear position in M mode on a slippery road
surface
The gear position will not shift from the second gear.
A buzzer also sounds.
→ Drive the vehicle in the second or a higher gear
position.
Indicates that the LDA (Lane Departure Alert with steer-
ing control) system has dete rmined that the driver does
not have their hands on the steering wheel while the
steering control function is on A buzzer also sounds.
→ Firmly hold the steering wheel.
Indicates an engine malfunction
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Warning messageDetails/Actions
(IS200t)
(Flashes)
(U.S.A.) (Canada)

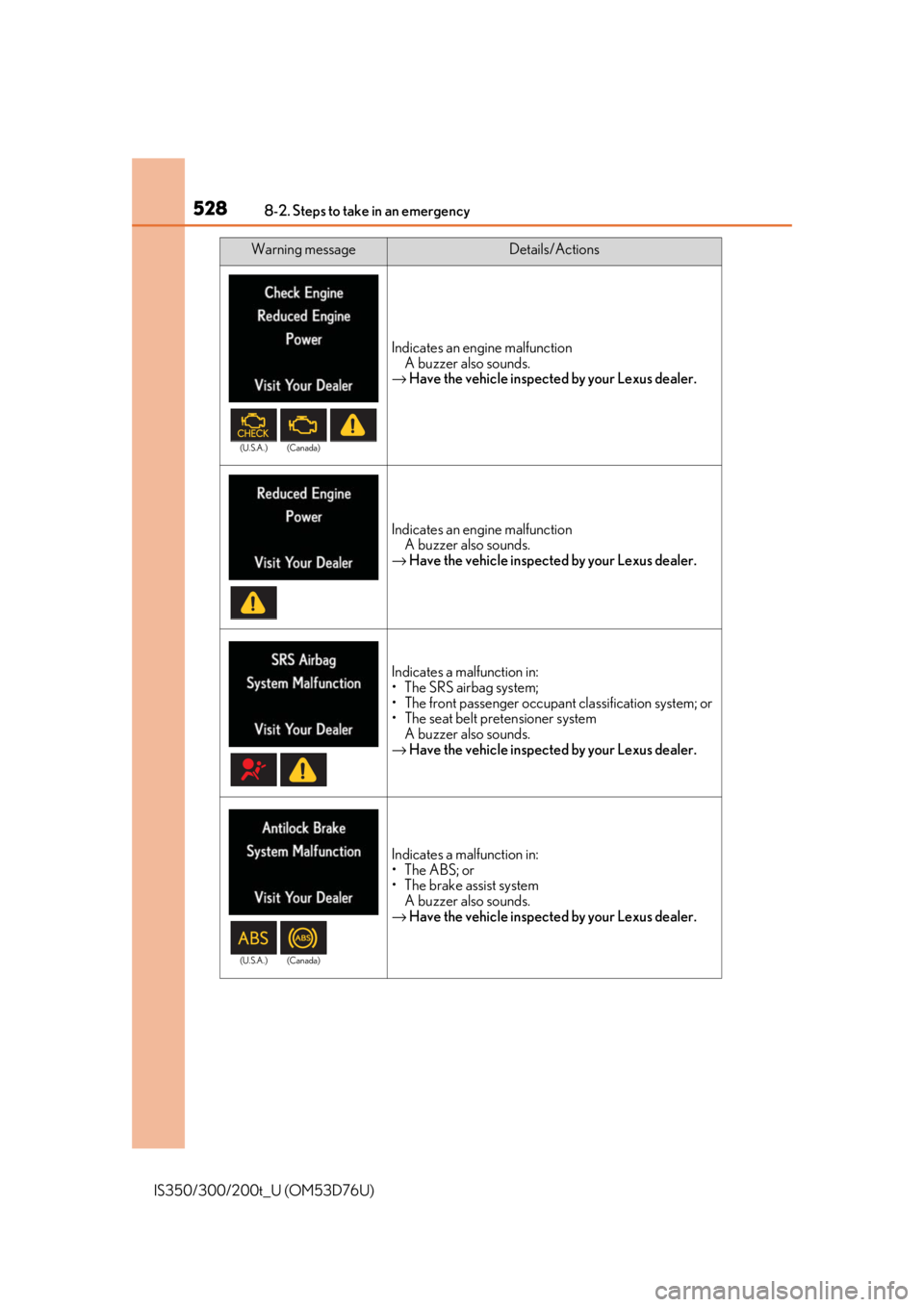

5288-2. Steps to take in an emergency
IS350/300/200t_U (OM53D76U)
Indicates an engine malfunctionA buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates an engine malfunction
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates a malfunction in:
• The ABS; or
• The brake assist system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Warning messageDetails/Actions
(U.S.A.) (Canada)
(U.S.A.) (Canada)

5298-2. Steps to take in an emergency
8
When trouble arises
IS350/300/200t_U (OM53D76U)
Indicates that the engine coolant temperature is too highA buzzer also sounds.
→ P. 566
Indicates a malfunction in the vehicle’s charging system.
→Immediately stop the vehicle in a safe place and
contact your Lexus dealer. Continuing to drive the
vehicle may be dangerous.
Indicates that the radar sensor is dirty or covered with
ice
A buzzer also sounds.
→ Clean the sensor.
Warning messageDetails/Actions
(F SPORT
models)

5308-2. Steps to take in an emergency
IS350/300/200t_U (OM53D76U)
Indicates that the dynamic radar cruise control system
cannot be used temporarily due to bad weatherA buzzer also sounds.
→ Use the dynamic radar cruise control system when
it becomes available again.
Indicates a malfunction in the smart access system with
push-button start
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the sur-
rounding area on the bumper is dirty or covered with ice
A buzzer also sounds.
→ Clean off the dirt, snow, ice, etc. and drive the vehi-
cle with the operation conditions of the BSM func-
tion ( →P. 278) satisfied for approximately 10
minutes. If the warning me ssage does not disappear,
the sensor may be misaligned. Have the vehicle
inspected by your Lexus dealer.
Indicates a malfunction in the dynamic radar cruise con-
trol system
Press the “ON/OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Warning messageDetails/Actions
