Lexus IS300 2017 Owner's Manual / LEXUS 2017 IS200T,IS300,IS350 OWNER'S MANUAL (OM53D76U)

5318-2. Steps to take in an emergency
8
When trouble arises
IS350/300/200t_U (OM53D76U)
Indicates a malfunction in the LDA (Lane Departure
Alert with steering control) systemA buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
The operation conditions of the camera sensor (tem-
perature, etc.) are not met.
→When the operation conditions of the camera sen-
sor (temperature, etc.) are met, the following sys-
tems will become available.
• PCS (Pre-Collision System)
• LDA (Lane Departure Alert with steering control) system
•Automatic High Beam
Indicates that the system is temporarily unavailable due
to a malfunction in a sensor other than the camera sen-
sor
A buzzer also sounds.
→ Turn the LDA (Lane Departure Alert with steering
control) system off, wait for a little while, and then
turn the LDA (Lane Depart ure Alert with steering
control) system back on.
Dirt, rain, condensation, ice, snow, etc., are present on
the windshield in front of the camera sensor. The following systems will be temporarily unusable.
• PCS (Pre-Collision System)
• LDA (Lane Departure Alert with steering control) system
•Automatic High Beam
→ Turn the system off, remove any dirt, rain, condensa-
tion, ice, snow, etc., from the windshield, and then
turn the system back on.
Warning messageDetails/Actions
(Flashes)
(Flashes)

5328-2. Steps to take in an emergency
IS350/300/200t_U (OM53D76U)
Indicates a malfunction in the PCS (Pre-Collision Sys-
tem)A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates abnormal engine oil pressure
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place and
contact your Lexus dealer.
Warning messageDetails/Actions
(Flashes)

5338-2. Steps to take in an emergency
8
When trouble arises
IS350/300/200t_U (OM53D76U)
Indicates that the automatic transmission fluid tempera-
ture is too highA buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
(AWD models)
Indicates a malfunctio n in the AWD system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates that the LDA (Lane Departure Alert with steer-
ing control) system cannot be used as the vehicle speed
is approximately 32 mph (50 km/h) or less
→ Drive the vehicle at approximately 32 mph
(50 km/h) or more.
Indicates that LDA (Lane Departure Alert with steering
control) system cannot be used due to the vehicle speed
being too high
→Slow down.
Indicates that the engine was stopped while driving
A buzzer also sounds.
→ Operate the steering wheel with more force than
usual.
Warning messageDetails/Actions

5348-2. Steps to take in an emergency
IS350/300/200t_U (OM53D76U)

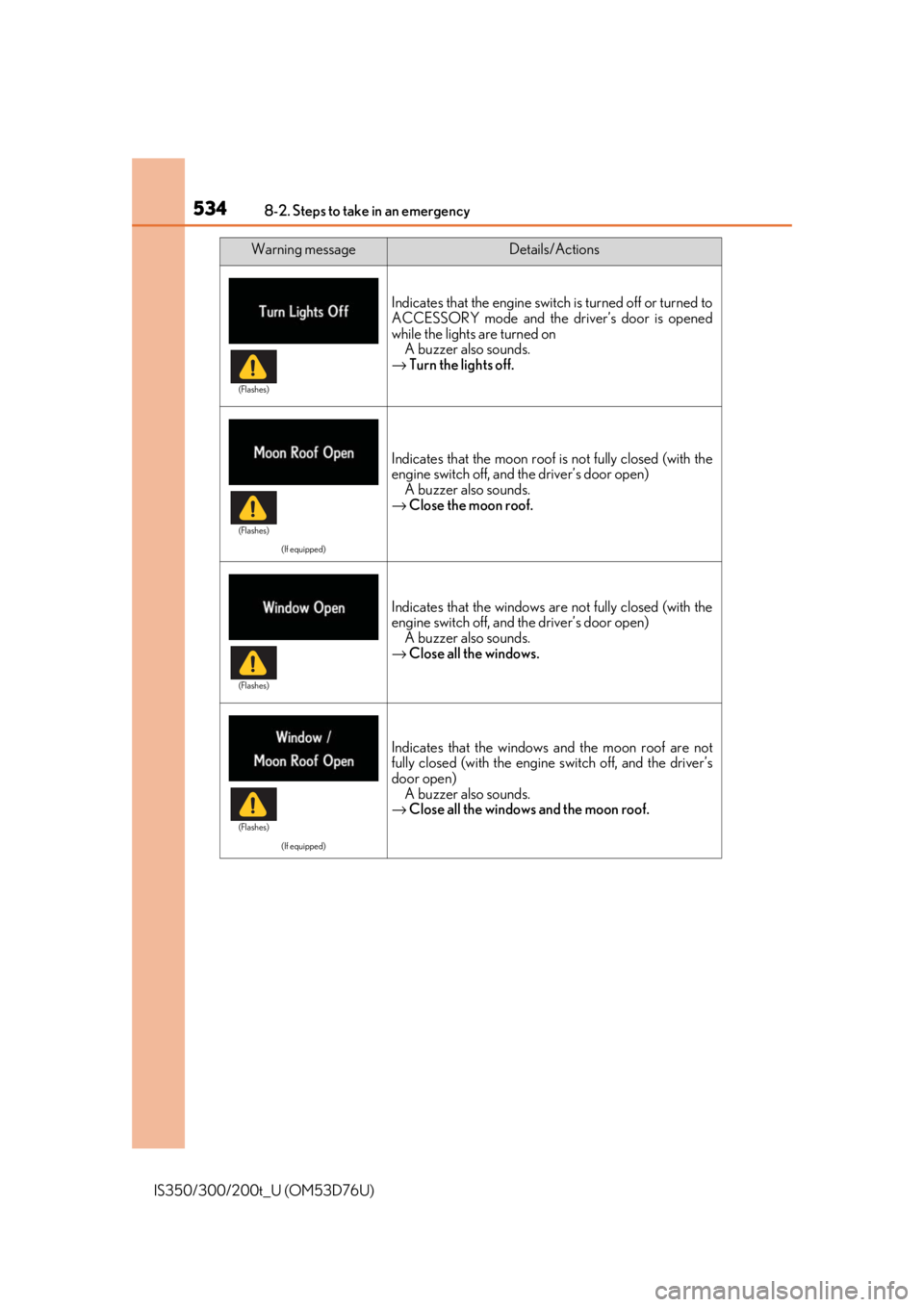

Indicates that the engine switch is turned off or turned to
ACCESSORY mode and the driver’s door is opened
while the lights are turned onA buzzer also sounds.
→ Turn the lights off.
(If equipped)
Indicates that the moon roof is not fully closed (with the
engine switch off, and the driver’s door open)
A buzzer also sounds.
→ Close the moon roof.
Indicates that the windows are not fully closed (with the
engine switch off, and the driver’s door open)
A buzzer also sounds.
→ Close all the windows.
(If equipped)
Indicates that the windows and the moon roof are not
fully closed (with the engine switch off, and the driver’s
door open)
A buzzer also sounds.
→ Close all the windows and the moon roof.
Warning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)
(Flashes)

5358-2. Steps to take in an emergency
8
When trouble arises
IS350/300/200t_U (OM53D76U)
(IS200t)

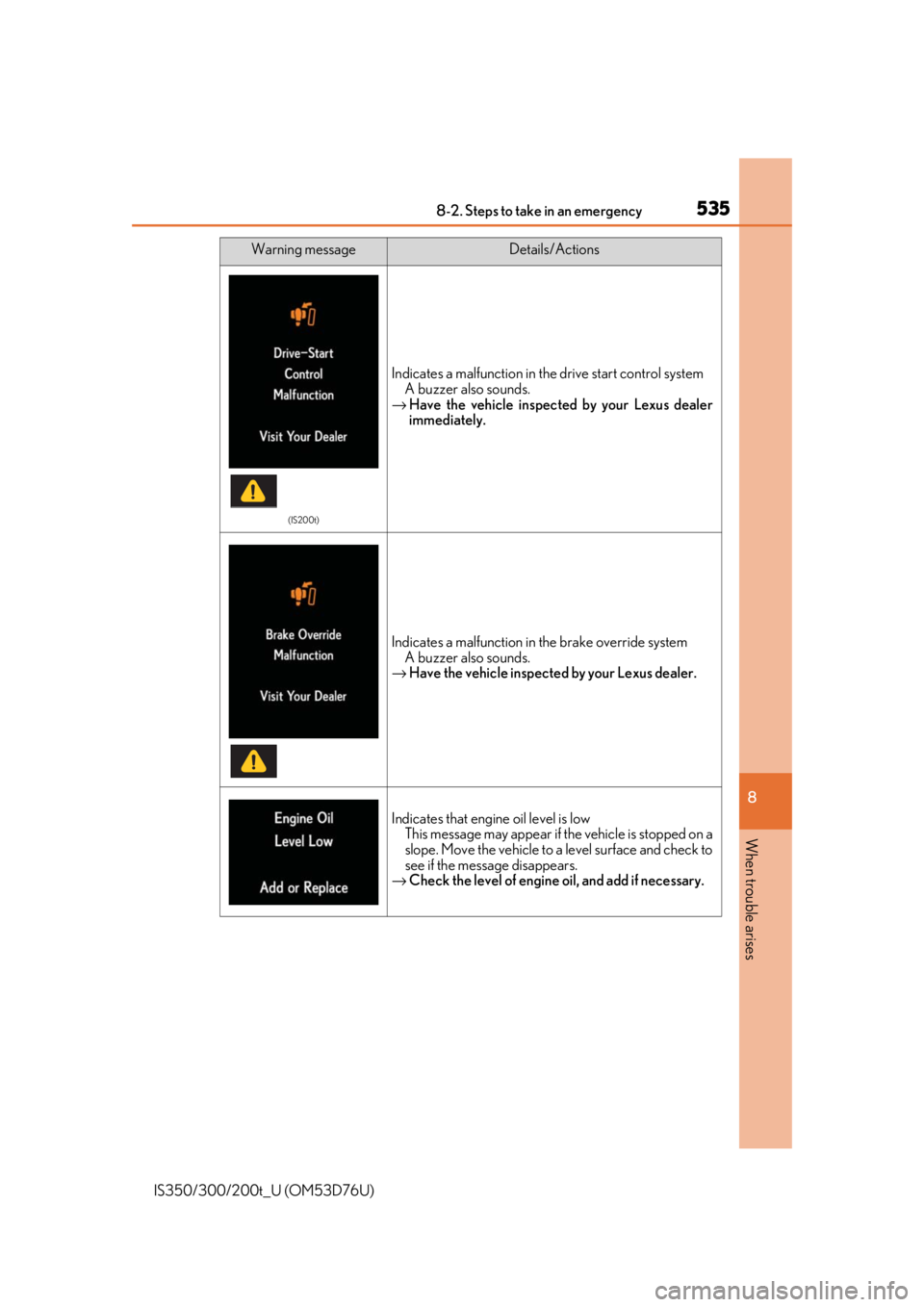

Indicates a malfunction in the drive start control systemA buzzer also sounds.
→ Have the vehicle inspecte d by your Lexus dealer
immediately.
Indicates a malfunction in the brake override system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates that engine oil level is low
This message may ap pear if the vehicle is stopped on a
slope. Move the vehicle to a level surface and check to
see if the message disappears.
→ Check the level of engine oil, and add if necessary.
Warning messageDetails/Actions

5368-2. Steps to take in an emergency
IS350/300/200t_U (OM53D76U)

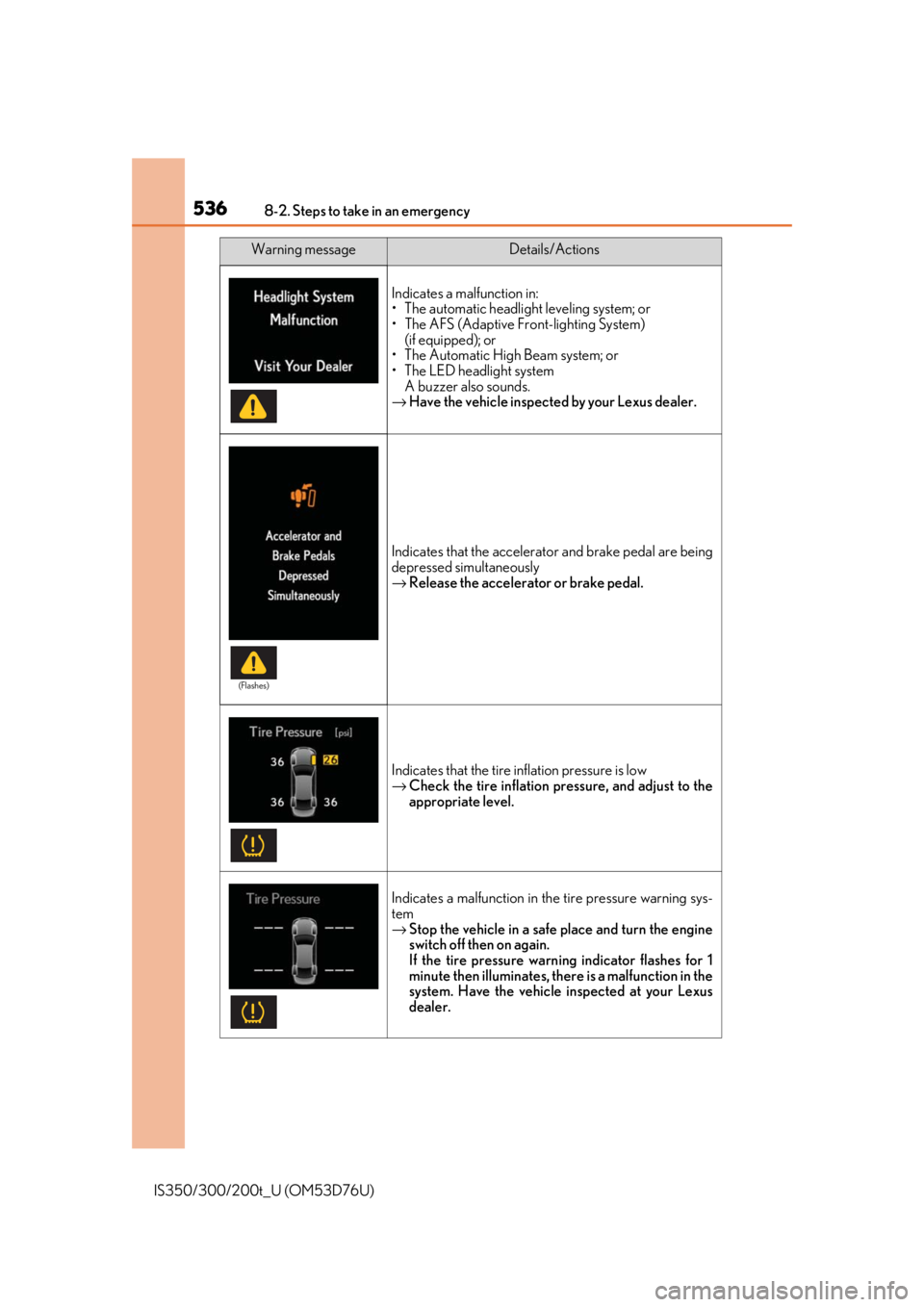

Indicates a malfunction in:
• The automatic headlight leveling system; or
• The AFS (Adaptive Front-lighting System) (if equipped); or
• The Automatic High Beam system; or
• The LED headlight system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates that the accelerato r and brake pedal are being
depressed simultaneously
→ Release the accelerator or brake pedal.
Indicates that the tire in flation pressure is low
→ Check the tire inflation pressure, and adjust to the
appropriate level.
Indicates a malfunction in the tire pressure warning sys-
tem
→Stop the vehicle in a safe place and turn the engine
switch off then on again.
If the tire pressure warn ing indicator flashes for 1
minute then illuminates, ther e is a malfunction in the
system. Have the vehicle inspected at your Lexus
dealer.
Warning messageDetails/Actions
(Flashes)

5378-2. Steps to take in an emergency
8
When trouble arises
IS350/300/200t_U (OM53D76U)

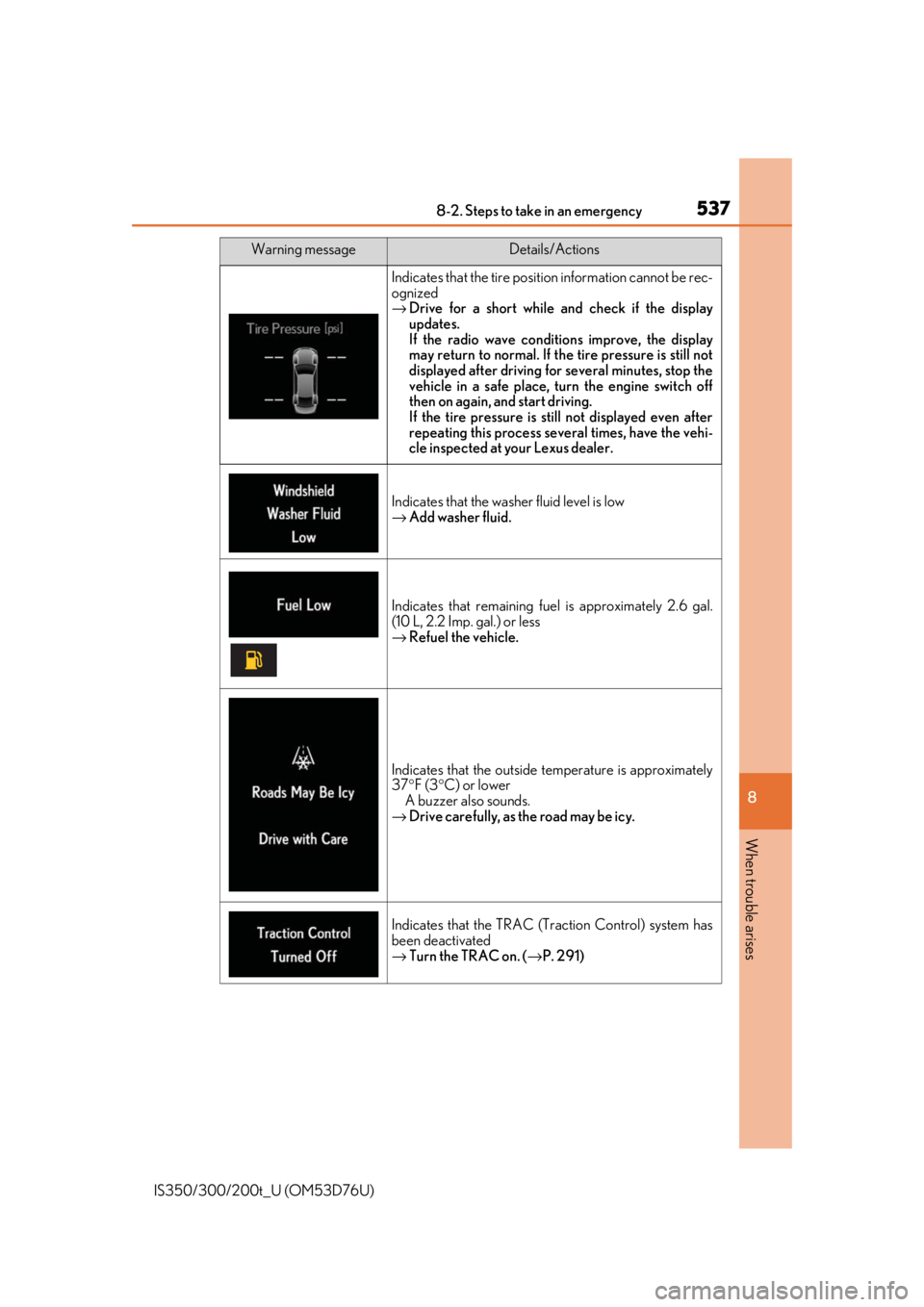

Indicates that the tire position information cannot be rec-
ognized
→Drive for a short while an d check if the display
updates.
If the radio wave conditions improve, the display
may return to normal. If th e tire pressure is still not
displayed after driving for several minutes, stop the
vehicle in a safe place, turn the engine switch off
then on again, and start driving.
If the tire pressure is st ill not displayed even after
repeating this process seve ral times, have the vehi-
cle inspected at your Lexus dealer.
Indicates that the washer fluid level is low
→ Add washer fluid.
Indicates that remaining fuel is approximately 2.6 gal.
(10 L, 2.2 Imp. gal.) or less
→Refuel the vehicle.
Indicates that the outside temperature is approximately
37° F (3 °C) or lower
A buzzer also sounds.
→ Drive carefully, as the road may be icy.
Indicates that the TRAC (Traction Control) system has
been deactivated
→Turn the TRAC on. ( →P. 291)
Warning messageDetails/Actions

5388-2. Steps to take in an emergency
IS350/300/200t_U (OM53D76U)
(If equipped)

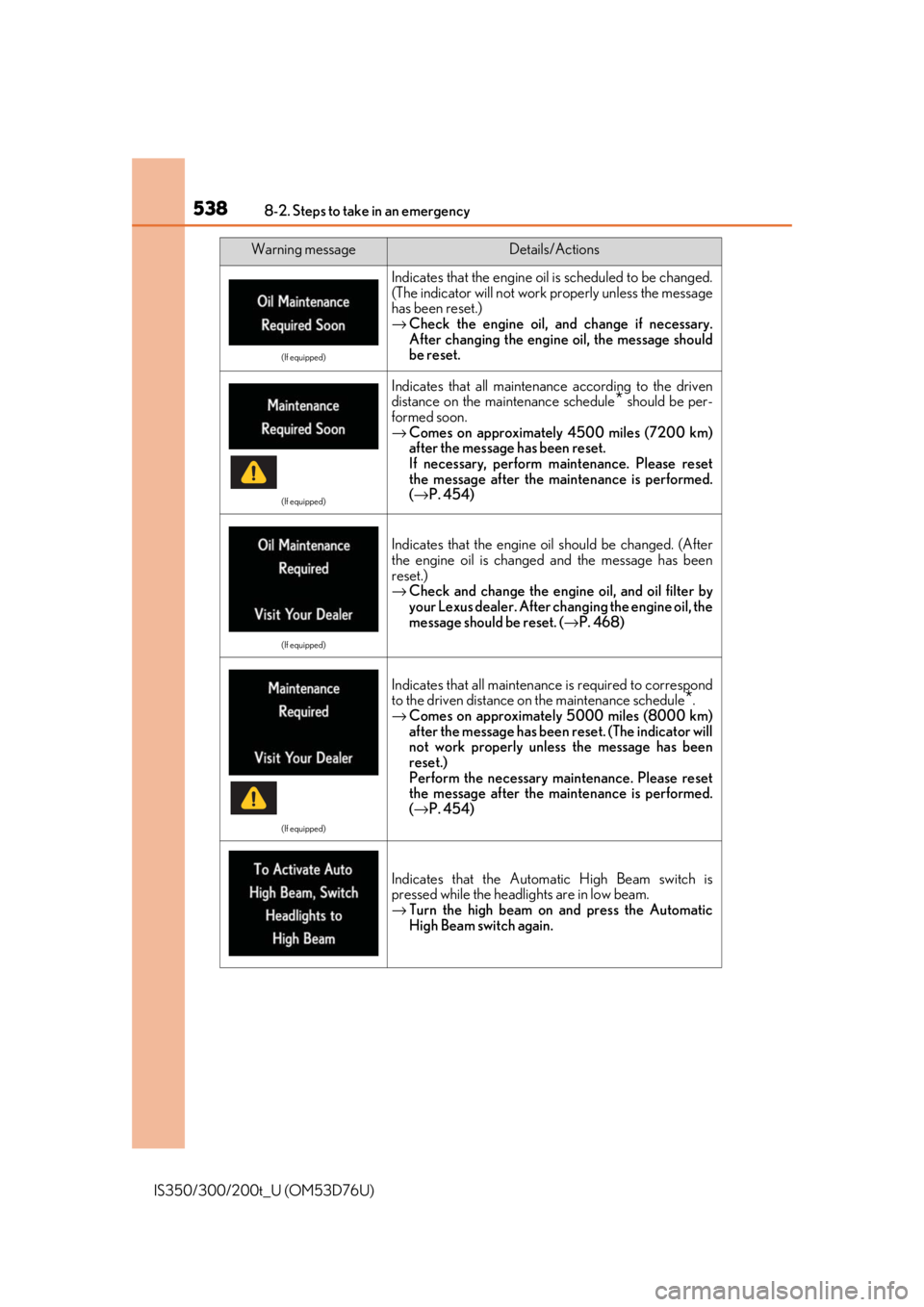

Indicates that the engine oil is scheduled to be changed.
(The indicator will not work properly unless the message
has been reset.)
→Check the engine oil, and change if necessary.
After changing the engine oil, the message should
be reset.
(If equipped)
Indicates that all maintenance according to the driven
distance on the maintenance schedule* should be per-
formed soon.
→ Comes on approximately 4500 miles (7200 km)
after the message has been reset.
If necessary, perform maintenance. Please reset
the message after the maintenance is performed.
(→ P. 454)
(If equipped)
Indicates that the engine oil should be changed. (After
the engine oil is changed and the message has been
reset.)
→ Check and change the engine oil, and oil filter by
your Lexus dealer. After chan ging the engine oil, the
message should be reset. ( →P. 468)
(If equipped)
Indicates that all maintenanc e is required to correspond
to the driven distance on the maintenance schedule
*.
→ Comes on approximately 5000 miles (8000 km)
after the message has been reset. (The indicator will
not work properly unless the message has been
reset.)
Perform the necessary maintenance. Please reset
the message after the maintenance is performed.
(→ P. 454)
Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.
→ Turn the high beam on and press the Automatic
High Beam switch again.
Warning messageDetails/Actions

5398-2. Steps to take in an emergency
8
When trouble arises
IS350/300/200t_U (OM53D76U)
Indicates that, since the VSC (Vehicle Stability Control)
system was turned off, the pre-collision braking and pre-
collision brake assist are stopped (The pre-collision
warning function will be operational)
→ Turn the VSC on. ( →P. 291)
Indicates that the PCS (Pre -Collision System) is tempo-
rarily unavailable
→ When conditions improve, the system resumes
operation. If this message is displayed continuously,
have the vehicle inspected by your Lexus dealer.
Indicates that operation of large electricity consuming
systems such as the air conditioning system are sus-
pended
→ Stop using unnecessary electric components to
reduce electricity consumpt ion. Wait a while until
the electric power supply is restored.
If this message is freque ntly displayed, have the
vehicle inspected at your Lexus dealer immediately.
Indicates that the PCS (Pre -Collision System) is tempo-
rarily unavailable
→ When conditions improve, the system resumes
operation. If this message is displayed continuously,
have the vehicle inspected by your Lexus dealer.
Warning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

5408-2. Steps to take in an emergency
IS350/300/200t_U (OM53D76U)
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supplement”
for the maintenance interval applicable to your vehicle.
■Warning messages
The warning message illustrations used are intended as examples, and may differ from
the image that is actually displaye d on the multi-information display.
■Warning message in radar cruise mode
In the following situations, the warning message may not be displayed even if vehicle-to-
vehicle distance decreases:
●When the speed of the preceding vehicle matches or exceeds your vehicle speed
●When the preceding vehicle is traveling at an extremely slow speed
●Immediately after the cruise control speed was set
●At the instant the accelerator pedal is depressed
■The LDA (Lane Departure Alert with steering control) lane departure warning func-
tion
In the following situations, th e warning message will not be displayed even if a lane line is
crossed.
●When the vehicle speed deviates from the operating range of the LDA system func-
tions ( →P. 232)
●When the lane lines cannot be recognized ( →P. 234)
■Resetting the message indicating ma intenance is required (if equipped)
Make sure to reset the oil change system. ( →P. 454, 468)
■Conditions that the tire pressure wa rning system may not function properly
→ P. 481
■Warning buzzer
→P. 520
Indicates that part of th e PCS (Pre-Collision System)
sensor is dirty, covered with ice, etc.
→ Remove any dirt, ice, etc.
Warning messageDetails/Actions
(Flashes)
