811-3. Theft deterrent system
1
For safety and security
IS350 AWD/IS350/IS300 AWD/IS300_U
These labels are attached to the vehicle
to reduce vehicle theft by facilitating
the tracing and recovery of parts from
stolen vehicles. Do not remove under
penalty of law.
Theft prevention labels (for U.S.A.)

821-3. Theft deterrent system
IS350 AWD/IS350/IS300 AWD/IS300_U

83
Instrument cluster2
IS350 AWD/IS350/IS300 AWD/IS300_U
2. Instrument clusterWarning lights and indicators ....................................... 84
Gauges and meters .....................89
Multi-information display .......... 94
Fuel consumption information .................................... 111

84
IS350 AWD/IS350/IS300 AWD/IS300_U2. Instrument cluster
Except F SPORT models
F SPORT models
The units used on the meters and some indi
cators may differ depending on the target
region.

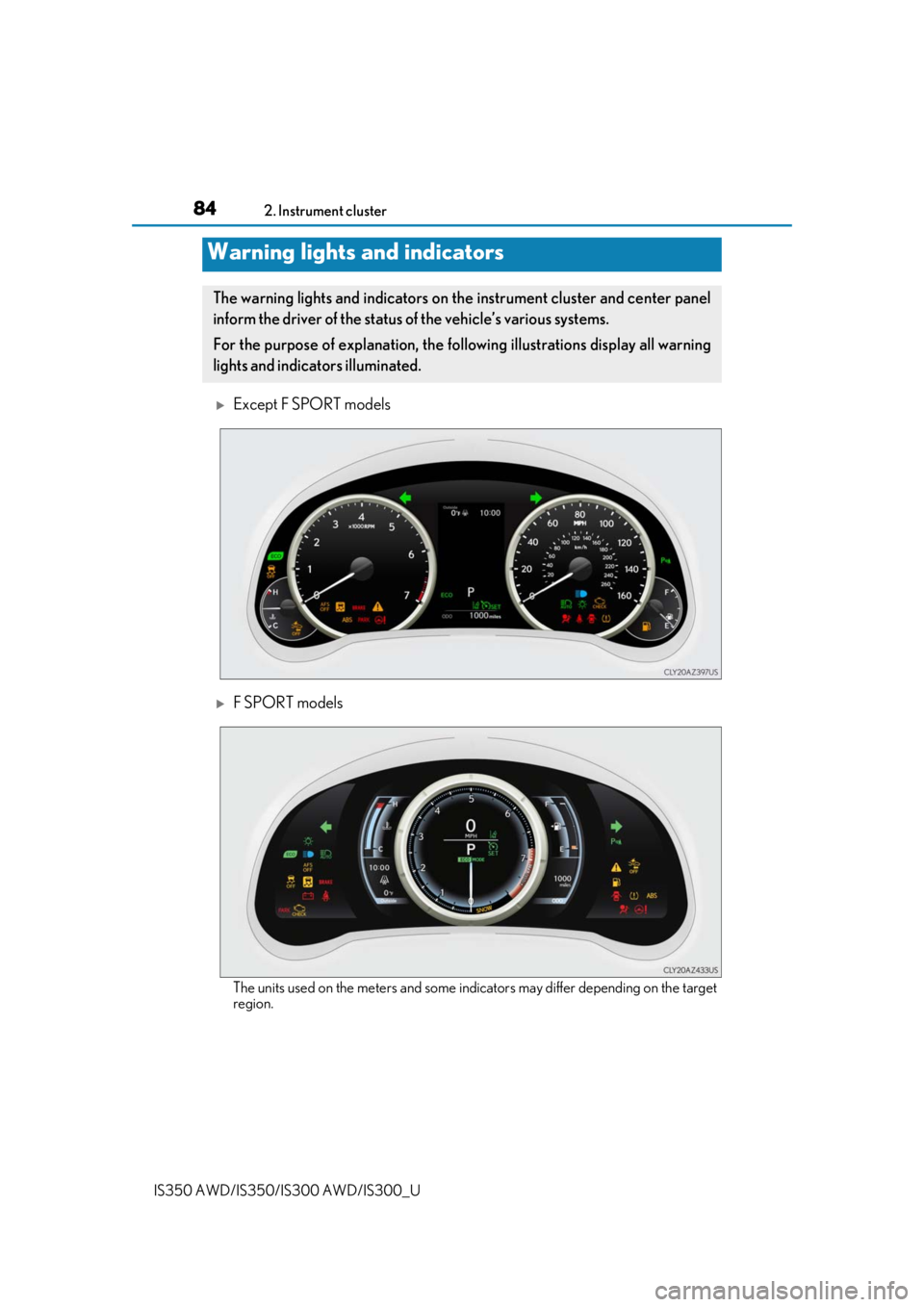

Warning lights and indicators
The warning lights and indicators on th e instrument cluster and center panel
inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.

852. Instrument cluster
2
Instrument cluster
IS350 AWD/IS350/IS300 AWD/IS300_U
Warning lights inform the driver of malfunctions in the indicated vehicle systems.

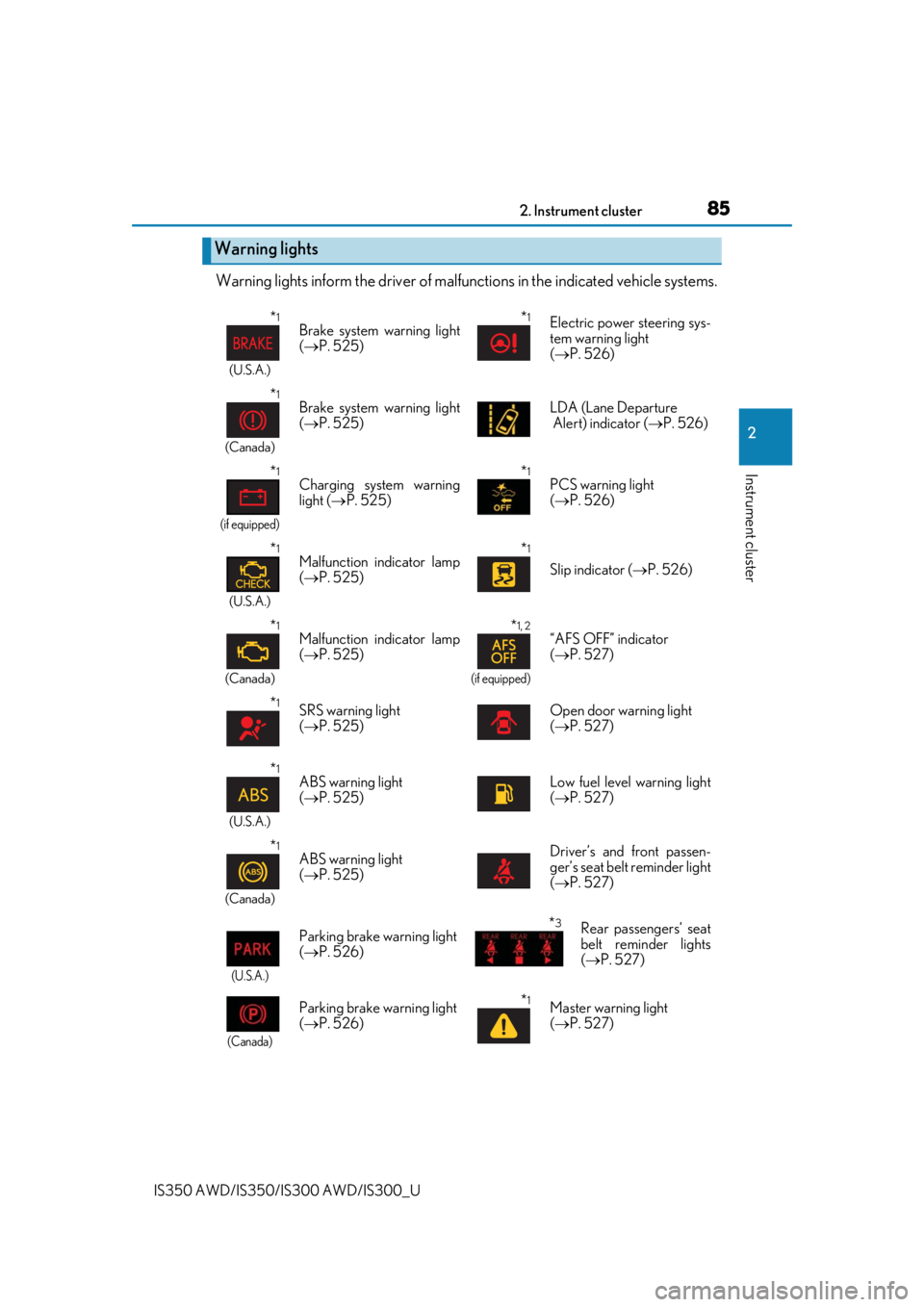

Warning lights
*1
(U.S.A.)
Brake system warning light
( P. 525)*1Electric power steering sys-
tem warning light
( P. 526)
*1
(Canada)
Brake system warning light
( P. 525) LDA (Lane Departure
Alert) indicator (
P. 526)
*1
(if equipped)
Charging system warning
light ( P. 525)*1PCS warning light
( P. 526)
*1
(U.S.A.)
Malfunction indicator lamp
( P. 525)*1
Slip indicator ( P. 526)
*1
(Canada)
Malfunction indicator lamp
( P. 525)*1, 2
(if equipped)
“AFS OFF” indicator
( P. 527)
*1SRS warning light
( P. 525)Open door warning light
( P. 527)
*1
(U.S.A.)
ABS warning light
( P. 525)Low fuel level warning light
( P. 527)
*1
(Canada)
ABS warning light
( P. 525)Driver’s and front passen-
ger’s seat belt reminder light
( P. 527)
(U.S.A.)
Parking brake warning light
( P. 526)*3Rear passengers’ seat
belt reminder lights
( P. 527)
(Canada)
Parking brake warning light
( P. 526)*1Master warning light
( P. 527)

862. Instrument cluster
IS350 AWD/IS350/IS300 AWD/IS300_U
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to indicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the ve hicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
*3: This light illuminates on the center panel.
The indicators inform the driver of the op erating state of the vehicle’s various sys-
tems.
*1Tire pressure warning light
(  P. 527)
Indicators
Turn signal indicator
( P. 198) LDA (Lane Departure
Alert) indicator (
P. 240)
(U.S.A.)
Headlight indicator
( P. 202) LDA (Lane Departure
Alert) indicator (
P. 240)
(Canada)
Tail light indicator
( P. 202) *2LDA (Lane Departure
Alert) indicator ( P. 240)
Headlight high beam indi-
cator ( P. 203)
(if equipped)
Intuitive parkin g assist indi-
cator ( P. 260)
*1Automatic High Beam indi-
cator ( P. 206)*1, 2
Slip indicator ( P. 302)
Cruise control indicator
(  P. 248)
*1VSC OFF indicator
( P. 303)
Dynamic radar cruise con-
trol indicator ( P. 248)
*1, 3PCS warning light
( P. 233)
Cruise control “SET” indica-
tor ( P. 248)
*1
(if equipped)
“AFS OFF” indicator
( P. 203)

872. Instrument cluster
2
Instrument cluster
IS350 AWD/IS350/IS300 AWD/IS300_U
*1: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the ve hicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off.
*4, 5
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators (P. 285)*9
(if equipped)
“SPORT” indicator
( P. 297)
*6Security indicator
( P. 76, 78)*9
(if equipped)
“SPORT S” indicator
( P. 297)
*7Low outside temperature
indicator ( P. 89)*9
(if equipped)
“SPORT S+” indicator
( P. 297)
*1Eco Driving Indicator Light
( P. 109)*9
(if equipped)
“CUSTOMIZE” indicator
( P. 297)
*8Eco drive mode indicator
( P. 297) Snow mode indicator
(
 P. 192)
*9Eco drive mode indicator
( P. 297)*1, 6
(U.S.A.)
“AIR BAG ON/OFF”
indicator ( P. 46)
*8“SPORT” indicator
( P. 297)*1, 6
(Canada)
“AIR BAG ON/OFF”
indicator ( P. 46)

882. Instrument cluster
IS350 AWD/IS350/IS300 AWD/IS300_U
*4: In order to confirm operation, the BSM ou tside rear view mirror indicators illuminate
in the following situations:
• When the engine switch is turned to IGNITION ON mode while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the engine switch is in IGNITION
ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators will
turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*5: This light illuminates on the outside rear view mirrors.
*6: This light illuminates on the center panel.
*7: When the outside temperature is approximately 37 F (3 C) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
*8: Except F SPORT models
*9: F SPORT models
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when
you start the engine, this could mean that these systems are not available to help pro-
tect you in an accident, which could result in death or serious injury. Have the vehicle
inspected by your Lexus dealer immediately if this occurs.

892. Instrument cluster
2
Instrument cluster
IS350 AWD/IS350/IS300 AWD/IS300_U
◆Except F SPORT models
◆F SPORT models
When the main meter is moved to the right, some of the meter displays and
the gauge layout will change.
Main meter in center position

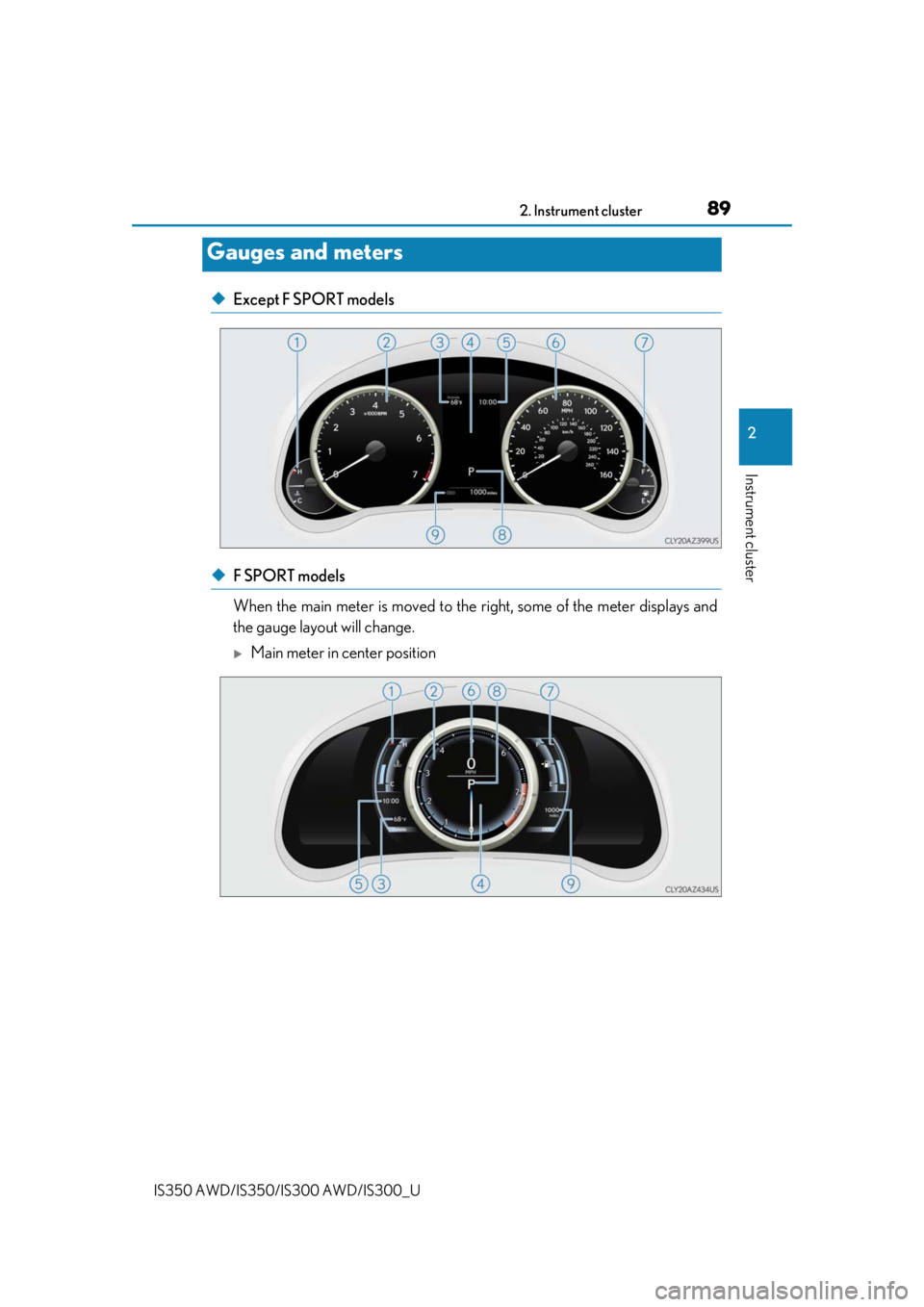

Gauges and meters

902. Instrument cluster
IS350 AWD/IS350/IS300 AWD/IS300_U
Main meter moved to the right
The units used on the meters may differ depending on the target region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
F SPORT models: When sport mode is selected for the driving mode, the periph-
ery of the tachometer will change color and the scale of the tachometer will be
emphasized.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C). Low outside temperature indicator comes on when the ambient tempera-
ture is 37°F (3°C) or lower.
Multi-information display
Presents the driver with a variety of vehicle data ( P. 94)
Displays warning messages in case of a malfunction ( P. 532)
Clock
Time displayed on the clock can be adju sted on of the multi-information dis-
play. ( P. 103)
Speedometer
Fuel gauge
Shift position and gear position
( P. 191)
Odometer and trip meter display ( P. 108)
1
2
3
4
5
6
7
8
