display LEXUS IS300 2023 Owner's Guide

61
IS500_IS350_IS300_QG_U

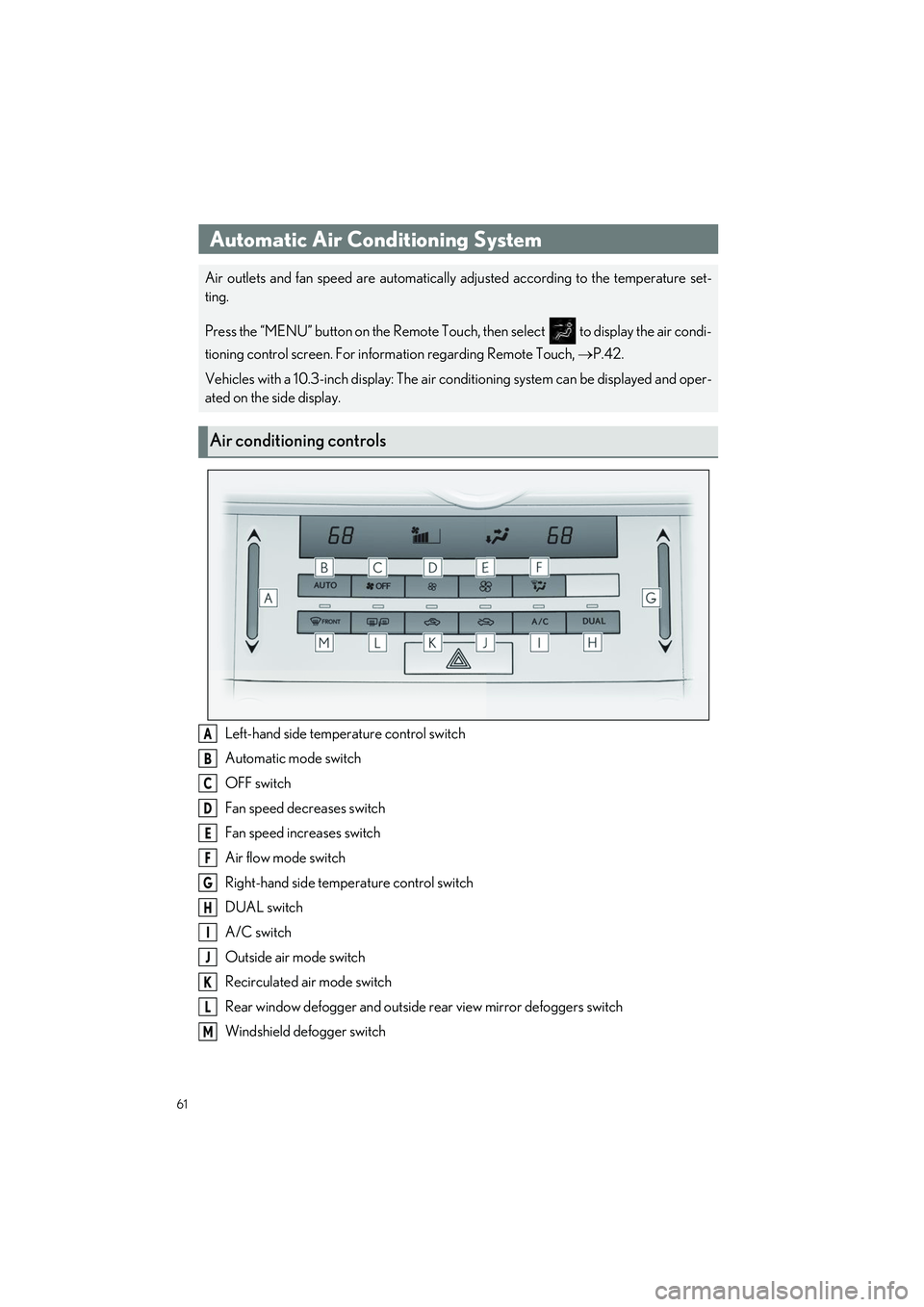

Left-hand side temperature control switch
Automatic mode switch
OFF switch
Fan speed decreases switch
Fan speed increases switch
Air flow mode switch
Right-hand side temperature control switch
DUAL switch
A/C switch
Outside air mode switch
Recirculated air mode switch
Rear window defogger and outside rear view mirror defoggers switch
Windshield defogger switch
Automatic Air Conditioning System
Air outlets and fan speed are automatically adjusted according to the temperature set-
ting.
Press the “MENU” button on the Remote Touch, then select to display the air condi-
tioning control screen. For information regarding Remote Touch, P.42.
Vehicles with a 10.3-inch display: The air co nditioning system can be displayed and oper-
ated on the side display.
Air conditioning controls
A
B
C
D
E
F
G
H
I
J
K
L
M

63
IS500_IS350_IS300_QG_U

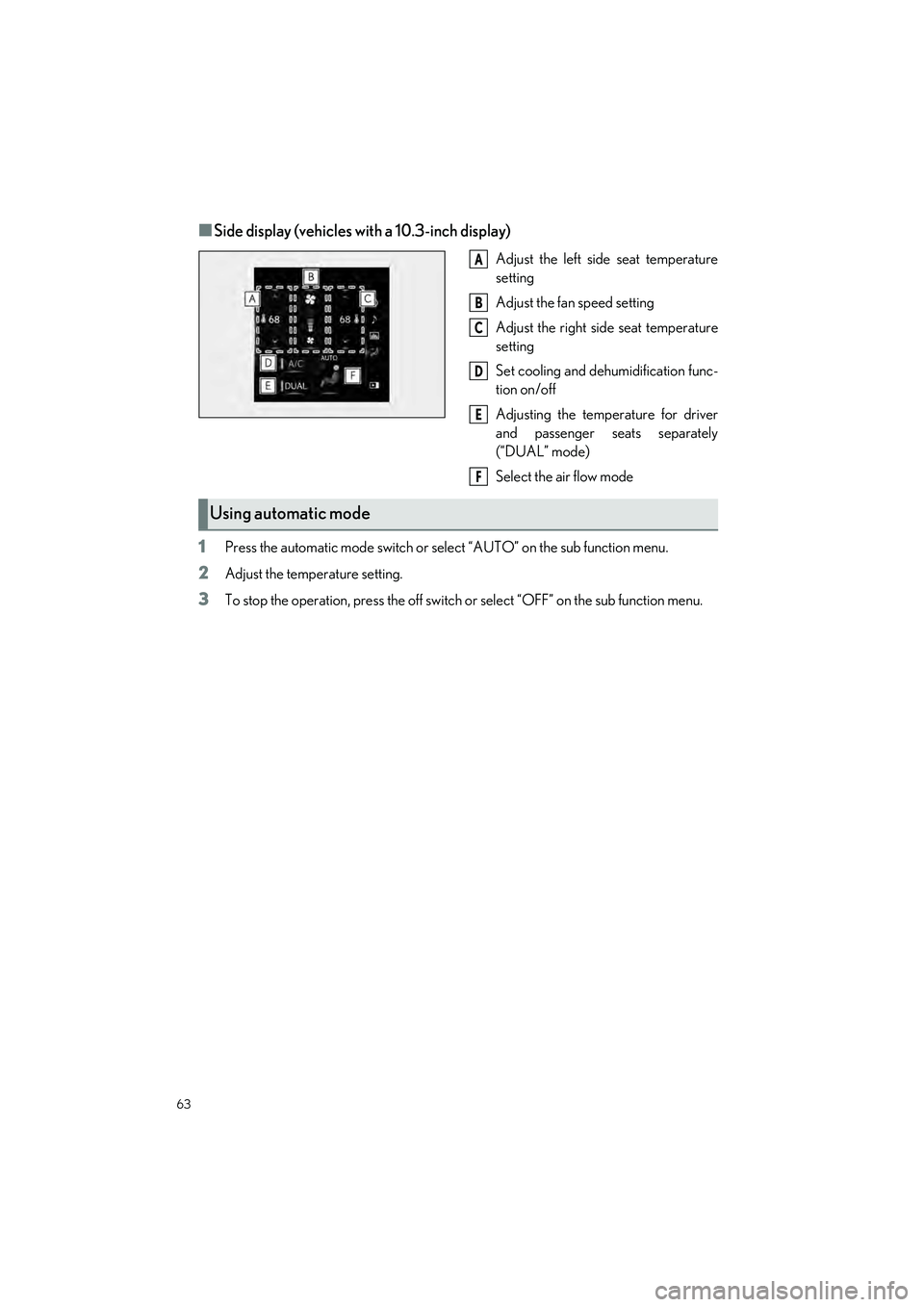

■Side display (vehicles with a 10.3-inch display)
Adjust the left side seat temperature
setting
Adjust the fan speed setting
Adjust the right side seat temperature
setting
Set cooling and dehumidification func-
tion on/off
Adjusting the temperature for driver
and passenger seats separately
(“DUAL” mode)
Select the air flow mode
1Press the automatic mode switch or sele ct “AUTO” on the sub function menu.
2Adjust the temperature setting.
3To stop the operation, press the off switch or select “OFF” on the sub function menu.
A
B
C
D
E
F
Using automatic mode

64
IS500_IS350_IS300_QG_U
1Press the talk switch on the steering
wheel.
Voice guidance for the voice com-
mand system can be skipped by press-
ing the talk switch.
2If “Getting Started with Voice” screen is disp layed, select “OK” or press the talk switch.
3After hearing a beep, say a supported command.
●To display sample commands of the desired function, say the desired function or
select the desired function button. To display more commands, select “More Com-
mands”.
● Selecting “Help” or saying “Help” prom pts the voice command system to offer
examples of commands and operation methods.
Continue on to pages 65-70 for a detailed lis t of Voice Commands for the following cate-
gories:
Common . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.65
Top menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.65
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.66
Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.67
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.68
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.68
Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.69
Apps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.69
Climate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.70
Voice Command System
Basic operation
NOTE: Wait for the confirmation beep before speaking a command.

65
IS500_IS350_IS300_QG_U

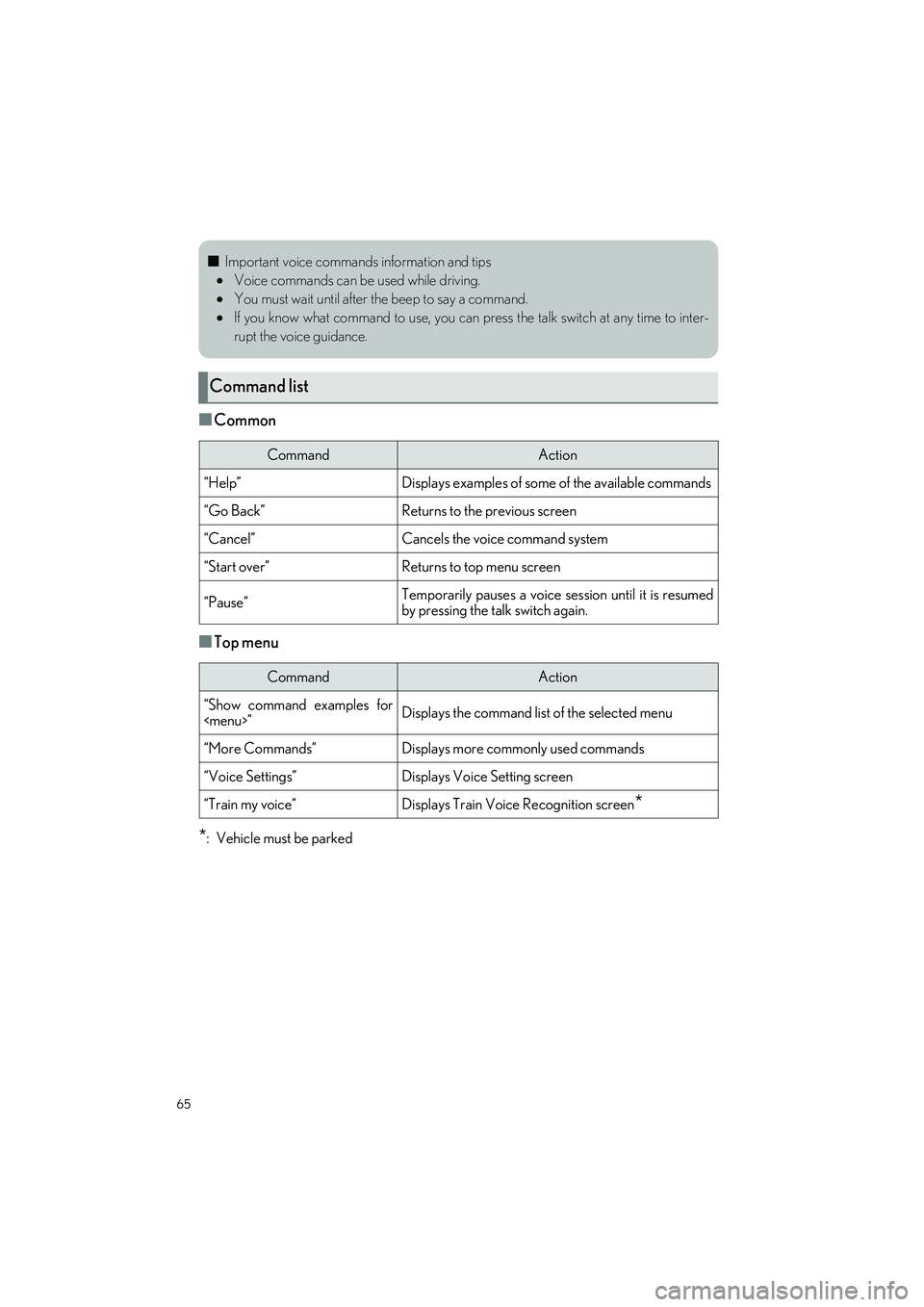

■Common
■Top menu
*: Vehicle must be parked
■Important voice commands information and tips
 Voice commands can be used while driving.
 You must wait until after the beep to say a command.
 If you know what command to use, you can pr ess the talk switch at any time to inter-
rupt the voice guidance.
Command list
CommandAction
“Help”Displays examples of some of the available commands
“Go Back”Returns to the previous screen
“Cancel”Cancels the voice command system
“Start over”Returns to top menu screen
“Pause”Temporarily pauses a voice session until it is resumed
by pressing the talk switch again.
CommandAction
“Show command examples for

66
IS500_IS350_IS300_QG_U
■Navigation*1
*1: With navigation function
*2: English and French only
*3: Best recognition results occur when saying the full address without the zipcode
*4: When the language is set to French, the supported area is only Quebec Province in
Canada
*5: For example; “Gas stations”, “Restaurants”, etc.
*6: Major national brands are always supporte d. Local brands are also supported with a
subscription to the Lexus Enform. Co ntact your Lexus dealer for details.
*7: Used when multiple destinations are set on a route
CommandAction
“Get directions to street, city, state>”
*2Enables setting a destination by saying the address*3, 4
“Find a name>”Displays a list of near
the current position
“Find a near my destina-
tion”Displays a list of near the destination
“Find a in a
city”*2Displays a list of in a specified city and state*4
“Go Home”Displays the route to home
“Go to Favorite <1-10>”Sets the location registered to the corresponding
favorite number as the destination
“Show Recent Destinations”
Displays recent destinations. Selecting a number from
the list will start navigation to the selected recent desti-
nation.
“Cancel Route”Cancels the route guidance
“Delete destinations”Displays a list of de stination to delete*7
“Show icons”Displays the specified po int of interest category*5
icons on the map
“Destination Assist”Connects the system to the Lexus response center

67
IS500_IS350_IS300_QG_U

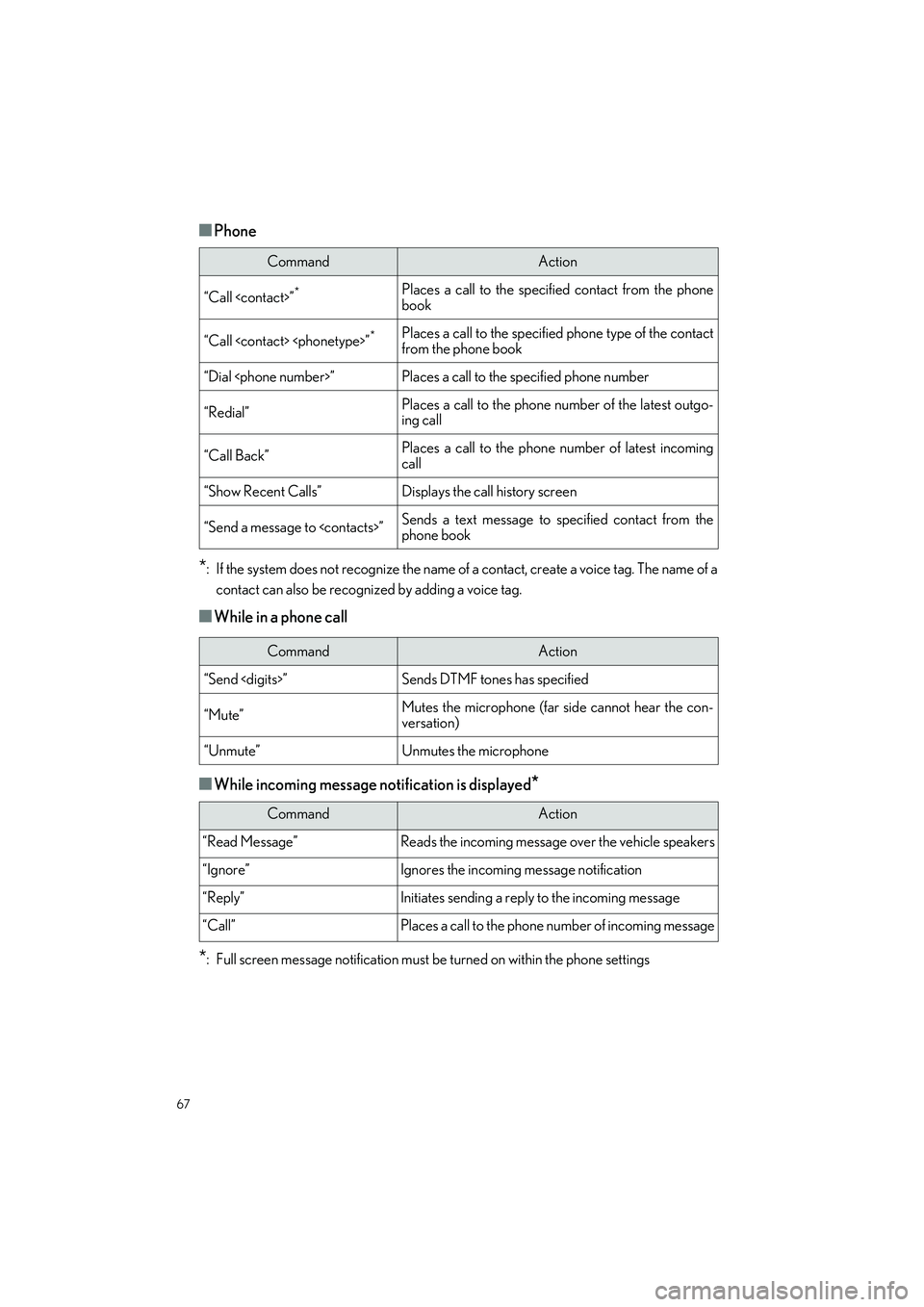

■Phone
*: If the system does not recognize the name of a contact, create a voice tag. The name of acontact can also be recognized by adding a voice tag.
■While in a phone call
■While incoming message notification is displayed*
*
: Full screen message notification must be turned on within the phone settings
CommandAction
“Call ”*Places a call to the specified contact from the phone
book
“Call ”*Places a call to the specified phone type of the contact
from the phone book
“Dial ”Places a call to the specified phone number
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent Calls”Displays the call history screen
“Send a message to ”Sends a text message to specified contact from the
phone book
CommandAction
“Send ”Sends DTMF tone s has specified
“Mute”Mutes the microphone (far side cannot hear the con-
versation)
“Unmute”Unmutes the microphone
CommandAction
“Read Message”Reads the incoming message over the vehicle speakers
“Ignore”Ignores the incoming message notification
“Reply”Initiates sending a reply to the incoming message
“Call”Places a call to the phone number of incoming message

69
IS500_IS350_IS300_QG_U
■Info*1
*1: With navigation function
*2: Only major US cities are supported by voice
■Apps
*: When an application is opened and is in full screen mode, pressing the talk switch will
start the voice command system and commands for the currently displayed application
will be available
CommandAction
“Get the Forecast”Displays weather information
“Get the Forecast for ”*2Displays weather for the specified city
“Show Traffic”Displays traffic information
“Show Traffic near here”Displays traffic information near your current location
“Get traffic along my route”Displays traffic information along your current route
“Show Traffic on this street”Displays traffic information along road you are cur-
rently driving on
“Show Traffic for saved route”Displays traffic information for a saved route
“Show Predictive Traffic”Displays the predictive traffic map
CommandAction
“Launch ”*Activates the Lexus Enform App Suite 2.0 application

70
IS500_IS350_IS300_QG_U
■Climate
*: Only within the possible temperature range of the air conditioning system
CommandAction
“Turn the AC on/Turn the AC off”Turns air conditioning system on or off
“Change the Fan speed to <#>”Changes the set fan speed of the air conditioning sys-
tem to <#>
“Set temperature to <#>
degrees”Changes the set temperature of the air conditioning
system to <#> degrees
*
“Increase Temperature/
Decrease Temperature”Increases or decreases the temperature of the air con-
ditioning system
“Increase Fan speed/Decrease
Fan Speed”Increases or decreases the fan speed of the air condi-
tioning system
“Show the front climate control
screen”Displays the screen to cont rol the air conditioning or
seat heating system

What to do if...
91
IS500_IS350_IS300_QG_U
1Ensure that the shift lever is in P and
depress the brake pedal.
2Touch the Lexus emblem side of the
electronic key to the engine switch.
When the electronic key is detected, a
buzzer sounds and the engine switch
will turn to IGNITION ON mode.
When the smart access system with
push-button start is deactivated in
customization sett ing, the engine
switch will turn to ACCESSORY
mode.
3Firmly depress the brake pedal and check th at is shown on the multi-information
display.
4Press the engine switch.
In the event that the engine still cannot be started, contact your Lexus dealer.
Starting the engine
If the electronic key battery becomes deplet ed, a warning message will be shown on the
multi-information display. Replac e the battery with a new one. For instructions on replacing
the battery, refer to the “OWNER’S MANUAL”.
If you need further assistance , contact your Lexus dealer.
