display LEXUS IS300 2023 Owner's Manual

49
IS500_IS350_IS300_QG_U
■Searching by point of interest
There are 3 methods to search for a destination by Point of Interest.
1Display the destination search screen by either operation:
● “MAP” button 
● “MENU” button  “Destination”
2Select “Point of Interest”.
3Select the desired search method.
Select to change the search area.
Select to search by name.
Select to search by category.
Select to search by phone number.
 Searching by name ( )
4Select “Name”.
5Enter a POI name and select “Search”.
6Select the desired POI.
A
B
C
D
B

50
IS500_IS350_IS300_QG_U

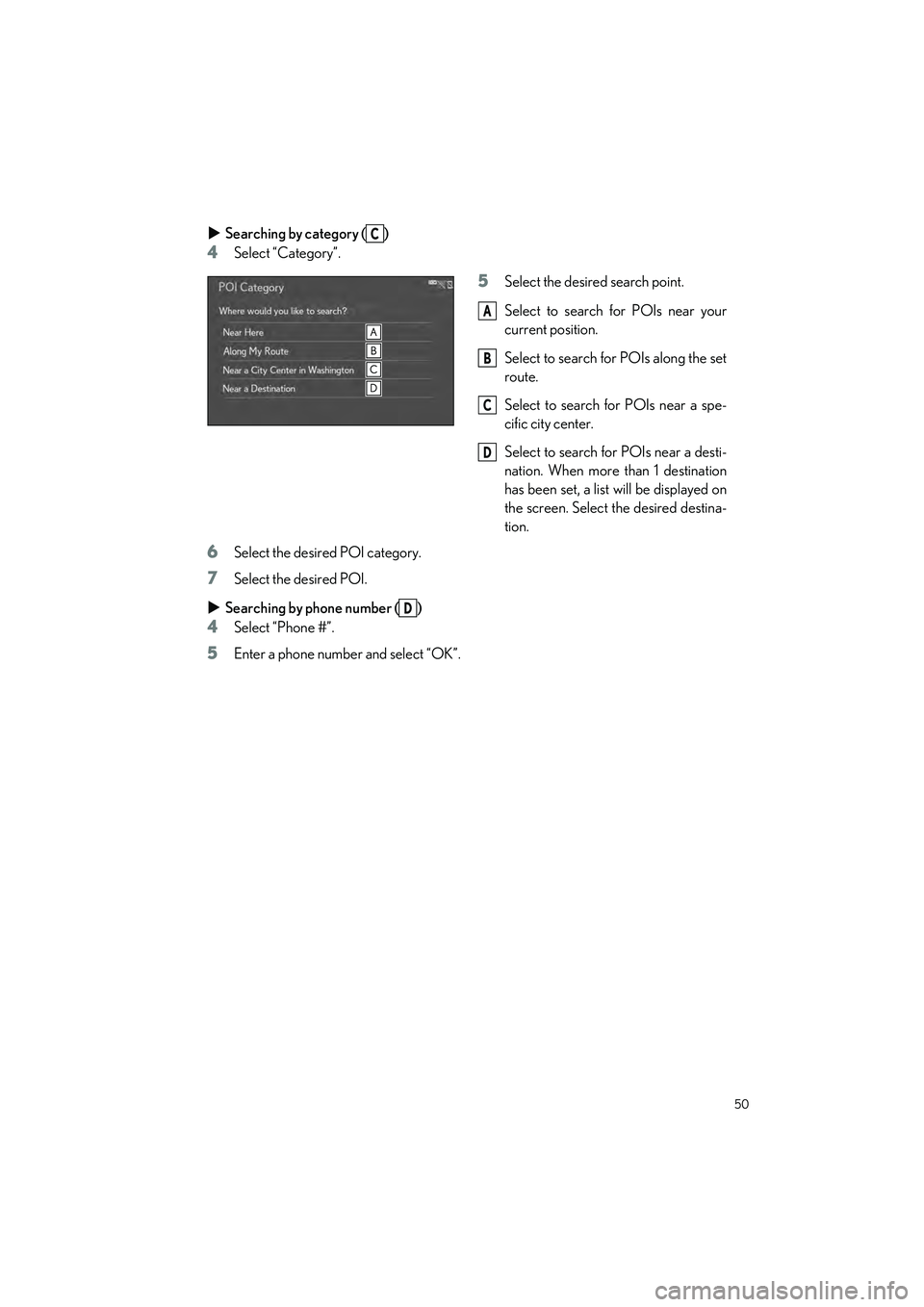

Searching by category ( )
4Select “Category”.
5Select the desire d search point.
Select to search for POIs near your
current position.
Select to search for POIs along the set
route.
Select to search for POIs near a spe-
cific city center.
Select to search for POIs near a desti-
nation. When more than 1 destination
has been set, a list will be displayed on
the screen. Select the desired destina-
tion.
6Select the desired POI category.
7Select the desired POI.
 Searching by phone number ( )
4Select “Phone #”.
5Enter a phone number and select “OK”.
C
A
B
C
D
D

51
IS500_IS350_IS300_QG_U
To use the hands-free system, it is necessary to register a Bluetooth® phone with the system.
Please refer to the cellular phone manufacturer ’s user guide for pairing procedures, or go to
http://www.lexus.com/MobileLink
to find approved Bluetooth® phones for this system.
1Turn the Bluetooth® connection setting of your cellular phone on.
2Press the “MENU” button on the Remote Touch.
Please refer to P.42 for the Remote Touch operation.
3Select “Phone”.
4Select “Yes” to register a phone.
5Select the desired Bluetooth® device.
6Register the Bluetooth® device using
your Bluetooth
® device.
7Check that the following screen is dis-
played, indicating pairing was success-
ful.
8Check that “Connect ed” is displayed
and registration is complete.
Hands-free System For Cellular Phone
Registering/connecting a Bluetooth® device

53
IS500_IS350_IS300_QG_U
1Press the “MENU” button on the Remote Touch.
Please refer to P.42 for the Remote Touch operation.
2Select “Phone”.
3Select “Favorites” on the sub me nu and select the desired contact.
4Select the desired number.
5Check that the dialing screen is displayed.
1Press the “MENU” button on the Remote Touch.
Please refer to P.42 for the Remote Touch operation.
2Select “Phone”.
3Select “Message” on the sub menu.
4Select a desired account name that is displayed on the left side of screen.
5Select the desired message from the list.
6Select , or press the swit ch on the steering wheel.
7Check that the dialing screen is displayed.
1Select “Answer”/ or press the switch on the steering wheel to talk on the
phone.
“Decline”/ : Select to re fuse to receive the call.

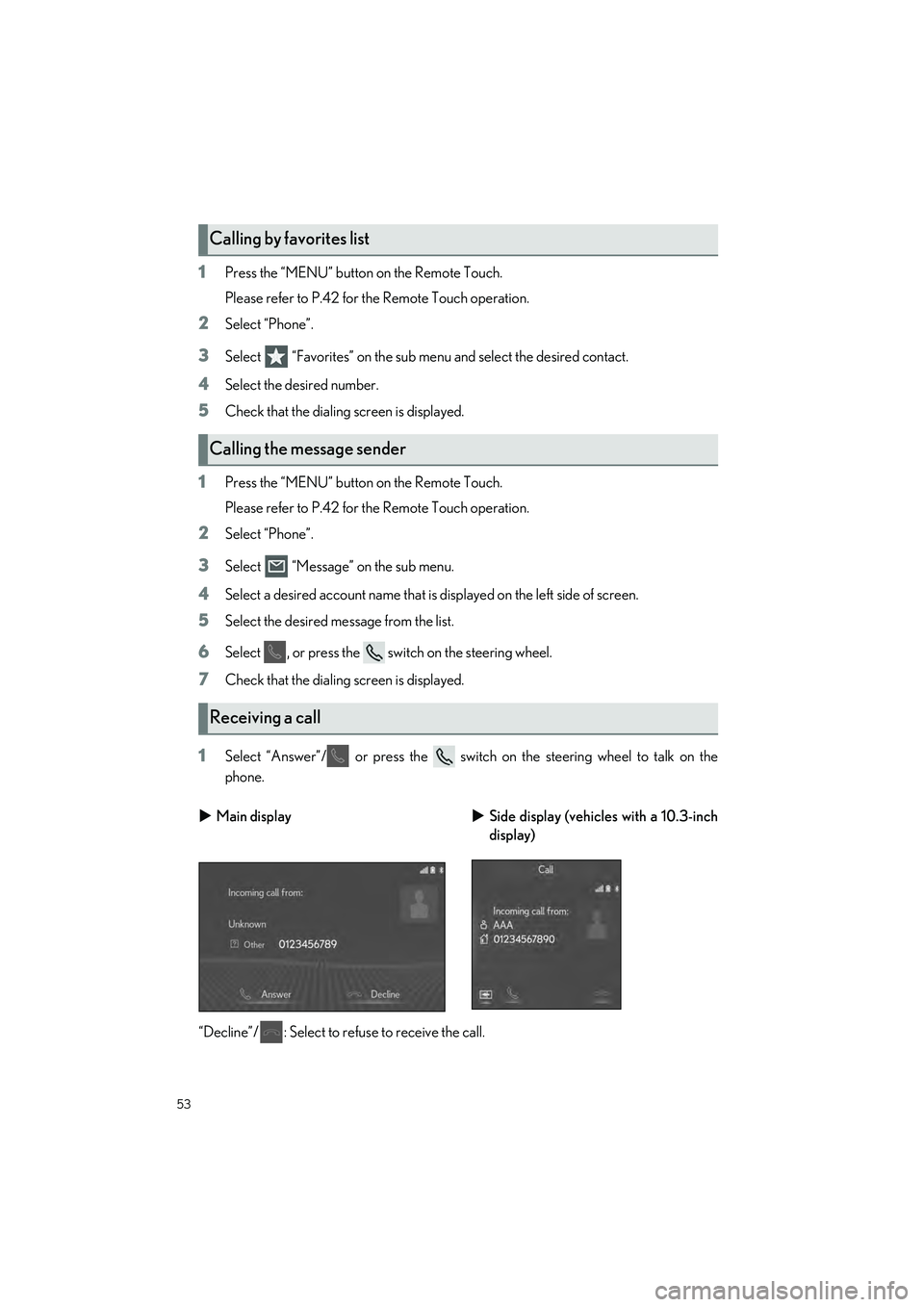

Calling by favorites list
Calling the message sender
Receiving a call
Main display Side display (vehicles with a 10.3-inch
display)

54
IS500_IS350_IS300_QG_U
Volume control switch
• Press the “+” side to increase the vol-ume.
• Press the “-” side to decrease the vol- ume.
Off hook switch
• Press to start talking.
• Press to put a call on hold.
• Depending on the system, if the switch is pressed when an Apple
CarPlay connection is established,
the Apple CarPlay phone application
will be displayed on the system
screen.
*
On hook switch
• Press to end talking/dialing.
• Press to refuse to receive the call.
Talk switch
• Press the talk switch to start the voicecommand system.
• To cancel voice recognition, press and hold the talk switch.
*: This function is not available in some
countries or areas.

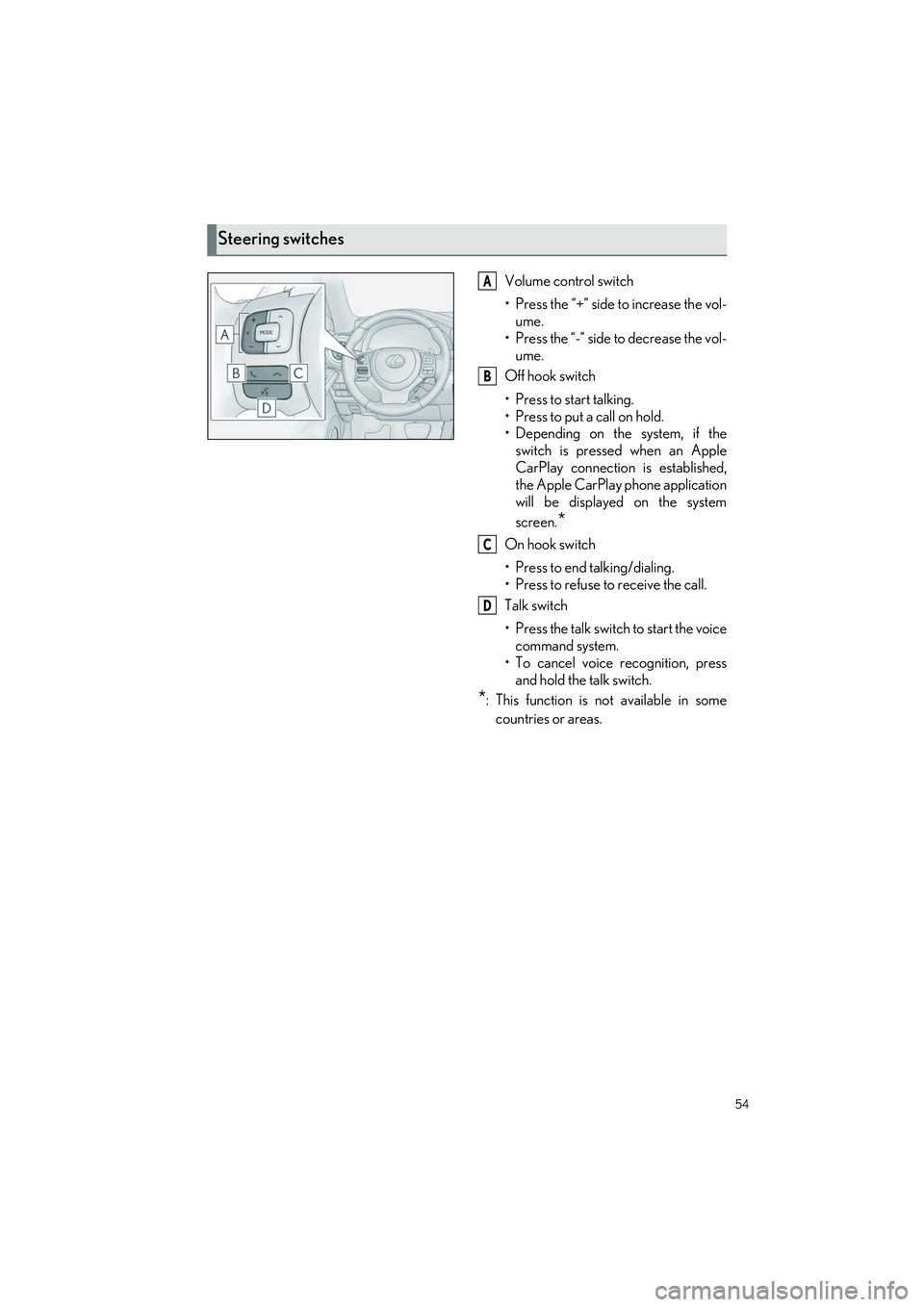

Steering switches
A
B
C
D

55
IS500_IS350_IS300_QG_U
Follow the procedure below to display the audio control screen.
 Using the audio control switch
Press the “RADIO” or “MEDIA” button.
 Using the Remote Touch
Press the “MENU” button on the Re mote Touch, then select “Audio”.
Please refer to P.42 for the Remote Touch operation.
 Using the audio control switch
1Press the “RADIO” or “MEDIA” but-
ton.
“RADIO” button: Press to change
radio modes.
“MEDIA” button: Press to change
media modes.
●Each time the “RADIO” or
“MEDIA” button is pressed, the
audio source changes.
 From the audio source selection screen
1Display the audio control screen.
2Select “Source” on the sub menu.
3Select the desired source.

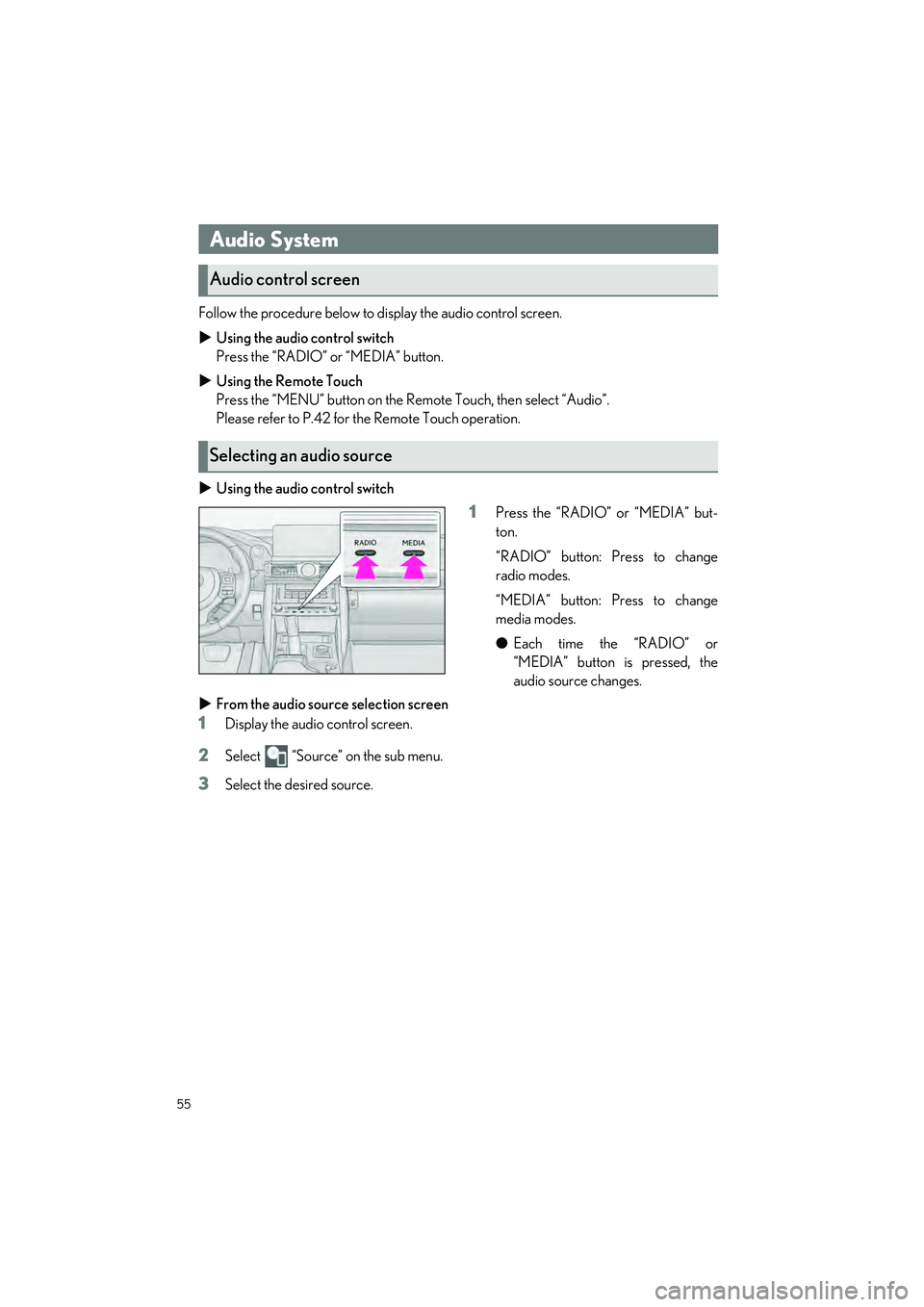

Audio System
Audio control screen
Selecting an audio source

57
IS500_IS350_IS300_QG_U
■Audio control switch
Press to seek up/down.
Press and hold for continuous seek.
Press to turn mute on/off.
Cache radio only: Press to play/pause.
Turn to step up/down frequencies/
channels.
■Control screen
Displays cover art
Select to display HD) multicast chan-
nels available
Displays the artist info and song title or
album and genre
Select to tune to preset stations/chan-
nels
Display items on the channels regis-
tered to smart favorites
■Presetting a station
1
Tune in the desired station.
2Select and hold “(Hold Edit)”.

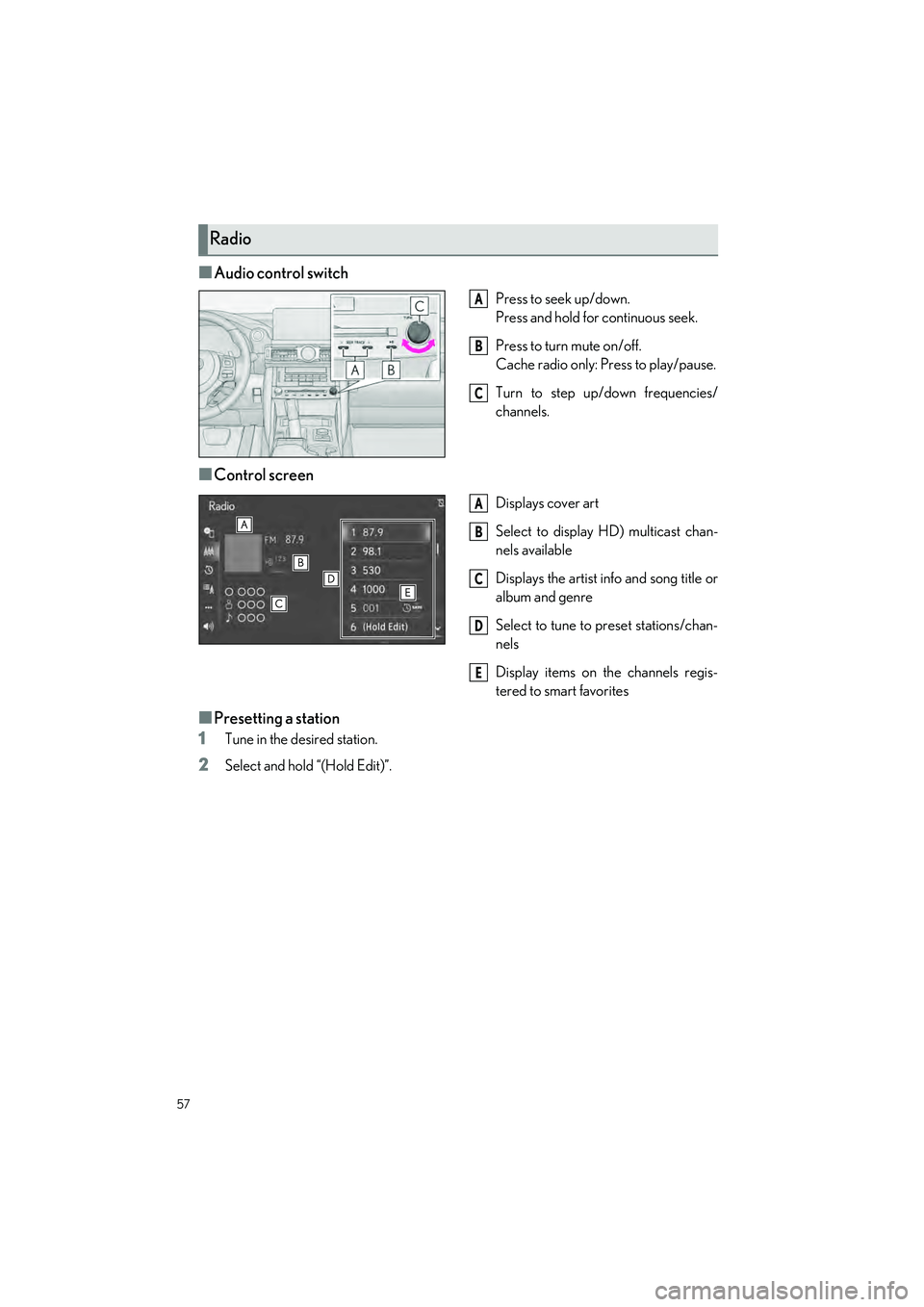

Radio
A
B
C
A
B
C
D
E

58
IS500_IS350_IS300_QG_U
■Audio control switch
Press to select a track/file.
Press and hold to fast forward/rewind.
Press to pause/play.
Turn to select a track/file.
■Control screen
Audio CD
Displays cover art
Select to set repeat playback
Select to change the track.
Select and hold to fast rewind.
Select to play/pause.
Select to change the track.
Select and hold to fast forward.
Select to set random playback
 MP3/WMA/AAC disc
Displays cover art
Select to change the folder
Select to set repeat playback
Select to change the file.
Select and hold to fast rewind.
Select to play/pause.
Select to change the file.
Select and hold to fast forward.
Select to set random playback

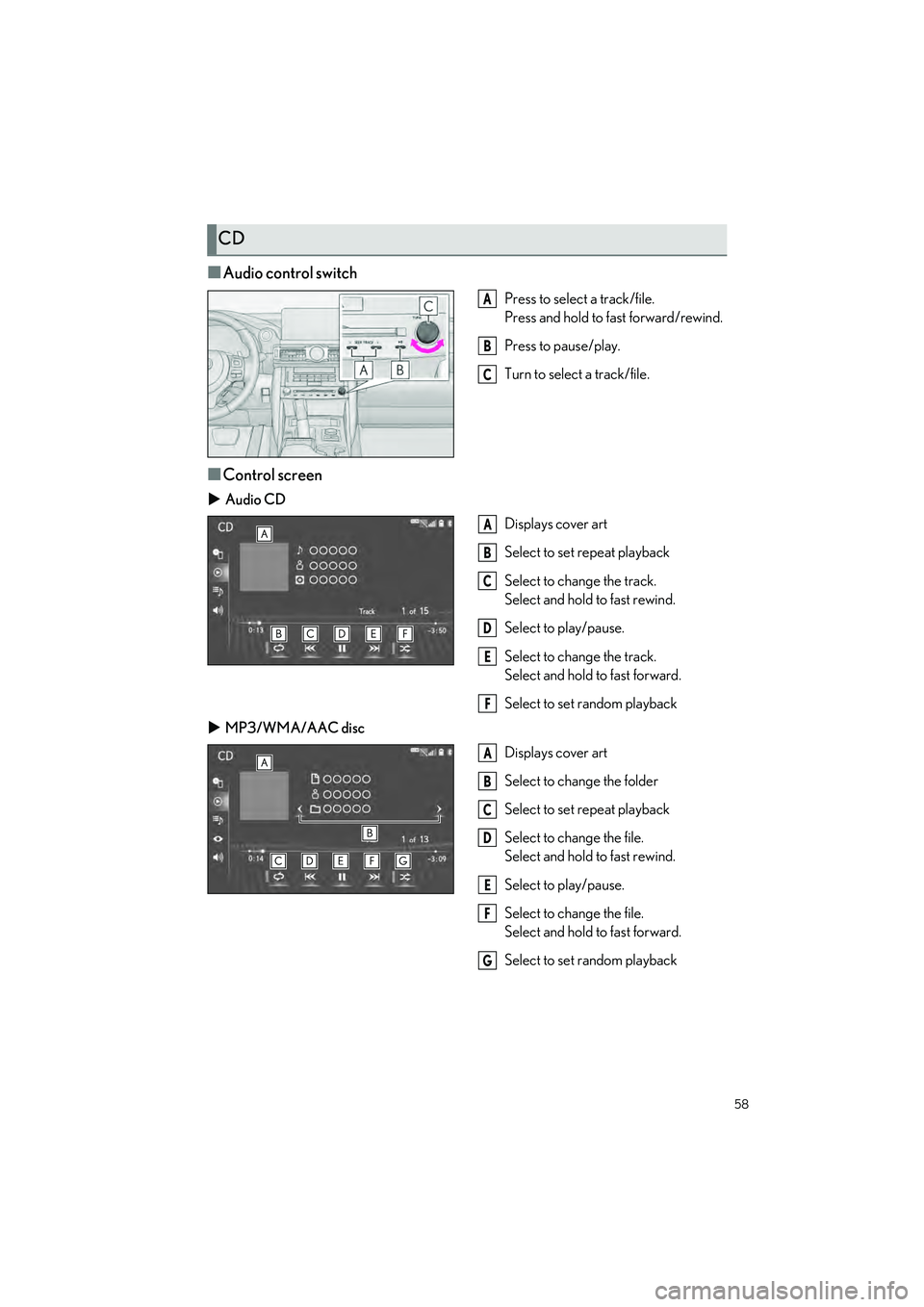

CD
A
B
C
A
B
C
D
E
F
A
B
C
D
E
F
G

59
IS500_IS350_IS300_QG_U
■Audio control switch
Press to select a chapter.
Press and hold to fast forward/rewind.
Press to pause/play.
Turn to select a chapter.
■Control screen
Select to display the menu control key
Select to display the menu screen
Select to change the chapter.
Select and hold to fast rewind.
Select to stop the video screen.
Select to play/pause.
Select to change the chapter.
• During playback: Select and hold to fast forward.
• During a pause: Select and hold to slow forward.
Select to display expanded screen
video
DVD
A
B
C
A
B
C
D
E
F
G

60
IS500_IS350_IS300_QG_U
*: This function is not available in some countries or areas.
■Audio control switch
Press to select a track.
Press and hold to fast forward/rewind.
Press to pause/play.
Turn to select a track.
*
*
:If equipped
■Control screen
Displays cover art
Select to change the artist.
*
Select to change the album.*
Select to change the playlist.*
Select to set repeat playback.
Select to change the track.
Select and hold to fast rewind.
Select to play/pause.
Select to change the track.
Select and hold to fast forward.
Select to set random playback.
*: When an Apple CarPlay connection is established, this switch will not be dis-
played.

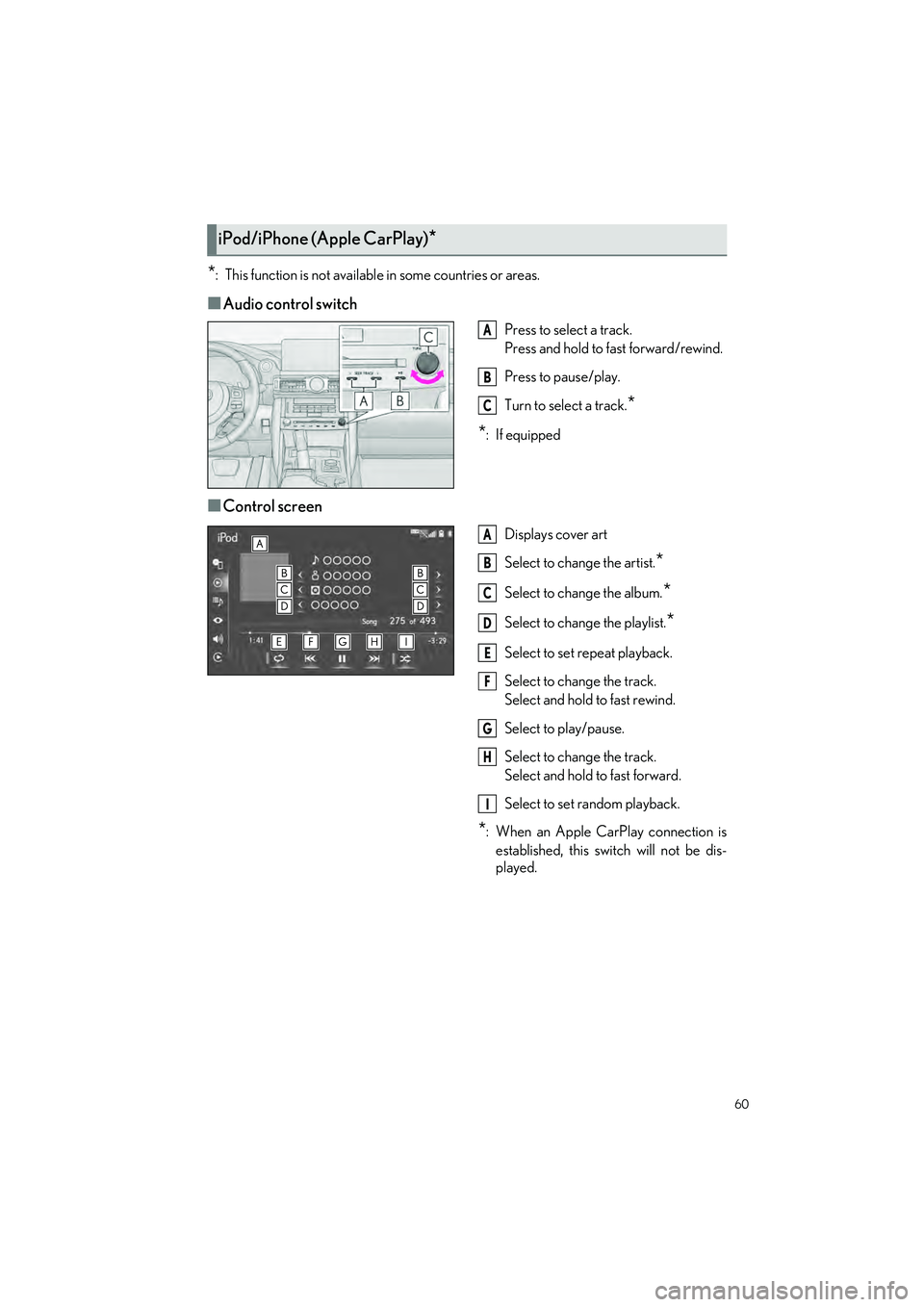

iPod/iPhone (Apple CarPlay)*
A
B
C
A
B
C
D
E
F
G
H
I
