5118-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53B95E)*
1: Parking brake engaged warning buzzer:
P. 518
*2: Open door warning buzzer:
P. 516
*3: Seat belt warning buzzer:
The seat belt warning buzzer sounds to alert the driver, front passenger and
rear passengers that his or her seat belt is not fastened. The buzzer sounds for
30 seconds after the vehicle reaches a speed of 20 km/h (12 mph). Then, if the
seat belt is still unfastened, the buzzer will sound in a different tone for 90
more seconds.
Passenger detection sensor, seat belt reminder and warning buzzer
If luggage is placed on a passenger seat, the passenger detection sensor may
cause the warning light to flash and the warning buzzer to sound even if a pas-
senger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The mal-
function indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional as soon as
possible.
Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient of the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.
When the tire pressure warning light comes on
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
Check the tire inflation pressure and adjust to the appropriate level.
If the warning light does not go out even after several minutes, check that the
tire inflation pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natu-
ral air leaks and tire inflation pressure changes caused by temperature. In this
case, adjusting the tire inflation pressure will turn off the warning light (after a
few minutes).
Conditions that the tire pressure warning system may not function properly
P. 454

5168-2. Steps to take in an emergency
IS300h_EE(OM53B95E)
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
A buzzer also sounds.
Immediately stop the vehicle in a safe place and
contact any authorized Lexus dealer or repairer,
or another duly qualified and equipped profes-
sional. Continuing to drive the vehicle may be
dangerous.
Indicates a malfunction in the hybrid system
A buzzer also sounds.
Immediately stop the vehicle in a safe place and
contact any authorized Lexus dealer or repairer,
or another duly qualified and equipped profes-
sional.
Indicates that one or more of the doors is not fully
closed
The system also indicates which doors are not
fully closed.
If the vehicle reaches a speed of 5 km/h (3 mph),
flashes and a buzzer sounds to indicate
that the door(s) are not yet fully closed.
Make sure that all the doors are closed.
Indicates that the hood is not fully closed
If the vehicle reaches a speed of 5 km/h (3 mph),
flashes and a buzzer sounds to indicate
that the hood is not yet fully closed.
Close the hood.
Indicates that the trunk is not fully closed
If the vehicle reaches a speed of 5 km/h (3 mph),
flashes and a buzzer sounds to indicate
that the trunk is not yet fully closed.
Close the trunk.
(If equipped)
Indicates a malfunction in the Lexus parking
assists-sensor
The assist-sensors flash.
A buzzer also sounds.
Have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
Warning messageDetails/Actions

5178-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53B95E)
(If equipped)

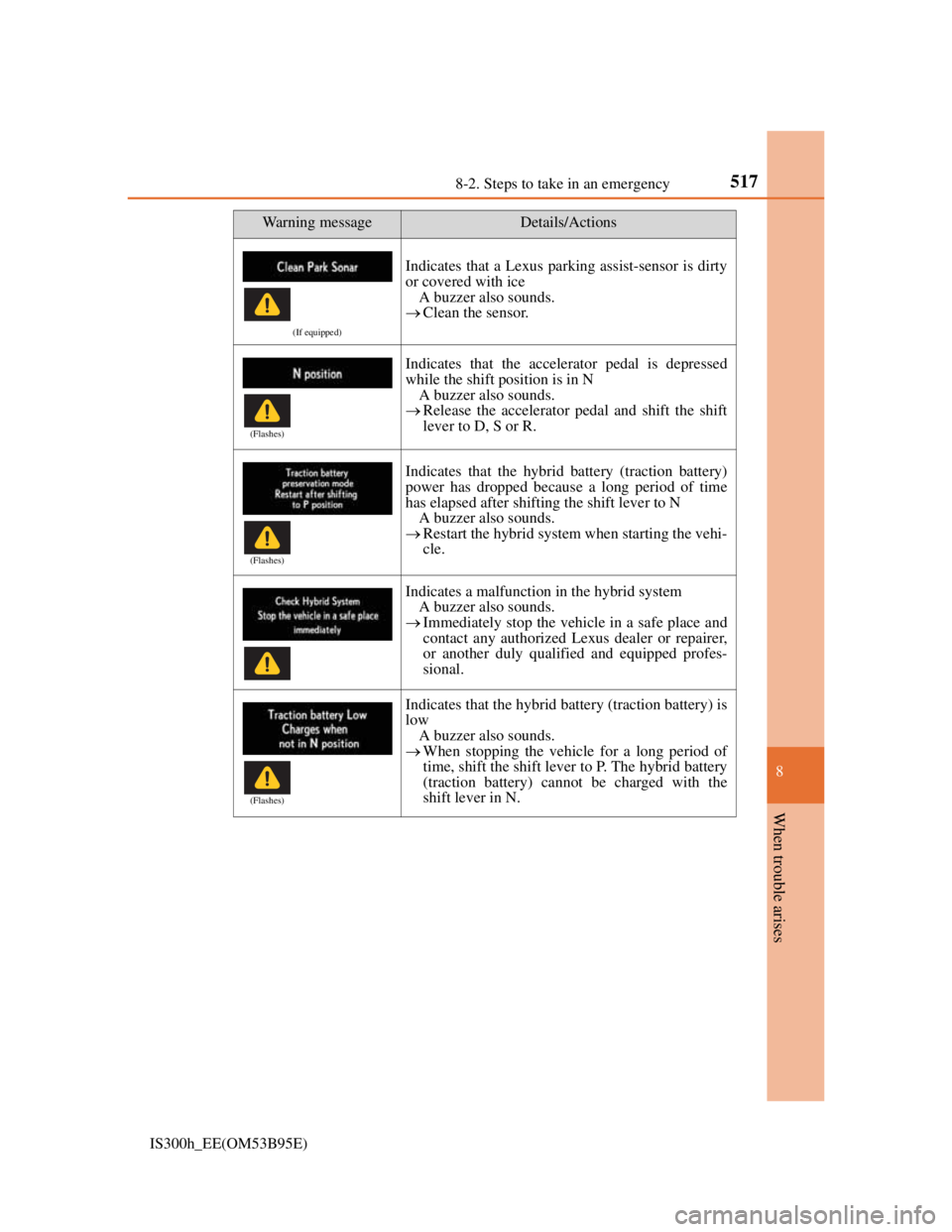

Indicates that a Lexus parking assist-sensor is dirty
or covered with ice
A buzzer also sounds.
Clean the sensor.
Indicates that the accelerator pedal is depressed
while the shift position is in N
A buzzer also sounds.
Release the accelerator pedal and shift the shift
lever to D, S or R.
Indicates that the hybrid battery (traction battery)
power has dropped because a long period of time
has elapsed after shifting the shift lever to N
A buzzer also sounds.
Restart the hybrid system when starting the vehi-
cle.
Indicates a malfunction in the hybrid system
A buzzer also sounds.
Immediately stop the vehicle in a safe place and
contact any authorized Lexus dealer or repairer,
or another duly qualified and equipped profes-
sional.
Indicates that the hybrid battery (traction battery) is
low
A buzzer also sounds.
When stopping the vehicle for a long period of
time, shift the shift lever to P. The hybrid battery
(traction battery) cannot be charged with the
shift lever in N.
Warning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

5188-2. Steps to take in an emergency
IS300h_EE(OM53B95E)

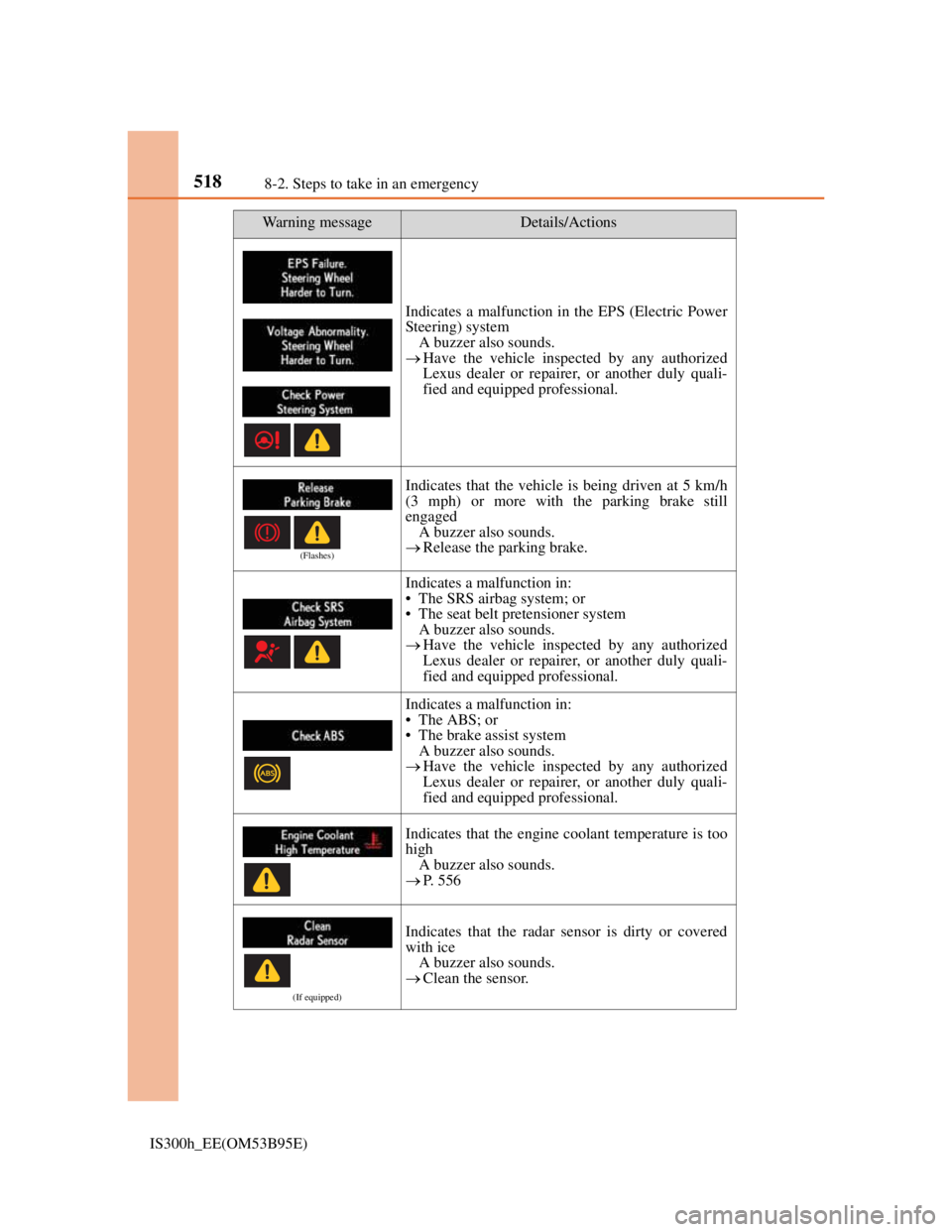

Indicates a malfunction in the EPS (Electric Power
Steering) system
A buzzer also sounds.
Have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
Indicates that the vehicle is being driven at 5 km/h
(3 mph) or more with the parking brake still
engaged
A buzzer also sounds.
Release the parking brake.
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
A buzzer also sounds.
Have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
Indicates a malfunction in:
•The ABS; or
• The brake assist system
A buzzer also sounds.
Have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
Indicates that the engine coolant temperature is too
high
A buzzer also sounds.
P. 5 5 6
(If equipped)
Indicates that the radar sensor is dirty or covered
with ice
A buzzer also sounds.
Clean the sensor.
Warning messageDetails/Actions
(Flashes)

5198-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53B95E)
(If equipped)

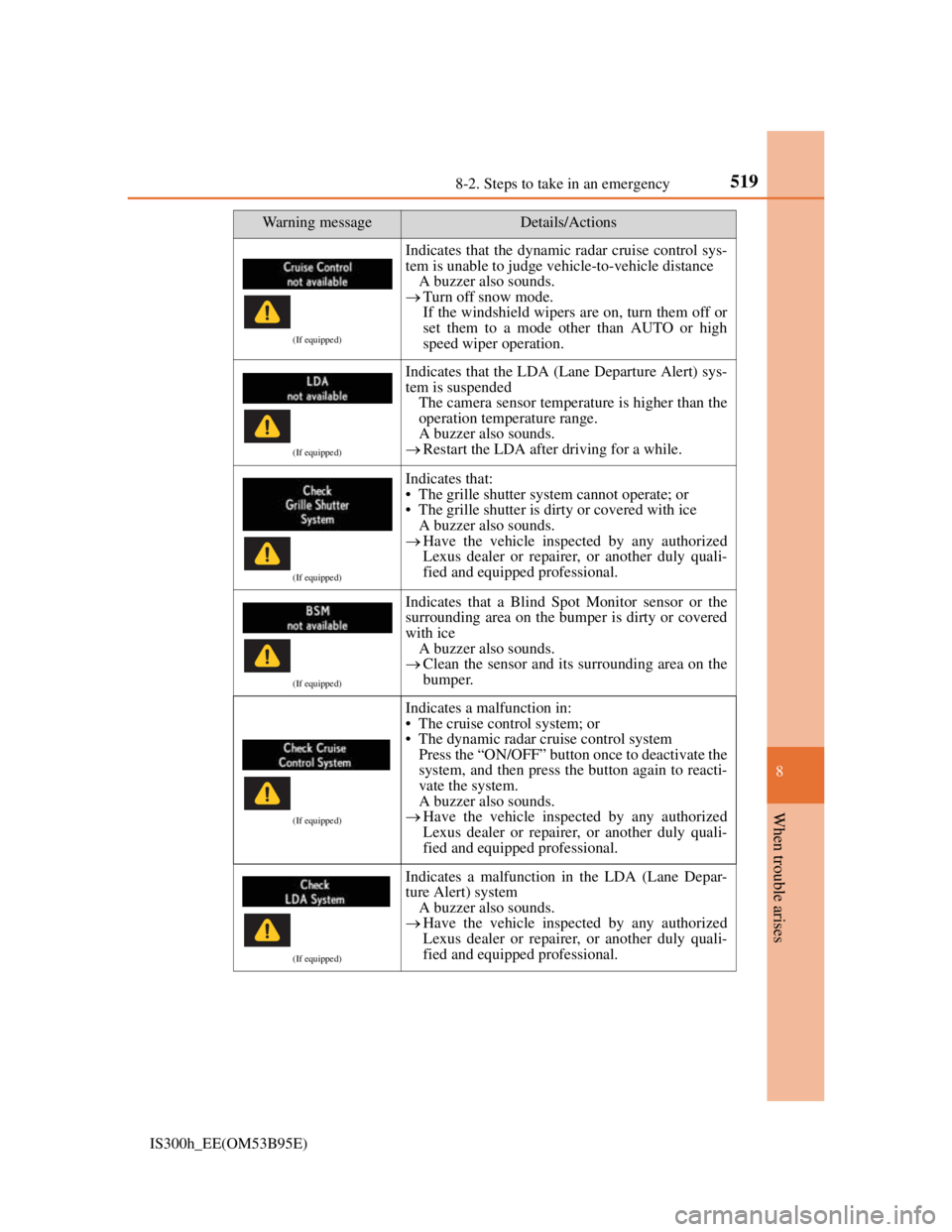

Indicates that the dynamic radar cruise control sys-
tem is unable to judge vehicle-to-vehicle distance
A buzzer also sounds.
Turn off snow mode.
If the windshield wipers are on, turn them off or
set them to a mode other than AUTO or high
speed wiper operation.
(If equipped)
Indicates that the LDA (Lane Departure Alert) sys-
tem is suspended
The camera sensor temperature is higher than the
operation temperature range.
A buzzer also sounds.
Restart the LDA after driving for a while.
(If equipped)
Indicates that:
• The grille shutter system cannot operate; or
• The grille shutter is dirty or covered with ice
A buzzer also sounds.
Have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the
surrounding area on the bumper is dirty or covered
with ice
A buzzer also sounds.
Clean the sensor and its surrounding area on the
bumper.
(If equipped)
Indicates a malfunction in:
• The cruise control system; or
• The dynamic radar cruise control system
Press the “ON/OFF” button once to deactivate the
system, and then press the button again to reacti-
vate the system.
A buzzer also sounds.
Have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
(If equipped)
Indicates a malfunction in the LDA (Lane Depar-
ture Alert) system
A buzzer also sounds.
Have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
Warning messageDetails/Actions

5238-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53B95E)
(If equipped)

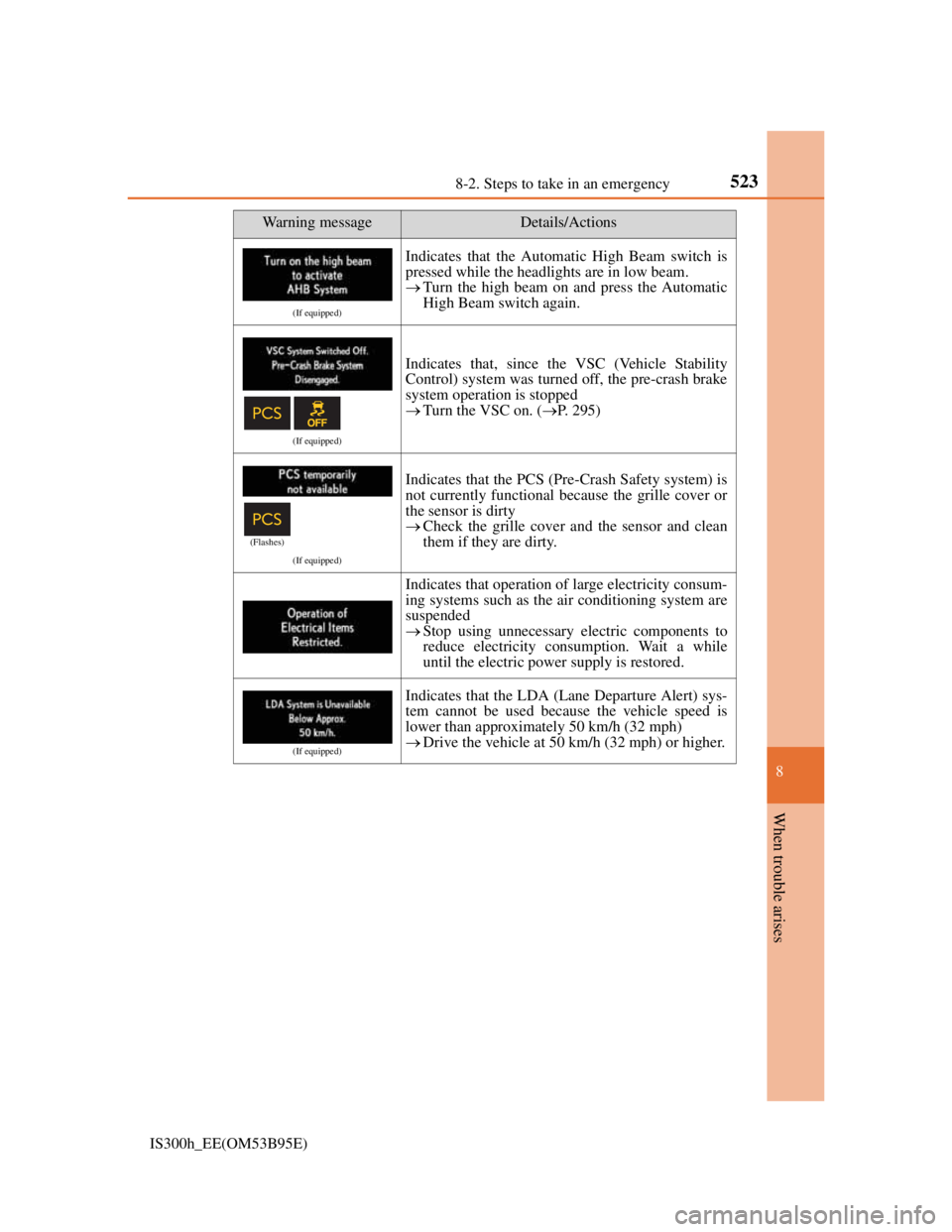

Indicates that the Automatic High Beam switch is
pressed while the headlights are in low beam.
Turn the high beam on and press the Automatic
High Beam switch again.
(If equipped)
Indicates that, since the VSC (Vehicle Stability
Control) system was turned off, the pre-crash brake
system operation is stopped
Turn the VSC on. (P. 295)
(If equipped)
Indicates that the PCS (Pre-Crash Safety system) is
not currently functional because the grille cover or
the sensor is dirty
Check the grille cover and the sensor and clean
them if they are dirty.
Indicates that operation of large electricity consum-
ing systems such as the air conditioning system are
suspended
Stop using unnecessary electric components to
reduce electricity consumption. Wait a while
until the electric power supply is restored.
(If equipped)
Indicates that the LDA (Lane Departure Alert) sys-
tem cannot be used because the vehicle speed is
lower than approximately 50 km/h (32 mph)
Drive the vehicle at 50 km/h (32 mph) or higher.
Warning messageDetails/Actions
(Flashes)

5829-2. Customization
IS300h_EE(OM53B95E)
Turn signal lever (P. 222)
*1: After flashing the turn signal lights when turning left or right while this func-
tion is off and the turn signal lever is moved to the first position in the direc-
tion of the flashing light, the turn signal lights can be selected to be flashing or
off.
*2: The turn signal lights keep flashing if the turn signal lever is moved to the first
position in the direction of flashing light.
*3: The turn signal lights will be off if the turn signal lever is moved to the first
position in the direction of flashing light.
Automatic light control system (P. 226)
FunctionDefault set-
tingCustomized set-
ting
The number of times the
turn signal lights flash
automatically when the
turn signal lever is moved
to the first position during
a lane change
*1
3
5
———O7
Off *2
Off*3
1234
FunctionDefault set-
tingCustomized set-
ting
Light sensor sensitivityStandard-2 to 2O—OO
Time elapsed before
headlights automatically
turn off
30 seconds
60 seconds
———O90 seconds
120 seconds
Welcome light illumina-
tion controlOnOff———O
1234

583
9 9-2. Customization
Vehicle specifications
IS300h_EE(OM53B95E)
Lexus parking assist-sensor*1 (P. 271)
*1: If equipped
*2: When Lexus parking assist-sensor is operating.
Automatic air conditioning system (P. 398)
FunctionDefault set-
tingCustomized set-
ting
Detection distance of the
front center sensorFarNearO——O
Detection distance of the
rear center sensorFarNearO——O
Buzzer volume31 to 5O——O
Display setting*2All sensors
displayedDisplay offO——O
1234
FunctionDefault set-
tingCustomized set-
ting
Switching between out-
side air and recirculated
air mode linked to
“AUTO” switch operation
OnOffO——O
A/C Auto switch opera-
tionOnOffO——O
1234

587
Index
IS300h_EE(OM53B95E)
What to do if...
(Troubleshooting) .................... 588
Alphabetical index..................... 592
For vehicles with a navigation system, refer to the “Naviga-
tion System Owner's Manual” for information regarding the
equipment listed below.
• Navigation system
• Audio/video system• Lexus parking assist-sensor
• Lexus parking assist moni-

590What to do if... (Troubleshooting)
IS300h_EE(OM53B95E)
Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be
operated if the window lock switch is pressed. (P. 184)
The auto power off function will be operated if the vehicle is left in
ACCESSORY or ON mode (the hybrid system is not operating) for a
period of time. (P. 211)
The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (P.
509)
The parking brake indicator is on
Is the parking brake released? (P. 224)
Depending on the situation, other types of warning buzzer may also
sound.
(P. 507, 514)

Did anyone inside the vehicle open a door or anything move inside the
vehicle during setting the alarm?
The sensor detects them and the alarm sounds. (P. 9 6 )
To stop the alarm, turn the power switch to ON mode or start the hybrid
system.The windows do not open or close by operating the power window
switches
The power switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and the horn sounds (if equipped)
