801-2. Hybrid system
IS300h_EE(OM53B95E)
When stopped/during start off
The gasoline engine stops when the vehicle is stopped. During start off,
the electric motor (traction motor) drives the vehicle. At slow speeds or
when traveling down a gentle slope, the engine is stopped and the elec-
tric motor (traction motor) is used.
During normal driving
The gasoline engine is predominantly used. The electric motor (trac-
tion motor) charges the hybrid battery (traction battery) as necessary.
When accelerating sharply
When the accelerator pedal is depressed heavily, the power of the
hybrid battery (traction battery) is added to that of the gasoline engine
via the electric motor (traction motor).
When braking (regenerative braking)
The electric motor (traction motor) charges the hybrid battery (traction
battery).

811-2. Hybrid system
1
For safety and security
IS300h_EE(OM53B95E)
Regenerative braking
In the following situations, kinetic energy is converted to electric energy and
deceleration force can be obtained in conjunction with the recharging of the
hybrid battery (traction battery).
The accelerator pedal is released while driving with the shift lever in D or S.
The brake pedal is depressed while driving with the shift lever in D or S.
EV indicator
Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop
automatically in the following conditions:
During gasoline engine warm-up
During hybrid battery (traction battery) charging
When the temperature of the hybrid battery (traction battery) is high or low
When the heater is switched on
Charging the hybrid battery (traction battery)
As the gasoline engine charges the hybrid battery (traction battery), the battery
does not need to be charged from an outside source. However, if the vehicle is
left parked for a long time the hybrid battery will slowly discharge. For this rea-
son, be sure to drive the vehicle at least once every few months for at least 30
minutes or 16 km (10 miles). If the hybrid battery becomes fully discharged and
you are unable to jump-start the vehicle with a 12-volt battery, contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
If the shift lever is in N, the hybrid battery (traction battery) will not be charged.
Always shift the shift lever to P when the vehicle is stopped. When driving in
heavy traffic, operate the vehicle with the shift lever in D or S to avoid dis-
charging the battery.
Charging the 12-volt battery
P. 552 The EV indicator comes on when the vehi-
cle is driven using only the electric motor
(traction motor) or the gasoline engine is
stopped.

821-2. Hybrid system
IS300h_EE(OM53B95E)
After the 12-volt battery has discharged or has been changed or removed
The gasoline engine may not stop even if the vehicle is being driven by the
hybrid battery (traction battery). If this continues for a few days, contact any
authorized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
Sounds and vibrations specific to a hybrid vehicle
There may be no engine sound or vibration even though the vehicle is able to
move. For safety, apply the parking brake and make sure to shift the shift lever to
P when parked.
The following sounds or vibrations may occur when the hybrid system is operat-
ing and are not a malfunction:
Motor sounds may be heard from under the vehicle.
Sounds may be heard from the hybrid battery (traction battery) behind the rear
seats when the hybrid system starts or stops.
Sounds from the hybrid system may be heard when the trunk lid is open.
Sounds may be heard from the hybrid transmission when the hybrid system
starts or stops.
Engine sounds may be heard when accelerating sharply.
Sounds may be heard due to regenerative braking when the brake pedal is
depressed.
Vibration may be felt when the gasoline engine starts or stops.
Cooling fan sounds may be heard from the air intake vents on the both sides of
the rear seatback.
Maintenance, repair, recycling, and disposal
Contact any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional regarding maintenance, repair, recycling and disposal. Do
not dispose of the vehicle yourself.
Customization
Settings (e.g. on/off operation of the EV indicator) can be changed.
(Customizable features P. 575)

831-2. Hybrid system
1
For safety and security
IS300h_EE(OM53B95E)

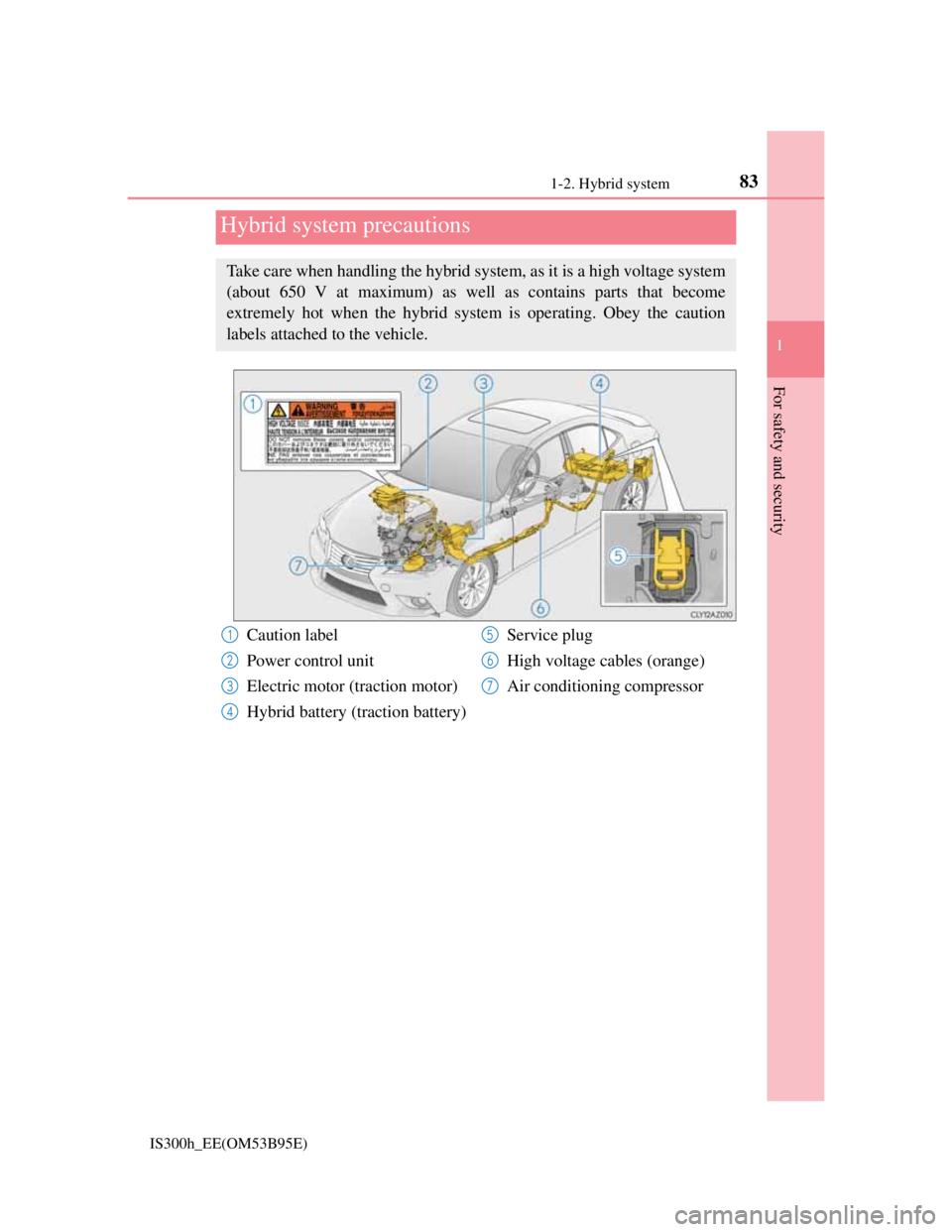

Hybrid system precautions
Take care when handling the hybrid system, as it is a high voltage system
(about 650 V at maximum) as well as contains parts that become
extremely hot when the hybrid system is operating. Obey the caution
labels attached to the vehicle.
Caution label
Power control unit
Electric motor (traction motor)
Hybrid battery (traction battery)Service plug
High voltage cables (orange)
Air conditioning compressor1
2
3
4
5
6
7

841-2. Hybrid system
IS300h_EE(OM53B95E)
There is an air intake vent on the
right side of the rear seatback for
the purpose of cooling the hybrid
battery (traction battery). If the vent
becomes blocked, the hybrid battery
may overheat, leading to a reduc-
tion in hybrid battery output.
When a certain level of impact is detected by the impact sensor, the emer-
gency shut off system blocks the high voltage current and stops the fuel
pump to minimize the risk of electrocution and fuel leakage. If the emer-
gency shut off system activates, your vehicle will not restart. To restart
the hybrid system, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
A message is automatically displayed when a malfunction occurs in the
hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the message and follow the instruc-
tions.
(P. 513)
Hybrid battery (traction battery) air vent
Emergency shut off system
Hybrid warning message

851-2. Hybrid system
1
For safety and security
IS300h_EE(OM53B95E)
If a warning light comes on, a warning message is displayed, or the 12-volt bat-
tery is disconnected
The hybrid system may not start. In this case, try to start the system again. If the
“READY” indicator does not come on, contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started,
refuel the vehicle with at least enough gasoline to make the low fuel level warn-
ing light (P. 509) go off. If there is only a small amount of fuel, the hybrid sys-
tem may not be able to start. (The minimum amount of fuel to add to make the
low fuel level warning light go out is about 10 L [2.7 gal., 2.2 Imp. gal.], when
the vehicle is on a level surface. This value may vary when the vehicle is on a
slope.)
Electromagnetic waves
High voltage parts and cables on hybrid vehicles incorporate electromagnetic
shielding, and therefore emit approximately the same amount of electromag-
netic waves as conventional gasoline powered vehicles or home electronic
appliances.
Your vehicle may cause sound interference in some third party-produced radio
parts.
Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of the
hybrid battery (traction battery) can change in accordance with driving style and
driving conditions.
Declaration of conformity
This model conforms to hydrogen emissions according to regulation ECE100
(Battery electric vehicle safety).

861-2. Hybrid system
IS300h_EE(OM53B95E)
CAUTION
High voltage precautions
This vehicle has high voltage DC and AC systems as well as a 12-volt system.
DC and AC high voltage is very dangerous and can cause severe burns and
electric shock that may result in death or serious injury.
Never touch, disassemble, remove or replace the high voltage parts, cables or
their connectors.
The hybrid system will become hot after starting as the system uses high volt-
age. Be careful of both the high voltage and the high temperature, and always
obey the caution labels attached to the vehicle.
Never try to open the service plug access
hole located under the luggage under tray.
The service plug is used only when the
vehicle is serviced and is subject to high
voltage.

871-2. Hybrid system
1
For safety and security
IS300h_EE(OM53B95E)
CAUTION
Road accident cautions
Observe the following precautions to reduce the risk of death or serious injury:
Pull your vehicle off the road, apply the parking brake, shift the shift lever to
P, and turn the hybrid system off.
Do not touch the high voltage parts, cables and connectors.
If electric wires are exposed inside or outside your vehicle, an electric shock
may occur. Never touch exposed electric wires.
If a fluid leak occurs, do not touch the fluid as it may be strong alkaline elec-
trolyte from the hybrid battery (traction battery). If it comes into contact with
your skin or eyes, wash it off immediately with a large amount of water or, if
possible, boric acid solution. Seek immediate medical attention.
If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible.
Never use a fire extinguisher that is not meant for electric fires. Using even a
small amount of water may be dangerous.
If your vehicle needs to be towed, do so with rear wheels raised. If the wheels
connected to the electric motor (traction motor) are on the ground when tow-
ing, the motor may continue to generate electricity. This may cause an elec-
tricity leakage leading to a fire. (P. 500)
Carefully inspect the ground under the vehicle. If you find that liquid has
leaked onto the ground, the fuel system may have been damaged. Leave the
vehicle as soon as possible.

881-2. Hybrid system
IS300h_EE(OM53B95E)
CAUTION
Hybrid battery (traction battery)
Your vehicle contains a sealed nickel-metal hydride battery. Never resell,
hand over or modify the hybrid battery. To prevent accidents, hybrid batteries
that have been removed from a disposed vehicle are collected through any
authorized Lexus dealer or repairer, or another duly qualified and equipped
professional. Do not dispose of the battery yourself.
Unless the battery is properly collected, the following may occur, resulting in
death or serious injury:
• The hybrid battery may be illegally disposed of or dumped, and someone
may touch a high voltage part, resulting in an electric shock.
• The hybrid battery is intended to be used exclusively with your hybrid
vehicle. If the hybrid battery is used outside of your vehicle or modified in
any way, accidents such as electric shock, heat generation, smoke genera-
tion, an explosion and electrolyte leakage may occur.
When reselling or handing over your vehicle, the possibility of an accident is
extremely high because the person receiving the vehicle may not be aware of
these dangers.
If your vehicle is disposed of without the hybrid battery having been
removed, there is a danger of serious electric shock if high voltage parts,
cables and their connectors are touched. In the event that your vehicle must be
disposed of, the hybrid battery must be disposed of by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional. If the
hybrid battery is not disposed of properly, it may cause electric shock that can
result in death or serious injury.

891-2. Hybrid system
1
For safety and security
IS300h_EE(OM53B95E)
NOTICE
Hybrid battery air vent
Do not put foreign objects near the air vent. The hybrid battery (traction bat-
tery) may overheat and be damaged.
Clean the air vent regularly to prevent the hybrid battery (traction battery)
from overheating.
Do not wet or allow foreign substances to enter the air vent as this may cause
a short circuit and damage the hybrid battery (traction battery).
Do not carry large amounts of water such as water cooler bottles in the vehi-
cle. If water spills onto the hybrid battery (traction battery), the battery may
be damaged. Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
