1. BASIC FUNCTION

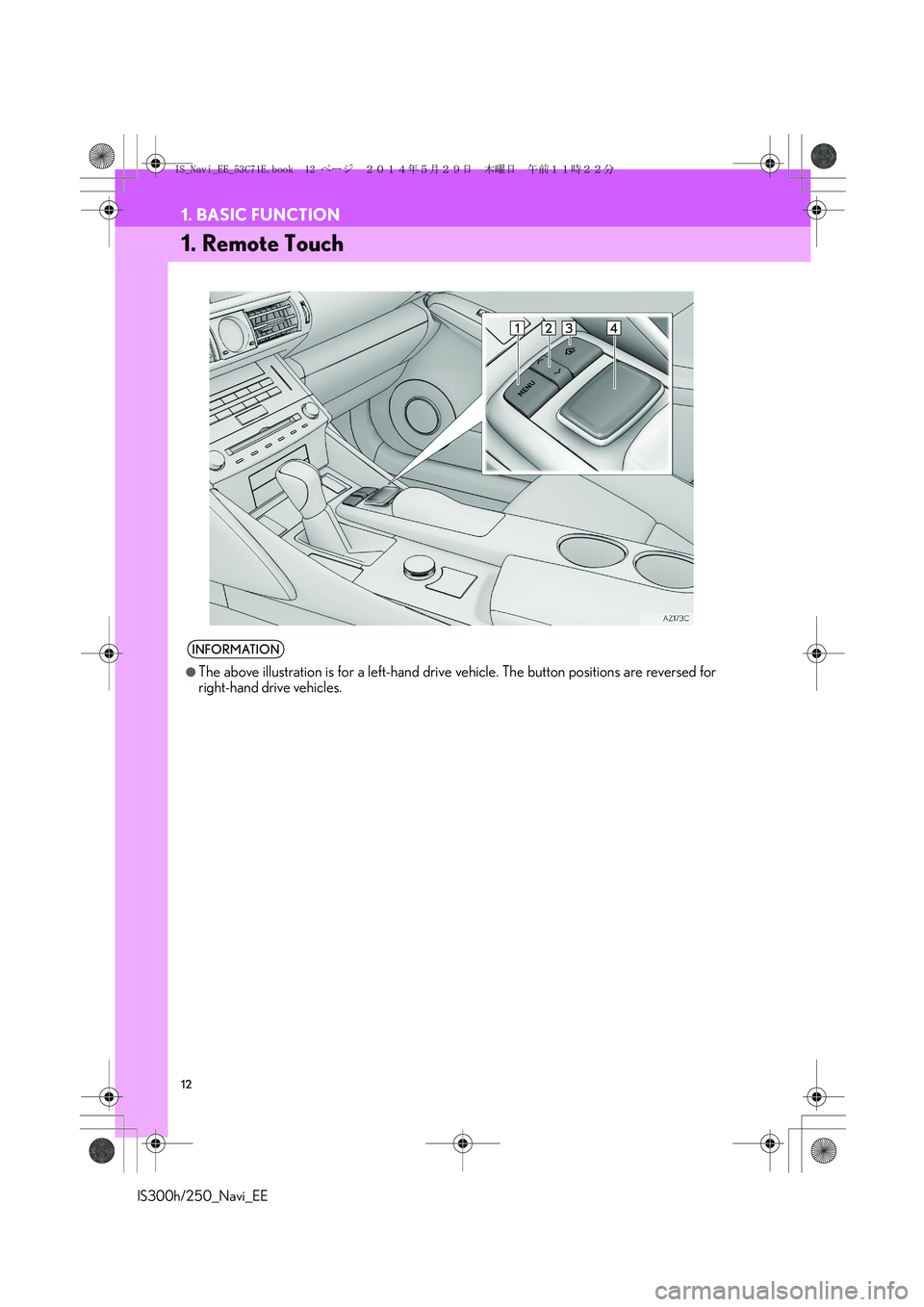

1. Remote Touch
INFORMATION
●
The above illustration is for a left-hand drive vehicle. The button positions are reversed for
right-hand drive vehicles.
IS_Navi_EE_53C71E.book 12 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

13
1. BASIC FUNCTION
IS300h/250_Navi_EE
QUICK GUIDE
1No.NameFunctionPage
“MENU” buttonPress to display the “Menu” screen.14
“·” buttonPress to change the scale of the map and to scroll
the list screen.38, 44, 97
buttonPress to display the home screen.16, 40
Remote Touch
knobMove in the desired direction to select a function,
letter and screen button.
Press to enter the selected function, letter or
screen button.
38
IS_Navi_EE_53C71E.book 13 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

14
1. BASIC FUNCTION
IS300h/250_Navi_EE
2. “Menu” SCREEN
Press the “MENU” button on the Remote Touch to display the “Menu” screen.
IS_Navi_EE_53C71E.book 14 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

15
1. BASIC FUNCTION
IS300h/250_Navi_EE
QUICK GUIDE
1No.FunctionPage
Select to operate the audio/visual system.192
Select to display the air conditioning control screen.“Owner’s
Manual”
*Select to display the navigation screen.92, 94
Select to display the telephone top screen.324
Select to display the “Information” screen.22
Select to display the fuel consumption screen.“Owner’s
Manual”
Select to display the “Setup” screen.20
Select to adjust the contrast and brightness of the screens, turn the
screen off, etc.47
*: With navigation function
IS_Navi_EE_53C71E.book 15 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

16
1. BASIC FUNCTION
IS300h/250_Navi_EE
3. HOME SCREEN
XThree-way split screen
Press the button on the Remote Touch to display the home screen.
The home screen can display multiple information screens, such as the audio system
screen and fuel consumption screen, simultaneously. When a screen is selected, the
selected screen is switched to a full-screen display. The home screen can be set to ei-
ther a three-way split screen or a two-way split screen.
For details about setting the home screen: →P.40
IS_Navi_EE_53C71E.book 16 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

17
1. BASIC FUNCTION
IS300h/250_Navi_EE
QUICK GUIDE
1
XTwo-way split screen
No.FunctionPage
Displays the condition of the Wi-Fi® and Bluetooth® connection18
Select to change the display items/area and the home screen layout.40
IS_Navi_EE_53C71E.book 17 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

18
1. BASIC FUNCTION
IS300h/250_Navi_EE
STATUS DISPLAY
The condition of the Wi-Fi® and Bluetooth® connection, as well as the level of recep-
tion and the amount of cellular phone battery charge left, are displayed on the status
bar. This status bar is always shown on all modes.
No.IndicatorsConditions
The level of Wi-Fi®
receptionNo connection Poor Excellent
•When Wi-Fi® function is off, no item is displayed.
The condition of the
Bluetooth® connec-
tion
(Gray) (Blue)
No connection Poor Good
•An antenna for the Bluetooth® connection is built into the
instrument panel. The condition of the Bluetooth® connection
may deteriorate and the system may not function when a
Bluetooth
® phone is used in the following conditions and/or
places:
The cellular phone is obstructed by certain objects (such as
when it is behind the seat or in the glove box or console box).
The cellular phone is touching or is covered with metal materi-
als.
•Leave the Bluetooth
® phone in a place where the condition of
the Bluetooth® connection is good.
IS_Navi_EE_53C71E.book 18 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

19
1. BASIC FUNCTION
IS300h/250_Navi_EE
QUICK GUIDE
1
The level of recep-
tion
Poor Excellent
•The level of reception does not always correspond with the
level displayed on the cellular phone. The level of reception
may not be displayed depending on the telephone you have.
When the cellular phone is out of the service area or in a place
inaccessible by radio waves, “No Service” is displayed.
•“Rm” is displayed when receiving in a roaming area. While
roaming, display “Rm” top-left on the icon.
•The receiving area may not be displayed depending on the
type of telephone you have.
The amount of bat-
tery charge left
Empty Full
•The amount displayed does not always correspond with the
amount displayed on the Bluetooth
® device.
The amount of battery charge left may not be displayed
depending on the type of the Bluetooth
® device connected.
This system does not have a charging function.
No.IndicatorsConditions
IS_Navi_EE_53C71E.book 19 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

20
IS300h/250_Navi_EE
2. QUICK REFERENCE

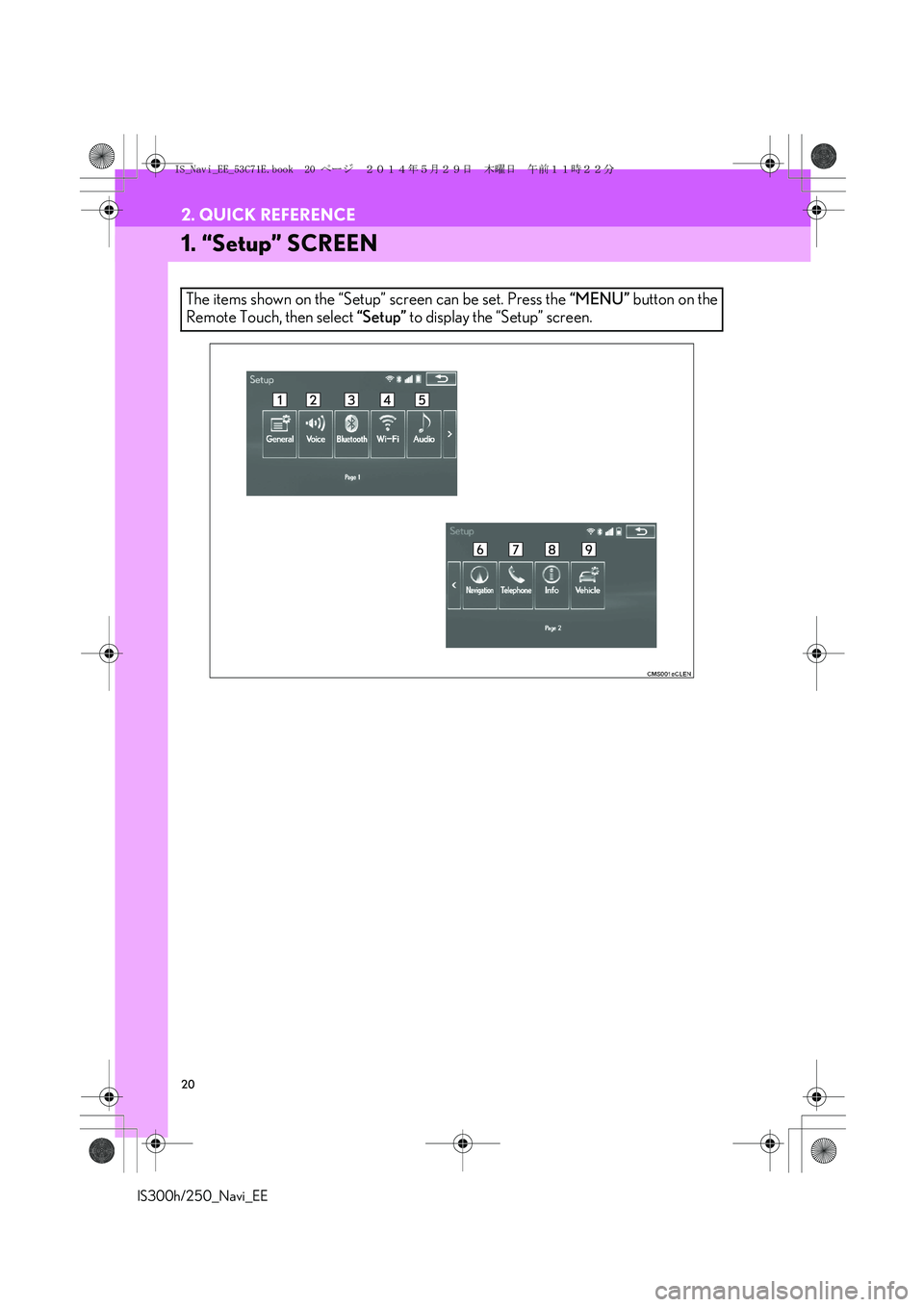

1. “Setup” SCREEN
The items shown on the “Setup” screen can be set. Press the “MENU” button on the
Remote Touch, then select “Setup” to display the “Setup” screen.
IS_Navi_EE_53C71E.book 20 ページ ２０１４年５月２９日　木曜日　午前１１時２２分
