display Lexus IS300h 2014 Navigation manual

36
IS300h/250_Navi_EE
1. BASIC INFORMATION BEFORE OPERATION
1. INITIAL SCREEN
1When the engine switch is in
ACCESSORY or IGNITION ON
mode, the initial screen will be
displayed and the system will begin op-
erating.zAfter a few seconds, the “CAUTION”
screen will be displayed.
zAfter about 5 seconds, the “CAUTION”
screen automatically switches to the home
screen. (With navigation function: Select
“Show map” or press the button on
the Remote Touch to display the home
screen.)
zImages shown on the initial screen can be
changed to suit individual preferences.
(→P. 7 8 )
CAUTION
●When the vehicle is stopped with the
engine running ating>, always apply the parking brake for
safety.
IS_Navi_EE_53C71E.book 36 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

37
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
BASIC FUNCTION
2
1Press and hold the Power/Volume
knob for 3 seconds or more.
MAINTENANCE
INFORMATION*
This system reminds users when to re-
place certain parts or components and
shows dealer information (if registered)
on the screen.
When the vehicle reaches a previously
set driving distance or date specified for
a scheduled maintenance check, the “In-
formation” screen will be displayed
when the system is turned on.
zThis screen goes off if the screen is not
operated for several seconds.
zTo prevent this screen from being dis-
played again, select “Do not show this
info again.”.
zTo register maintenance information: →
P. 8 6
RESTARTING THE SYSTEM
When system response is extremely
slow, the system can be restarted.
*: With navigation function
IS_Navi_EE_53C71E.book 37 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

38
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
2. HOW TO USE THE Remote Touch
1Use the Remote Touch knob to select
the desired button on the screen.
2To select the button on the screen, press
the Remote Touch knob. Once a button
has been selected, the screen will
change.
zWhen the pointer moves close to a button,
it will be automatically pulled onto that but-
ton. The strength of this pull can be
adjusted. (→P. 7 5 )
zThe pointer will disappear from the screen
if it is not moved for 6 seconds. Operation
of the Remote Touch knob will cause the
pointer to reappear.
z“” and “” buttons on the Remote Touch
can be used to scroll up and down on list
screens.
With navigation function: Press the “ ” but-
ton on the Remote Touch to zoom in on the
map screen and the “ ” button to zoom
out.
zWhen is displayed on the screen,
select to return to the previous
screen.
zPress the “MENU” button on the Remote
Touch to display the “Menu” screen.
(→P.1 4 )
zThe home screen can be displayed to by
pressing the button on the Remote
To u c h . (→P.1 6 )This system can be operated by the
Remote Touch when the engine er> switch is in ACCESSORY or IGNI-
TION ON mode.
IS_Navi_EE_53C71E.book 38 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

40
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
3. HOME SCREEN OPERATION
1Press the button on the Remote
Touch.
2Check that the home screen is dis-
played.
zWhen a screen is selected, the selected
screen will change to a full-screen display.
1Select .
2Check that “Customize home screen” is
displayed.
The home screen can display multiple
information screens, such as the audio
system screen and fuel consumption
screen, simultaneously. CUSTOMIZING THE HOME
SCREEN
The display items/area on the home
screen and the home screen layout can
be changed.
No.FunctionPage
Select to change the dis-
play items/area.41
Select to change the home
screen layout.41
IS_Navi_EE_53C71E.book 40 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

41
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
BASIC FUNCTION
2
■CHANGING THE DISPLAY
ITEMS/AREA
1Select the desired item.
2Select the desired area.
■CHANGING THE HOME SCREEN
LAYOUT
1Select “Change layout”.
2Select the desired screen layout.
INFORMATION
●
When the selected item is already being
displayed and another area is selected for
that item, the item that it is replacing will
be displayed in the original item’s loca-
tion.
IS_Navi_EE_53C71E.book 41 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

42
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE

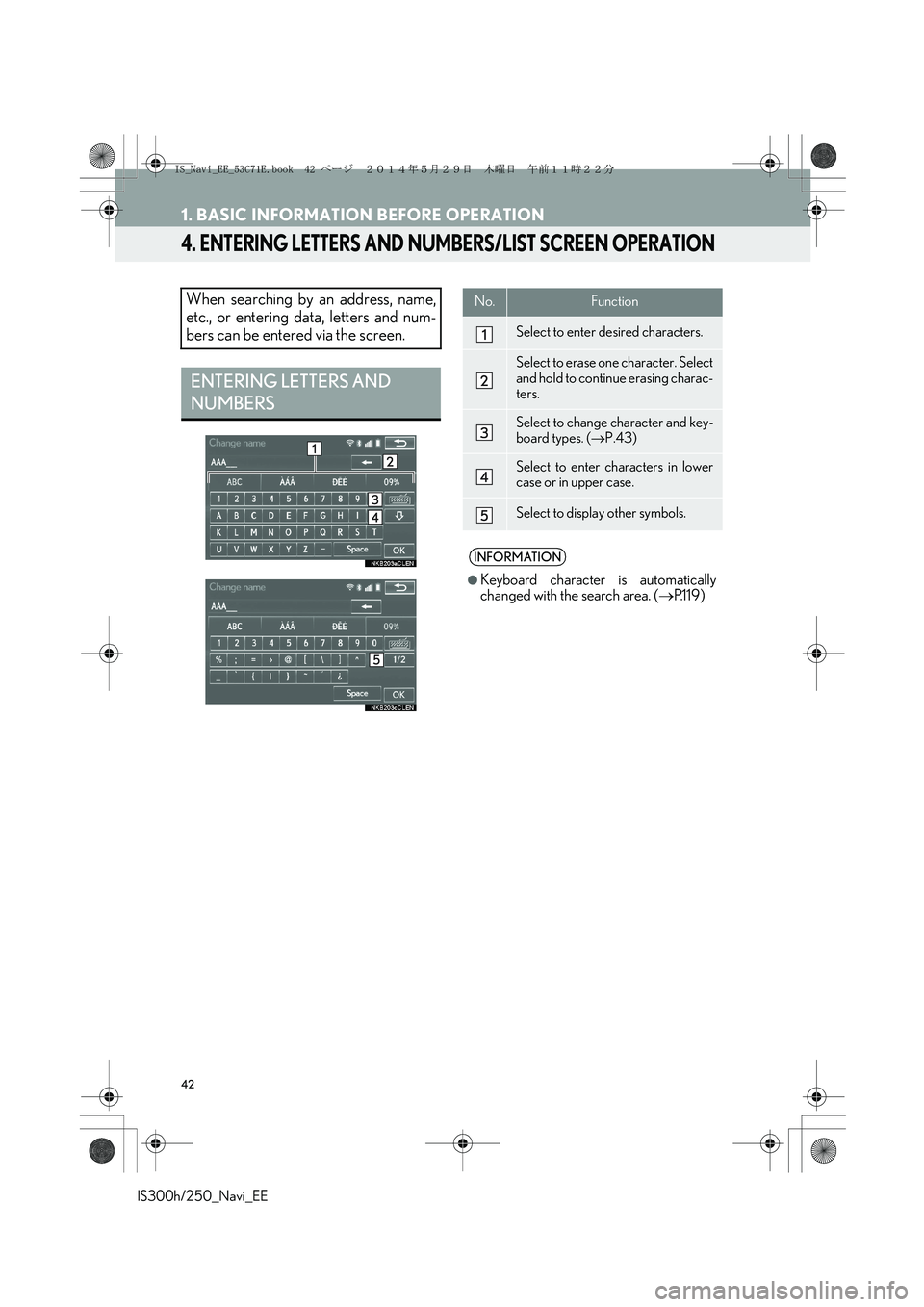

4. ENTERING LETTERS AND NUMBERS/LIST SCREEN OPERATION
When searching by an address, name,
etc., or entering data, letters and num-
bers can be entered via the screen.
ENTERING LETTERS AND
NUMBERS
No.Function
Select to enter desired characters.
Select to erase one character. Select
and hold to continue erasing charac-
ters.
Select to change character and key-
board types. (→P.43)
Select to enter characters in lower
case or in upper case.
Select to display other symbols.
INFORMATION
●
Keyboard character is automatically
changed with the search area. (→P.1 1 9 )
IS_Navi_EE_53C71E.book 42 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

43
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
BASIC FUNCTION
21Select .
2Select the desired character and key-
board and select “OK”.
1Enter characters and select “OK”.
zMatching items from the database are
listed even if the entered address or name
is incomplete.
zThe list will be displayed automatically if the
maximum number of characters is entered
or matching items can be displayed on a
single list screen.
CHANGING CHARACTER
AND KEYBOARD TYPE
INFORMATION
●
Depending on the conditions data is
being entered, it may not possible to
change keyboard characters.
LIST SCREEN
DISPLAYING THE LIST*
The list screen may be displayed after
entering characters.
INFORMATION
●
The number of matching items is shown
on the right side of the screen. If the num-
ber of matching items is more than 999,
the system displays “
∗∗∗” on the screen.
*: With navigation function
IS_Navi_EE_53C71E.book 43 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

44
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
■SELECTING ALL ITEMS
1Select “Select all”.
“Unselect all”: Unselect all items in the list.
Some lists contain “Select all”. If “Select
all” is selected, it is possible to select all
items.
LIST SCREEN OPERATION
When a list is displayed, use the appro-
priate screen button to scroll through
the list.
IconFunction
Select to skip to the next or previ-
ous page.
Select and hold or to
scroll through the displayed list.
This indicates the displayed
screen’s position.
If appears to the right of an
item name, the complete name is
too long to display.
Select to scroll to the end of
the name.
Select to move to the begin-
ning of the name.
INFORMATION
●
The “” and “” buttons on the Remote
Touch can be used to scroll up and down
on list screens.
IS_Navi_EE_53C71E.book 44 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

45
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
BASIC FUNCTION
2
1Select “Sort”.
2Select the desired sorting criteria.
1Select the desired character jump but-
tons.
“1 /3”: Select to change characters.
SORTING*
The order of a list displayed on the
screen can be sorted in the order of dis-
tance from the current location, date,
category, etc.
*: With navigation function
CHARACTER JUMP BUTTONS
IN LISTS
Some lists contain character screen but-
tons, “A B C ”, “DEF” etc., which allow a di-
rect jump to list entries that begin with
the same letter as the character screen
button.
INFORMATION
●
Every time the same character screen
button is selected, the list starting with the
subsequent character is displayed.
IS_Navi_EE_53C71E.book 45 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

46
1. BASIC INFORMATION BEFORE OPERATION
IS300h/250_Navi_EE
1Select “Group list”.
zThe list of memory points that are regis-
tered in the selected group will be dis-
played.
“A l l g r o u p ”: Select to close the displayed
items, and display all groups.
2Select the desired group.
DISPLAYING THE GROUP
LIST*
It is possible to display the desired group
items in the memory point list.
*: With navigation function
IS_Navi_EE_53C71E.book 46 ページ ２０１４年５月２９日　木曜日　午前１１時２２分
