HOW TO READ THIS MANUAL
No.NameDescription
Operational
OutlinesAn outline of the operation is explained.
Main OperationsThe steps of an operation are explained.
Related OperationsA main operation’s supplementary operations are described.
InformationUseful information for the user is described.
1. DESTINATION SEARCH
3. STARTING ROUTE GUIDANCE
1When an arrow facing the desired point
is selected, the map scrolls in that direc-
tion.
After inputting the destination, the
screen changes and displays the map lo-
cation of the selected destination and
the road preference.zIf a destination has already been set, “A d d
to ” and “Replace ” will be dis-
played.
“Replace ”: Select to delete the existing
destinations and set a new one.
INFORMATION
●The route for returning may not be the
same as that for going.
●The route guidance to the destination
may not be the shortest route nor a route
without traffic congestion.
●Route guidance may not be available if
there is no road data for the specified
location.
1. DESTINATION SEARCH
IS_Navi_EE_53C71E.book 4 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

TABLE OF CONTENTS
8
IS300h/250_Navi_EE1. BASIC FUNCTION......................................... 12
Remote Touch ........................................................... 12
“Menu” SCREEN ..................................................... 14
HOME SCREEN..................................................... 16
2. QUICK REFERENCE .................................. 20
“Setup” SCREEN ................................................... 20
“Information” SCREEN ........................................22
3. NAVIGATION OPERATION .................. 24
REGISTERING HOME ......................................24
REGISTERING QUICK ACCESS ................26
OPERATION FLOW:
GUIDING THE ROUTE ................................ 28
SETTING HOME AS THE
DESTINATION .................................................. 30
4. FUNCTION INDEX ..................................... 32
FUNCTION INDEX............................................ 32
1. BASIC INFORMATION
BEFORE OPERATION ............................ 36
INITIAL SCREEN.................................................. 36
HOW TO USE THE Remote Touch ............. 38
HOME SCREEN OPERATION ................... 40
ENTERING LETTERS AND NUMBERS/
LIST SCREEN OPERATION .......................42
SCREEN ADJUSTMENT................................... 47
LINKING MULTI-INFORMATION
DISPLAY AND THE SYSTEM .................... 49
2. NETWORK SETTINGS ............................... 50
REGISTERING/CONNECTING
Bluetooth® DEVICE .........................................50
SETTING Bluetooth® DETAILS ..................... 56
CONNECTING TO INTERNET VIA
Bluetooth
® DEVICE ......................................... 66
CONNECTING TO INTERNET
VIA Wi-Fi
®............................................................ 69
3. OTHER SETTINGS ........................................75
GENERAL SETTINGS ....................................... 75
VOICE SETTINGS ...............................................83
VEHICLE SETTINGS ......................................... 85
1. BASIC OPERATION .................................... 92
QUICK REFERENCE ......................................... 92
MAP SCREEN OPERATION......................... 96
MAP SCREEN INFORMATION ................ 104
TRAFFIC AND PARKING
INFORMATION .............................................. 109
2. DESTINATION SEARCH .......................... 116
DESTINATION SEARCH SCREEN............ 116
SEARCH OPERATION.................................... 118
STARTING ROUTE GUIDANCE ................131
3. ROUTE GUIDANCE ..................................136
ROUTE GUIDANCE SCREEN................... 136
TYPICAL VOICE GUIDANCE
PROMPTS ........................................................... 143
EDITING ROUTE................................................ 144
4. MY MEMORY ............................................. 150
MY MEMORY SETTINGS ............................. 150
5. SETUP ...............................................................170
NAVIGATION SETTINGS ............................ 170
TRAFFIC AND PARKING
SETTINGS ........................................................... 175
1QUICK GUIDE
2BASIC FUNCTION
3NAVIGATION SYSTEM
IS_Navi_EE_53C71E.book 8 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

9
IS300h/250_Navi_EE
1
2
3
4
5
6
7
8
6. TIPS FOR THE NAVIGATION
SYSTEM ....................................................... 184
GPS (GLOBAL POSITIONING
SYSTEM) ............................................................. 184
MAP DATABASE VERSION
AND COVERED AREA ...............................187
1. BASIC OPERATION ................................... 192
QUICK REFERENCE........................................192
SOME BASICS .....................................................194
2. RADIO OPERATION ............................... 202
AM/FM/DAB RADIO .................................... 202
3. MEDIA OPERATION ............................... 209
CD ............................................................................. 209
DVD ............................................................................215
USB MEMORY................................................... 222
iPod ........................................................................... 229
Bluetooth
® AUDIO .......................................... 236
AUX.......................................................................... 242
VTR............................................................................ 245
4. AUDIO/VISUAL REMOTE
CONTROLS .............................................. 248
STEERING SWITCHES .................................. 248
5. SETUP ............................................................. 250
AUDIO SETTINGS ........................................... 250
6. TIPS FOR OPERATING THE
AUDIO/VISUAL SYSTEM................... 258
OPERATING INFORMATION ................. 258
1. SPEECH COMMAND SYSTEM
OPERATION ............................................ 274
SPEECH COMMAND SYSTEM ............... 274
COMMAND LIST............................................. 282
1. LEXUS PARKING ASSIST
MONITOR ................................................. 286
LEXUS PARKING ASSIST
MONITOR ........................................................ 286
PERPENDICULAR PARKING
(ESTIMATED COURSE LINE
DISPLAY MODE)...........................................292
PERPENDICULAR PARKING
(PARKING ASSIST GUIDE
LINE DISPLAY MODE) ..............................294
PARALLEL PARKING.....................................296
LEXUS PARKING ASSIST
MONITOR PRECAUTIONS................... 304
THINGS YOU SHOULD KNOW..............310
2. LEXUS PARKING
ASSIST-SENSOR ...................................... 312
LEXUS PARKING
ASSIST-SENSOR............................................. 312
LEXUS PARKING
ASSIST SETTING ............................................. 319
4AUDIO/VISUAL SYSTEM
5SPEECH COMMAND SYSTEM
6PERIPHERAL MONITORING
SYSTEM
IS_Navi_EE_53C71E.book 9 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

1
11
IS300h/250_Navi_EE
1
2
3
4
5
6
7
8
1. Remote Touch ............................................... 12
2. “Menu” SCREEN ......................................... 14
3. HOME SCREEN .......................................... 16
STATUS DISPLAY...................................................... 18
1. “Setup” SCREEN ........................................ 20
2. “Information” SCREEN............................. 22
1. REGISTERING HOME............................ 24
2. REGISTERING QUICK ACCESS....... 26
3. OPERATION FLOW:
GUIDING THE ROUTE ....................... 28
4. SETTING HOME AS
THE DESTINATION .............................. 30
1. FUNCTION INDEX .................................. 32
1BASIC FUNCTION
2QUICK REFERENCE
3NAVIGATION OPERATION
4FUNCTION INDEX
QUICK GUIDE
IS_Navi_EE_53C71E.book 11 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

13
1. BASIC FUNCTION
IS300h/250_Navi_EE
QUICK GUIDE
1No.NameFunctionPage
“MENU” buttonPress to display the “Menu” screen.14
“·” buttonPress to change the scale of the map and to scroll
the list screen.38, 44, 97
buttonPress to display the home screen.16, 40
Remote Touch
knobMove in the desired direction to select a function,
letter and screen button.
Press to enter the selected function, letter or
screen button.
38
IS_Navi_EE_53C71E.book 13 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

14
1. BASIC FUNCTION
IS300h/250_Navi_EE
2. “Menu” SCREEN
Press the “MENU” button on the Remote Touch to display the “Menu” screen.
IS_Navi_EE_53C71E.book 14 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

15
1. BASIC FUNCTION
IS300h/250_Navi_EE
QUICK GUIDE
1No.FunctionPage
Select to operate the audio/visual system.192
Select to display the air conditioning control screen.“Owner’s
Manual”
*Select to display the navigation screen.92, 94
Select to display the telephone top screen.324
Select to display the “Information” screen.22
Select to display the fuel consumption screen.“Owner’s
Manual”
Select to display the “Setup” screen.20
Select to adjust the contrast and brightness of the screens, turn the
screen off, etc.47
*: With navigation function
IS_Navi_EE_53C71E.book 15 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

16
1. BASIC FUNCTION
IS300h/250_Navi_EE

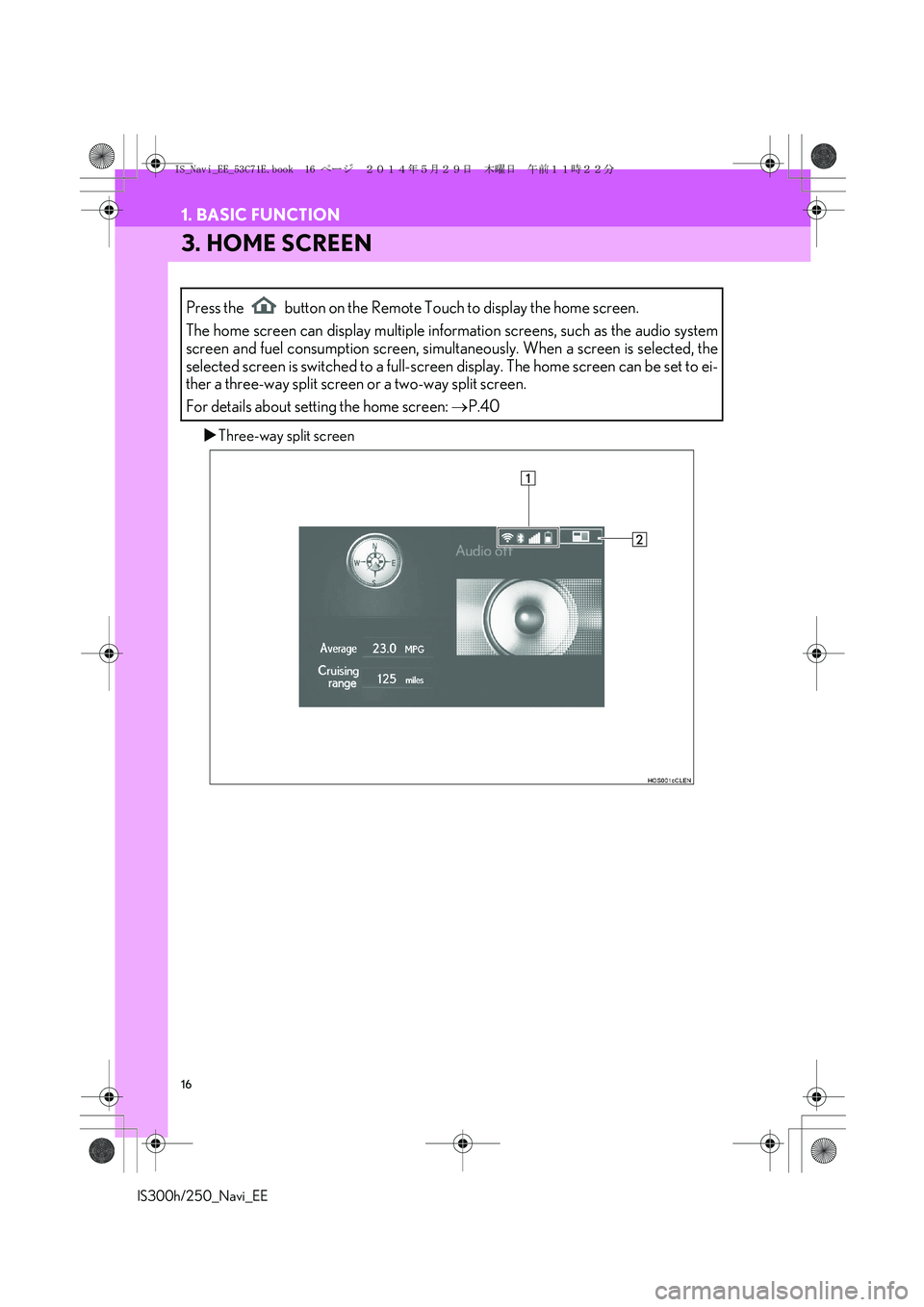

3. HOME SCREEN
XThree-way split screen
Press the button on the Remote Touch to display the home screen.
The home screen can display multiple information screens, such as the audio system
screen and fuel consumption screen, simultaneously. When a screen is selected, the
selected screen is switched to a full-screen display. The home screen can be set to ei-
ther a three-way split screen or a two-way split screen.
For details about setting the home screen: →P.40
IS_Navi_EE_53C71E.book 16 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

17
1. BASIC FUNCTION
IS300h/250_Navi_EE
QUICK GUIDE
1
XTwo-way split screen
No.FunctionPage
Displays the condition of the Wi-Fi® and Bluetooth® connection18
Select to change the display items/area and the home screen layout.40
IS_Navi_EE_53C71E.book 17 ページ ２０１４年５月２９日　木曜日　午前１１時２２分

18
1. BASIC FUNCTION
IS300h/250_Navi_EE
STATUS DISPLAY
The condition of the Wi-Fi® and Bluetooth® connection, as well as the level of recep-
tion and the amount of cellular phone battery charge left, are displayed on the status
bar. This status bar is always shown on all modes.
No.IndicatorsConditions
The level of Wi-Fi®
receptionNo connection Poor Excellent
•When Wi-Fi® function is off, no item is displayed.
The condition of the
Bluetooth® connec-
tion
(Gray) (Blue)
No connection Poor Good
•An antenna for the Bluetooth® connection is built into the
instrument panel. The condition of the Bluetooth® connection
may deteriorate and the system may not function when a
Bluetooth
® phone is used in the following conditions and/or
places:
The cellular phone is obstructed by certain objects (such as
when it is behind the seat or in the glove box or console box).
The cellular phone is touching or is covered with metal materi-
als.
•Leave the Bluetooth
® phone in a place where the condition of
the Bluetooth® connection is good.
IS_Navi_EE_53C71E.book 18 ページ ２０１４年５月２９日　木曜日　午前１１時２２分
