Lexus IS300h 2014 Owner's Manual

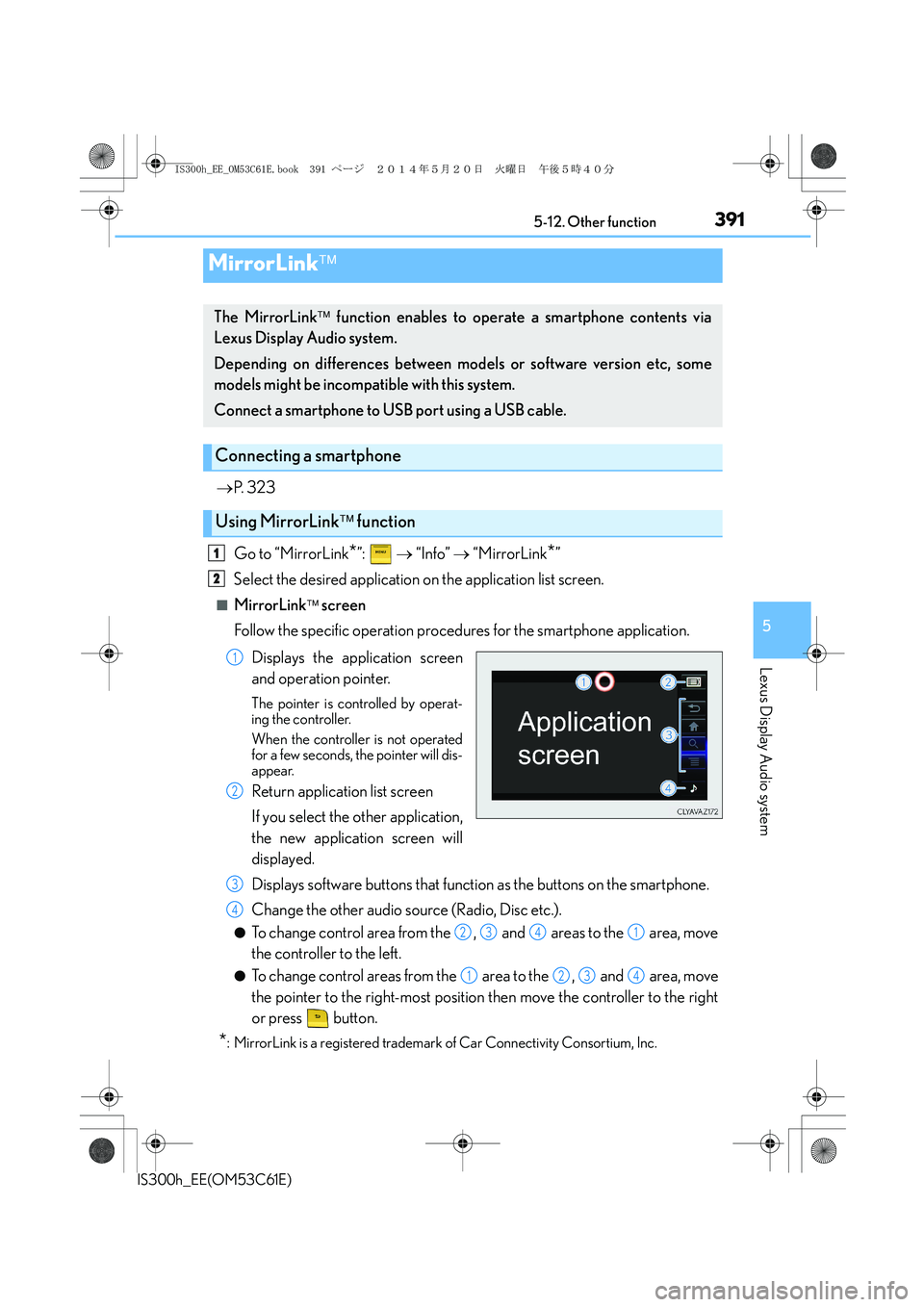

3915-12. Other function
5
Lexus Display Audio system
IS300h_EE(OM53C61E)
→P. 3 2 3
Go to “MirrorLink
*”: → “Info” → “MirrorLink*”
Select the desired application on the application list screen.
■MirrorLink screen
Follow the specific operation procedures for the smartphone application.
Displays the application screen
and operation pointer.
The pointer is controlled by operat-
ing the controller.
When the controller is not operated
for a few seconds, the pointer will dis-
appear.
Return application list screen
If you select the other application,
the new application screen will
displayed.
Displays software buttons that function as the buttons on the smartphone.
Change the other audio source (Radio, Disc etc.).
●To change control area from the , and areas to the area, move
the controller to the left.
●To change control areas from the area to the , and area, move
the pointer to the right-most position then move the controller to the right
or press button.
*: MirrorLink is a registered trademark of Car Connectivity Consortium, Inc.
MirrorLink
The MirrorLink function enables to operate a smartphone contents via
Lexus Display Audio system.
Depending on differences between models or software version etc, some
models might be incompatible with this system.
Connect a smartphone to USB port using a USB cable.
Connecting a smartphone
Using MirrorLink function
1
2
1
2
3
4
2341
1234
IS300h_EE_OM53C61E.book 391 ページ ２０１４年５月２０日　火曜日　午後５時４０分

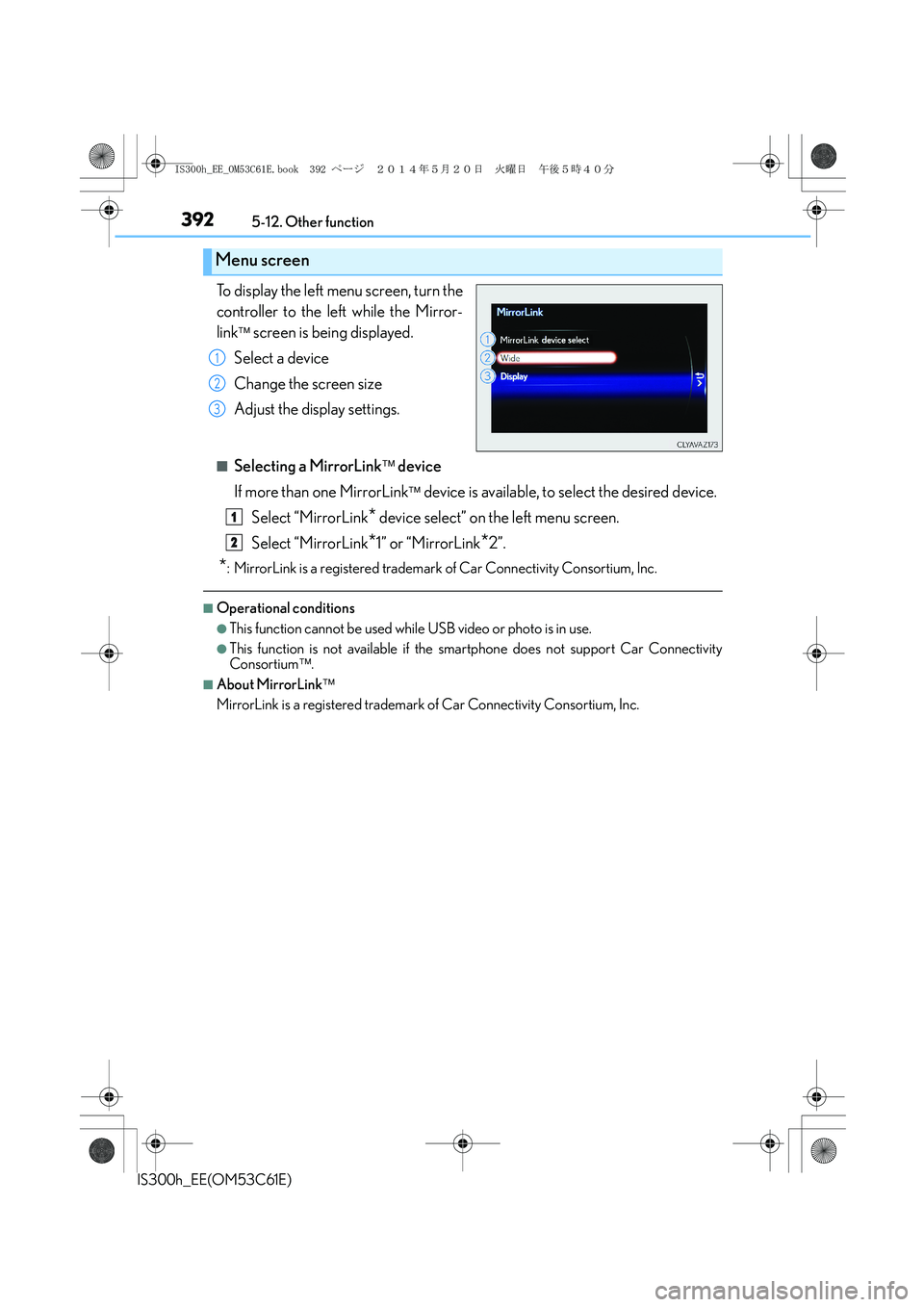

3925-12. Other function
IS300h_EE(OM53C61E)
To display the left menu screen, turn the
controller to the left while the Mirror-
link
 screen is being displayed.
Select a device
Change the screen size
Adjust the display settings.
■Selecting a MirrorLink device
If more than one MirrorLink
 device is available, to select the desired device.
Select “MirrorLink
* device select” on the left menu screen.
Select “MirrorLink
*1” or “MirrorLink*2”.
*: MirrorLink is a registered trademark of Car Connectivity Consortium, Inc.
■Operational conditions
●This function cannot be used while USB video or photo is in use.
●This function is not available if the smartphone does not support Car Connectivity
Consortium.
■About MirrorLink
MirrorLink is a registered trademark of Car Connectivity Consortium, Inc.
Menu screen
1
2
3
1
2
IS300h_EE_OM53C61E.book 392 ページ ２０１４年５月２０日　火曜日　午後５時４０分

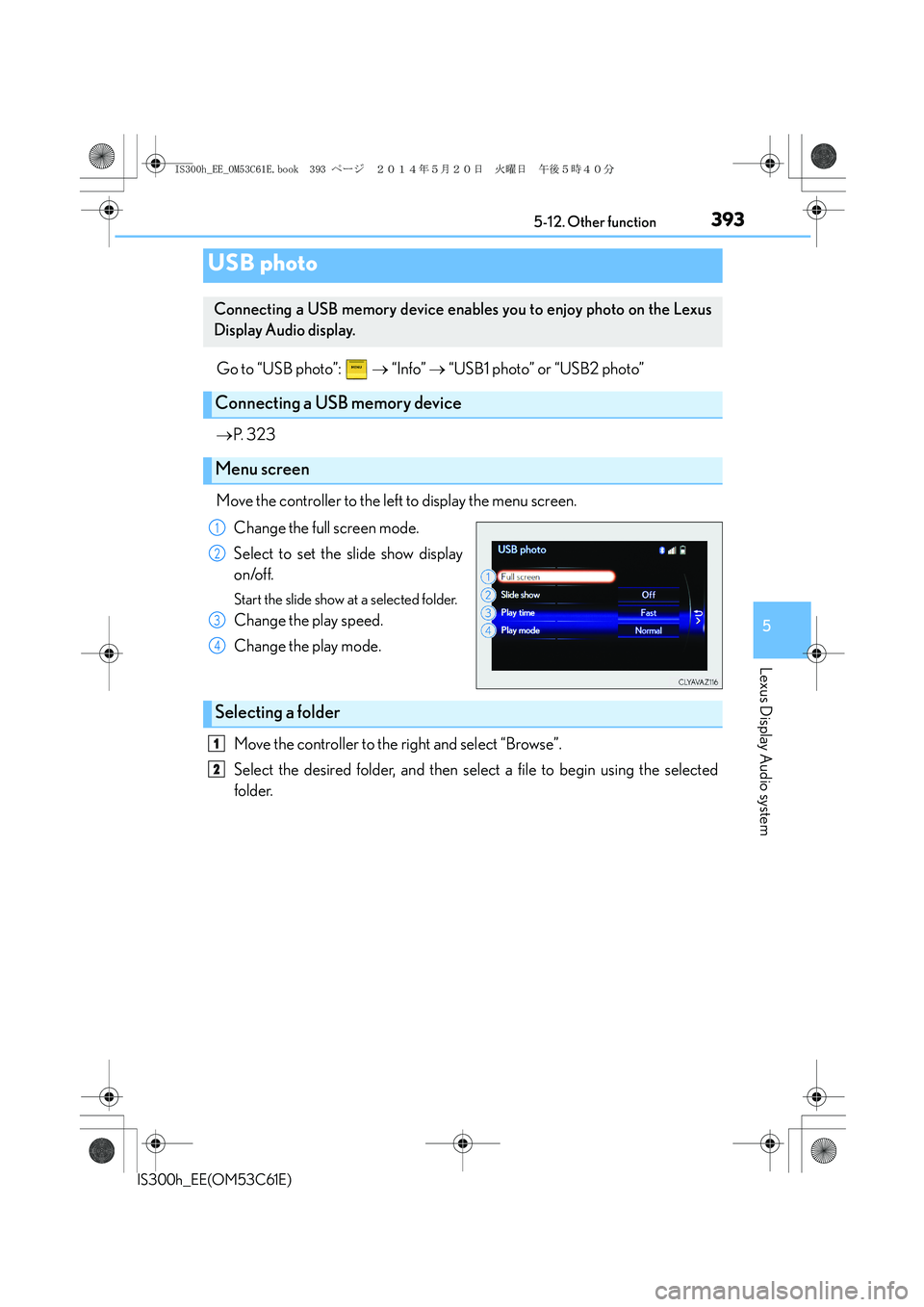

3935-12. Other function
5
Lexus Display Audio system
IS300h_EE(OM53C61E)
Go to “USB photo”: → “Info” → “USB1 photo” or “USB2 photo”
→P. 3 2 3
Move the controller to the left to display the menu screen.
Change the full screen mode.
Select to set the slide show display
on/off.
Start the slide show at a selected folder.
Change the play speed.
Change the play mode.
Move the controller to the right and select “Browse”.
Select the desired folder, and then select a file to begin using the selected
folder.
USB photo
Connecting a USB memory device enables you to enjoy photo on the Lexus
Display Audio display.
Connecting a USB memory device
Menu screen
1
2
3
4
Selecting a folder
1
2
IS300h_EE_OM53C61E.book 393 ページ ２０１４年５月２０日　火曜日　午後５時４０分

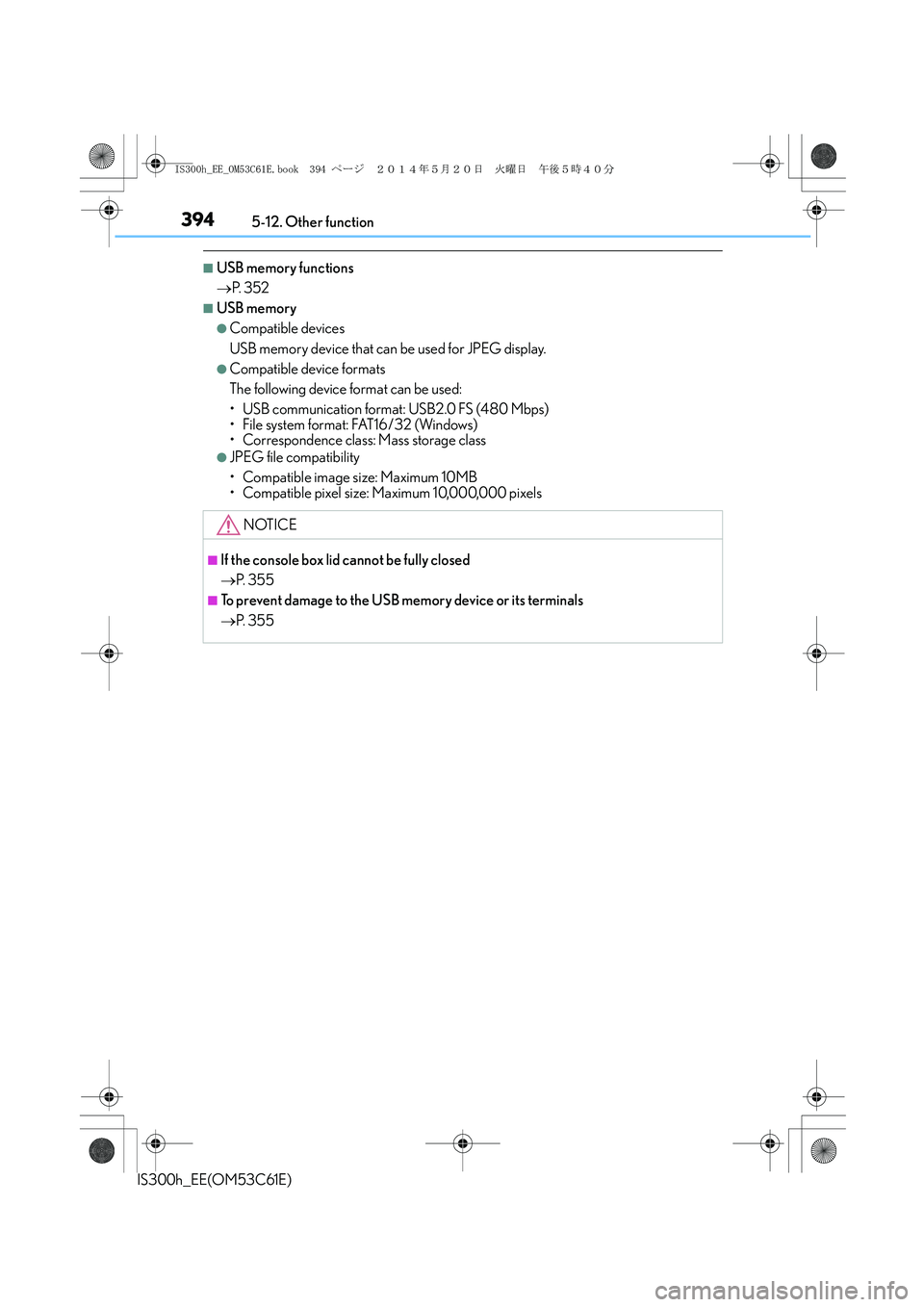

3945-12. Other function
IS300h_EE(OM53C61E)
■USB memory functions
→P. 3 5 2
■USB memory
●Compatible devices
USB memory device that can be used for JPEG display.
●Compatible device formats
The following device format can be used:
• USB communication format: USB2.0 FS (480 Mbps)
• File system format: FAT16/32 (Windows)
• Correspondence class: Mass storage class
●JPEG file compatibility
• Compatible image size: Maximum 10MB
• Compatible pixel size: Maximum 10,000,000 pixels
NOTICE
■If the console box lid cannot be fully closed
→P. 3 5 5
■To prevent damage to the USB memory device or its terminals
→P. 3 5 5
IS300h_EE_OM53C61E.book 394 ページ ２０１４年５月２０日　火曜日　午後５時４０分

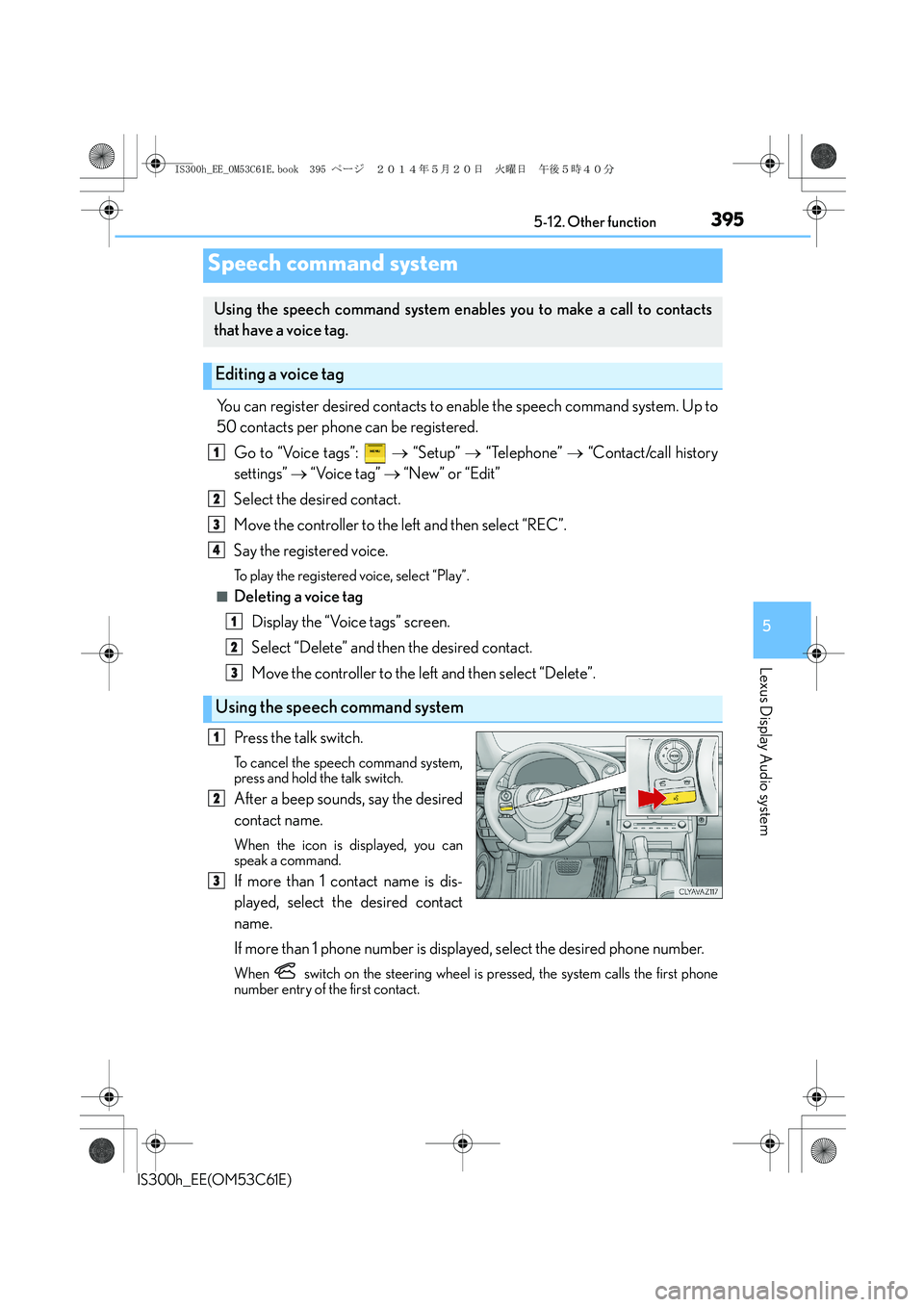

3955-12. Other function
5
Lexus Display Audio system
IS300h_EE(OM53C61E)
You can register desired contacts to enable the speech command system. Up to
50 contacts per phone can be registered.
Go to “Voice tags”: → “Setup” → “Telephone” → “Contact/call history
settings” → “Voice tag” → “New” or “Edit”
Select the desired contact.
Move the controller to the left and then select “REC”.
Say the registered voice.
To play the registered voice, select “Play”.
■Deleting a voice tag
Display the “Voice tags” screen.
Select “Delete” and then the desired contact.
Move the controller to the left and then select “Delete”.
Press the talk switch.
To cancel the speech command system,
press and hold the talk switch.
After a beep sounds, say the desired
contact name.
When the icon is displayed, you can
speak a command.
If more than 1 contact name is dis-
played, select the desired contact
name.
If more than 1 phone number is displayed, select the desired phone number.
When switch on the steering wheel is pressed, the system calls the first phone
number entry of the first contact.
Speech command system
Using the speech command system enables you to make a call to contacts
that have a voice tag.
Editing a voice tag
Using the speech command system
1
2
3
4
1
2
3
1
2
3
IS300h_EE_OM53C61E.book 395 ページ ２０１４年５月２０日　火曜日　午後５時４０分

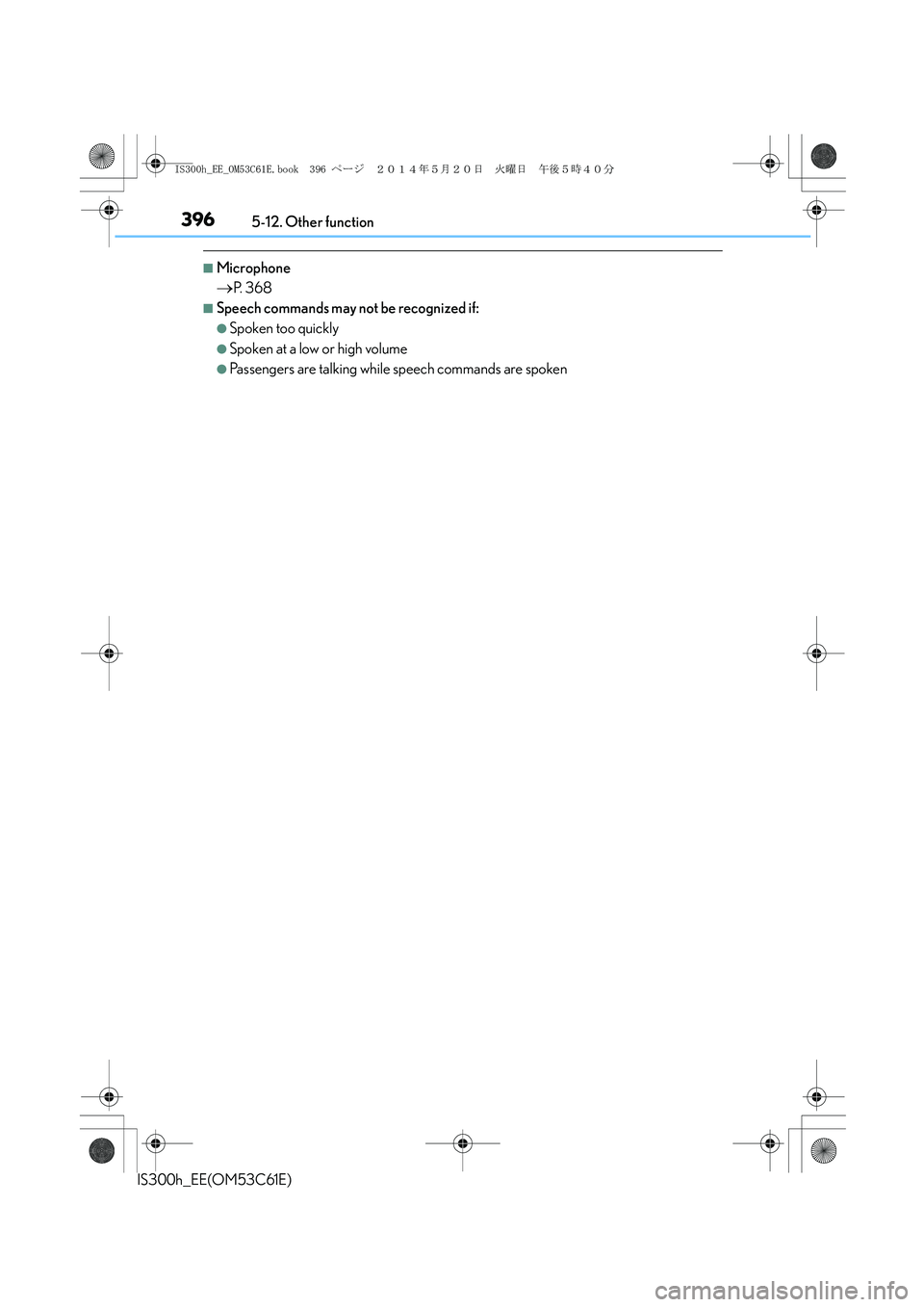

3965-12. Other function
IS300h_EE(OM53C61E)
■Microphone
→P. 3 6 8
■Speech commands may not be recognized if:
●Spoken too quickly
●Spoken at a low or high volume
●Passengers are talking while speech commands are spoken
IS300h_EE_OM53C61E.book 396 ページ ２０１４年５月２０日　火曜日　午後５時４０分

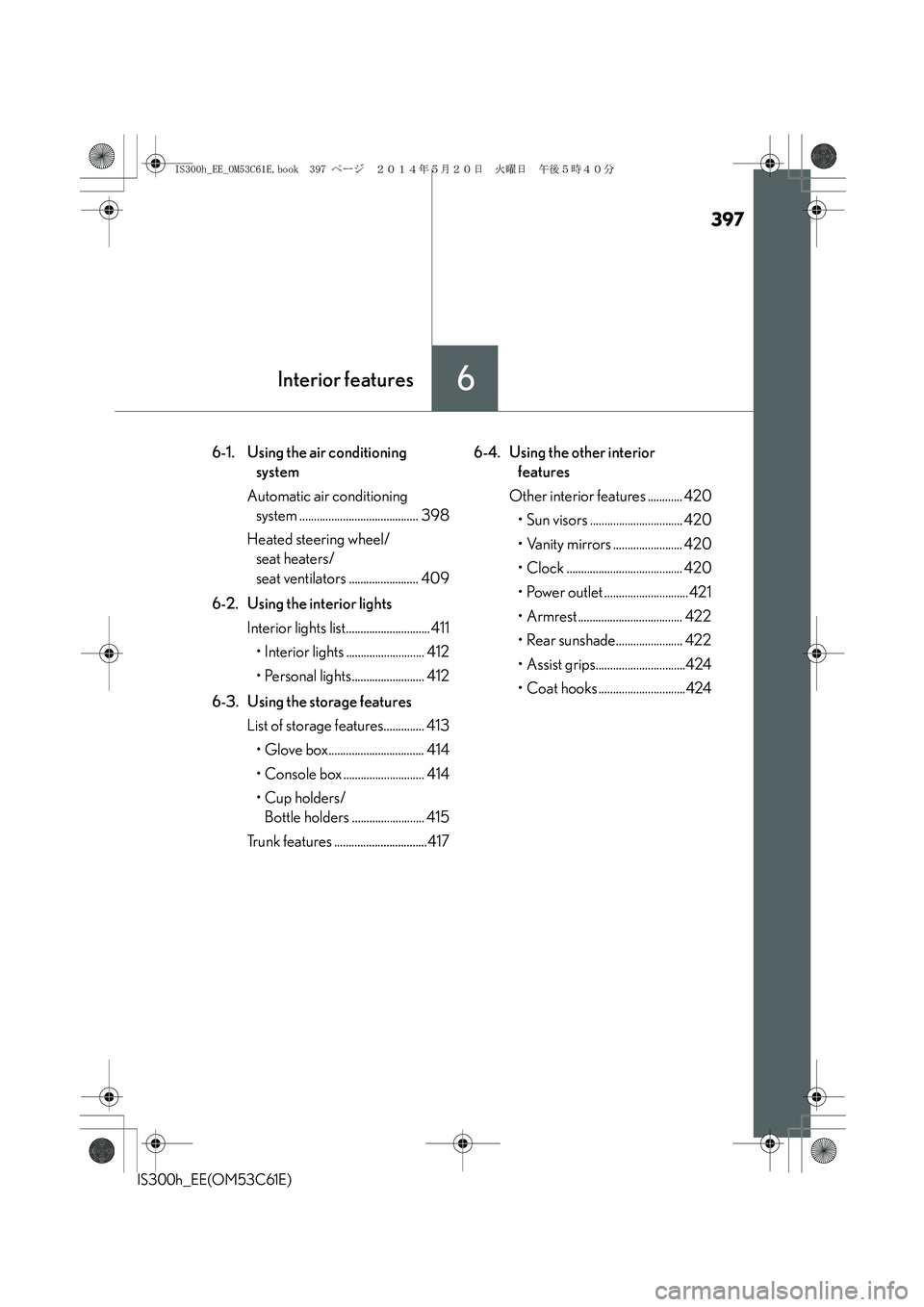

397
6Interior features
IS300h_EE(OM53C61E)
6-1. Using the air conditioning
system
Automatic air conditioning
system ......................................... 398
Heated steering wheel/
seat heaters/
seat ventilators ........................ 409
6-2. Using the interior lights
Interior lights list.............................411
• Interior lights ........................... 412
• Personal lights......................... 412
6-3. Using the storage features
List of storage features.............. 413
• Glove box................................. 414
• Console box ............................ 414
•Cup holders/
Bottle holders ......................... 415
Trunk features ................................4176-4. Using the other interior
features
Other interior features ............ 420
• Sun visors ................................ 420
• Vanity mirrors ........................ 420
• Clock ........................................ 420
• Power outlet .............................421
• Armrest.................................... 422
• Rear sunshade....................... 422
• Assist grips...............................424
• Coat hooks ..............................424
IS300h_EE_OM53C61E.book 397 ページ ２０１４年５月２０日　火曜日　午後５時４０分

398
IS300h_EE(OM53C61E)6-1. Using the air conditioning system
Automatic air conditioning system
Air outlets and fan speed are automatically adjusted according to the temper-
ature setting.
Vehicles with a Lexus Display Audio system: Press the “MENU” button on the
Lexus Display Audio controller, then select “Climate” to display the air condi-
tioning operation screen.
For details on the Lexus Display Audio controller, refer to “Lexus Display
Audio controller” on P. 318.
Vehicles with a navigation system: Press the “MENU” button on the Remote
Touch, then select “Climate” to display the air conditioning control screen.
For details on the Remote Touch, refer to the “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S MANUAL”.
The illustrations below are for left-hand drive vehicles.
The button positions and shapes will differ for right-hand drive vehicles.
Also, the display and button positions will differ depending on the type of the
system.
IS300h_EE_OM53C61E.book 398 ページ ２０１４年５月２０日　火曜日　午後５時４０分

3996-1. Using the air conditioning system
6
Interior features
IS300h_EE(OM53C61E)
XWith “DUAL” mode
XWithout “DUAL” mode
Air conditioning controls
IS300h_EE_OM53C61E.book 399 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4006-1. Using the air conditioning system
IS300h_EE(OM53C61E)
■Adjusting the temperature setting
To adjust the temperature setting,
touch and slide your finger up or
down on the sensor.
The temperature setting can also be
adjusted by touching on the sensor.
When the temperature setting is
changed, a buzzer sounds.
■Fan speed setting
Press to increase the fan speed.
Press to decrease the fan speed.
■Change the airflow mode
To change the airflow, press .
The air outlets used are switched each time the button is pressed.
■S-FLOW mode (if equipped)
When there are no passengers in the rear seats, airflow can be directed to the
front seats only to reduce the air conditioning effect on the rear seats.
However, depending on both the temperature inside and outside the vehicle, air-
flow may be directed to the rear seats even though S-FLOW mode is on to main-
tain comfort inside the vehicle.
Press .
The indicator comes on when S-FLOW mode is on.
Press again to resume airflow to the rear seats.
■Other functions
●Switching between outside air and recirculated air modes (→P. 4 0 4 )
●Defogging the windshield (→P. 404)
●Defogging the rear window and outside rear view mirrors (→P. 404)
IS300h_EE_OM53C61E.book 400 ページ ２０１４年５月２０日　火曜日　午後５時４０分
