Lexus IS300h 2014 Owner's Manual

4216-4. Using the other interior features
6
Interior features
IS300h_EE(OM53C61E)
The power outlet can be used for 12 V accessories that run on less than 10 A.
Open the lid.
●The power outlet can be used when the power switch is in ACCESSORY or ON mode.
Power outlet
●To fully close the console box with the cable
routed to outside the console box, insert the
cable into the holder.
NOTICE
●To avoid the damaging the power outlet, close the power outlet lid when the power
outlet is not in use. Foreign objects or liquids that enter the power outlet may cause a
short circuit.
●To prevent blown fuse, do not use an accessory that uses more than 12 V 10 A.
●To prevent 12-volt battery discharge, do not use the power outlet longer than neces-
sary when the hybrid system is off.
IS300h_EE_OM53C61E.book 421 ページ ２０１４年５月２０日　火曜日　午後５時４０分

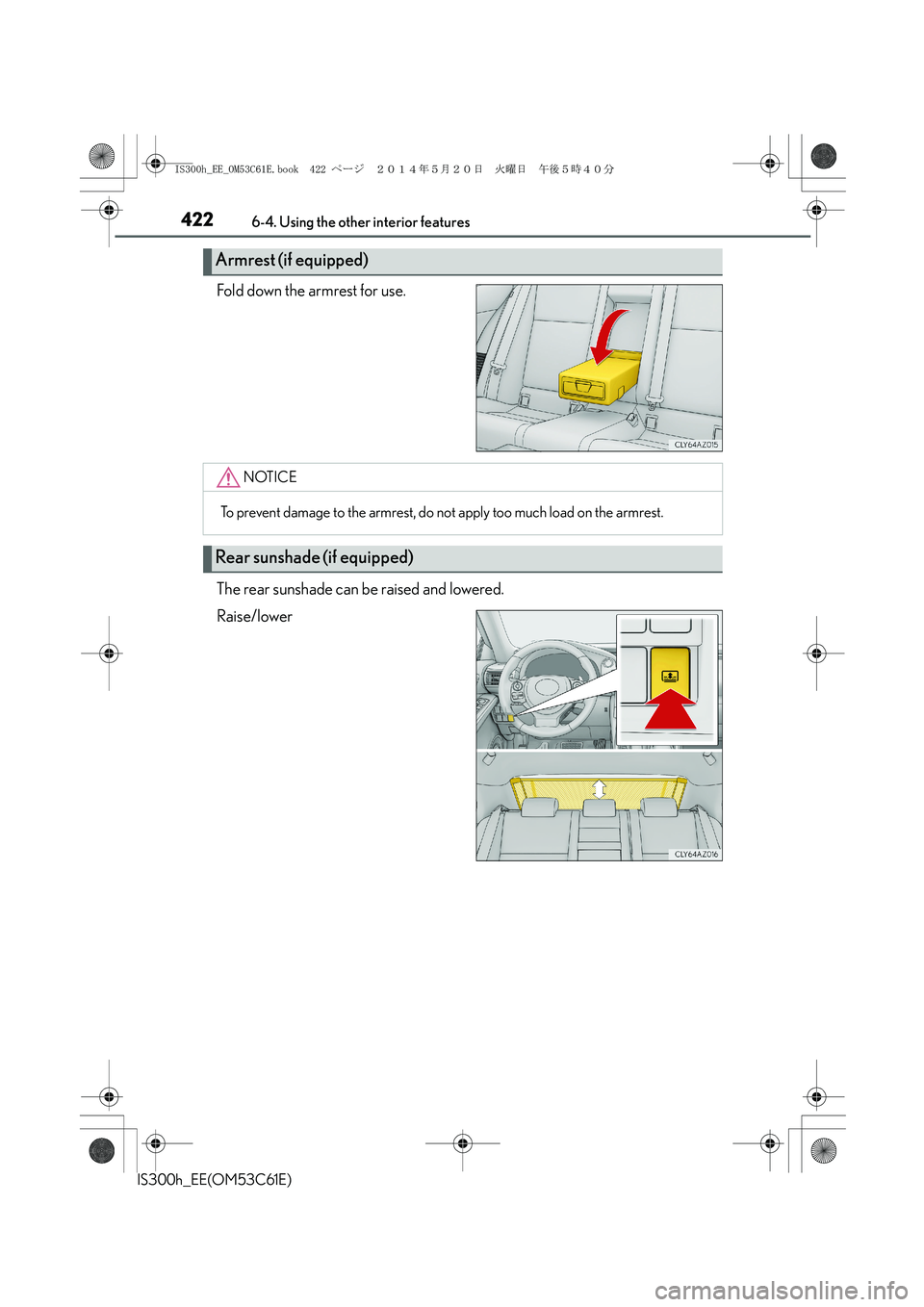

4226-4. Using the other interior features
IS300h_EE(OM53C61E)
Fold down the armrest for use.
The rear sunshade can be raised and lowered.
Raise/lower
Armrest (if equipped)
NOTICE
To prevent damage to the armrest, do not apply too much load on the armrest.
Rear sunshade (if equipped)
IS300h_EE_OM53C61E.book 422 ページ ２０１４年５月２０日　火曜日　午後５時４０分

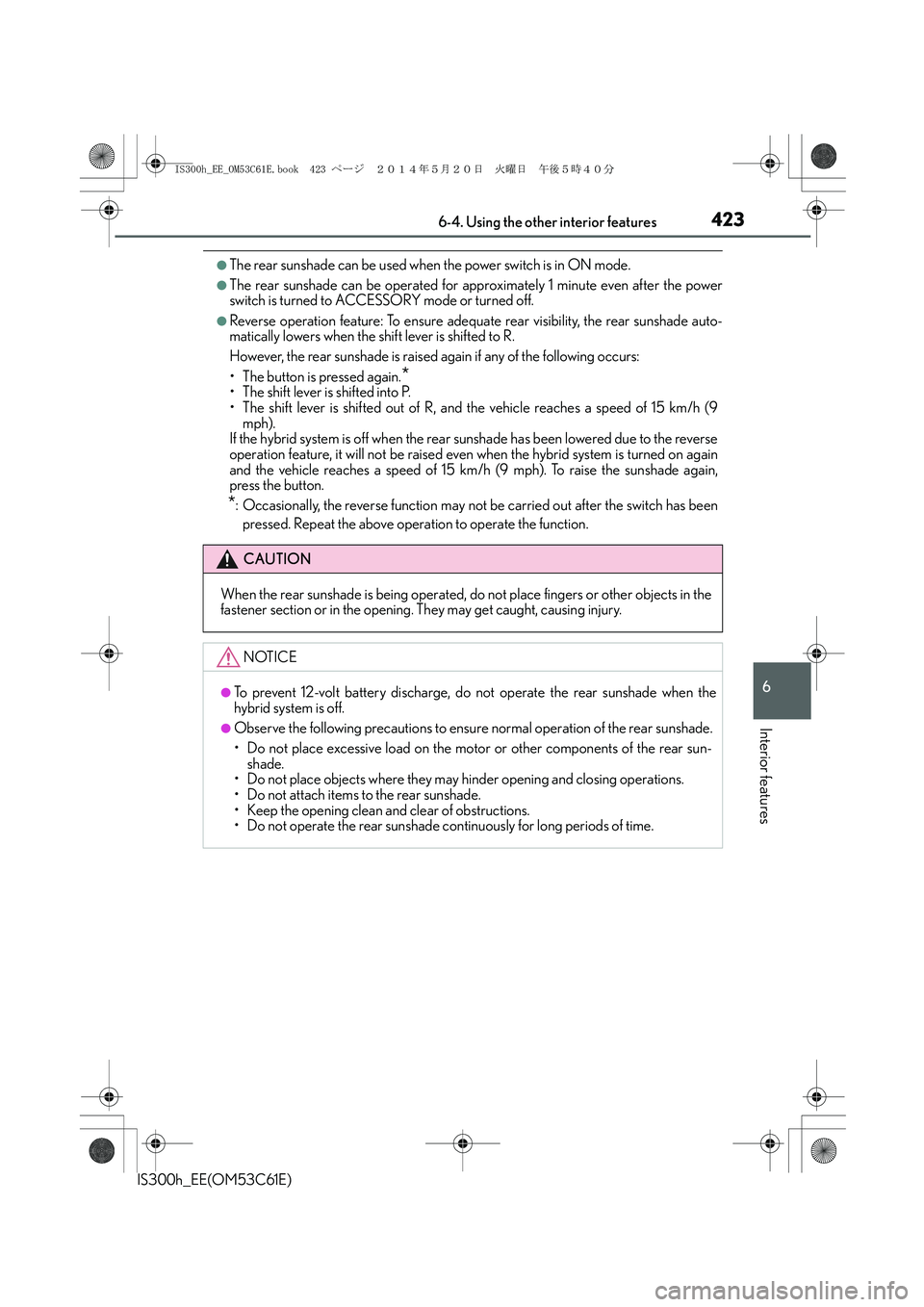

4236-4. Using the other interior features
6
Interior features
IS300h_EE(OM53C61E)
●The rear sunshade can be used when the power switch is in ON mode.
●The rear sunshade can be operated for approximately 1 minute even after the power
switch is turned to ACCESSORY mode or turned off.
●Reverse operation feature: To ensure adequate rear visibility, the rear sunshade auto-
matically lowers when the shift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
• The button is pressed again.
*• The shift lever is shifted into P.
• The shift lever is shifted out of R, and the vehicle reaches a speed of 15 km/h (9
mph).
If the hybrid system is off when the rear sunshade has been lowered due to the reverse
operation feature, it will not be raised even when the hybrid system is turned on again
and the vehicle reaches a speed of 15 km/h (9 mph). To raise the sunshade again,
press the button.
*: Occasionally, the reverse function may not be carried out after the switch has been
pressed. Repeat the above operation to operate the function.
CAUTION
When the rear sunshade is being operated, do not place fingers or other objects in the
fastener section or in the opening. They may get caught, causing injury.
NOTICE
●To prevent 12-volt battery discharge, do not operate the rear sunshade when the
hybrid system is off.
●Observe the following precautions to ensure normal operation of the rear sunshade.
• Do not place excessive load on the motor or other components of the rear sun-
shade.
• Do not place objects where they may hinder opening and closing operations.
• Do not attach items to the rear sunshade.
• Keep the opening clean and clear of obstructions.
• Do not operate the rear sunshade continuously for long periods of time.
IS300h_EE_OM53C61E.book 423 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4246-4. Using the other interior features
IS300h_EE(OM53C61E)
An assist grip installed on the ceiling
can be used to support your body while
sitting on the seat.
The coat hooks are provided with the
rear assist grips.
Assist grips
CAUTION
Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
NOTICE
To prevent damage to the assist grip, do not put a heavy load on the assist grip.
Coat hooks
CAUTION
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS cur-
tain shield airbags deploy, these items may become projectiles, causing death or seri-
ous injury.
IS300h_EE_OM53C61E.book 424 ページ ２０１４年５月２０日　火曜日　午後５時４０分

425
7Maintenance and care
IS300h_EE(OM53C61E)
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior................. 426
Cleaning and protecting
the vehicle interior..................430
7-2. Maintenance
Maintenance
requirements............................. 433
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions................................ 435
Hood ............................................... 437
Positioning a floor jack .............438
Engine compartment ............... 439
12-volt battery ..............................447
Tires.................................................. 450
Replacing the tire ....................... 459
Tire inflation pressure ............... 465
Wheels ............................................467
Air conditioning filter ............... 469
Electronic key battery ................ 471
Checking and replacing
fuses............................................... 474
Light bulbs..................................... 478
IS300h_EE_OM53C61E.book 425 ページ ２０１４年５月２０日　火曜日　午後５時４０分

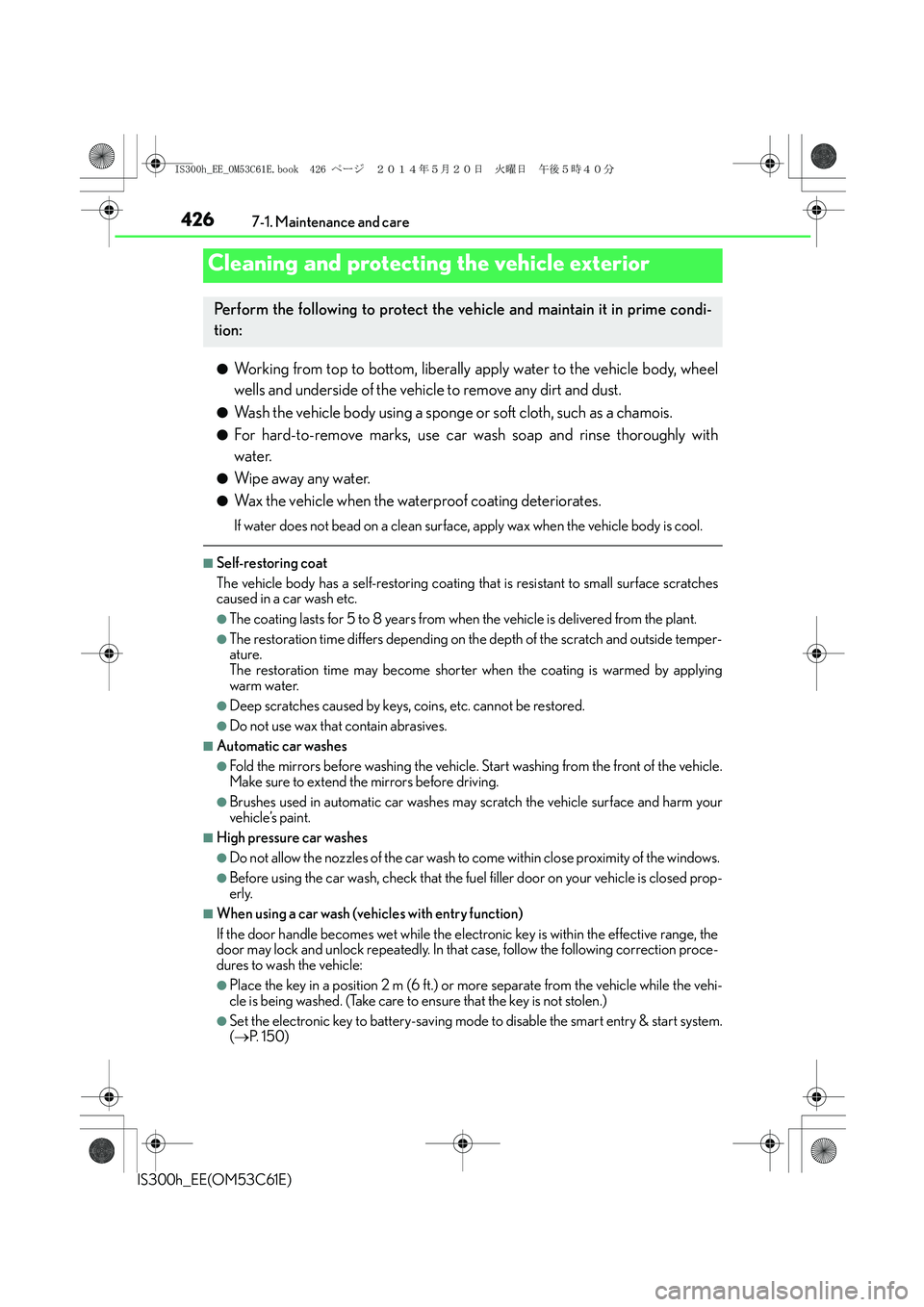

426
IS300h_EE(OM53C61E)7-1. Maintenance and care
●Working from top to bottom, liberally apply water to the vehicle body, wheel
wells and underside of the vehicle to remove any dirt and dust.
●Wash the vehicle body using a sponge or soft cloth, such as a chamois.
●For hard-to-remove marks, use car wash soap and rinse thoroughly with
water.
●Wipe away any water.
●Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle body is cool.
■Self-restoring coat
The vehicle body has a self-restoring coating that is resistant to small surface scratches
caused in a car wash etc.
●The coating lasts for 5 to 8 years from when the vehicle is delivered from the plant.
●The restoration time differs depending on the depth of the scratch and outside temper-
ature.
The restoration time may become shorter when the coating is warmed by applying
warm water.
●Deep scratches caused by keys, coins, etc. cannot be restored.
●Do not use wax that contain abrasives.
■Automatic car washes
●Fold the mirrors before washing the vehicle. Start washing from the front of the vehicle.
Make sure to extend the mirrors before driving.
●Brushes used in automatic car washes may scratch the vehicle surface and harm your
vehicle’s paint.
■High pressure car washes
●Do not allow the nozzles of the car wash to come within close proximity of the windows.
●Before using the car wash, check that the fuel filler door on your vehicle is closed prop-
erly.
■When using a car wash (vehicles with entry function)
If the door handle becomes wet while the electronic key is within the effective range, the
door may lock and unlock repeatedly. In that case, follow the following correction proce-
dures to wash the vehicle:
●Place the key in a position 2 m (6 ft.) or more separate from the vehicle while the vehi-
cle is being washed. (Take care to ensure that the key is not stolen.)
●Set the electronic key to battery-saving mode to disable the smart entry & start system.
(→P. 1 5 0 )
Cleaning and protecting the vehicle exterior
Perform the following to protect the vehicle and maintain it in prime condi-
tion:
IS300h_EE_OM53C61E.book 426 ページ ２０１４年５月２０日　火曜日　午後５時４０分

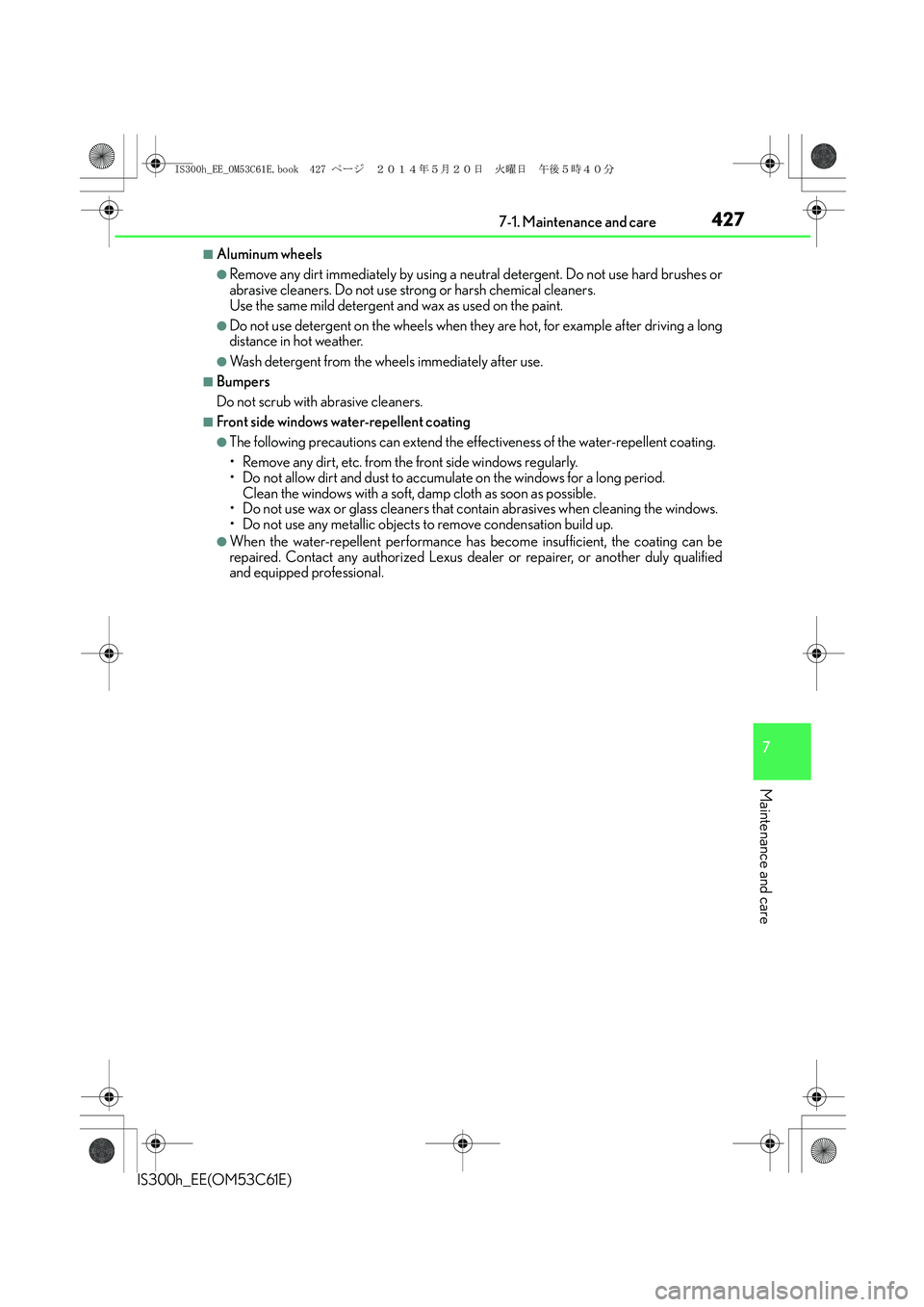

4277-1. Maintenance and care
7
Maintenance and care
IS300h_EE(OM53C61E)
■Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use hard brushes or
abrasive cleaners. Do not use strong or harsh chemical cleaners.
Use the same mild detergent and wax as used on the paint.
●Do not use detergent on the wheels when they are hot, for example after driving a long
distance in hot weather.
●Wash detergent from the wheels immediately after use.
■Bumpers
Do not scrub with abrasive cleaners.
■Front side windows water-repellent coating
●The following precautions can extend the effectiveness of the water-repellent coating.
• Remove any dirt, etc. from the front side windows regularly.
• Do not allow dirt and dust to accumulate on the windows for a long period.
Clean the windows with a soft, damp cloth as soon as possible.
• Do not use wax or glass cleaners that contain abrasives when cleaning the windows.
• Do not use any metallic objects to remove condensation build up.
●When the water-repellent performance has become insufficient, the coating can be
repaired. Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
IS300h_EE_OM53C61E.book 427 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4287-1. Maintenance and care
IS300h_EE(OM53C61E)
CAUTION
■When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may cause the
electrical components etc. to catch fire.
■When cleaning the windshield (vehicles with rain-sensing windshield wipers)
●When the upper part of the windshield where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the raindrop
sensor
■Precautions regarding the exhaust pipes
Exhaust gases cause the exhaust pipes to become quite hot.
When washing the vehicle, be careful not to touch the pipes until they have cooled suf-
ficiently, as touching hot exhaust pipes can cause burns.
■Precaution regarding the rear bumper with Blind Spot Monitor (if equipped)
If the paint of the rear bumper is chipped or scratched, the system may malfunction. If
this occurs, consult any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
Set the wipers to the intermittent windshield
wipers. (→P. 2 3 8 )
If AUTO mode is selected, the wipers may
operate unexpectedly in the following situa-
tions, and may result in hands being caught or
other serious injuries and cause damage to the
wiper blades.
IS300h_EE_OM53C61E.book 428 ページ ２０１４年５月２０日　火曜日　午後５時４０分

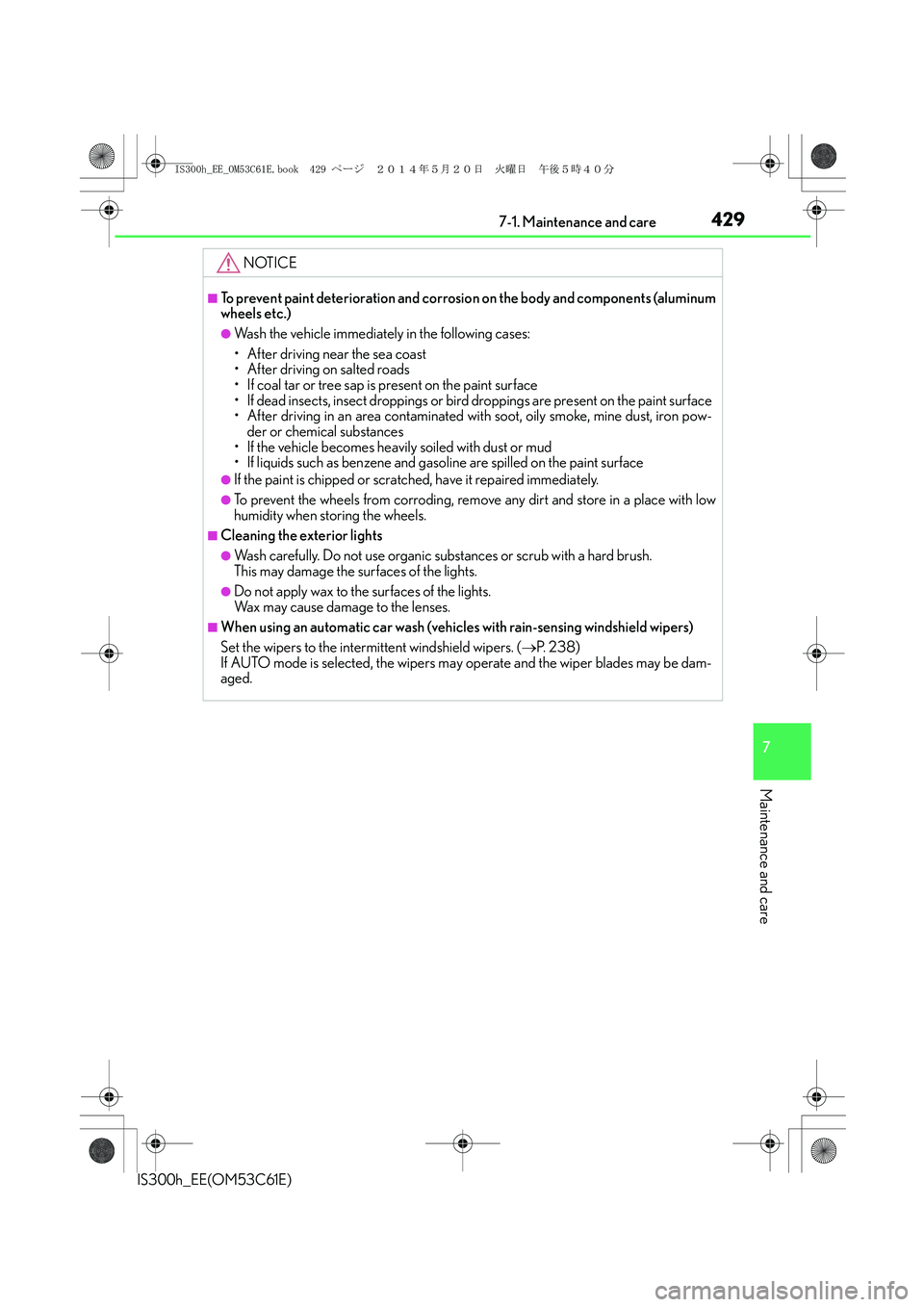

4297-1. Maintenance and care
7
Maintenance and care
IS300h_EE(OM53C61E)
NOTICE
■To prevent paint deterioration and corrosion on the body and components (aluminum
wheels etc.)
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the paint surface
• After driving in an area contaminated with soot, oily smoke, mine dust, iron pow-
der or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
●To prevent the wheels from corroding, remove any dirt and store in a place with low
humidity when storing the wheels.
■Cleaning the exterior lights
●Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
●Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.
■When using an automatic car wash (vehicles with rain-sensing windshield wipers)
Set the wipers to the intermittent windshield wipers. (→P. 2 3 8 )
If AUTO mode is selected, the wipers may operate and the wiper blades may be dam-
aged.
IS300h_EE_OM53C61E.book 429 ページ ２０１４年５月２０日　火曜日　午後５時４０分

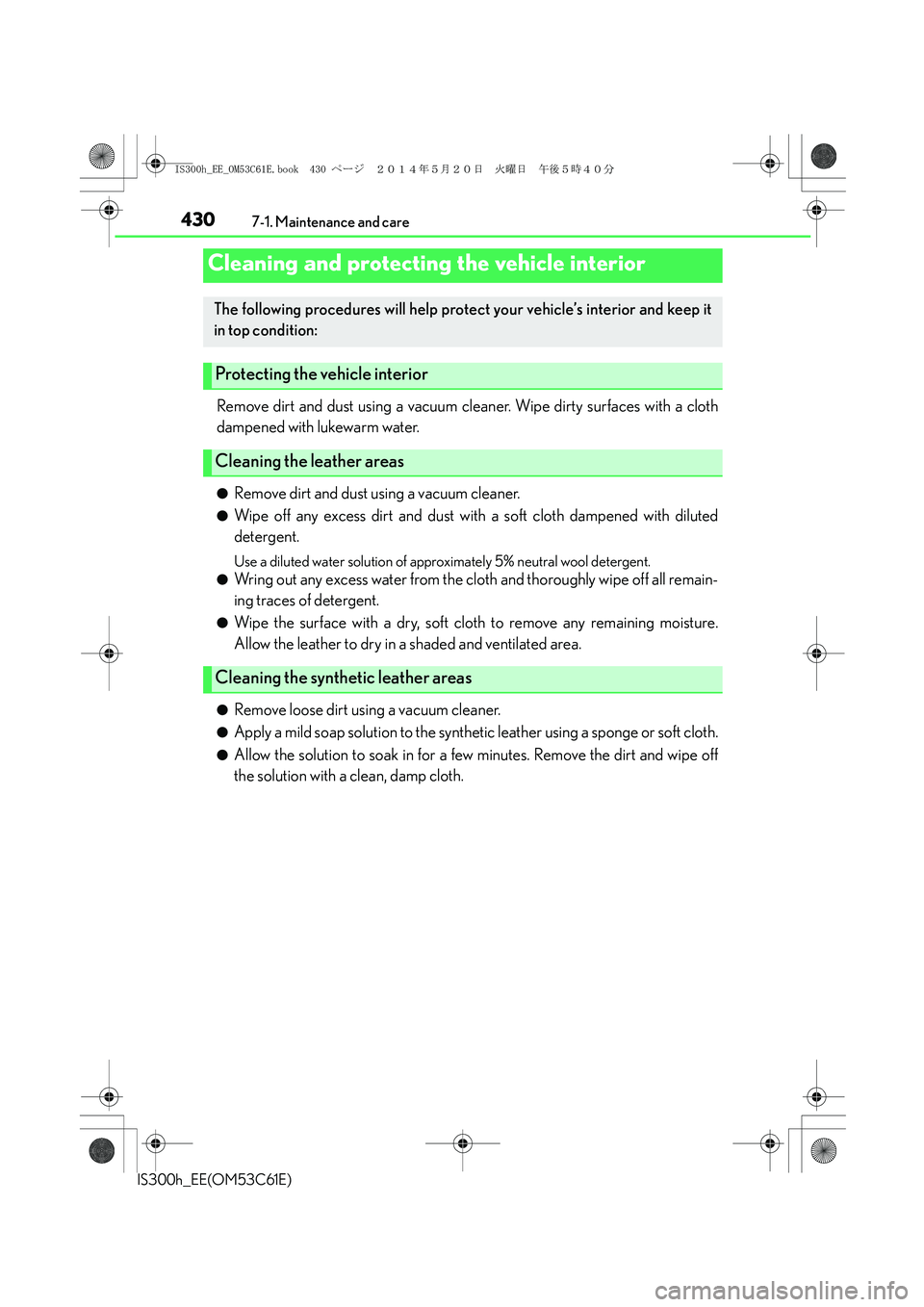

4307-1. Maintenance and care
IS300h_EE(OM53C61E)
Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with a cloth
dampened with lukewarm water.
●Remove dirt and dust using a vacuum cleaner.
●Wipe off any excess dirt and dust with a soft cloth dampened with diluted
detergent.
Use a diluted water solution of approximately 5% neutral wool detergent.
●Wring out any excess water from the cloth and thoroughly wipe off all remain-
ing traces of detergent.
●Wipe the surface with a dry, soft cloth to remove any remaining moisture.
Allow the leather to dry in a shaded and ventilated area.
●Remove loose dirt using a vacuum cleaner.
●Apply a mild soap solution to the synthetic leather using a sponge or soft cloth.
●Allow the solution to soak in for a few minutes. Remove the dirt and wipe off
the solution with a clean, damp cloth.
Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle’s interior and keep it
in top condition:
Protecting the vehicle interior
Cleaning the leather areas
Cleaning the synthetic leather areas
IS300h_EE_OM53C61E.book 430 ページ ２０１４年５月２０日　火曜日　午後５時４０分
