Lexus IS300h 2017 Owner's Manual

6118-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53D89E)

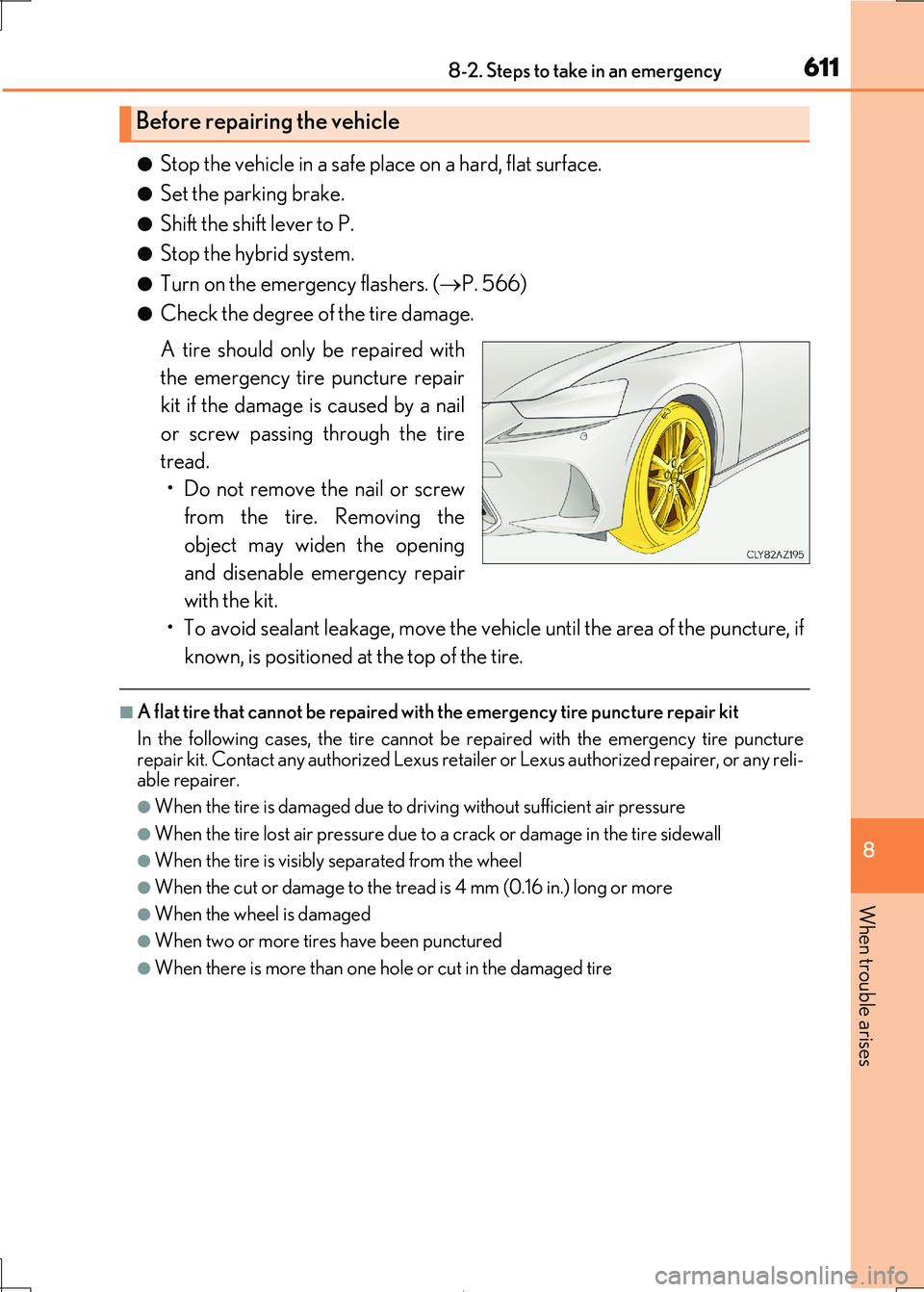

●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the hybrid system.
●Turn on the emergency flashers. (P. 566)
●Check the degree of the tire damage.
A tire should only be repaired with
the emergency tire puncture repair
kit if the damage is caused by a nail
or screw passing through the tire
tread.
• Do not remove the nail or screw
from the tire. Removing the
object may widen the opening
and disenable emergency repair
with the kit.
• To avoid sealant leakage, move the vehi cle until the area of the puncture, if
known, is positioned at the top of the tire.
■A flat tire that cannot be repaired with the emergency tire puncture repair kit
In the following cases, the tire cannot be repaired with the emergency tire puncture
repair kit. Contact any authorized Lexus retaile r or Lexus authorized repairer, or any reli-
able repairer.
●When the tire is damaged due to driving without sufficient air pressure
●When the tire lost air pressure due to a crack or damage in the tire sidewall
●When the tire is visibly separated from the wheel
●When the cut or damage to the tread is 4 mm (0.16 in.) long or more
●When the wheel is damaged
●When two or more tires have been punctured
●When there is more than one hole or cut in the damaged tire
Before repairing the vehicle

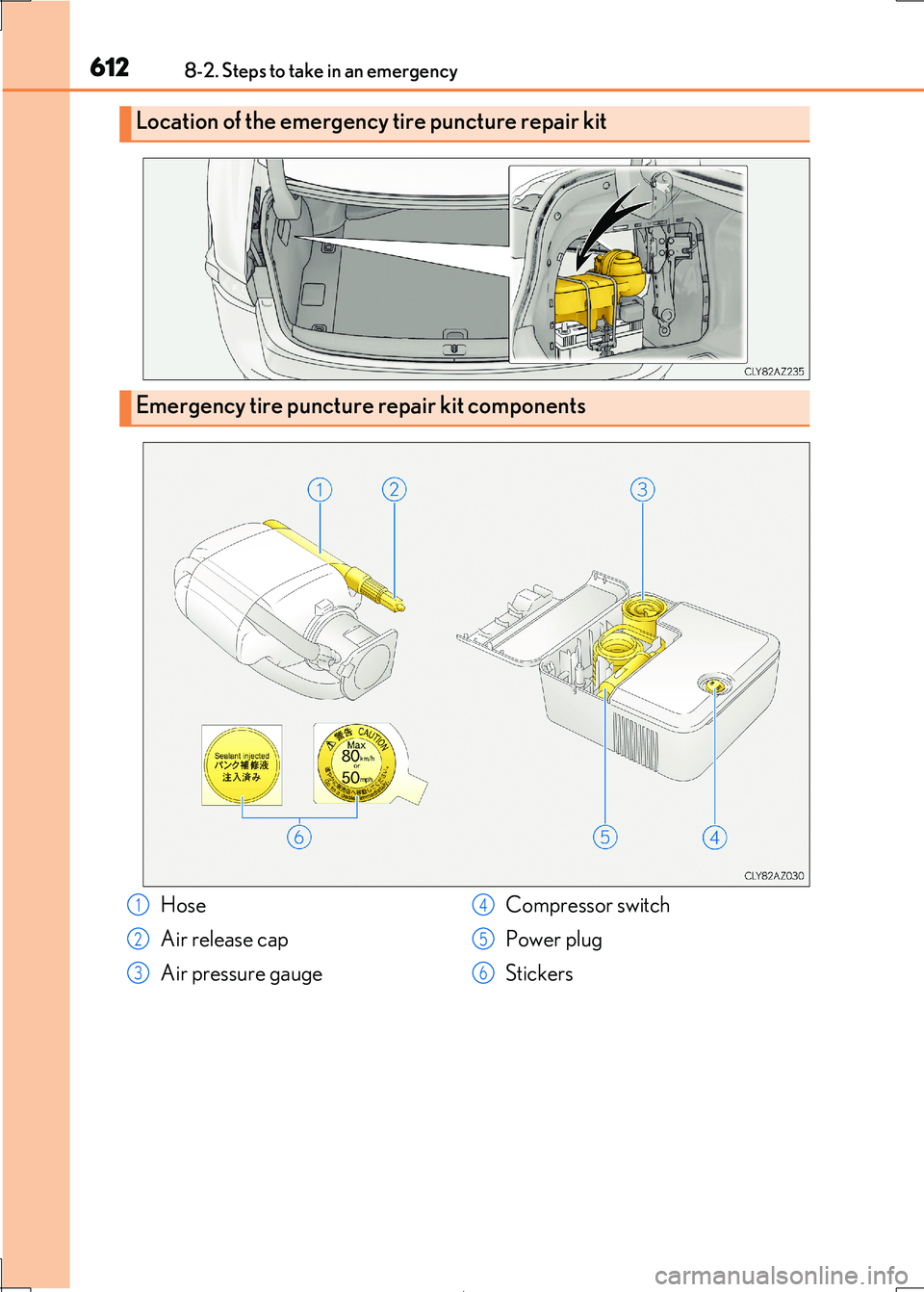

6128-2. Steps to take in an emergency
IS300h_EE(OM53D89E)
Location of the emergency tire puncture repair kit
Emergency tire puncture repair kit components
Hose
Air release cap
Air pressure gauge
Compressor switch
Power plug
Stickers
1
2
3
4
5
6

6138-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53D89E)

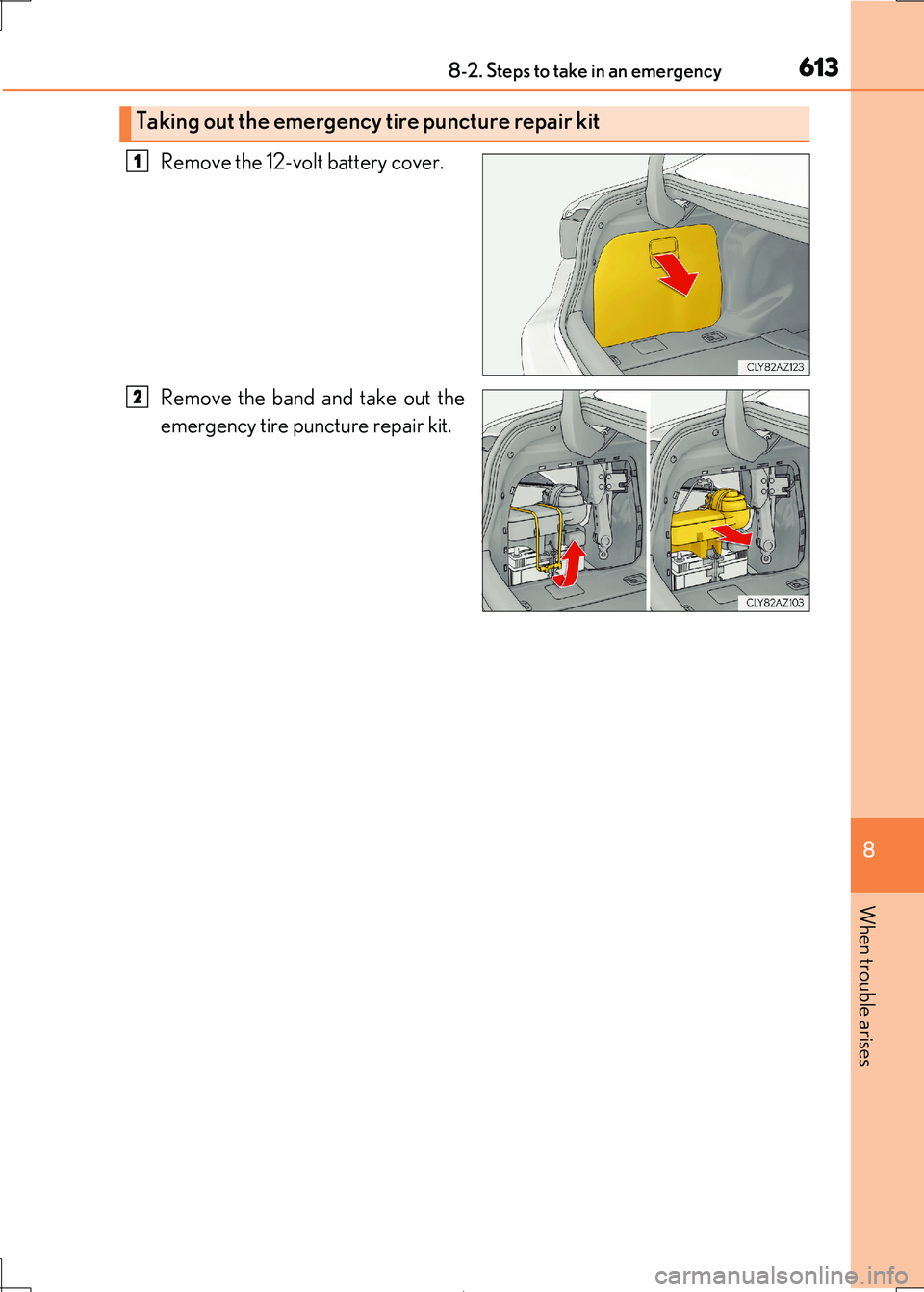

Remove the 12-volt battery cover.
Remove the band and take out the
emergency tire puncture repair kit.
Taking out the emergency tire puncture repair kit
1
2

6148-2. Steps to take in an emergency
IS300h_EE(OM53D89E)

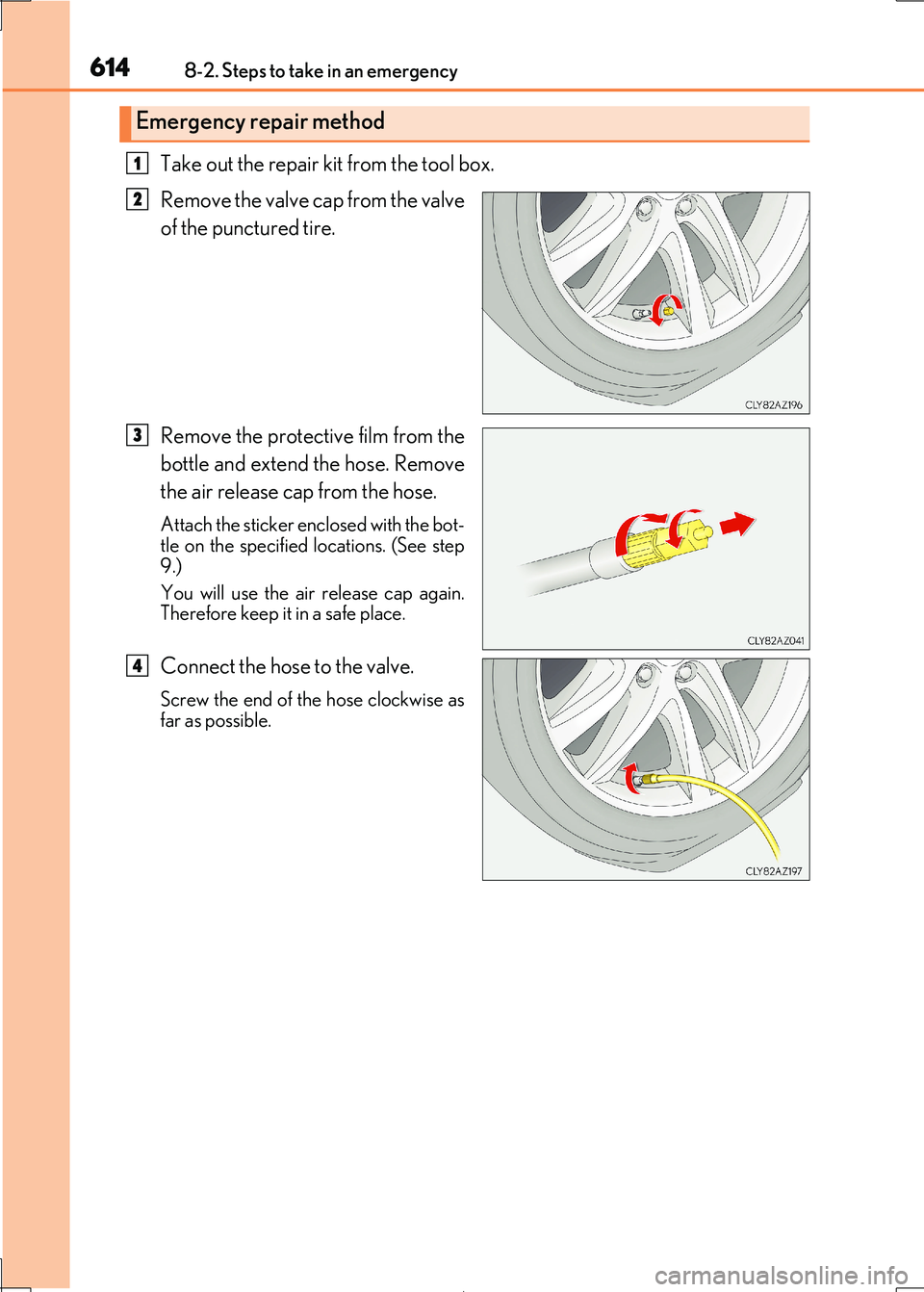

Take out the repair kit from the tool box.
Remove the valve cap from the valve
of the punctured tire.
Remove the protective film from the
bottle and extend the hose. Remove
the air release cap from the hose.
Attach the sticker enclosed with the bot-
tle on the specified locations. (See step
9.)
You will use the air release cap again.
Therefore keep it in a safe place.
Connect the hose to the valve.
Screw the end of the hose clockwise as
far as possible.
Emergency repair method
1
2
3
4

6158-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53D89E)

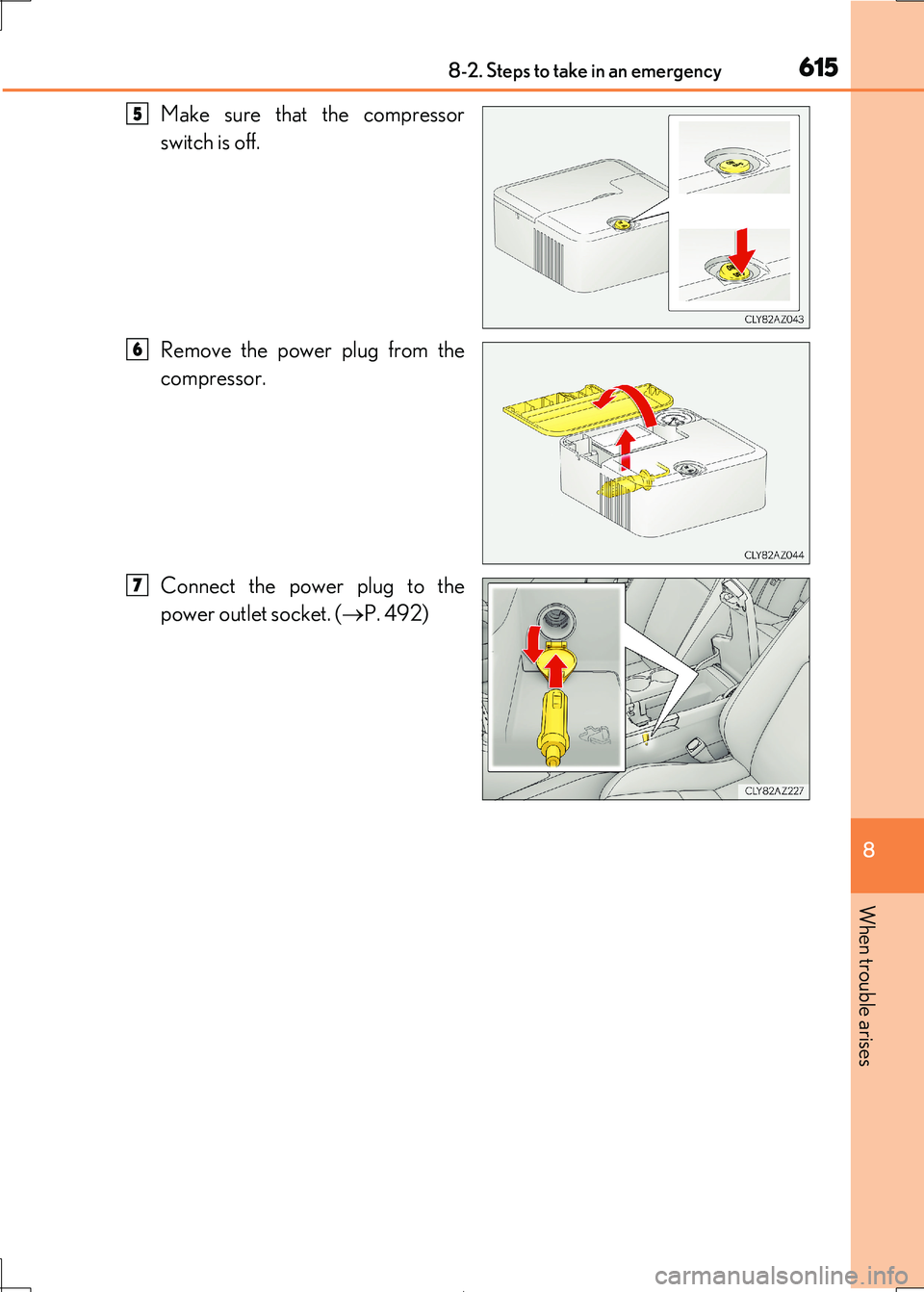

Make sure that the compressor
switch is off.
Remove the power plug from the
compressor.
Connect the power plug to the
power outlet socket. ( P. 492)
5
6
7

6168-2. Steps to take in an emergency
IS300h_EE(OM53D89E)

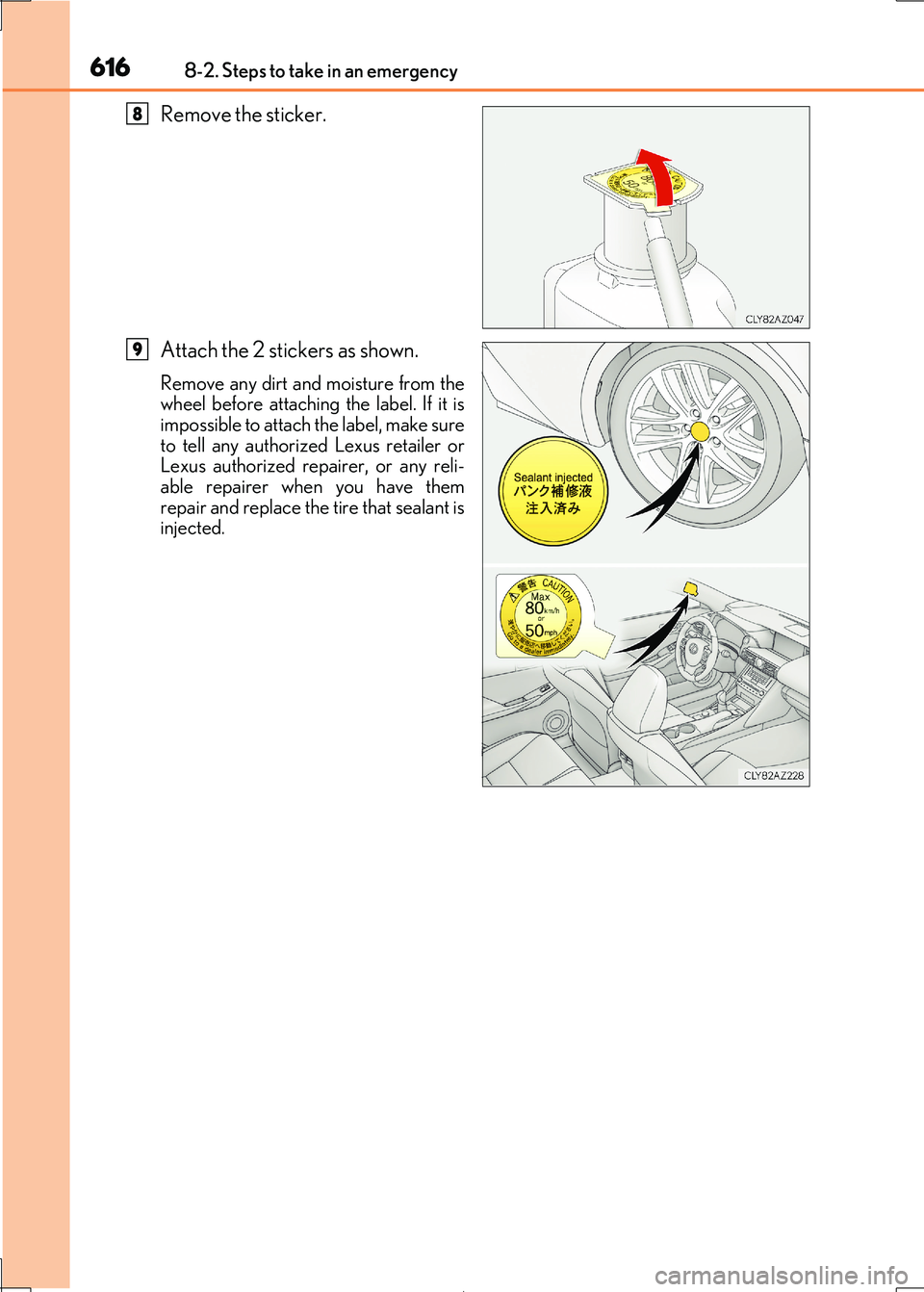

Remove the sticker.
Attach the 2 stickers as shown.
Remove any dirt and moisture from the wheel before attaching the label. If it is
impossible to attach the label, make sure
to tell any authorized Lexus retailer or Lexus authorized repairer, or any reli-
able repairer when you have them
repair and replace the tire that sealant is injected.
8
9

6178-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53D89E)

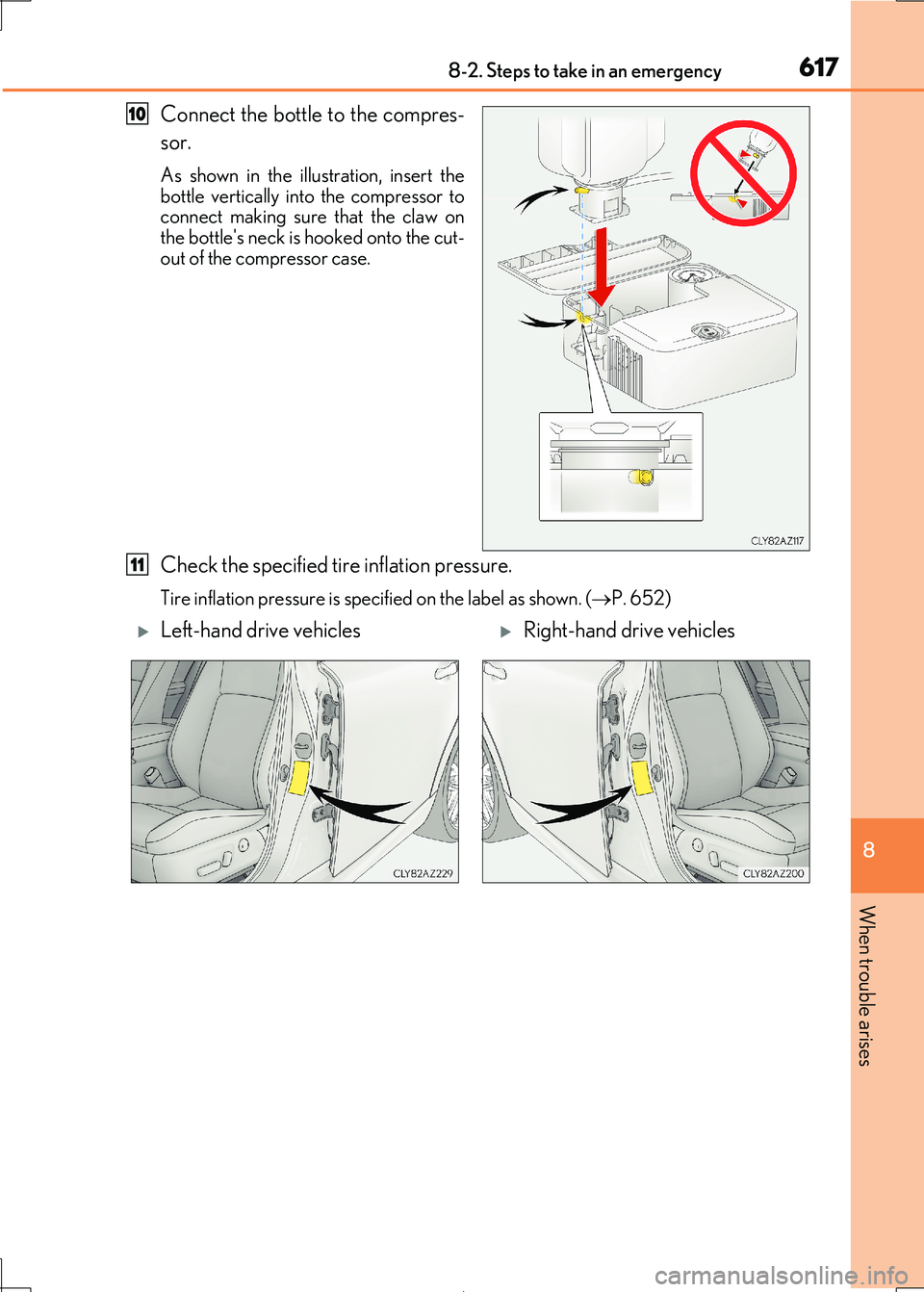

Connect the bottle to the compres-
sor.
As shown in the illustration, insert the
bottle vertically in to the compressor to connect making sure that the claw on
the bottle's neck is hooked onto the cut-
out of the compressor case.
Check the specified tire inflation pressure.
Tire inflation pressure is spec ified on the label as shown. (P. 652)
10
11
Left-hand drive vehiclesRight-hand drive vehicles

6188-2. Steps to take in an emergency
IS300h_EE(OM53D89E)

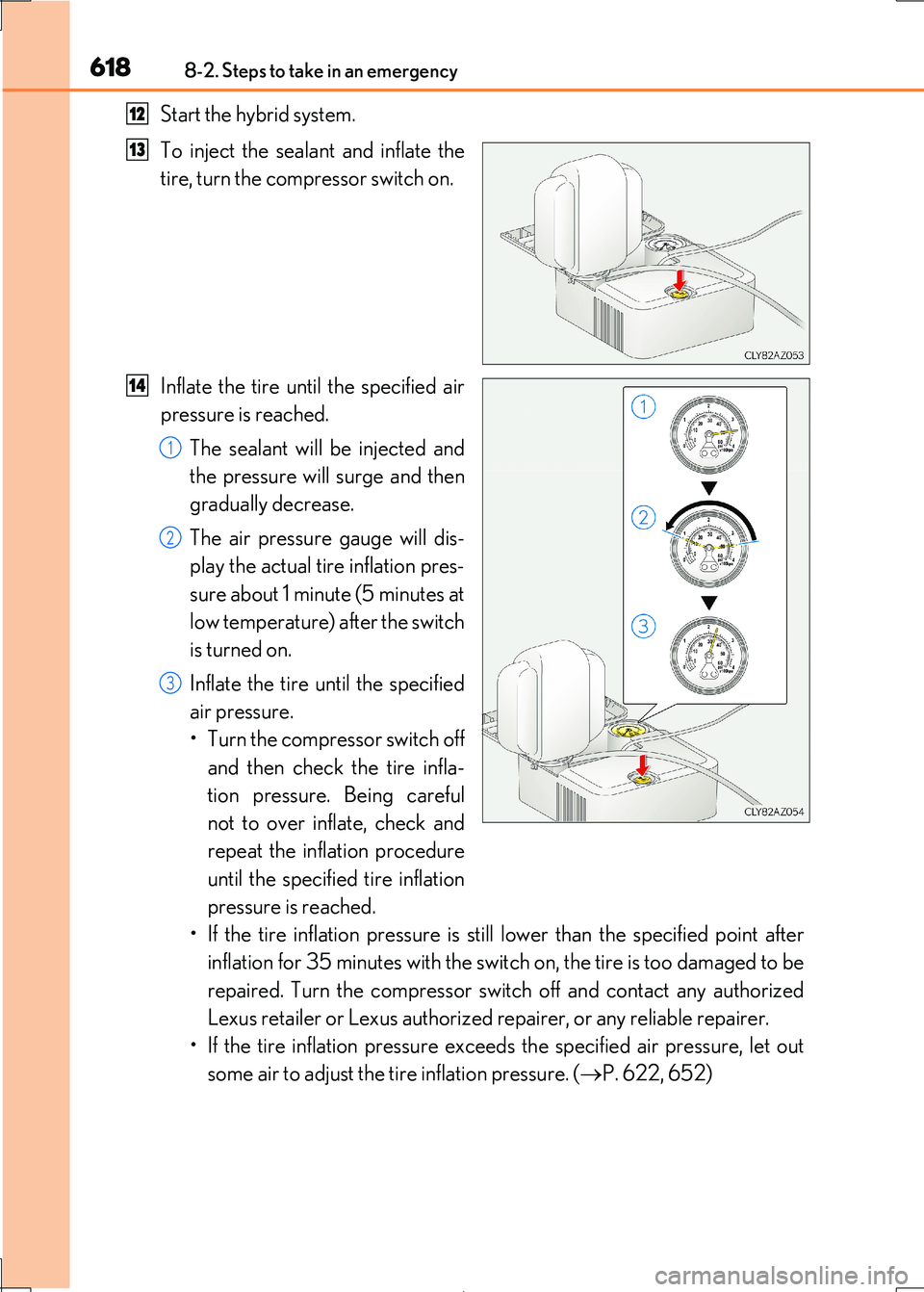

Start the hybrid system.
To inject the sealant and inflate the
tire, turn the compressor switch on.
Inflate the tire until the specified air
pressure is reached.
The sealant will be injected and
the pressure will surge and then
gradually decrease.
The air pressure gauge will dis-
play the actual tire inflation pres-
sure about 1 minute (5 minutes at
low temperature) after the switch
is turned on.
Inflate the tire until the specified
air pressure.
• Turn the compressor switch off
and then check the tire infla-
tion pressure. Being careful
not to over inflate, check and
repeat the inflation procedure
until the specified tire inflation
pressure is reached.
• If the tire inflation pressure is still lower than the specified point after
inflation for 35 minutes with the swit ch on, the tire is too damaged to be
repaired. Turn the compressor swit ch off and contact any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer.
• If the tire inflation pressure exceed s the specified air pressure, let out
some air to adjust the tire inflation pressure. ( P. 622, 652)
12
13
14
1
2
3

6198-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53D89E)

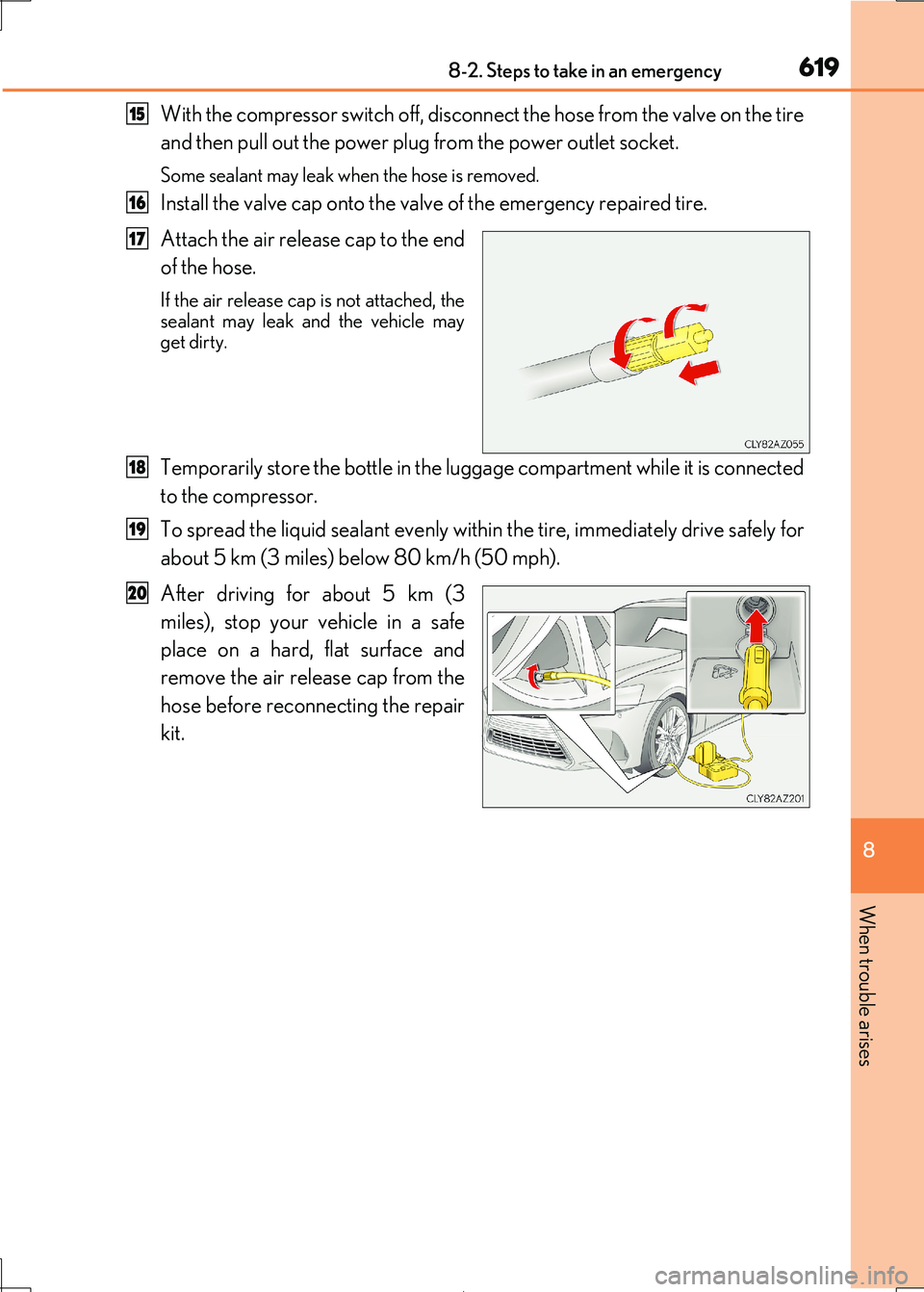

With the compressor switch off, disconnect the hose from the valve on the tire
and then pull out the power plug from the power outlet socket.
Some sealant may leak when the hose is removed.
Install the valve cap onto the valve of the emergency repaired tire.
Attach the air release cap to the end
of the hose.
If the air release cap is not attached, the
sealant may leak and the vehicle may
get dirty.
Temporarily store the bottle in the luggage compartment while it is connected
to the compressor.
To spread the liquid sealant evenly within the tire, immediately drive safely for
about 5 km (3 miles) below 80 km/h (50 mph).
After driving for about 5 km (3
miles), stop your vehicle in a safe
place on a hard, flat surface and
remove the air release cap from the
hose before reconnecting the repair
kit.
15
16
17
18
19
20

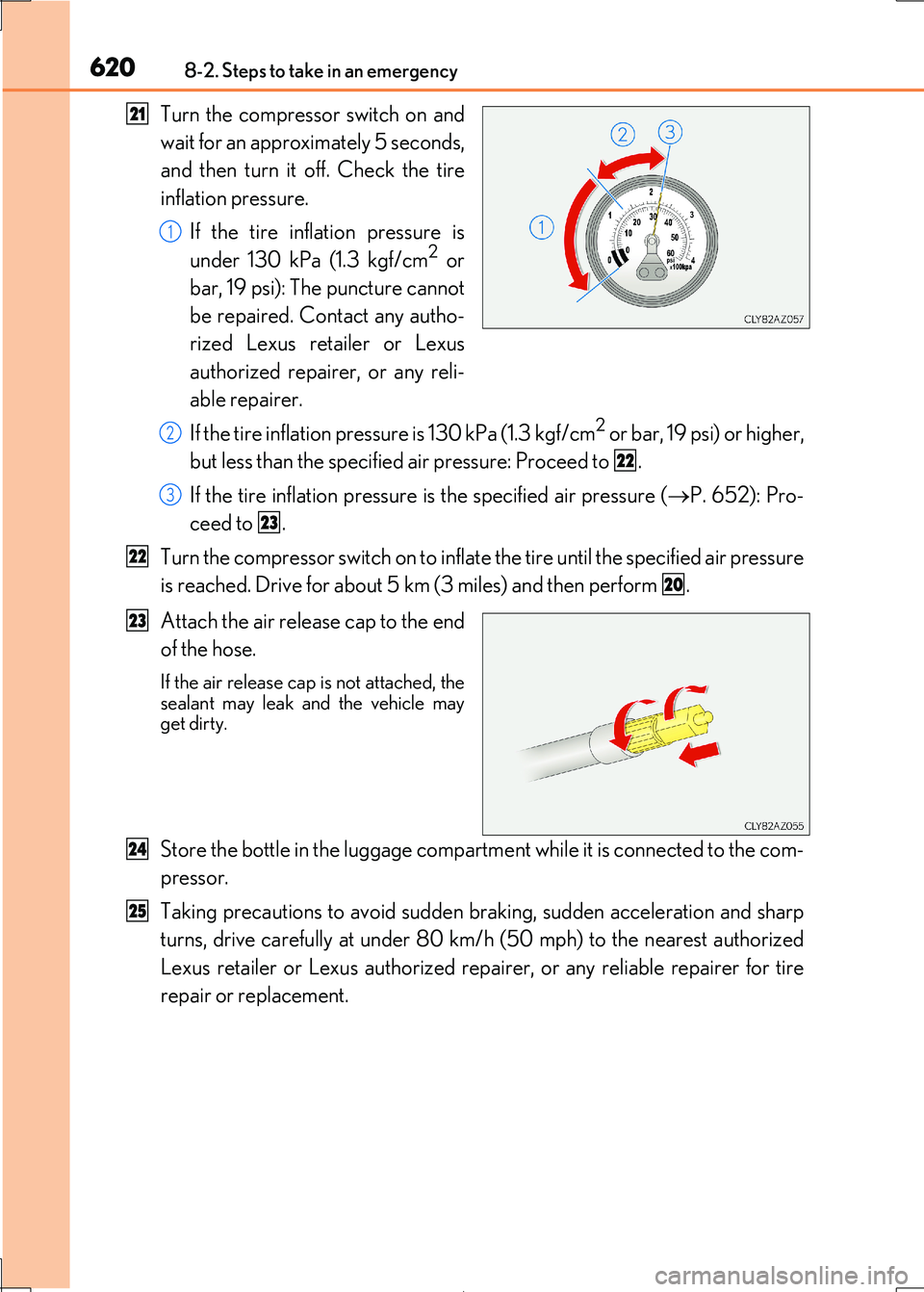

6208-2. Steps to take in an emergency
IS300h_EE(OM53D89E)
Turn the compressor switch on and
wait for an approximately 5 seconds,
and then turn it off. Check the tire
inflation pressure.
If the tire inflation pressure is
under 130 kPa (1.3 kgf/cm2 or
bar, 19 psi): The puncture cannot
be repaired. Contact any autho-
rized Lexus retailer or Lexus
authorized repairer, or any reli-
able repairer.
If the tire inflation pressu re is 130 kPa (1.3 kgf/cm2 or bar, 19 psi) or higher,
but less than the specified air pressure: Proceed to .
If the tire inflation pressure is the specified air pressure ( P. 652): Pro-
ceed to .
Turn the compressor switch on to inflat e the tire until the specified air pressure
is reached. Drive for about 5 km (3 miles) and then perform .
Attach the air release cap to the end
of the hose.
If the air release cap is not attached, the
sealant may leak and the vehicle may get dirty.
Store the bottle in the luggage compartm ent while it is connected to the com-
pressor.
Taking precautions to avoid sudden br aking, sudden acceleration and sharp
turns, drive carefully at under 80 km/h (50 mph) to the nearest authorized
Lexus retailer or Lexus authorized repa irer, or any reliable repairer for tire
repair or replacement.
21
1
2
22
3
23
22
20
23
24
25
