Lexus IS300h 2017 Owner's Manual

6418-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53D89E)
Stop the hybrid system. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other materi al under the rear wheels to help pro-
vide traction.
Restart the hybrid system.
Shift the shift lever to D or R and release the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRC.
1
2
3
4
5

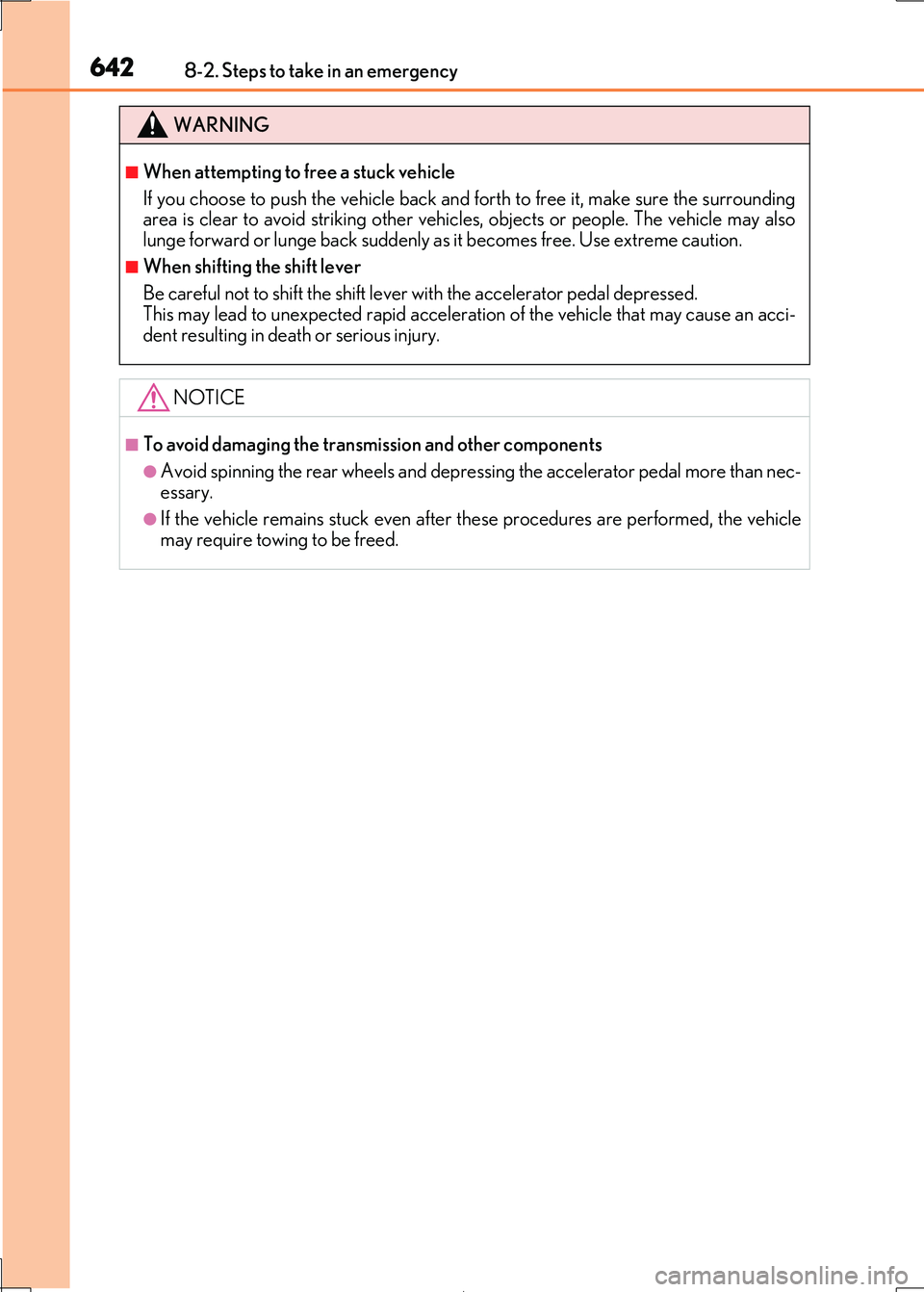

6428-2. Steps to take in an emergency
IS300h_EE(OM53D89E)
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehicles, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci- dent resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depre ssing the accelerator pedal more than nec-
essary.
●If the vehicle remains stuck even after th ese procedures are performed, the vehicle may require towing to be freed.

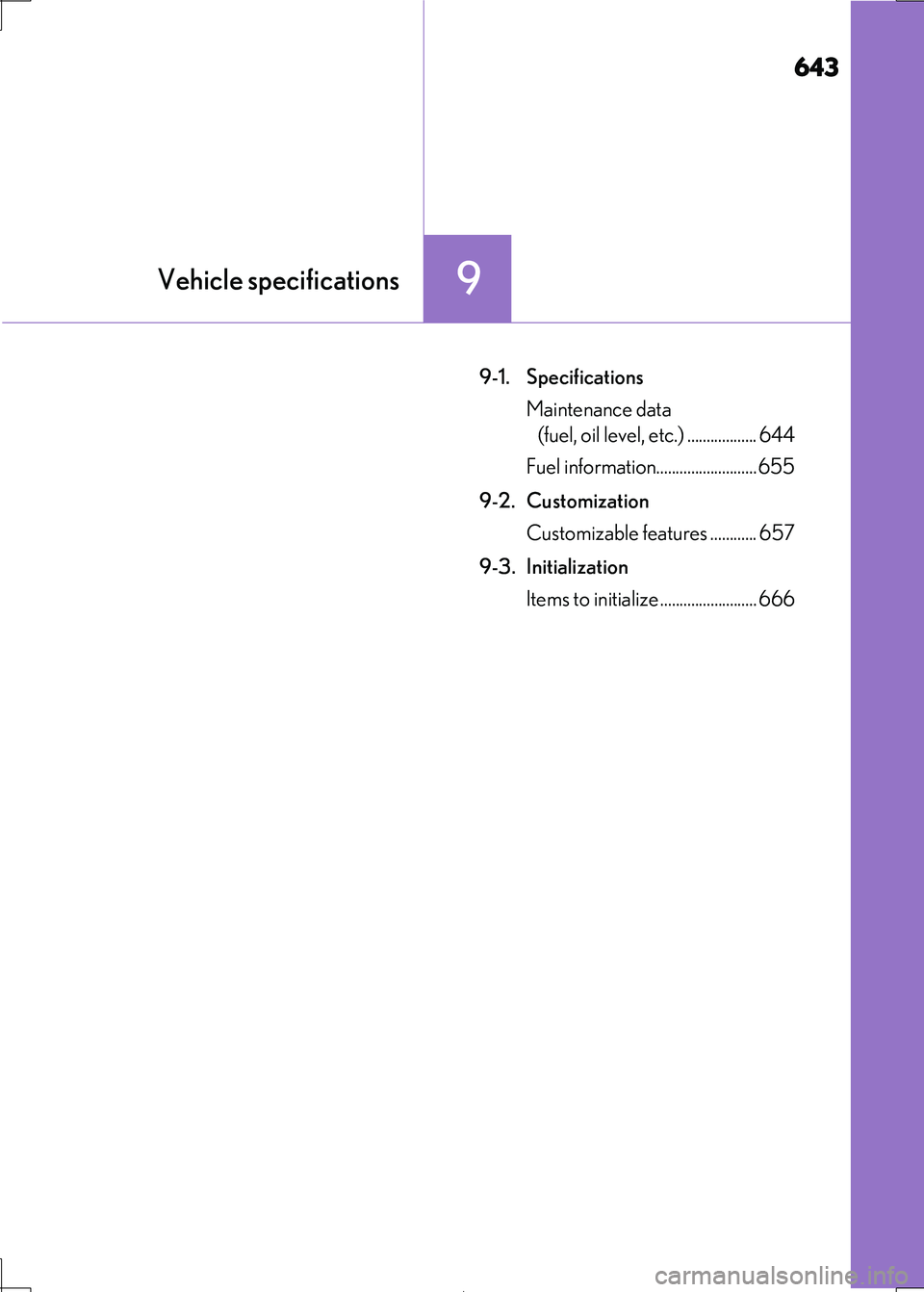

643
9Vehicle specifications
IS300h_EE(OM53D89E)
9-1. Specifications
Maintenance data
(fuel, oil level, etc.) .................. 644
Fuel information.......................... 655
9-2. Customization
Customizable features ............ 657
9-3. Initialization
Items to initialize ......................... 666

644
IS300h_EE(OM53D89E)
9-1. Specifications
*1: Unladen vehicle
*2: Vehicles with 255/35R18 tires
*3: AVE30L-AEXEHW and AVE30R-AEXEHW models
*4: AVE30L-AEXLHW and AVE30R-AEXLHW models
The model code is indicated on the manufacturer’s label. (P. 645)
*5: Vehicles with a towing package
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4680 mm (184.3 in.)
Overall width 1810 mm (71.3 in.)
Overall height*11430 mm (56.3 in.)
Wheelbase 2800 mm (110.2 in.)
Tread*1
Front 1535 mm (60.4 in.)
Rear 1550 mm (61.0 in.)
1540 mm (60.6 in.)*2
Gross vehicle mass*52130 kg (4696 lb.)*3
2145 kg (4729 lb.)*4
Maximum permissi-
ble axle capacity*5
Front 1090 kg (2403 lb.)
Rear 1200 kg (2646 lb.)
Drawbar load*575 kg (165 lb.)
Towing capacity*5With brake 750 kg (1653 lb.)
Without brake 750 kg (1653 lb.)

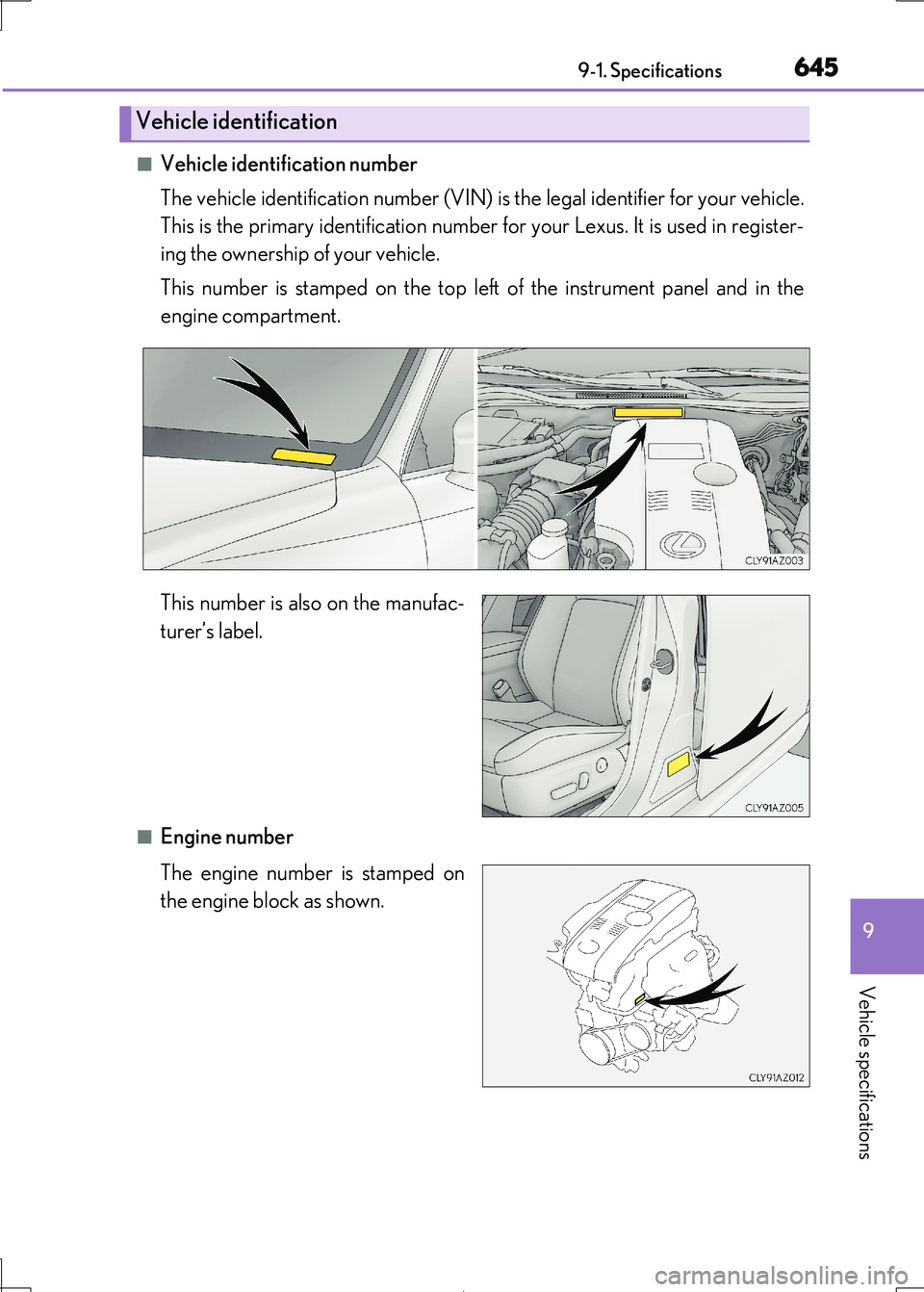

645
9
9-1. Specifications
Vehicle specifications
IS300h_EE(OM53D89E)
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in the
engine compartment.
This number is also on the manufac-
turer’s label.
■Engine number
The engine number is stamped on
the engine block as shown.
Vehicle identification

6469-1. Specifications
IS300h_EE(OM53D89E)
Engine
Model2AR-FSE
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke90.0  98.0 mm (3.54  3.86 in.)
Displacement2494 cm3 (152.2 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel type
EU area:
Unleaded gasoline conformi ng to European standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane Number95 or higher
Fuel tank capacity (Reference)66 L (17.4 gal., 14.5 Imp. gal.)
Electric motor (traction motor)
TypePermanent magnet synchronous motor
Maximum output105 kW
Maximum torque300 N•m (30.6 kgf•m, 221.3 ft•lbf)
Hybrid battery (traction battery)
TypeNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity32 modules
Overall voltage230.4 V

647
9
9-1. Specifications
Vehicle specifications
IS300h_EE(OM53D89E)
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Ge nuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or IL SAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
0W-20 or 5W-30 engine oil is rec-
ommended.
Lubrication system
With filter4.5 L (4.8 qt., 4.0 Imp. qt.)
Without filter4.1 L (4.3. qt., 3.6 Imp. qt.)
Temperature range anticipated before
next oil change
Preferred

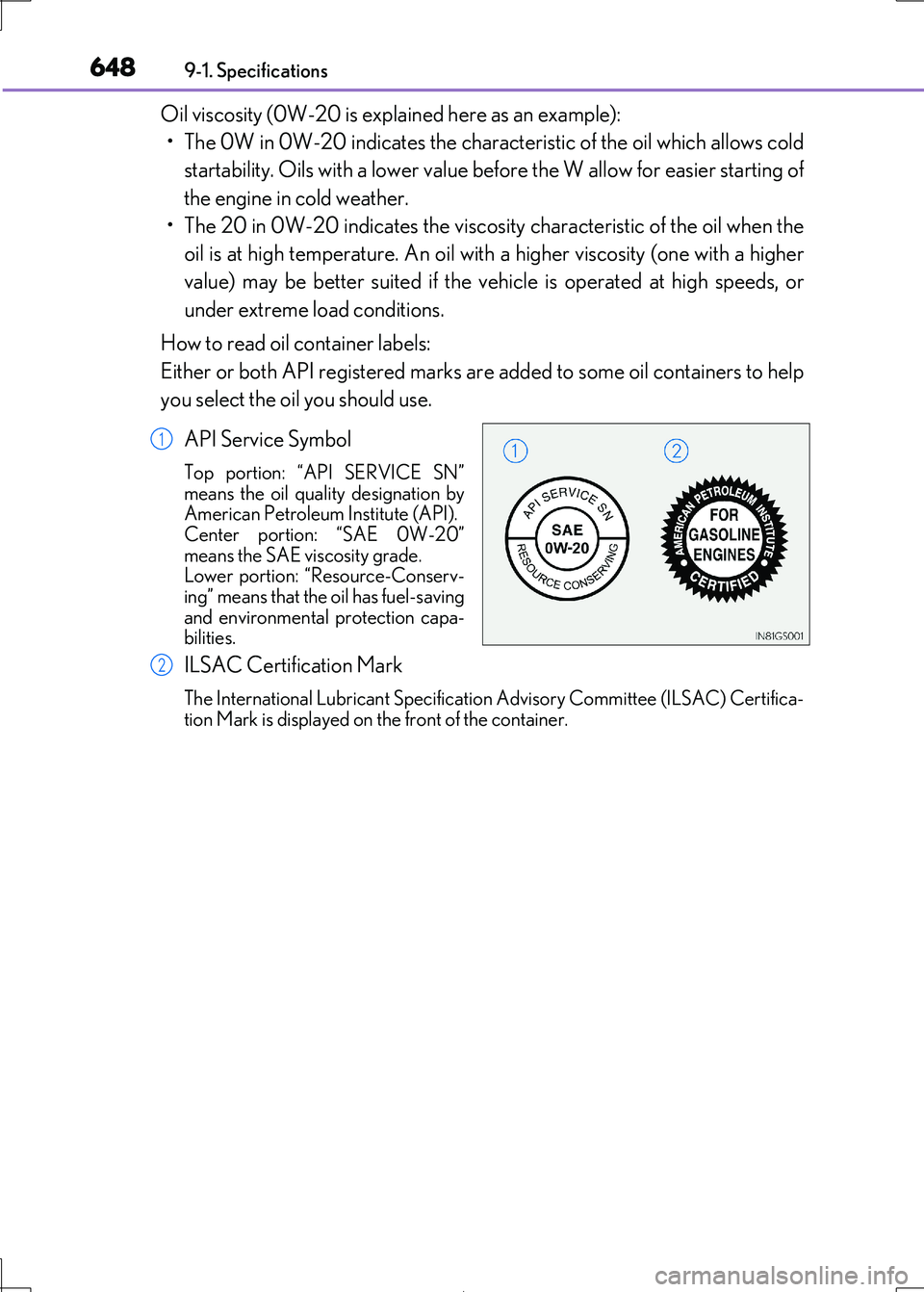

6489-1. Specifications
IS300h_EE(OM53D89E)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme lo ad conditions.
How to read oil container labels:
Either or both API registered marks ar e added to some oil containers to help
you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation by American Petroleum Institute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade. Lower portion: “Resource-Conserv-
ing” means that the oil has fuel-saving
and environmental protection capa- bilities.
ILSAC Certification Mark
The International Lubricant Specificatio n Advisory Committee (ILSAC) Certifica-
tion Mark is displayed on the front of the container.
1
2

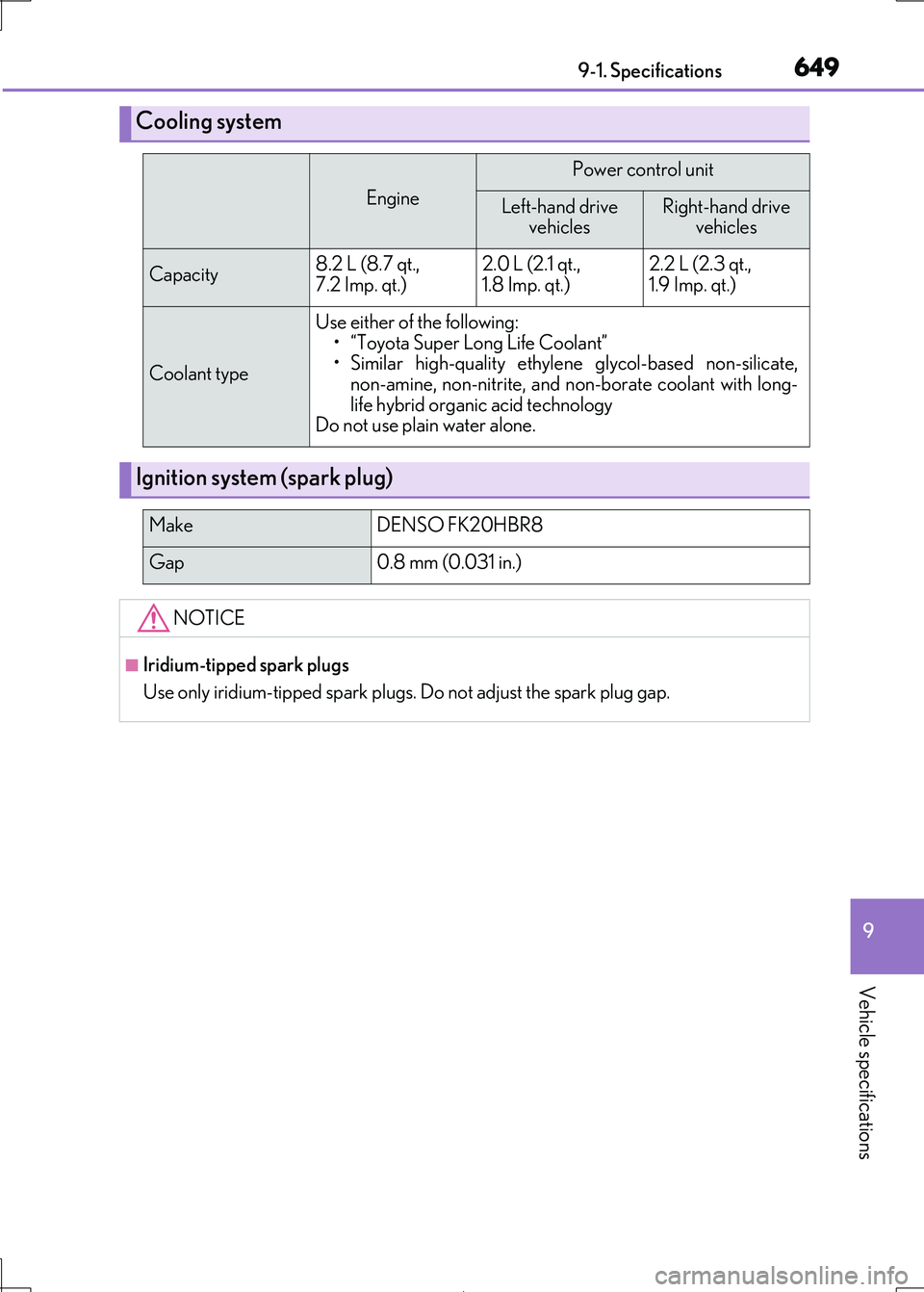

649
9
9-1. Specifications
Vehicle specifications
IS300h_EE(OM53D89E)
Cooling system
Engine
Power control unit
Left-hand drive
vehicles
Right-hand drive
vehicles
Capacity8.2 L (8.7 qt., 7.2 Imp. qt.)2.0 L (2.1 qt., 1.8 Imp. qt.)2.2 L (2.3 qt., 1.9 Imp. qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
Make DENSO FK20HBR8
Gap 0.8 mm (0.031 in.)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

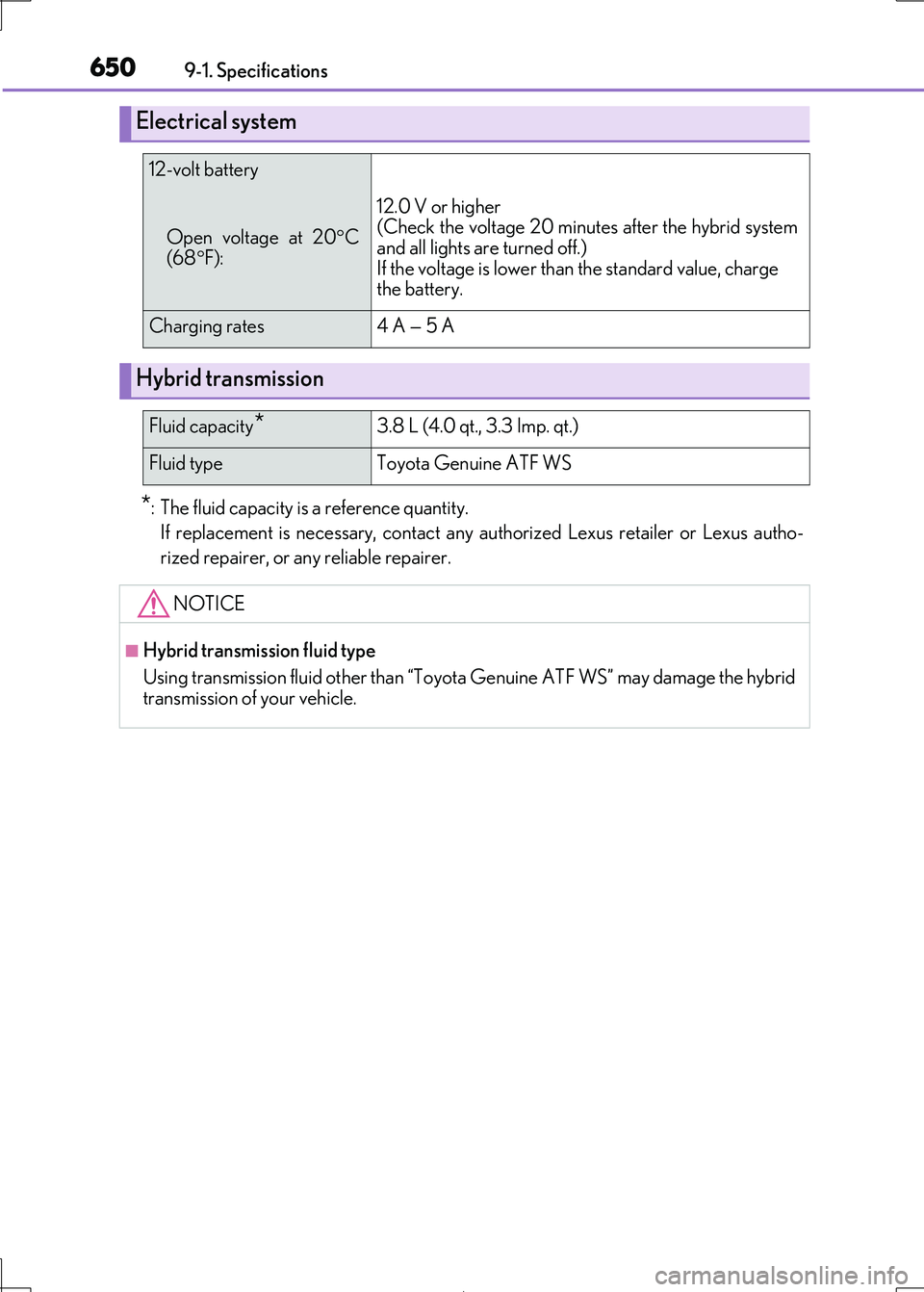

6509-1. Specifications
IS300h_EE(OM53D89E)
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Lexus retailer or Lexus autho-
rized repairer, or an y reliable repairer.
Electrical system
12-volt battery
Open voltage at 20C
(68 F):
12.0 V or higher
(Check the voltage 20 minutes after the hybrid system and all lights are turned off.)
If the voltage is lower than the standard value, charge
the battery.
Charging rates4 A — 5 A
Hybrid transmission
Fluid capacity*3.8 L (4.0 qt., 3.3 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Hybrid transmission fluid type
Using transmission fluid ot her than “Toyota Genuine ATF WS” may damage the hybrid
transmission of your vehicle.
