4-3. Do-it-yourself maintenance
4
Maintenance and care
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight high beams and daytime
running lights on once and visually
confirm that no light is leaking
through the mounting.
When installing the cover install by conducting with the
directions reversed.
STEP4
STEP5
STEP6STEP1

472
4-3. Do-it-yourself maintenance

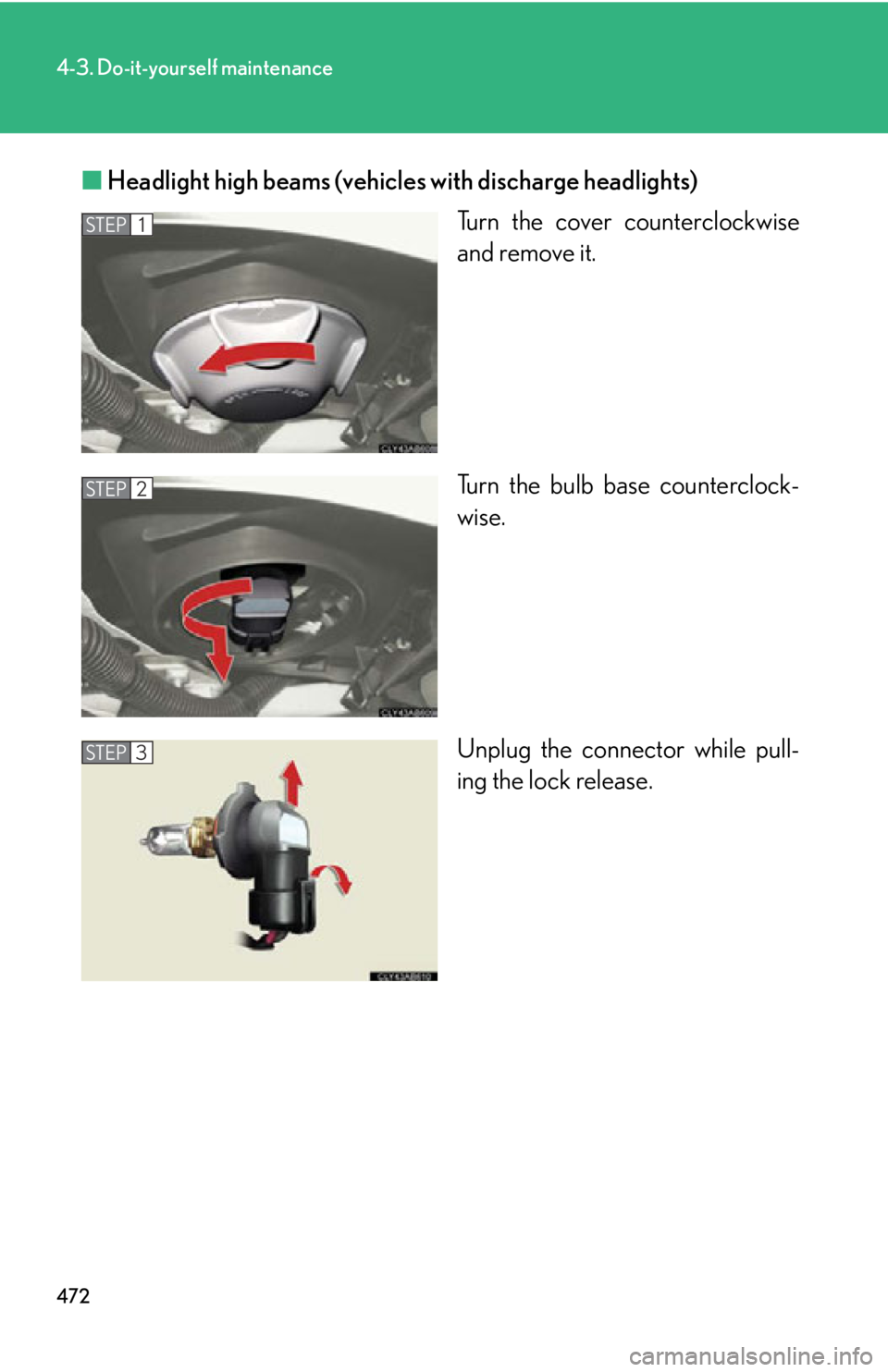

■Headlight high beams (vehicles with discharge headlights)
Turn the cover counterclockwise
and remove it.
Turn the bulb base counterclock-
wise.
Unplug the connector while pull-
ing the lock release.
STEP1
STEP2
STEP3

473
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replace the light bulb, and install
the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlight high beams on once and
visually confirm that no light is leak-
ing through the mounting.
When installing the cover install by conducting with the
directions reversed.
STEP4
STEP5
STEP6STEP1

474
4-3. Do-it-yourself maintenance
■Parking lights (vehicles with halogen headlights)
Release the lock and remove the
cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
STEP3

475
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Back-up light
Open the trunk lid and remove the
trunk panel cover clips.
Partly remove the trunk panel
cover and turn bulb bases coun-
terclockwise.
Remove the light bulb.
STEP1
STEP2
STEP3

476
4-3. Do-it-yourself maintenance
■Rear turn signal lights
Open the trunk lid and remove the
covers.
Remove the bolts and unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
STEP1
STEP2
STEP3
STEP4

477
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low beams (vehicles with halogen bulbs)
● Headlight high and low beams (vehicles with discharge bulbs)
● Front fog lights
● Parking/daytime running lights (veh icles with discharge headlights)
● Front turn signal lights
● Front side marker lights
● Side turn signal lights
● Stop/tail lights
● Tail lights
● Rear side marker lights
● High mounted stoplight
● License plate lights
■When replacing the front left headlight high beam and parking light bulbs (vehi-
cles with halogen headlights)
Remove the securing bolt and move the
washer fluid filler opening to allow easy
access to the light bulbs.
After replacing the bulbs, make sure to
secure the washer fluid filler opening with the
bolt.

478
4-3. Do-it-yourself maintenance
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
■LED light bulbs
The parking lights (vehicles with discharge headlights), front side marker lights, side
turn signal lights, tail lights, stop/tail light s, high mounted stoplight, rear side marker
lights and license plate lights consist of a number of LEDs. If any of the LEDs burn
out, take your vehicle to your Lexus dealer to have the light replaced.
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning
off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water en tering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Do not attempt to take apart or repair the low beam headligh t bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.

479
4-3. Do-it-yourself maintenance
4
Maintenance and care
CAUTION
■Discharge headlights (if equipped)
●Contact your Lexus dealer before replacing discharge headlights (including light
bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V wi ll be discharged and could result in
serious injury or death by electric shock.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.
