engine lexus LC500 2018 Navigation Manual

132
-$@-$I@/BWJ@0.&@ &&

4-3. Media operation
screen. (P.123)
The DVD control screen can be
reached by the following methods:
Using the audio control switch
1 Press the “MEDIA” button.
Using the Remote Touch
1 Press the “MENU” button on the
Re m ot e T ou ch , th e n se l ec t “M e d ia ”.
 Inserting a disc (P.122)
DVD
For safety reasons, the DVD video
discs can only be viewed when the
following conditions are met:
(a) The vehicle is completely
stopped.
(b) The engine switch switch> is in ACCESSORY or
IGNITION ON mode .
(c) The parking brake is applied.
While driving in DVD video mode,
only the DVD’s audio can be heard.
The playback condition of some
DVD discs may be determined by
the DVD software producer. This
DVD player plays a disc as the soft-
ware producer intended. As such,
some functions may not work prop-
erly. Be sure to read the instruction
manual that comes with the individ-
ual DVD disc. ( P.155)
Overview

140
-$@-$I@/BWJ@0.&@ &&

4-3. Media operation
Displays cover art
Select to set repeat playback.
( P.140)
Select to select a track.
Select and hold to fast rewind.
Select to play/pause.
Select to select a track.
Select and hold to fast forward.
Select to set random playback.
( P.140)
The track or album currently being lis-
tened to can be repeated.
1 Select .
●Each time is selected, the mode
changes as follows:
• track repeat  album repeat  off
Tracks or albums can be automatically
and randomly selected.
1 Select .
●Each time is selected, the mode
changes as follows:
•album random  all track random  off
Turn to select a track.
Turn and hold to fast for-
ward/rewind.
Turn to select a track.
Turn to move up/down the list.
●Depending on the Bluetooth® device that is connected to the system, the music
may start playing when selecting
while it is paused. Conversely, the music
may pause when selecting while it is
playing.
●In the following conditions, the system may not function:
• The Bluetooth® device is turned off.
• The Bluetooth® device is not connected.
• The Bluetooth® device has a low battery.
●It may take time to connect the phone
when Bluetooth® audio is being played.
●For operating the portable player, see the instruction manual that comes with it.
●If the Bluetooth® device is disconnected due to poor reception from the
Bluetooth® network when the engine switch is in ACCES-
Control screen
Repeating
Random order
A
B
C
D
E
F
Audio control switch
A
B

169
5
-$@-$I@/BWJ@0.&@ &&

5-1. Speech command system operation
Speech command system
• The command is incorrect or unclear. Note that certain words, accents or speech patterns may be difficult for the
system to recognize. • There is excessive background noise, such as wind noise.
●This system may not operate immediately after the engine switch is
in ACCESSORY or IGNITION ON mode .
1 Press the talk switch.
 The speech command system is
activated.
 Pressing the talk switch while a
voice prompt is playing, will stop the
voice recognition prompt and
immediately play the start listening
tone.
 While in voice recognition mode,
pressing and holding the talk switch
for 1 or more seconds cancels voice
recognition mode.
2 After a beep sounds, say the
desired command or select the
desired command.
■Displaying the command list
screen
1 Say “More commands” or select
“More commands” on the speech
command main menu screen.
2 Say the desired command or select
the desired command.
3 Say the desired command or select
the desired command.
NOTICE
●Do not touch and put a sharp object to the microphone.It may cause failure.
Speech command system opera-
tion

177
6
-$@-$I@/BWJ@0.&@ &&

6-1. Lexus parking assist monitor
Peripheral monitoring system
The parking assist monitor screen will
be displayed if the shift position is
shifted to the “R” while the engine
switch is in IGNITION
ON mode .
Display mode switch screen button
Switches the guide line display mode.
Lexus parking assist-sensor
If an obstacle is detected while the Lexus
parking assist-sensor is on, a display is
shown in the top right corner of the screen.
Rear Crossing Traffic Alert*
When the rear radar detects vehicles or
obstacles approaching from the rear, a dis-
play is shown in the top right corner of the
screen.
●The display mode switch icon displayed on the screen indicates the next display mode if the switch were pushed. The icon
does not indicate the current mode.
*: If equipped
The parking assist monitor is canceled
when the shift position is shifted into
any position other than the “R”.
Use any of the following modes.
Estimated course line display mode
( P.178)
Estimated course lines are displayed
which move in accordance with the
operation of the steering wheel.
Parking assist guide line display
mode ( P.180)
The steering wheel return points (park-
ing assist guide lines) are displayed.
Screen display
Canceling Lexus parking assist
monitor
A
B
C
Using the system

209
7
-$@-$I@/BWJ@0.&@ &&

7-2. Setup
Phone
Turn on the power of the USB
device if it is not turned on.
4 Select “Transfer contacts from
device”.
5 Select “From USB”.
6 Select “USB 1” or “USB 2” when
the multiple USB devices are con-
nected. If a USB device is con-
nected, skip this procedure.
7 Select “Replace contacts” or “Add
contact”. If the contact is not regis-
tered, skip this procedure.
“Replace contacts”: Select to transfer the
contact from the connected USB device or
Bluetooth® phone and replace the current
one.
“Add contact”: Select to transfer the
desired contact data from the connected
USB device or Bluetooth® phone to add
to the current one.
8 Select a desired file from vCard file
list.
9 Check that a confirmation screen is
displayed when the operation is
complete.
●Depending on the type of phone used
and number of files, it may take time to download contacts.
●Downloading may not complete cor-rectly in the following cases:• If the engine switch is
turned off during downloading.
• If the USB device or Bluetooth® phone is
removed before downloading is com- plete.
New contact data can be registered.
Up to 4 numbers per person can be
registered.
1 Select “New contact”.
2 Enter the name and select “OK”.
3 Enter the phone number and select
“OK”.
4 Select the phone type for the
phone number.
5 To add another number to this con-
tact, select “Yes”.
■Registering a new contact in a dif-
ferent way (From the “History”
screen)
1 Press the “MENU” button on the
Remote Touch.
2 Select “Phone”.
3 Select the “History” on the sub
menu and select a contact not yet
registered in the contact list.
4 Select “Add to contacts”.
5 Follow the steps in “Registering a
new contact to the contacts list”
from step 2. (P.209)
1 Select “Edit contact”.
2 Select the desired contact.
3 Select next to the name or
desired number.
4 Enter the name or the phone num-
ber and select “OK”.
Registering a new contact to the
contacts list
Editing the contact data

214
-$@-$I@/BWJ@0.&@ &&

7-3. What to do if...
■Automatic Bluetooth® connec-
tion on this system is set to off.
Set automatic Bluetooth® connection
on this system to on when the engine
switch is in ACCES-
SORY or IGNITION ON mode mode>. ( P.49)
■Preferred device settings function
on this system is set to on.
Set preferred device settings function
on this system to off. ( P.49)
Set the desired cellular phone to the
highest automatic connection priority.
( P.50)
■Your vehicle is in a area.
Move to where no longer appears
on the display.
■The profile version of the con-
nected cellular phone may not be
compatible with transferring
phonebook data.
For a list of specific devices which
operation has been confirmed on this
system, check with your Lexus retailer
or Lexus authorized repairer, or any
reliable repairer.
■Automatic contact transfer func-
tion on this system is set to off.
Set automatic contact transfer function
on this system to on. ( P.206)
■Passcode has not been entered on
the cellular phone.
Enter the passcode on the cellular
phone if requested (default passcode:
1234).
■Transfer operation on the cellular
phone has not completed.
Complete transfer operation on the
cellular phone (approve transfer oper-
ation on the phone).
■Automatic contact transfer func-
tion on this system is set to on.
Set automatic contact transfer function
on this system to off. ( P.206)
■Message transfer is not enabled on
the cellular phone.
Enable message transfer on the cellu-
lar phone (approve message transfer
on the phone).
■Automatic transfer function on this
system is set to off.
Set automatic transfer function on this
When making/receiving a call
A call cannot be made/received.
When using the phonebook
Phonebook data cannot be trans-
ferred manually/automatically.
Phonebook data cannot be edited.
When using the Bluetooth® mes-
sage function
Messages cannot be viewed.

215
7
-$@-$I@/BWJ@0.&@ &&

7-3. What to do if...
Phone
system to on. (P.206)
■Notification of SMS/MMS/E-mail
reception on this system is set to
off.
Set notification of SMS/MMS/E-mail
reception on this system to on.
( P.205)
■Automatic message transfer func-
tion is not enabled on the cellular
phone.
Enable automatic transfer function on
the cellular phone.
■Connection confirmation display
on this system is set to on.
To turn off the display, set connection
confirmation display on this system to
off. ( P.50)
*: The engine switch is in
ACCESSORY or IGNITION ON
mode .
■The cellular phone is not close
enough to this system.
Bring the cellular phone closer to this
system.
■Radio interference has occurred.
Turn off Wi-Fi® devices or other
devices that may emit radio waves.
■The cellular phone is the most likely
cause of the symptom.
Turn the cellular phone off, remove and
reinstall the battery pack, and then
restart the cellular phone.
Enable the cellular phone’s Bluetooth®
connection.
Disable the Wi-Fi® connection of the
cellular phone.
Stop the cellular phone’s security soft-
ware and close all applications.
Before using an application installed on
the cellular phone, carefully check its
source and how its operation might
affect this system.
●For details, refer to the owner’s manual that came with the cellular phone.
New message notifications are not
displayed.
In other situations
The Bluetooth® connection status is
displayed at the top of the screen
each time the system is activated.*
Even though all conceivable mea-
sures have been taken, the symptom
status does not change.

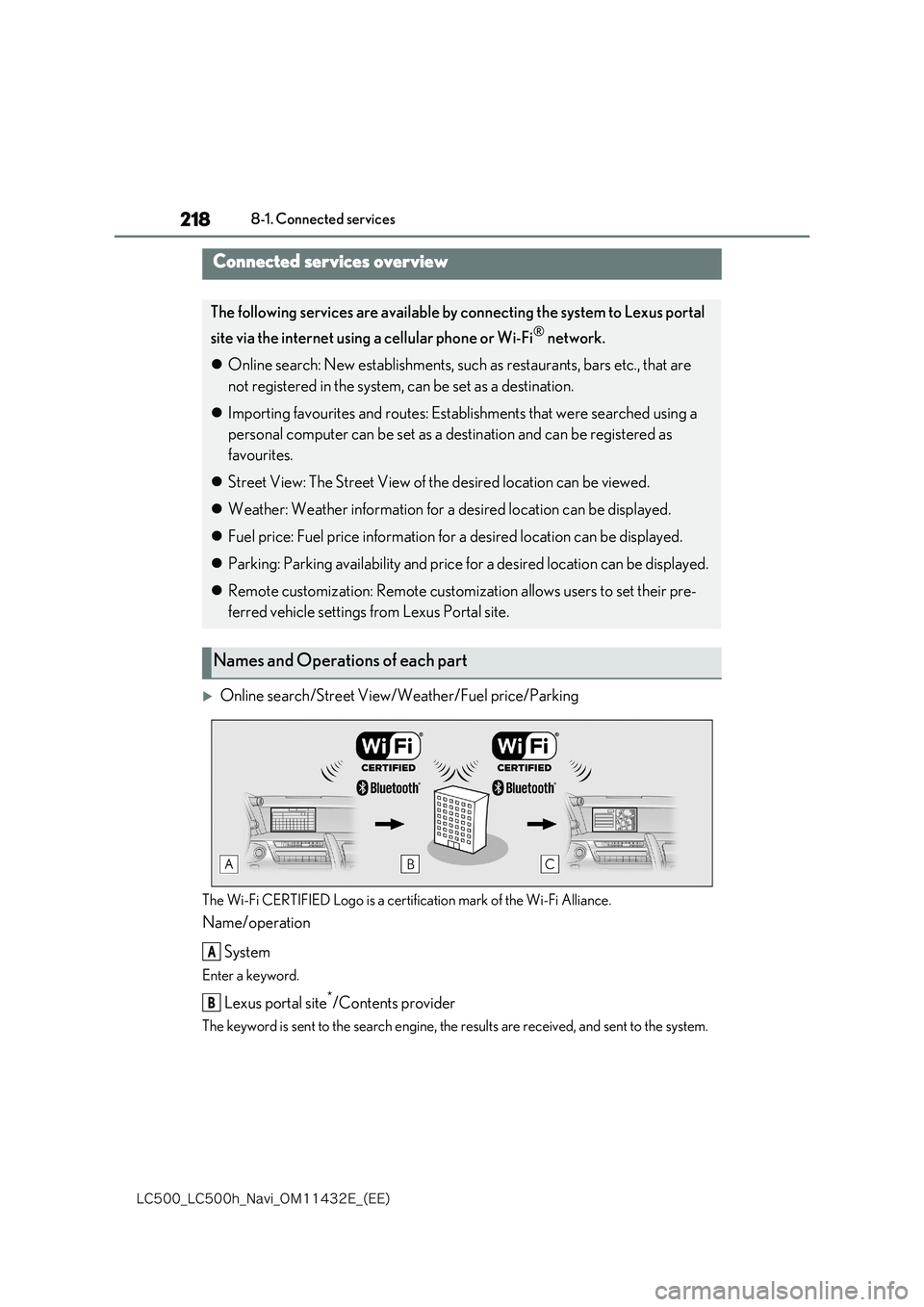

218
-$@-$I@/BWJ@0.&@ &&

8-1. Connected services
8-1.C onnected services
Online search/Street View/Weather/Fuel price/Parking
The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.
Name/operation
System
Enter a keyword.
Lexus portal site*/Contents provider
The keyword is sent to the search engine, the results are received, and sent to the system.
Connected services overview
The following services are available by connecting the system to Lexus portal
site via the internet using a cellular phone or Wi-Fi® network.
 Online search: New establishments, such as restaurants, bars etc., that are
not registered in the system, can be set as a destination.
 Importing favourites and routes: Establishments that were searched using a
personal computer can be set as a destination and can be registered as
favourites.
 Street View: The Street View of the desired location can be viewed.
 Weather: Weather information for a desired location can be displayed.
 Fuel price: Fuel price information for a desired location can be displayed.
 Parking: Parking availability and price for a desired location can be displayed.
 Remote customization: Remote customization allows users to set their pre-
ferred vehicle settings from Lexus Portal site.
Names and Operations of each part
A
B

230
-$@-$I@/BWJ@0.&@ &&

8-2. Setup
5Select “Lexus web account”.
When there is no account available
“New account”: Select to set the new
account.
“Existing account”: Select to enter the cre-
dentials of an existing account.
When there is an existing account
available
“Select account”: Select to change the
account or add the new account.
“Retrieve settings”: Select to download set-
tings from the Lexus server to the naviga-
tion system.
“Send settings”: Select to upload settings
from the navigation system to the Lexus
server.
“Load POIs and routes from server”:
Select to add POIs and routes by down-
loading from the Lexus portal site. They will
be stored in the favourites list. ( P.222)
“Auto download”: Select to switch to auto-
matically download POIs and routes from
the server.
The desired search engine can be set.
Before using a new search engine, the
terms of use must be read and agreed
to on Lexus portal site. Depending on
the conditions, certain search engines
cannot be selected.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Online” on the sub menu.
4 Select “Lexus Online”.
5 Select “Search provider”.
6 Select the desired search engine.
 The selected search engine indica-
tor will illuminate.
It is possible to change the preferred
fuel grade used for price information.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Online” on the sub menu.
4 Select “Lexus Online”.
5 Select “Fuel grade”.
6 Select desire fuel grade.
It is possible to change the application
main menu order.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Online” on the sub menu.
4 Select “Lexus Online”.
5 Select “Reorder applications in
main menu”.
6 The order can be changed by
selecting the arrow up or down.
It is possible to switch the automatic
Selecting a search engine
Selecting the fuel grade
Reordering the application main
menu
Selecting the automatic start
applications

240
-$@-$I@/BWJ@0.&@ &&

End User Terms
The data (“Data”) is provided for your personal, internal use only and not for resale.
It is protected by copyright, and is subj ect to the following terms and conditions
which are agreed to by you, on the one hand, and Toyota and its licensors
(including their licensors and suppliers) on the other hand.
© 2017 HERE. All rights reserved.
Personal Use Only. You agree to use this Data together with the Toyota multimedia
system for the solely personal, non-co mmercial purposes for which you were
licensed. Accordingly, but subject to the restrictions set forth in the following
paragraphs, you agree not to otherwise reproduce, copy, modify, decompile,
disassemble, create any derivative works of, or reverse engineer any portion of this
Data, and may not transfer or distribute it in any form, for any purpose, except to
the extent permitted by mandatory laws.
Restrictions. Except where you have been specifically licensed to do so by Toyota,
and without limiting the preceding paragraph, you may not (a) use this Data with
any products, systems, or applications installed or otherwise connected to or in
communication with vehicles, capable of ve hicle navigation, positioning, dispatch,
real time route guidance, fleet management or similar applications; or (b) with or in
communication with any positioning devices or any mobile or wireless-connected
electronic or computer devices, including without limitation cellular phones,
palmtop and handheld computers, pagers, an d personal digital assistants or PDAs.
Warning. The Data may contain inaccurate or incomplete information due to the
passage of time, changing circumstances, sources used and the nature of
collecting comprehensive geographic data, any of which may lead to incorrect
results.
No Warranty. This Data is provided to you “as is,” and you agree to use it at your
own risk. Toyota and its licensors (and their licensors and suppliers) make no
guarantees, representations or warranties of any kind, express or implied, arising
by law or otherwise, including but not limited to, content, quality, accuracy,
completeness, effectiveness, reliability, fitness for a particular purpose, usefulness,
use or results to be obtained from this Data, or that the Data or server will be
uninterrupted or error-free.
Map database inform ation and updates
