lexus LC500 2018 Navigation Manual

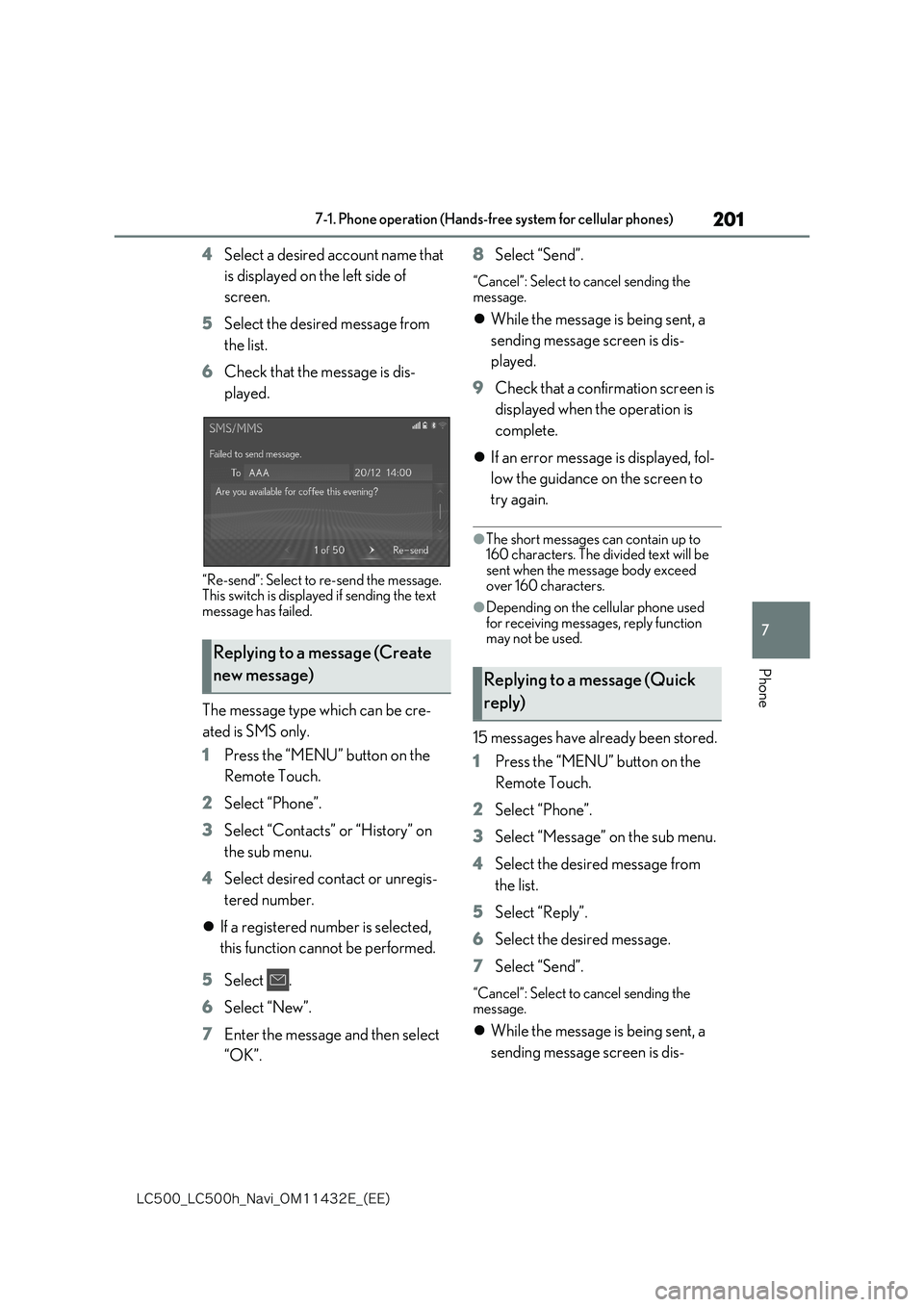

201
7
-$@-$I@/BWJ@0.&@ &&

7-1. Phone operation (Hands-free system for cellular phones)
Phone
4Select a desired account name that
is displayed on the left side of
screen.
5 Select the desired message from
the list.
6 Check that the message is dis-
played.
“Re-send”: Select to re-send the message. This switch is displayed if sending the text message has failed.
The message type which can be cre-
ated is SMS only.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Phone”.
3 Select “Contacts” or “History” on
the sub menu.
4 Select desired contact or unregis-
tered number.
 If a registered number is selected,
this function cannot be performed.
5 Select .
6 Select “New”.
7 Enter the message and then select
“OK”.
8 Select “Send”.
“Cancel”: Select to cancel sending the message.
 While the message is being sent, a
sending message screen is dis-
played.
9 Check that a confirmation screen is
displayed when the operation is
complete.
 If an error message is displayed, fol-
low the guidance on the screen to
try again.
●The short messages can contain up to 160 characters. The divided text will be
sent when the message body exceed over 160 characters.
●Depending on the cellular phone used for receiving messages, reply function may not be used.
15 messages have already been stored.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Phone”.
3 Select “Message” on the sub menu.
4 Select the desired message from
the list.
5 Select “Reply”.
6 Select the desired message.
7 Select “Send”.
“Cancel”: Select to cancel sending the message.
 While the message is being sent, a
sending message screen is dis-
Replying to a message (Create
new message)Replying to a message (Quick
reply)

202
-$@-$I@/BWJ@0.&@ &&

7-1. Phone operation (Hands-free system for cellular phones)
played.
8 Check that a confirmation screen is
displayed when the operation is
complete.
 If an error message is displayed, fol-
low the guidance on the screen to
try again.
■Editing quick reply messages
This operation cannot be performed
while driving.
1 Select “Quick message”.
2 Select corresponding to the
desired message to edit.
3 Select “OK” when editing is com-
pleted.
●To reset the edited quick reply messages, select “Default”.
●Quick message #1 (“I am driving and will arrive in approximately [##] minutes.”):
This message cannot be edited and will automatically fill in [##] with the naviga-tion calculated estimated time of arrival
on the confirm message screen. If there are waypoints set, [##] to the next waypoint will be shown.
If there is no route currently set in the navigation system, Quick message #1 cannot be selected.
●Depending on the cellular phone used for receiving messages, reply function
may not be used.
Calls can be made to an e-
mail/SMS/MMS message sender’s
phone number.
This operation can be performed while
driving.
■Calling from e-mail/SMS/MMS
message display
1 Press the “MENU” button on the
Remote Touch.
2 Select “Phone”.
3 Select “Message” on the sub menu.
4 Select the desired message.
5 Select , or press the switch
on the steering wheel.
 If there are 2 or more phone num-
bers, select the desired number.
6 Check that the call screen is dis-
played.
■Calling from a number within a
message
Calls can be made to a number identi-
fied in a message’s text area in blue
font.
This operation cannot be performed
while driving.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Phone”.
3 Select “Message” on the sub menu.
4 Select the desired message.
5 Select the text area.
Calling the message sender

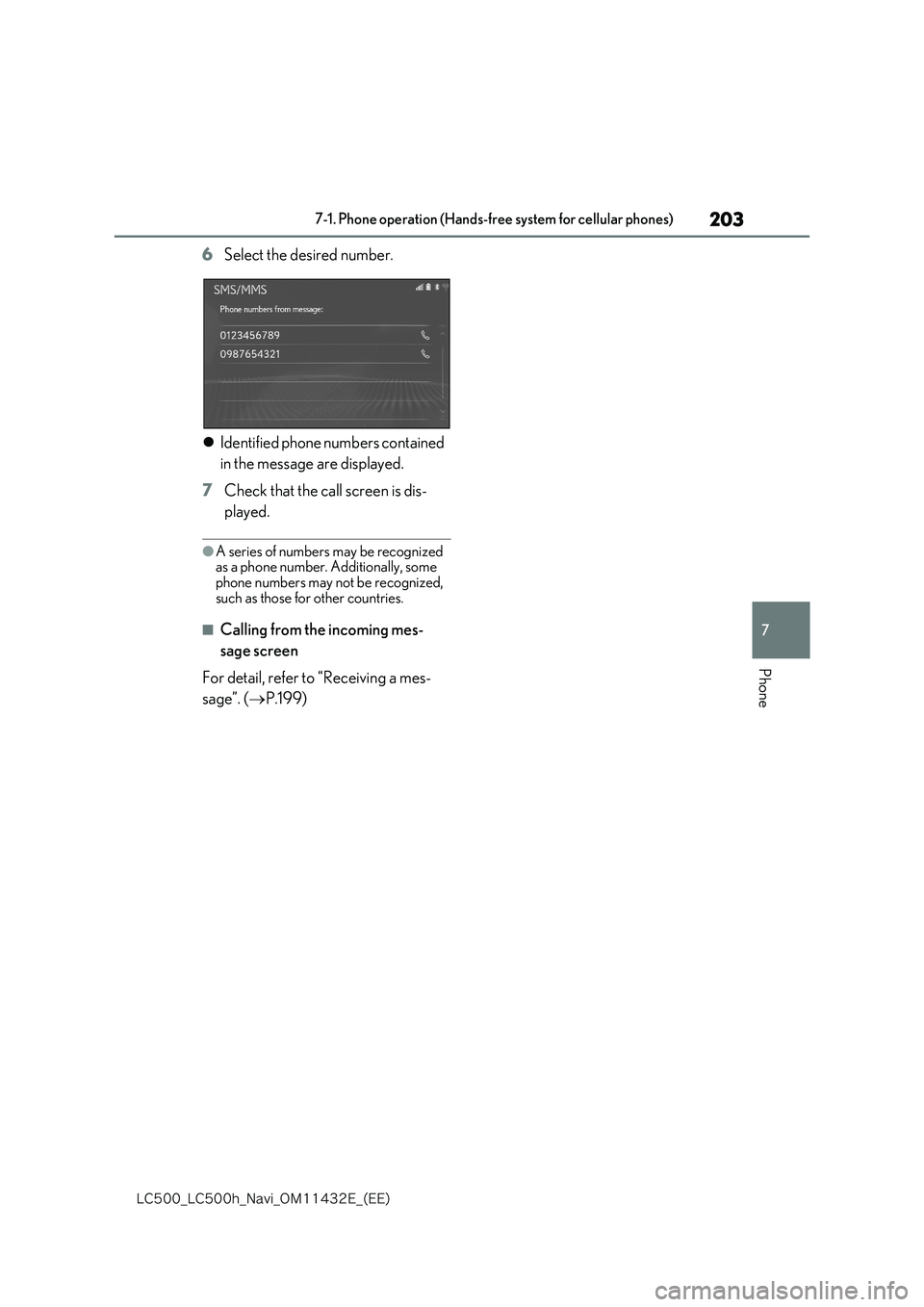

203
7
-$@-$I@/BWJ@0.&@ &&

7-1. Phone operation (Hands-free system for cellular phones)
Phone
6Select the desired number.
 Identified phone numbers contained
in the message are displayed.
7 Check that the call screen is dis-
played.
●A series of numbers may be recognized as a phone number. Additionally, some phone numbers may not be recognized,
such as those for other countries.
■Calling from the incoming mes-
sage screen
For detail, refer to “Receiving a mes-
sage”. ( P.199)

204
-$@-$I@/BWJ@0.&@ &&

7-2. Setup
7-2.Setup
1Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Phone” on the sub menu.
4 Select the item to be set.
Connecting a phone ( P.43)
Sound settings ( P.204)
Notification settings ( P.205)
Contact/call history settings
( P.206)
Message settings ( P.211)
Lexus Euro assistance 24 settings
( P.212)
The call and ringtone volume can be
adjusted. A ringtone can be selected.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Phone” on the sub menu.
4 Select “Sounds”.
5 Select the desired item to be set.
Select to set the desired ringtone.
Select “-” or “+” to adjust the
ringtone volume.
Select “-” or “+” to adjust the default
volume of the other party’s voice.
Select to set the desired incoming
e-mail tone.
Phone settings
Displaying the phone settings
screen
Phone settings screen
A
B
C
D
E
“Sounds” screen
F
A
B
C
D

205
7
-$@-$I@/BWJ@0.&@ &&

7-2. Setup
Phone
Select to set the desired incoming
SMS/MMS tone.
Select “-” or “+” to adjust the
incoming SMS/MMS tone volume.
Select “-” or “+” to adjust the
incoming e-mail tone volume.
Select “-” or “+” to adjust the mes-
sage readout volume.
Select to reset all setup items.
●Depending on the type of phone, certain
functions may not be available.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Phone” on the sub menu.
4 Select “Notifications”.
5 Select the desired item to be set.
Select to change where the screen
is displayed between the main dis-
play and side display.
• “Main screen”: Select to display and
operate the screen on the main display.
• “Side screen”: Select to display and
operate the screen on the side display.
For details of the screen: P.195
Select to set the SMS/MMS notifi-
cation pop-up on/off.
Select to change the incoming
SMS/MMS display.
• “Full screen”: When an SMS/MMS mes-
sage is received, the incoming
SMS/MMS display screen is displayed
and can be operated on the screen.
• “Drop-down”: When an SMS/MMS
message is received, a message is dis-
played on the upper side of the screen.
Select to set the e-mail notification
pop-up on/off.
Select to change the incoming e-
mail display.
• “Full screen”: When an e-mail is
received, the incoming e-mail display
screen is the displayed and can be oper-
ated on the screen.
• “Drop-down”: When an e-mail is
received, a message is displayed on the
upper side of the screen.
Select to set display of the con-
tact/history transfer completion
message on/off.
Select to reset all setup items.
●Depending on the phone, these functions
may not be available.
“Notifications” screen
E
F
G
H
I
A
B
C
D
E
F
G

206
-$@-$I@/BWJ@0.&@ &&

7-2. Setup
The contact can be transferred from a
Bluetooth® phone to the system.
The contact also can be added, edited
and deleted.
The call history can be deleted and
contacts and favourites can be
changed.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Phone” on the sub menu.
4 Select “Contacts/Call history”.
5 Select the desired item to be set.
For PBAP compatible Bluetooth®
phones: Select to change the con-
tact/history transfer settings.
( P.206)
Select to update contacts from the
connected device. ( P.207)
Select to sort contacts by the first
name or last name field.
Select to add contacts to the favou-
rites list. ( P.210)
Select to delete contacts from the
favourites list. ( P.210)
Select to clear contacts from the
call history.*
Select to add new contacts to the
contact list.* ( P.209)
Select to edit contacts in the con-
tact list.* ( P.209)
Select to delete contacts from the
contact list.* ( P.210)
Select to reset all setup items.
*: For PBAP compatible Bluetooth®
phones, this function is available when
“Automatic transfer” is set to off.
( P.206)
●Depending on the type of phone, certain
functions may not be available.
●Contact data is managed independently
for every registered phone. When one phone is connected, another phone’s registered data cannot be read.
The automatic contact/history function
is available for PBAP compatible
Bluetooth® phones only.
1 Select “Automatic transfer”.
“Contacts/Call history” screen
A
B
Setting automatic contact/his-
tory transfer
C
D
E
F
G
H
I
J

207
7
-$@-$I@/BWJ@0.&@ &&

7-2. Setup
Phone
2Select the desired item to be set.
Select to set automatic contact/his-
tory transfer on/off. When set to on,
the phone’s contact data and his-
tory are automatically transferred.
Select to update contacts from the
connected phone. ( P.207)
Select to set the transferred con-
tact image display on/off.
• When set to off, the contact image can-
not be displayed on the side display
when a call is received.
Select to reset all setup items.
■Updating contacts from phone
1 Select “Update now”.
 Contacts are transferred automati-
cally.
2 Check that a confirmation screen is
displayed when the operation is
complete.
 This operation may be unnecessary
depending on the type of cellular
phone.
 If another Bluetooth® device is con-
nected when transferring contact
data, depending on the phone, the
connected Bluetooth® device may
need to be disconnected.
 Depending on the type of
Bluetooth® phone being con-
nected, it may be necessary to per-
form additional steps on the phone.
When the contact is not registered
1 Select “Transfer contacts from
device”.
2 Select “From phone (Bluetooth*)”.
*: The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc.
3 Transfer the contact data to the sys-
tem using a Bluetooth® phone.
 This operation may be unnecessary
depending on the type of cellular
phone.
 To cancel this function, select “Can-
cel”.
4 Check that a confirmation screen is
displayed when the operation is
complete.
 This function is only for OPP com-
patible Bluetooth® phone.
When the contact is registered
1 Select “Transfer contacts from
device”.
2 Select “From phone (Bluetooth*)”.
*: The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc.
A
B
C
D
Transfer contacts from device
From phone

208
-$@-$I@/BWJ@0.&@ &&

7-2. Setup
3Select “Replace contacts” or “Add
contact”.
“Replace contacts”: Select to transfer the contact from the connected cellular phone
and replace the current one.
“Add contact”: Select to transfer the
desired contact data from the connected cellular phone to add to the current one.
4 Transfer the contact data to the sys-
tem using a Bluetooth® phone.
 This operation may be unnecessary
depending on the type of cellular
phone.
 To cancel this function, select “Can-
cel”.
5 Check that a confirmation screen is
displayed when the operation is
complete.
 This function is only for OPP com-
patible Bluetooth® phone.
■Updating the contacts (From the
“History” screen)*
1 Press the “MENU” button on the
Remote Touch.
2 Select “Phone”.
3 Select the “History” on the sub
menu and select a contact not yet
registered in the contact list.
4 Select “Update contact”.
5 Select the desired contact.
6 Select a phone type for the phone
number.
*: For PBAP compatible Bluetooth®
phones, this function is available when
“Automatic transfer” is set to off.
( P.206)
Backed-up contact data (“vCard” for-
matted) can be transferred from USB
device or Bluetooth® phone to this
system.
1 Slide the armrest as far back while
pressing the button.
2 Lift the armrest while pulling the
knob.
3 Open the cover and connect a
device or Bluetooth® phone.
From USB

209
7
-$@-$I@/BWJ@0.&@ &&

7-2. Setup
Phone
Turn on the power of the USB
device if it is not turned on.
4 Select “Transfer contacts from
device”.
5 Select “From USB”.
6 Select “USB 1” or “USB 2” when
the multiple USB devices are con-
nected. If a USB device is con-
nected, skip this procedure.
7 Select “Replace contacts” or “Add
contact”. If the contact is not regis-
tered, skip this procedure.
“Replace contacts”: Select to transfer the
contact from the connected USB device or
Bluetooth® phone and replace the current
one.
“Add contact”: Select to transfer the
desired contact data from the connected
USB device or Bluetooth® phone to add
to the current one.
8 Select a desired file from vCard file
list.
9 Check that a confirmation screen is
displayed when the operation is
complete.
●Depending on the type of phone used
and number of files, it may take time to download contacts.
●Downloading may not complete cor-rectly in the following cases:• If the engine switch is
turned off during downloading.
• If the USB device or Bluetooth® phone is
removed before downloading is com- plete.
New contact data can be registered.
Up to 4 numbers per person can be
registered.
1 Select “New contact”.
2 Enter the name and select “OK”.
3 Enter the phone number and select
“OK”.
4 Select the phone type for the
phone number.
5 To add another number to this con-
tact, select “Yes”.
■Registering a new contact in a dif-
ferent way (From the “History”
screen)
1 Press the “MENU” button on the
Remote Touch.
2 Select “Phone”.
3 Select the “History” on the sub
menu and select a contact not yet
registered in the contact list.
4 Select “Add to contacts”.
5 Follow the steps in “Registering a
new contact to the contacts list”
from step 2. (P.209)
1 Select “Edit contact”.
2 Select the desired contact.
3 Select next to the name or
desired number.
4 Enter the name or the phone num-
ber and select “OK”.
Registering a new contact to the
contacts list
Editing the contact data

210
-$@-$I@/BWJ@0.&@ &&

7-2. Setup
1Select “Delete contacts”.
2 Select the desired contact and
press the button on the Remote
Touch.
“Select all”: Select all items in the list.
“Unselect all”: Unselect all items in the list.
“Delete”: Delete selected items in the list.
3 Select “Delete”.
4 Select “Yes” when the confirmation
screen appears.
●Multiple data can be selected and deleted at the same time.
●When a Bluetooth® phone is deleted, the
contact data will be deleted at the same time.
Up to 15 contacts (maximum of 4 num-
bers per contact) can be registered in
the favourites list.
■Registering the contacts in the
favourites list
1 Select “Add favourites”.
2 Select the desired contact to add to
the favourites list.
 Dimmed contacts are already
stored as a favourites.
3 Check that a confirmation screen is
displayed when the operation is
complete.
When 15 contacts have already
been registered to the favourites list
1 When 15 contacts have already
been registered to the favourites
list, a registered contact needs to
be replaced.
Select “Yes” when the confirmation
screen appears to replace a con-
tact.
2 Select the contact to be replaced.
3 Check that a confirmation screen is
displayed when the operation is
complete.
Registering contacts in the favour-
ites list in a different way (from the
“Contact details” screen)
1 Press the “MENU” button on the
Remote Touch.
2 Select “Phone”.
3 Select the “Contacts” on the sub
menu and select the desired con-
tact.
4 Select “Add favourites”.
5 Check that a confirmation screen is
displayed when the operation is
complete.
■Deleting the contacts in the favou-
rites list
1 Select “Remove favourites”.
2 Select the desired contacts and
press the button on the Remote
Touch.
“Select all”: Select all items in the list.
“Unselect all”: Unselect all items in the list.
“Remove”: Remove selected items in the
list.
Deleting the contact data
Favourites list setting
