41
2
-$@-$I@/BWJ@0.&@ &&

2-2. Network settings
Basic function
6Select “Register from phone”.
7 Register the Bluetooth® device
using your Bluetooth® device.
 A PIN code is not required for SSP
(Secure Simple Pairing) compatible
Bluetooth® devices. Depending on
the type of Bluetooth® device being
connected, a message confirming
registration may be displayed on the
Bluetooth® device’s screen.
Respond and operate the
Bluetooth® device according to the
confirmation message.
8 Check that the following screen is
displayed, indicating pairing was
successful.
 The system is connecting to the reg-
istered device.
 At this stage, the Bluetooth® func-
tions are not yet available.
9 Check that “Connected” is dis-
played and registration is complete.
 If an error message is displayed, fol-
low the guidance on the screen to
try again.
●If a cellular phone does not operate prop-
erly after being connected, turn the cellu- lar phone off and on and then connect it again.
To use the Bluetooth® Audio, it is nec-
essary to register an audio player with
the system.
Once the player has been registered, it
is possible to use the Bluetooth®
Audio.
This operation cannot be performed
while driving.
For details about registering a
Bluetooth® device: P.44
1 Turn the Bluetooth® connection
setting of your audio player on.
 This function is not available when
the Bluetooth® connection setting
of your audio player is set to off.
Registering a Bluetooth® audio
player for th e first time

42
-$@-$I@/BWJ@0.&@ &&

2-2. Network settings
2Press the “MENU” button on the
Remote Touch.
3 Select “Media”.
4 Select “Source” on the sub menu.
5 Select “Bluetooth*”.
*: The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc.
6 Select “Yes” to register a audio
player.
7 Follow the steps in “Registering a
Bluetooth® phone for the first time”
from step 5. (P.39)
■Bluetooth® Core Specification
 Ver. 2.0 (Recommended: Ver. 4.1
+EDR)
■Profiles:
 HFP (Hands Free Profile) Ver. 1.0
(Recommended: Ver. 1.7)
• This is a profile to allow hands-free
phone calls using a cellular phone or
head set. It has outgoing and incoming
call functions.
 OPP (Object Push Profile) Ver. 1.1
(Recommended: Ver. 1.2)
• This is a profile to transfer contacts data.
 PBAP (Phone Book Access Profile)
Ver. 1.0 (Recommended: Ver. 1.2)
• This is a profile to transfer phonebook
data.
 MAP (Message Access Profile)
Recommended: Ver. 1.2
• This is a profile to use phone message
functions.
 PAN (Personal Area Networking)
Recommended: Ver. 1.0
• This is a profile to use the “Connected
services” function.
 A2DP (Advanced Audio Distribu-
tion Profile) Ver. 1.0 (Recom-
mended: Ver. 1.3)
• This is a profile to transmit stereo audio
or high quality sound to the audio sys-
tem.
 AVRCP (Audio/Video Remote
Control Profile) Ver. 1.0 (Recom-
mended: Ver. 1.6)
Profiles

44
-$@-$I@/BWJ@0.&@ &&

2-2. Network settings
(P.44)
Deleting a Bluetooth® device
( P.44)
Editing the Bluetooth® device
information and system settings
( P.49)
Up to 5 Bluetooth® devices can be
registered.
Bluetooth® compatible phones (HFP)
and audio players (AVP) can be regis-
tered simultaneously.
This operation cannot be performed
while driving.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Bluetooth*” on the sub
menu.
*: The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc.
4 Select “Add new device”.
When another Bluetooth® device is
connected
 To disconnect the Bluetooth®
device, select “Yes”.
When 5 Bluetooth® devices have
already been registered
 A registered device needs to be
replaced. Select “Yes”, and select
the device to be replaced.
5 Follow the steps in “Registering a
Bluetooth® phone for the first time”
from step 6. (P.39)
This operation cannot be performed
while driving.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Bluetooth*” on the sub
menu.
*: The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc.
4 Select “Remove device”.
5 Select the desired device.
6 Select “Yes” when the confirmation
screen appears.
7 Check that a confirmation screen is
displayed when the operation is
complete.
●When deleting a Bluetooth® phone, the contact data will be deleted at the same
time.
Registering a Bluetooth® device
C
D
Deleting a Bluetooth® device

45
2
-$@-$I@/BWJ@0.&@ &&

2-2. Network settings
Basic function
Up to 5 Bluetooth® devices (Phones
(HFP) and audio players (AVP)) can be
registered.
If more than 1 Bluetooth® device has
been registered, select which device to
connect to.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Bluetooth*” on the sub
menu.
*: The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc.
4 Select “Registered device”.
5 Select the device to be connected.
: Phone
: Audio player
 The profile icon for a currently con-
nected device will be displayed in
color.
 Selecting a profile icon which is not
currently connected will switch the
connection to the function.
 If the desired Bluetooth® device is
not on the list, select “Add new
device” to register the device.
( P.44)
6 Select the desired connection.
7 Check that a confirmation screen is
displayed when the connection is
complete.
 If an error message is displayed, fol-
low the guidance on the screen to
try again.
●It may take time if the device connection
is carried out during Bluetooth® audio
playback.
●Depending on the type of Bluetooth® device being connected, it may be neces-sary to perform additional steps on the
device.
●When disconnecting a Bluetooth®
device, it is recommended to disconnect using the system.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Phone” on the sub menu.
Connecting a Bluetooth®
device
Connecting a Bluetooth® device
in a different way (from phone
setup screen)

48
-$@-$I@/BWJ@0.&@ &&

2-2. Network settings
7Confirm and change the
Bluetooth® device information.
The name of the Bluetooth® device
is displayed. It can be changed to a
desired name. ( P.48)
Select to set the Bluetooth® audio
player connection method.
( P.48)
Device address is unique to the
device and cannot be changed.
Phone number is unique to the
Bluetooth® phone and cannot be
changed.
Compatibility profile is unique to
the Bluetooth® device and cannot
be changed.
Select to reset all setup items.
●If 2 Bluetooth® devices have been regis- tered with the same device name, the devices can be distinguished referring to
the device’s address.
●Depending on the type of phone, some
information may not be displayed.
1 Select “Device name”.
2 Enter the name and select “OK”.
●Even if the device name is changed, the
name registered in your Bluetooth® device does not change.
1 Select “Connect audio player
from”.
2 Select the desired connection
method.
“Vehicle”: Select to connect the audio sys- tem to the audio player.
“Device”: Select to connect the audio player to the audio system.
 Depending on the audio player, the
“Vehicle” or “Device” connection
method may be best. As such, refer
to the manual that comes with the
audio player.
A
B
C
D
E
F
Changing a device name
Setting audio player connection
method

50
-$@-$I@/BWJ@0.&@ &&

2-2. Network settings
(P.50)
Select to change the automatic
connection priority of the regis-
tered Bluetooth® audio players.
( P.50)
Select to reset all setup items.
●A newly registered Bluetooth® device will automatically be given the highest automatic connection priority.
■Changing phone automatic con-
nection priority
1 Select “Preferred phones”.
2 Select the desired Bluetooth®
device and select “Move up” or
“Move down” to change the pre-
ferred order.
■Changing audio player automatic
connection priority
1 Select “Preferred audio players”.
2 Select the desired Bluetooth®
device and select “Move up” or
“Move down” to change the pre-
ferred order.
1 Select “System information”.
2 Select the desired item to be set.
Displays system name. Can be
changed to a desired name.
( P.51)
PIN code used when the
Bluetooth® device was registered.
Can be changed to a desired code.
( P.51)
Device address is unique to the
C
D
Editing the system information
A
B
C

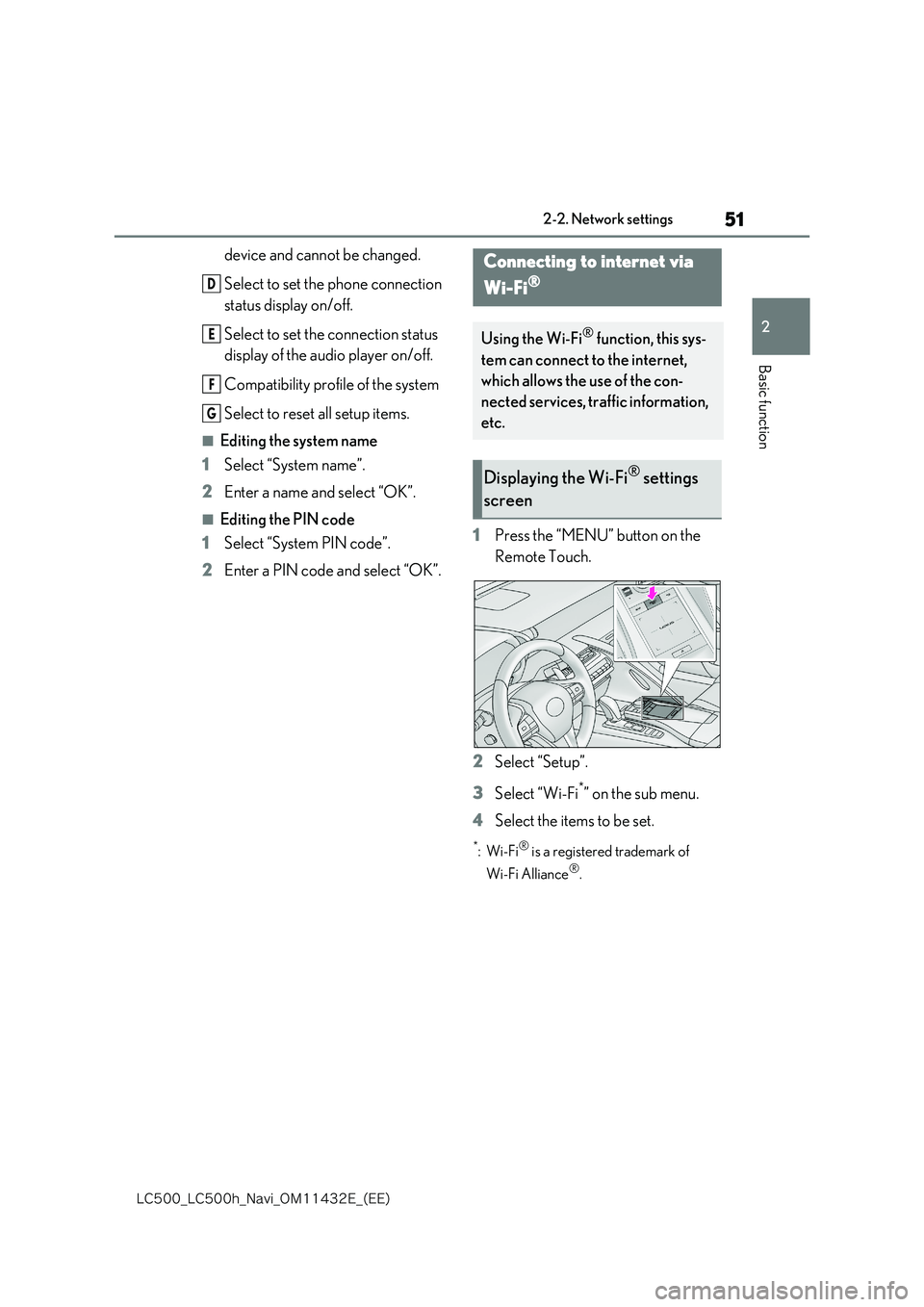

51
2
-$@-$I@/BWJ@0.&@ &&

2-2. Network settings
Basic function
device and cannot be changed.
Select to set the phone connection
status display on/off.
Select to set the connection status
display of the audio player on/off.
Compatibility profile of the system
Select to reset all setup items.
■Editing the system name
1 Select “System name”.
2 Enter a name and select “OK”.
■Editing the PIN code
1 Select “System PIN code”.
2 Enter a PIN code and select “OK”.
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Wi-Fi*” on the sub menu.
4 Select the items to be set.
*:Wi-Fi® is a registered trademark of
Wi-Fi Alliance®.
D
E
F
G
Connecting to internet via
Wi-Fi®
Using the Wi-Fi® function, this sys-
tem can connect to the internet,
which allows the use of the con-
nected services, traffic information,
etc.
Displaying the Wi-Fi® settings
screen

122
-$@-$I@/BWJ@0.&@ &&

4-1. Basic operation
1Display the audio control screen.
2 Select “Source” on the sub menu.
3 Select “Reorder”.
4 Select the desired audio source
then or to reorder.
■Inserting a disc
 After insertion, the disc is automati-
cally loaded.
■Ejecting a disc
1 Press the button and remove
the disc.
●The player is intended for use with 4.7 in. (12 cm) discs only.
●When inserting a disc , gently insert the disc with the label facing up.
There are 2 USB ports and an AUX
port in the console box.
1 Slide the armrest as far back while
pressing the button.
2 Lift the armrest while pulling the
knob.
Reordering the audio source
Disc slot
NOTICE
●Never try to disassemble or oil any part of the DVD player. Do not insert anything other than a disc into the slot.
USB/AUX port

123
4
-$@-$I@/BWJ@0.&@ &&

4-1. Basic operation
Audio/visual system
3Open the cover and connect a
device.
 Turn on the power of the device if it
is not turned on.
●Up to two portable players can be con-
nected to the USB port at the same time.
●Even if a USB hub is used to connect
more than two USB devices, only the first two connected devices will be recog-nized.
1 Display the audio control screen.
2 Select “Sound” on the sub menu.
3 Select the desired switch to be set.
Select to set the treble/mid/bass.
( P.123)
Select to set the fader/balance.
( P.124)
The system adjusts to the optimum
volume and tone quality according
to vehicle speed to compensate for
increased vehicle noise. ( P.124)
This function can create a feeling of
presence. ( P.124)
■Treble/Mid/Bass
How good an audio program sounds is
largely determined by the mix of the
treble, mid and bass levels. In fact, dif-
ferent kinds of music and vocal pro-
grams usually sound better with
different mixes of treble, mid and bass.
1 Select the “Treble/Mid/Bass” and
select the desired item to be set.
Select “+” or “-” to adjust high-
NOTICE
●Depending on the size and shape of the device that is connected to the sys-tem, the console box/auxiliary box may
not close fully. In this case, do not forci- bly close the console box/auxiliary box as this may damage the device or the
terminal, etc.
Sound settings
A
B
C
D
A

132
-$@-$I@/BWJ@0.&@ &&

4-3. Media operation
screen. (P.123)
The DVD control screen can be
reached by the following methods:
Using the audio control switch
1 Press the “MEDIA” button.
Using the Remote Touch
1 Press the “MENU” button on the
Re m ot e T ou ch , th e n se l ec t “M e d ia ”.
 Inserting a disc (P.122)
DVD
For safety reasons, the DVD video
discs can only be viewed when the
following conditions are met:
(a) The vehicle is completely
stopped.
(b) The engine switch switch> is in ACCESSORY or
IGNITION ON mode .
(c) The parking brake is applied.
While driving in DVD video mode,
only the DVD’s audio can be heard.
The playback condition of some
DVD discs may be determined by
the DVD software producer. This
DVD player plays a disc as the soft-
ware producer intended. As such,
some functions may not work prop-
erly. Be sure to read the instruction
manual that comes with the individ-
ual DVD disc. ( P.155)
Overview
