CD player lexus LC500 2018 Navigation Manual

134
-$@-$I@/BWJ@0.&@ &&

4-3. Media operation
Select to display the sound setting
screen. ( P.123)
1 Select “Options” on the sub menu.
2 The following screen is displayed.
Select to display expanded screen
video.
Select to change the audio lan-
guage. ( P.134)
Select to change the subtitle lan-
guage. ( P.134)
Select to display the predeter-
mined scene on the screen and
start playing.
Select to change the angle.
( P.134)
Select to display the title search
screen. ( P.134)
1 Select “Audio”.
2 Each time “Audio” is selected, the
audio language is changed.
●The languages available are restricted to those available on the DVD disc.
1 Select “Subtitle”.
2 Each time “Change” is selected, the
language the subtitles are dis-
played in is changed.
●The languages available are restricted to those available on the DVD disc.
●When “Hide” is select ed, the subtitles can be hidden.
The angle can be selected for discs
that are multi-angle compatible when
the angle mark ( ) appears on the
screen.
1 Select “Angle”.
2 Each time “Angle” is selected, the
angle is changed.
●The angles available are restricted to those available on the DVD disc.
1 Select “Search”.
2 Enter the title number and select
“OK”.
 The player starts playing video for
that title number.
DVD options
Changing the audio language
E
A
B
C
D
E
F
Changing the subtitle language
Changing the angle
Searching by title

136
-$@-$I@/BWJ@0.&@ &&

4-3. Media operation
automatically and randomly selected.
1 Select .
●Each time is selected, the mode
changes as follows:
• random (1 folder/album random)  folder/album random (all folder/album random)  off
Turn to select a file/track.
Turn and hold to fast for-
ward/rewind.
Turn to select a file/track.
Turn to move up/down the list.
●If tag information exists, the file/folder
names will be changed to track/album names.
USB audio
Select to display the audio source
selection screen. ( P.121)
Select to return to the control
screen.
Select to display a file list screen.
Select to display the play mode
selection screen.
Select to display the sound setting
Audio control switch
WARNING
●Do not operate the player’s controls or
connect the USB memory while driv- ing.
A
B
NOTICE
●Depending on the size and shape of the USB memory that is connected to the system, the console box may not
close fully. In this case, do not forcibly close the console box as this may dam-age the USB memory or the terminal,
etc.
●Do not leave your portable player in the car. In particular, high tempera-tures inside the vehicle may damage
the portable player.
●Do not push down on or apply unnec- essary pressure to the portable player while it is connected as this may dam-
age the portable player or its terminal.
●Do not insert foreign objects into the port as this may damage the portable player or its terminal.
Sub menu
A
B
C
D
E

138
-$@-$I@/BWJ@0.&@ &&

4-3. Media operation
The track currently being listened to
can be repeated.
1 Select .
●Each time is selected, the mode
changes as follows:
When shuffle is off (iPhone 5 or later) • file/track repeat  folder/album repeat
 off
When shuffle is off (iPhone 4s or earlier)
• file/track repeat  off
When shuffle is on
• file/track repeat  off
It depends on the models.
Tracks or albums can be automatically
and randomly selected.
1 Select .
●Each time is selected, the mode
changes as follows:
• track shuffle  album shuffle  off
It depends on the models.
Turn to select a track.
Turn and hold to fast for-
ward/rewind.
Turn to select a track.
Turn to move up/down the list.
●When an iPod is connected using a genu- ine iPod cable, the iPod starts charging its battery.
●Depending on the iPod and the songs in the iPod, iPod cover art may be displayed.
This function can be changed to “On” or “Off”. ( P.148) It may take time to dis- play iPod cover art, and the iPod may not
be operated while the cover art display is in process.
●When an iPod is connected and the audio source is changed to iPod mode, the iPod
will resume playing from the same point it was last used.
●Depending on the iPod that is connected to the system, certain functions may not be available.
●The system may not function properly if a conversion adapter is used to connect a
device.
Repeating
Random order
Audio control switch
WARNING
●Do not operate the player’s controls or connect the iPod while driving.
NOTICE
●Depending on the size and shape of
the iPod that is connected to the sys- tem, the console box may not close fully. In this case, do not forcibly close
the console box as this may damage the iPod or the terminal, etc.
●Do not leave your portable player in the car. In particular, high tempera-
tures inside the vehicle may damage the portable player.
A
B

139
4
-$@-$I@/BWJ@0.&@ &&

4-3. Media operation
Audio/visual system
Select to display the audio source
selection screen. ( P.121)
Select to return to the control
screen.
Select to display a file list screen.
Select to display the play mode
selection screen.
Select to display the sound setting
screen. ( P.123)
The Bluetooth® audio control screen
can be reached by the following meth-
ods:
Using the audio control switch
1 Press the “MEDIA” button.
Using the Remote Touch
1 Press the “MENU” button on the
Re m ot e T ou ch , th e n se l ec t “M e d ia ”.
Depending on the type of portable
player connected, some functions may
not be available and/or the screen may
look differently than shown in this man-
ual.
 Connecting a Bluetooth® audio
device ( P.141)
NOTICE
●Do not push down on or apply unnec- essary pressure to the portable player while it is connected as this may dam-
age the portable player or its terminal.
●Do not insert foreign objects into the port as this may damage the portable player or its terminal.
Sub menu
A
B
C
D
E
Bluetooth® audio
The Bluetooth® audio system
enables users to enjoy listening to
music that is played on a portable
player on the vehicle speakers via
wireless communication.
This audio system supports
Bluetooth®, a wireless data system
capable of playing portable audio
music without cables. If your device
does not support Bluetooth®, the
Bluetooth® audio system will not
function.
Overview

140
-$@-$I@/BWJ@0.&@ &&

4-3. Media operation
Displays cover art
Select to set repeat playback.
( P.140)
Select to select a track.
Select and hold to fast rewind.
Select to play/pause.
Select to select a track.
Select and hold to fast forward.
Select to set random playback.
( P.140)
The track or album currently being lis-
tened to can be repeated.
1 Select .
●Each time is selected, the mode
changes as follows:
• track repeat  album repeat  off
Tracks or albums can be automatically
and randomly selected.
1 Select .
●Each time is selected, the mode
changes as follows:
•album random  all track random  off
Turn to select a track.
Turn and hold to fast for-
ward/rewind.
Turn to select a track.
Turn to move up/down the list.
●Depending on the Bluetooth® device that is connected to the system, the music
may start playing when selecting
while it is paused. Conversely, the music
may pause when selecting while it is
playing.
●In the following conditions, the system may not function:
• The Bluetooth® device is turned off.
• The Bluetooth® device is not connected.
• The Bluetooth® device has a low battery.
●It may take time to connect the phone
when Bluetooth® audio is being played.
●For operating the portable player, see the instruction manual that comes with it.
●If the Bluetooth® device is disconnected due to poor reception from the
Bluetooth® network when the engine switch is in ACCES-
Control screen
Repeating
Random order
A
B
C
D
E
F
Audio control switch
A
B

141
4
-$@-$I@/BWJ@0.&@ &&

4-3. Media operation
Audio/visual system
SORY or IGNITION ON mode , the system automatically recon-nects the portable player.
●If the Bluetooth® device is disconnected
on purpose, such as it was turned off, this does not happen. Reconnect the porta-ble player manually.
●Bluetooth® device information is regis-
tered when the Bluetooth® device is
connected to the Bluetooth® audio sys-
tem. When selling or disposing of the
vehicle, remove the Bluetooth® audio
information from the system. ( P.59)
●In some situations, sound output via the
Bluetooth® audio system may be out of sync with the connected device or output intermittently.
To use the Bluetooth® audio system, it
is necessary to register a Bluetooth®
device with the system.
Registering an additional device
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup”.
3 Select “Bluetooth*” on the sub
menu.
*: The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc.
4 Select “Add New Device”.
5 For more information: P.44
Selecting a registered device
1 Select “Connect” on the sub menu.
2 Select the device to be connected.
WARNING
●Do not operate the player’s controls or
connect to the Bluetooth® audio sys-
tem while driving.
●Your audio unit is fitted with
Bluetooth® antennas. People with
implantable cardiac pacemakers, car- diac resynchronization therapy-pace-makers or implantable cardioverter
defibrillators should maintain a reason- able distance between themselves and
the Bluetooth® antennas. The radio waves may affect the operation of such devices.
●Before using Bluetooth® devices, users of any electrical medical device other than implantable cardiac pace-
makers, cardiac resynchronization therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation under the influence of radio waves. Radio
waves could have unexpected effects on the operation of such medical devices.
NOTICE
●Do not leave your portable player in the vehicle. In particular, high tempera-tures inside the vehicle may damage
the portable player.
Connecting a Bluetooth®
device

143
4
-$@-$I@/BWJ@0.&@ &&

4-3. Media operation
Audio/visual system
Using the Remote Touch
1 Press the “MENU” button on the
Remote Touch, then select “Media”.
 Connecting a Miracast™ device
( P.143)
Select to disconnect the Miracast™
device.
Select to change the screen size.
( P.124)
Select to display/hide the control
button.
Select to display the image quality
adjustment screen. ( P.125)
●The Miracast™ sound volume takes into account the sound volume of both the
navigation system and the connected device. Before using Miracast™, adjust the sound volume of the connected
device to an appropriate level.
●When a device that uses Bluetooth® audio is used with Miracast™, no sound may be output from Miracast™. If this
occurs, disabling the Bluetooth® audio may allow sound to be output from
Miracast™.
1 Display the audio source selection
screen.
2 Select “Miracast™”.
3 When a message is displayed,
select “Yes” to turn Wi-Fi® on.
4 Devices that support Miracast™
can now be connected.
 Refer to the instruction manual
included with the external device for
details on how to operate the
device.
 When a device cannot be found,
Control screen
A
B
C
D
WARNING
●Do not connect portable audio device or operate the controls while driving.
NOTICE
●Depending on the size and shape of the portable audio device that is con-
nected to the system, the console box may not close fully. In this case, do not forcibly close the console box as this
may damage the portable audio device or the terminal, etc.
●Do not leave portable audio device in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to the player.
●Do not push down on or apply unnec-essary pressure to the portable audio
device while it is connected as this may damage the portable audio device or its terminal.
●Do not insert foreign objects into the
port as this may damage the portable audio device or its terminal.
Connecting a Miracast™ device

145
4
-$@-$I@/BWJ@0.&@ &&

4-3. Media operation
Audio/visual system
Select to display the audio source
selection screen. ( P.121)
Select to return to the control
screen.
Select to display the sound setting
screen. ( P.123)
NOTICE
●Do not leave portable audio device in the vehicle. The temperature inside the vehicle may become high, resulting in
damage to the player.
●Do not push down on or apply unnec- essary pressure to the portable audio device while it is connected as this may
damage the portable audio device or its terminal.
●Do not insert foreign objects into the port as this may damage the portable
audio device or its terminal.
Sub menu
A
B
C

155
4
-$@-$I@/BWJ@0.&@ &&

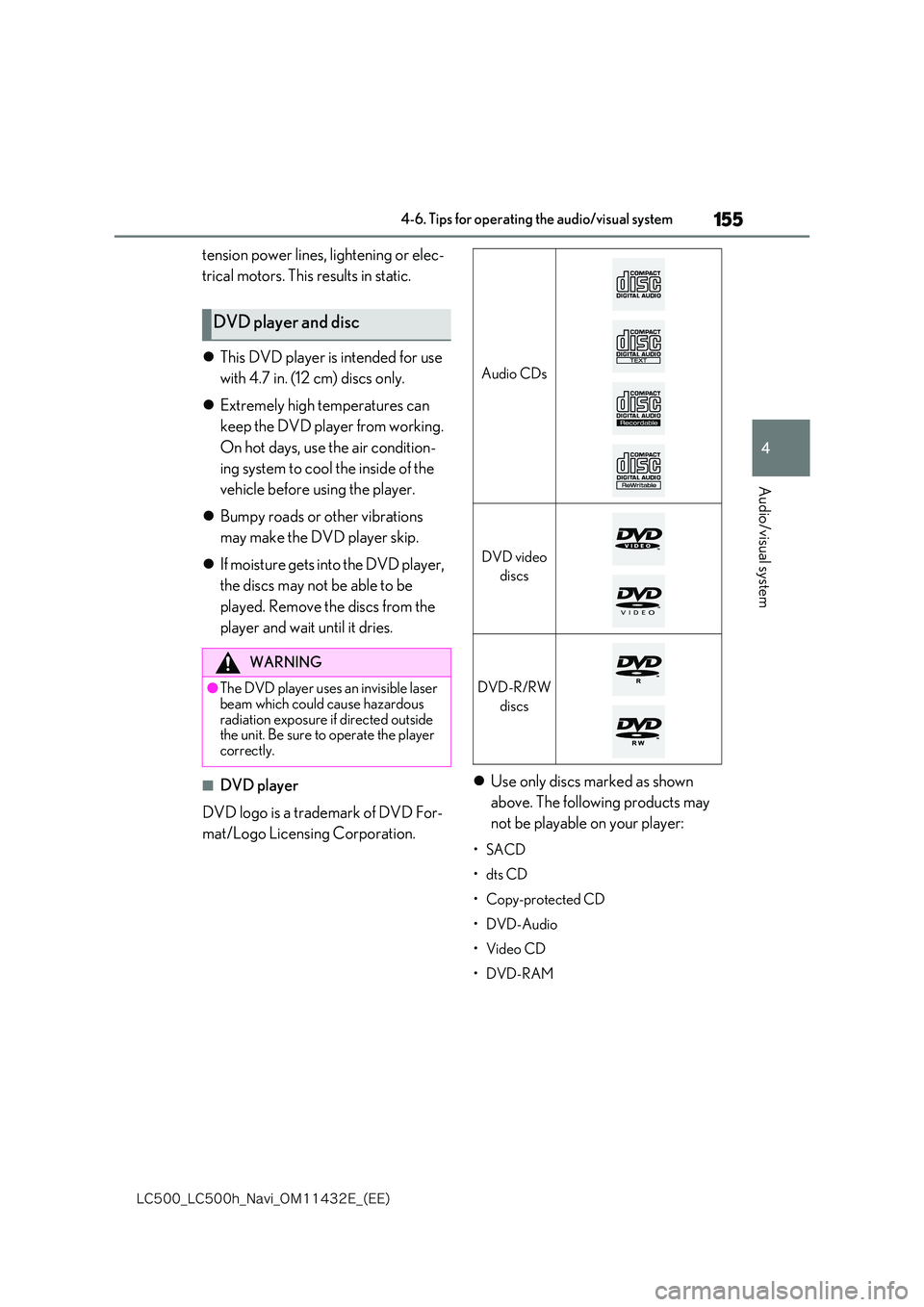

4-6. Tips for operating the audio/visual system
Audio/visual system
tension power lines, lightening or elec-
trical motors. This results in static.
 This DVD player is intended for use
with 4.7 in. (12 cm) discs only.
 Extremely high temperatures can
keep the DVD player from working.
On hot days, use the air condition-
ing system to cool the inside of the
vehicle before using the player.
 Bumpy roads or other vibrations
may make the DVD player skip.
 If moisture gets into the DVD player,
the discs may not be able to be
played. Remove the discs from the
player and wait until it dries.
■DVD player
DVD logo is a trademark of DVD For-
mat/Logo Licensing Corporation.
 Use only discs marked as shown
above. The following products may
not be playable on your player:
•SACD
•dts CD
• Copy-protected CD
•DVD-Audio
•Video CD
•DVD-RAM
DVD player and disc
WARNING
●The DVD player uses an invisible laser
beam which could cause hazardous radiation exposure if directed outside the unit. Be sure to operate the player
correctly.
Audio CDs
DVD video
discs
DVD-R/RW
discs

156
-$@-$I@/BWJ@0.&@ &&

4-6. Tips for operating the audio/visual system
Special shaped discs
Transparent/translucent discs
Low quality discs
Labeled discs
 Handle discs carefully, especially
when inserting them. Hold them on
the edge and do not bend them.
Avoid getting fingerprints on them,
particularly on the shiny side.
 Dirt, scratches, warping, pin holes
or other disc damage could cause
the player to skip or to repeat a sec-
tion of a track. (To see a pin hole,
hold the disc up to the light.)
 Remove discs from the players
when not in use. Store them in their
plastic cases away from moisture,
NOTICE
●Do not use special shaped, transpar- ent/translucent, low quality or labeled discs such as those shown in the illus-
trations. The use of such discs may damage the player, or it may be impos-sible to eject the disc.
●This system is not designed for use of
Dual Discs. Do not use Dual Discs because they may cause damage to the player.
●Do not use discs with a protection ring.
The use of such discs may damage the player, or it may be impossible to eject the disc.
●Do not use printable discs. The use of
such discs may damage the player, or it may be impossible to eject the disc.
