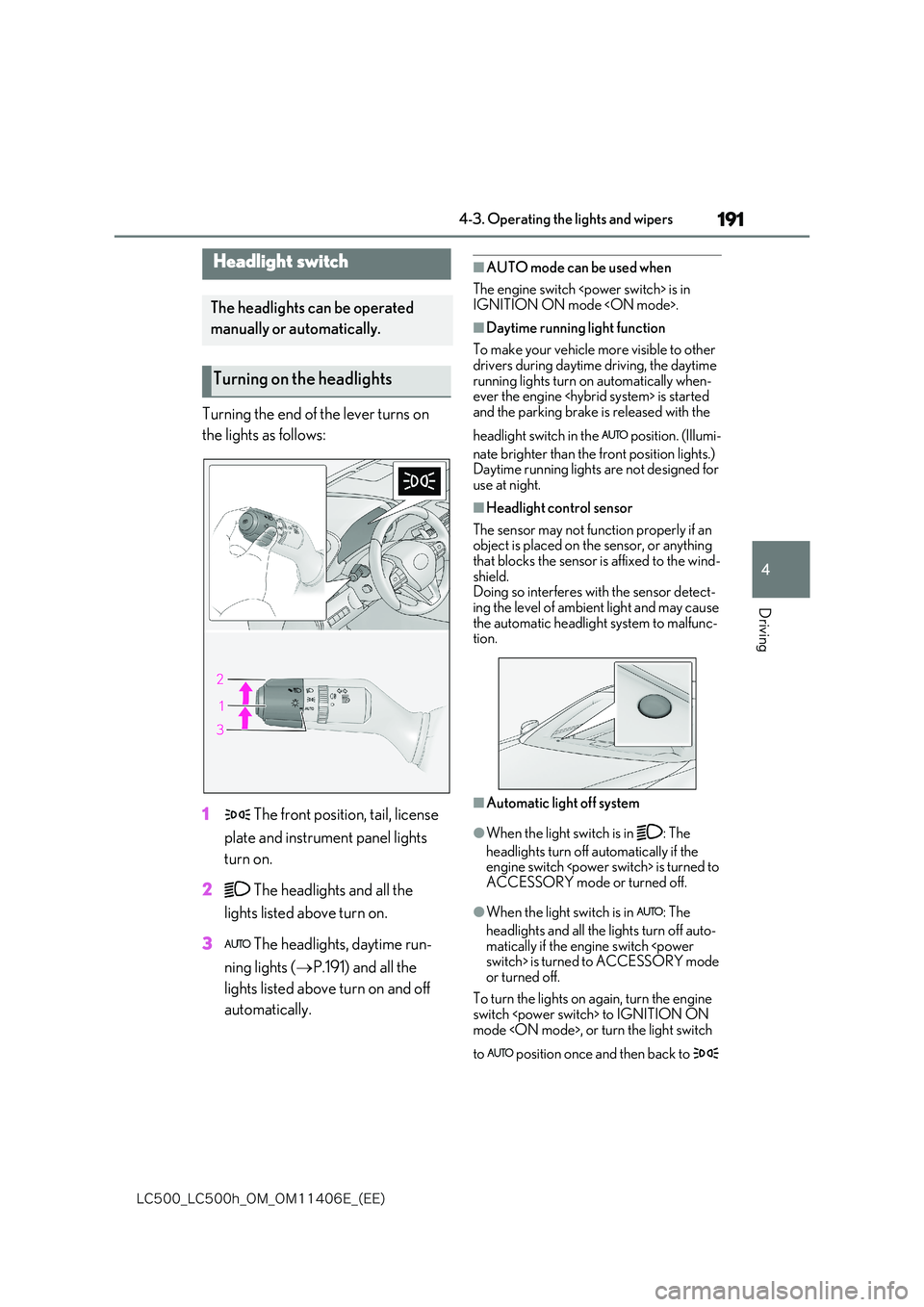

4-3. Operating the lights and wipers
Driving
4-3.Operating the lig hts and wipe rs
Turning the end of the lever turns on
the lights as follows:
1 The front position, tail, license
plate and instrument panel lights
turn on.
2 The headlights and all the
lights listed above turn on.
3 The headlights, daytime run-
ning lights ( P.191) and all the
lights listed above turn on and off
automatically.
■AUTO mode can be used when
The engine switch

is in
IGNITION ON mode .
■Daytime running light function
To make your vehicle more visible to other
drivers during daytime driving, the daytime running lights turn on automatically when-ever the engine is started
and the parking brake is released with the
headlight switch in the position. (Illumi-
nate brighter than the front position lights.) Daytime running lights are not designed for use at night.
■Headlight control sensor
The sensor may not function properly if an object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind- shield. Doing so interferes with the sensor detect-
ing the level of ambient light and may cause the automatic headlight system to malfunc-tion.
■Automatic light off system
●When the light swit ch is in : The
headlights turn off automatically if the engine switch is turned to ACCESSORY mode or turned off.
●When the light swit ch is in : The
headlights and all the lights turn off auto- matically if the engine switch is turned to ACCESSORY mode
or turned off.
To turn the lights on again, turn the engine
switch to IGNITION ON mode , or turn the light switch
to position once and then back to
Headlight switch
The headlights can be operated
manually or automatically.
Turning on the headlights

192
-$@-$I@0.@0.&@ &&

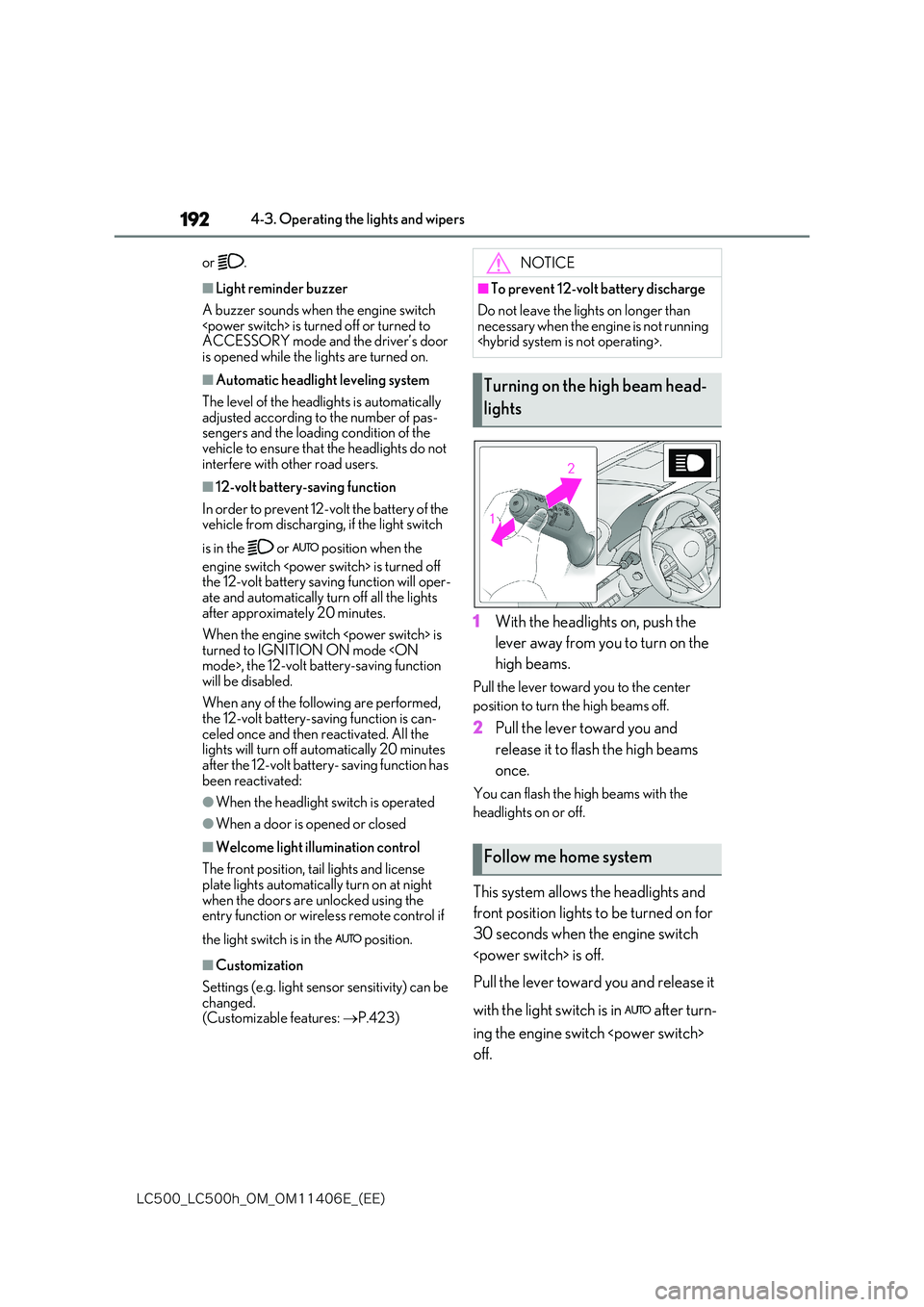

4-3. Operating the lights and wipers
or .
■Light reminder buzzer
A buzzer sounds when the engine switch is turned off or turned to ACCESSORY mode and the driver’s door
is opened while the lights are turned on.
■Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number of pas-sengers and the loading condition of the
vehicle to ensure that the headlights do not interfere with other road users.
■12-volt battery-saving function
In order to prevent 12-volt the battery of the vehicle from discharging, if the light switch
is in the or position when the
engine switch is turned off the 12-volt battery savi ng function will oper-
ate and automatically turn off all the lights after approximately 20 minutes.
When the engine switch is turned to IGNITION ON mode , the 12-volt battery-saving function
will be disabled.
When any of the following are performed,
the 12-volt battery-saving function is can- celed once and then reactivated. All the lights will turn off automatically 20 minutes
after the 12-volt battery- saving function has been reactivated:
●When the headlight switch is operated
●When a door is opened or closed
■Welcome light illumination control
The front position, tail lights and license plate lights automatically turn on at night
when the doors are unlocked using the entry function or wireless remote control if
the light switch is in the position.
■Customization
Settings (e.g. light sens or sensitivity) can be
changed. (Customizable features: P.423)
1With the headlights on, push the
lever away from you to turn on the
high beams.
Pull the lever toward you to the center
position to turn the high beams off.
2 Pull the lever toward you and
release it to flash the high beams
once.
You can flash the high beams with the
headlights on or off.
This system allows the headlights and
front position lights to be turned on for
30 seconds when the engine switch
is off.
Pull the lever toward you and release it
with the light switch is in after turn-
ing the engine switch
off.
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than
necessary when the engine is not running .
Turning on the high beam head-
lights
Follow me home system

193
4
-$@-$I@0.@0.&@ &&

4-3. Operating the lights and wipers
Driving
Pull the lever toward you and release it
again to turn off the lights.
When any of the following conditions is
met, while the headlights (low beam)
are on, the cornering lights will addi-
tionally turn on and light up the direc-
tion of movement for the vehicle. This is
to ensure excellent visibility when
either driving at intersections or park-
ing at night.
 The steering wheel is operated
 The turn signal lever is operated
 The shift position is in R (both left
and right side cornering lights)
■Cornering light control
●The lights illuminate when the vehicle speed is approximately 30 km/h (19
mph) or less. However, the lights turn off when the vehicle speed increases to approximately 35 km/h (22 mph) or
more.
●After the lights remain illuminated for 30
minutes, they automatically turn off.
*:If equipped
1 Push the lever away from you with
the headlight switch in the or
position.
2 Press the Automatic High Beam
switch.
Cornering lights
Automatic High Beam*
The Automatic High Beam uses an
in-vehicle camera sensor to assess
the brightness of streetlights, the
lights of a vehicle ahead, etc., and
automatically turns the high beam
on or off as necessary.
WARNING
■Limitations of the Automatic High Beam
Do not rely on the Automatic High Beam. Always drive safely, taking care to observe your surroundings and turning
the high beam on or off manually if nec- essary.
■To prevent incorrect operation of the Automatic High Beam system
Do not overload the vehicle.
Activating the Automatic High
Beam system

194
-$@-$I@0.@0.&@ &&

4-3. Operating the lights and wipers
The Automatic High Beam indicator will come on when the headlights are turned on automatically to indicate that the system
is active.
■High beam automatic turning on or off
conditions
●When all of the following conditions are
met, the high beam will be automatically turned on (after approximately 1 second):• Vehicle speed is above approximately 40
km/h (25 mph). • The area ahead of the vehicle is dark.• There are no vehicles ahead with head-
lights or tail lights turned on. • There are few streetlights on the road ahead.
●If any of the following conditions are met, the high beam will be automatically
turned off: • Vehicle speed drops below approxi-mately 30 km/h (19 mph).
• The area ahead of the vehicle is not dark. • Vehicles ahead have headlights or tail lights turned on.
• There are many streetlights on the road ahead.
■Camera sensor detection information
●The high beam may not be automatically turned off in the following situations:• When oncoming vehicles suddenly
appear from a curve • When the vehicle is cut in front of by another vehicle
• When vehicles ahead are hidden from sight due to repeated curves, road divid-ers or roadside trees
• When vehicles ahead appear from the faraway lane on wide road
• When vehicles ahead have no lights
●The high beam may be turned off if a
vehicle ahead that is using fog lights with- out using the headlights is detected.
●House lights, street lights, traffic signals, and illuminated billboards or signs may cause the high beam to switch to the low
beams, or the low beams to remain on.
●The following factors may affect the
amount of time taken to turn the high beam on or off:• The brightness of headlights, fog lights,
and tail lights of vehicles ahead • The movement and direction of vehicles ahead
• When a vehicle ahead only has opera- tional lights on one side• When a vehicle ahead is a two-wheeled
vehicle • The condition of the road (gradient, curve, condition of the road surface etc.)
• The number of passengers and amount of luggage
●The high beam may be turned on or off when the driver does not expect it.
●Bicycles or similar objects may not be detected.
●In the situations shown below, the system may not be able to accurately detect sur-
rounding brightness levels. This may cause the low beams to remain on or the high beams to cause problems for pedes-
trians, vehicles ahead or other parties. In these cases, manually switch between the high and low beams.
• In bad weather (rain, snow, fog, sand- storms etc.)• The windshield is obscured by fog, mist,
ice, dirt etc. • The windshield is cracked or damaged.• The camera sensor is deformed or dirty.
• Surrounding brightness levels are equal to those of headlights, tail lights or fog lights.
• Vehicles ahead have headlights or tail lights that are either switched off, dirty, changing color, or have improperly
adjusted aim. • When driving through an area of inter-mittently changing brightness and dark-

195
4
-$@-$I@0.@0.&@ &&

4-3. Operating the lights and wipers
Driving
ness. • When frequently and repeatedly driving ascending/descending roads, or roads
with rough, bumpy or uneven surfaces (such as stone-paved roads, gravel tracks etc.).
• When frequently and repeatedly taking curves or driving on a winding road.• There is a highly reflective object ahead
of the vehicle, such as a sign or a mirror. • The vehicle’s headlights are damaged or dirty.
• The vehicle is listing or titling, due to a flat tire, a trailer being towed etc.• The driver believes that the high beam
may be causing problems or distress to other drivers or pedestrians nearby.• The vehicle is used in a territory in which
vehicles travel on the opposite side of the road of the country for which the vehicle is approved, for example using a vehicle
designed for right-hand traffic in a left- hand traffic territory, or vice versa.
■Switching to low beam
Pull the lever to the original position.
The Automatic High Beam indicator will
turn off.
Push the lever away from you to activate
the Automatic High Beam system again.
■Switching to high beam
Press the Automatic High Beam
switch.
The Automatic High Beam indicator will
turn off and the high beam indicator will
turn on.
Press the switch to activate the Automatic
High Beam system again.
Turning the high beam on/off
manually

196
-$@-$I@0.@0.&@ &&

4-3. Operating the lights and wipers
Turns the rear fog light on
Releasing the switch ring returns it to .
Operating the switch ring again turns the
rear fog light off.
■Rear fog light can be used when
The headlights are turned on.
Each time the headlights are turned off, the rear fog light is turned off.
Operate the lever and switch as fol-
lows to use the wipers. When AUTO is
selected, the wipers will operate auto-
matically when the sensor detects fall-
ing rain. The system automatically
adjusts wiper timing in accordance
with rain volume and vehicle speed.
Fog light switch
When in difficult driving conditions,
such as in rain and fog, turn on the
rear fog light to notify following
vehicles the existence of your vehi-
cle.
Turning on the rear fog light
Windshield wipers and
washer
Operating the lever can switch
between automatic operation and
manual operation, or can use the
washer.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may dam-
age the windshield.
Operating the wiper lever

197
4
-$@-$I@0.@0.&@ &&

4-3. Operating the lights and wipers
Driving
1 Off
2 Rain-sensing operation
3 Low speed operation
4 High speed operation
5 Temporary operation
When AUTO is selected, the sensor
sensitivity can be adjusted by turning
the switch ring.
6 Increases the sensitivity
7 Decreases the sensitivity
8 Washer/wiper dual operation
The wipers will automatically operate a
couple of times after the washer squirts.
(After operating several times, the wipers
operate once more time after a short delay
to prevent dripping. However, the dripping
prevention does not operate while the
vehicle is moving.)
When the engine switch is
in IGNITION ON mode and
the headlights are on, if the lever is pulled,
the headlight cleaners will operate once.
After this, the headlight cleaners will oper-
ate every 5th time the lever is pulled.
■The windshield wiper and washer can be
operated when
The engine switch

is in
IGNITION ON mode .
■Raindrop sensor
●The raindrop sensor judges the amount
of raindrops. An optical sensor is adopted. It may not operate properly when sunlight from the
rising or setting of the sun intermittently strikes the windshield, or if bugs etc. are present on the windshield.
●If the wiper is turned to AUTO position while the engine switch is
in IGNITION ON mode , the wipers will operate once to show that AUTO mode is activated.
●If the temperature of the raindrop sensor is 85°C (185°F) or higher, or -30°C (-
22°F) or lower, automatic operation may not occur. In this case, operate the wipers in any mode other than AUTO.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the wind-
shield washer fluid reservoir.

198
-$@-$I@0.@0.&@ &&

4-3. Operating the lights and wipers
■Door opening linked windshield wiper stop function
When AUTO is selected and the wind- shield wipers are operating, if a door is opened, the operation of the windshield
wipers will be stopped to prevent anyone near the vehicle from being sprayed by water from the wipers, provided the vehicle
is stopped. When the door is closed, wiper operation will resume.
■To protect the windshield wipers
If movement of the windshield wipers is largely restricted by a foreign object such as snow, the operation of the windshield wip-
ers may be stopped automatically to pro- tect the windshield wipers. In this case, turn the windshield wiper switch off and remove
the foreign object, and then use the wind- shield wipers.
■When stopping the engine tem> in an emergency while driving
If the windshield wipe rs are operating when
the engine is stopped, the windshield wipers will operate in high speed operation. After the vehicle is stopped,
operation will return to normal when the engine switch is turned to IGNITION ON mode , or
operation will stop when the driver’s door is opened.
■Customization
The rain-sensing operation setting can be changed. (Customizable features: P.423)
When the windshield wipers are not
being used, they retract to below the
hood. To enable the windshield wipers
to be lifted when parking in cold condi-
tions or when replacing a windshield
wiper insert, change th e rest position of
the windshield wipers to the service
WARNING
■Caution regarding the use of wind- shield wipers in AUTO mode
The windshield wipers may operate unexpectedly if the sensor is touched or the windshield is subject to vibration in
AU TO mod e . T ak e c are t ha t you r fin ge rs or anything else do not become caught in the windshield wipers.
■Caution regarding the use of washer
fluid
When it is cold, do not use the washer
fluid until the windshield becomes warm. The fluid may freeze on the windshield and cause low visibility. This may lead to
an accident, resulting in death or serious injury.
NOTICE
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward
you and held continually.
■When a nozzle becomes blocked
In this case, contact any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer. Do not try to clear it with a pin or other
object. The nozzle will be damaged.
Changing the windshield wiper
rest position/Lifting the wind-
shield wipers

199
4
-$@-$I@0.@0.&@ &&

4-3. Operating the lights and wipers
Driving
position using the wiper lever.
■Raising the wipers to the service
position
Within approximately 45 seconds of
turning the engine switch switch> off, move the wiper lever to the
position and hold it for approxi-
mately 2 seconds or more.
The wipers will move to the service posi-
tion.
■Lifting the windshield wipers
While holding the hook portion of
the wiper arm, lift the windshield wiper
from the windshield.
■Lowering the windshield wipers to the retracted position
With the windshield wipers placed on the windshield, turn the engine switch to IGNITION ON mode mode> and then move the wiper lever to an operating position. When the wiper switch is turned off, the windshield wipers will stop
at the retracted position. Even if the wipers deviate while the engine switch is off, the wipers will return to the
normal position.
A
NOTICE
■When lifting the windshield wipers
●Do not lift the windshield wipers when they are in the retracted position below the hood. Otherwise, they may
contact the hood, po ssibly resulting in damage to a windshield wiper and/or the hood.
●Do not lift a windshield wiper by the
wiper blade. Otherwise, the wiper blade may be deformed.

200
-$@-$I@0.@0.&@ &&

4-3. Operating the lights and wipers

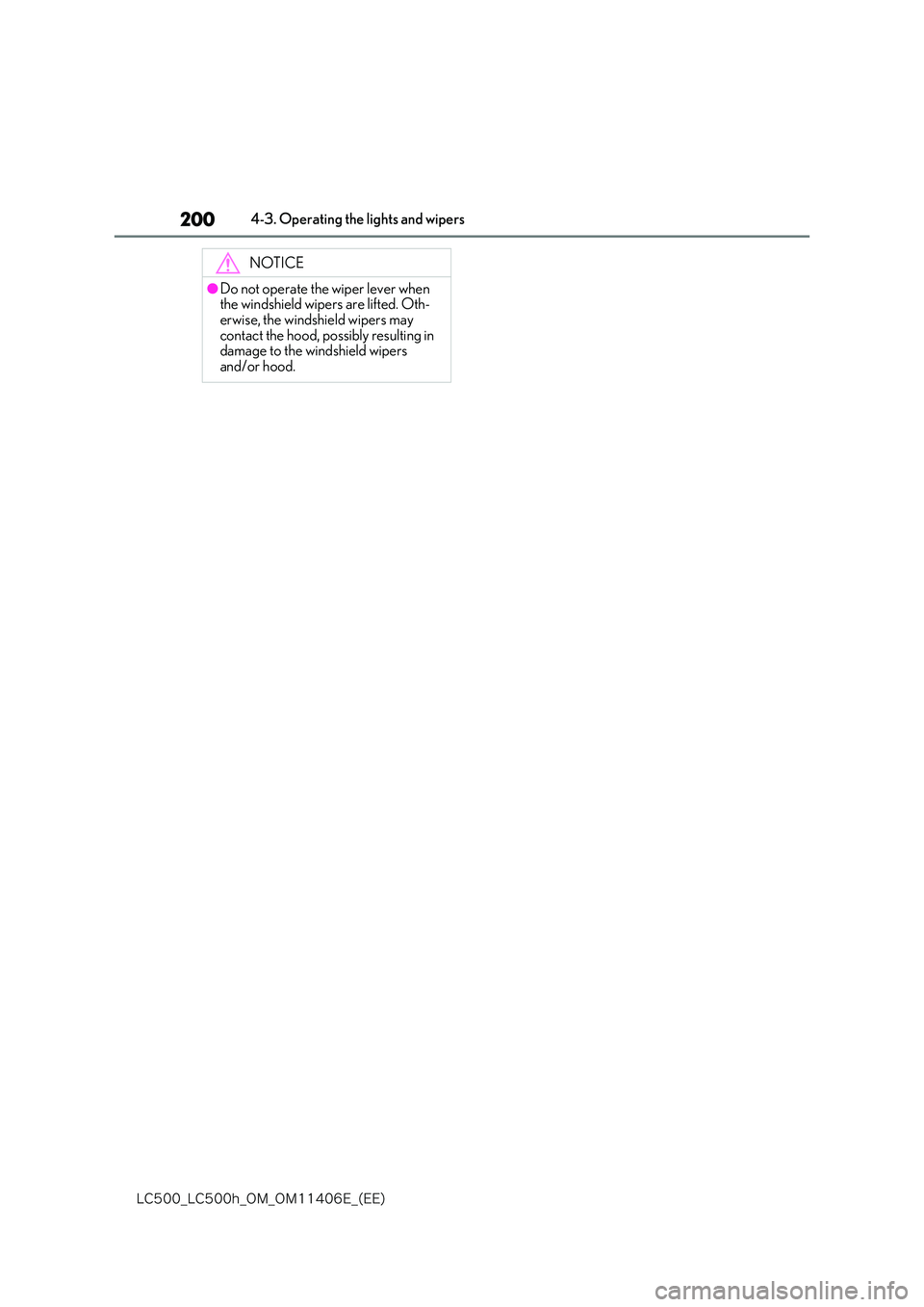

NOTICE
●Do not operate the wiper lever when the windshield wipers are lifted. Oth-erwise, the windshield wipers may
contact the hood, possibly resulting in damage to the windshield wipers and/or hood.
