lexus LC500 2018 Owner's Manual

251
4
-$@-$I@0.@0.&@ &&

4-5. Using the driving support systems
Driving

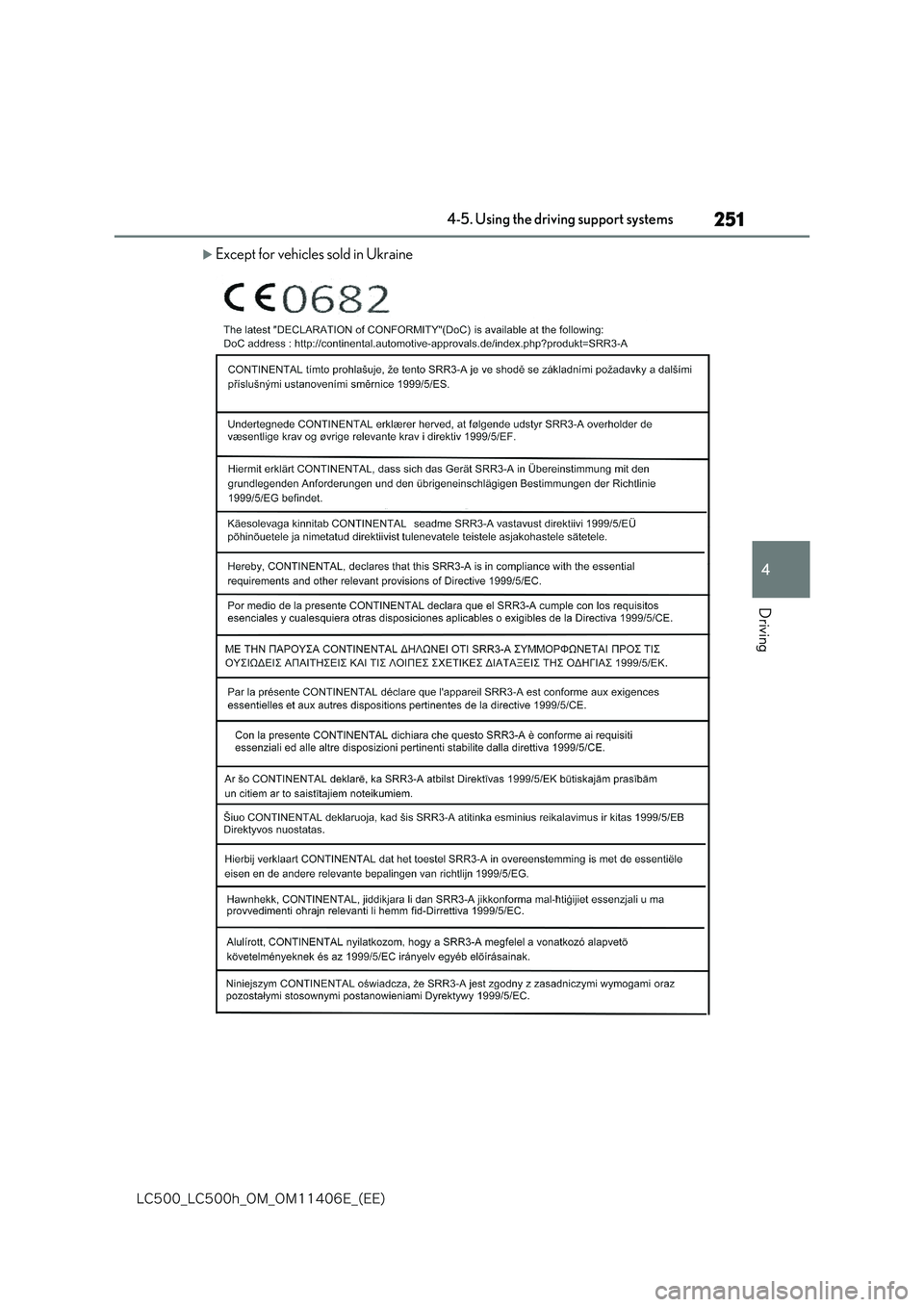

Except for vehicles sold in Ukraine

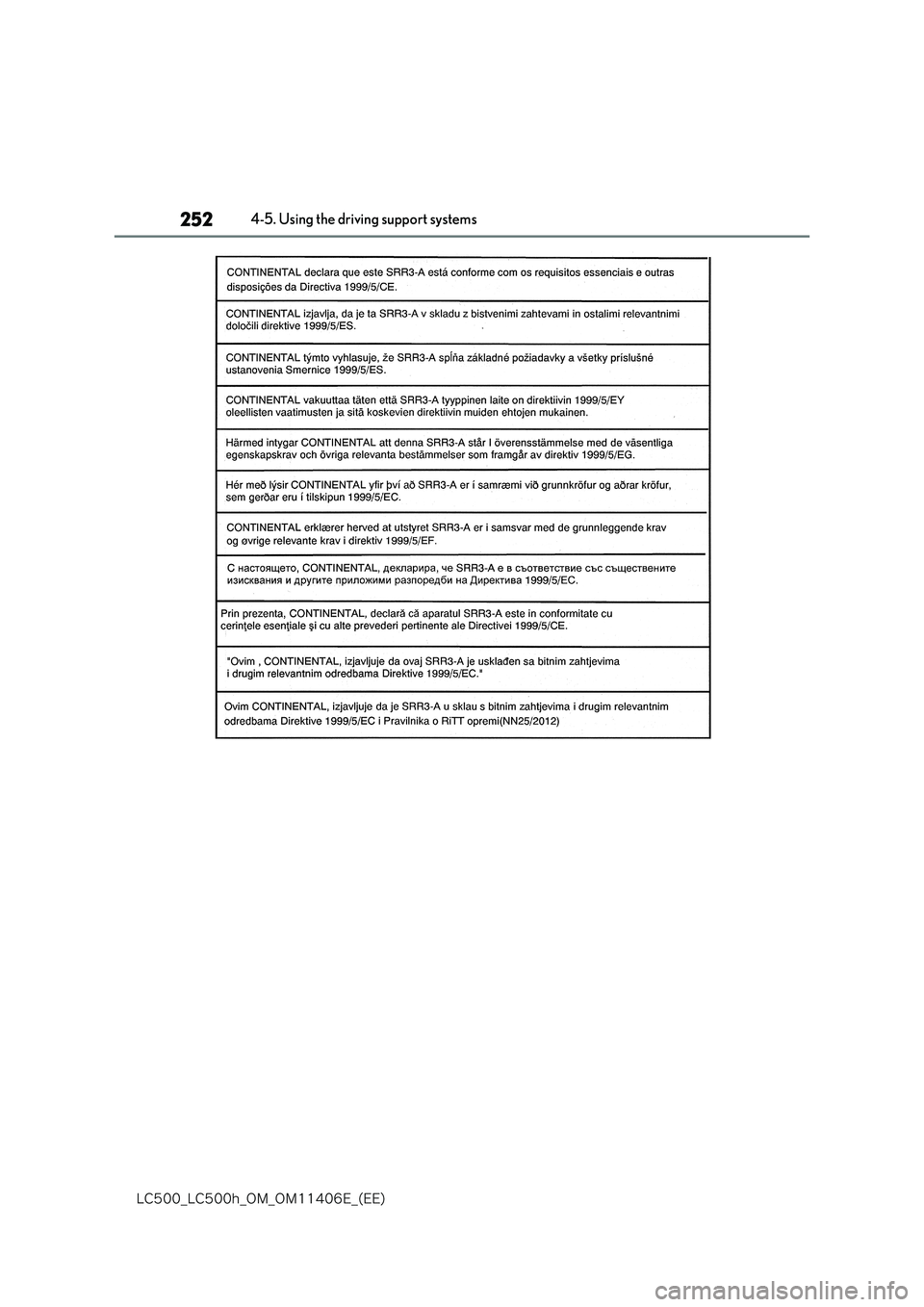

252
-$@-$I@0.@0.&@ &&

4-5. Using the driving support systems

253
4
-$@-$I@0.@0.&@ &&

4-5. Using the driving support systems
Driving
WARNING
■Handling the radar sensor
Blind Spot Monitor sensors are installed
behind the left and right sides of the rear bumper respectively. Observe the fol-lowing to ensure the Blind Spot Monitor
can function correctly.
●Keep the sensors and the surrounding areas on the rear bumper clean at all times.
If a sensor or its surrounding area on the rear bumper is dirty or covered with snow, the Blind Spot Monitor may
not operate and a warning message ( P.249) will be displayed. In this situ- ation, clear off the dirt or snow and
drive the vehicle with the operation conditions of the BSM function ( P.255) satisfied for approximately
10 minutes. If the warning message does not disappear, have the vehicle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer.
●Do not subject a sensor or its sur-rounding area on the rear bumper to a
strong impact. If a sensor is moved even slightly off position, the system may malfunction
and vehicles may not be detected cor- rectly.In the following situations, have your
vehicle inspected by any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
• A sensor or its surrounding area is subject to a strong impact.
• If the surrounding area of a sensor is scratched or dented, or part of them
has become disconnected.
●Do not disassemble the sensor.
●Do not attach stickers to the sensor or surrounding area on the rear bumper.
●Do not modify the sensor or surround-ing area on the rear bumper.
●Do not paint the rear bumper any
color other than an official Lexus color.

254
-$@-$I@0.@0.&@ &&

4-5. Using the driving support systems
■Operation of the BSM function
The BSM function uses radar sensors to detect the following vehicles traveling in
adjacent lanes and advises the driver of the presence of such vehicles via the indi-
cators on the outside rear view mirrors.
Vehicles that are traveling in areas that are not visible using the outside rear
view mirrors (the blind spots)
Vehicles that are approaching rapidly from behind in areas that are not visible
using the outside rear view mirrors (the blind spots)
■BSM function detection areas
The areas that vehicles can be detected in are outlined below.
The range of each detection area is:
Approximately 0.5 m (1.6 ft.) to 3.5 m (11.5 ft.) from either side of the vehicle*1
Approximately 1 m (3.3 ft.) forward of the rear bumper
Approximately 3 m (9.8 ft.) from the rear bumper
Approximately 3 m (9.8 ft.) to 60 m (197 ft.) from the rear bumper*2
*1: The area between the side of the vehicle and 0.5 m (1.6 ft.) from the side of the vehicle
BSM function
A
B
A
B
C
D

255
4
-$@-$I@0.@0.&@ &&

4-5. Using the driving support systems
Driving
cannot be detected.
*2: The greater the difference in speed between your vehicle and the detected vehicle is,
the farther away the vehicle will be detected, causing the outside rear view mirror indi-
cator to illuminate or flash.
■The BSM function is operational when
The BSM function is operational when all of
the following conditions are met:
●The BSM function is on.
●The shift position is in a position other than R.
●The vehicle speed is greater than approx-imately 16 km/h (10 mph).
■The BSM function will detect a vehicle
when
The BSM function will detect a vehicle pres-
ent in the detection area in the following sit- uations:
●A vehicle in an adjacent lane overtakes your vehicle.
●Another vehicle enters the detection area when it changes lanes.
■Conditions under wh ich the BSM func- tion will not detect a vehicle
The BSM function is not designed to detect the following types of vehicles and/or
objects:
●Small motorcycles, bicycles, pedestrians,
etc.*
●Vehicles traveling in the opposite direc- tion
●Guardrails, walls, signs, parked vehicles
and similar stationary objects*
●Following vehicles that are in the same
lane*
●Vehicles traveling 2 lanes away from your
vehicle*
*: Depending on the conditions, detection
of a vehicle and/or object may occur.
■Conditions under wh ich the BSM func- tion may not function correctly
●The BSM function may not detect vehi-
cles correctly in the following situations: • When the sensor is misaligned due to a strong impact to the sensor or its sur-
rounding area • When mud, snow, ice, a sticker, etc. is covering the sensor or surrounding area
on the rear bumper • When driving on a road surface that is wet with standing water during bad
weather, such as heavy rain, snow, or fog • When multiple vehicles are approaching with only a small gap between each vehi-
cle • When the distance between your vehicle and a following vehicle is short
• When there is a significant difference in speed between your vehicle and the vehi-cle that enters the detection area
• When the difference in speed between your vehicle and another vehicle is changing
• When a vehicle enters a detection area traveling at about the same speed as your
vehicle • As your vehicle starts from a stop, a vehi-cle remains in the detection area
• When driving up and down consecutive steep inclines, such as hills, dips in the road, etc.
• When driving on roads with sharp bends, consecutive curves, or uneven surfaces• When vehicle lanes are wide, or when
driving on the edge of a lane, and the vehicle in an adjacent lane is far away from your vehicle
• When an accessory (such as a bicycle carrier) or towing eyelet is installed to the rear of the vehicle
• When there is a significant difference in height between your vehicle and the vehicle that enters the detection area
• Immediately after the BSM function is turned on
●Instances of the BSM function unneces-sarily detecting a vehicle and/or object may increase in the following situations:

256
-$@-$I@0.@0.&@ &&

4-5. Using the driving support systems
• When the sensor is misaligned due to a strong impact to the sensor or its sur-rounding area
• When the distance between your vehicle and a guardrail, wall, etc. that enters the detection area is short
• When driving up and down consecutive steep inclines, such as hills, dips in the road, etc.
• When vehicle lanes are narrow, or when driving on the edge of a lane, and a vehi-cle traveling in a lane other than the adja-
cent lanes enters the detection area • When driving on roads with sharp bends, consecutive curves, or uneven surfaces
• When the tires are slipping or spinning • When the distance between your vehicle and a following vehicle is short
• When an accessory (such as a bicycle carrier) or towing eyelet is installed to the rear of the vehicle
■Operation of the RCTA function
The RCTA function uses radar sensors to detect vehicles approaching from the
right or left at the rear of the vehicle and alerts the driver of the presence of such
vehicles by flashing the outside rear view mirror indicators and sounding a buzzer.
Approaching vehicles
Detection areas of approaching vehicles
■RCTA icon display
When a vehicle approaching from the
right or left at the rear of the vehicle is
detected, the following will be dis-
played on the monitor screen
WARNING
■Cautions regarding the use of the function
The driver is solely responsible for safe driving. Always drive safely, taking care to observe your surroundings.
The BSM function is a supplementary function which alerts the driver that a
vehicle is in a blind spot of the outside rear view mirrors or is approaching rap-idly from behind into a blind spot. Do not
overly rely on the BSM function. As the function cannot judge if it is safe to change lanes, over reliance could lead to
an accident resulting in death or serious injury.
As the system may not function correctly under certain conditions, the driver’s own visual confirmation of safety is necessary.
RCTA function
A
B

257
4
-$@-$I@0.@0.&@ &&

4-5. Using the driving support systems
Driving

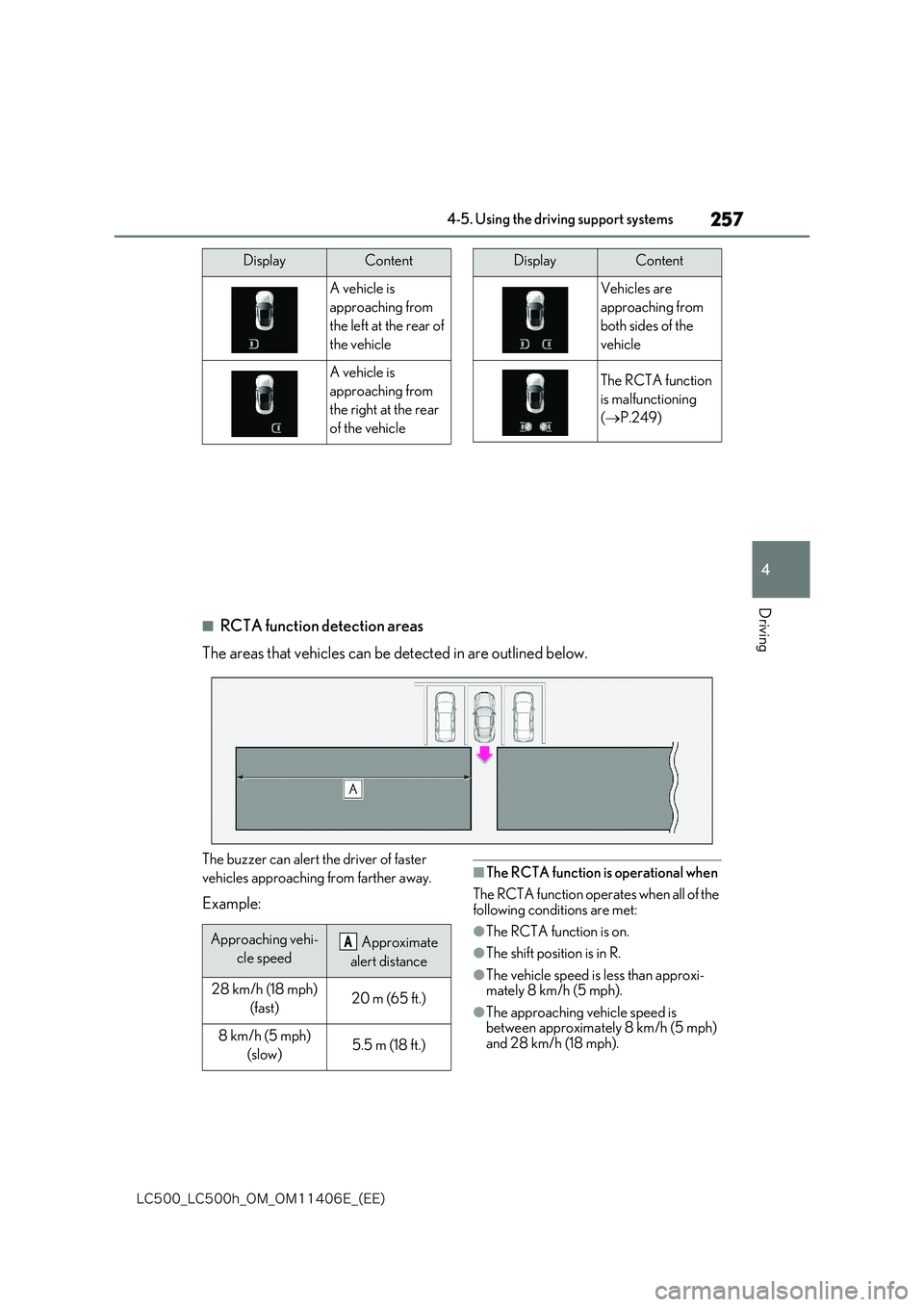

■RCTA function detection areas
The areas that vehicles can be detected in are outlined below.
The buzzer can alert the driver of faster
vehicles approaching from farther away.
Example:
■The RCTA function is operational when
The RCTA function operates when all of the
following conditions are met:
●The RCTA function is on.
●The shift position is in R.
●The vehicle speed is less than approxi- mately 8 km/h (5 mph).
●The approaching vehicle speed is between approximately 8 km/h (5 mph) and 28 km/h (18 mph).
DisplayContent
A vehicle is
approaching from
the left at the rear of
the vehicle
A vehicle is
approaching from
the right at the rear
of the vehicle
Vehicles are
approaching from
both sides of the
vehicle
The RCTA function
is malfunctioning
( P.249)
DisplayContent
Approaching vehi-
cle speed
Approximate
alert distance
28 km/h (18 mph)
(fast)20 m (65 ft.)
8 km/h (5 mph)
(slow)5.5 m (18 ft.)
A

258
-$@-$I@0.@0.&@ &&

4-5. Using the driving support systems
■Conditions under which the RCTA func- tion will not detect a vehicle
The RCTA function is not designed to detect the following types of vehicles and/or objects:
●Vehicles approaching from directly behind
●Vehicles backing up in a parking space next to your vehicle
●Vehicles that the sensors cannot detect due to obstructions
●Guardrails, walls, signs, parked vehicles
and similar stationary objects*
●Small motorcycles, bicycles, pedestrians,
etc.*
●Vehicles moving away from your vehicle
●Vehicles approaching from the parking
spaces next to your vehicle*
*: Depending on the conditions, detection
of a vehicle and/or object may occur.
■Conditions under wh ich the RCTA func-
tion may not function correctly
●The RCTA function may not detect vehi-
cles correctly in the following situations: • When the sensor is misaligned due to a strong impact to the sensor or its sur-
rounding area • When mud, snow, ice, a sticker, etc. is covering the sensor or surrounding area
on the rear bumper • When driving on a road surface that is wet with standing water during bad
weather, such as heavy rain, snow, or fog • When multiple vehicles are approaching with only a small gap between each vehi-
cle • When a vehicle is approaching at high speed
• When a towing eyelet is installed to the rear of the vehicle.• When backing up on a slope with a sharp
change in grade
• When backing out of a shallow angle
parking spot
• Immediately after the RCTA function is
turned on • Immediately after the engine is started with the RCTA function on
• When the sensors cannot detect a vehi- cle due to obstructions
●Instances of the RCTA function unneces-sarily detecting a vehicle and/or object may increase in the following situations:
• When a vehicle passes by the side of your

259
4
-$@-$I@0.@0.&@ &&

4-5. Using the driving support systems
Driving

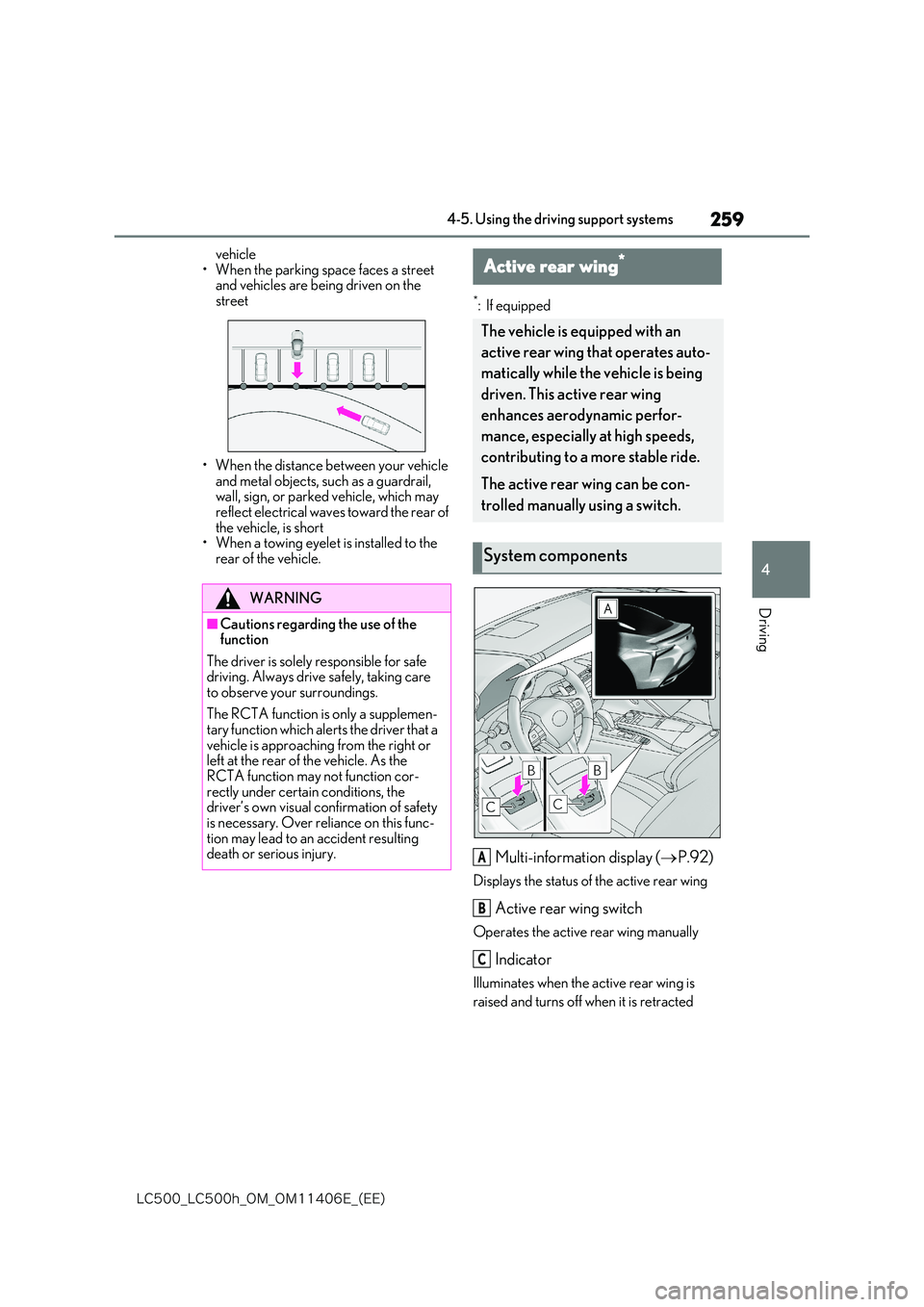

vehicle • When the parking space faces a street and vehicles are being driven on the
street
• When the distance between your vehicle
and metal objects, such as a guardrail, wall, sign, or parked vehicle, which may reflect electrical waves toward the rear of
the vehicle, is short • When a towing eyelet is installed to the rear of the vehicle.
*:If equipped
Multi-information display ( P.92)
Displays the status of the active rear wing
Active rear wing switch
Operates the active rear wing manually
Indicator
Illuminates when the active rear wing is
raised and turns off when it is retracted
WARNING
■Cautions regarding the use of the function
The driver is solely responsible for safe driving. Always drive safely, taking care
to observe your surroundings.
The RCTA function is only a supplemen-
tary function which alerts the driver that a vehicle is approaching from the right or left at the rear of the vehicle. As the
RCTA function may not function cor- rectly under certain conditions, the driver’s own visual confirmation of safety
is necessary. Over reliance on this func- tion may lead to an accident resulting death or serious injury.
Active rear wing*
The vehicle is equipped with an
active rear wing that operates auto-
matically while the vehicle is being
driven. This active rear wing
enhances aerodynamic perfor-
mance, especially at high speeds,
contributing to a more stable ride.
The active rear wing can be con-
trolled manually using a switch.
System components
A
B
C

260
-$@-$I@0.@0.&@ &&

4-5. Using the driving support systems

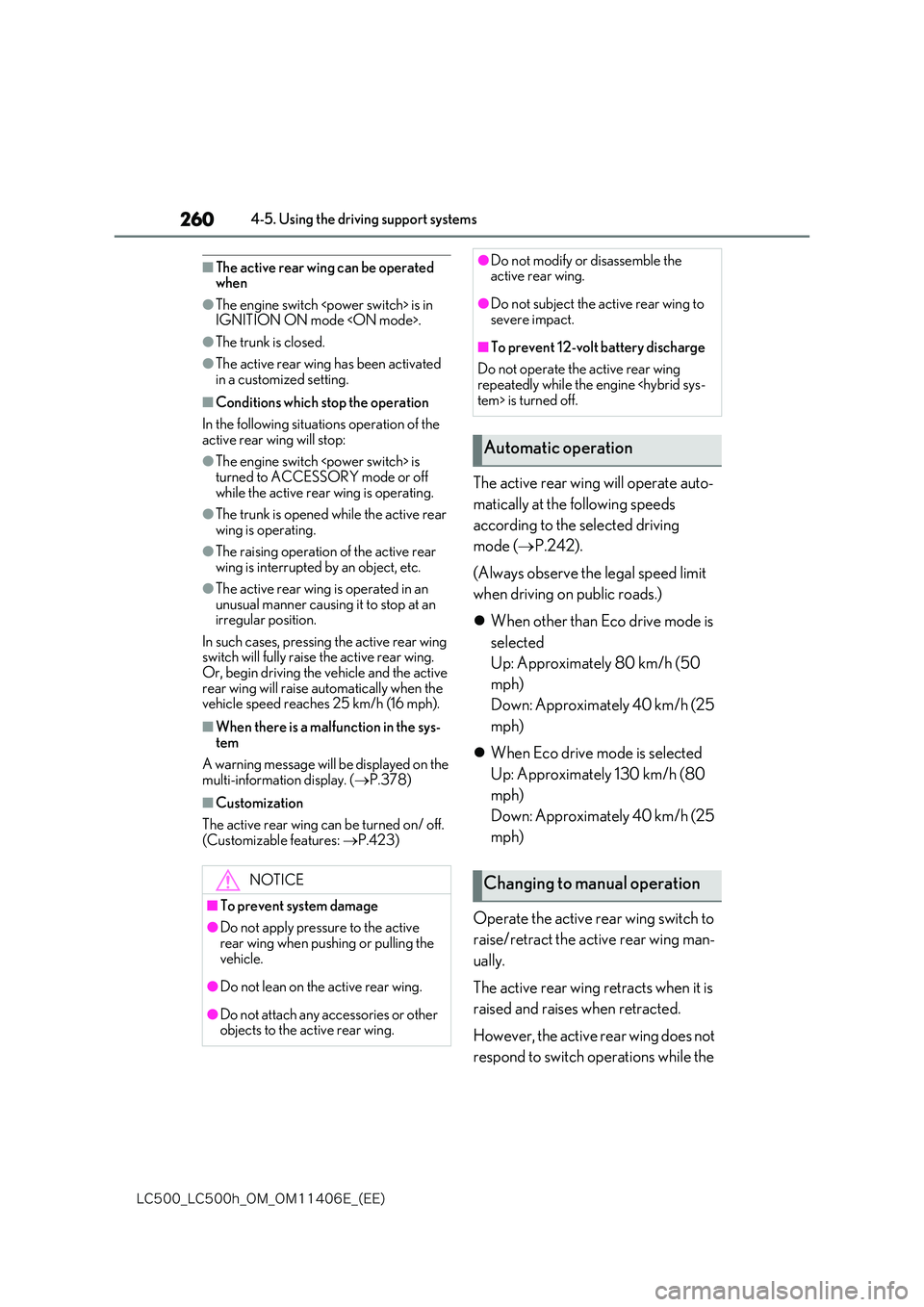

■The active rear wing can be operated when
●The engine switch

is in IGNITION ON mode .
●The trunk is closed.
●The active rear wing has been activated
in a customized setting.
■Conditions which st op the operation
In the following situations operation of the
active rear wing will stop:
●The engine switch is
turned to ACCESSORY mode or off while the active rear wing is operating.
●The trunk is opened while the active rear wing is operating.
●The raising operation of the active rear wing is interrupted by an object, etc.
●The active rear wing is operated in an unusual manner causing it to stop at an irregular position.
In such cases, pressing the active rear wing switch will fully raise the active rear wing.
Or, begin driving the vehicle and the active rear wing will raise automatically when the vehicle speed reaches 25 km/h (16 mph).
■When there is a malfunction in the sys-
tem
A warning message will be displayed on the
multi-information display. ( P.378)
■Customization
The active rear wing can be turned on/ off.
(Customizable features: P.423)
The active rear wing will operate auto-
matically at the following speeds
according to the selected driving
mode ( P.242).
(Always observe the legal speed limit
when driving on public roads.)
 When other than Eco drive mode is
selected
Up: Approximately 80 km/h (50
mph)
Down: Approximately 40 km/h (25
mph)
 When Eco drive mode is selected
Up: Approximately 130 km/h (80
mph)
Down: Approximately 40 km/h (25
mph)
Operate the active rear wing switch to
raise/retract the active rear wing man-
ually.
The active rear wing retracts when it is
raised and raises when retracted.
However, the active rear wing does not
respond to switch operations while the
NOTICE
■To prevent system damage
●Do not apply pressure to the active rear wing when pushing or pulling the
vehicle.
●Do not lean on the active rear wing.
●Do not attach any accessories or other objects to the active rear wing.
●Do not modify or disassemble the active rear wing.
●Do not subject the active rear wing to
severe impact.
■To prevent 12-volt battery discharge
Do not operate the active rear wing
repeatedly while the engine is turned off.
Automatic operation
Changing to manual operation
