lexus LC500 2018 Owner's Manual

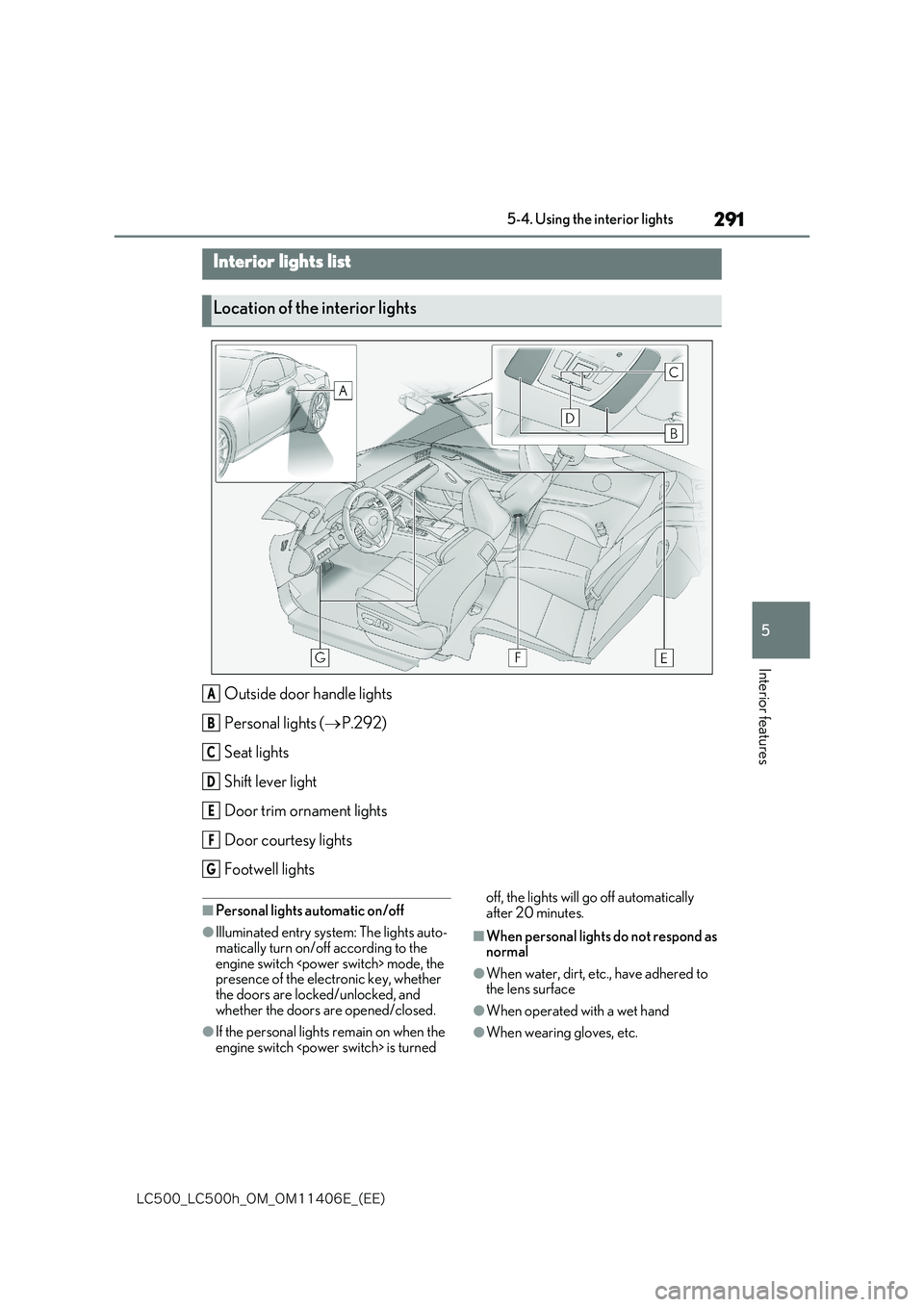

291
5
-$@-$I@0.@0.&@ &&

5-4. Using the interior lights
Interior features
5 -4. Us in g the i n te rior li gh ts
Outside door handle lights
Personal lights ( P.292)
Seat lights
Shift lever light
Door trim ornament lights
Door courtesy lights
Footwell lights
■Personal lights automatic on/off
●Illuminated entry system: The lights auto- matically turn on/off according to the
engine switch mode, the presence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are opened/closed.
●If the personal lights remain on when the
engine switch is turned
off, the lights will go off automatically
after 20 minutes.
■When personal lights do not respond as normal
●When water, dirt, etc., have adhered to the lens surface
●When operated with a wet hand
●When wearing gloves, etc.
Interior lights list
Location of the interior lights
A
B
C
D
E
F
G

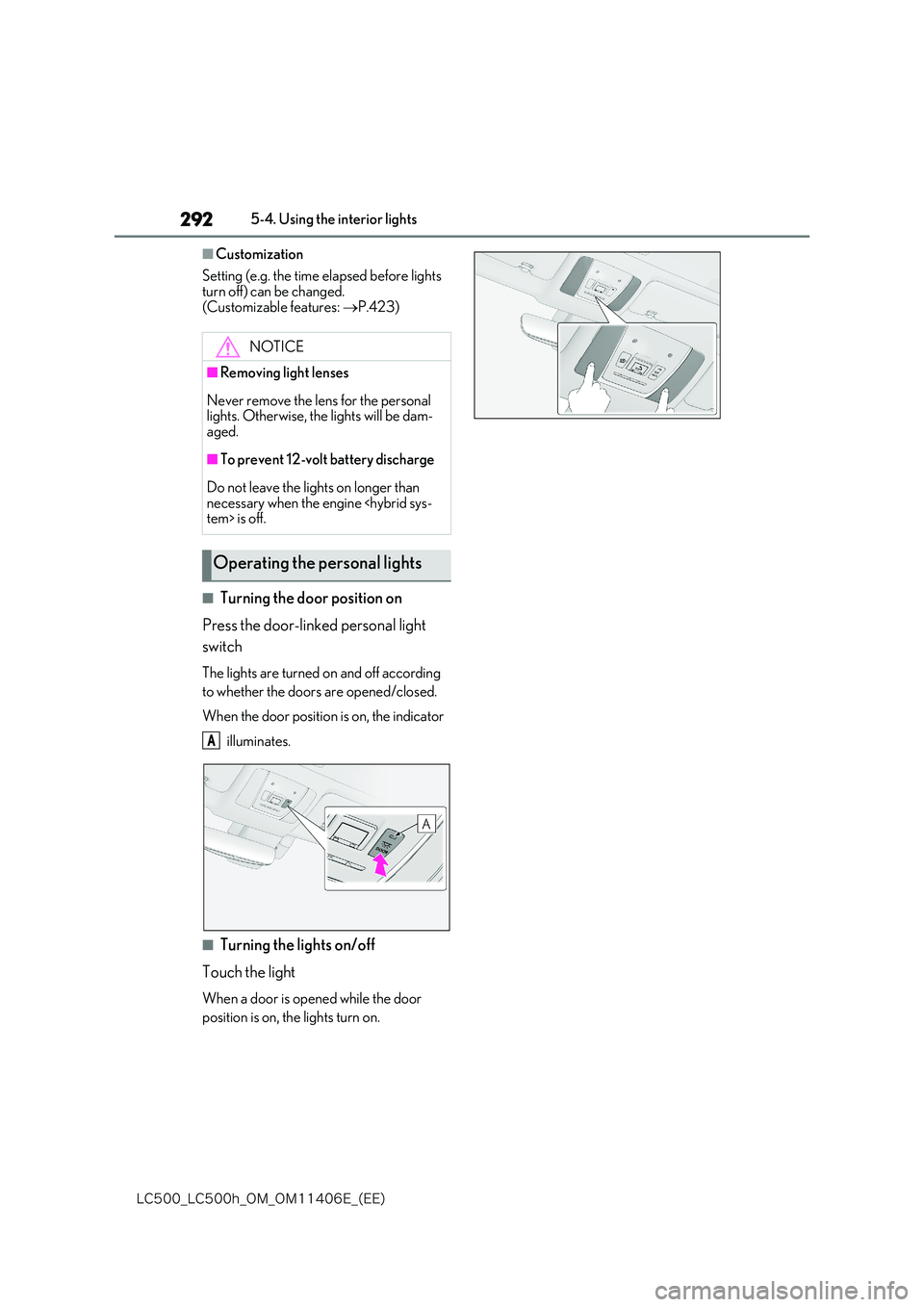

292
-$@-$I@0.@0.&@ &&

5-4. Using the interior lights
■Customization
Setting (e.g. the time elapsed before lights
turn off) can be changed. (Customizable features: P.423)
■Turning the door position on
Press the door-linked personal light
switch
The lights are turned on and off according
to whether the doors are opened/closed.
When the door position is on, the indicator
illuminates.
■Turning the lights on/off
Touch the light
When a door is opened while the door
position is on, the lights turn on.
NOTICE
■Removing light lenses
Never remove the lens for the personal lights. Otherwise, the lights will be dam-aged.
■To prevent 12-volt battery discharge
Do not leave the lights on longer than
necessary when the engine is off.
Operating the personal lights
A

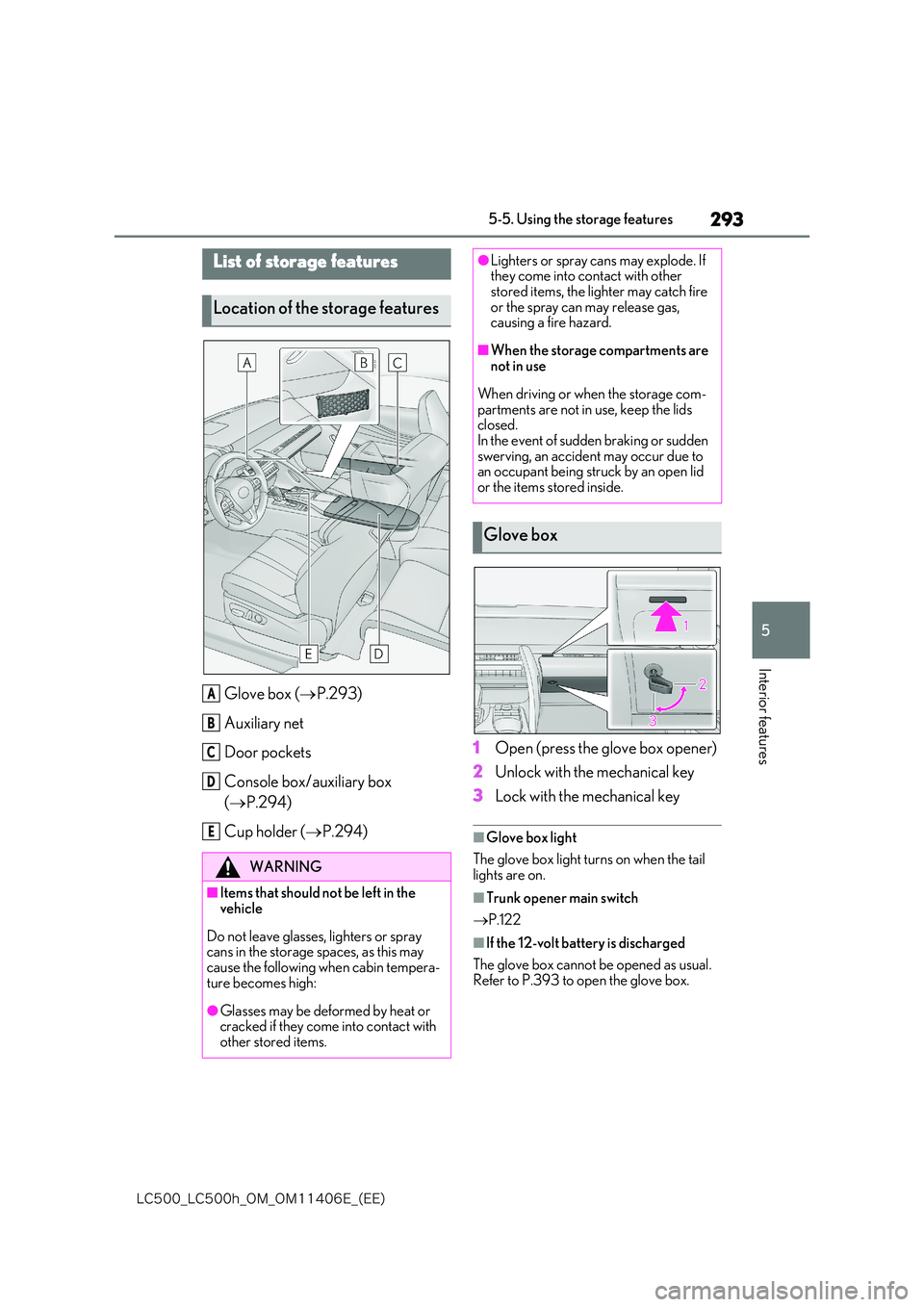

293
5
-$@-$I@0.@0.&@ &&

5-5. Using the storage features
Interior features
5-5.Using the storage features
Glove box (P.293)
Auxiliary net
Door pockets
Console box/auxiliary box
( P.294)
Cup holder ( P.294)
1 Open (press the glove box opener)
2 Unlock with the mechanical key
3 Lock with the mechanical key
■Glove box light
The glove box light turns on when the tail lights are on.
■Trunk opener main switch
 P.122
■If the 12-volt battery is discharged
The glove box cannot be opened as usual.
Refer to P.393 to open the glove box.
List of stor age features
Location of the storage features
WARNING
■Items that should not be left in the
vehicle
Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when cabin tempera-
ture becomes high:
●Glasses may be deformed by heat or cracked if they come into contact with other stored items.
A
B
C
D
E
●Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas, causing a fire hazard.
■When the storage compartments are
not in use
When driving or when the storage com- partments are not in use, keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur due to an occupant being struck by an open lid
or the items stored inside.
Glove box

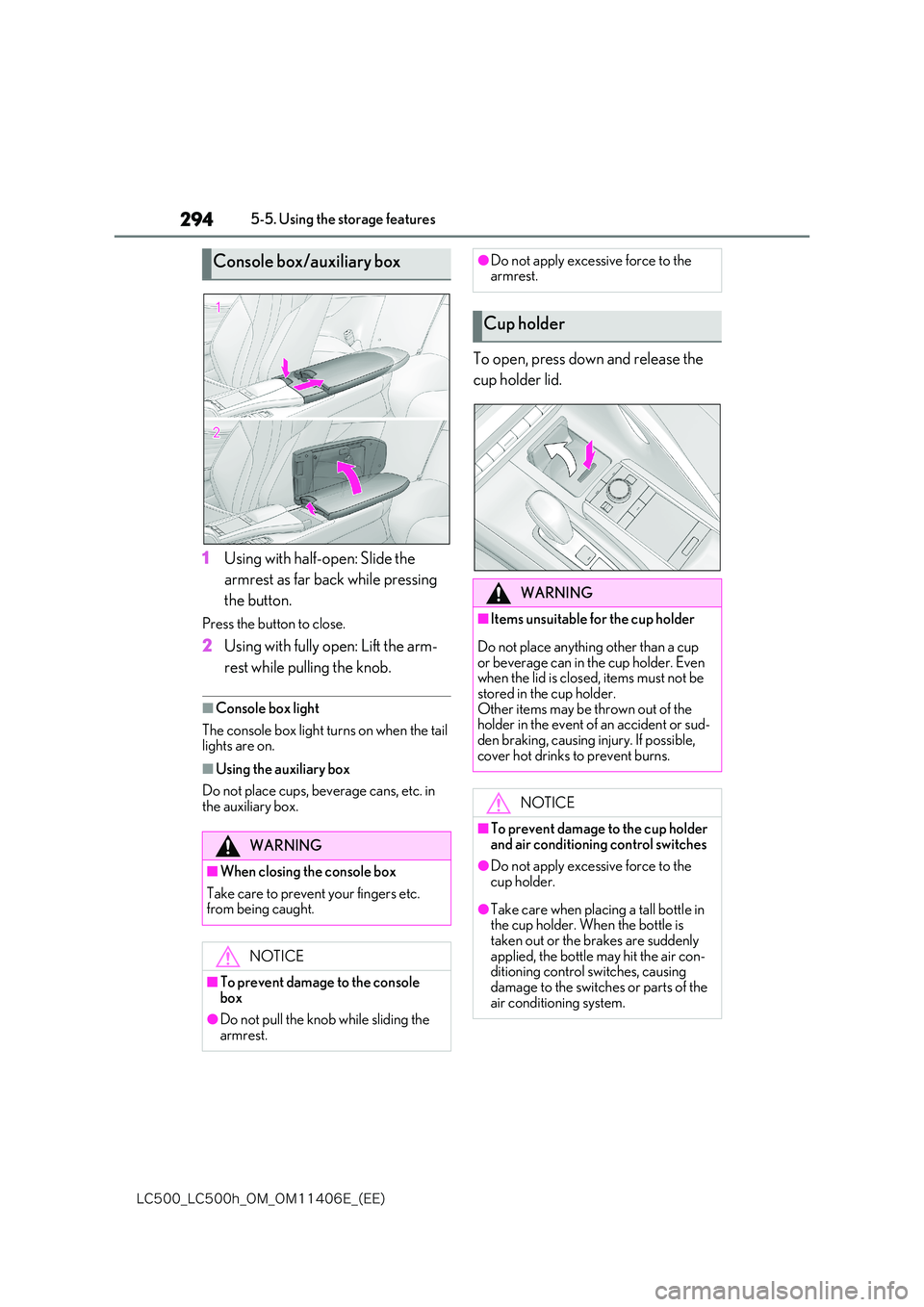

294
-$@-$I@0.@0.&@ &&

5-5. Using the storage features
1Using with half-open: Slide the
armrest as far back while pressing
the button.
Press the button to close.
2 Using with fully open: Lift the arm-
rest while pulling the knob.
■Console box light
The console box light turns on when the tail lights are on.
■Using the auxiliary box
Do not place cups, beverage cans, etc. in the auxiliary box.
To open, press down and release the
cup holder lid.
Console box/auxiliary box
WARNING
■When closing the console box
Take care to prevent your fingers etc. from being caught.
NOTICE
■To prevent damage to the console box
●Do not pull the knob while sliding the armrest.
●Do not apply excessive force to the armrest.
Cup holder
WARNING
■Items unsuitable for the cup holder
Do not place anything other than a cup
or beverage can in the cup holder. Even when the lid is closed, items must not be stored in the cup holder.
Other items may be thrown out of the holder in the event of an accident or sud-den braking, causing injury. If possible,
cover hot drinks to prevent burns.
NOTICE
■To prevent damage to the cup holder and air conditioning control switches
●Do not apply excessive force to the cup holder.
●Take care when placing a tall bottle in the cup holder. When the bottle is
taken out or the brakes are suddenly applied, the bottle may hit the air con-ditioning control switches, causing
damage to the switches or parts of the air conditioning system.

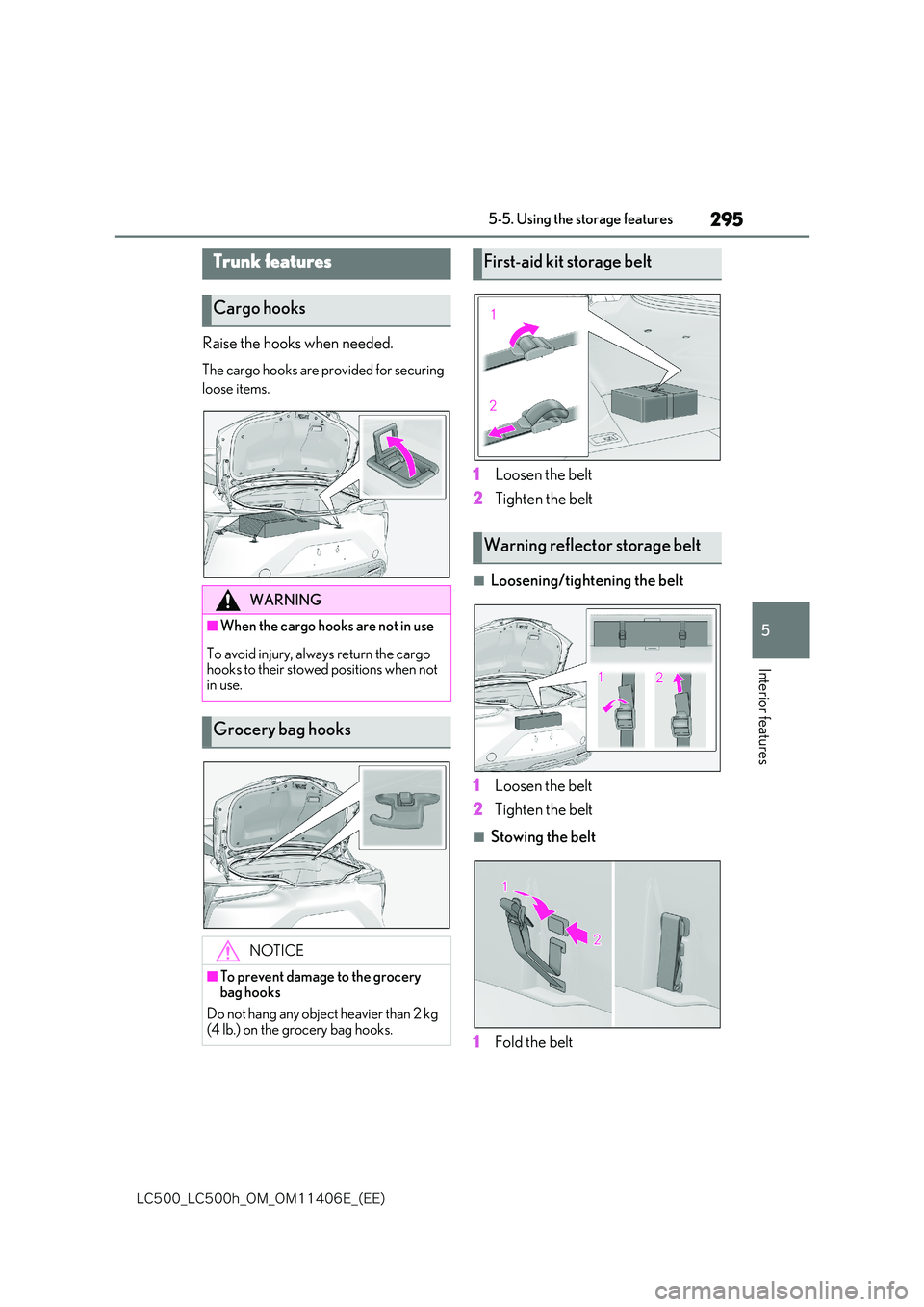

295
5
-$@-$I@0.@0.&@ &&

5-5. Using the storage features
Interior features
Raise the hooks when needed.
The cargo hooks are provided for securing
loose items.
1 Loosen the belt
2 Tighten the belt
■Loosening/tightening the belt
1 Loosen the belt
2 Tighten the belt
■Stowing the belt
1 Fold the belt
Trunk features
Cargo hooks
WARNING
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions when not in use.
Grocery bag hooks
NOTICE
■To prevent damage to the grocery
bag hooks
Do not hang any object heavier than 2 kg
(4 lb.) on the grocery bag hooks.
First-aid kit storage belt
Warning reflector storage belt

296
-$@-$I@0.@0.&@ &&

5-5. Using the storage features
2Secure the belt with the clip
To prevent damage to the warning reflec-
tor storage belt when it is not in use, stow
the belt.

297
5
-$@-$I@0.@0.&@ &&

5-6. Using the other interior features
Interior features
5-6.Using the other interior features
1To set the visor in the forward posi-
tion, flip it down.
2 To set the visor in the side position,
flip down, unhook, and swing it to
the side.
Open the cover.
The light turns on when the cover is
opened.
The GPS clock’s time is automatically
adjusted by utilizing GPS time infor-
mation.
For details, refer to the “NAVIGA-
TION SYSTEM OWNER’S MAN-
UAL”.
Please use as a power supply for elec-
tronic goods that use less than 12
VDC/10 A (power consumption of
120 W).
Open the lid.
■The power outlet can be used when
The engine switch

is in ACCESSORY or IGNITION ON mode
.
Other interior features
Sun visors
Vanity mirrors
NOTICE
■To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the engine tem> is off.
Clock
Power outlet

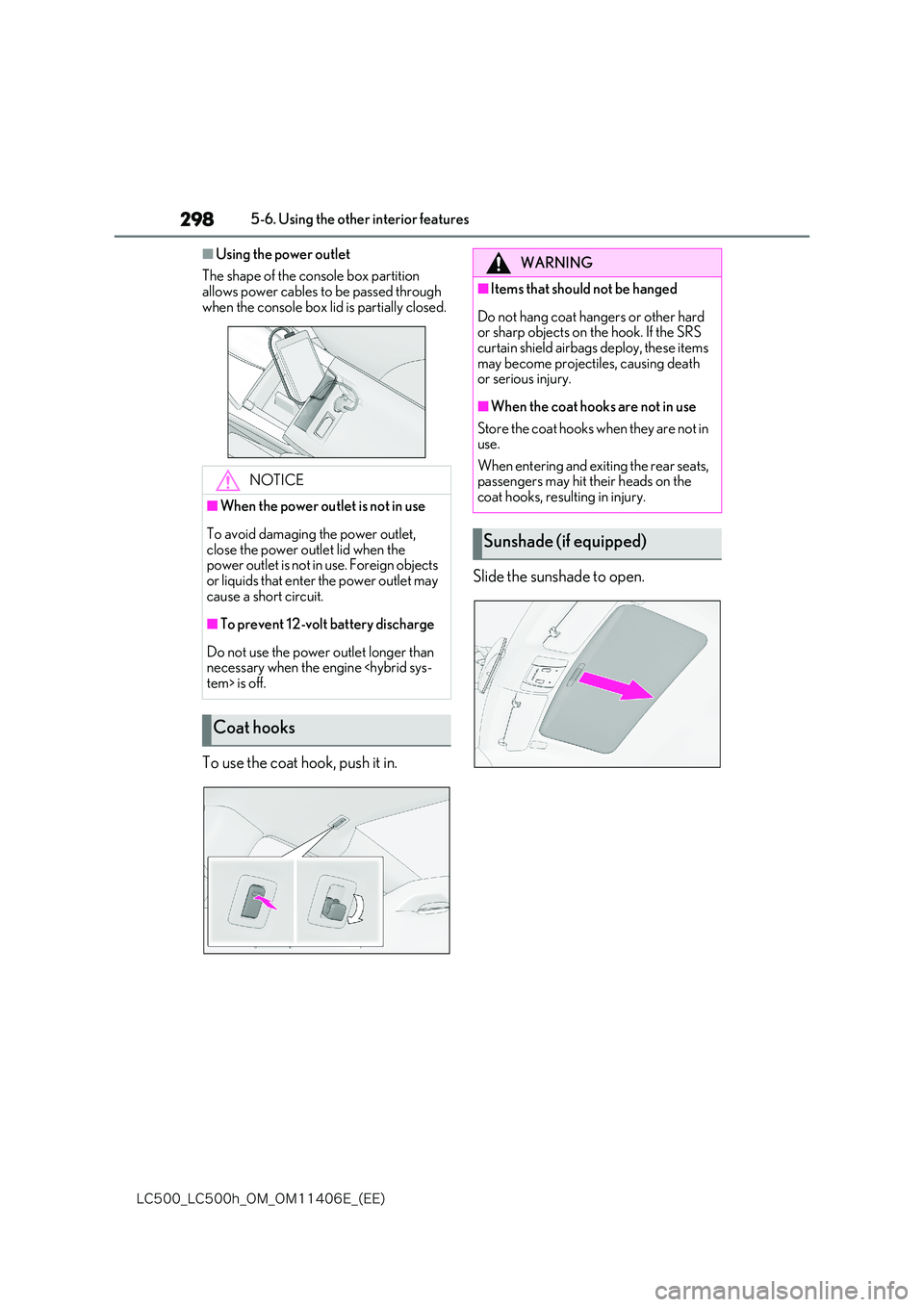

298
-$@-$I@0.@0.&@ &&

5-6. Using the other interior features
■Using the power outlet
The shape of the console box partition
allows power cables to be passed through when the console box lid is partially closed.
To use the coat hook, push it in.
Slide the sunshade to open.
NOTICE
■When the power outlet is not in use
To avoid damaging the power outlet, close the power outlet lid when the power outlet is not in use. Foreign objects
or liquids that enter the power outlet may cause a short circuit.
■To prevent 12-volt battery discharge
Do not use the power outlet longer than necessary when the engine tem> is off.
Coat hooks
WARNING
■Items that should not be hanged
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS curtain shield airbags deploy, these items
may become projectiles, causing death or serious injury.
■When the coat hooks are not in use
Store the coat hooks when they are not in use.
When entering and exiting the rear seats, passengers may hit their heads on the coat hooks, resulting in injury.
Sunshade (if equipped)

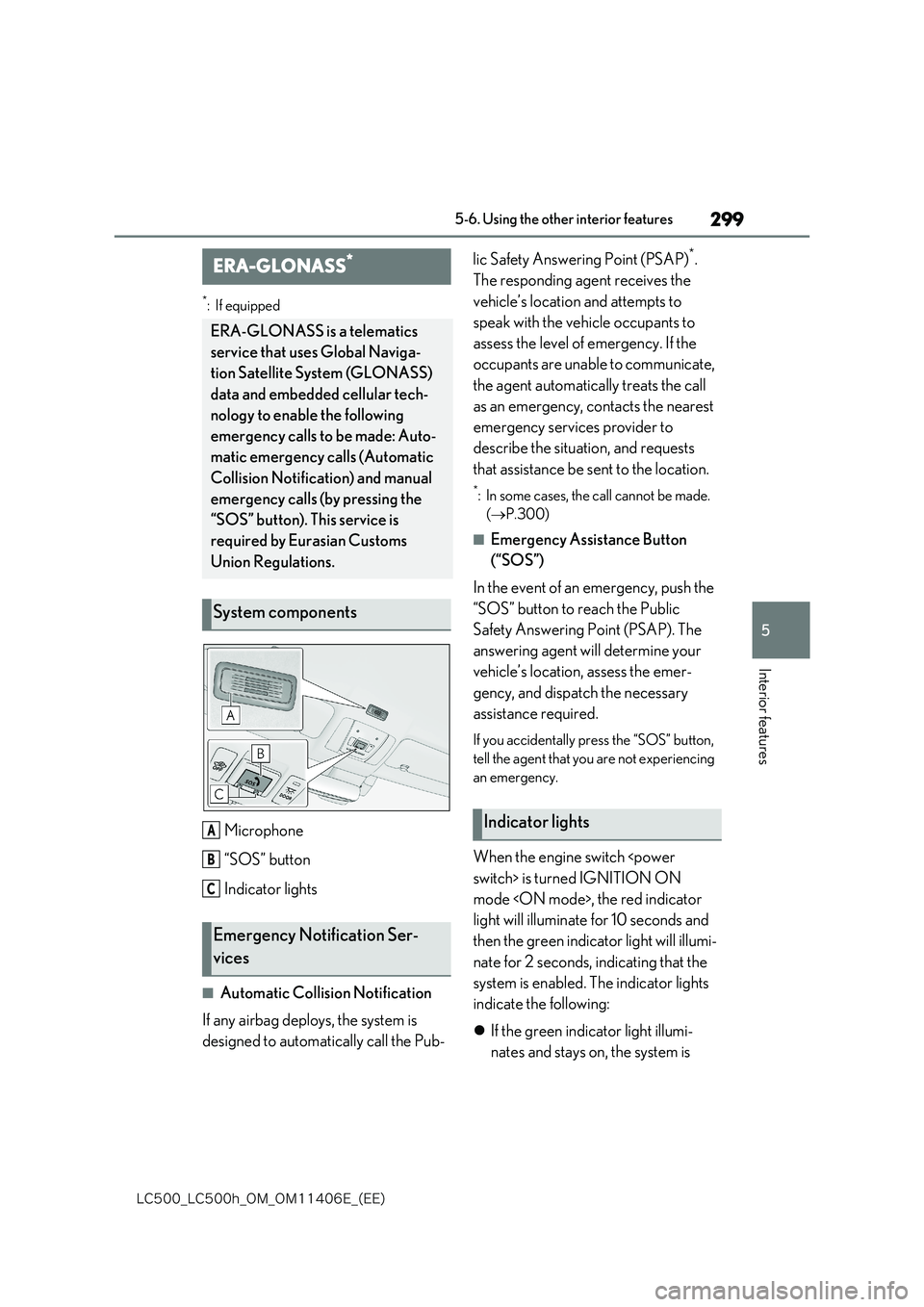

299
5
-$@-$I@0.@0.&@ &&

5-6. Using the other interior features
Interior features
*: If equipped
Microphone
“SOS” button
Indicator lights
■Automatic Collision Notification
If any airbag deploys, the system is
designed to automatically call the Pub-
lic Safety Answering Point (PSAP)*.
The responding agent receives the
vehicle’s location and attempts to
speak with the vehicle occupants to
assess the level of emergency. If the
occupants are unable to communicate,
the agent automatically treats the call
as an emergency, contacts the nearest
emergency services provider to
describe the situation, and requests
that assistance be sent to the location.
*: In some cases, the call cannot be made.
( P.300)
■Emergency Assistance Button
(“SOS”)
In the event of an emergency, push the
“SOS” button to reach the Public
Safety Answering Point (PSAP). The
answering agent will determine your
vehicle’s location, assess the emer-
gency, and dispatch the necessary
assistance required.
If you accidentally press the “SOS” button,
tell the agent that you are not experiencing
an emergency.
When the engine switch switch> is turned IGNITION ON
mode , the red indicator
light will illuminate for 10 seconds and
then the green indicator light will illumi-
nate for 2 seconds, indicating that the
system is enabled. The indicator lights
indicate the following:
 If the green indicator light illumi-
nates and stays on, the system is
ERA-GLONASS*
ERA-GLONASS is a telematics
service that uses Global Naviga-
tion Satellite System (GLONASS)
data and embedded cellular tech-
nology to enable the following
emergency calls to be made: Auto-
matic emergency calls (Automatic
Collision Notification) and manual
emergency calls (by pressing the
“SOS” button). This service is
required by Eurasian Customs
Union Regulations.
System components
Emergency Notification Ser-
vices
A
B
C
Indicator lights

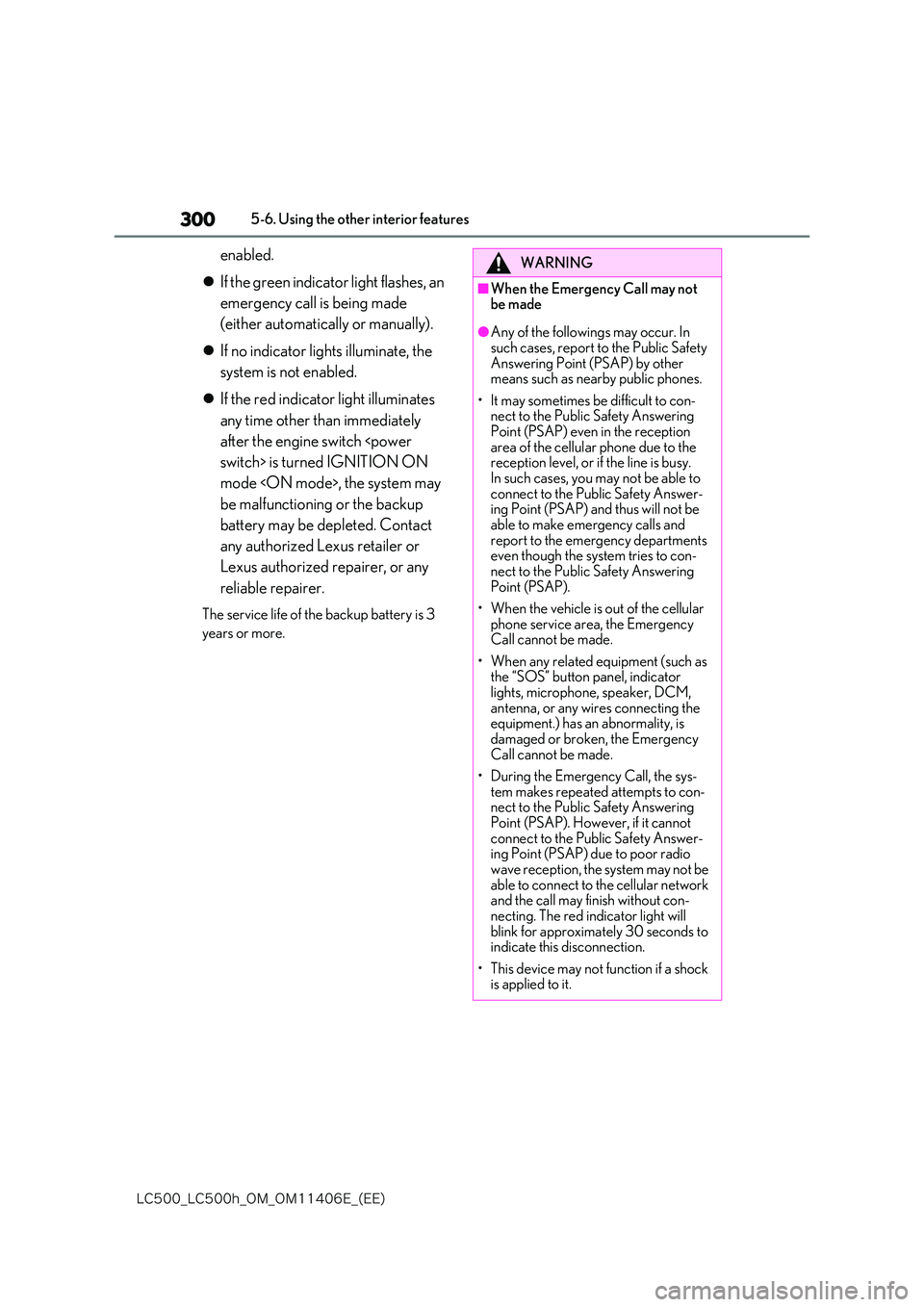

300
-$@-$I@0.@0.&@ &&

5-6. Using the other interior features
enabled.
 If the green indicator light flashes, an
emergency call is being made
(either automatically or manually).
 If no indicator lights illuminate, the
system is not enabled.
 If the red indicator light illuminates
any time other than immediately
after the engine switch switch> is turned IGNITION ON
mode , the system may
be malfunctioning or the backup
battery may be depleted. Contact
any authorized Lexus retailer or
Lexus authorized repairer, or any
reliable repairer.
The service life of the backup battery is 3
years or more.
WARNING
■When the Emergency Call may not be made
●Any of the followings may occur. In such cases, report to the Public Safety
Answering Point (PSAP) by other means such as nearby public phones.
• It may sometimes be difficult to con- nect to the Public Safety Answering Point (PSAP) even in the reception
area of the cellular phone due to the reception level, or if the line is busy.In such cases, you may not be able to
connect to the Public Safety Answer- ing Point (PSAP) and thus will not be able to make emergency calls and
report to the emergency departments even though the system tries to con-nect to the Public Safety Answering
Point (PSAP).
• When the vehicle is out of the cellular
phone service area, the Emergency Call cannot be made.
• When any related equipment (such as the “SOS” button panel, indicator lights, microphone, speaker, DCM,
antenna, or any wires connecting the equipment.) has an abnormality, is damaged or broken, the Emergency
Call cannot be made.
• During the Emergency Call, the sys-
tem makes repeated attempts to con- nect to the Public Safety Answering Point (PSAP). However, if it cannot
connect to the Public Safety Answer- ing Point (PSAP) due to poor radio wave reception, the system may not be
able to connect to the cellular network and the call may finish without con-necting. The red indicator light will
blink for approximately 30 seconds to indicate this disconnection.
• This device may not function if a shock is applied to it.
