1053-2. Opening, closing and locking the doors and trunk
3
Before driving
charged while the vehicle is not in operation
for a long time.
●In the following situations, the smart
access system with pu sh-button start may
take some time to unlock the doors.
• The electronic key has been left within approximately 6 ft. (2 m) of the outside of
the vehicle for 10 minutes or longer.
• The smart access system with push-but- ton start has not been used for 5 days or
longer.
●If the smart access system with push-but-
ton start has not been used for 14 days or
longer, the doors cannot be unlocked at
the passenger door. In this case, push the
depression on the front edge the driver’s
door handle, or use the wireless remote
control or mechanical key, to unlock the
doors.
■Turning an electronic key to battery-
saving mode
When battery-saving mode is set, battery
depletion is minimized by stopping the
electronic key from receiving radio waves.
Press twice while pressing and
holding . Confirm that the elec-
tronic key indicator flashes 4 times.
While the battery-saving mode is set, the
smart access system with push-button start
cannot be used. To cancel the function,
press any of the electronic key buttons.
●Electronic keys that will not be used for
long periods of time can be set to the bat-
tery-saving mode in advance.
■Conditions affe cting operation
The smart access system with push-button
start uses weak radio waves. In the follow-
ing situations, the communication between
the electronic key and the vehicle may be
affected, preventing the smart access sys- tem with push-button start, wireless remote
control and engine immobilizer system
from operating properly.
(Ways of coping:
P.330)
●When the electronic key battery is
depleted
●Near a TV tower, electric power plant,
gas station, radio stat ion, large display,
airport or other fac ility that generates
strong radio waves or electrical noise
●When carrying a portable radio, cellular
phone, cordless phone or other wireless
communication device
●When the electronic key is in contact
with, or is covered by the following metal-
lic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil
inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When other wireless keys (that emit
radio waves) are being used nearby
●When carrying the electronic key
together with the following devices that
emit radio waves
• Another electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or
metallic objects are attached to the rear
window
●When the electronic key is placed near a
battery charger or electronic devices
●When the vehicle is parked in a pay park-
ing spot where radio waves are emitted
■Note for the entry function
●Even when the electronic key is within the
effective range (detection areas), the sys-
tem may not operate properly in the fol-
lowing cases:
• The electronic key is too close to the win- dow or outside door handle, near the
ground, or in a high place when the doors

1063-2. Opening, closing and locking the doors and trunk
are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear
bumper center when the trunk is opened.
• The electronic key is on the instrument panel, rear package tray or floor, or in the
door pockets or glove box when the
engine is started or engine switch modes
are changed.
●Do not leave the electronic key on top of
the instrument panel or near the door
pockets when exiting the vehicle.
Depending on the radio wave reception
conditions, it may be detected by the
antenna outside the cabin and the doors
will become lockable from the outside,
possibly trapping the electronic key
inside the vehicle.
●As long as the electron ic key is within the
effective range, the doors may be locked
or unlocked by anyone. However, only
the doors detecting the electronic key
can be used to unlock the vehicle.
●Even if the electronic key is not inside the
vehicle, it may be possible to start the
engine if the electronic key is near the
window.
●The doors may unlock or lock if a large
amount of water spla shes on the door
handle, such as in the rain or in a car
wash, when the electronic key is within
the effective range. (The doors will auto-
matically be locked after approximately
60 seconds if the d oors are not opened
and closed.)
●If the wireless remote control is used to
lock the doors when the electronic key is
near the vehicle, there is a possibility that
the door may not be unlocked by the
entry function. (Use the wireless remote
control to unlock the doors.)
●When the lock operation is performed
using the lock sensor, recognition signals
will be shown up to two consecutive
times. After this, no recognition signals
will be given.
●If the door handle becomes wet while the
electronic key is within the effective
range, the door may lock and unlock
repeatedly. In this case, follow the follow-
ing correction procedures to wash the vehicle:
• Place the electronic key in a location 6 ft. (2 m) or more away from the vehicle.
(Take care to ensure that the key is not
stolen.)
• Set the electronic key to battery-saving
mode to disable the smart access system
with push-button start. ( P.104)
●If the electronic key is inside the vehicle
and a door handle becomes wet during a
car wash, a message may be shown on
the multi-information display and a
buzzer will sound outside the vehicle. To
turn off the alarm, lock both side doors.
●If an outside door handle is not retracted
during a car wash, a door may be opened
or an outside door handle may be dam-
aged. Make sure that the outside door
handles are retracted before using the
car wash.
●A sudden handle operation or a handle
operation immediately after entering the
effective range may prevent the doors
from being unlocked. Touch the door
unlock sensor and check that the doors
are unlocked before pulling the door
handle again.
●Unlocking the vehicle may take more
time if another electronic key is within the
effective range.
■When the vehicle is not driven for
extended periods
●To prevent theft of the vehicle, do not
leave the electronic key within 6 ft. (2 m)
of the vehicle.
●The smart access system with push-but-
ton start can be deactivated in advance.
●Setting the electronic key to battery-sav-
ing mode helps to reduce key battery
depletion. ( P.105)
■To operate the system properly
●Make sure to carry the electronic key
when operating the system. Do not get
the electronic key too close to the vehicle
when operating the system from the out-
side of the vehicle.
Depending on the position and holding
condition of the elec tronic key, the key
may not be detected correctly and the
system may not operate properly. (The

1073-2. Opening, closing and locking the doors and trunk
3
Before driving
alarm may go off accidentally, or the door
lock prevention function may not oper-
ate.)
●Do not leave the electronic key inside the
trunk.
The key confinement prevention function
may not operate, depending on the loca-
tion of the key (the inside edge of the
trunk), conditions (inside a metal bag,
close to metallic objects) and the radio
waves in the surrounding area. ( P.102)
■If an electronic key does not work prop-
erly
●If the doors cannot be locked or
unlocked and the trunk cannot be
opened, perform the following.
• Bring the electronic key close to the door
handle and perform a lock or unlock
operation.
• Bring the electronic key close to the but-
ton on the trunk ( P.101) and press the
button.
• Use the wireless remote control.
If the doors cannot be locked or unlocked by perform the above, use the mechanical
key. (
P.330)
For Canada: However, if the mechanical
key is used while the al arm system is set, the
warning will sound. ( P.65)
●If the engine cannot be started, refer to
P.331
■Customization
Settings (e. g. smart access system with
push-button start) can be changed.
(Customizable features: P.367)
If the smart access system with push-button
start has been deactivated in a customized
setting, refer to the explanations for the fol-
lowing operations.
●Locking and unloc king the doors and
opening the trunk:
Use the wireless remote control or
mechanical key. ( P.96, 102, 330)
●Starting the engine and changing engine
switch modes:  P.331
●Stopping the engine: P.147
■Certification for the smart access system with push-button start
For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico

1083-2. Opening, closing and locking the doors and trunk

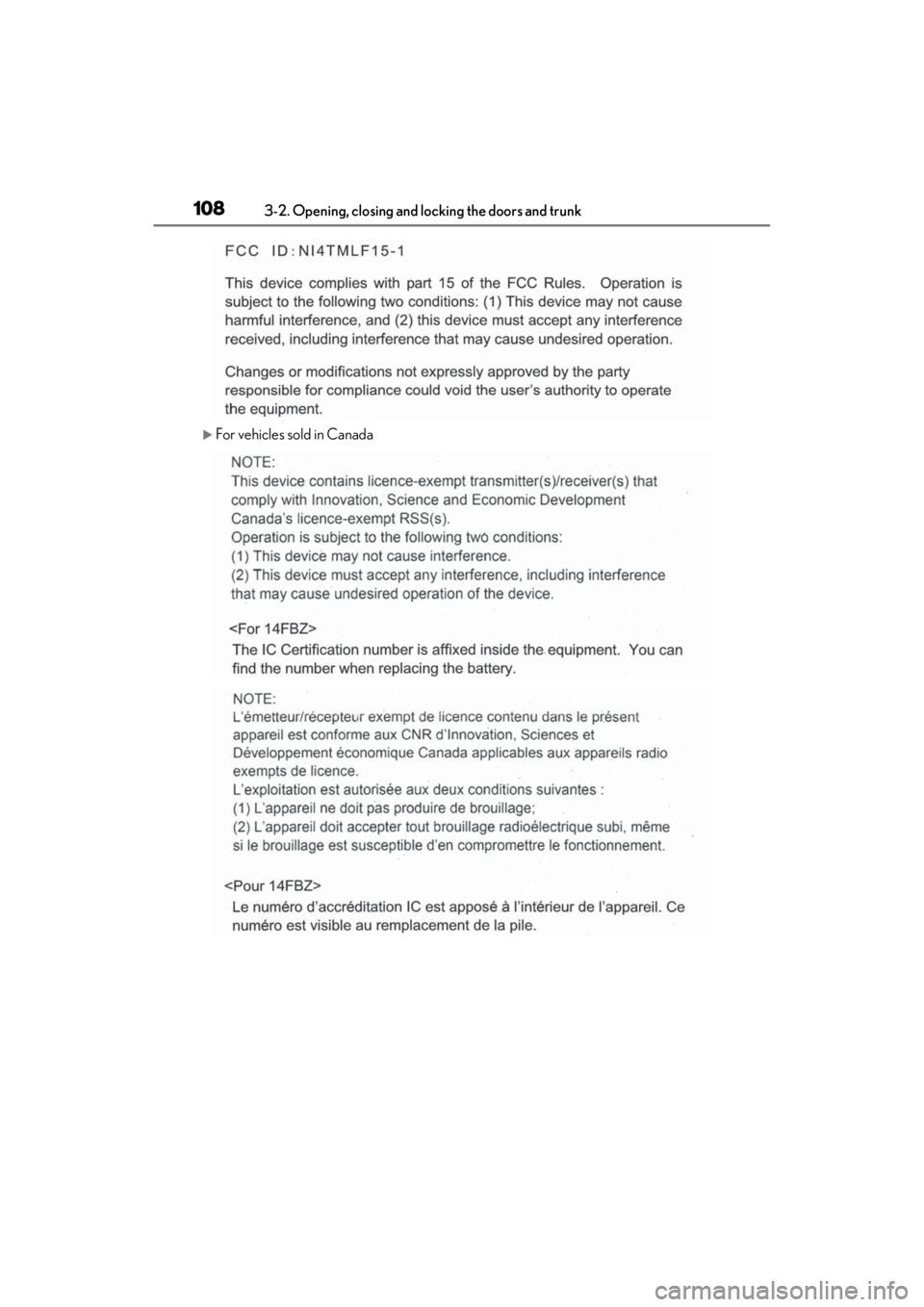

For vehicles sold in Canada

1093-2. Opening, closing and locking the doors and trunk
3
Before driving
WARNING
■Caution regarding interference with
electronic devices
●People with implantable cardiac pace-
makers, cardiac resynchronization
therapy-pacemakers or implantable
cardioverter defibrillators should keep
away from the smart access system
with push-button start antennas.
( P.103)
The radio waves may affect the opera-
tion of such devices. If necessary, the
entry function can be disabled. Ask
your Lexus dealer for details, such as
the frequency of radio waves and tim-
ing of the emitted radio waves. Then,
consult your doctor to see if you
should disable the entry function.
●Users of any electrical medical device
other than implantable cardiac pace-
makers, cardiac resynchronization
therapy-pacemakers or implantable
cardioverter defibrillators should con-
sult the manufacturer of the device for
information about its operation under
the influence of radio waves.
Radio waves could have unexpected
effects on the operation of such medi-
cal devices.
Ask your Lexus dealer for details on dis-
abling the entry function.

1273-6. Opening and closing the soft top roof
3
Before driving
Opening/closing status of the soft top roof
will be displayed on the multi-information
display.
When the operation of the soft top roof has
completed, the bar will turn to gray and the
buzzer will sound.
To close the side windows and rear quarter
windows, press the power window switch.
( P.122)
■Operational conditions
●The vehicle speed is less than approxi-
mately 31 mph (50 km/h) (However, it is
recommended that the soft top roof is
opened or closed when the vehicle is
stopped.)
●The engine is running (The soft top roof
can operate with the engine switch in
ON, however, in order to prevent battery
discharge, it is recommended to start the
engine.)
●The trunk lid is closed

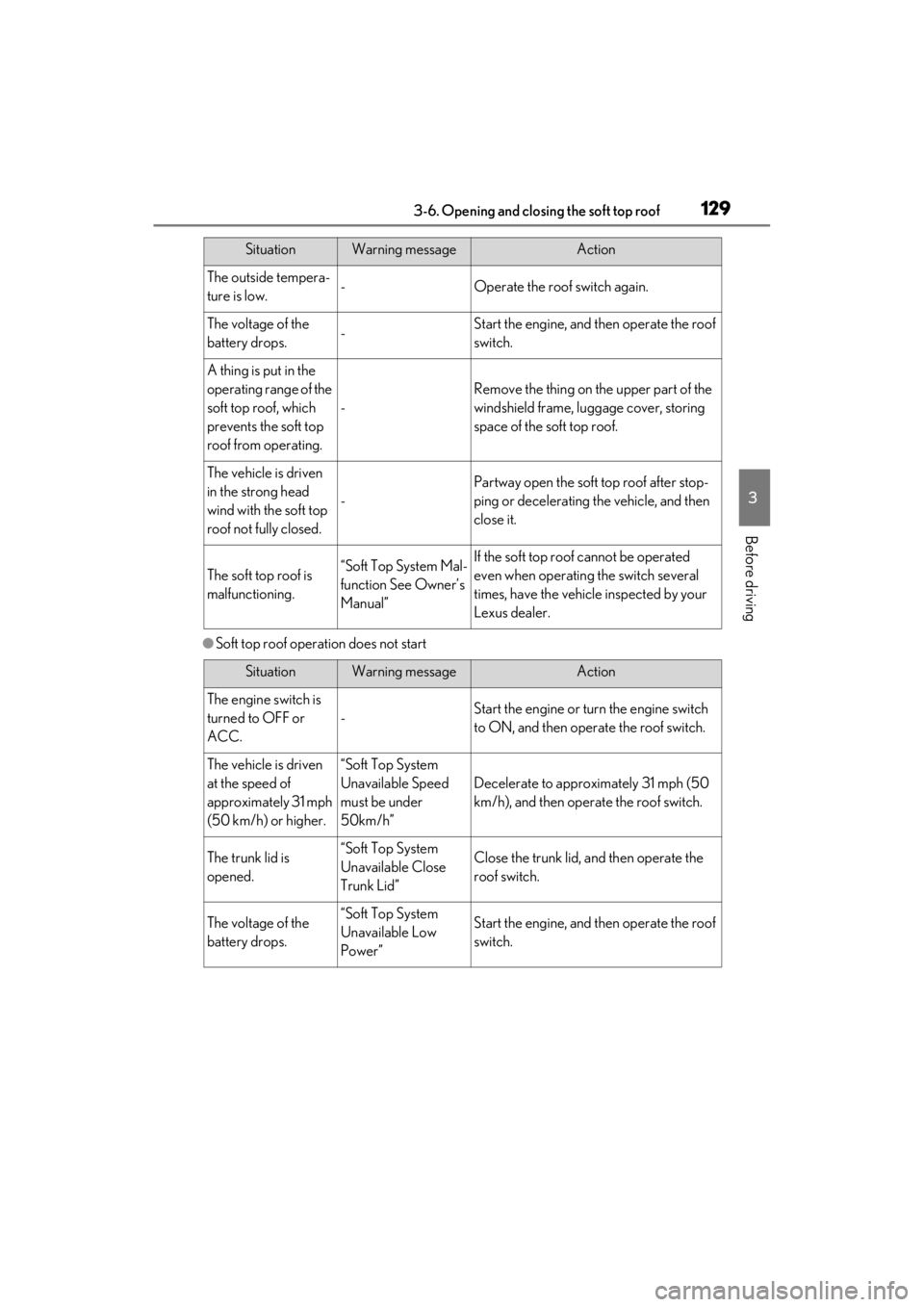

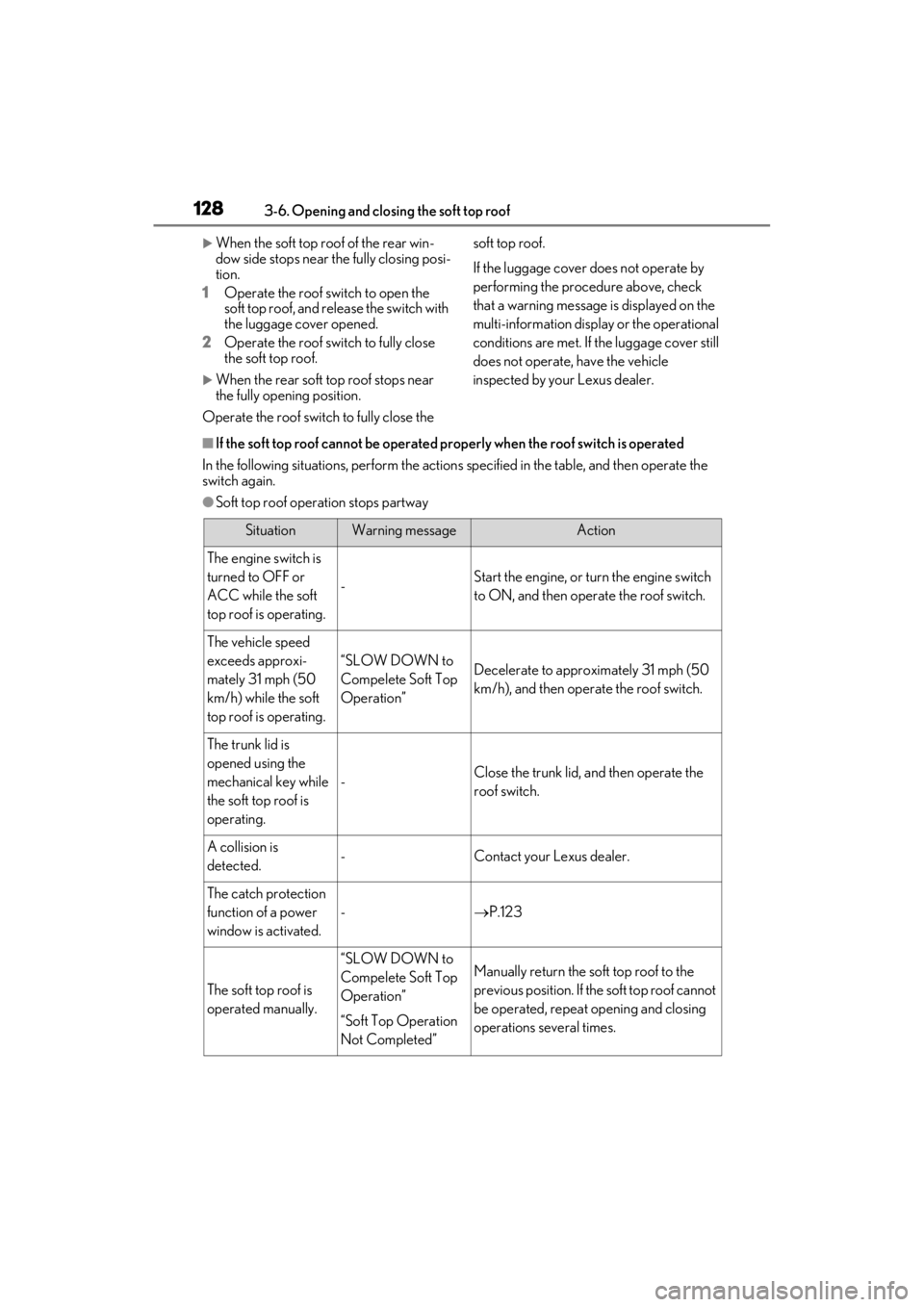

■Situations in which the soft top roof
operation stops partway
In the following situation, operation of the
soft top roof stops partway.
●When releasing the roof switch while the
soft top roof is operating
●The vehicle speed is approximately 31
mph (50 km/h) or higher.
●If there is a malfunction in the system
●When operate the soft top roof repeat-
edly in a short period of time
●If the battery is discharged
■Situations in which the soft top roof may
not operate properly
In the following situation, the soft top roof
may not operate properly.
●When the jam protection function or
catch protection function of the power
windows operates
●When starting the en gine while operating
the roof switch (The so ft top roof that is
operating stops partway or returns to the
previous position.)
●If the roof switch has not been operated
for a long period of time during the oper-
ation of the soft top roof. (“Soft Top
Operation Not Completed Soft Top Will
Move Soon” is displayed on the multi-
information display for approximately 10
seconds, and then the soft top will move
slowly.)
●When the roof switch is operated on a
steep incline or large step
●When driving on uneven road surfaces
●In strong wind
■Switch operation when the operational
conditions are not met
If the soft top roof is fully closed and the
vehicle is stopped, continuously operating
the roof switch can operate the side win-
dows and rear quarter windows only even if
the operational conditions of the soft top
roof are not met
■While the soft top roof is operating
●The trunk opener switch cannot be oper-
ated. Press the switch after the operation
of the soft top roof has been completed.
(  P.101)
●The side windows and rear quarter win-
dows cannot be operated using the
power window switch or all window con-
trol switch. They can be operated when
the soft top roof operation partway stops,
however, they cannot be fully closed.
■If water splashes on the soft top roof,
such as in the rain or in a car wash
Wipe away any water before opening the
soft top roof. To prevent wrinkles, it is rec-
ommended to open the soft top roof after it
has completely dried.
■Soft top roof open warning buzzer
A buzzer sounds if opening or closing the
soft top roof is not completed. Open or
close the soft top roof as soon as possible.
■If a battery terminal has been discon-
nected and reconnected
If “Soft Top Operation Not Completed” is
displayed on the multi-information display
after the engine has been started, perform
the following procedure.

1283-6. Opening and closing the soft top roof
When the soft top roof of the rear win-
dow side stops near the fully closing posi-
tion.
1 Operate the roof switch to open the
soft top roof, and release the switch with
the luggage cover opened.
2 Operate the roof switch to fully close
the soft top roof.
When the rear soft top roof stops near
the fully opening position.
Operate the roof switch to fully close the soft top roof.
If the luggage cover does not operate by
performing the procedure above, check
that a warning message is displayed on the
multi-information display or the operational
conditions are met. If
the luggage cover still
does not operate, have the vehicle
inspected by your Lexus dealer.
■If the soft top roof cannot be operated properly when the roof switch is operated
In the following situations, perform the actions specified in the table, and then operate the
switch again.
●Soft top roof operation stops partway
SituationWarning messageAction
The engine switch is
turned to OFF or
ACC while the soft
top roof is operating.
-Start the engine, or turn the engine switch
to ON, and then operate the roof switch.
The vehicle speed
exceeds approxi-
mately 31 mph (50
km/h) while the soft
top roof is operating.
“SLOW DOWN to
Compelete Soft Top
Operation”Decelerate to approximately 31 mph (50
km/h), and then operate the roof switch.
The trunk lid is
opened using the
mechanical key while
the soft top roof is
operating.
-Close the trunk lid, and then operate the
roof switch.
A collision is
detected.-Contact your Lexus dealer.
The catch protection
function of a power
window is activated.
- P.123
The soft top roof is
operated manually.
“SLOW DOWN to
Compelete Soft Top
Operation”
“Soft Top Operation
Not Completed”Manually return the soft top roof to the
previous position. If the soft top roof cannot
be operated, repeat opening and closing
operations several times.

1293-6. Opening and closing the soft top roof
3
Before driving
●Soft top roof operation does not start
The outside tempera-
ture is low.-Operate the roof switch again.
The voltage of the
battery drops.-Start the engine, and then operate the roof
switch.
A thing is put in the
operating range of the
soft top roof, which
prevents the soft top
roof from operating.
-
Remove the thing on the upper part of the
windshield frame, luggage cover, storing
space of the soft top roof.
The vehicle is driven
in the strong head
wind with the soft top
roof not fully closed.
-
Partway open the soft top roof after stop-
ping or decelerating the vehicle, and then
close it.
The soft top roof is
malfunctioning.“Soft Top System Mal-
function See Owner’s
Manual”If the soft top roof cannot be operated
even when operating the switch several
times, have the vehicle inspected by your
Lexus dealer.
SituationWarning messageAction
The engine switch is
turned to OFF or
ACC.
-Start the engine or tu rn the engine switch
to ON, and then operate the roof switch.
The vehicle is driven
at the speed of
approximately 31 mph
(50 km/h) or higher.“Soft Top System
Unavailable Speed
must be under
50km/h”
Decelerate to approximately 31 mph (50
km/h), and then operate the roof switch.
The trunk lid is
opened.“Soft Top System
Unavailable Close
Trunk Lid”Close the trunk lid, and then operate the
roof switch.
The voltage of the
battery drops.“Soft Top System
Unavailable Low
Power”Start the engine, and then operate the roof
switch.
SituationWarning messageAction

1333-6. Opening and closing the soft top roof
3
Before driving
WARNING
●When exiting the vehicle, turn the
engine switch off, carry the key and
exit the vehicle along with the child.
There may be accidental operation,
due to mischief, etc., that may possibly
lead to an accident.
■While the vehicle is driven
Observe the following precautions.
Failure to do so may result in serious
injury or an accident.
●Do not operate the soft top roof more
than necessary.
●Do not drive the vehicle with the soft
top roof half-opened.
●Do not stand on the seat, sit on the
package tray ( P.40), or lean out of
the vehicle.
■When a child is in the vehicle
Observe the following precautions.
Failure to do so may result in death or
serious injury.
●Do not allow a child operate the soft
top roof.
●Never let a child sit in the storing
space of the soft top roof.
●Keep children away from the movable
range of the soft top roof.
NOTICE
■To prevent damage to the soft top
roof
●Make sure that ther e is no obstacle
within a height of 25.6 in. (65 cm)
from the soft top roof.
Also, be careful when passing a place
with height restriction, such as a tunnel
or underground passage.
●Do not put anything in the storing
space of the soft top roof.
●Do not sit on or put luggage on the soft
top roof or luggage cover.
●When there is snow or luggage on the
soft top roof or luggage cover, remove
it before operating the roof switch.
●Do not open or close the soft top roof
when anything is put on the trunk lid.
●Do not close the soft top roof when
anything is put on the upper part of the
windshield frame.
●Do not open or close the soft top roof
when the outside temperature is
23.0°F (-5°C) or lower or the side
windows and rear quarter windows
are frozen.
●Do not leave the soft top roof not fully
opened or closed for a long period of
time.
●Do not leave the soft top roof opened
for a long period of time. The soft top
roof may have wrinkles or deteriorate.
●When opening the trunk lid using the
mechanical key, full y open or close the
soft top roof.
●Do not install a roof luggage carrier to
the soft top roof.
●Do not operate the soft top roof manu-
ally except in an emergency.
(  P.338)

225
5
5
Interior features
Interior features
5-1. Remote TouchRemote Touch ............................ 226
5-2. Lexus Climate Concierge Lexus Climate Concierge ..... 230
5-3. Using the air conditioning system Automatic air conditioning system........................................................ 232
Heated steering wheel/seat heat- ers/seat ventilators/neck heat-
ers ................................................. 240
5-4. Using the interior lights Interior lights list......................... 244
5-5. Using the storage features List of storage features............ 246
Trunk features............................. 248
5-6. Using the other interior features Other interior features ........... 249
Garage door opener............... 250
