2465-5. Using the storage features
5-5.Using the storage features
Glove box (P.246)
Auxiliary net
Door pockets
Console box/auxiliary box
( P.247)
Cup holder ( P.247) 1
Open (press the glove box opener)
2
Unlock with the mechanical key
3
Lock with the mechanical key
■Glove box light
The glove box light turns on when the tail
lights are on.
■Trunk opener main switch
 P.103
■If the battery is discharged
The glove box cannot be opened as usual.
Refer to P.333 to open the glove box.
List of storage features
Location of the storage features
WARNING
■Items that should not be left in the
vehicle
Do not leave glasses, lighters or spray
cans in the storage spaces, as this may
cause the following when cabin tempera-
ture becomes high:
●Glasses may be deformed by heat or
cracked if they come into contact with
other stored items.
A
B
C
D
E
●Lighters or spray ca ns may explode. If
they come into contact with other
stored items, the lighter may catch fire
or the spray can may release gas,
causing a fire hazard.
■When storage compartments are not
in use
When driving or when the storage com-
partments are not in use, keep the lids
closed.
In the event of sudden braking or sudden
swerving, an accident may occur due to
an occupant being struck by an open lid
or the items stored inside.
Glove box

2796-3. Do-it-yourself maintenance
6
Maintenance and care
The battery is located in the trunk.
■Before recharging
When recharging, the battery produces
hydrogen gas which is flammable and
explosive. Therefore, observe the following
precautions before recharging:
●If recharging with the battery installed on
the vehicle, be sure to disconnect the
ground cable.
●Make sure the power switch on the char-
ger is off when connecting and discon-
necting the charger cables to the battery.
■After recharging/reconnecting the bat-
tery
●Unlocking the doors using the smart
access system with pu sh-button start may
not be possible immediately after recon-
necting the battery. If this happens, use
the wireless remote control or the
mechanical key to lock/unlock the doors.
●Start the engine with the engine switch in
ACC. The engine may not start with the
engine switch turned off. However, the
engine will operate normally from the
second attempt.
●The engine switch mode is recorded by
the vehicle. If the battery is reconnected,
the vehicle will return the engine switch
mode to the status it was in before the
battery was disconnected. Make sure to
turn off the engine switch before discon-
nect the battery. Take extra care when connecting the battery if the engine
switch mode prior to discharge is
unknown.
If the engine will not st art even after multiple
attempts at all methods above, contact your
Lexus dealer.
Battery
Location
WARNING
■Chemicals in the battery
The battery contains poisonous and cor-
rosive sulfuric acid and may produce
hydrogen gas which is flammable and
explosive. To reduce the risk of death or
serious injury, take the following precau-
tions while working on or near the bat-
tery:
●Do not cause sparks by touching the
battery terminals with tools.
●Do not smoke or light a match near the
battery.
●Avoid contact with eyes, skin and
clothes.
●Never inhale or swallow electrolyte.
●Wear protective sa fety glasses when
working near the battery.
●Keep children away from the battery.
■Where to safely charge the battery
Always charge the battery in an open
area. Do not charge the battery in a
garage or closed room where there is
insufficient ventilation.
■How to recharge the battery
Recharge at a current of 5 A or less and
make sure that the recharging period
does not exceed a total of 12 hours.

2996-3. Do-it-yourself maintenance
6
Maintenance and care
1Turn the engine switch off.
2
Open the Fuse box cover.
Engine compartment:
Push the tab in and lift the lid off.
Trunk
Remove the luggage mat.
Push the tab in and lift the lid off.
NOTICE
■For normal operation after replacing
the battery
Observe the following precautions to
prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to
rust.
●Do not touch or move any other com-
ponent inside the remote control.
●Do not bend either of the battery ter-
minals.
Checking and replacing
f
uses
If any of the electrical components
do not operate, a fuse may have
blown. If this happens, check and
replace the fuses as necessary.
Checking and replacing fuses

3307-2. Steps to take in an emergency
Open the cover inside the trunk, take
out and pull the tab.
■When the electronic key does not work
properly
●Make sure that the smart access system
with push-button start has not been deac-
tivated using the Remote Touch or at
your Lexus dealer. If it is off, turn the func-
tion on.
●Check if battery-saving mode is set. If it is
set, cancel the function. (P.104)
Use the mechanical key ( P.94) in
order to perform th e following opera-
tions:
If the fuel filler door cannot
b
e opened
If the fuel filler door opener switch
cannot be operated, the following
procedure can be used to open the
fuel filler door.
Opening the fuel filler door
NOTICE
■After opening the fuel filler door
Secure the tab in its original position.
If the electronic key does not
o
perate properly
If communication between the
electronic key and vehicle is inter-
rupted ( P.105) or the electronic
key cannot be used because the
battery is depleted, the smart
access system with push-button
start and wireless remote control
cannot be used. In such cases, the
doors and trunk can be opened and
the engine can be started by follow-
ing the procedure below.
NOTICE
■In case of a smart access system with
push-button start malfunction or
other key-related problems
Take your vehicle with all the electronic
keys (including the card key) provided
with your vehicle to your Lexus dealer as
soon as possible.
Locking and unlocking the
doors, opening the trunk and
using the key linked functions

3317-2. Steps to take in an emergency
7
When trouble arises
■Locking and unlocking the door
1
Push in the depression on the front
edge of the driver’s door handle.
2
Insert the mechanical key while
pulling on the driver’s door handle.
3
Turn the key in order to perform
the following operations.
Locks both side doors
Closes the windows (turn and
hold)
*
Unlocks the door
Turning the key rearward unlocks the
driver’s door. Turning the key once again
within 5 seconds unlocks the other door.
Opens the windows (turn and
hold)
*
*: These settings must be customized at
your Lexus dealer.
■Opening the trunk
Unlock the doors, and press the trunk
opener switch.
1
Depress the brake pedal.
2
Touch the Lexus emblem side of
the electronic key to the engine
switch.
When the electronic key is detected, a
buzzer sounds and the engine switch will
turn to ON.
When the smart access system with push-
button start is deactivated in customization
A
B
C
D
WARNING
■When using the mechanical key and
operating the power windows
Operate the power window after check-
ing to make sure that there is no possibil-
ity of any passenger having any of their
body parts caught in the window.
Also, do not allow children to operate the
mechanical key. It is possible for children
and other passengers to get caught in
the power window.
Starting the engine

3327-2. Steps to take in an emergency
setting, the engine switch will turn to ACC.
3Firmly depress the brake pedal and
check that is shown on the
multi-information display.
4 Press the engine switch.
In the event that the engine still cannot
be started, contact your Lexus dealer.
■Stopping the engine
Set the parking brake, shift the shift position
to P and press the engine switch as you nor-
mally do when stopping the engine.
■Electronic key battery
As the above procedure is a temporary
measure, it is recomme nded that the elec-
tronic key battery be replaced immediately
when the battery is depleted. ( P.297)
■Alarm (For Canada)
Using the mechanical key to lock the doors
will not set the alarm system.
If a door is unlocked using the mechanical
key when the alarm system is set, the alarm
may be triggered.
■Changing engine switch modes
Release the brake pedal and press the
engine switch in step 3 above.
The engine does not start and modes will be
changed each time the switch is pressed.
(  P.149)
Use the mechanical key ( P.94) in
order to perform th e following opera-
tions:
■Locking and unlocking the doors
 P.330
■Opening the trunk
1 Slide the rear passengers’ seat
belts towards the outside.
If the seat belt is secured using the rear
seat belt holder, remove it. ( P.27)
2 Insert your fingers at the positions
marked and pull towards you to
If the battery is discharged
The following procedures may be
used to start the engine or opening
the doors, trunk or glove box if the
battery is discharged.
You can also call your Lexus dealer
or a qualified repair shop.
Locking and unlocking the doors
and opening the trunk
A

3337-2. Steps to take in an emergency
7
When trouble arises
remove the cover in the center of
the rear seat.
3
Insert the mechanical key into the
cylinder and turn it clockwise to
open. The glove box can be opened by per-
forming the following operations after
unlocking the doors.
If the glove box is locked, unlock it with the
mechanical key. (
P.246)
1Remove the cover using a flathead
screwdriver.
To prevent damage to the cover, cover the
tip of the screwdriver with a rag.
2Push the flathead screwdriver into
the part shown in the illustration to
open the glove box.
■After opening the glove box
The glove box can be opened normally by
closing the glove box after restarting the
engine.
If you have a set of jumper (or booster)
cables and a second vehicle with a bat-
WARNING
■After unlocking the trunk
Make sure to put back the cover to the
center of the rear seat. Failure to do so
may cause an accident.
NOTICE
■When installing the cover in the cen-
ter of the rear seat
Make sure that the seat belts are not
caught in the cover. Failure to do so may
cause damage to the cover installation
clip and make it impossible to install the
cover.
Opening the glove box
Restarting the engine

3397-2. Steps to take in an emergency
7
When trouble arises
When touching a place where a
hand can not easily reach, wear
gloves to protect your hands.
 Turn the engine switch off.
 The tool for manually closing the
soft top roof is stored in the glove
box. ( P.246)
Tool bag
Tool
Groove
1 Press the All window control switch
to fully open the side windows and
rear quarter windows. ( P.122) If
the switch does not operate, con-
tact your Lexus dealer. 2
Remove the cover behind the rear
left seat.
1 Remove the claw on the left side
using the flathead screwdriver.
The flathead screwdriver is installed in the
trunk.
2Remove the claw on the right side.
Tool
Closing the soft top roof
A
B
C

3427-2. Steps to take in an emergency
10Insert the tool into the hole .
11 Rotate the tool until it no longer
moves.
The front side of the soft top roof will be
locked.
Push the inner side of the soft top roof
to check that the soft top roof is firmly
locked and not raised.
If the soft top roof is not firmly locked, it
may be opened by wind pressure while
driving.
12While lifting the portion of the
under the rear window, hold the
portion of the luggage cover and move it to the front side of the
vehicle and close it.
When closing the luggage cover, be care-
ful that your hand or fi
ngers is not caught in
the luggage cover and vehicle.
13 Lower the rear window and push
the rear center of the luggage
cover.
Check that there is no difference in height
between the luggage cover and trunk and
A
A
A
B

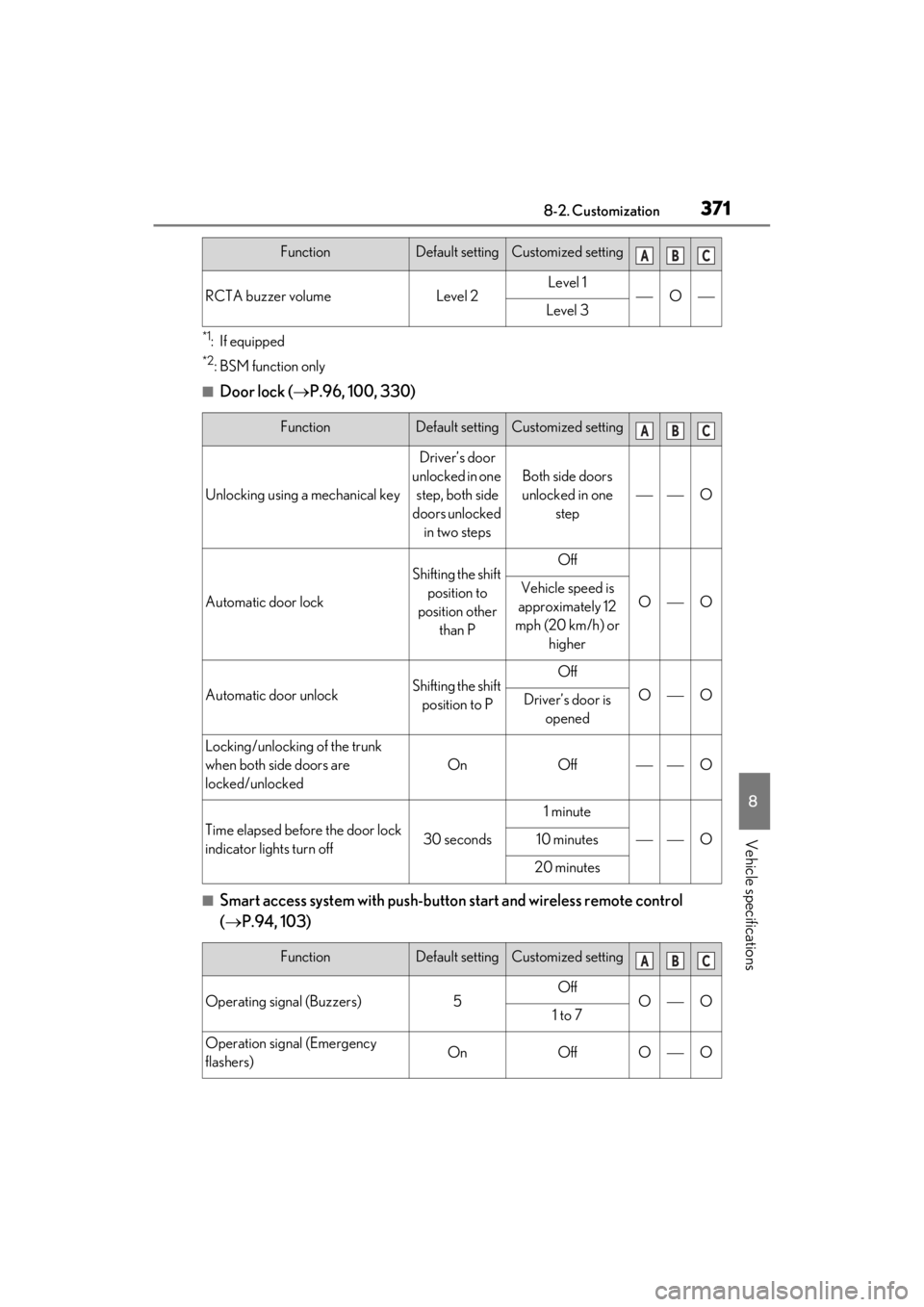

3718-2. Customization
8
Vehicle specifications
*1: If equipped
*2: BSM function only
■Door lock (P.96, 100, 330)
■Smart access system with push-butto n start and wireless remote control
(  P.94, 103)
RCTA buzzer volumeLevel 2Level 1OLevel 3
FunctionDefault settingCustomized setting
Unlocking using a mechanical key
Driver’s door
unlocked in one step, both side
doors unlocked in two steps
Both side doors
unlocked in one step
O
Automatic door lock
Shifting the shift position to
position other than POff
OOVehicle speed is
approximately 12
mph (20 km/h) or higher
Automatic door unlockShifting the shift position to POff
OODriver’s door is opened
Locking/unlocking of the trunk
when both side doors are
locked/unlocked
OnOffO
Time elapsed before the door lock
indicator lights turn off30 seconds
1 minute
O10 minutes
20 minutes
FunctionDefault settingCustomized setting
Operating signal (Buzzers)5OffOO1 to 7
Operation signal (Emergency
flashers)OnOffOO
FunctionDefault settingCustomized settingABC
ABC
ABC
