3216-3. Do-it-yourself maintenance
6
Maintenance and care

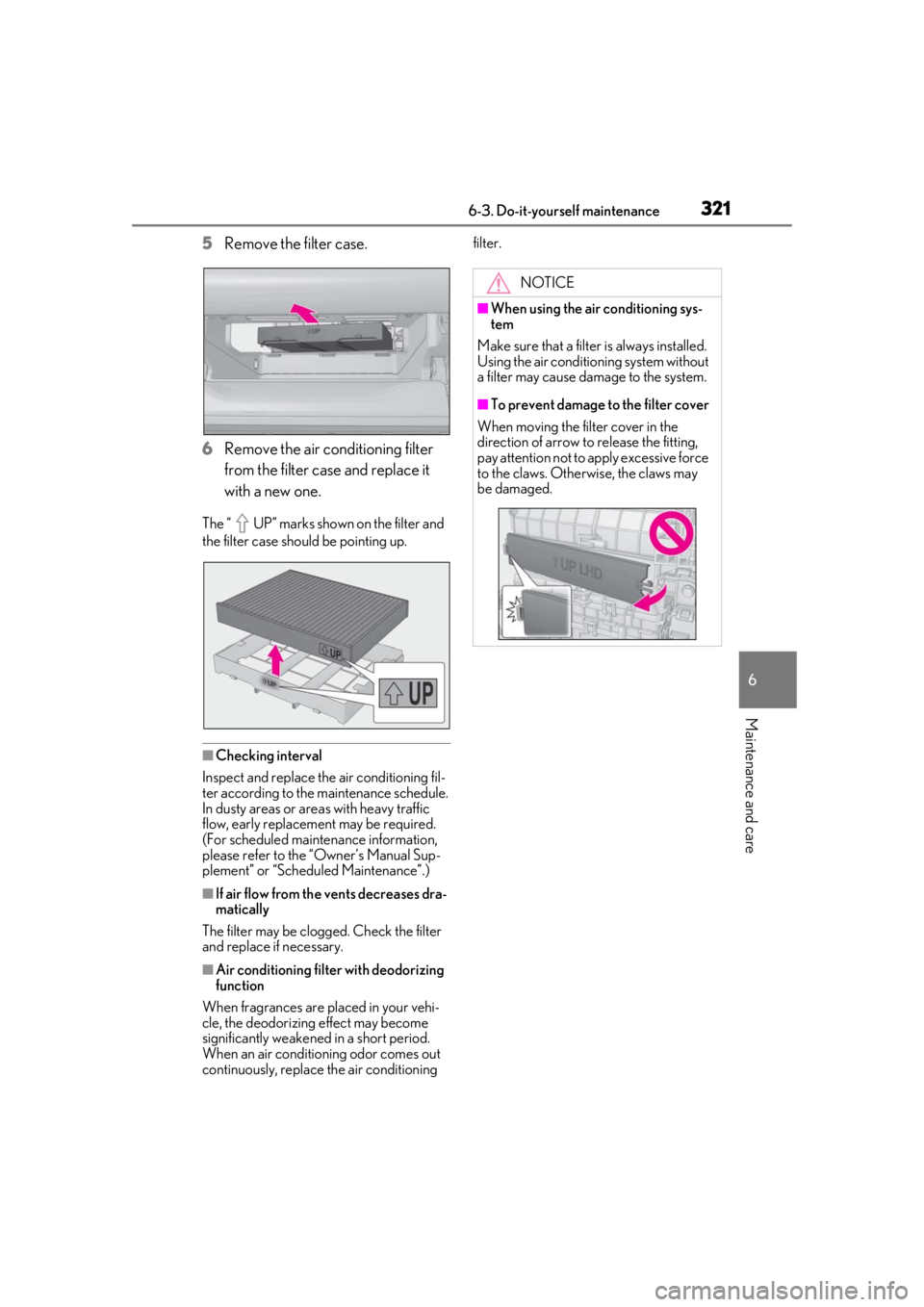

5Remove the filter case.
6 Remove the air conditioning filter
from the filter case and replace it
with a new one.
The “ UP” marks shown on the filter and
the filter case shou ld be pointing up.
■Checking interval
Inspect and replace the air conditioning fil-
ter according to the maintenance schedule.
In dusty areas or area s with heavy traffic
flow, early replacement may be required.
(For scheduled mainte nance information,
please refer to the “Owner’s Manual Sup-
plement” or “Scheduled Maintenance”.)
■If air flow from th e vents decreases dra-
matically
The filter may be clogged. Check the filter
and replace if necessary.
■Air conditioning filter with deodorizing
function
When fragrances are placed in your vehi-
cle, the deodorizing effect may become
significantly weakened in a short period.
When an air conditioning odor comes out
continuously, replace the air conditioning filter.
NOTICE
■When using the air conditioning sys-
tem
Make sure that a filter is always installed.
Using the air conditioning system without
a filter may cause damage to the system.
■To prevent damage to the filter cover
When moving the filter cover in the
direction of arrow to release the fitting,
pay attention not to apply excessive force
to the claws. Otherwise, the claws may
be damaged.

3226-3. Do-it-yourself maintenance
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart access syst em with push-but-
ton start and wireless remote control will
not function properly.
●The operational rang e will be reduced.
■When the card key battery needs to be
replaced (if equipped)
The battery for th e card key is available only
at Lexus dealers. Your Lexus dealer can
replace the battery for you.
Prepare the following before replacing
the battery:
 Flathead screwdriver
 Small flathead screwdriver
 Lithium battery CR2032
■Use a CR2032 lithium battery
●Batteries can be purchased at your Lexus
dealer, local electrical appliance shops or
camera stores.
●Replace only with the same or equivalent
type recommended by the manufacturer.
●Dispose of used batteries according to
the local laws.
1 Take out the mechanical key.
2 Remove the cover.
To prevent damage to the key, wrap the tip
of the screwdri ver with tape.
3Remove the depleted battery using
a small flathead screwdriver.
Insert a new battery with the “+” terminal
facing up.

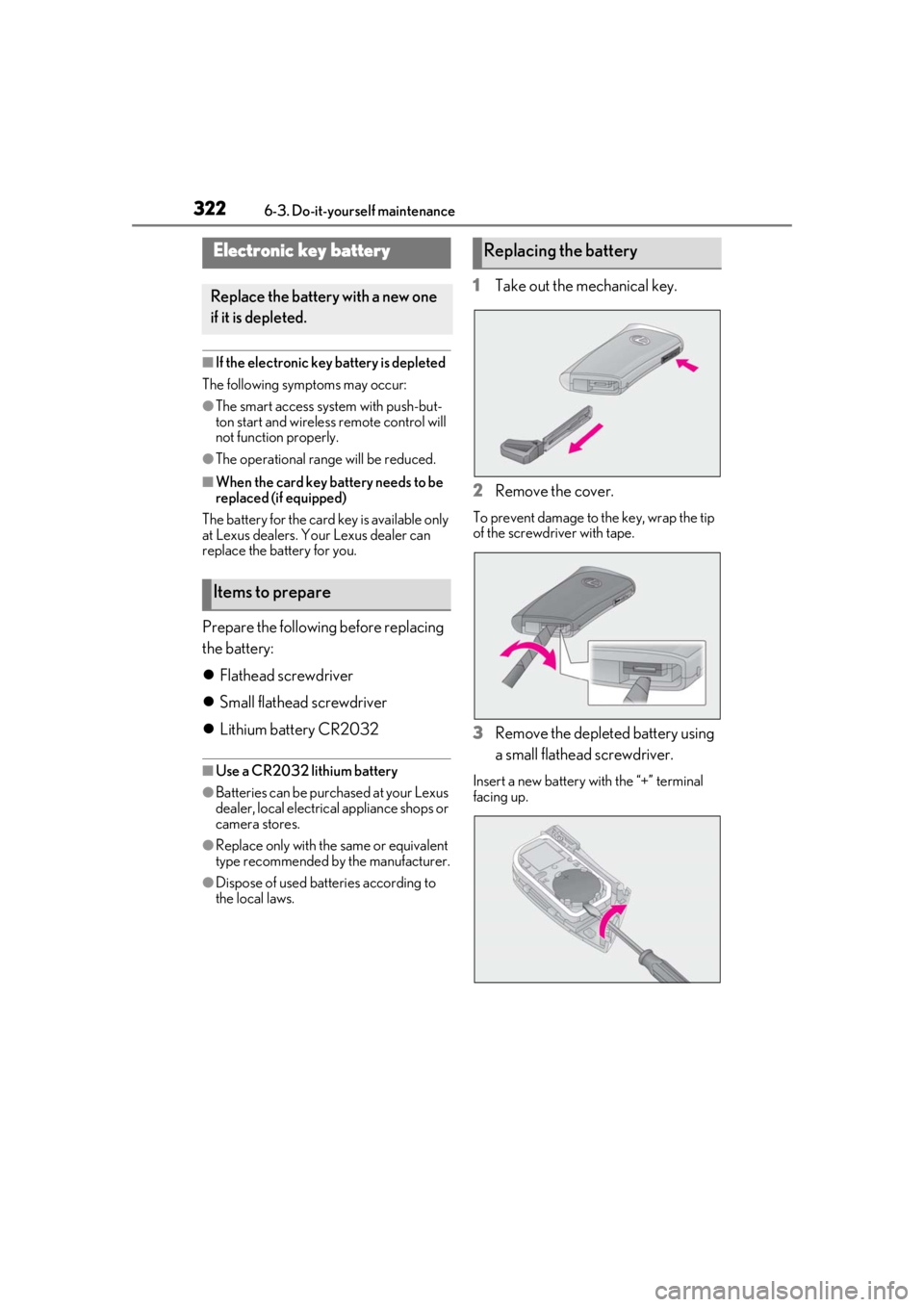

Electronic key battery
Replace the battery with a new one
if it is depleted.
Items to prepare
Replacing the battery

3236-3. Do-it-yourself maintenance
6
Maintenance and care
1Turn the engine switch switch> off.
2 Open the Fuse box cover.
Engine compartment: type A fuse
box (LC500)
Push the tab in and lift the lid off.
Engine compartment: type B fuse
box (LC500h)
Push the tab in and lift the lid off.
WARNING
■Removed battery and other parts
These parts are small and if swallowed by
a child, they can cause choking. Keep
away from children. Failure to do so
could result in death or serious injury.
NOTICE
■When replacing the battery
Use a screwdriver of appropriate size.
Applying excessive force may deform or
damage the cover.
■For normal operation after replacing
the battery
Observe the following precautions to
prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to
rust.
●Do not touch or move any other com-
ponent inside the remote control.
●Do not bend either of the battery ter-
minals.

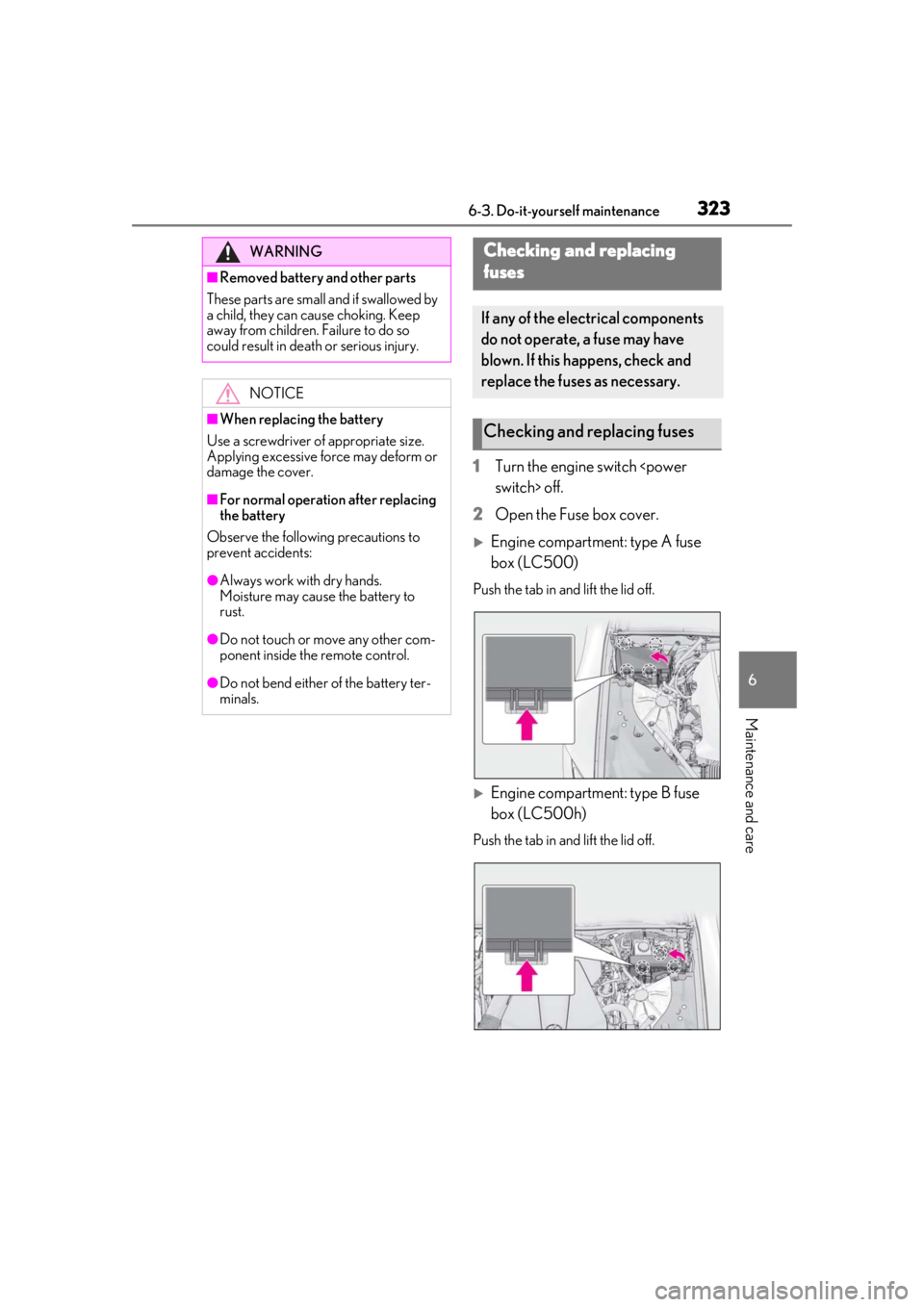

Checking and replacing
fuses
If any of the electrical components
do not operate, a fuse may have
blown. If this happens, check and
replace the fuses as necessary.
Checking and replacing fuses

3246-3. Do-it-yourself maintenance

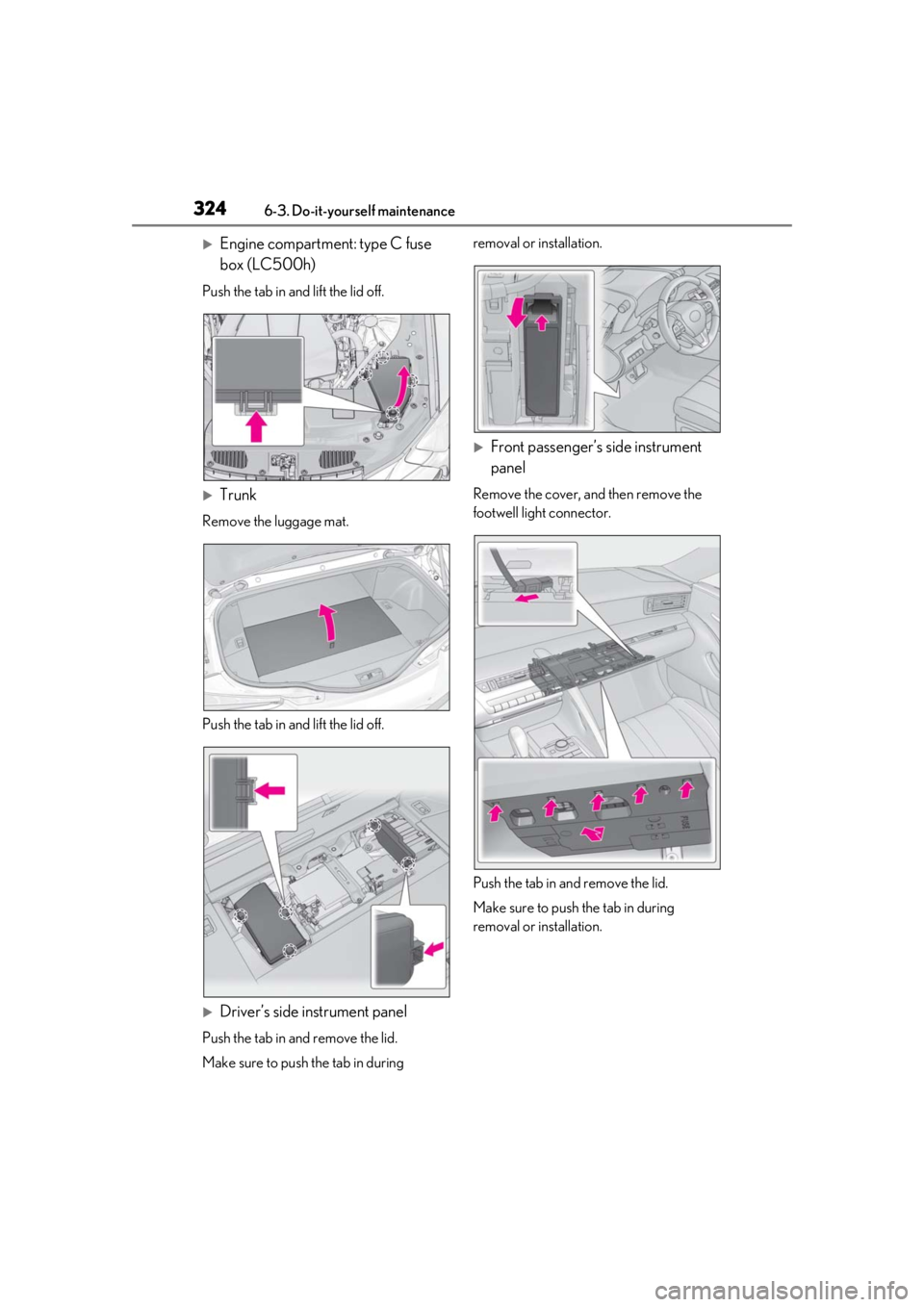

Engine compartment: type C fuse
box (LC500h)
Push the tab in and lift the lid off.
Trunk
Remove the luggage mat.
Push the tab in and lift the lid off.
Driver’s side instrument panel
Push the tab in and remove the lid.
Make sure to push the tab in during removal or installation.
Front passenger’s side instrument
panel
Remove the cover, and then remove the
footwell light connector.
Push the tab in and remove the lid.
Make sure to push the tab in during
removal or installation.

3256-3. Do-it-yourself maintenance
6
Maintenance and care

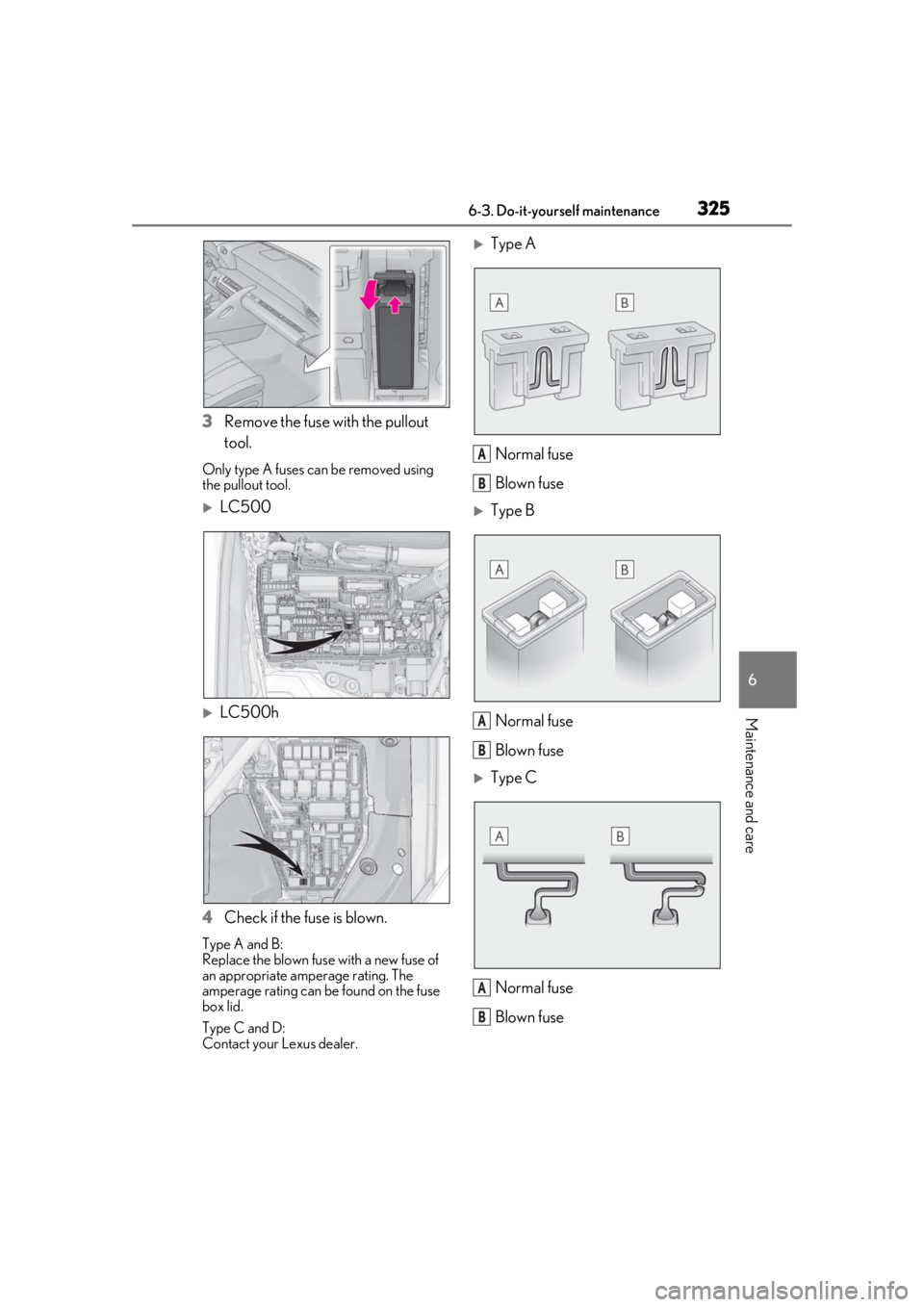

3Remove the fuse with the pullout
tool.
Only type A fuses can be removed using
the pullout tool.
LC500
LC500h
4 Check if the fuse is blown.
Type A and B:
Replace the blown fuse with a new fuse of
an appropriate amperage rating. The
amperage rating can be found on the fuse
box lid.
Type C and D:
Contact your Lexus dealer.

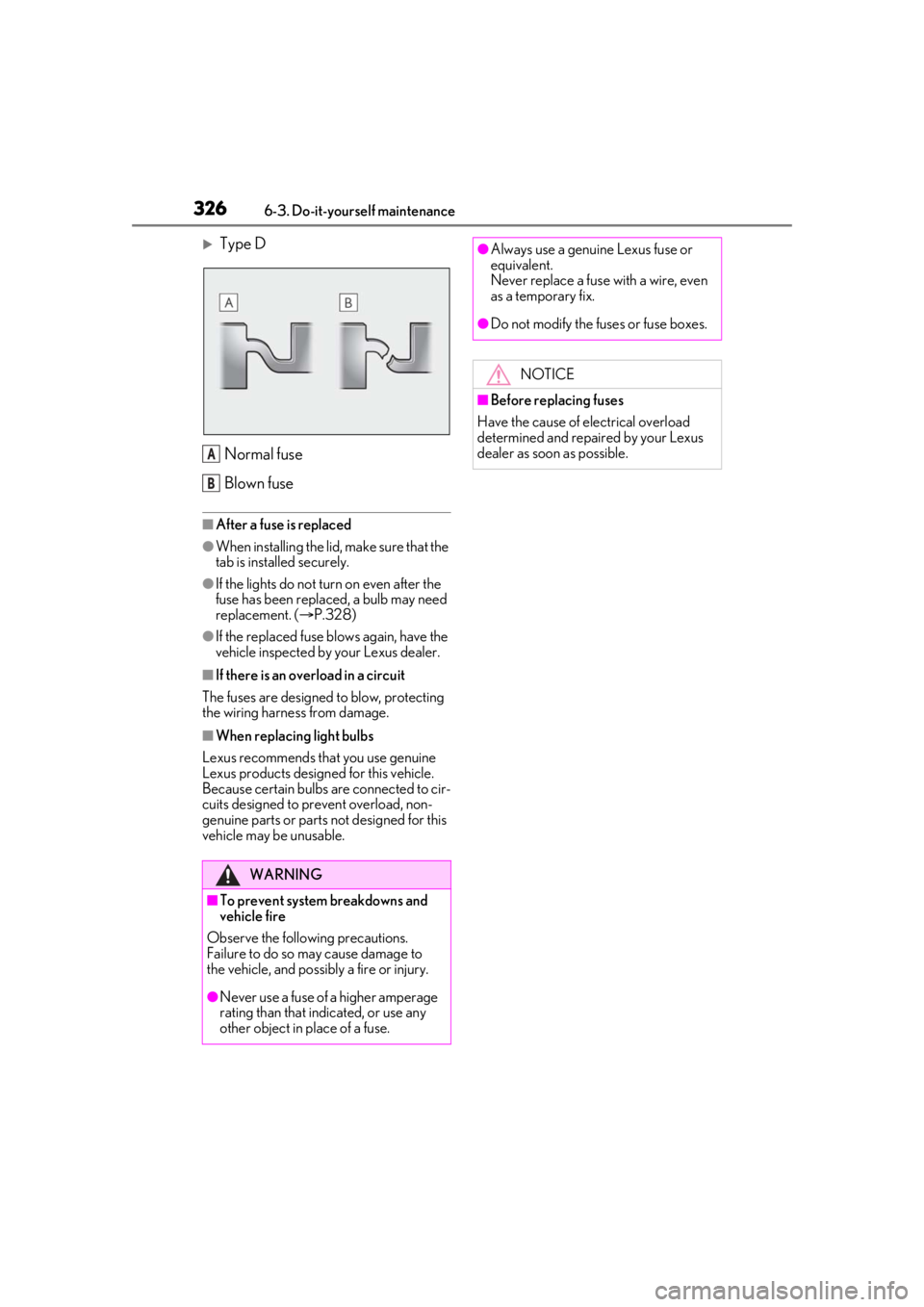

Type A
Normal fuse
Blown fuse
Type BNormal fuse
Blown fuse
Type CNormal fuse
Blown fuse
A
B
A
B
A
B

3266-3. Do-it-yourself maintenance
Type DNormal fuse
Blown fuse
■After a fuse is replaced
●When installing the lid, make sure that the
tab is installed securely.
●If the lights do not turn on even after the
fuse has been replaced, a bulb may need
replacement. ( P.328)
●If the replaced fuse blows again, have the
vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting
the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine
Lexus products designed for this vehicle.
Because certain bulbs are connected to cir-
cuits designed to prevent overload, non-
genuine parts or parts not designed for this
vehicle may be unusable.
WARNING
■To prevent system breakdowns and
vehicle fire
Observe the following precautions.
Failure to do so may cause damage to
the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage
rating than that indicated, or use any
other object in place of a fuse.
A
B
●Always use a genuine Lexus fuse or
equivalent.
Never replace a fuse with a wire, even
as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload
determined and repaired by your Lexus
dealer as soon as possible.

3276-3. Do-it-yourself maintenance
6
Maintenance and care
Adjustment bolt A
Adjustment bolt B
 Make sure the vehicle has a full tank
of gasoline and the area around the
headlight is not deformed.
 Park the vehicle on level ground.
 Make sure the tire inflation pressure
is at the specified level.
 Have someone sit in the driver’s
seat.
 Bounce the vehicle several times. 1
Using a Phillips-head screwdriver,
turn bolt A in either direction.
2 Turn bolt B in either direction as
step 1.
If the headlight cannot be adjusted using
this procedure, take the vehicle to your
Lexus dealer to adjust the headlight aim.

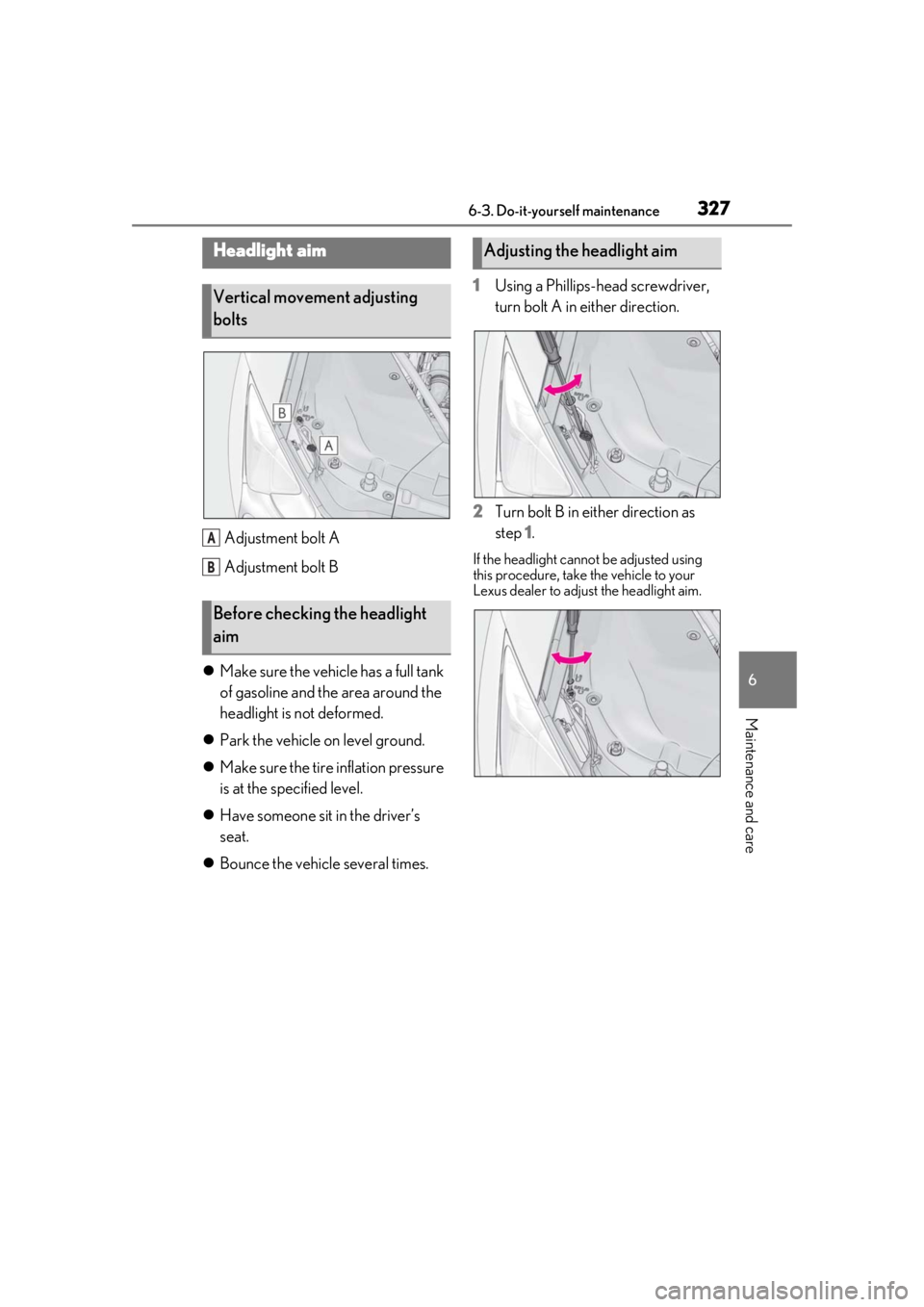

Headlight aim
Vertical movement adjusting
bolts
Before checking the headlight
aim
A
B
Adjusting the headlight aim

3286-3. Do-it-yourself maintenance
■LED lights
The following lights consist of a number of
LEDs. If any of the LEDs burn out, take your
vehicle to your Lexus dealer to have the
light replaced.
●Headlights
●Parking lights and daytime running lights
●Front side marker lights
●Front turn signal lights
●Cornering lights
●Side turn signal lights
●Tail lights
●Stop lights
●Rear side marker lights
●Rear turn signal lights
●Back-up lights
●High mounted stoplight
●License plate lights
■Condensation build-up on the inside of
the lens
Temporary condensation build-up on the
inside of the headlight lens does not indi-
cate a malfunction. Contact your Lexus
dealer for more information in the following
situations:
●Large drops of water ha ve built up on the
inside of the lens.
●Water has built up inside the headlight.
Light bulbs
If any lights burn out, have it
replaced by your Lexus dealer.
WARNING
■Handling lights
Do not touch the lights while they are on
or immediately after they have been
turned off. Doing so may result in burns.

329
7
7
When trouble arises
When trouble arises
7-1. Essential informationEmergency flashers.................. 330
If your vehicle has to be stopped in an emergency .......................... 330
If the vehicle is trapped in rising water............................................. 331
7-2. Steps to take in an emergency If your vehicle needs to be towed........................................................ 333
If you think something is wrong ........................................................ 337
Fuel pump shut off system (LC500).................................... 338
If a warning light turns on or a warning buzzer sounds ....... 339
If a warning message is displayed ........................................................ 348
If you have a flat tire.................. 354
If the engine will not start (LC500).................................... 355
If the hybrid system will not start (LC500h) ................................. 356
If you lose your keys ................. 358
If the fuel filler door cannot be opened........................................ 358
If the electronic key does not operate properly .................... 359
If the 12-volt battery is discharged ......................................................... 361
If your vehicle overheats (LC500).................................... 368If your vehicle overheats
(LC500h)................................. 370
If the vehicle becomes stuck 374

3307-1. Essential information
7-1.Essential information
Press the switch to flash all of the turn
signal lights.
To turn them off, press the switch once
again.
■Emergency flashers
LC500: If the emergency flashers are used
for a long time while the engine is not run-
ning, the 12-volt battery may discharge.
LC500h: If the emergency flashers are
used for a long time while the hybrid system
is not operating (while the “READY” indica-
tor is not illuminated), the 12-volt battery
may discharge.
1 Steadily step on the brake pedal
with both feet and firmly depress it.
Do not pump the brake pedal repeatedly
as this will increase the effort required to
slow the vehicle.
2Shift the shift position to N.
If the shift position is shifted to N
3 After slowing down, stop the vehi-
cle in a safe place by the road.
4 Stop the engine .
If the shift position cannot be shifted
to N
3 Keep depressing the brake pedal
with both feet to reduce vehicle
speed as much as possible.
4 To stop the engine ,
press and hold the engine switch
for 2 consecutive

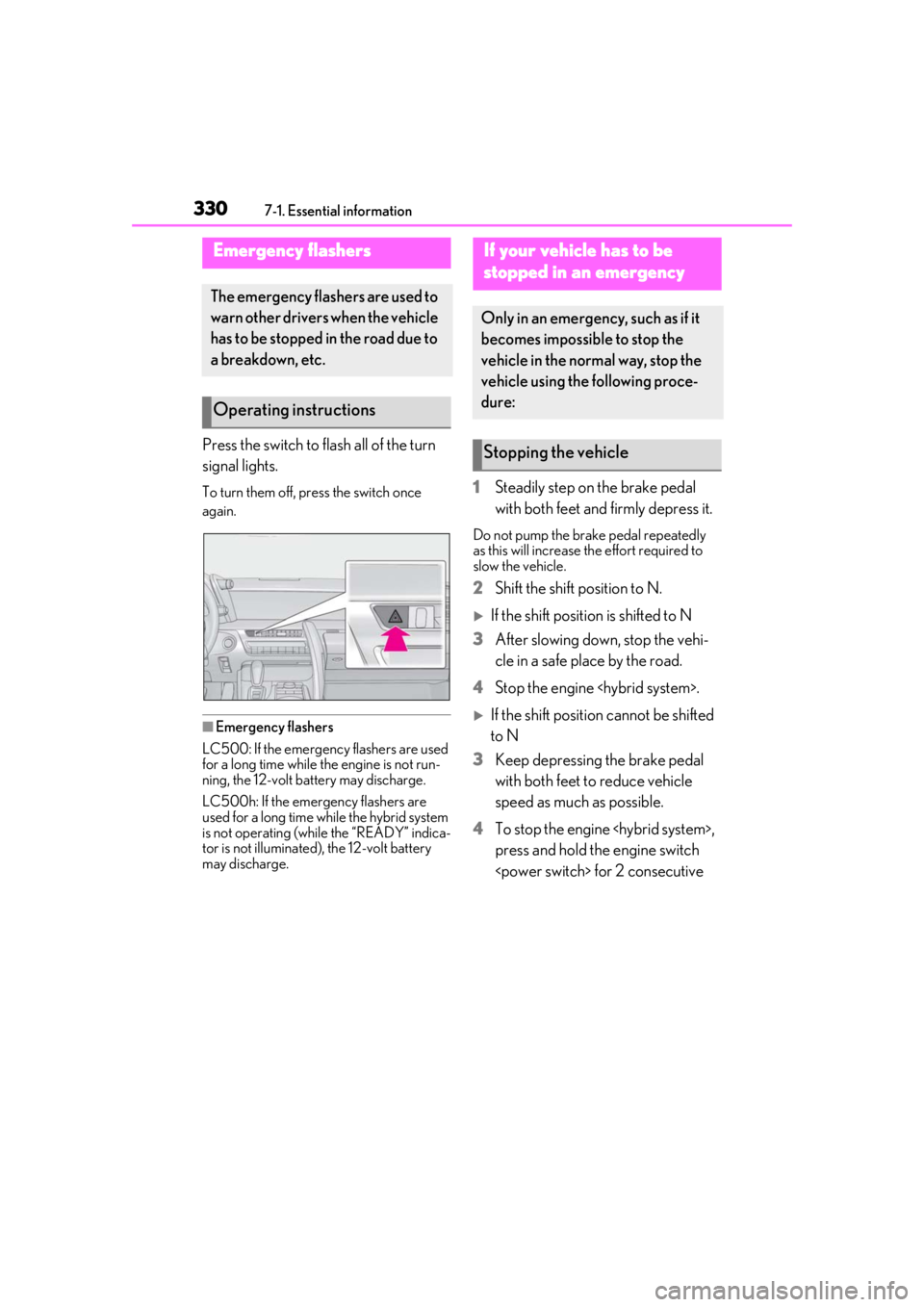

Emergency flashers
The emergency flashers are used to
warn other drivers when the vehicle
has to be stopped in the road due to
a breakdown, etc.
Operating instructions
If your vehicle has to be
stopped in an emergency
Only in an emergency, such as if it
becomes impossible to stop the
vehicle in the normal way, stop the
vehicle using the following proce-
dure:
Stopping the vehicle
