3417-2. Steps to take in an emergency
7
When trouble arises
■PCS warning light (warning buzzer)
■LKA (Lane-Keeping Assist) indicator*
*: This light illuminates on the multi-information display.
■Slip indicator
Warning lightDetails/Actions
(Flashes or illumi-nates)
Indicates a malfunction in the PCS (P re-Collision System) or that the
system is temporarily unavailable due to the vehicle being extremely
hot/cold, or dirt around a front sensor, etc. (  P.198, 348)
 Follow the instructions displayed on the multi-information display.
(  P.198, 348)
If the PCS (Pre-Collision System) or VSC (Vehicle Stability Control)
system is disabled, the PCS warning light will illuminate.
 P.236
Warning lightDetails/Actions
(orange)
Indicates a malfunction in th e LKA (Lane-Keeping Assist)
 When “Lane Keeping Assist Unavailable” is displayed on the multi-
information display, turn the LK A (Lane-Keeping Assist) system
off, drive the vehicle for a short time, and then turn the LKA (Lane-
Keeping Assist) system back on. ( P.201)
When a message other than above is displayed, follow the instruc-
tions displayed in the message.
Warning lightDetails/Actions
Indicates a malfunction in:
 The VSC (Vehicle Stability Control) system;
 The TRAC (Traction Control) system; or
 The hill-start assist control system
The light will flash when the VSC, TRAC or ABS system is operating.
 Have the vehicle inspected by your Lexus dealer immediately.

3427-2. Steps to take in an emergency
■Brake Override System warning light/Drive-Start Control warning light
(warning buzzer)*
*: This light illuminates on the multi-information display.
■Brake hold operated indicator
■Parking brake indicator
Warning lightDetails/Actions
When the warning light flashes (and a buzzer sounds):
Indicates a malfunction in the Brake Override System or Drive-Start
Control
Have the vehicle inspected by your Lexus dealer immediately.
Indicates that the shift position wa s changed while depressing the accel-
erator pedal and Drive-Start Control was operated
 Momentarily release th e accelerator pedal.
When the warning light flashes (and a buzzer does not sound):
Indicates that the accelerator and brake pedals are being depressed
simultaneously
 Release the accelerator pedal and depress the brake pedal.
Warning lightDetails/Actions
(flashes)
Indicates a malfunction in the brake hold system
Have the vehicle inspected by your Lexus dealer.
Warning lightDetails/Actions
(flashes)
(U.S.A.) or
(flashes)
(Canada)
Indicates a malfunction in the parking brake system
 Have the vehicle inspected by your Lexus dealer immediately.

3437-2. Steps to take in an emergency
7
When trouble arises

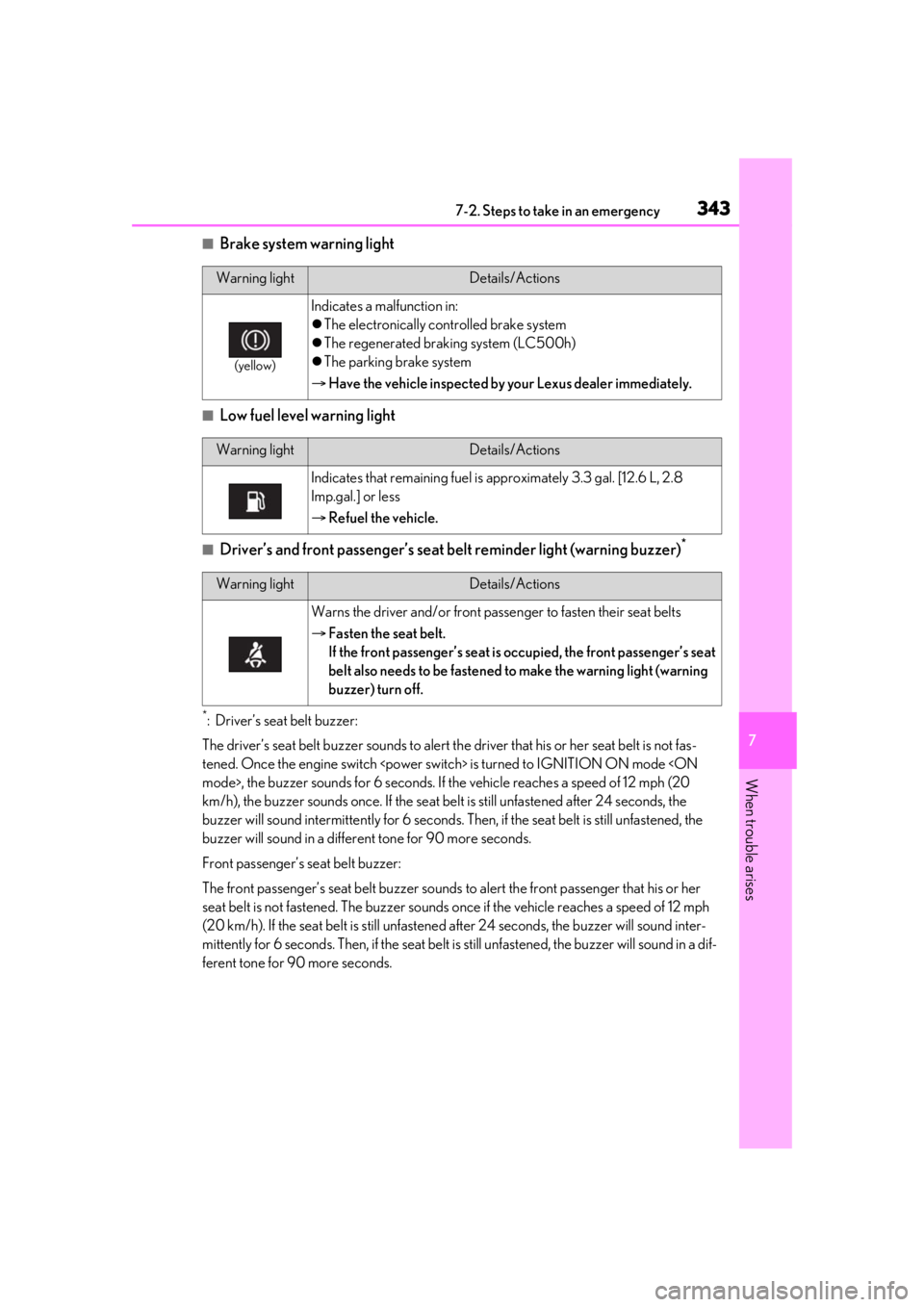

■Brake system warning light
■Low fuel level warning light
■Driver’s and front passenger’s seat belt reminder light (warning buzzer)*
*: Driver’s seat belt buzzer:
The driver’s seat belt buzzer sounds to alert th e driver that his or her seat belt is not fas-
tened. Once the engine switch is turned to IGNITION ON mode mode>, the buzzer sounds for 6 seconds. If the vehicle reaches a speed of 12 mph (20
km/h), the buzzer sounds once. If the seat belt is still unfastened afte r 24 seconds, the
buzzer will sound interm ittently for 6 seconds. Then, if the seat belt is still unfastened, the
buzzer will sound in a different tone for 90 more seconds.
Front passenger’s seat belt buzzer:
The front passenger’s seat belt buzzer sounds to alert the front passenger that his or her
seat belt is not fasten ed. The buzzer sounds once if the vehicle reaches a speed of 12 mph
(20 km/h). If the seat belt is still unfastened after 24 seconds, the buzzer will sound inter-
mittently for 6 seconds. Then, if the seat belt is still unfastened, the buzzer will sound in a dif-
ferent tone for 90 more seconds.
Warning lightDetails/Actions
(yellow)
Indicates a malfunction in:
 The electronically controlled brake system
 The regenerated braking system (LC500h)
 The parking brake system
 Have the vehicle inspected by your Lexus dealer immediately.
Warning lightDetails/Actions
Indicates that remaining fuel is approximately 3.3 gal. [12.6 L, 2.8
Imp.gal.] or less
 Refuel the vehicle.
Warning lightDetails/Actions
Warns the driver and/or front passe nger to fasten their seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s seat
belt also needs to be fastened to make the warning light (warning
buzzer) turn off.

3447-2. Steps to take in an emergency

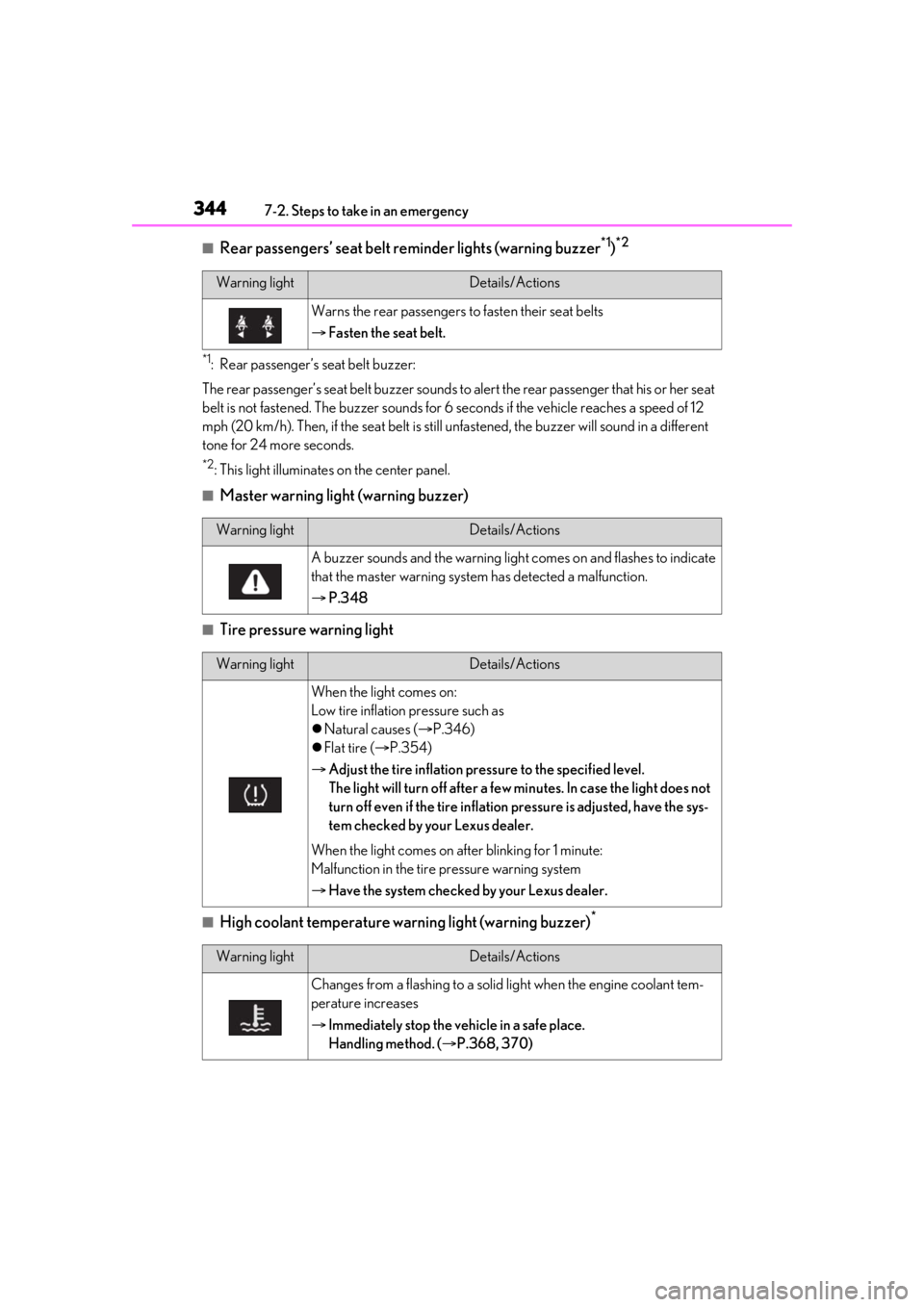

■Rear passengers’ seat belt reminder lights (warning buzzer*1)*2
*1: Rear passenger’s seat belt buzzer:
The rear passenger’s seat belt buzzer sounds to alert the rear passenger that his or her seat
belt is not fastened. The buzzer sounds for 6 seconds if the vehicle reaches a speed of 12
mph (20 km/h). Then, if the seat belt is still un fastened, the buzzer will sound in a different
tone for 24 more seconds.
*2: This light illuminates on the center panel.
■Master warning light (warning buzzer)
■Tire pressure warning light
■High coolant temperature warning light (warning buzzer)*
Warning lightDetails/Actions
Warns the rear passengers to fasten their seat belts
 Fasten the seat belt.
Warning lightDetails/Actions
A buzzer sounds and the warning ligh t comes on and flashes to indicate
that the master warning system has detected a malfunction.
 P.348
Warning lightDetails/Actions
When the light comes on:
Low tire inflation pressure such as
Natural causes ( P.346)
 Flat tire ( P.354)
 Adjust the tire inflation pressure to the specified level.
The light will turn off after a few mi nutes. In case the light does not
turn off even if the tire inflation pressure is adjusted, have the sys-
tem checked by your Lexus dealer.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
 Have the system checked by your Lexus dealer.
Warning lightDetails/Actions
Changes from a flashing to a solid light when the engine coolant tem-
perature increases
Immediately stop the vehicle in a safe place.
Handling method. ( P.368, 370)

3457-2. Steps to take in an emergency
7
When trouble arises
*: This light illuminates on the multi-information display.
■Hybrid system overheat warning light (warning buzzer)* (LC500h)
*: This light illuminates on the multi-information display.
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact sensors, side
impact sensors (door), side impa ct sensors (front), side impact sensors (rear), driver’s seat
position sensor, driver’s seat belt buckle switch, front passeng er occupant classification sys-
tem (ECU and sensors), “AIR BAG ON” indicat or light, “AIR BAG OFF” indicator light,
front passenger’s seat be lt buckle switch, seat belt preten sioners, airbags, interconnecting
wiring and power sources. ( P.29)
■Front passenger detection sensor, seat belt reminder and warning buzzer
If luggage is placed on the front passenger seat, the front passenger detection sensor may
cause the warning light to flash and the warning buzzer to sound even if a passenger is not
sitting in the seat.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off af ter several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon as pos-
sible.
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage temporarily drops, the
electric power steering syst em warning light may come on and the warning buzzer may
sound.
■Tire pressure warning light
When a malfunction occurs in the tire pressure warning system, the tire pressure warning
light blinks to warn the driver . However, if the warning light blinks for 1 minute, and then
remains illuminated, making it difficult to determine whether the warning light is blinking,
turn the engine switch from off to IGNITION ON mode and
check if the warning light blinks.
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire pres-
Warning lightDetails/Actions
Indicates that the hybrid system has overheated
This light may be displayed when dr iving under severe operating condi-
tions. (For example, when driving up a long steep hill.)
 Stop the vehicle in a safe place.
Handling method. ( P.371)

3467-2. Steps to take in an emergency
sure warning reset switch will not turn off the tire pressure warning light.
■The tire pressure warning light may come on due to natural causes
The tire pressure warnin g light may come on due to natural causes such as natural air leaks
and tire inflation pressure chan ges caused by temperature. In this case, adjusting the tire
inflation pressure will turn off the warning light (after a few minutes).
■Conditions that the tire pressure wa rning system may not function properly
 P.308
■If the tire pressure warning light freque ntly comes on after blinking for 1 minute
If the tire pressure warning lig ht frequently comes on after blinking for 1 minute when the
engine switch is turned to IGNITION ON mode , have it
checked by your Lexus dealer.
■Warning buzzer
In some cases, the buzzer may not be heard du e to being in a noisy location or audio sound.
■Customization
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features:  P.395)
WARNING
■If both the ABS and the brake sy stem warning lights remain on
Stop your vehicle in a safe place immediately and contact your Lexus dealer. The vehicle
will become extremely unstable during brakin g, and the ABS system may fail, which could
cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
When the light comes on in yellow, the assist to the power steering is restricted. When the
light comes on red, the assist to the power steering is lost and handling operations of the
steering wheel become extremely heavy. When steering wheel operations are heavier
than usual, grip the steering wheel firmly and operate it using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a loss of vehi-
cle control and result in death or serious injury.
●Decelerate to the lowest appr opriate speed as soon as possible. Do not drive over 50
mph (80 km/h).
●Check and adjust the tire in flation pressure immediately.
●If the tire pressure warning lig ht comes on even after tire inflation pressure adjustment,
it is probable that you have a flat tire. Have the flat tire replaced by the nearest Lexus
dealer.
●Avoid abrupt maneuvering and braking. If th e vehicle tires deteriorate, you could lose
control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

3477-2. Steps to take in an emergency
7
When trouble arises
WARNING
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recommended by the vehicle manufacturer on the vehi-
cle placard or tire inflation pr essure label (tire and load info rmation label). (If your vehicle
has tires of a different size th an the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine the proper tire
inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure monitor-
ing system (TPMS-tire pressure warning system) that illuminates a low tire pressure tell-
tale (tire pressure warning light) when one or more of your tires is significantly under-
inflated. Accordingly, when the low tire pressu re telltale (tire pressure warning light) illu-
minates, you should stop and check your tires as soon as possible, and inflate them to the
proper pressure. Driving on a si gnificantly under-inflated tire causes the tire to overheat
and can lead to tire failure. Under-inflation al so reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for proper
tire maintenance, and it is the driver’s respon sibility to maintain correct tire pressure, even
if under-inflation has not reac hed the level to trigger illumina tion of the TPMS low tire
pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS (tire
pressure warning system) malfunction indicator is combined with the low tire pressure
telltale (tire pressure warning light). When the system detect s a malfunction, the telltale
will flash for approximately one minute and th en remain continuously illuminated. This
sequence will continue upon subsequent vehi cle start-ups as long as the malfunction
exists. When the malfunction in dicator is illuminated, the system may not be able to
detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a variety of reasons,
including the installation of re placement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning sy stem) from functioning properly. Always
check the TPMS (tire pressure warning system ) malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensu re that the replacement or alternate tires and
wheels allow the TPMS (tire pr essure warning system) to cont inue to function properly.
NOTICE
■To ensure the tire pressure warning system operates properly
Do not install tires with differ ent specifications or makers, as the tire pressure warning
system may not operate properly.

3487-2. Steps to take in an emergency

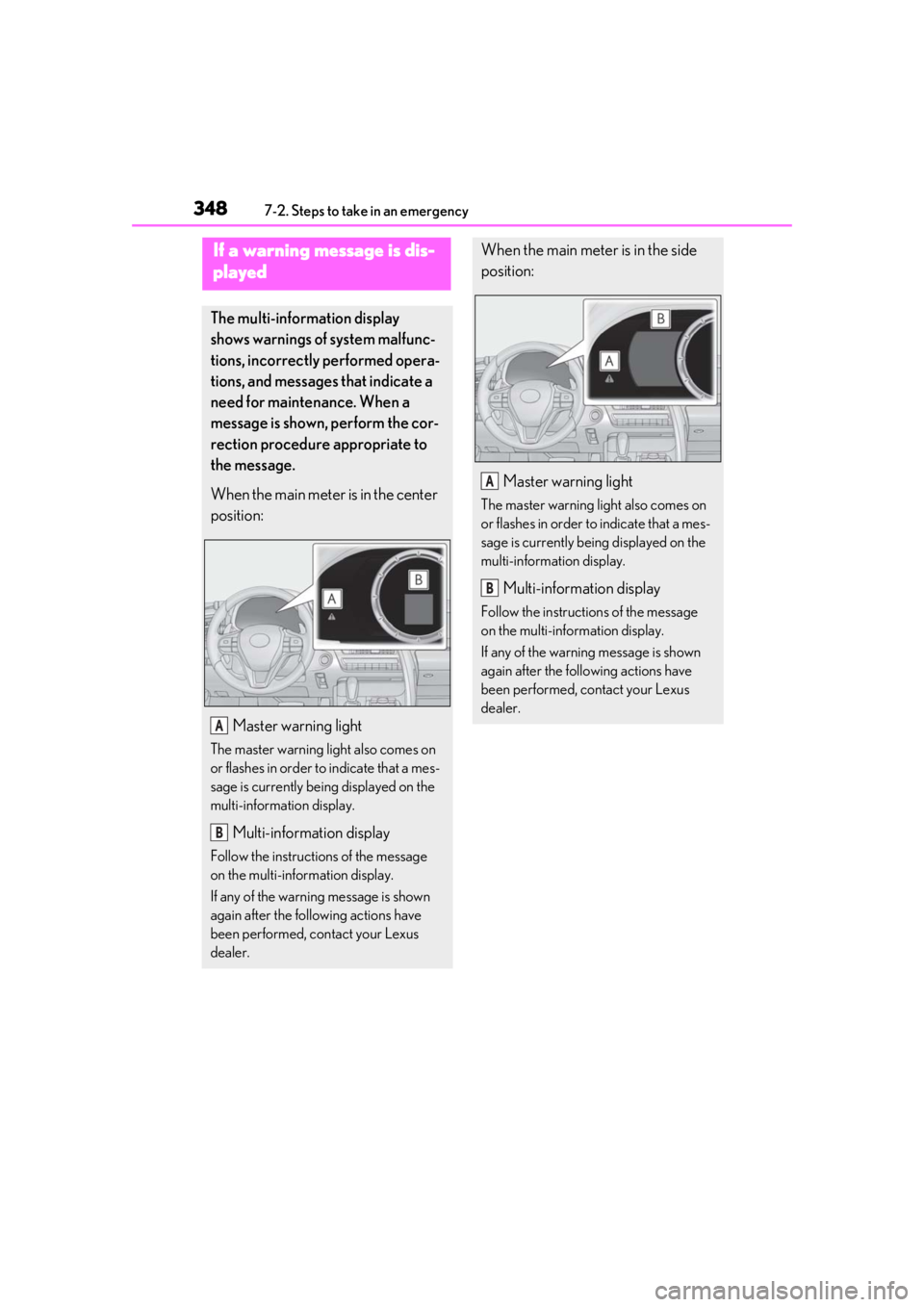

If a warning message is dis-
played
The multi-information display
shows warnings of system malfunc-
tions, incorrectly performed opera-
tions, and messages that indicate a
need for maintenance. When a
message is shown, perform the cor-
rection procedure appropriate to
the message.
When the main meter is in the center
position:Master warning light
The master warning light also comes on
or flashes in order to indicate that a mes-
sage is currently being displayed on the
multi-information display.
Multi-information display
Follow the instructions of the message
on the multi-information display.
If any of the warnin g message is shown
again after the following actions have
been performed, contact your Lexus
dealer.
A
B
When the main meter is in the side
position:
Master warning light
The master warning light also comes on
or flashes in order to indicate that a mes-
sage is currently be ing displayed on the
multi-information display.
Multi-information display
Follow the instructions of the message
on the multi-information display.
If any of the warning message is shown
again after the following actions have
been performed, contact your Lexus
dealer.
A
B

3497-2. Steps to take in an emergency
7
When trouble arises
The warning lights and warning buzzers operate as follows depending on the con-
tent of the message. If a message indicates the need for inspection by a dealer, have
the vehicle inspected by your Lexus dealer immediately.
*: A buzzer sounds the first time a message is shown on the multi-information display.
■Warning messages
The warning messages explained below may differ from the actual messages according to
operation conditions and vehicle specifications.
■System warning lights
The master warning light does not come on or flash in the following cases. Instead, a sepa-
rate system warning light will come on along with a message or image shown on the multi-
information display.
●Malfunction in the ABS
The ABS warning light comes on. ( P.340)
●Malfunction in the charging system
The charging system warning light comes on. ( P.339)
●Malfunction in the brake system
The brake system warning light comes on. ( P.339)
Messages and warnings
System warn-
ing lightWarning
buzzer
*Warning
Comes onComes onSoundsIndicates an important situation, such as
when a system related to driving is malfunc-
tioning or that danger may result if the cor-
rection procedure is not performed
Comes onSounds
Comes on or flashesSounds
Indicates an important situation, such as
when the systems shown on the multi-infor-
mation display may be malfunctioning
FlashesSoundsIndicates a situation, such as when damage
to the vehicle or danger may result
Comes onDoes not soundIndicates a condition, such as malfunction of
electrical components, their condition, or
indicates the need for maintenance
FlashesDoes not sound
Indicates a situation, such as when an oper-
ation has been performed incorrectly, or
indicates how to perform an operation cor-
rectly

3507-2. Steps to take in an emergency
●Malfunction in the EPS (Electric Power Steering) system
The electric power steering sy stem warning light comes on. ( P.340)
●Malfunction in the tire pressure warning system
The tire pressure warn ing light comes on. ( P.344)
●Remaining fuel level is low
The low fuel level warning light comes on. ( P.343)
■If “Hybrid System Overheated Reduce d Output Power” is shown (LC500h)
This message may be displayed when driving under severe operating conditions. (For exam-
ple, when driving up a long steep hill.) Stop and check. ( P.370)
■If “Traction Battery Needs to be Protected Re frain from the Use of N Position” is shown
(LC500h)
This message may be displayed wh en the shift position is in N.
As the hybrid battery (traction battery) cannot be charged when the shift position is in N,
shift the shift position to P when the vehicle is stopped.
■If “Traction Battery needs to be Protected Shift into P to Restart” is shown (LC500h)
This message is displayed when the hybrid ba ttery (traction battery) charge has become
extremely low because the vehicle has been left with the N shift position selected for a cer-
tain amount of time.
When operating the vehicle, shift to P and restart the hybrid system.
■If “Shift to P Before Exiting Vehicle” is shown
The driver’s door is opened without turning the engine switch to off with the
shift lever in any position other than P. Shift the shift position to P.
■If “Shift Is in N Release Accelerator Before Shifting” is shown
The accelerator pedal has been depressed when th e shift position is in N. Release the accel-
erator pedal and shift the shift position to D or R.
■If “Depress Brake when Vehicle Is Stoppe d Hybrid System May Overheat” is shown
(LC500h)
The message may be displayed when the accelerator pedal is depressed to hold the vehicle
while the vehicle is stopped on an uphill etc. The hybrid system may overheat. Release the
accelerator pedal and de press the brake pedal.
■If “Shift system malfunction Driving unavailable” is shown
There is a malfunction in the shift control system. Have the vehicle inspected by your Lexus
dealer immediately.
■If “Auto Power Off to Conserve Battery” is shown
LC500:
Power was turned off due to the automatic power off function. Next time when starting the
engine, increase the engine speed slightly an d maintain that level for approximately 5 min-
utes to recharge the battery.
LC500h:
Power was turned off due to the automatic power off function. Next time when starting the
hybrid system, operate the hybrid system for approximately 5 minutes to recharge the 12-
volt battery.
