3717-2. Steps to take in an emergency
7
When trouble arises
3After the hybrid system has cooled
down sufficiently, inspect the hoses
and cooling system for leaks.
Radiator
Cooling fan
If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.
4The coolant level is satisfactory if it
is between the “F” and “L” lines on
the reservoir.
Reservoir
“F” line
“L” line
Coolant inlet cap
5 Add coolant if necessary.
Water can be used in an emergency if engine coolant is unavailable.
6
Start the hybrid system and turn the
air conditioning system on to check
that the radiator cooling fan oper-
ates and to check for coolant leaks
from the radiator or hoses.
The fan operates when the air conditioning
system is turned on immediately after a
cold start. Confirm that the fan is operating
by checking the fan sound and air flow. If it
is difficult to check these, turn the air con-
ditioning system on and off repeatedly.
(The fan may not oper ate in freezing tem-
peratures.)
7 If the fan is not operating:
Stop the hybrid system immediately
and contact your Lexus dealer.
If the fan is operating:
Have the vehicle inspected at the
nearest Lexus dealer.
If “Hybrid System Overheated
Reduced Output Power” is shown
on the multi-information display
1 Stop the vehicle in a safe place.
2 Stop the hybrid system and care-
fully lift the hood.
A
B
A
B
C
D

3727-2. Steps to take in an emergency
3After the hybrid system has cooled
down, inspect the hoses and radia-
tor core (radiator) for any leaks.
Radiator
Cooling fan
If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.
4The coolant level is satisfactory if it
is between the “F”/“FULL” and
“L”/“LOW” lines on the reservoir.
Reservoir
“F”/“FULL” line
“L”/“LOW” line
5 Add coolant if necessary.
Water can be used in an emergency if power control unit coolant is unavailable.
6
After stopping the hybrid system
and waiting for 5 minutes or more,
start the hybrid system again and
check if “Hybrid System Over-
heated Reduced Output Power” is
shown on the multi-information dis-
play.
If the message does not disappear:
Stop the hybrid system and contact your
Lexus dealer.
If the message is not displayed:
The hybrid system temperature has
dropped and the vehicle may be driven
normally.
However, if the message appears again fre-
quently, contact your Lexus dealer.
■When adding engine coolant
Add coolant in accordance with the follow-
ing procedure.
1 Remove the service cover.
2 Remove the engine cover.
A
B
A
B
C

3737-2. Steps to take in an emergency
7
When trouble arises

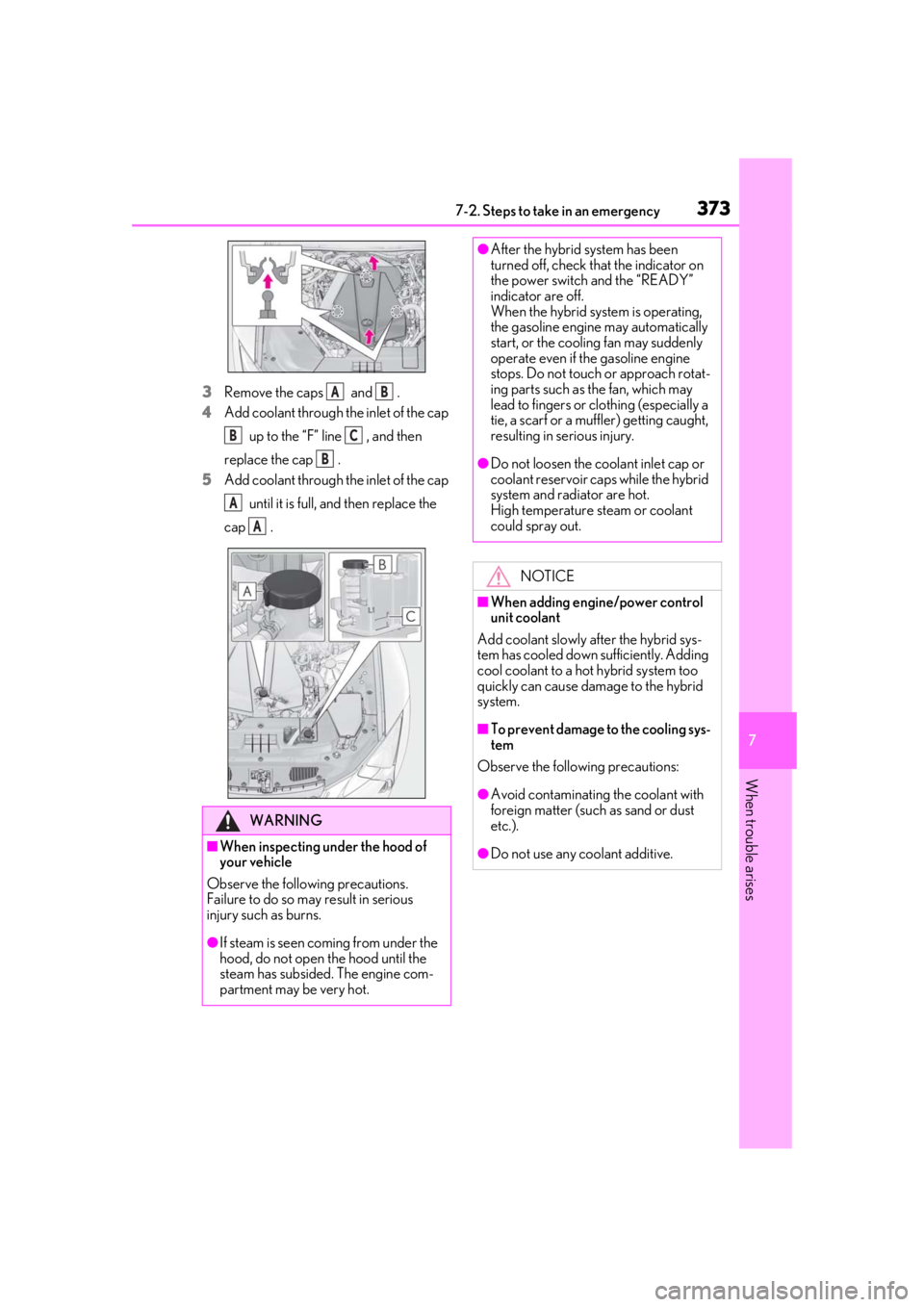

3Remove the caps and .
4 Add coolant through the inlet of the cap
up to the “F” line , and then
replace the cap .
5 Add coolant through the inlet of the cap
until it is full, and then replace the
cap .
WARNING
■When inspecting under the hood of
your vehicle
Observe the following precautions.
Failure to do so may result in serious
injury such as burns.
●If steam is seen coming from under the
hood, do not open the hood until the
steam has subsided. The engine com-
partment may be very hot.
AB
BC
B
A
A
●After the hybrid system has been
turned off, check that the indicator on
the power switch and the “READY”
indicator are off.
When the hybrid system is operating,
the gasoline engine may automatically
start, or the cooling fan may suddenly
operate even if the gasoline engine
stops. Do not touch or approach rotat-
ing parts such as the fan, which may
lead to fingers or clothing (especially a
tie, a scarf or a muffler) getting caught,
resulting in serious injury.
●Do not loosen the coolant inlet cap or
coolant reservoir caps while the hybrid
system and radiator are hot.
High temperature steam or coolant
could spray out.
NOTICE
■When adding engine/power control
unit coolant
Add coolant slowly after the hybrid sys-
tem has cooled down sufficiently. Adding
cool coolant to a hot hybrid system too
quickly can cause dama ge to the hybrid
system.
■To prevent damage to the cooling sys-
tem
Observe the following precautions:
●Avoid contaminating the coolant with
foreign matter (such as sand or dust
etc.).
●Do not use any coolant additive.

3747-2. Steps to take in an emergency
1Stop the engine .
Set the parking brake and shift the
shift position to P.
2 Remove the mud, snow or sand
from around the rear wheels.
3 Place wood, stones or some other
material under the rear wheels to
help provide traction.
4 Restart the engine .
5 Shift the shift position to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.
■When it is difficult to free the vehicle
Press the switch to turn off TRAC.

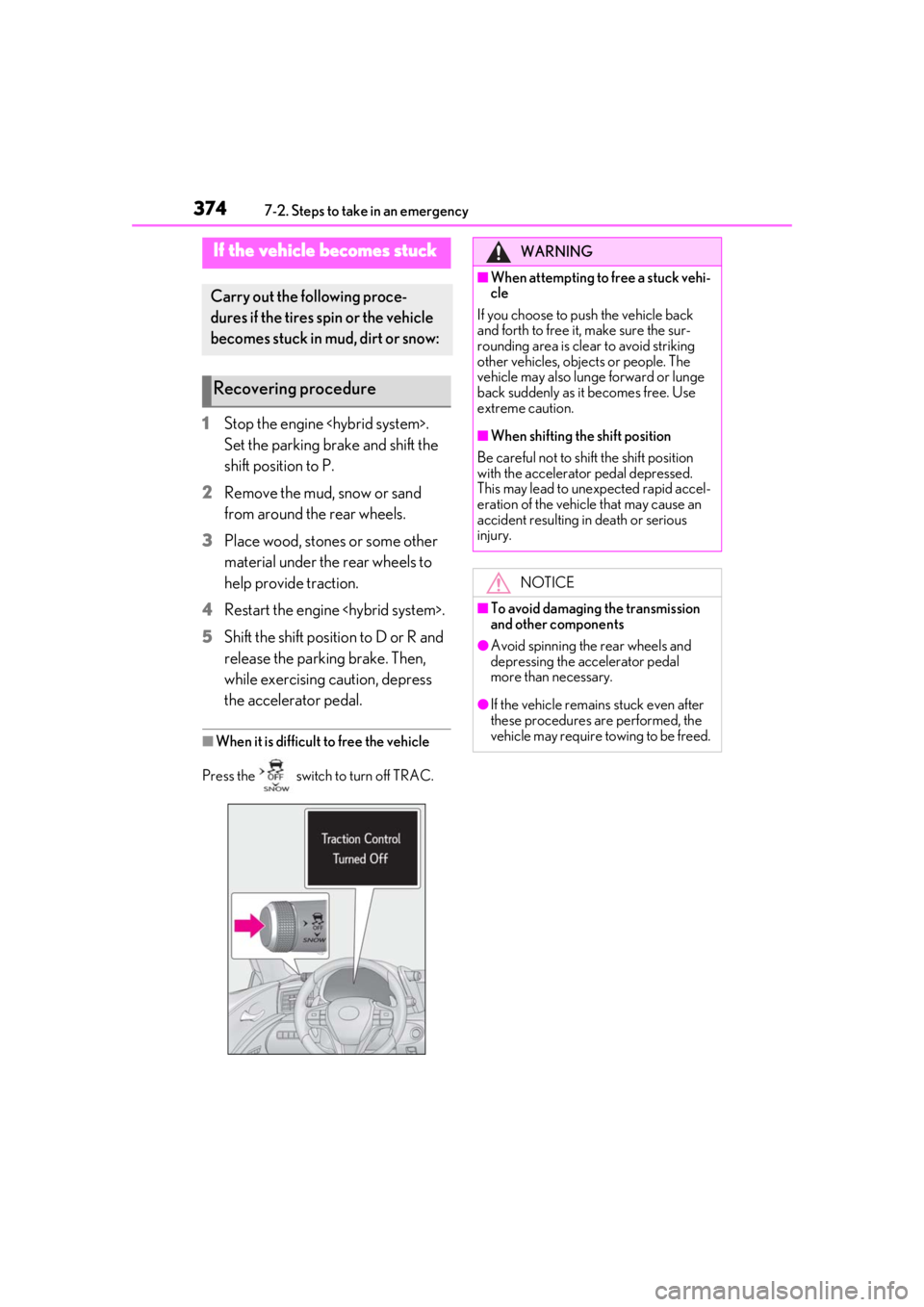

If the vehicle becomes stuck
Carry out the following proce-
dures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Recovering procedure
WARNING
■When attempting to free a stuck vehi-
cle
If you choose to push the vehicle back
and forth to free it, make sure the sur-
rounding area is clear to avoid striking
other vehicles, obje cts or people. The
vehicle may also lunge forward or lunge
back suddenly as it becomes free. Use
extreme caution.
■When shifting the shift position
Be careful not to shift the shift position
with the accelerator pedal depressed.
This may lead to un expected rapid accel-
eration of the vehicle that may cause an
accident resulting in death or serious
injury.
NOTICE
■To avoid damaging the transmission
and other components
●Avoid spinning the rear wheels and
depressing the accelerator pedal
more than necessary.
●If the vehicle remains stuck even after
these procedures are performed, the
vehicle may require towing to be freed.

375
8
8
Vehicle specifications
Vehicle specifications
8-1. SpecificationsMaintenance data (fuel, oil level, etc.) .............................................. 376
Fuel information ......................... 385
Tire information.......................... 387
8-2. Customization Customizable features............ 395
8-3. Items to initialize Items to initialize ........................ 407

3768-1. Specifications
8-1.Specifications
*:Unladen vehicle
■Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is stamped on the top left
of the instrument panel.
This number is also stamped under the
right-hand front seat. This number is also on the Certification
Label.
■Engine number
The engine number is located as
shown.

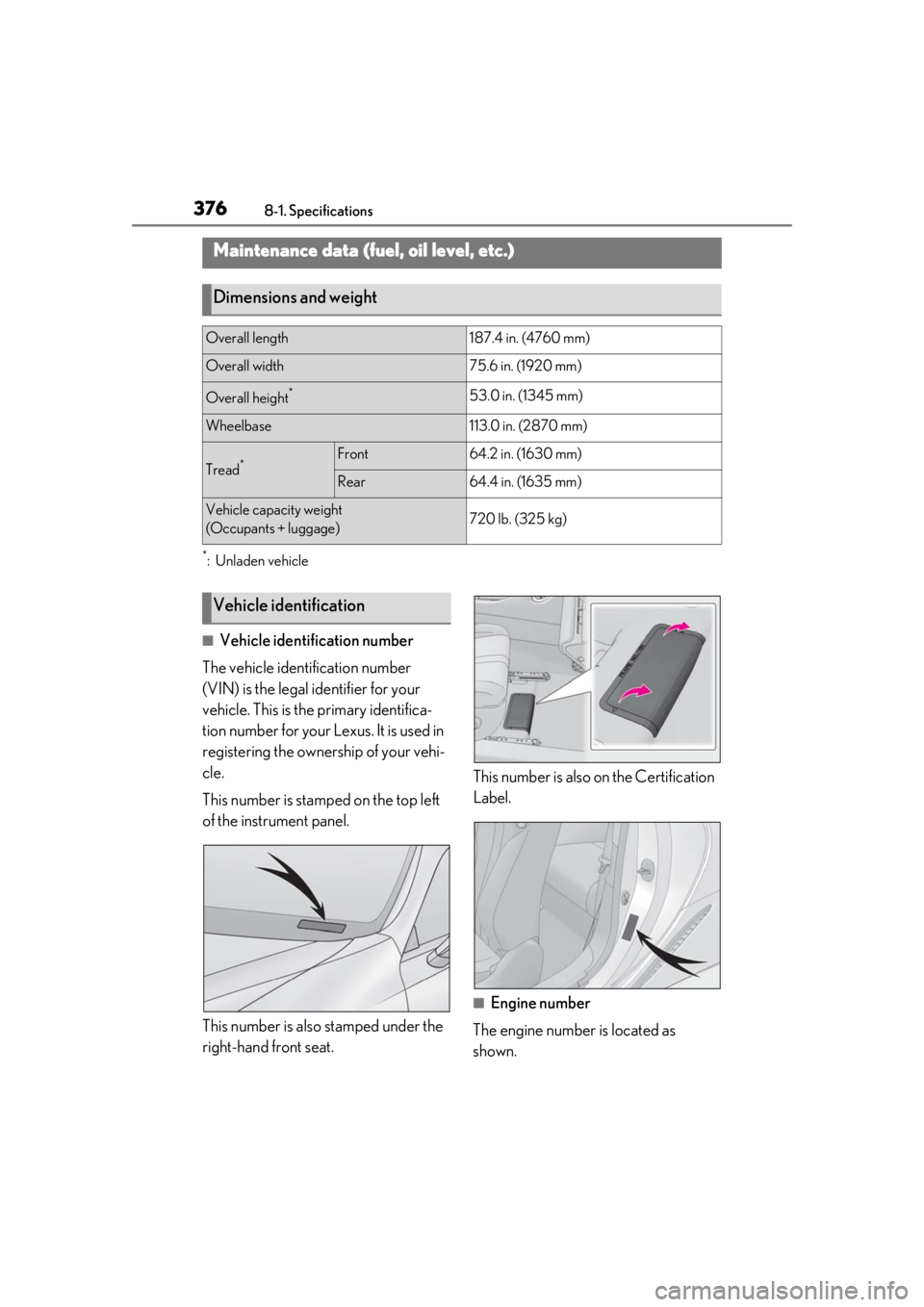

Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length187.4 in. (4760 mm)
Overall width75.6 in. (1920 mm)
Overall height*53.0 in. (1345 mm)
Wheelbase113.0 in. (2870 mm)
Tread*Front64.2 in. (1630 mm)
Rear64.4 in. (1635 mm)
Vehicle capacity weight
(Occupants + luggage)720 lb. (325 kg)
Vehicle identification

3778-1. Specifications
8
Vehicle specifications
LC500LC500h
LC500
LC500h

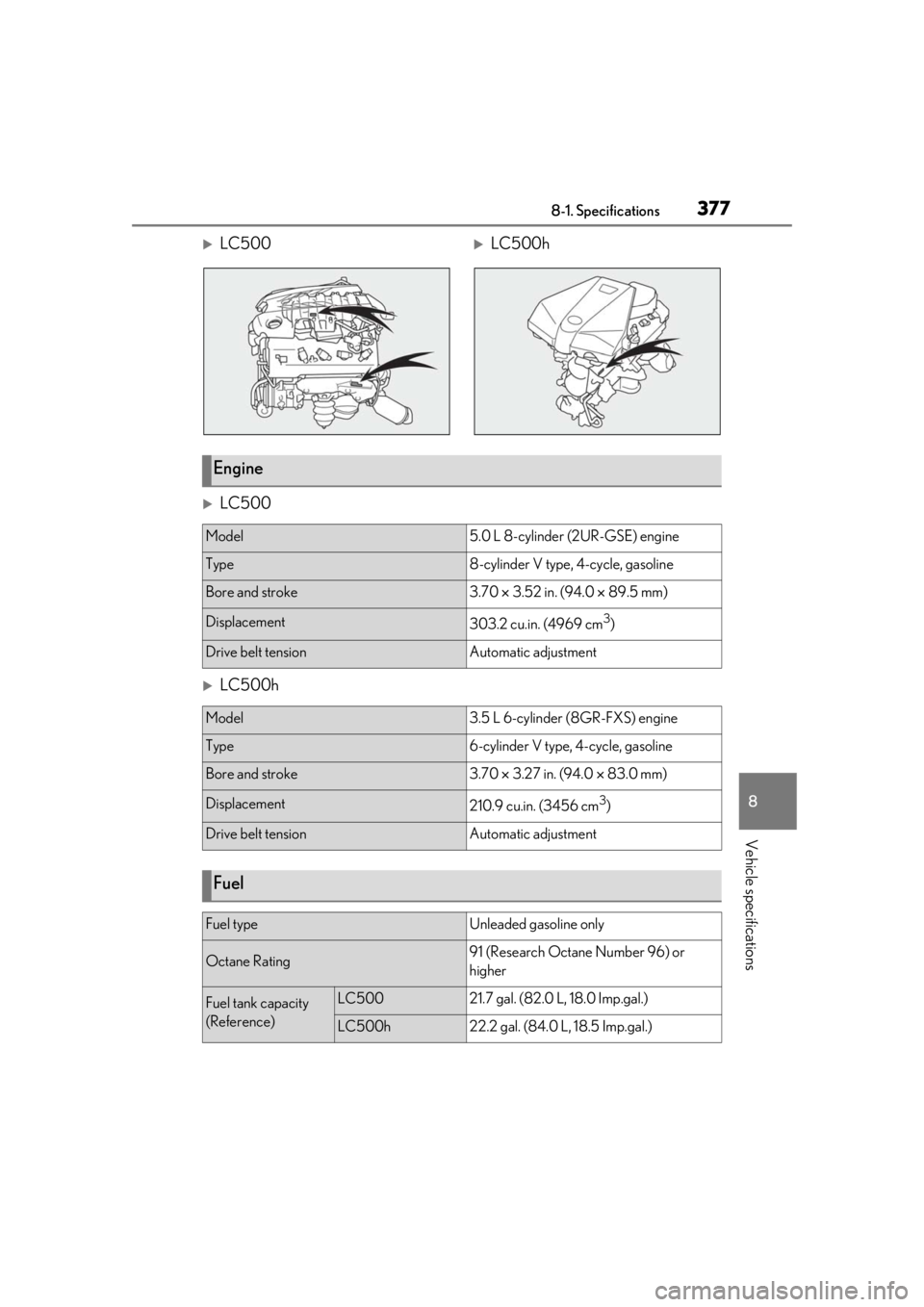

Engine
Model5.0 L 8-cylinder (2UR-GSE) engine
Type8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.52 in. (94.0  89.5 mm)
Displacement303.2 cu.in. (4969 cm3)
Drive belt tensionAutomatic adjustment
Model3.5 L 6-cylinder (8GR-FXS) engine
Type6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement210.9 cu.in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or
higher
Fuel tank capacity
(Reference)LC50021.7 gal. (82.0 L, 18.0 Imp.gal.)
LC500h22.2 gal. (84.0 L, 18.5 Imp.gal.)

3788-1. Specifications
LC500
■Oil capacity (Drain and refill [Ref-
erence
*])
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the
engine, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade
engine oil
Recommended viscosity: SAE 5W-30 SAE 5W-30 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 5W-30 is not available, SAE
10W-30 oil may be used. However, it
should be replaced with SAE 5W-30
at the next oil change.
Outside temperature
Oil viscosity (5W-30 is explained here
as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows

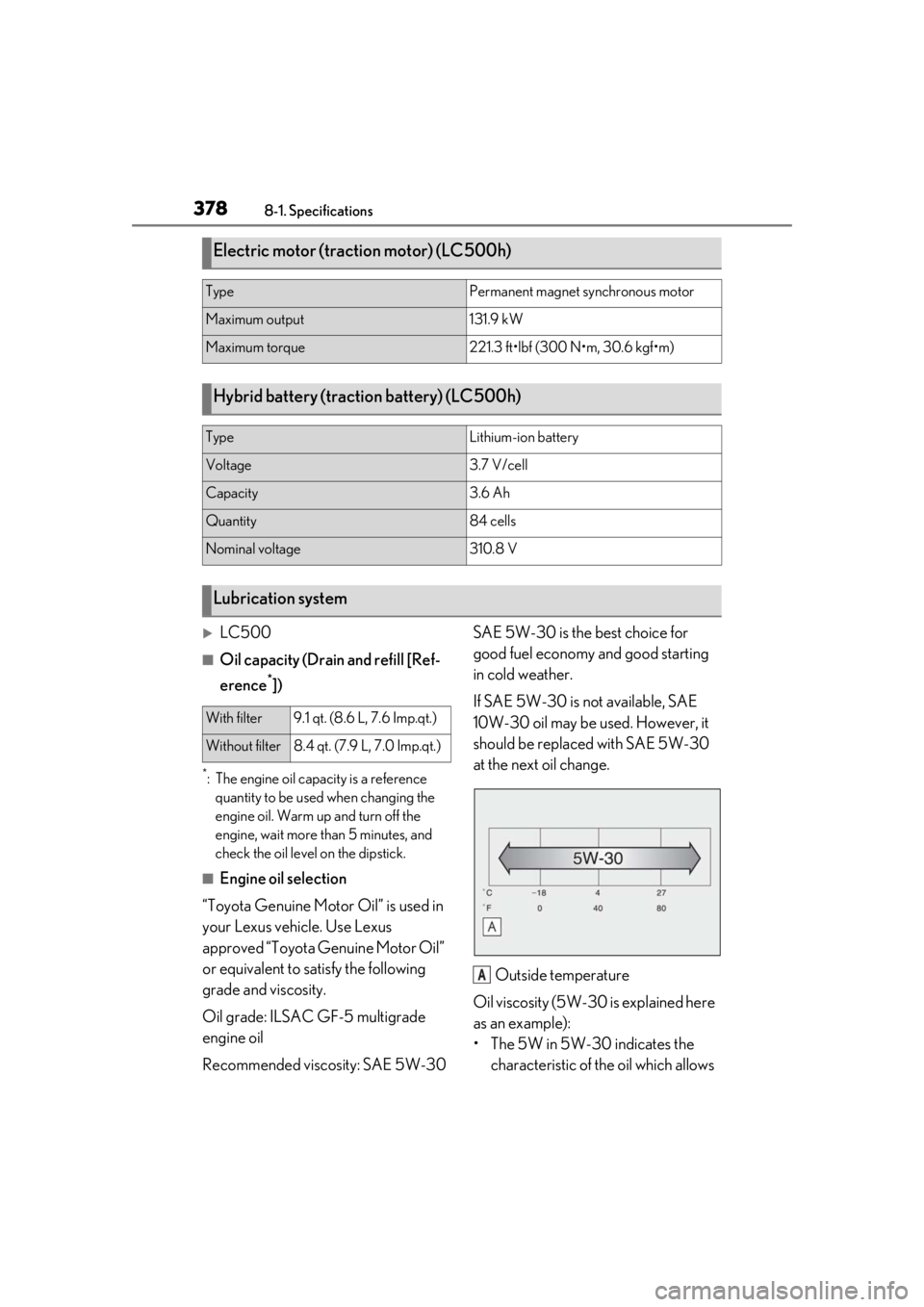

Electric motor (traction motor) (LC500h)
TypePermanent magnet synchronous motor
Maximum output131.9 kW
Maximum torque221.3 ft•lbf (300 N•m, 30.6 kgf•m)
Hybrid battery (traction battery) (LC500h)
TypeLithium-ion battery
Voltage3.7 V/cell
Capacity3.6 Ah
Quantity84 cells
Nominal voltage310.8 V
Lubrication system
With filter9.1 qt. (8.6 L, 7.6 Imp.qt.)
Without filter8.4 qt. (7.9 L, 7.0 Imp.qt.)
A

3798-1. Specifications
8
Vehicle specifications
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.
• The 30 in 5W-30 indicates the vis- cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

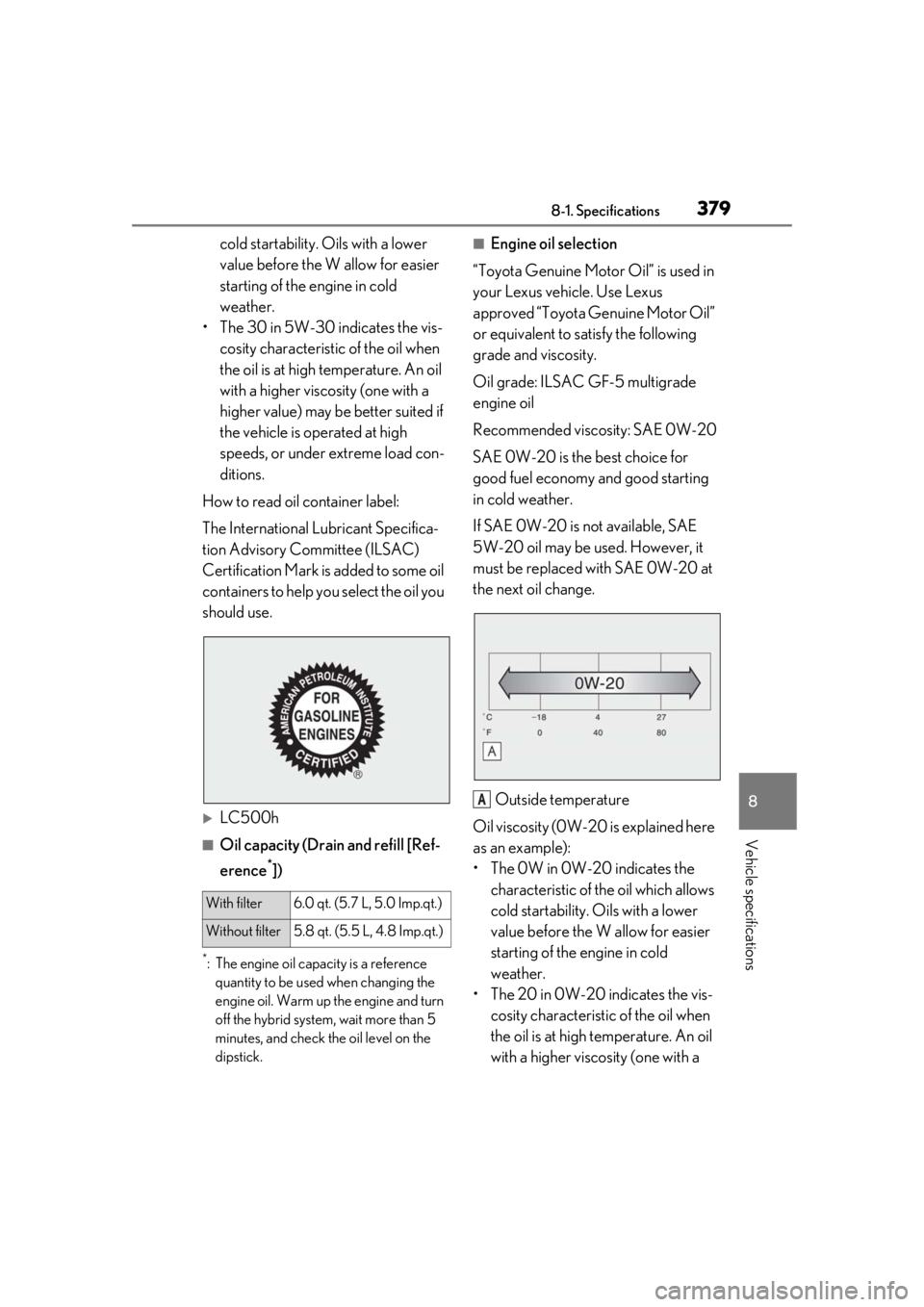

How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil you
should use.
LC500h
■Oil capacity (Drain and refill [Ref-
erence
*])
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn
off the hybrid system, wait more than 5
minutes, and check the oil level on the
dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil”
or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade
engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20 at
the next oil change.
Outside temperature
Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.
• The 20 in 0W-20 indicates the vis- cosity characteristic of the oil when
the oil is at high temperature. An oil
with a higher viscosity (one with a
With filter6.0 qt. (5.7 L, 5.0 Imp.qt.)
Without filter5.8 qt. (5.5 L, 4.8 Imp.qt.)
A

3808-1. Specifications
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.
How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil you should use.
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact your Lexus dealer.
■Spark plug
Cooling system
Capacity*
LC50012.8 qt. (12.1 L, 10.6 Imp.qt.)
LC500h
Gasoline engine
11.5 qt. (10.9L, 9.6 Imp.qt.)
Power control unit
2.4 qt. (2.3L, 2.0 Imp.qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system
LC500LC500h
MakeDENSO FK20HBR-J8DENSO FK20HBR8
Gap0.031 in. (0.8 mm)0.031 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
