lexus LS400 1994 Keys and Doors / 1994 LS400: EXTERIOR EQUIPMENT
Manufacturer: LEXUS, Model Year: 1994, Model line: LS400, Model: Lexus LS400 1994Pages: 6, PDF Size: 1.65 MB
Page 1 of 6
SECTION 1 – 5
43
INSTRUMENTS AND CONTROLS
Exterior equipment
Hood44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Moon roof47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 2 of 6
EXTERIOR EQUIPMENT
44
HOOD
To open the hood, pull the hood lock release lever under
the dash. The hood will spring up slightly.
Insert your fingers under the hood, push up the auxiliary
catch lever and lift the hood.Before closing the hood, check to see that you have not
forgotten any tools, rags, etc. Then lower the hood and make
sure it locks.
TRUNK LID
To open the trunk lid, insert the master key and turn it
clockwise.
To close the trunk lid, lower it and press down on it. After
closing the trunk lid, try pulling it up to make sure it is securely
closed.
CAUTION:
Keep the trunk lid closed while driving. This not only
keeps the luggage from being thrown out, but also
prevents exhaust gases from entering the vehicle.
Page 3 of 6
EXTERIOR EQUIPMENT
45

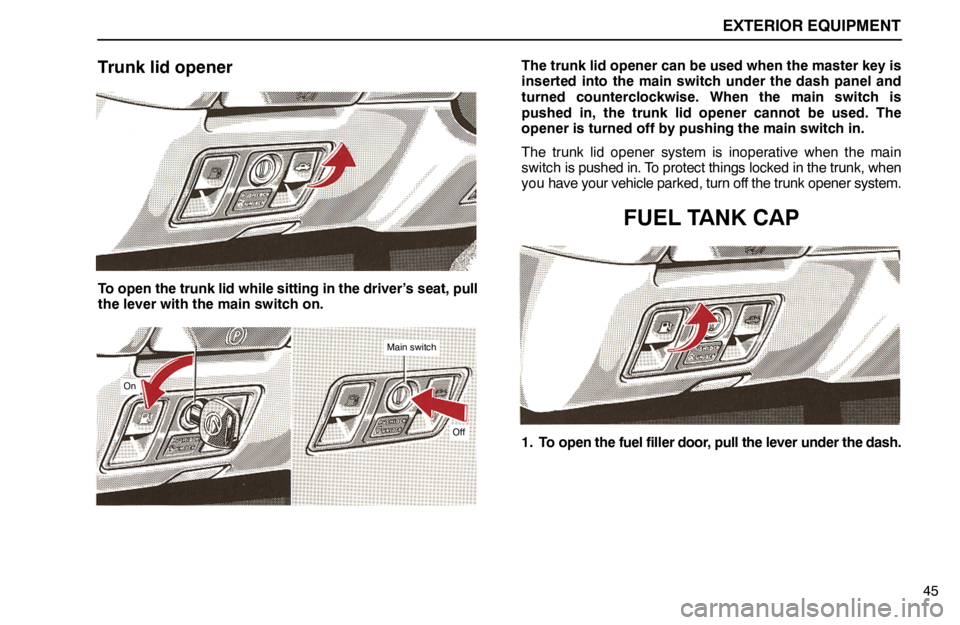

Trunk lid opener
To open the trunk lid while sitting in the driver’s seat, pull
the lever with the main switch on.
On
Off
Main switch
The trunk lid opener can be used when the master key is
inserted into the main switch under the dash panel and
turned counterclockwise. When the main switch is
pushed in, the trunk lid opener cannot be used. The
opener is turned off by pushing the main switch in.
The trunk lid opener system is inoperative when the main
switch is pushed in. To protect things locked in the trunk, when
you have your vehicle parked, turn off the trunk opener system.
FUEL TANK CAP
1. To open the fuel filler door, pull the lever under the dash.
Page 4 of 6
EXTERIOR EQUIPMENT
46
2. To remove the fuel tank cap, turn the cap slowly
counterclockwise, then pause slightly before removing it.
The removed cap can be stored on the back side of the fuel
filler door.
It is not unusual to hear a slight swoosh when the cap is
opened. When installing the cap, turn the cap clockwise until
you hear a click.
CAUTION:
When opening the cap, do not remove the cap quickly.
In hot weather, fuel under pressure could cause injury
by spraying out of the filler neck if the cap is suddenly
removed.
Make sure the cap is tightened securely to prevent fuel
spillage in case of an accident.
Use only a genuine Lexus fuel tank cap for
replacement. It has a built-in check valve.
In case the opener is not actuated
Pull the manual lever at the back right of the trunk.
This is used in case the fuel filler door cannot be opened due
to a discharged battery or other trouble.
Page 5 of 6
EXTERIOR EQUIPMENT
47

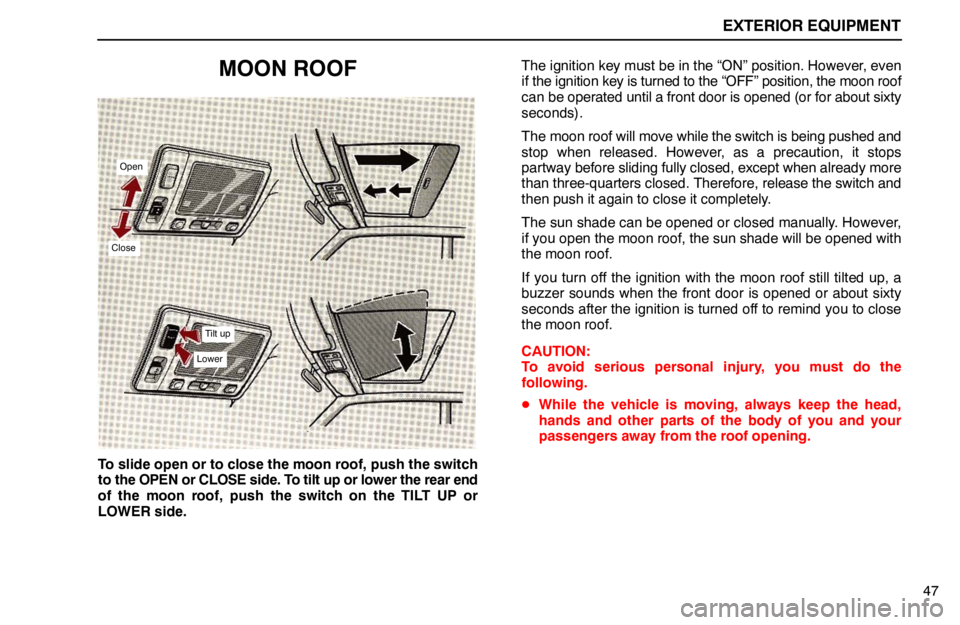

MOON ROOF
Open
Close
Tilt up
Lower
To slide open or to close the moon roof, push the switch
to the OPEN or CLOSE side. To tilt up or lower the rear end
of the moon roof, push the switch on the TILT UP or
LOWER side.The ignition key must be in the “ON” position. However, even
if the ignition key is turned to the “OFF” position, the moon roof
can be operated until a front door is opened (or for about sixty
seconds).
The moon roof will move while the switch is being pushed and
stop when released. However, as a precaution, it stops
partway before sliding fully closed, except when already more
than three-quarters closed. Therefore, release the switch and
then push it again to close it completely.
The sun shade can be opened or closed manually. However,
if you open the moon roof, the sun shade will be opened with
the moon roof.
If you turn off the ignition with the moon roof still tilted up, a
buzzer sounds when the front door is opened or about sixty
seconds after the ignition is turned off to remind you to close
the moon roof.
CAUTION:
To avoid serious personal injury, you must do the
following.
While the vehicle is moving, always keep the head,
hands and other parts of the body of you and your
passengers away from the roof opening.
Page 6 of 6
EXTERIOR EQUIPMENT
48Always make sure the head, hands and other parts of
the body of all passengers are completely inside the
vehicle before you close the roof. If someone’s neck,
head or hands gets caught in the closing roof, it could
result in a serious injury. When anyone closes the roof,
first make sure it is safe to do so.
Never leave small children alone in the vehicle,
especially with the ignition key still inserted. They
could use the moon roof switches and get trapped in
the roof opening. Unattended children can become
involved in serious accidents.
Never sit on top of the vehicle around the roof opening.
If the moon roof does not close or lower, see page 164 for
emergency information.
