COMFORT ADJUSTMENT
204
16L152

Move seat fully back

COMFORT ADJUSTMENT
205
CAUTION
A forward±facing child restraint system should be
allowed to be put on the front seat only when it is
unavoidable. Always move the seat as far back as
possible, because the force of a deploying airbag could
cause death or serious injury to the child. Do not allow
the child to lean over the front door or around the front
door even if the child is seated in a child restraint
system. It is dangerous if the side airbag inflates, and
the impact could cause death or serious injury to the
child.
16L170c

COMFORT ADJUSTMENT
2061. Sit the child on a booster seat. Run the lap and
shoulder belt through or around the booster seat and
child following the instructions provided by its
manufacturer and insert the tab into the buckle.
Make sure the shoulder belt is correctly across the
child's
shoulder and that the lap belt is positioned as low
as possible on child's hips. See ºSeat beltsº on page 143
for details.

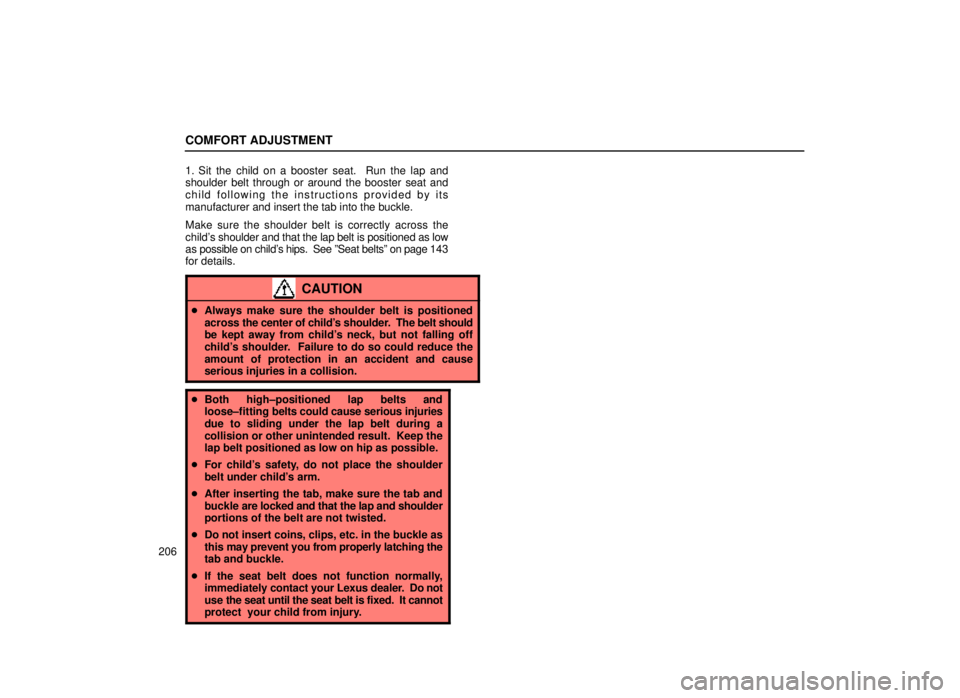

CAUTION
 Always make sure the shoulder belt is positioned
across the center of child's shoulder. The b elt should
be kept away from child's neck, but not falling off
child's shoulder. Failure to do so could reduce the
amount of protection in an accident and cause
serious injuries in a collision.
 Both high±positioned lap belts and
loose±fitting belts could cause serious injuries
due to sliding under the lap belt during a
collision or other unintended result. Keep the
lap belt positioned as low on hip as possible.
 For child's safety, do not place the shoulder
belt under child's arm.
 After inserting the tab, make sure the tab and
buckle are l ocked and that the lap and shoulder
portions of the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as
this may prevent you from properly latching the
tab and buckle.
 If the seat belt does not function normally,
immediately contact your Lexus dealer. Do not
use the seat until the seat belt is fixed. It cannot
protect your child from injury.

COMFORT ADJUSTMENT
207
16L171a

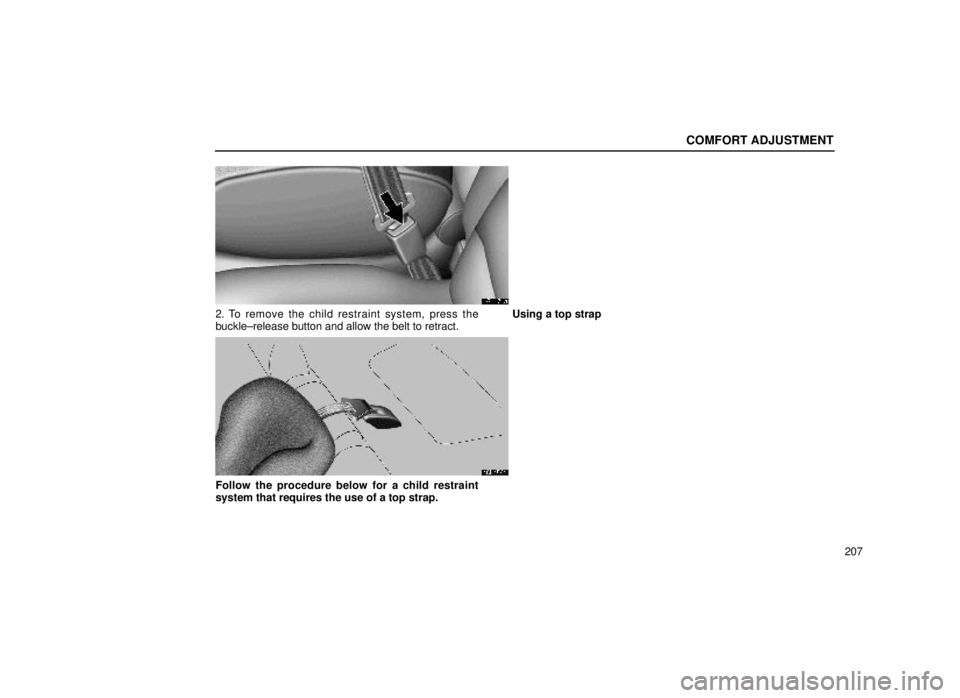

2. To remove the child restraint system, press the
buckle±release button and allow the belt to retract.Using a top strap
16L156b
Follow the procedure below for a child restraint
system that requires the use of a top strap.

COMFORT ADJUSTMENT
208
16L093b

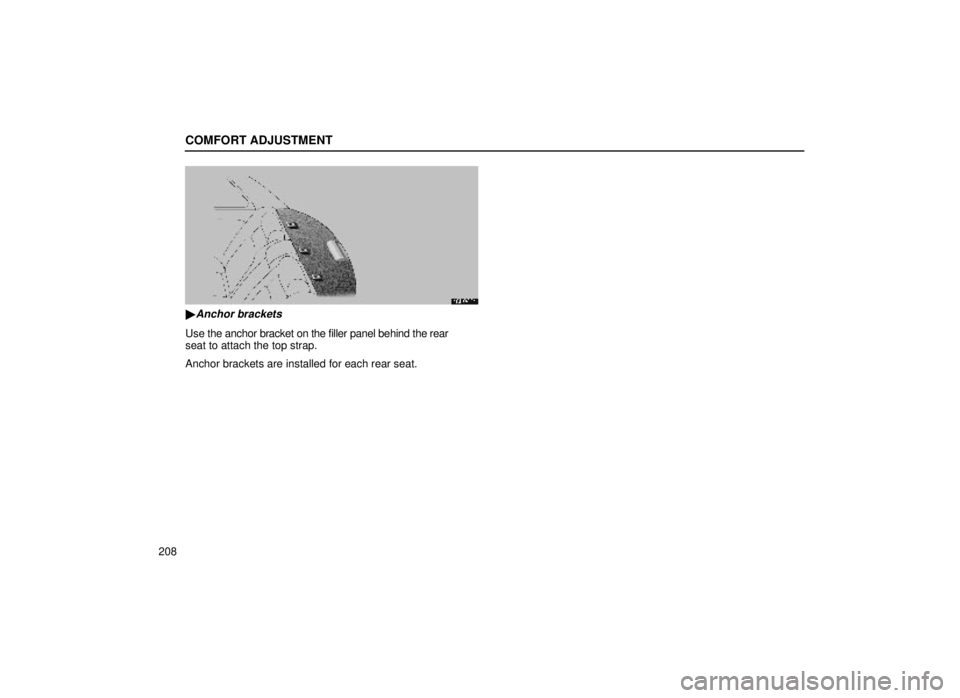

Anchor brackets
Use the anchor bracket on the filler panel behind the rear
seat to attach the top strap.
Anchor brackets are installed for each rear seat.

COMFORT ADJUSTMENT
209
16L205b

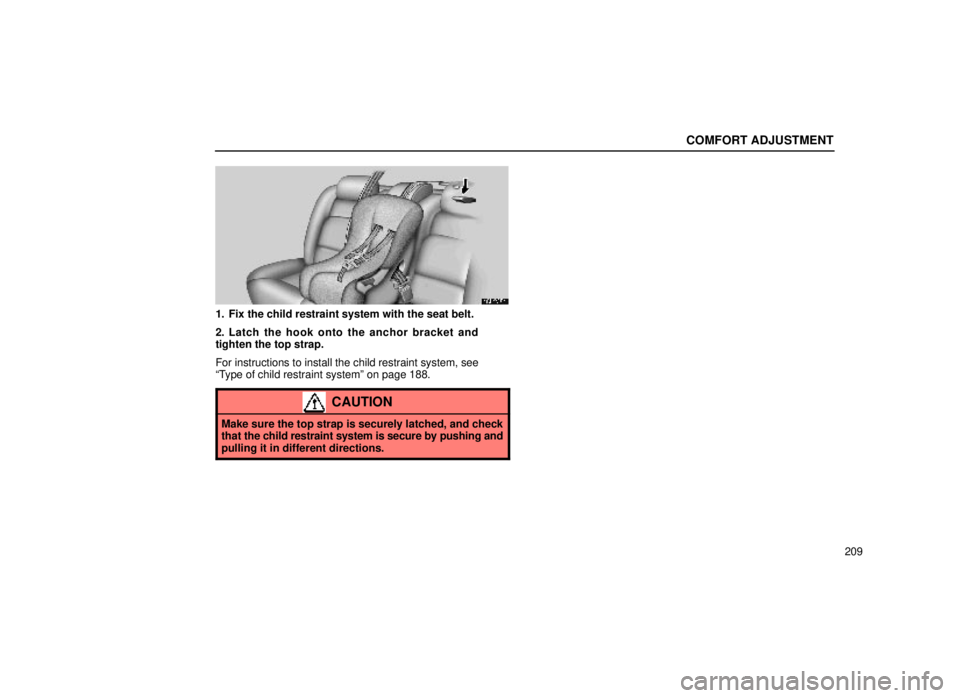

1. Fix the child restraint system with the seat belt.
2. Latch the hook onto the anchor bracket and
tighten the top strap.
For instructions to install the child restraint system, see
ªType of child restraint systemº on page 188.
CAUTION
Make sure the top strap is securely latched, and check
that the child restraint system is secure by pushing and
pulling it in different directions.

COMFORT ADJUSTMENT
210
DRIVING POSITION MEMORYSYSTEM
The micro computer can memorize the position of the
driver's seat, the height of the shoulder belt anchor of the
driver's seat belt, and the positions of the tilt and
telescopic steering, and outside rear view mirrors. Two
different driving position profiles can be entered into the
computer's memory.
Recording a driving position in the computer's memory
can only be done when the ignition key is in the ºONº
position and the selector lever is in the ªNº or ªPº position.
Setting a driving position
16L055

COMFORT ADJUSTMENT
211
1. Adjust the driver's seat, driver's shoulder belt
anchor,
tilt and telescopic steering and outside rear
view mirrors to the desired position.

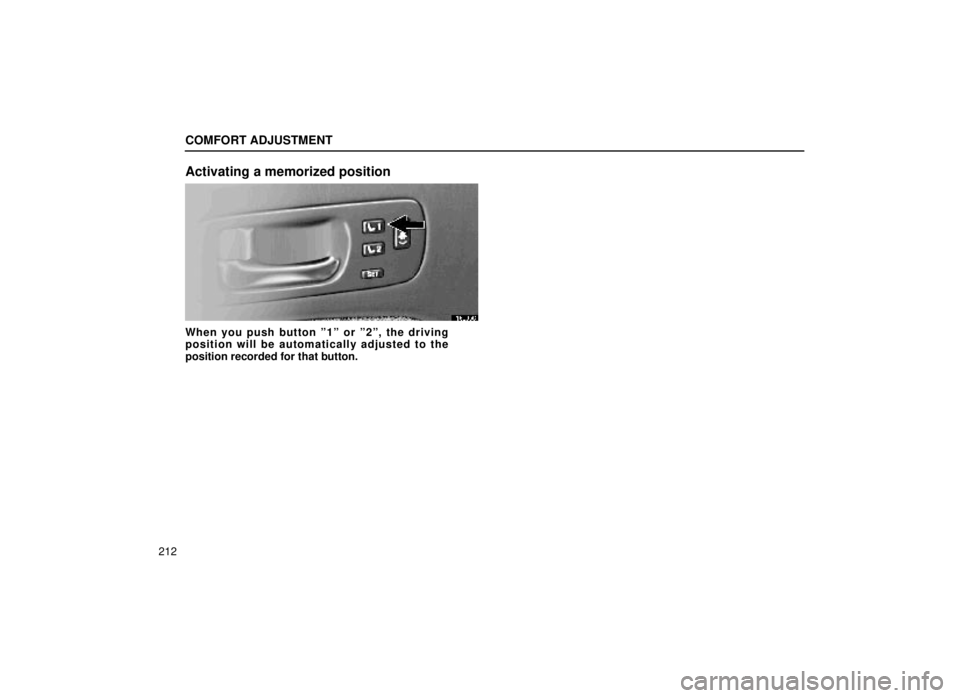

2. While pushing the ºSETº button, push button º1º
or º2º until the signal beeps.
The beep sound means that the positions are recorded
in the computer's memory.
By repeating these two steps and pressing the
remaining button, the driving position for another driver
can be recorded.
To set a new memorized position, select the desired
position and perform step 2. The previous memory will
be erased and the new position will be set.
To make only slight changes to an already memorized
position, the easiest way is to first activate the
memorized position, then make the desired changes
and perform step 2 above.

COMFORT ADJUSTMENT
212
Activating a memorized position
16L056
When you push button º1º or º2º, the driving
position will be automatically adjusted to the
position recorded for that button.

COMFORT ADJUSTMENT
213
Conditions for memorized position activation

Ignition key ºONº and selector lever in ºNº or ºPº
position with the vehicle stopped.
All parts of the memorized positions can be activated.
 Key not in ignition switch and within 30 seconds of
opening driver's door.
The memorized position can be activated, except for
the tilt and telescopic steering.
If any driving position memory switch is pushed while
one of the memorized driving position profiles is being
activated, the operation will stop.
To activate the system, push the desired button (º1º or
º2º) again.
The driving position memory control system cannot be
operated while the vehicle is moving.
If the vehicle's battery is disconnected, the computer's
memory will be erased and the memorized positions will
have to be set again.
