KEYS AND DOORS
24
Operating the windows and moon roof
The windows and moon roof can be operated using
a wireless key from outside the vehicle.*
NOTE: *The windows can be set inoperative. Themoon roof can be set to slide open, tilt up orinoperative. Ask your Lexus dealer for details.
11L032b
Push the ºUNLOCKº button until the windows and moon
roof start to move. When you release the button, the
windows and moon roof stop operating.

KEYS AND DOORS
25
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
± Reorient or relocate the receiving antenna.
± Increase the separation between the
equipment and receiver.
± Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
± Consult the dealer or an experienced radio /
TV technician for help.

KEYS AND DOORS
26
CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.

KEYS AND DOORS
27
Replacing the battery
When you replace the battery, prepare a lithium battery
CR1616 and a special screwdriver.
CAUTION
Special care should be taken that small children do not
swallow the removed battery or components.
NOTICE
When replacing the battery, be careful not to lose thecomponents, screws and O±ring.
11L028±1
1. Remove the screw, and then the cover while pushing
it in the arrow direction.

KEYS AND DOORS
28
11L029±1

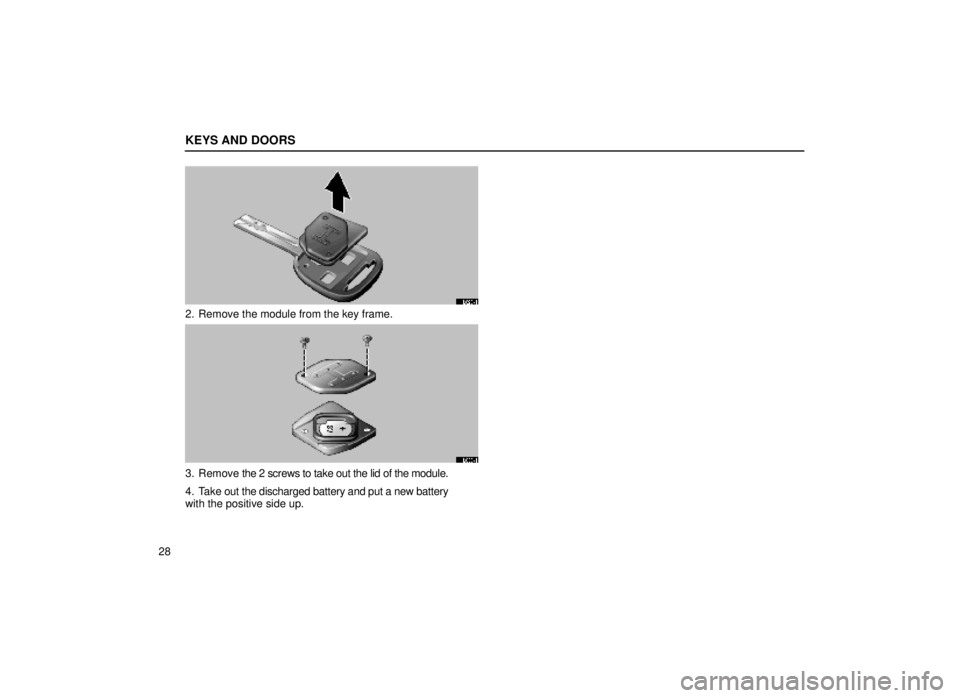

2. Remove the module from the key frame.
11L030±1
3. Remove the 2 screws to take out the lid of the module.
4. Take out the discharged battery and put a new battery
with the positive side up.

KEYS AND DOORS
29
NOTICE
Make sure the positive side and negative sideof the battery should be faced correctly.
Be careful not to bend the electrode of thebattery insertion and that dust or oils do notadhere to the inside of the module.
Take care not to lose the screws and O±ring.
5. Install the lid with the 2 screws.
NOTICE
Take care not to damage or bend the O±ring wheninstalling.
6. Install the module into the key frame and secure the
cover with the screw.
7. When pushing any switch on the wireless key, make
sure the indicator light comes on.
DOORS
Locking with key

KEYS AND DOORS
30
11L026±1

1Lock 2Unlock
Turn the key towards the front of the vehicle to lock
and towards the back to unlock.
The doors lock and unlock simultaneously with either
front door. In the driver's door lock, turning the key once
will unlock the driver's door and twice in succession will
unlock all doors simultaneously.* In the passenger's
door lock, turning the key once will unlock all doors
simultaneously.
NOTE: *Unlocking by a 2±time operation can be changed. Ask your Lexus dealer for details.
The windows and moon roof can be opened and closed
from outside the vehicle using the key. For details, see
ªPower window switchesº on page 46 and ªMoon roofº
on page 118.

KEYS AND DOORS
31
Locking with inside lock button
11L006

1Lock 2Unlock
Push in the lock button to lock and unlock the door.
When locked, the door cannot be opened with either the
outside or inside door handle.
Closing the door with the lock button pushed in will also
lock the door. Be careful not to lock your keys in the
vehicle. The door will not lock if the key is left in the
ignition switch when closing the front doors.

KEYS AND DOORS
32
CAUTION
Before driving, make sure the doors are closed and
locked, especially when small children are in the
vehicle. Along with the proper use of seat belts, locking
the doors helps prevent the driver and passengers from
being thrown out from the vehicle during an accident.
It also helps prevent the doors from being opened
unintentionally.

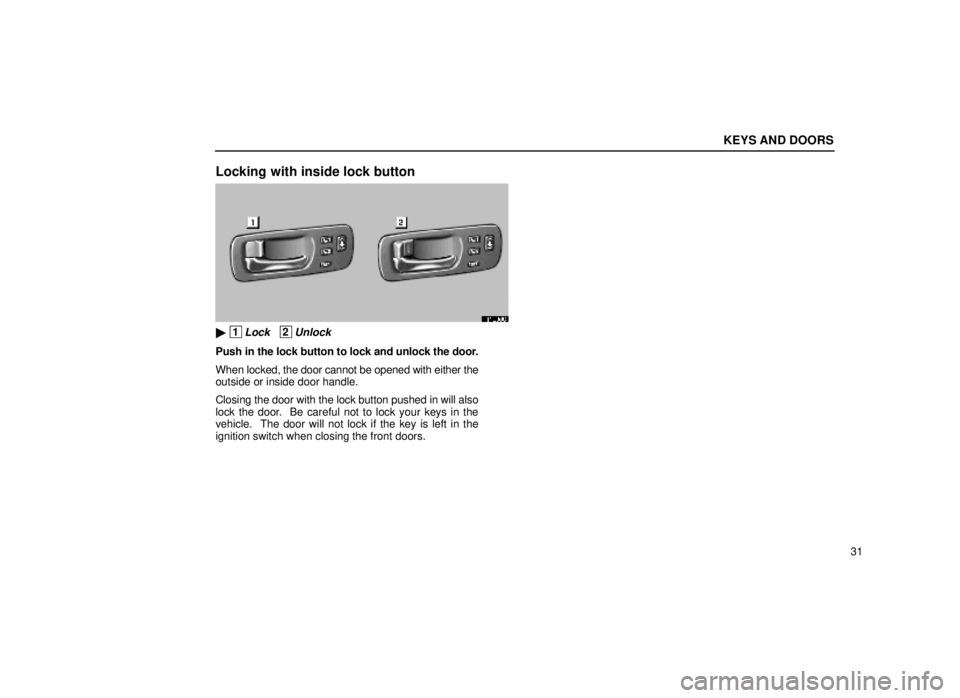

Locking with power door lock switch
11L007-2

1Lock 2Unlock
To lock all the doors simultaneously, push the power
door lock switch on the front side. Pushing on the
rear side will unlock them.
The same switch is also equipped on the front
passenger's side.

KEYS AND DOORS
33

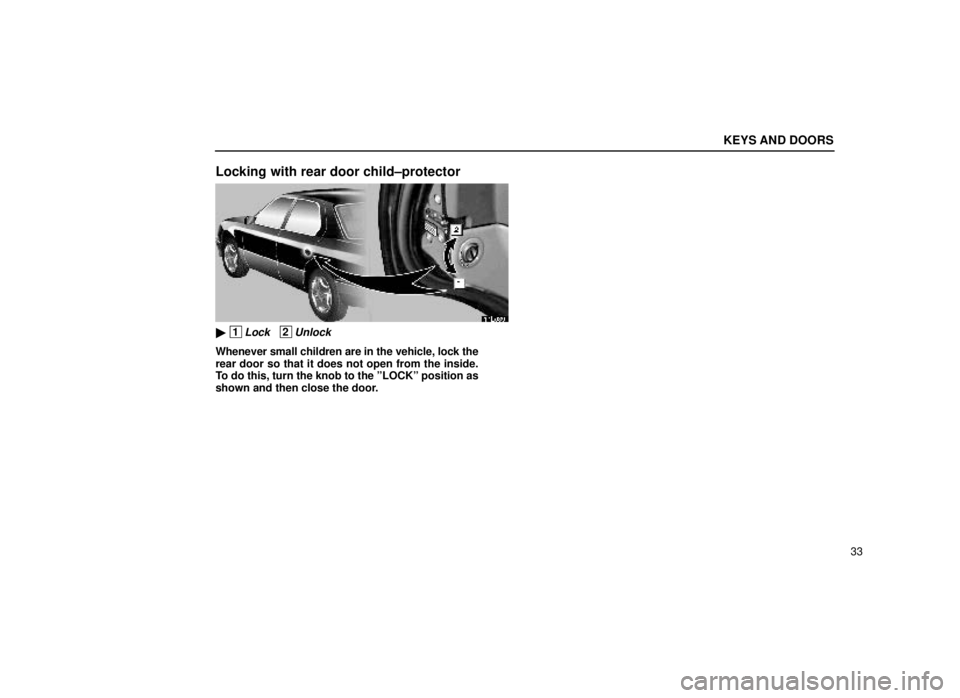

Locking with rear door child±protector
11L039

1Lock 2Unlock
Whenever small children are in the vehicle, lock the
rear door so that it does not open from the inside.
To do this, turn the knob to the ºLOCKº position as
shown and then close the door.
