STARTING AND DRIVING
348
CAUTION
Braking control will not ensure that your vehicle will
reduce speed appropriately. Do not rely on dynamic
radar/laser cruise control to prevent collision.
(f) Approach warning
31L332
CAUTION

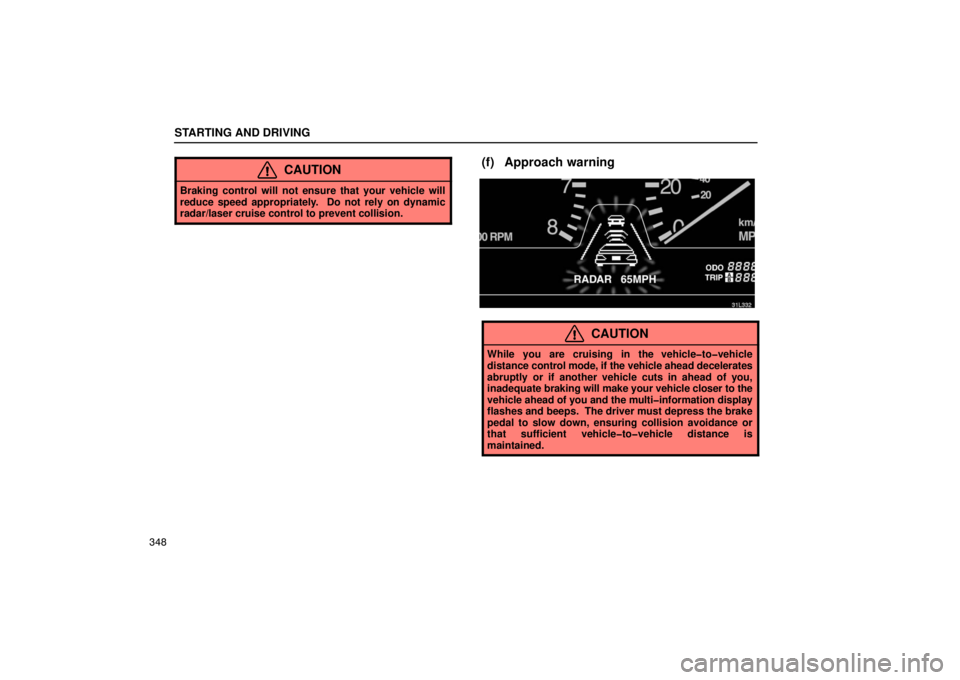

While you are cruising in the vehicletovehicle
distance control mode, if the vehicle ahead decelerates
abruptly or if another vehicle cuts in ahead of you,
inadequate braking will make your vehicle closer to the
vehicle ahead of you and the multiinformation display
flashes and beeps. The driver must depress the brake
pedal to slow down, ensuring collision avoidance or
that sufficient vehicletovehicle distance is
maintained.

STARTING AND DRIVING
349
The approach warning may not turn on even if the
vehicle drives closer to the vehicle ahead in the
following conditions:
 Your vehicle and the vehicle ahead are cruising at
almost the same speed.
 The vehicle ahead is cruising at a faster speed than
yours. (The distance between the vehicles will
become longer.)
 Pay special attention to the very slow vehicle at the
end of the line in heavy traffic or at the tollgate.
 Immediately after the speed setting
 The accelerator pedal is depressed or immediately
after the release of the accelerator pedal(g) Millimeter wave radar sensor (Vehicles with dynamic radar cruise
control)
31L359a
 1Millimeter wave grille cover
2Millimeter wave radar sensor
The millimeter wave radar sensor is used for
vehicletovehicle distance control cruising. When the
millimeter wave radar sensor is disabled for some reason,
the warning message appears on the multiinformation
display. For details, see “Vehicletovehicle distance
control mode failure warning” on page 352.

STARTING AND DRIVING
351
(h) Laser radar sensor (Vehicles with dynamic laser cruise
control)
31L363
 1Laser radar sensor
The laser radar sensor is used for vehicletovehicle
distance control cruising. When the laser radar sensor is
disabled for some reason, the warning message appears
on the multiinformation display. For details, see
“Vehicletovehicle distance control mode failure
warning” on page 352.
CAUTION
To ensure that the dynamic laser cruise control system
will function properly while driving, observe the
following:
 Always keep the laser radar sensor glass clean.
When cleaning, use a soft cloth and be careful not to
damage the sensor.
 Avoid strong impacts around the laser radar sensor.
An incorrect laser radar sensor alignment will result
in system malfunction. A special device is required
to adjust the laser radar sensor alignment. Be sure
to have the sensor adjusted by your Lexus dealer.
 Do not disassemble the laser radar sensor.
 Do not affix a sticker (including a transparent sticker)
or attach an accessory around the laser radar sensor.
This product is a class I laser product complied with 21
C.F.R part 1040.10 and 1040.11.

STARTING AND DRIVING
352
(i) Vehicletovehicle distance control modefailure warning
31L333
If there is trouble somewhere in the dynamic radar/laser cruise
control while the vehicle −to−vehicle distance control mode is
on, the ”CRUISE” indicator light in the instrument cluster
flashes, the master warning light comes on and the warning
tone sounds, and one or more of the following warning
messages will appear on the multi −information display.
 “Clean Radar Sensor”
 “Cruise not Available”
 “Check Cruise System”
If any warning message shown above appears, the preset
speed automatically cancels out.
w279
Dynamic radar cruise control—
If the system cannot easily measure the
vehicletovehicle distance because of a dirty millimeter
wave radar sensor or grille cover while the dynamic radar
cruise control is on, the above message appears.
If this message appears, clean the sensor and grille cover with
a soft cloth and try setting the preset speed again. If the dirt
is removed without cleaning, the system will automatically
enter the “RADAR READY” mode. If the system does not enter
the “RADAR READY” mode even after cleaning or the
message remains on the display, the system might be
malfunctioning. Although it is no problem to continue driving,
contact your Lexus dealer.
Dynamic laser cruise control—
If the system cannot easily measure the
vehicletovehicle distance because of a dirty laser radar
sensor glass while the dynamic laser cruise control is on,
the above message appears.
If this message appears, clean the sensor glass with a soft
cloth and try setting the preset speed again. If the dirt is
removed without cleaning, the system will automatically enter
the “RADAR READY” mode. If the system does not enter the
“RADAR READY” mode even after cleaning or the message
remains on the display, the system might be malfunctioning.
Although it is no problem to continue driving, contact your
Lexus dealer.

STARTING AND DRIVING
354Dynamic laser cruise control—

The driving pattern selector switch is changed to the
“normal” or “power” position.
 The wipers are stopped or are switched to intermittent
operation. (Including intermittent and stopped wipers in the
“AUTO” position)
 No direct sunlight from the front
In the above conditions, press the control lever upward in the
“+ RES” direction and release it. The dynamic laser cruise
control will be restored, however, even after the weather
clears, if the setting operation cannot be performed or if the
warning message still appears, the system might have
malfunctioned. Although it is no problem to continue driving,
contact your Lexus dealer.
w281
If the system malfunction is detected when dynamic
radar/laser cruise control is in the “RADAR READY” mode
or operating, the above message appears.
If this message appears, stop your vehicle in a safe place, turn
the ignition off, and then restart it to reset the system. If the
setting still cannot be made or the same message appears
again, the system might have malfunctioned. Although it is no
problem to continue driving, contact your Lexus dealer.
NOTICE
While you are cruising with the dynamic radar/laser
cruise control on, if the master warning light comes on,
the cruise indicator light flashes, “Check Cruise
System” appears on the multiinformation display and
the warning tone sounds, turn the ignition switch off
and then on again. If the function is cancelled again
after setting or if settings cannot be made, the dynamic
radar/laser cruise control system may be
malfunctioning. Although it is no problem to continue
driving, have your vehicle checked by your Lexus
dealer.

STARTING AND DRIVING
355
Conventional (fixed speed) cruise control
mode
This mode allows you to cruise at a desired speed over
about 45 km/h (28 mph) with your foot off the accelerator
pedal.
Cruising speed can be maintained, although a slight speed
change may occur when driving up or down a gradient, within
the limits of engine performance. On steeper hills, the speed
will change more radically so it is better to drive without cruise
control.
When cruise control is on, the driving pattern of the automatic
transmission is fixed in the normal position, regardless of the
position of the selector switch.
CAUTION
 In the conventional (fixed speed) cruise control
mode, an approach warning does not activate even if
you are too close to the vehicle ahead, as neither the
presence of the vehicle ahead nor the
vehicletovehicle distance is detected. Pay special
attention to the distance between your vehicle and
the vehicle ahead. Always confirm the setting in the
multiinformation display.
 The conventional (fixed speed) cruise control mode
of the dynamic radar/laser cruise control should not
be used in the following conditions, which could
result in death or serious injury.
 To help maintain maximum control of your vehicle,
do not use fixed speed control mode when using
dynamic radar/laser cruise control while driving in
heavy or varying traffic, or on slippery (rainy, icy
or snowcovered) or winding roads.
 Avoid vehicle speed increasing when driving
downhill. If the vehicle speed is too fast in relation
to the preset speed in the fixed speed control
mode, cancel the fixed control mode and then
downshift the transmission to use engine braking
to slow down.

STARTING AND DRIVING
356
(a) Turning the system on
31L636

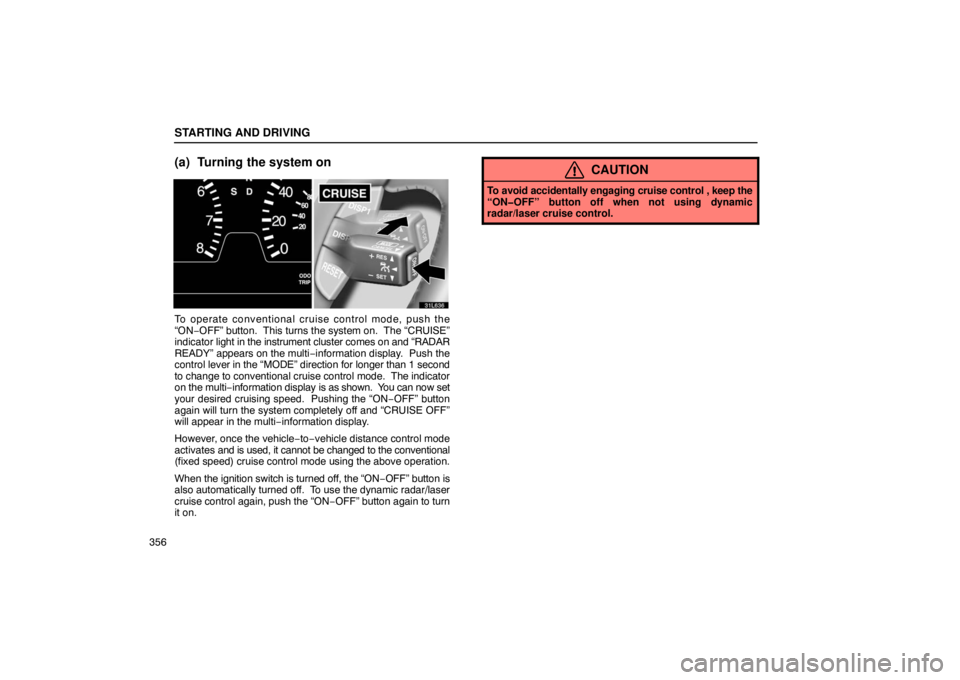

To operate conventional cruise control mode, push the
“ON−OFF” button. This turns the system on. The “CRUISE”
indicator light in the instrument cluster comes on and “RADAR
READY” appears on the multi −information display. Push the
control lever in the “MODE” direction for longer than 1 second
to change to conventional cruise control mode. The indicator
on the multi− information display is as shown. You can now set
your desired cruising speed. Pushing the “ON −OFF” button
again will turn the system completely off and “CRUISE OFF”
will appear in the multi −information display.
However, once the vehicle− to−vehicle distance control mode
activates and is used, it cannot be changed to the conventional
(fixed speed) cruise control mode using the above operation.
When the ignition switch is turned off, the “ON −OFF” button is
also automatically turned off. To use the dynamic radar/laser
cruise control again, push the “ON −OFF” button again to turn
it on.
CAUTION
To avoid accidentally engaging cruise control , keep the
“ONOFF” button off when not using dynamic
radar/laser cruise control.

STARTING AND DRIVING
357

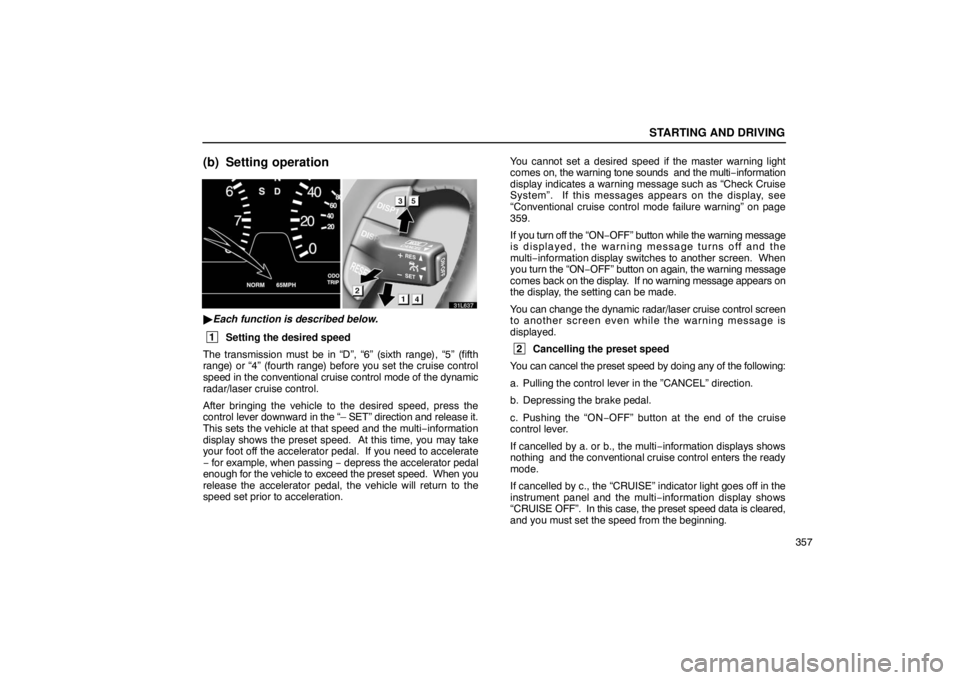

(b) Setting operation
31L637
Each function is described below.
1
Setting the desired speed
The transmission must be in “D”, “6” (sixth range), “5”\
(fifth
range) or “4” (fourth range) before you set the cruise control
speed in the conventional cruise control mode of the dynamic
radar/laser cruise control.
After bringing the vehicle to the desired speed, press the
control lever downward in the “– SET” direction and release it.
This sets the vehicle at that speed and the multi −information
display shows the preset speed. At this time, you may take
your foot off the accelerator pedal. If you need to accelerate
− for example, when passing − depress the accelerator pedal
enough for the vehicle to exceed the preset speed. When you
release the accelerator pedal, the vehicle will return to the
speed set prior to acceleration. You cannot set a desired speed if the master warning light
comes
on, the warning tone sounds and the multi− information
display indicates a warning message such as “Check Cruise
System”. If this messages appears on the display, see
“Conventional cruise control mode failure warning” on page
359.
If you turn off the “ON−OFF” button while the warning message
is displayed, the warning message turns off and the
multi−information display switches to another screen. When
you turn the “ON −OFF” button on again, the warning message
comes back on the display. If no warning message appears on
the display, the setting can be made.
You can change the dynamic radar/laser cruise control screen
to another screen even while the warning message is
displayed.
2 Cancelling the preset speed
You can cancel the preset speed by doing any of the following:
a. Pulling the control lever in the ”CANCEL” direction.
b. Depressing the brake pedal.
c. Pushing the “ON −OFF” button at the end of the cruise
control lever.
If cancelled by a. or b., the multi −information displays shows
nothing and the conventional cruise control enters the ready
mode.
If cancelled by c., the “CRUISE” indicator light goes off in the
instrument panel and the multi −information display shows
“CRUISE OFF”. In this case, the preset speed data is cleared,
and you must set the speed from the beginning.

STARTING AND DRIVING
358In the following cases, the preset speed automatically
cancels out:
a. The vehicle speed falls below about 40km/h (25 mph).
b. If the vehicle speed drops 16 km/h (10 mph) below the
preset speed, the preset speed will also automatically be
cancelled.
c. The control lever is presse
d downward in the “– SET”
direction and held at less than about 45 km/h (28 mph). (45
km/h (28 mph) is designated as a lower preset speed limit .)
d. The slip indicator light blinks and a warning tone sounds.
(This occurs when the vehicle is about to skid.)
If the vehicle speed falls below about 40 km/h (25 mph), the
preset speed data is cleared and you must set the speed from
the beginning.
If cancelled by the above cases, the multi −information display
shows nothing and the conventional cruise control enters the
ready mode.
If the preset speed automatically cancels out for other than the
above reasons, do not operate the cruise control. Although it
is no problem to continue driving, have your vehicle checked
by your Lexus dealer at the earliest opportunity.
3 Resetting to a faster speed
Press the control lever upward in the “+ RES” direction and
hold it. Release the lever when the desired speed is attained.
While the lever is held upward, the vehicle will gradually gain
speed.
When the difference between the actual vehicle speed and the
set speed is less than 5 km/h (3 mph), the set speed can be
increased 1.6 km/h (1 mph) each time by pressing the control
lever upward in the “+ RES” direction quickly within 0.6
seconds.
A quicker way to reset the speed is to accelerate and then
press the control lever downward in the “– SET” direction.

STARTING AND DRIVING
361
31L336
The indicator light shows the high mode is selected.
CAUTION
For vehicles equipped with the height control switch, be
sure to turn the ignition switch off before jacking. If this
is not done, the vehicle height adjustment function will
operate, which may cause an accident.
Malfunction warning
If the system is malfunctioning, “Height Hi” appears on the
multi−information display, the master warning light comes on
and a warning tone sounds. Although it is no problem to
continue driving, have the s ystem checked by your Lexus
dealer at the first opportunity.
(b) Damping mode selection
31L144b
 1 Sports position 2Normal position
The damping effect on the shock absorbers is adjusted.
Select either of the following modes using a selector
switch.
Sports mode: Suitable for sporty type driving, such as on
winding mountain roads and high speed driving.
Normal mode: Suitable for ordinary driving.
To turn on the sports mode, push the selector switch on the
“SPORT” side. The indicator comes on in the instrument
cluster and a stronger damping effect than that in normal mode
is automatically provided.
To change to the normal mode, push the switch to the “NORM”
side.
