LEXUS LS430 2005 Owners Manual

INTERIOR EQUIPMENT
122
GLOVE BOX
14L240
 1Type A 2Type B 3Unlock 4Lock 5Open
To open the glove box door, pull the lever. To lock the
glove box door, insert the master key and turn it
clockwise.
With the tail lights on, the glove box light will come on when the
glove box door is open.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the glove box door closed
while driving.
GARAGE DOOR OPENER
The garage door opener (\b Universal
Transceiver) is manufactured under license from
HomeLink
\b and can be programmed to operate garage
doors, gates, entry doors, door locks, home lighting
systems, and security systems, etc.
(a) Programming the HomeLink\b
14L070
 1 Buttons 2Indicator light
The HomeLink
\b in your vehicle has 3 buttons and you can
store one program for each button.
To ensure correct programming into the HomeLink
\b, install a
new battery in the hand −held transmitter prior to programming.

INTERIOR EQUIPMENT
123
The battery side of the hand
−held transmitter must be pointed
away from the HomeLink
\b during the programming process.
For Canadian users, follow the procedure in “Programming an
entrance gate/Programming all devices in the Canadian
market”.
1. Decide which of 3 HomeLink
\b buttons you want to program.
2. Place your hand− held garage transmitter 25 to 75 mm (1 to
3 in.) away from the surface of the HomeLink
\b.
Keep the indicator light on the HomeLink
\b in view while
programming.
3. Simultaneously press and hold the hand −held garage
transmitter button along with the selected HomeLink
\b button.
4. When the indicator light on the HomeLink
\b changes from a
slow to a rapid flash after 20 seconds, you can release both
buttons.
5. Test the operation of the HomeLink
\b by pressing the newly
programmed button. If programming a garage door opener,
check to see if the garage door opens and closes.
If the garage door does not operate, identify if your garage
transmitter is of the “Rolling Code” type. Press and hold the
programmed HomeLink
\b button. The garage door has the
rolling code feature if the indicator light (on the HomeLink\b)
flashes rapidly and then remains lit after 2 seconds. If your
garage transmitter is the “Rolling Code” type, proceed to the
heading “Programming a rolling code system”. 6. Repeat steps 2 through 5 for each remaining HomeLink
\b
button to program another device.
Programming a rolling code system
If your device is “Rolling Code” equipped, it is necessary
to follow steps 1 through 4 under the heading
“Programming the HomeLink
\b” before proceeding with
the steps listed below.
1. Locate the “training” button on the ceiling mounted garage
door opener motor. The exact location and color of the button
may vary by brand of garage door opener. Refer to the owner’s
guide supplied by the garage door opener manufacturer for the
location of this “training” button.
2. Press the “training” button on the ceiling mounted garage
door opener motor.
Following this step, you have 30 seconds in which to initiate
step 3 below.
3. Press and release the vehicle’s programmed HomeLink
\b
button twice. The garage door may open. If the door does
open, the programming process is complete. If the door does
not open, press and release the button a third time. This third
press and release will complete the programming process by
opening the garage door.
The ceiling mounted garage door opener motor should now
recognize the HomeLink
\b unit and be able to activate the
garage door up/down.

INTERIOR EQUIPMENT
1244. Repeat steps 1 through 3 for each remaining HomeLink
\b
button to program another rolling code system.
Programming an entrance gate /
Programming all devices in the Canadian
market
1. Decide which of the 3 HomeLink\b buttons you want to
program.
2. Place your hand −held gate/device transmitter 25 to 75 mm
(1 to 3 in.) away from the surface of the HomeLink
\b.
Keep the indicator light on the HomeLink
\b in view while
programming.
3. Press and hold the selected HomeLink
\b button.
4. Continuously press and release (cycle) the hand−held
gate/device transmitter button every two seconds until step 5
is complete.
5. When the indicator light on the HomeLink
\b changes from a
slow to a rapid flash after 20 seconds, you can release both
buttons.
6. Test the operation of the HomeLink
\b by pressing the newly
programmed button. Check to see if the gate/device operates
correctly.
7. Repeat steps 1 through 6 for each remaining HomeLink
\b
button to program another device.
Programming other devices
To program other devices such as home security systems,
home door locks or lighting, contact your authorized Lexus
dealer for assistance.
Reprogramming a button
Individual HomeLink\b
buttons c annot be erased, however, to
reprogram a single button, follow the procedure “Programming
the HomeLink
\b”.
(b) Operating the HomeLink\b
To operate the HomeLink\b, press the appropriate HomeLink\b
button to activate the programmed device. The HomeLink\b
indicator light should come on. The HomeLink\b continues to
send the signal for up to 20 seconds as long as the button is
pressed.

INTERIOR EQUIPMENT
125
(c) Erasing the entire HomeLink\b memory
(all three programs)
To erase all previously programmed codes at one time, press
and hold down the 2 outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase the programs stored
in the HomeLink
\b memory.
CAUTION
 When programming the HomeLink\b Universal
Transceiver, you may be operating a garage door or
other device. Make sure people and objects are out
of the way of the garage door or other device to
prevent potential harm or damage.
 Do not use this HomeLink
\b Universal Transceiver
with any garage door opener that lacks the safety
stop and reverse feature as required by federal safety
standards. (This includes any garage door opener
model manufactured before April 1, 1982.) A garage
door opener which cannot detect an object
(signaling the door to stop and reverse), does not
meet current federal safety standards. Using a
garage door opener without these features increases
risk of serious injury or death.
This device complies with Part 15 of the FCC Rules
and with RSS− 210 of the IC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
WARNING: This transmitter has been tested and
complies with FCC and IC rules. Changes or
modifications not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the device.

INTERIOR EQUIPMENT
126

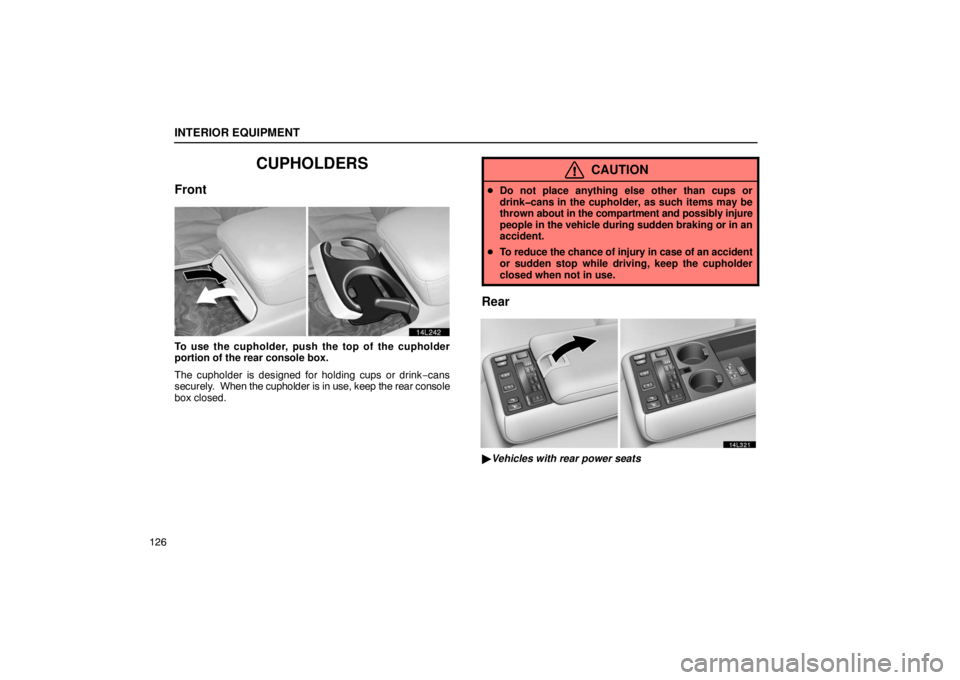

CUPHOLDERS
Front
14L242
To use the cupholder, push the top of the cupholder
portion of the rear console box.
The cupholder is designed for holding cups or drink−cans
securely. When the cupholder is in use, keep the rear console
box closed.
CAUTION
 Do not place anything else other than cups or
drinkcans in the cupholder, as such items may be
thrown about in the compartment and possibly injure
people in the vehicle during sudden braking or in an
accident.
 To reduce the chance of injury in case of an accident
or sudden stop while driving, keep the cupholder
closed when not in use.
Rear
14L321
Vehicles with rear power seats

INTERIOR EQUIPMENT
127

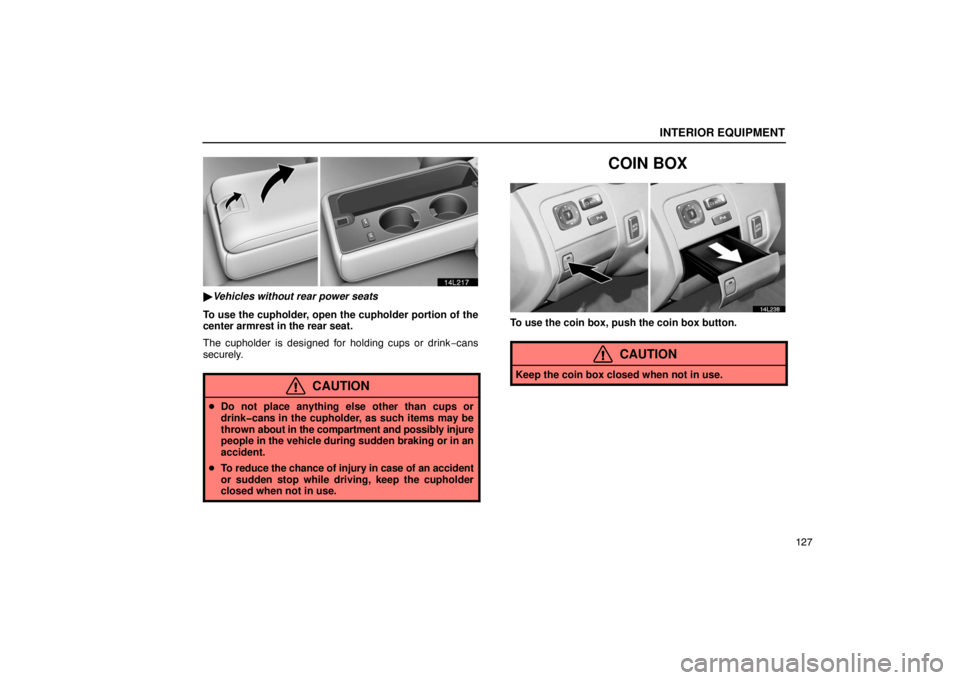

14L217
Vehicles without rear power seats
To use the cupholder, open the cupholder portion of the
center armrest in the rear seat.
The cupholder is designed for holding cups or drink −cans
securely.
CAUTION
 Do not place anything else other than cups or
drinkcans in the cupholder, as such items may be
thrown about in the compartment and possibly injure
people in the vehicle during sudden braking or in an
accident.
 To reduce the chance of injury in case of an accident
or sudden stop while driving, keep the cupholder
closed when not in use.
COIN BOX
14L238
To use the coin box, push the coin box button.
CAUTION
Keep the coin box closed when not in use.

INTERIOR EQUIPMENT
128
OVERHEAD CONSOLE BOX
14L065b
To use the overhead console box, push the button.
CAUTION
To reduce the chance of injury in case of an accident
or a sudden stop, always keep the overhead console
box closed while driving.
 Do not place any object heavier than 100 g (0.22 lb.)
in it. Heavier objects may cause the box to open and
the contents to fly out resulting in injuries.
NOTICE
During hot weather, the interior of the vehicle becomes
very hot. Do not leave anything flammable or
deformable such as a lighter, glasses, etc. inside.

INTERIOR EQUIPMENT
129

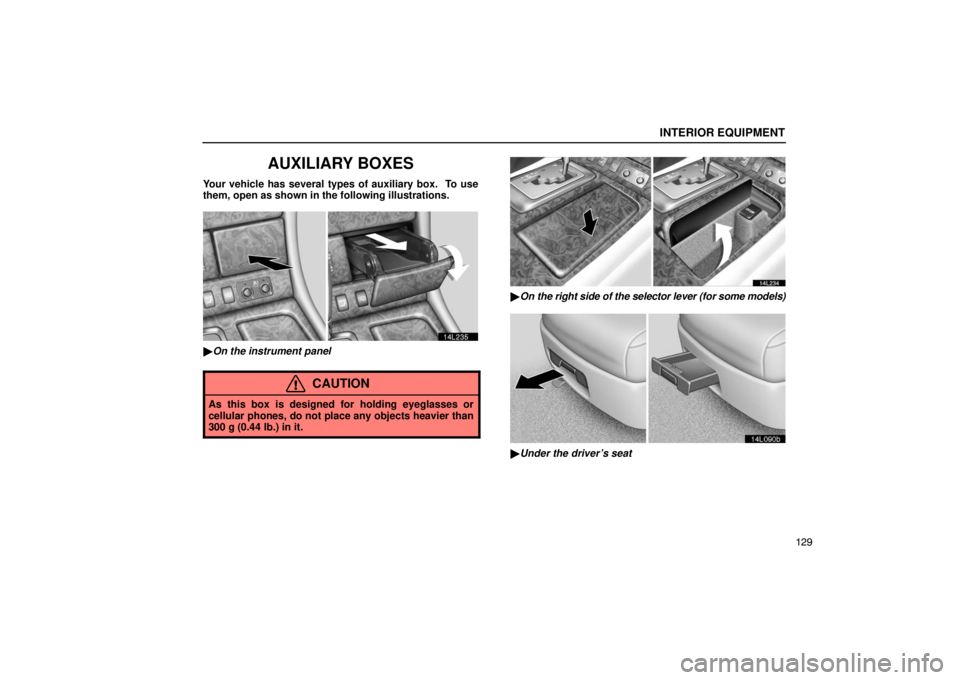

AUXILIARY BOXES
Your vehicle has several types of auxiliary box. To use
them, open as shown in the following illustrations.
14L235
On the instrument panel
CAUTION
As this box is designed for holding eyeglasses or
cellular phones, do not place any objects heavier than
300 g (0.44 lb.) in it.
14L234
On the right side of the selector lever (for some models)
14L090b
Under the driver’s seat

INTERIOR EQUIPMENT
130
14L087
Under the front passenger’s seat
14L218
On the inner side of the front doors
14L322
Rear seat armrest
(Vehicles with rear power seats)
14L220
 Rear seat armrest
(Vehicles without rear power seats)

INTERIOR EQUIPMENT
131
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the auxiliary boxes closed
while driving.

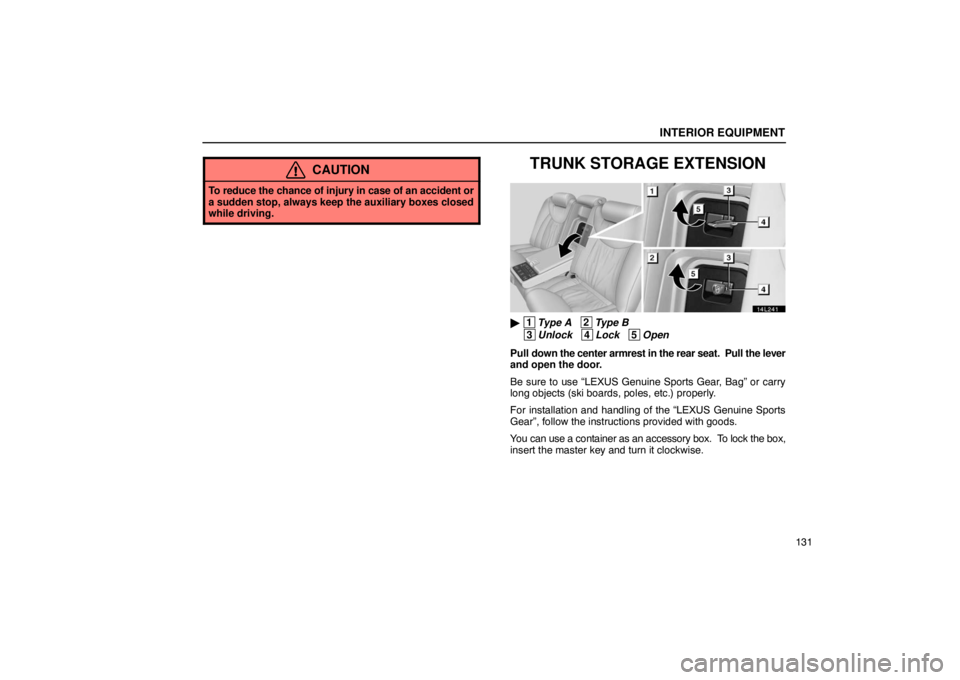

TRUNK STORAGE EXTENSION
14L241
 1Type A 2Type B
3Unlock 4Lock 5Open
Pull down the center armrest in the rear seat. Pull the lever
and open the door.
Be sure to use “LEXUS Genuine Sports Gear, Bag” or carry
long objects (ski boards, poles, etc.) properly.
For installation and handling of the “LEXUS Genuine Sports
Gear”, follow the instructions provided with goods.
You can use a container as an accessory box. To lock the box,
insert the master key and turn it clockwise.
