LEXUS LS430 2005 Owners Manual

EXTERIOR EQUIPMENT
152

SECTION 1 – 6
153
INSTRUMENTS AND CONTROLS
Occupant restraint systems
Seats154
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Front seats 154
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Rear seats 162
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Armrest 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Head restraints 165
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Seat belts 168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
SRS driver airbags and front passenger airbags 179
. . . . . . . . . . . . . .
SRS side airbags and curtain shield airbags 190
. . . . . . . . . . . . . . . . .
Child restraint 199
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Driving position memory system 220
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seat position memory system 224
. . . . . . . . . . . . . . . . . . . . . . . . .

OCCUPANT RESTRAINT SYSTEMS
154
SEATS
While the vehicle is being driven, all vehicle occupants should
have the seatback upright, sit well back in the seat and properly
wear the seat belts provided.
CAUTION
 Do not drive the vehicle unless the occupants are
properly seated. Do not allow any passengers to sit
in the luggage compartment or cargo area. Persons
not properly seated and/or not properly restrained by
seat belts can be severely injured in the event of
emergency braking or a collision.
 During driving, do not allow any passengers to stand
up or move around between seats. Otherwise, severe
injuries can occur in the event of emergency braking
or a collision.
FRONT SEATS
Front seat precautions
Driver seat
CAUTION
The SRS driver airbag deploys with considerable force,
and can cause death or serious injury especially if the
driver is very close to the airbag. The National Highway
Traffic Safety Administration (“NHTSA”) advises:
Since the risk zone for driver airbag is the first 5075
mm (23 in.) of inflation, placing yourself 250 mm (10 in.)
from your driver airbag provides you with a clear margin
of safety. This distance is measured from the center of
the steering wheel to your breastbone. If you sit less
than 250 mm (10 in.) away now, you can change your
driving position in several ways:
 Move your seat to the rear as far as you can while still
reaching the pedals comfortably.
 Slightly recline the back of the seat. Although vehicle
designs vary, many drivers can achieve the 250 mm
(10 in.) distance, even with the driver seat all the way
forward, simply by reclining the back of the seat
somewhat. If reclining the back of your seat makes
it hard to see the road, raise yourself by using a firm,
nonslippery cushion, or raise the seat if your vehicle
has that feature.

OCCUPANT RESTRAINT SYSTEMS
155
If your steering wheel is adjustable, tilt it downward.
This points the airbag toward your chest instead of
your head and neck.
The seat should be adjusted as recommended by
NHTSA above, while still maintaining control of the foot
pedals, steering wheel, and your view of the instrument
panel controls.
Front passenger seat
CAUTION
The SRS front passenger airbag also deploys with
considerable force, and can cause death or serious
injury especially if the front passenger is very close to
the airbag. The front passenger seat should be as far
from the airbag as possible with the seatback adjusted,
so the front passenger sits upright.
Front seats
CAUTION
The SRS side airbags are installed in the driver and front
passenger seats. Observe the following precautions.
 Do not lean against the front door when the vehicle
is in use, since the side airbag inflates with
considerable speed and force. Otherwise, you may
be killed or severely injured.
 Do not use seat accessories which cover the area
where the side airbags inflate. Such accessories may
prevent the side airbags from activating correctly,
causing death or serious injury.
 Do not modify or replace the seats or the upholstery
of the seats equipped with side airbags. Such
change may prevent the side airbag system from
activating correctly, disable the system, or cause the
side a irbags to inflate accidentally, resulting in death
or serious injury.

OCCUPANT RESTRAINT SYSTEMS
156
Seat adjustment precautions
CAUTION
Do not adjust the seat while the vehicle is moving as
the seat may unexpectedly move and cause the
driver to lose control of the vehicle.
 Be careful that the seat does not hit a passenger,
luggage or the rear seat.
NOTICE
Do not operate the control switch in more than one
dimension at a time. It may cause electrical overload.
Adjusting front seats
16L257a
 1
Seat cushion length control switch
2 Seat position control switch, seat cushion angle
and height control switch
3Seatback angle and head restraint control switch
4Upper lumbar support control switch
5 Lower lumbar support control switch

OCCUPANT RESTRAINT SYSTEMS
157
Adjusting seat cushion length
16L264
For driver’s seat only
Move the control switch in the desired direction.
Releasing the switch will stop the seat cushion in that position.
Do not place anything under the seat, as this might interfere
with the seat movement.
Adjusting seat position
16L258a
 For driver’s seat
Move the control switch in the desired direction.
Releasing the switch will stop the seat and head restraint in
that position. Do not place anything under the seat, as this
might interfere with the seat movement.
You can adjust the head restraint in the desired position by
using the head restraint control switch. However, if you move
the seat more than 15 mm (0.6 in.) by using the seat position
control switch after adjusting the head restraint, the head
restraint will return to the designated position as determined by
the seat position switch. To adjust the head restraint, see
“Head restraints” on page 165.

OCCUPANT RESTRAINT SYSTEMS
158
16L259

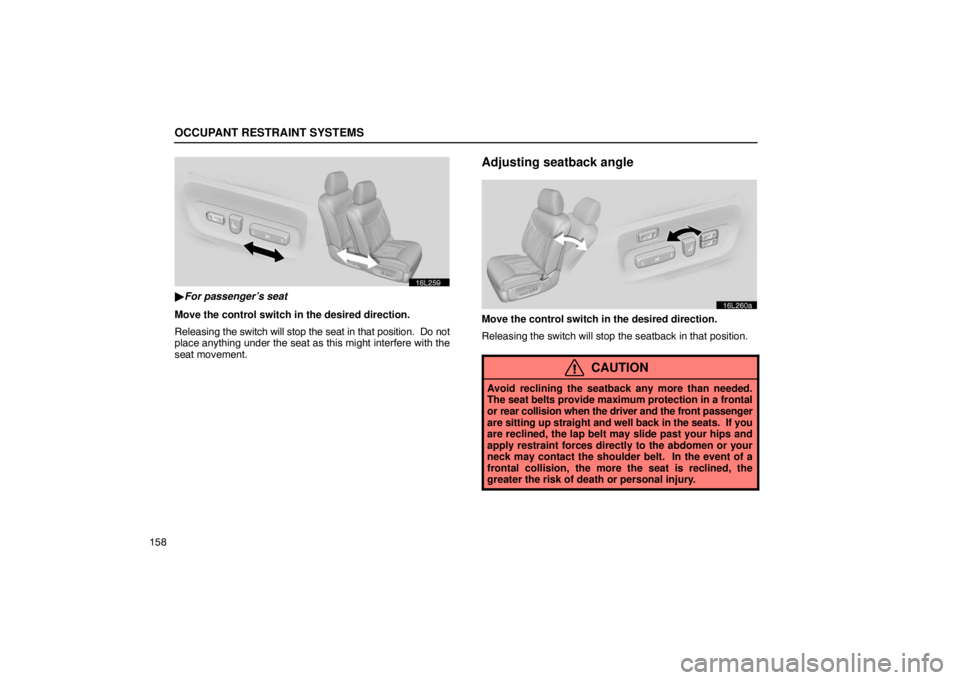

For passenger’s seat
Move the control switch in the desired direction.
Releasing the switch will stop the seat in that position. Do not
place anything under the seat as this might interfere with the
seat movement.
Adjusting seatback angle
16L260a
Move the control switch in the desired direction.
Releasing the switch will stop the seatback in that position.
CAUTION
Avoid reclining the seatback any more than needed.
The seat belts provide maximum protection in a frontal
or rear collision when the driver and the front passenger
are sitting up straight and well back in the seats. If you
are reclined, the lap belt may slide past your hips and
apply restraint forces directly to the abdomen or your
neck may contact the shoulder belt. In the event of a
frontal collision, the more the seat is reclined, the
greater the risk of death or personal injury.

OCCUPANT RESTRAINT SYSTEMS
159

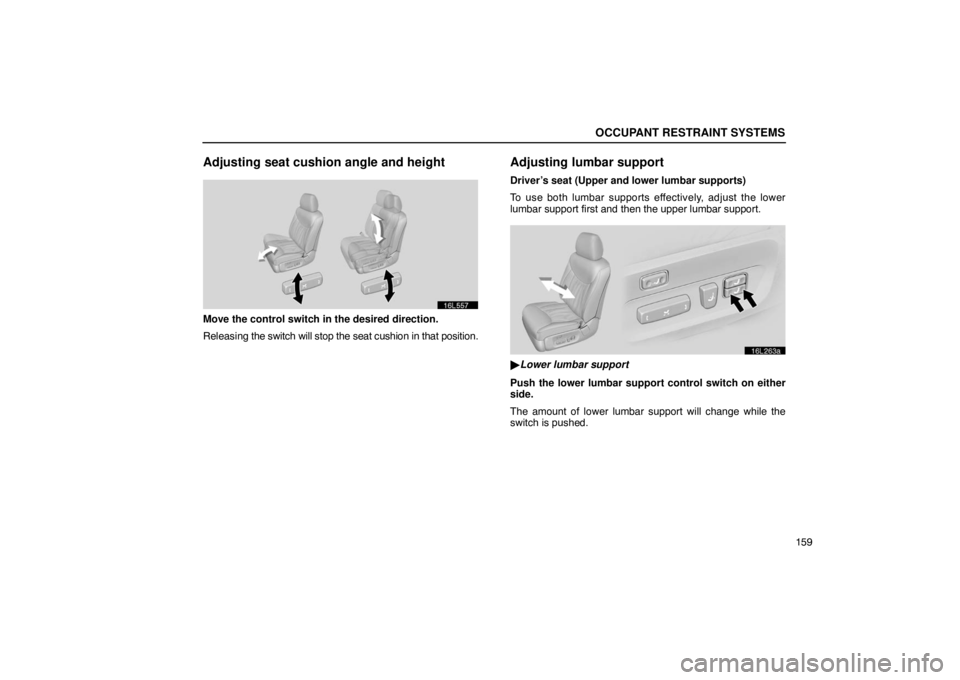

Adjusting seat cushion angle and height
16L557
Move the control switch in the desired direction.
Releasing the switch will stop the seat cushion in that position.
Adjusting lumbar support
Driver’s seat (Upper and lower lumbar supports)
To use both lumbar supports effectively, adjust the lower
lumbar support first and then the upper lumbar support.
16L263a
Lower lumbar support
Push the lower lumbar support control switch on either
side.
The amount of lower lumbar support will change while the
switch is pushed.

OCCUPANT RESTRAINT SYSTEMS
160
16L262a

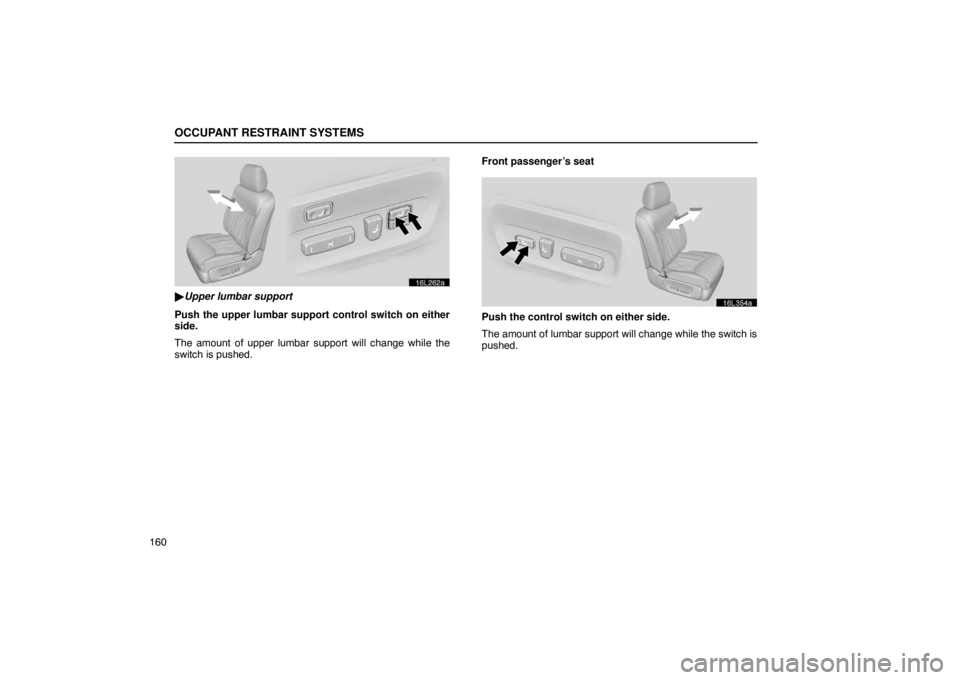

Upper lumbar support
Push the upper lumbar support control switch on either
side.
The amount of upper lumbar support will change while the
switch is pushed. Front passenger’s seat
16L354a
Push the control switch on either side.
The amount of lumbar support will change while the switch is
pushed.

OCCUPANT RESTRAINT SYSTEMS
161

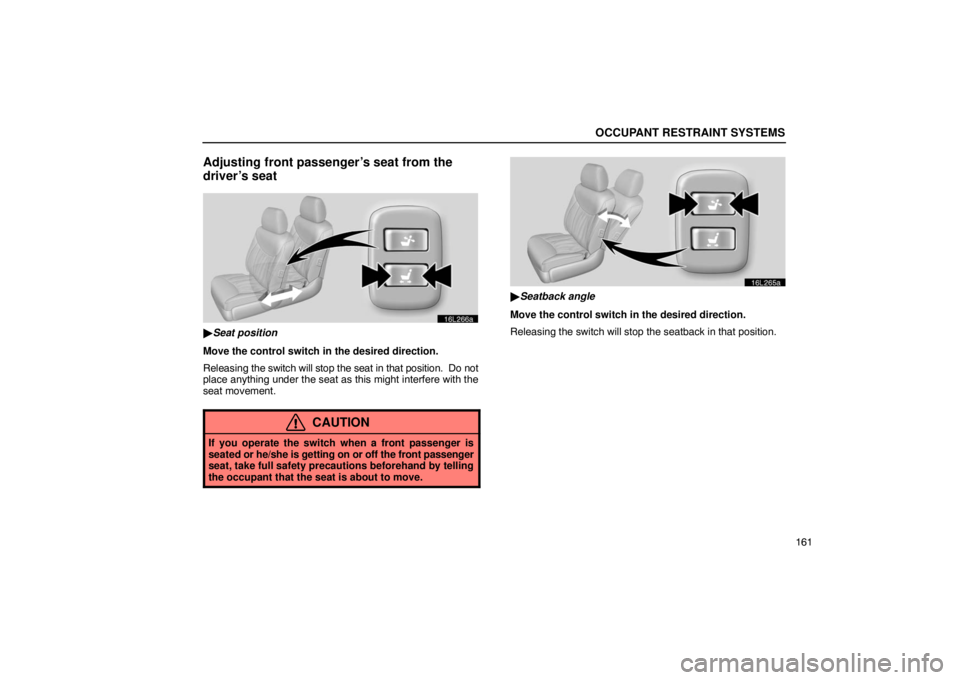

Adjusting front passenger’s seat from the
driver’s seat
16L266a
Seat position
Move the control switch in the desired direction.
Releasing the switch will stop the seat in that position. Do not
place anything under the seat as this might interfere with the
seat movement.
CAUTION
If you operate the switch when a front passenger is
seated or he/she is getting on or off the front passenger
seat, take full safety precautions beforehand by telling
the occupant that the seat is about to move.
16L265a
 Seatback angle
Move the control switch in the desired direction.
Releasing the switch will stop the seatback in that position.
