Page 161 of 539

LEXUS LS430 2005  Owners Manual EXTERIOR EQUIPMENT
142
HOOD
15L089
1. To open the hood, pull the hood lock release lever
under the instrument panel.  The hood will spring up
slightly.
15L097
2. Insert your fingers under the hood, pu

Page 162 of 539

LEXUS LS430 2005  Owners Manual EXTERIOR EQUIPMENT
143
TRUNK LID
15L096a
 1Type A   2Type B
To unlock the trunk lid, insert the master key and turn it
clockwise.
To close the trunk lid, lower it and press down on it.  After
closing

Page 163 of 539

LEXUS LS430 2005  Owners Manual EXTERIOR EQUIPMENT
144
Trunk lid opener
15L090
 1Main switch   2Operative   3Inoperative
To open the trunk lid while sitting in the driver’s seat, pull
the lever with the main switch not pushed in.

Page 164 of 539

LEXUS LS430 2005  Owners Manual EXTERIOR EQUIPMENT
145
Trunk lid closer
If the trunk lid is closed but does not latch shut, it
automatically closes completely.
CAUTION
Pay careful attention not to get your fingers trapped
as the tr

Page 165 of 539

LEXUS LS430 2005  Owners Manual EXTERIOR EQUIPMENT
146
FUEL TANK CAP
15L046a
The arrow head next to FUEL DOOR as shown indicates
on which side of your vehicle the fuel filler door is located.
15L092
1. To open the fuel filler door,

Page 166 of 539

LEXUS LS430 2005  Owners Manual EXTERIOR EQUIPMENT
147
15L037b
2. To remove the fuel tank cap, turn the cap slowly
counterclockwise, then pause slightly before removing it.
The removed cap can be stored on the back side of the fuel

Page 167 of 539

LEXUS LS430 2005  Owners Manual EXTERIOR EQUIPMENT
148

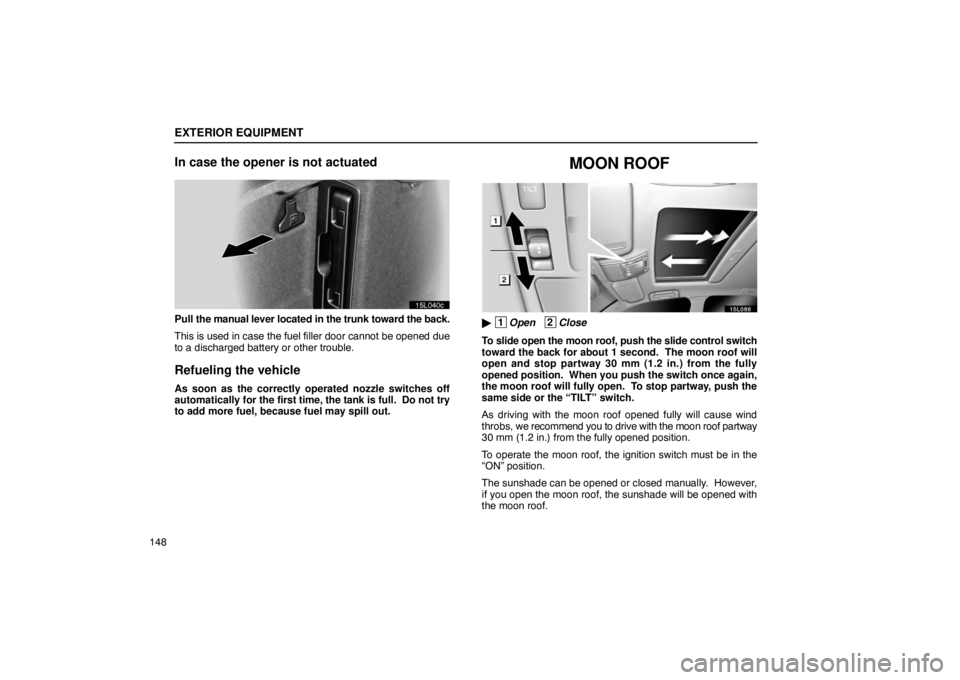

In case the opener is not actuated
15L040c
Pull the manual lever located in the trunk toward the back.
This is used in case the fuel filler door cannot be opened due
to a discha

Page 168 of 539

LEXUS LS430 2005  Owners Manual EXTERIOR EQUIPMENT
149

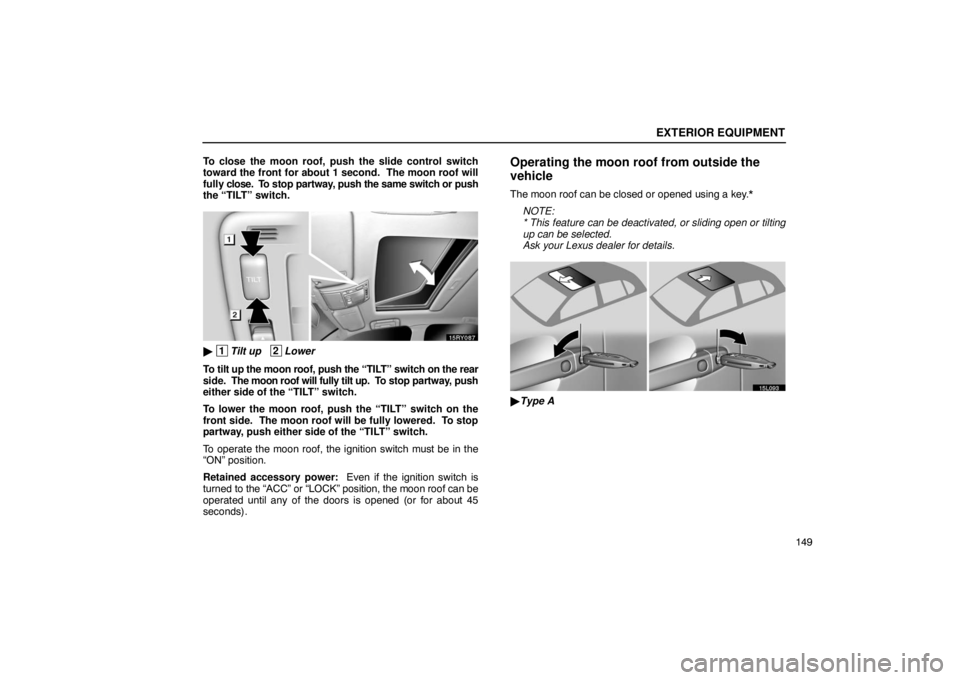

To close the moon roof, push the slide control switch
toward the front for about 1 second.  The moon roof will
fully
close.  To  stop partway,  push the same switch or push
the

Page 169 of 539

LEXUS LS430 2005  Owners Manual EXTERIOR EQUIPMENT
150

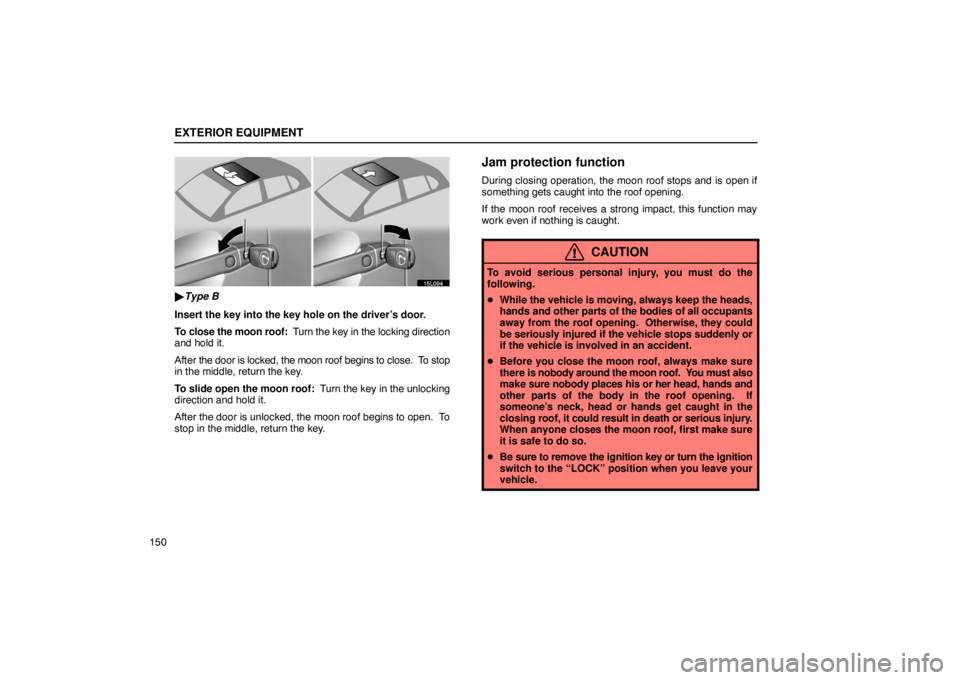

15L094
Type B
Insert the key into the key hole on the driver’s door.
To close the moon roof:  Turn the key in the locking direction
and hold it.
After  the door is locked, th

Page 170 of 539

LEXUS LS430 2005  Owners Manual EXTERIOR EQUIPMENT
151

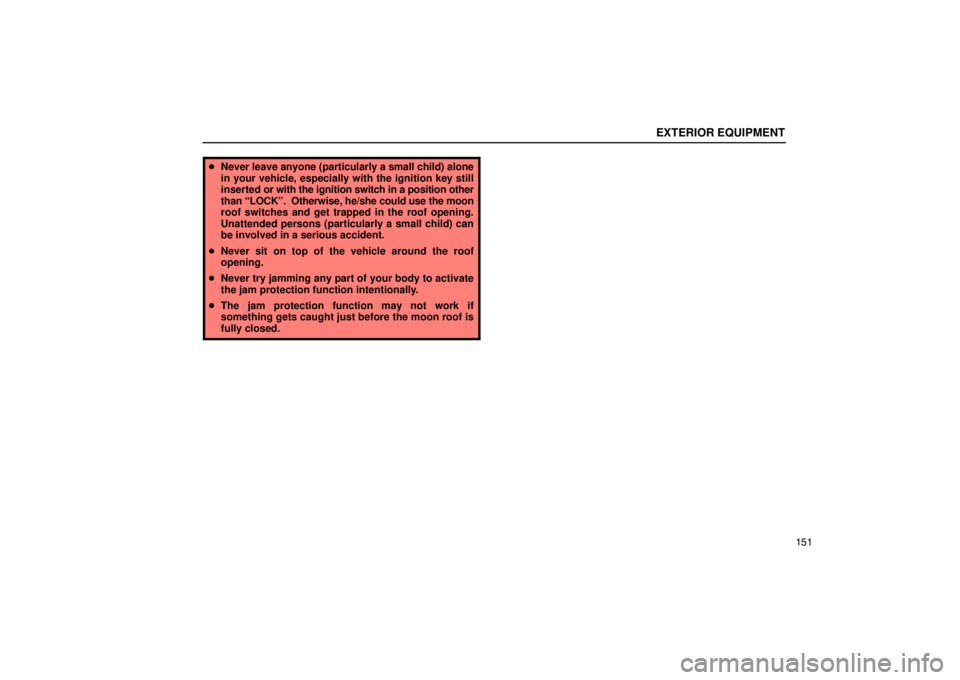

Never leave  anyone (particularly a small child) alone
in your vehicle, especially with the ignition key still
inserted or with the ignition switch in a position other
than “
