2-2. Instrument cluster
2
When driving
Indicators and warning lights
The indicator and warning lights in the instrument cluster inform the driver of
the operating state of the vehicle.
■ Indicators
Informs the driver of the operating state of the vehicle’s various sys -
tems.
Turn signal indicator 
( P.
1 0 1 ) Fog light indicator

( P.1 1 0 )
Headlight high beam
indicator ( P.
1 1 0 )ECT SNOW indicator

( P.9 8 )
Headlight indicator
(U.S.A) ( P.
1 1 0 )ECT PWR indicator 
(P.9 8 )
Tail light indicator
(Canada) ( P.
1 1 0 )Cruise control indicator

( P.1 2 6 )
Shift position indicator 
(  P.
9 8 ) TRAC OFF indicator

( P.1 4 0 )
“S” mode indicator 
( P.
9 8 ) Slip indicator

( P. 1 4 0 )
Shift range position
indicator ( P.
9 8 )AFS OFF indicator

( P. 1 1 0 )
Damping mode 
indicator ( P.
1 3 8 )

106
2-2. Instrument cluster
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as ABS, TR
AC OFF or the airbag warning light
not come on when you start the engine, th is could mean that these systems are not
available to help protect you in an accident, which could result in death or serious
injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.
■ Warning lights
Warning lights inform the driver of a malfunction in the indicated vehi -
cle’s systems. (
P. 328 )
* These lights turn on when the ignition sw itch is turned to ON to indicate that
a system check is being performed. Th ey will turn off after the engine is
started on, or after a few seconds.
There may be a malfunction in a system if a
light does not come on, or if the
lights do not turn off. Have the vehicle inspected by your Lexus dealer.
*
(U.S.A)
(U.S.A) (Canada) (U.S.A) (Canada)
(Canada)

107
2-2. Instrument cluster
2
When driving

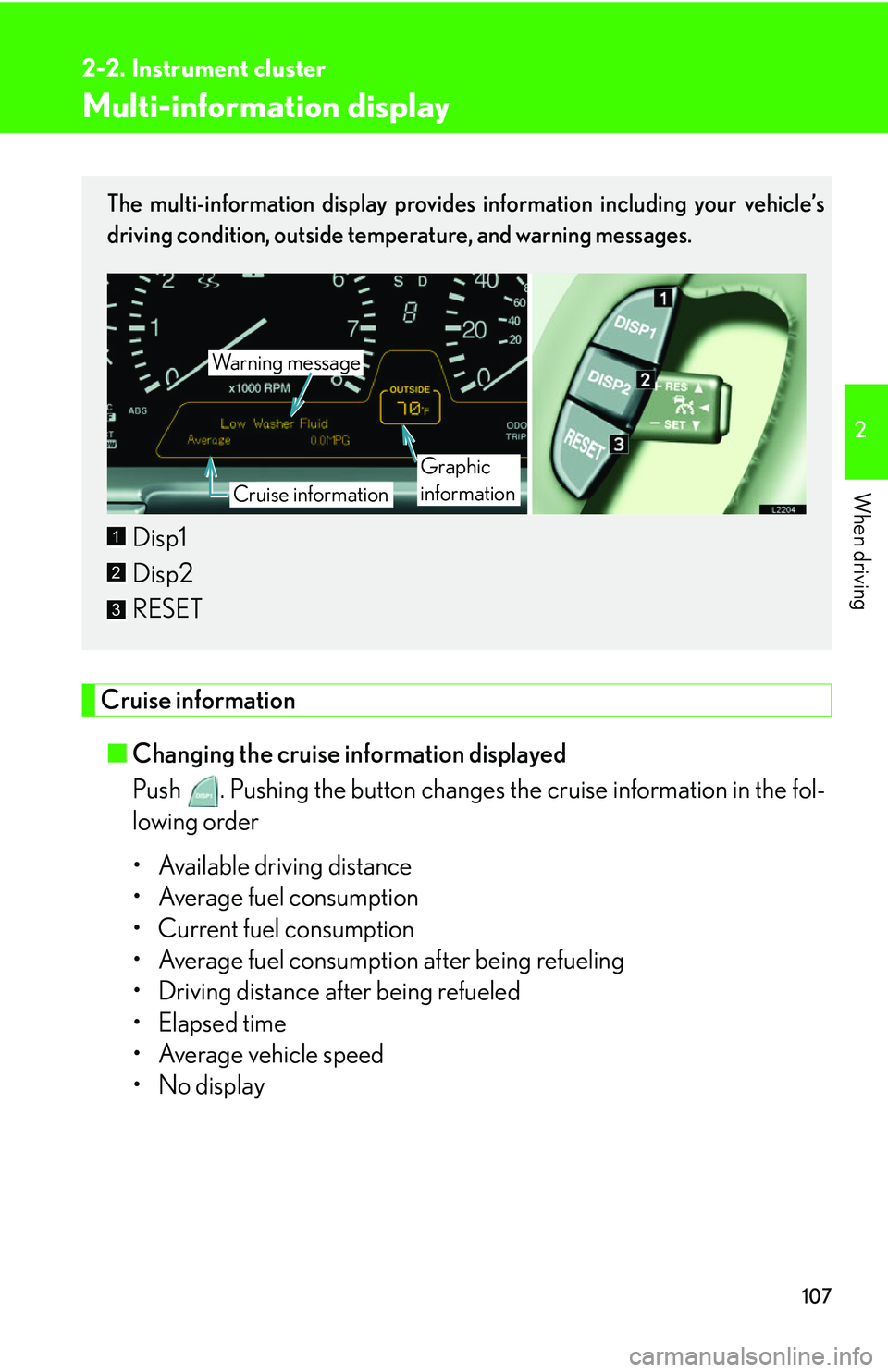

Multi-information display
Cruise information
■Changing the cruise information displayed
Push . Pushing the button changes the cruise information in the fol-
lowing order
• Available driving distance
• Average fuel consumption
• Current fuel consumption
• Average fuel consumption after being refueling
• Driving distance after being refueled
• Elapsed time
• Average vehicle speed
• No display
The multi-information display provides information including your vehicle’s
driving condition, outside temperature, and warning messages.
Disp1
Disp2
RESET
Wa r n i n g m e s s a g e
Cruise information
Graphic 
information
1
2
3

108
2-2. Instrument cluster

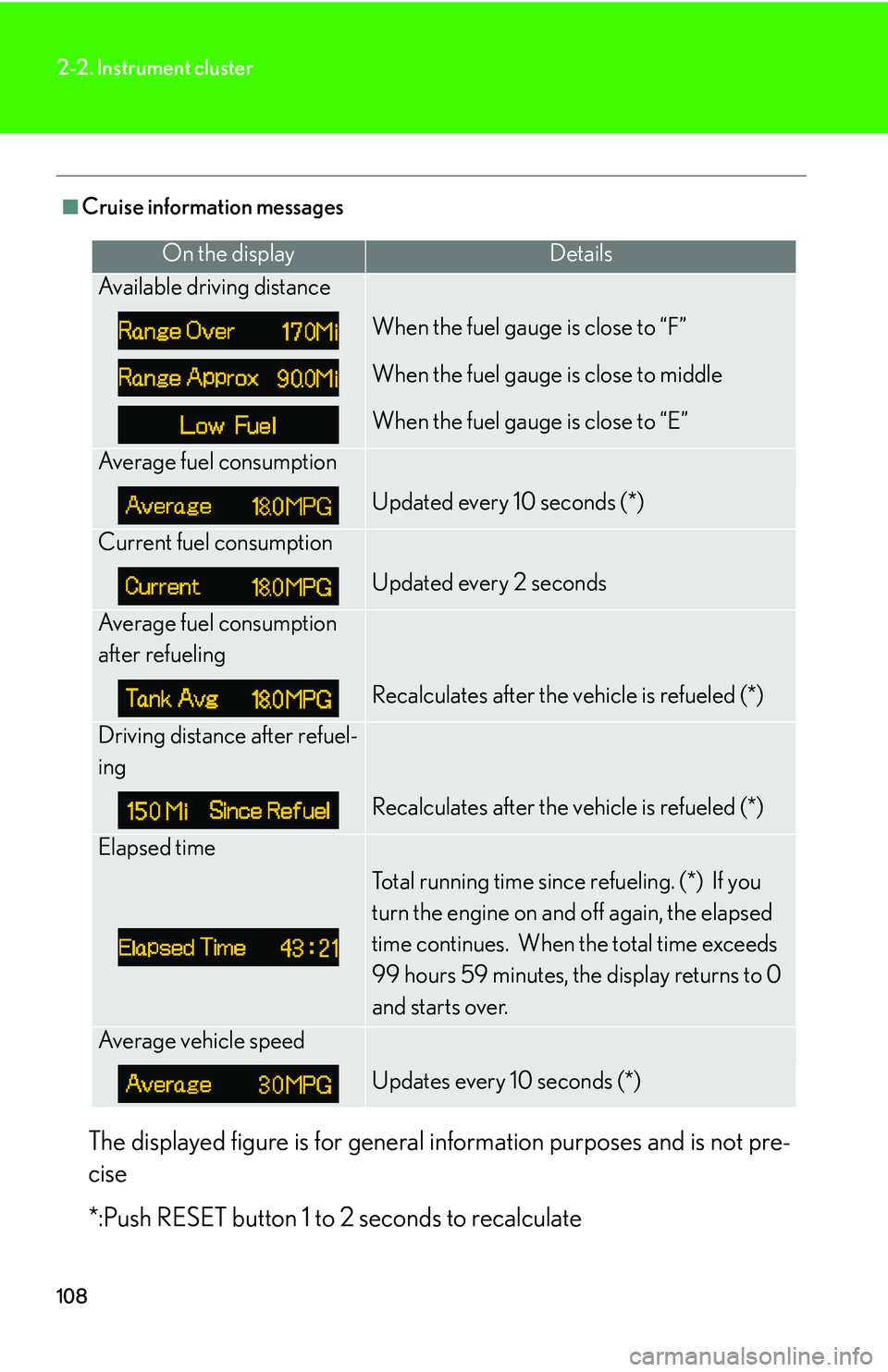

■Cruise information messages
The displayed figure is for general information purposes and is not pre -
cise
*:Push RESET button 1 to 2 se
conds to recalculate
On the displayDetails
Available driving distance
When the fuel gauge is close to “F”
When the fuel gauge is close to middle
When the fuel gauge is close to “E”
Average fuel consumption
Updated every 10 seconds (*)
Current fuel consumption
Updated every 2 seconds
Average fuel consumption
after refueling
Recalculates after the vehicle is refueled (*)
Driving distance after refuel-
ing
Recalculates after the vehicle is refueled (*)
Elapsed time
Total running time since refueling. (*) If you
turn the engine on and off again, the elapsed
time continues. When the total time exceeds
99 hours 59 minutes, the display returns to 0
and starts over.
Average vehicle speed
Updates every 10 seconds (*)

109
2-2. Instrument cluster
2
When driving

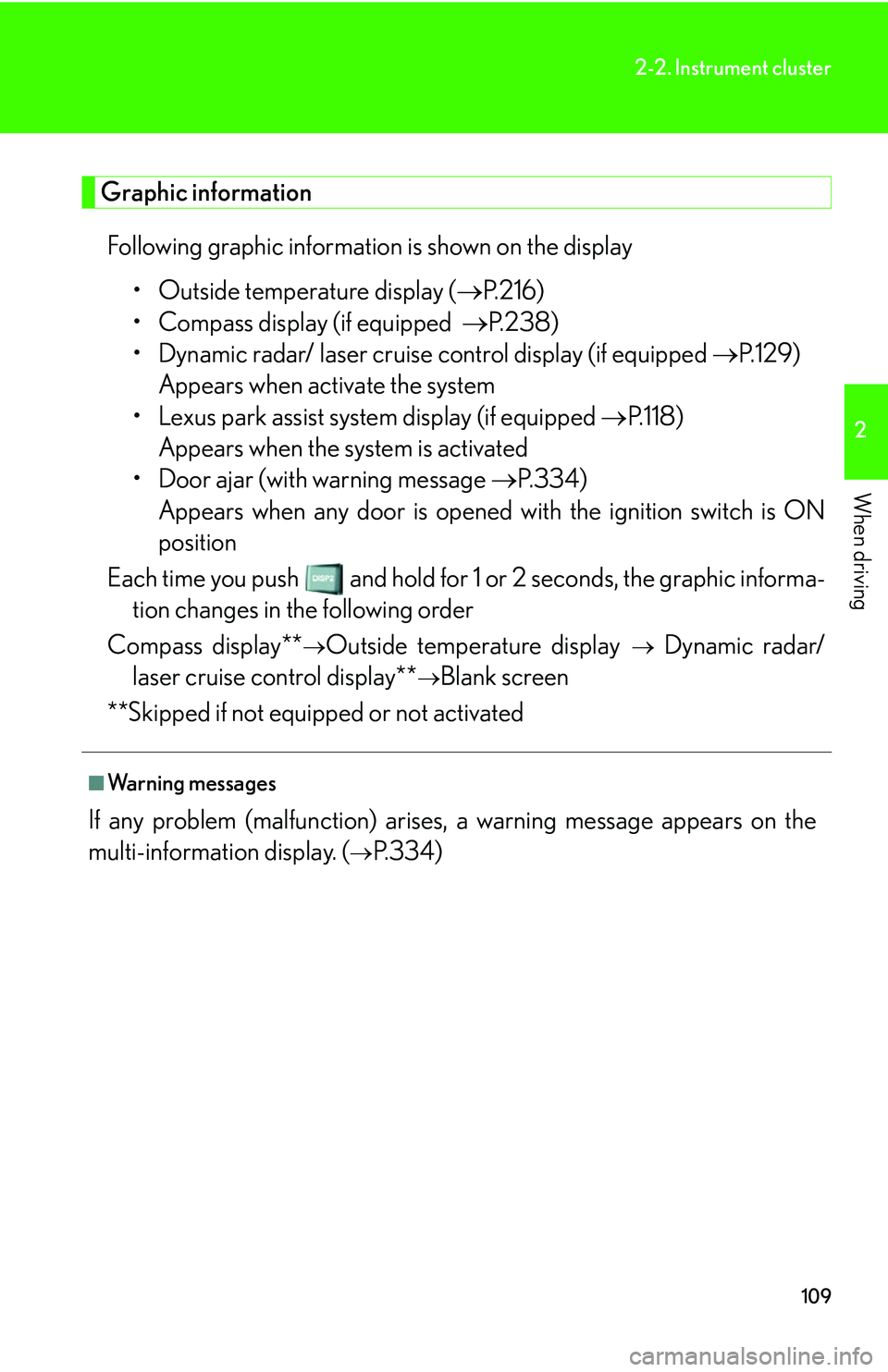

Graphic information
Following graphic information is shown on the display
• Outside temperature display ( P.216 )
• Compass display (if equipped P.238 )
• Dynamic radar/ laser cruise control display (if equipped P.129 )
Appears when activate the system
• Lexus park assist system display (if equipped P.118 )
Appears when the system is activated
• Door ajar (with warning message P.334 )
Appears when any door is opened with the ignition s
witch is ON
position
Each time you push and hold for 1 or 2 seconds, the graphic informa-
tion changes in the following order
Compass display**
Outside temperature display Dynamic radar/
laser cruise control display**
Blank screen
**Skipped if not equipped or not activated
■Wa r n i n g m e s s a g e s
If any problem (malfunction) arises, a warning message appears on the
multi-information display. (
P. 334 )

110
2-3. Operating the headlight and windshield wipers
Headlight switch
Turning on the high beams
With the headlights on, push the
lever forward to turn on the high
beams.
Pull the lever back to the center
position to turn the hi

gh beams
off.
Pull the lever toward you to turn
on the high beams.
Release to turn them off. You
can flash the high beams with
the headlights on or off.
The headlights can be operated manually or automatically.
The side marker, parking,
license plate and instru
-
ment panel lights turn on.
The headlights and all
lights listed abo
ve turn on.
The headlights and parking
lights ar
e turned on and off
automatically. (When the
ignition switch is turned to
ON.)
1
2

111
2-3. Operating the headlight and windshield wipers
2
When driving
Daytime running light system
The headlights turn on automatically (at a reduced intensity) whenever the
engine is started and the parking brake is released to make your vehicle
more visible to other drivers. Dayt ime running lights are not designed for
use at night.
■Headlight control sensor
■Automatic light off system
The headlights turn off automatically if the engine is stopped and the driver’s door is
opened wh

ile the headlights are turned on.
To turn the headlights on again, turn the key to ON, or turn the light switch off once
and then
back to or position.
■Automatic headlight leveling system
The level of the headlights is
automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere other road users.
■Customization
The time it takes for the headlights to automatically turn on or off can be changed.
(  P.384 )
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield. 
Doing so interferes with the sensor detect-
ing the level of ambient light and may cause
the automatic headlight system malfunc-
tion.

112
2-3. Operating the headlight and windshield wipers
Adaptive front lighting system (AFS)
To improve road illumination when turning, the right side headlight moves right
on right turns, and the left side headlight moves left on left turns.
Adaptive front lighting system
cancel switch
On
Off
When the system is canceled,
the “

AFS OFF” indicator lights
up in the instrument cluster.
1
2
3
■Operating conditions
The system starts to operate when the v
ehicle’s speed increases above 6 mph (10
km/h), and stops when the vehicles speed drops below 6 mph (10 km/h).
■When the “AFS OFF” indicator light flashes,
This indicates a system failure. Have your vehicle checked at your Lexus dealer.
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.

113
2-3. Operating the headlight and windshield wipers
2
When driving

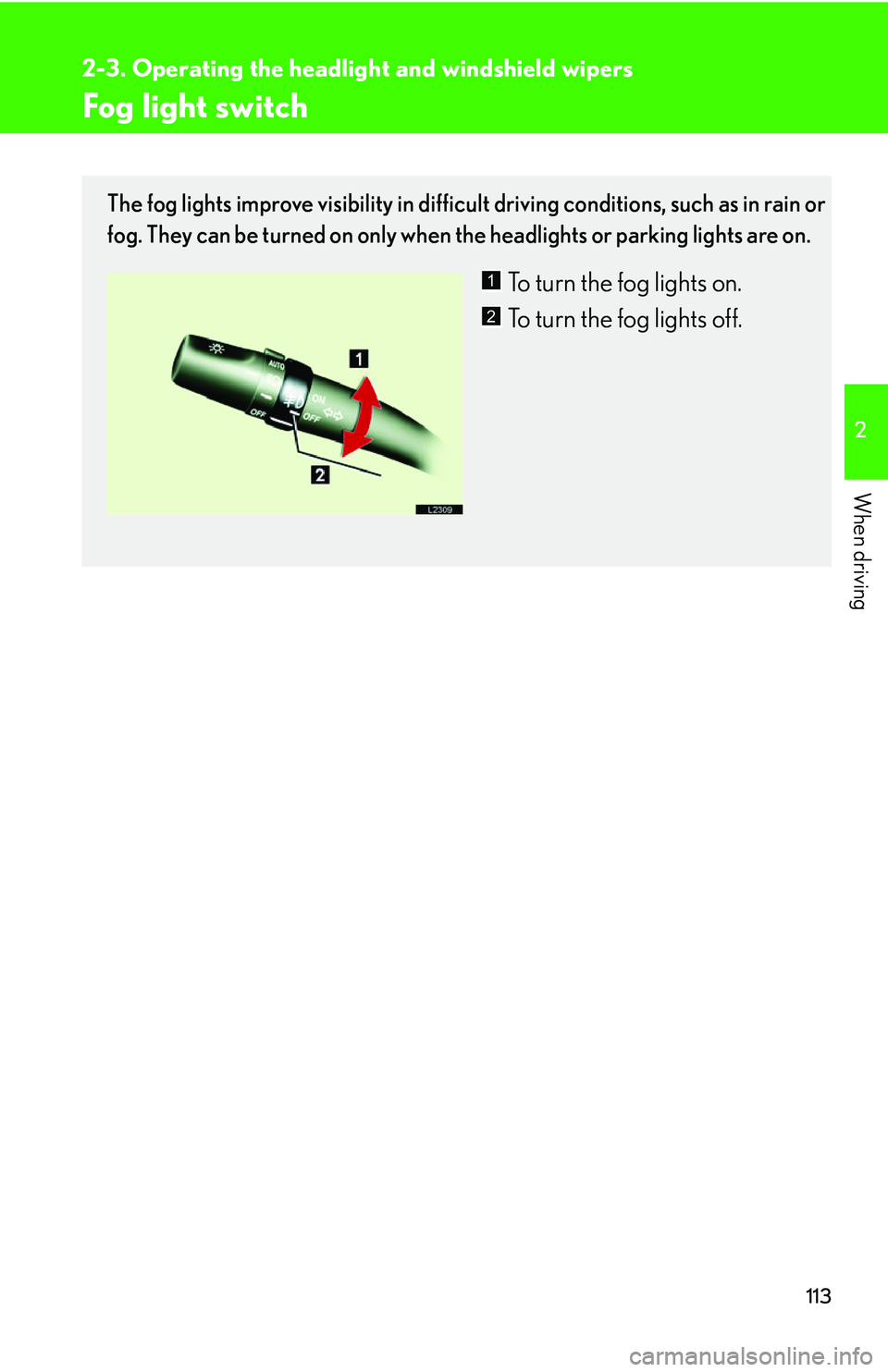

Fog light switch
The fog lights improve visibility in difficult driving conditions, such as in rain or
fog. They can be turned on only when the headlights or parking lights are on.
To turn the fog lights on.
To turn the fog lights off.1
2

114
2-3. Operating the headlight and windshield wipers
Windshield wipers and washer
■Windshield wiper and washer operating conditions
The ignition switch must be turn
ed to ON position.
■If no windshield washer fluid sprays
Check that there is washer fluid
in the windshield washer fluid reservoir, and that the
washer nozzles are not blocked.
Variable intermittent wipers
Intermittent windshield wiper
operation
Low speed windshield wiper
operation
High speed windshield wiper
operation
Interval adjustment
Mist operation
Washer fluid
Rain-sensing windshield wipers
Automatic windshield wiper
operation
Low speed windshield wiper
operation
High speed windshield wiper
operation
Sensitivity
Mist operation
Washer fluid
