1312. Instrument cluster
2
Instrument cluster
LS460/LS460L_GE (OM50G06E)

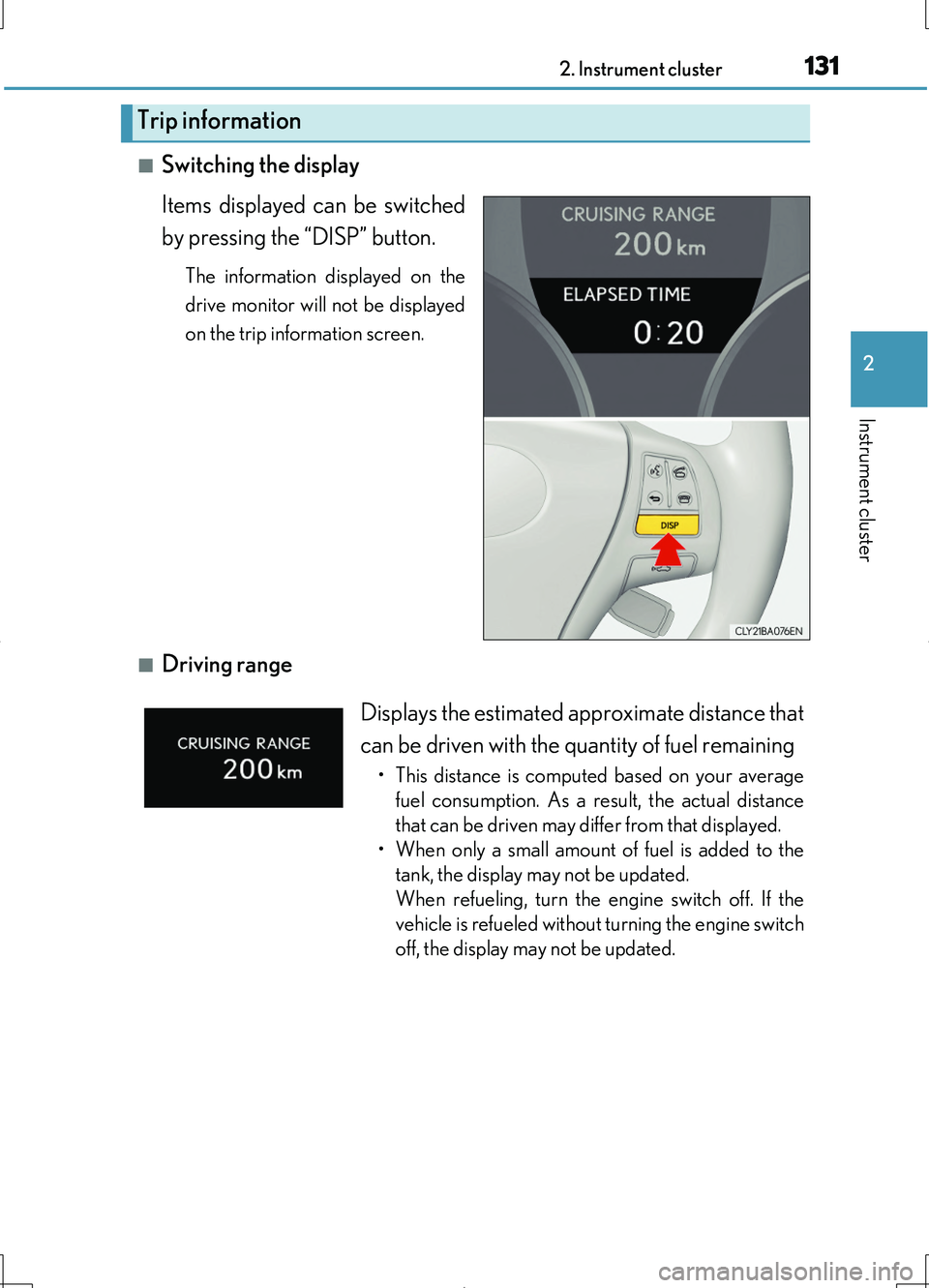

■Switching the display
Items displayed can be switched
by pressing the “DISP” button.
The information displayed on the
drive monitor will not be displayed
on the trip information screen.
■Driving range
Trip information
Displays the estimated approximate distance that
can be driven with the quantity of fuel remaining
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the
tank, the display may not be updated.
When refueling, turn the engine switch off. If the
vehicle is refueled without turning the engine switch
off, the display may not be updated.

1322. Instrument cluster
LS460/LS460L_GE (OM50G06E)
■Eco Driving Indicator Zone Display and average fuel consumption
■Current fuel consumption
●Displays Eco Driving Indicator Zone Display
Suggests Zone of Eco driving and Eco driving ratio
based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco driving, the
right side of Eco Driving Indicator Zone Display
blinks.
Zone of Eco driving
Eco Driving Indicator will not operate in the following
conditions:
• The shift lever is anything other than D.
• Vehicles with paddle shift switches: Paddle shift
switch is operated.
• Normal mode, comfort mode (if equipped) or Eco
drive mode is not selected. ( P. 354)
• The vehicle speed is approximately 130 km/h (80
mph) or higher.
●Displays the average fuel consumption since
the function was reset
• The function can be reset by pressing the “DISP”
button for longer than 1 second when the average
fuel consumption is displayed.
On vehicles with a navigation system, the “Past
record” screen on the Remote Touch screen will
also be updated. ( P. 140)
• Use the displayed average fuel consumption as a
reference.
1
2
Displays the current rate of fuel consumption

1332. Instrument cluster
2
Instrument cluster
LS460/LS460L_GE (OM50G06E)

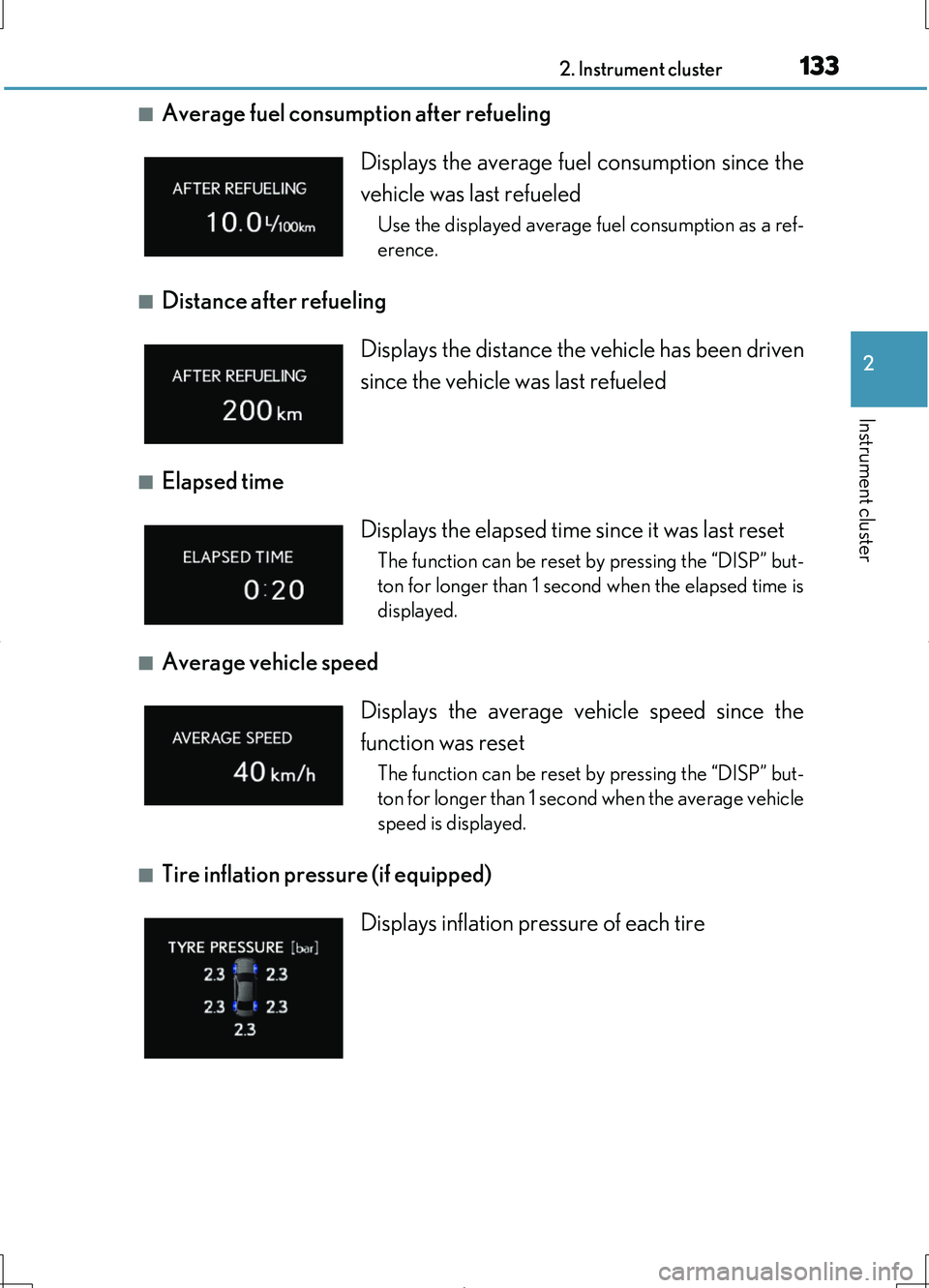

■Average fuel consumption after refueling
■Distance after refueling
■Elapsed time
■Average vehicle speed
■Tire inflation pressure (if equipped)
Displays the average fuel consumption since the
vehicle was last refueled
Use the displayed average fuel consumption as a ref-
erence.
Displays the distance the vehicle has been driven
since the vehicle was last refueled
Displays the elapsed time since it was last reset
The function can be reset by pressing the “DISP” but-
ton for longer than 1 second when the elapsed time is
displayed.
Displays the average vehicle speed since the
function was reset
The function can be reset by pressing the “DISP” but-
ton for longer than 1 second when the average vehicle
speed is displayed.
Displays inflation pressure of each tire

1342. Instrument cluster
LS460/LS460L_GE (OM50G06E)

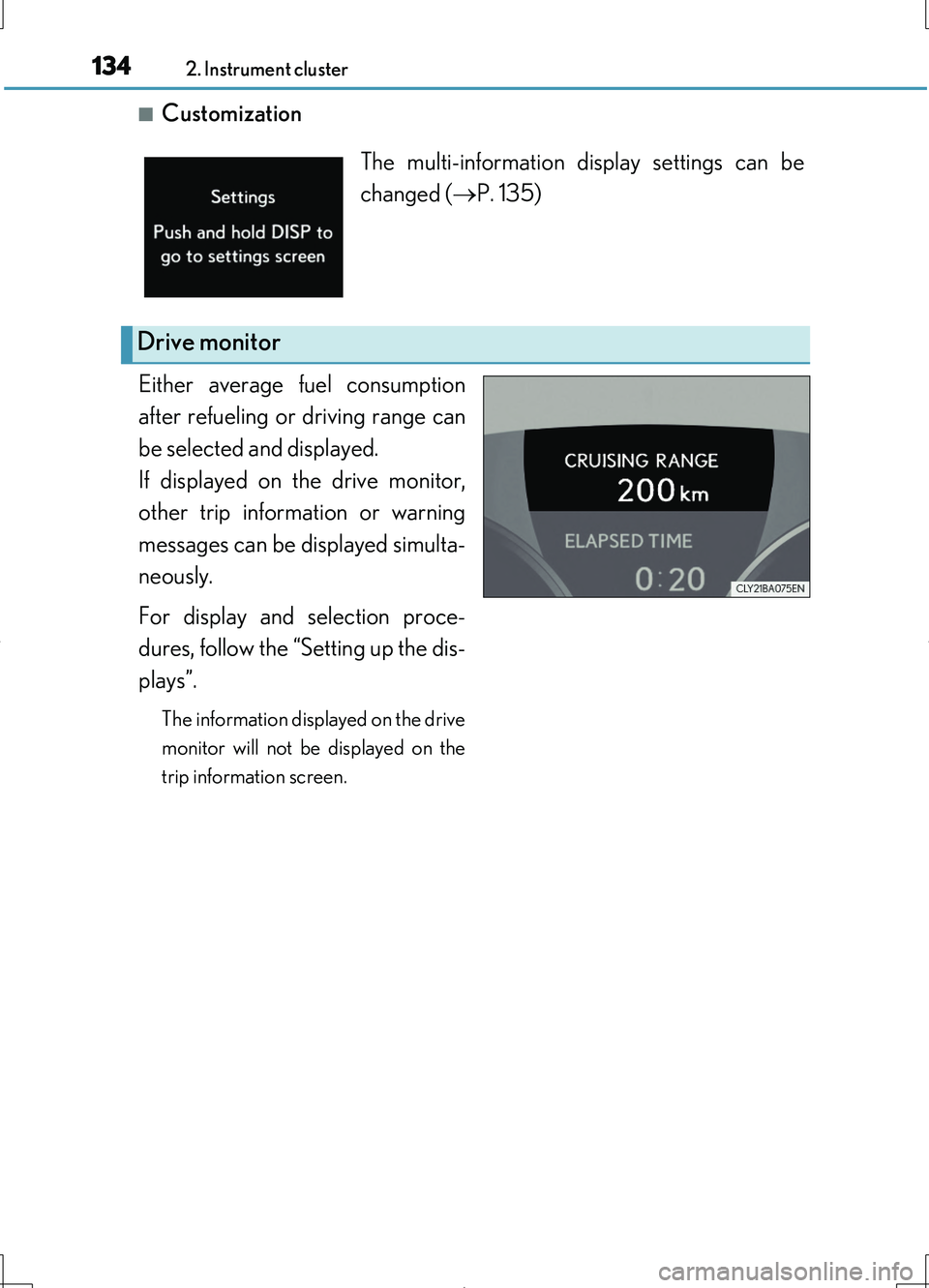

■Customization
Either average fuel consumption
after refueling or driving range can
be selected and displayed.
If displayed on the drive monitor,
other trip information or warning
messages can be displayed simulta-
neously.
For display and selection proce-
dures, follow the “Setting up the dis-
plays”.
The information displayed on the drive
monitor will not be displayed on the
trip information screen.
The multi-information display settings can be
changed ( P. 135)
Drive monitor

1352. Instrument cluster
2
Instrument cluster
LS460/LS460L_GE (OM50G06E)
While the vehicle is stopped,
press the “DISP” button until the
“Settings” screen appears.
Press and hold the “DISP” button
until the screen changes.
Press and hold the “DISP” button
after selecting the desired set-
ting item by pressing the “DISP”
button.
Press and hold the “DISP” button
after selecting the desired set-
ting by pressing the “DISP” but-
ton.
The display goes back to step .

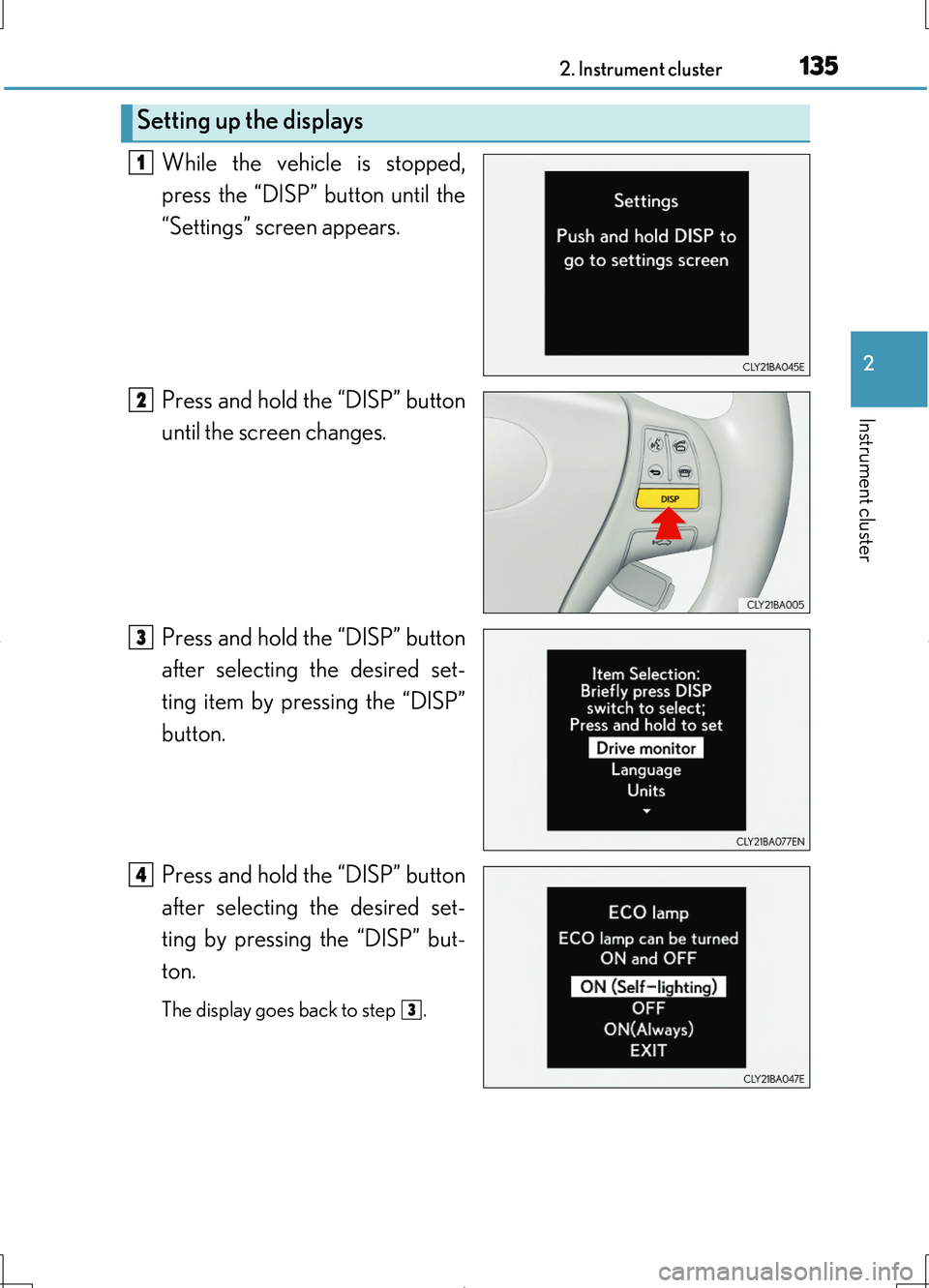

Setting up the displays
1
2
3
4
3

1362. Instrument cluster
LS460/LS460L_GE (OM50G06E)
Press and hold the “DISP” button
after selecting the “EXIT” by
pressing the “DISP” button.
The display goes back to step .
■System check display
After turning the engine switch to IGNITION ON mode, “SYSTEM CHECK” is dis-
played while system operation is checked.
■Tire inflation pressure (if equipped)
●It may take a few minutes to display the tire inflation pressure after the engine
switch is turned to IGNITION ON mode. It may also take a few minutes to display
the tire inflation pressure after inflation pressure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■When disconnecting and reconnecting battery terminals
The following information data will be reset:
●Driving range
●Average fuel consumption
●Average fuel consumption after refueling
●Distance after refueling
●Elapsed time
●Average vehicle speed
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Customizable features P. 668)
5
1

1372. Instrument cluster
2
Instrument cluster
LS460/LS460L_GE (OM50G06E)

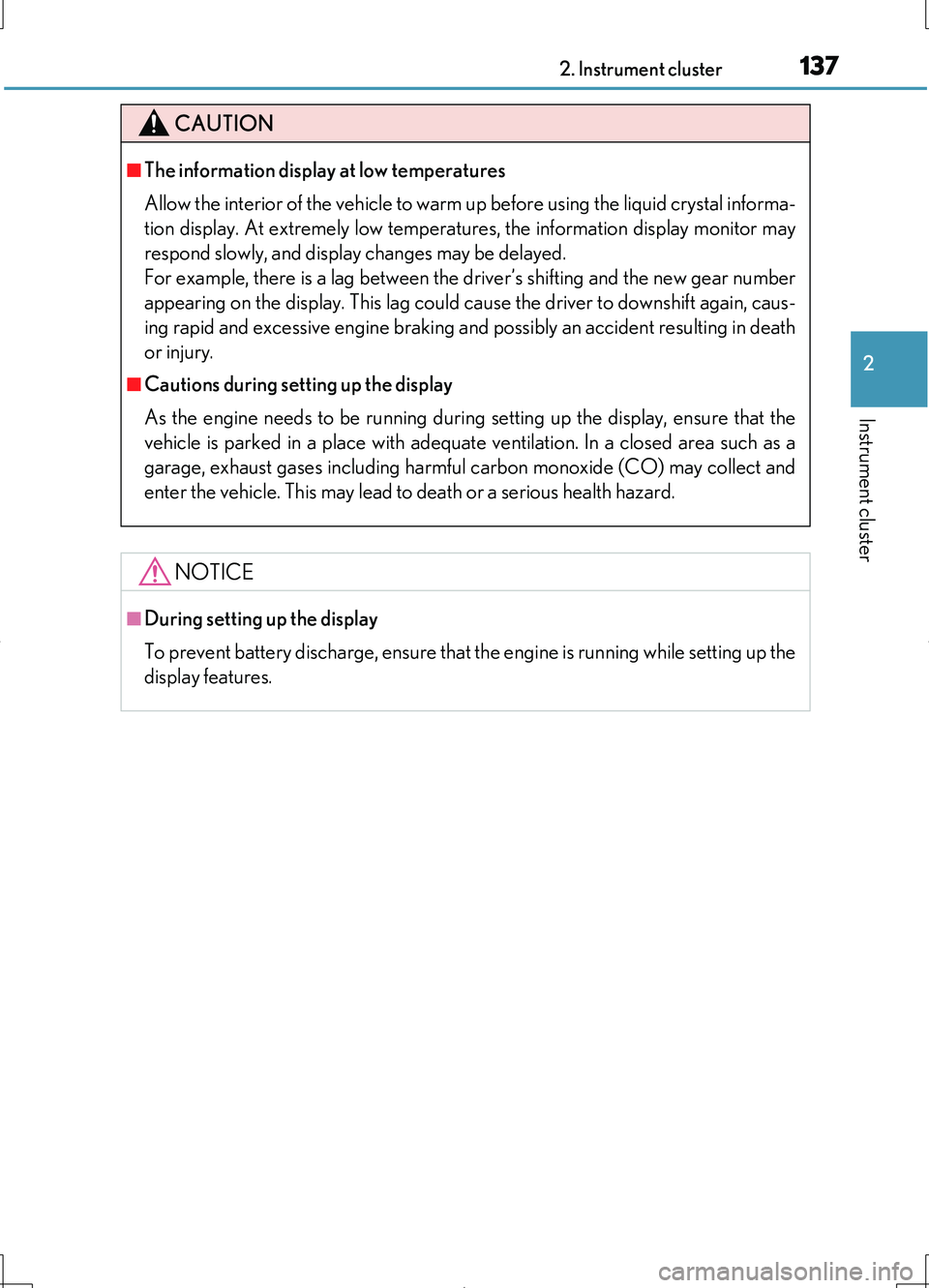

CAUTION
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, caus-
ing rapid and excessive engine braking and possibly an accident resulting in death
or injury.
■Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such as a
garage, exhaust gases including harmful carbon monoxide (CO) may collect and
enter the vehicle. This may lead to death or a serious health hazard.
NOTICE
■During setting up the display
To prevent battery discharge, ensure that the engine is running while setting up the
display features.

1382. Instrument cluster
LS460/LS460L_GE (OM50G06E)
Remote Touch screen
“MENU” button
Remote Touch knob
“ENTER” button

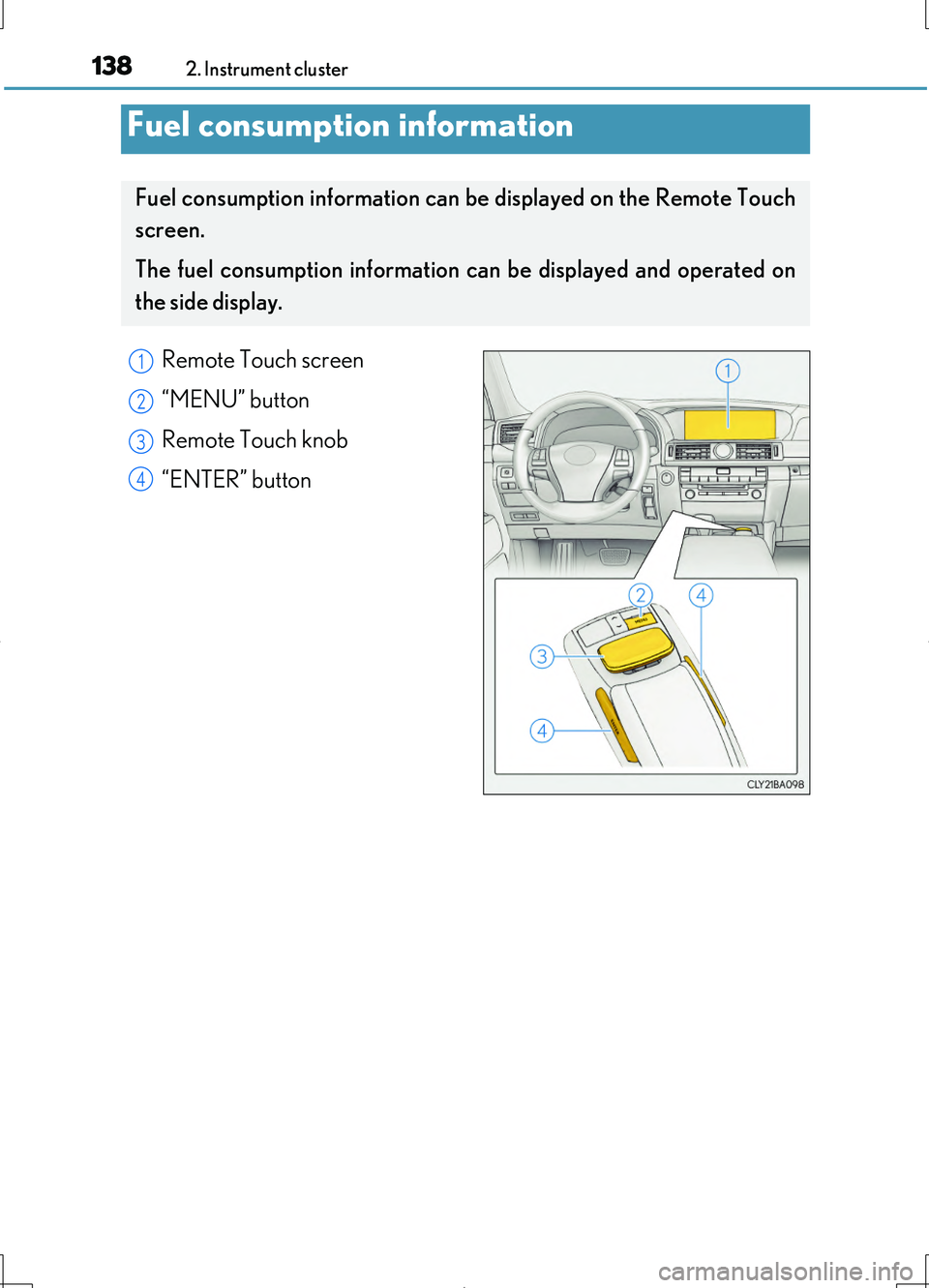

Fuel consumption information
Fuel consumption information can be displayed on the Remote Touch
screen.
The fuel consumption information can be displayed and operated on
the side display.
1
2
3
4

1392. Instrument cluster
2
Instrument cluster
LS460/LS460L_GE (OM50G06E)
Press the “MENU” button on the Remote Touch, then select on the
“Menu” screen.
If does not appear, select on the “Menu” screen. If the “Information”
screen appears, select “Fuel consumption” on the screen.
If the “Past Record” screen is displayed, select “Trip Information”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine
was started.
Cruising range ( P. 141)
Average fuel consumption for the
past 15 minutes is divided by color
into past averages and averages
attained since the engine switch was
last turned to IGNITION ON
mode. Use the displayed average
fuel consumption as a reference.
The image is an example only, and
may vary slightly from actual condi-
tions.

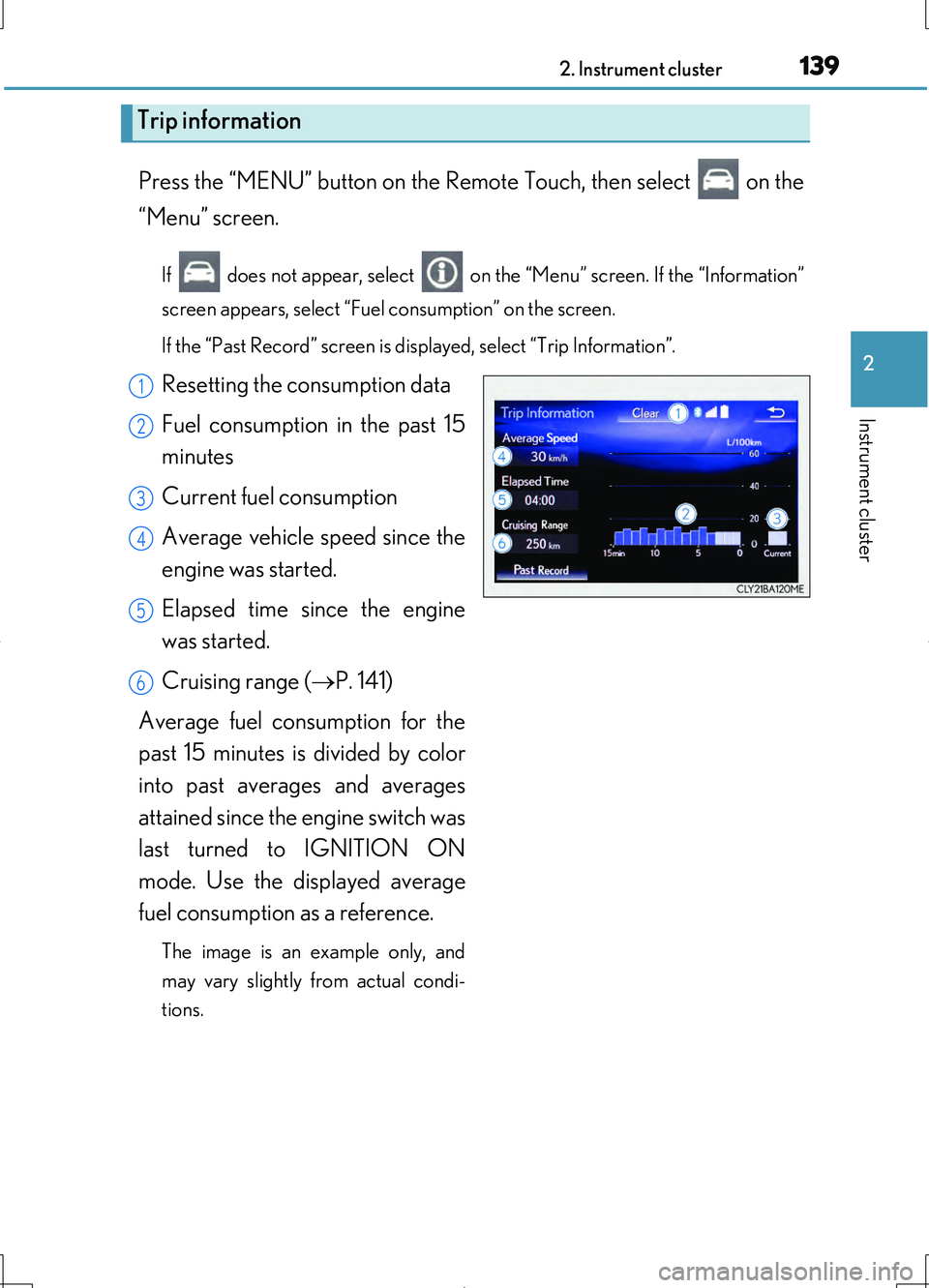

Trip information
1
2
3
4
5
6

1402. Instrument cluster
LS460/LS460L_GE (OM50G06E)
Press the “MENU” button on the Remote Touch, then select on the
“Menu” screen.
If does not appear, select on the “Menu” screen. If the “Information”
screen appears, select “Fuel consumption” on the screen.
If the “Trip Information” screen is displayed, select “Past Record”.
Resetting the past record data
Best recorded fuel consumption
Average fuel consumption
Previous fuel consumption
record
Updating the average fuel con-
sumption data
The average fuel consumption his-
tory is divided by color into past
averages and the average fuel con-
sumption since the last updated.
Use the displayed average fuel con-
sumption as a reference.
The image is an example only, and
may vary slightly from actual condi-
tions.

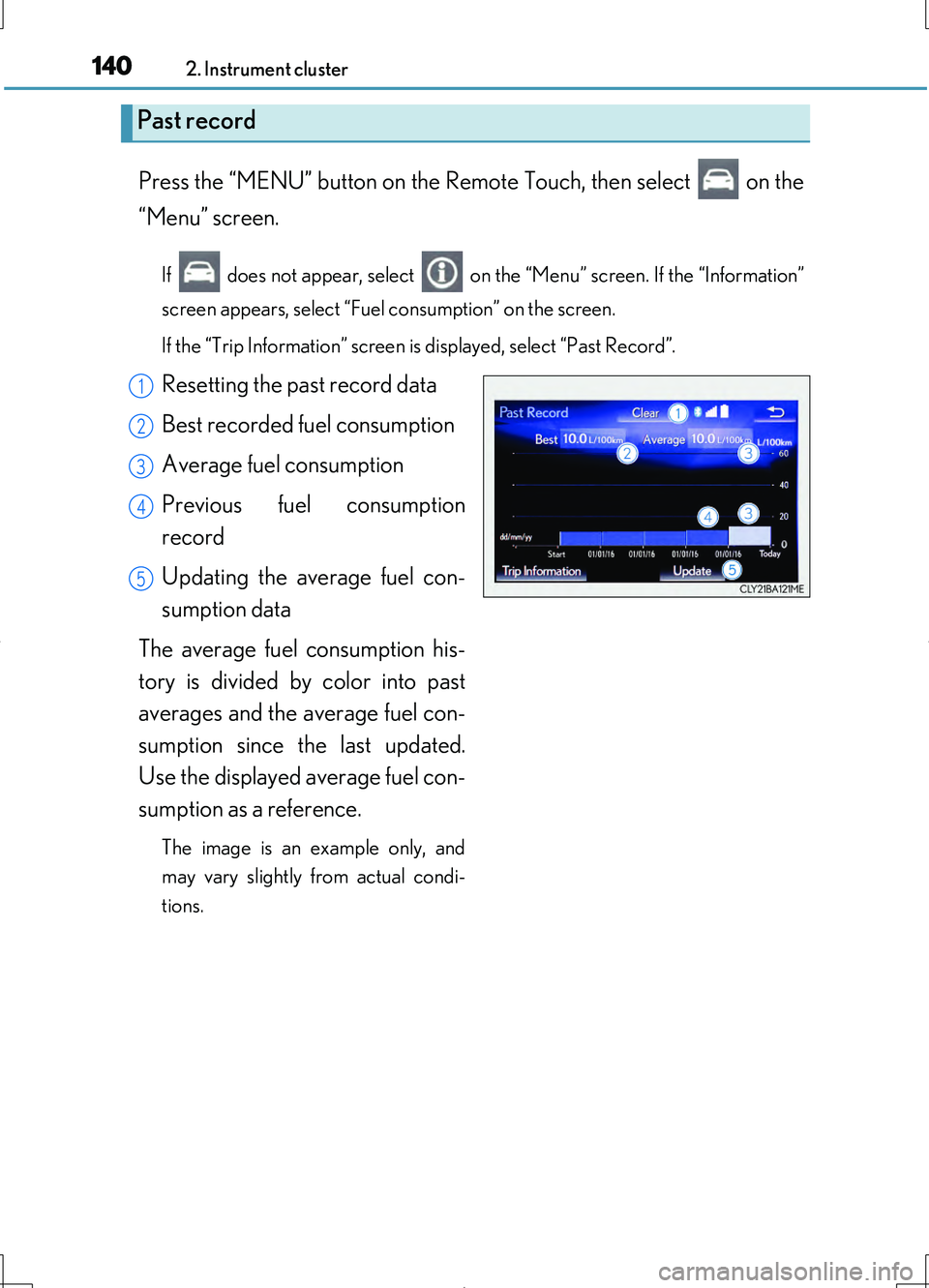

Past record
1
2
3
4
5
