LEXUS LS460L 2016 Owners Manual

1412. Instrument cluster
2
Instrument cluster
LS460/LS460L_GE (OM50G06E)

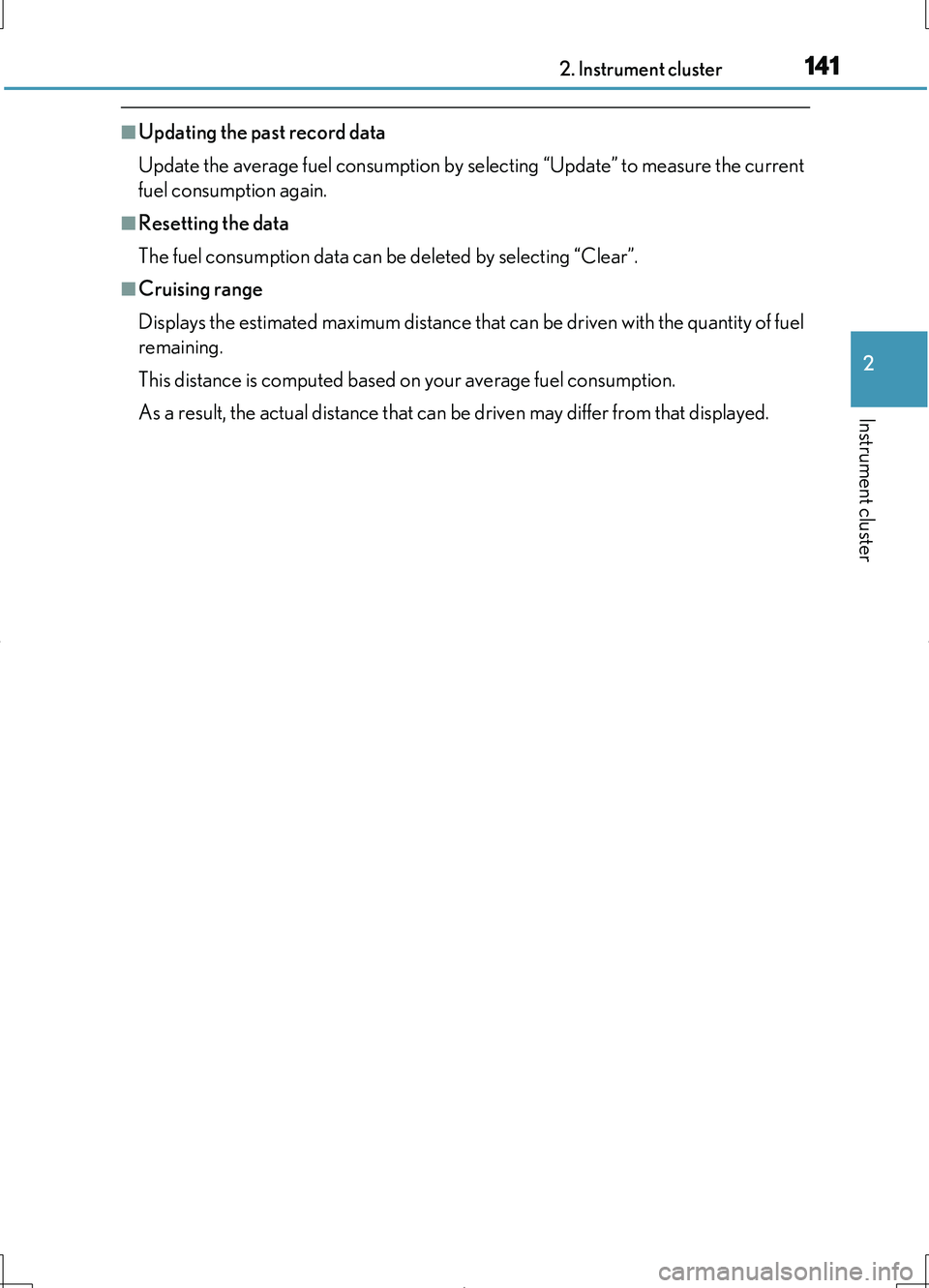

■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the current
fuel consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.

1422. Instrument cluster
LS460/LS460L_GE (OM50G06E)

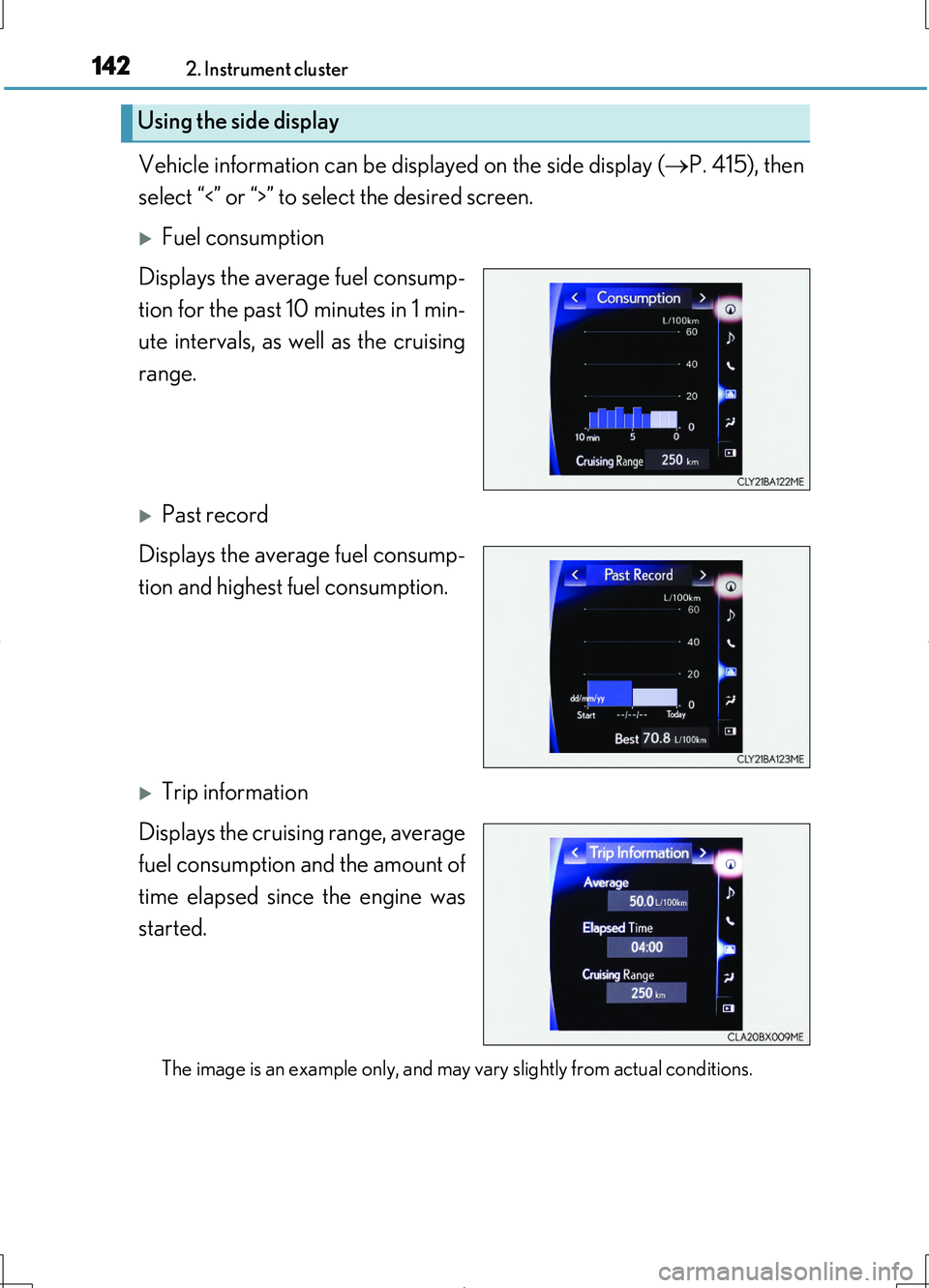

Vehicle information can be displayed on the side display (P. 415), then
select “<” or “>” to select the desired screen.
Fuel consumption
Displays the average fuel consump-
tion for the past 10 minutes in 1 min-
ute intervals, as well as the cruising
range.
Past record
Displays the average fuel consump-
tion and highest fuel consumption.
Trip information
Displays the cruising range, average
fuel consumption and the amount of
time elapsed since the engine was
started.
The image is an example only, and may vary slightly from actual conditions.
Using the side display

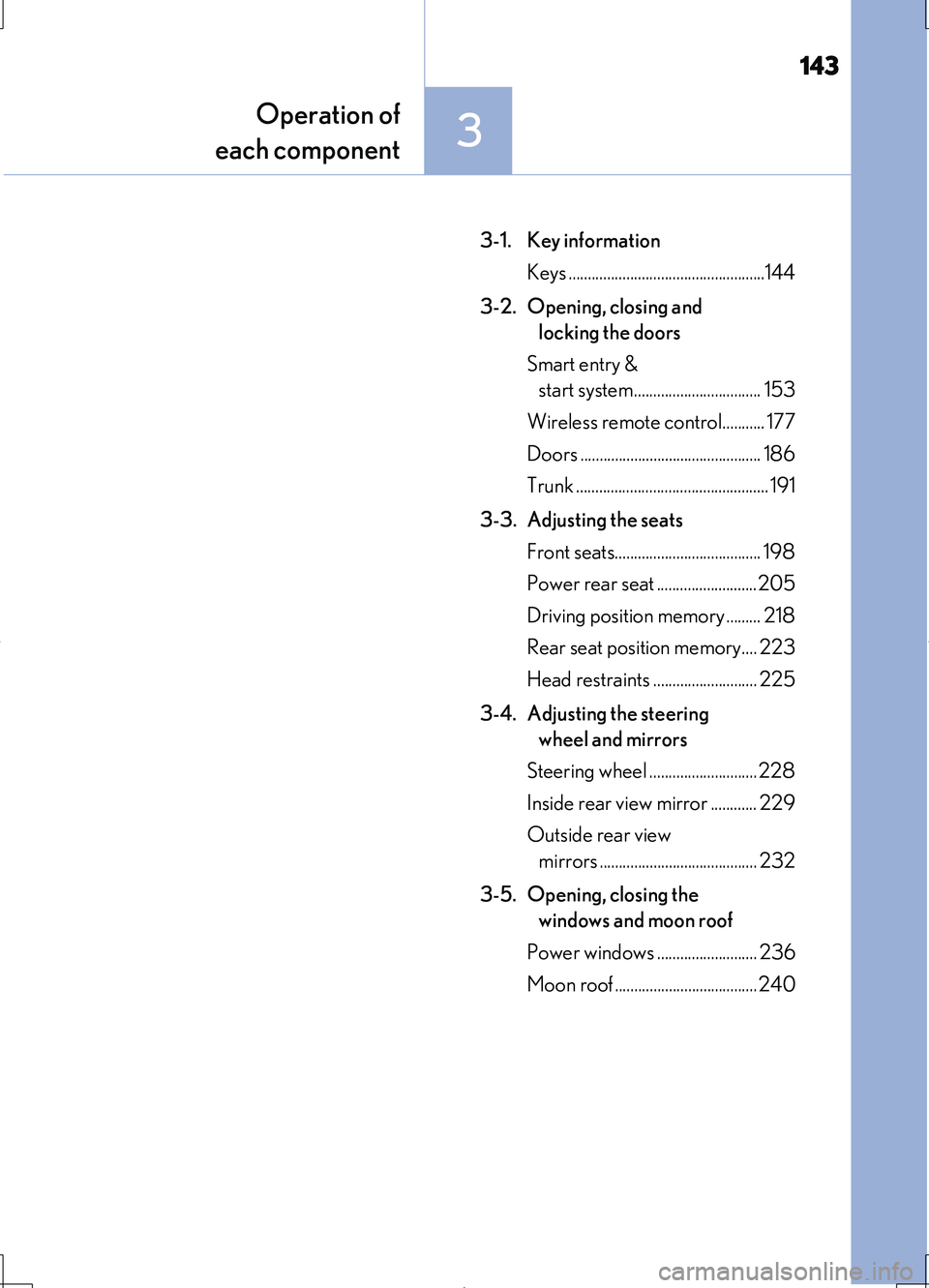

143
3
Operation of
each component
LS460/LS460L_GE (OM50G06E)
3-1. Key information
Keys ...................................................144
3-2. Opening, closing and
locking the doors
Smart entry &
start system................................. 153
Wireless remote control........... 177
Doors ............................................... 186
Trunk .................................................. 191
3-3. Adjusting the seats
Front seats...................................... 198
Power rear seat ..........................205
Driving position memory ......... 218
Rear seat position memory.... 223
Head restraints ........................... 225
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ............................ 228
Inside rear view mirror ............ 229
Outside rear view
mirrors ......................................... 232
3-5. Opening, closing the
windows and moon roof
Power windows .......................... 236
Moon roof ..................................... 240

144
LS460/LS460L_GE (OM50G06E)

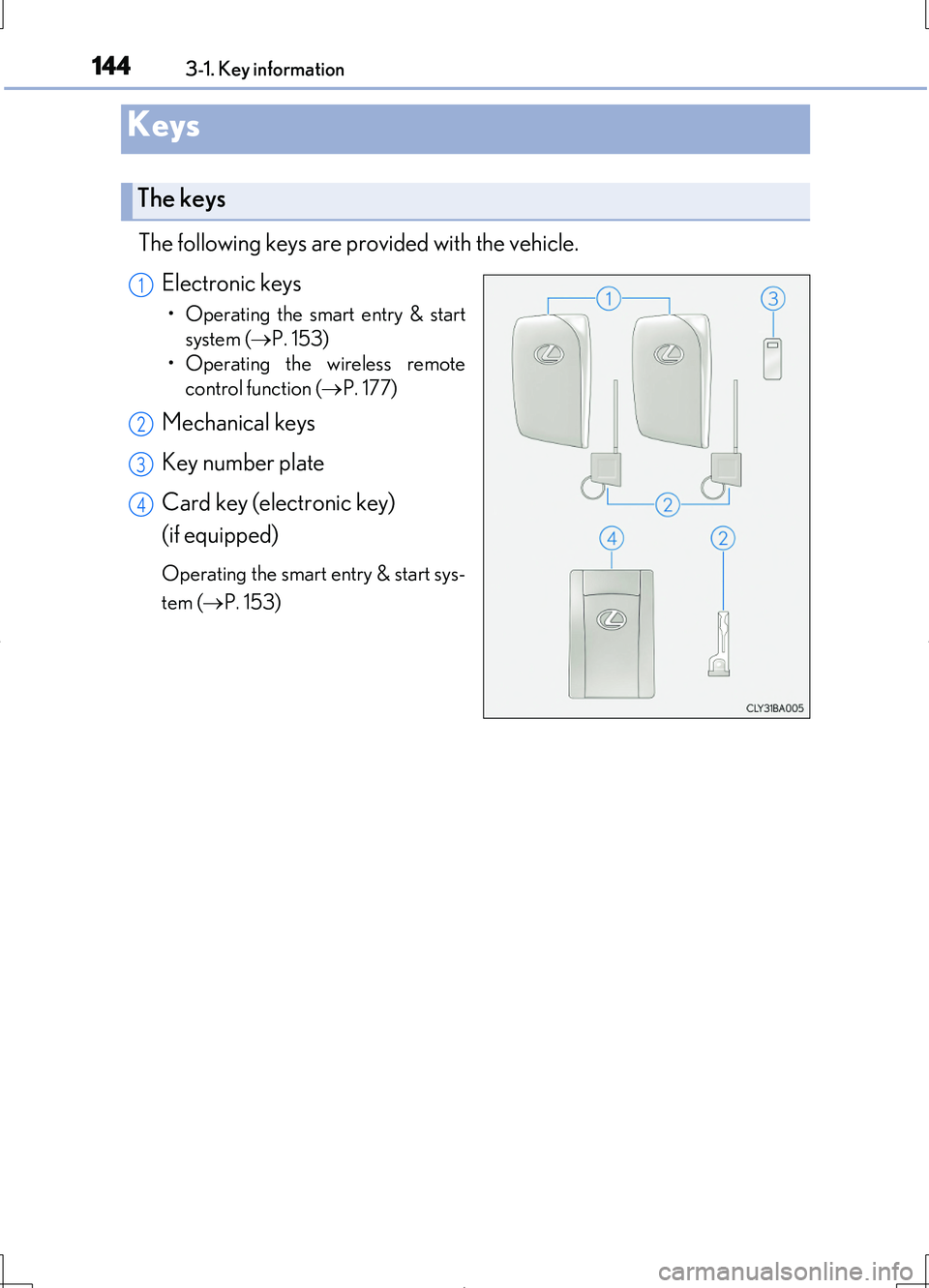

3-1. Key information
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart entry & start
system ( P. 153)
• Operating the wireless remote
control function ( P. 177)
Mechanical keys
Key number plate
Card key (electronic key)
(if equipped)
Operating the smart entry & start sys-
tem ( P. 153)
Keys
The keys
1
2
3
4

1453-1. Key information
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

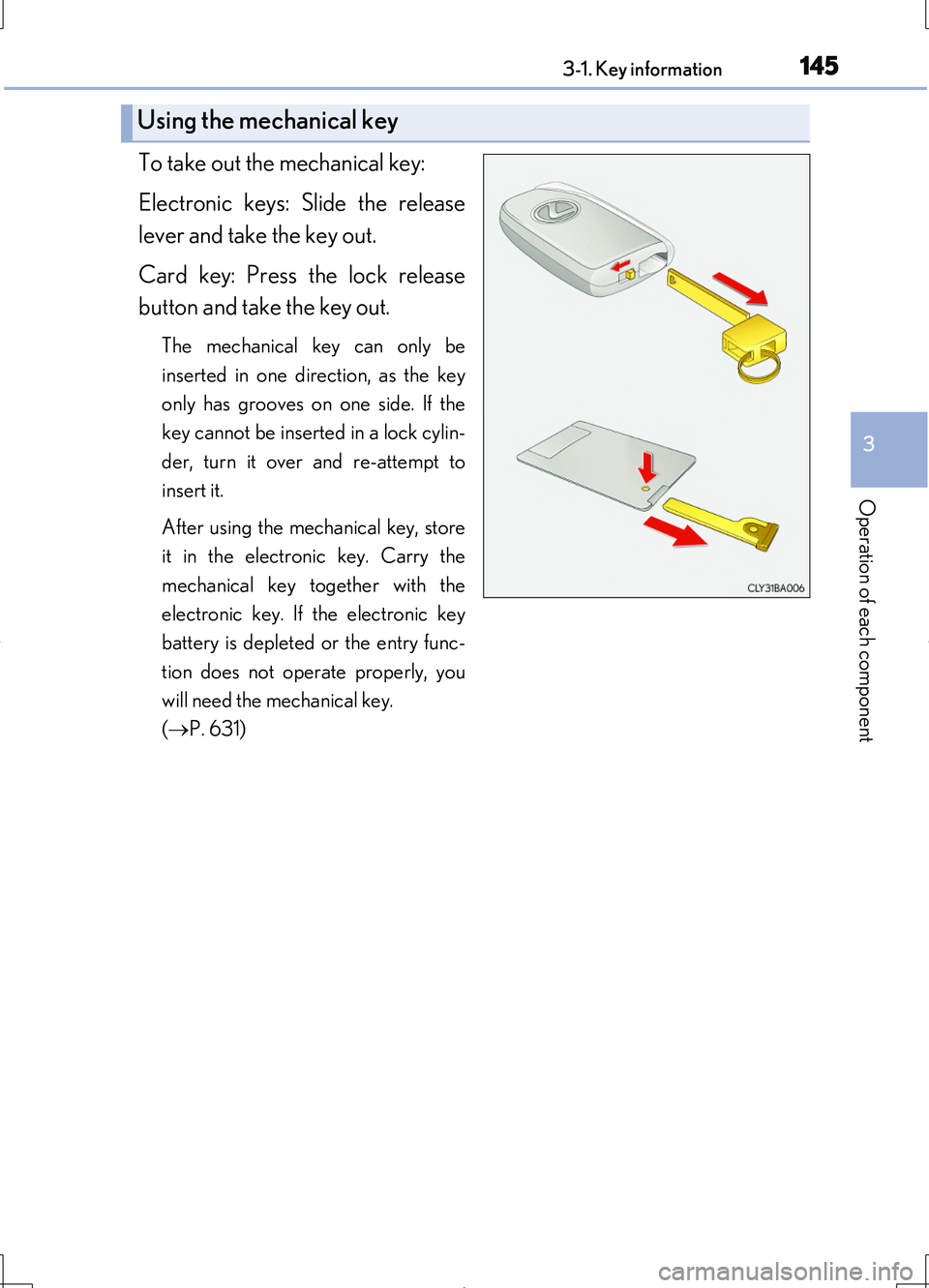

To take out the mechanical key:
Electronic keys: Slide the release
lever and take the key out.
Card key: Press the lock release
button and take the key out.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock cylin-
der, turn it over and re-attempt to
insert it.
After using the mechanical key, store
it in the electronic key. Carry the
mechanical key together with the
electronic key. If the electronic key
battery is depleted or the entry func-
tion does not operate properly, you
will need the mechanical key.
( P. 631)
Using the mechanical key

1463-1. Key information
LS460/LS460L_GE (OM50G06E)
■Electronic keys
●Part of the electronic key uses leather. Refer to P. 514 for details on cleaning the
leather portion.
●When cleaning the metallic portion, wet a cloth and firmly wring out any excess
water from it, then thoroughly wipe off any dirt.
●When not using the electronic key for an extended period of time, store it in a dry
place of normal temperature away from direct sunlight and interior light after
removing any dirt.
■Card key (if equipped)
●The card key is not waterproof.
●The mechanical key that is stored inside the card key should be used only if a prob-
lem arises, such as when the card key does not operate properly.
●If it is difficult to take out the mechanical key, push down the lock release button
using a pen tip etc. If it is still difficult to pull it out, use a coin etc.
■When required to leave the vehicle’s key with a parking attendant
Turn the trunk opener main switch off and lock the glove box and the trunk storage
extension (if equipped) as circumstances demand. ( P. 192, 453, 494)
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
●To store the mechanical key in the card key,
insert it while pressing the lock release but-
ton.
●If the battery cover is not installed and the
battery falls out or if the battery was
removed because the key got wet, reinstall
the battery with the positive terminal facing
the Lexus emblem.

1473-1. Key information
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■If you lose your mechanical keys
New genuine mechanical keys can be made by your Lexus dealer using the other
mechanical key and the key number stamped on your key number plate. Keep the
plate in a safe place such as your wallet, not in the vehicle.
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc., ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves that
could interfere with the operation of the aircraft.
■Certification for the card key
For vehicles sold in Korea

1483-1. Key information
LS460/LS460L_GE (OM50G06E)

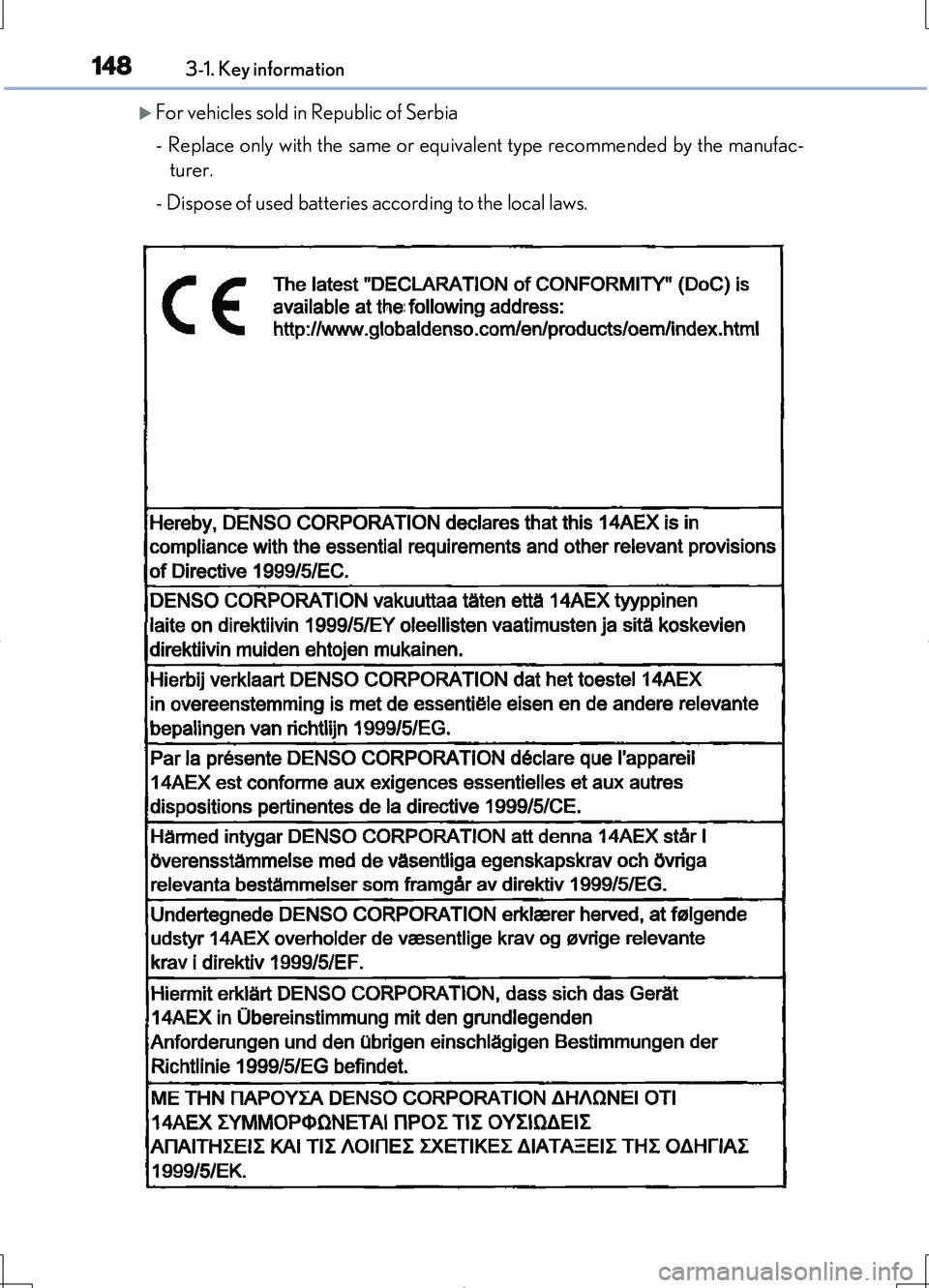

For vehicles sold in Republic of Serbia
- Replace only with the same or equivalent type recommended by the manufac-
turer.
- Dispose of used batteries according to the local laws.

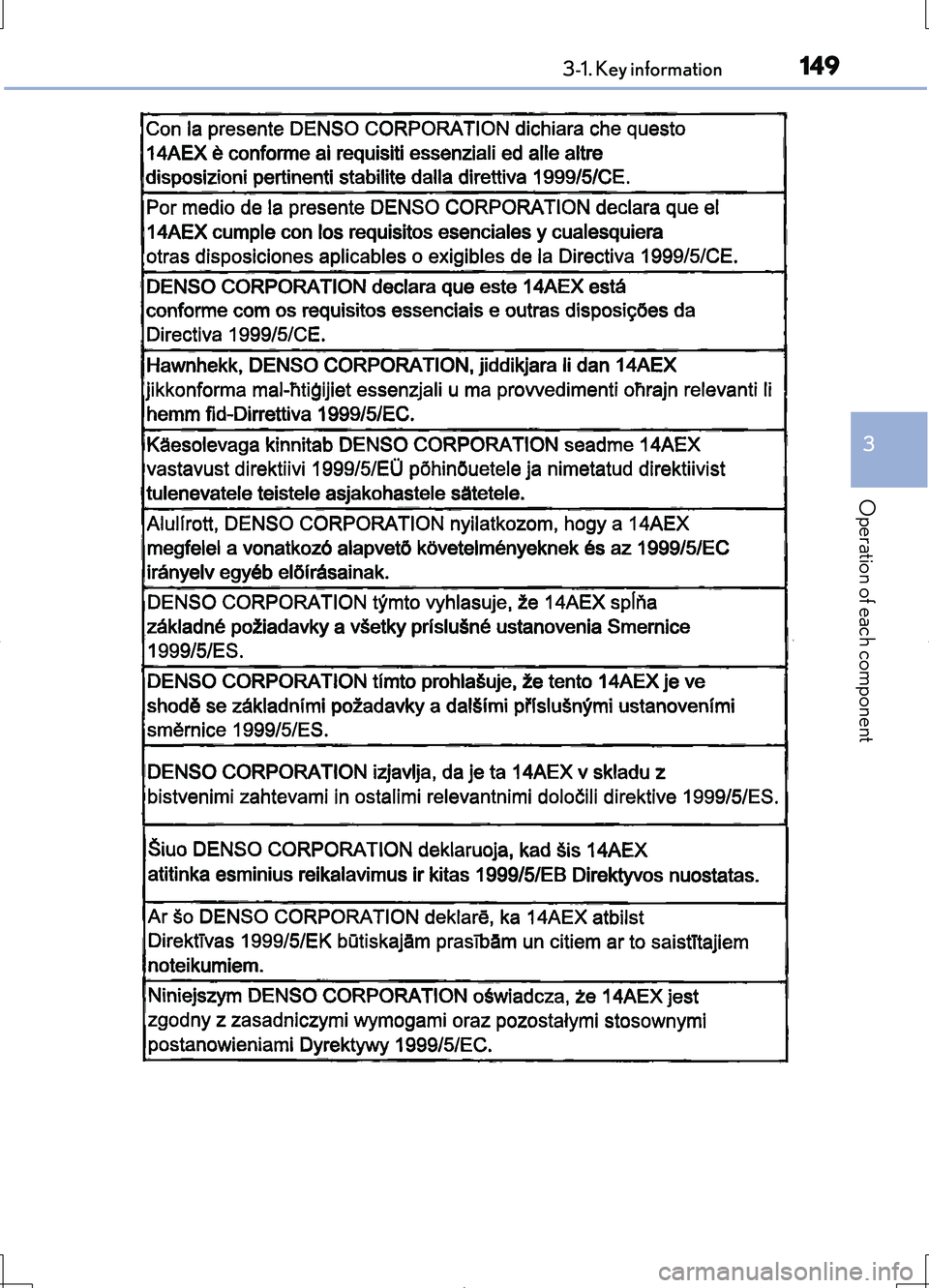

1493-1. Key information
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

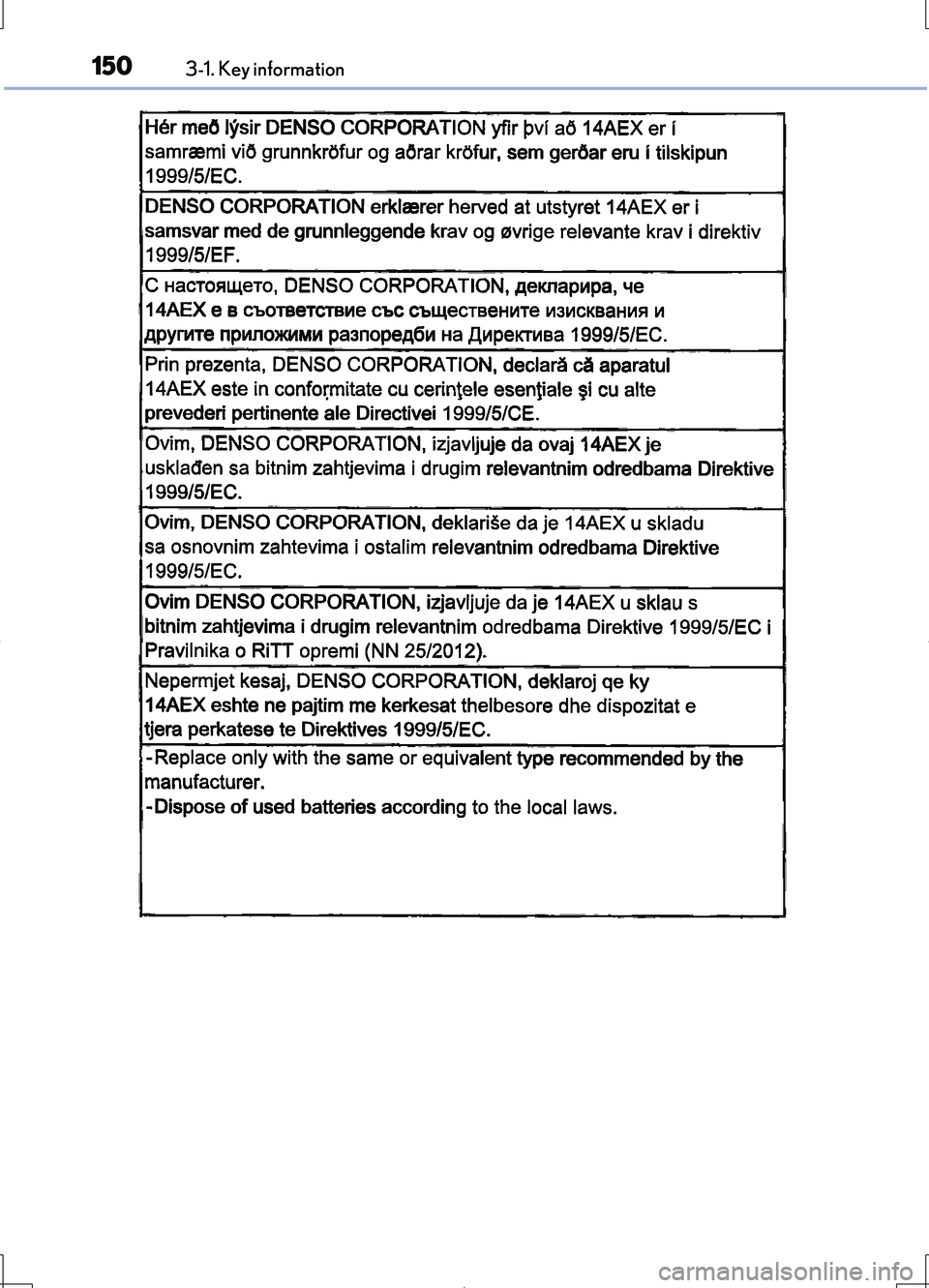

1503-1. Key information
LS460/LS460L_GE (OM50G06E)
