LEXUS LS460L 2016 Owners Manual

1713-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

1723-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)

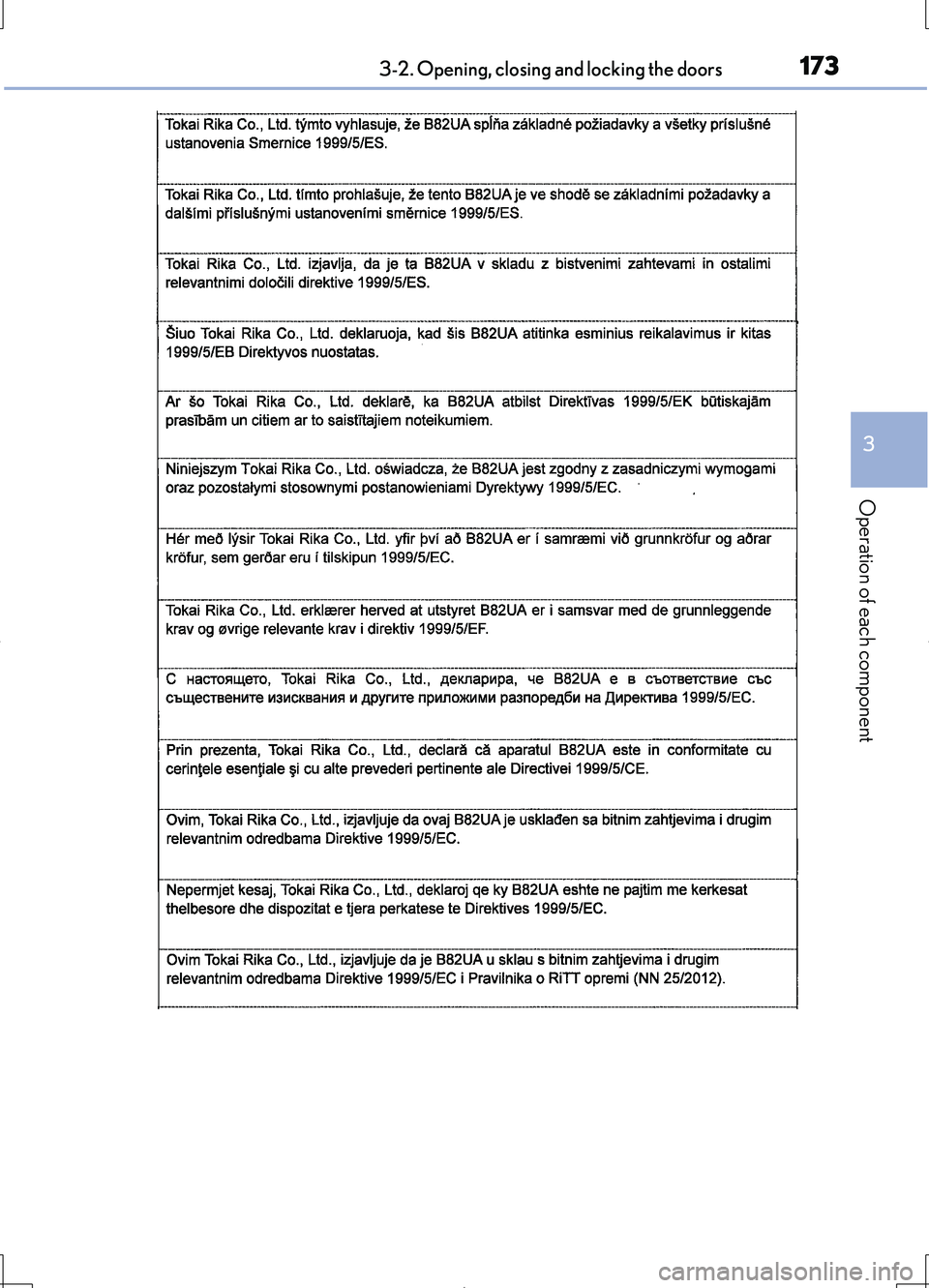

1733-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

1743-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)

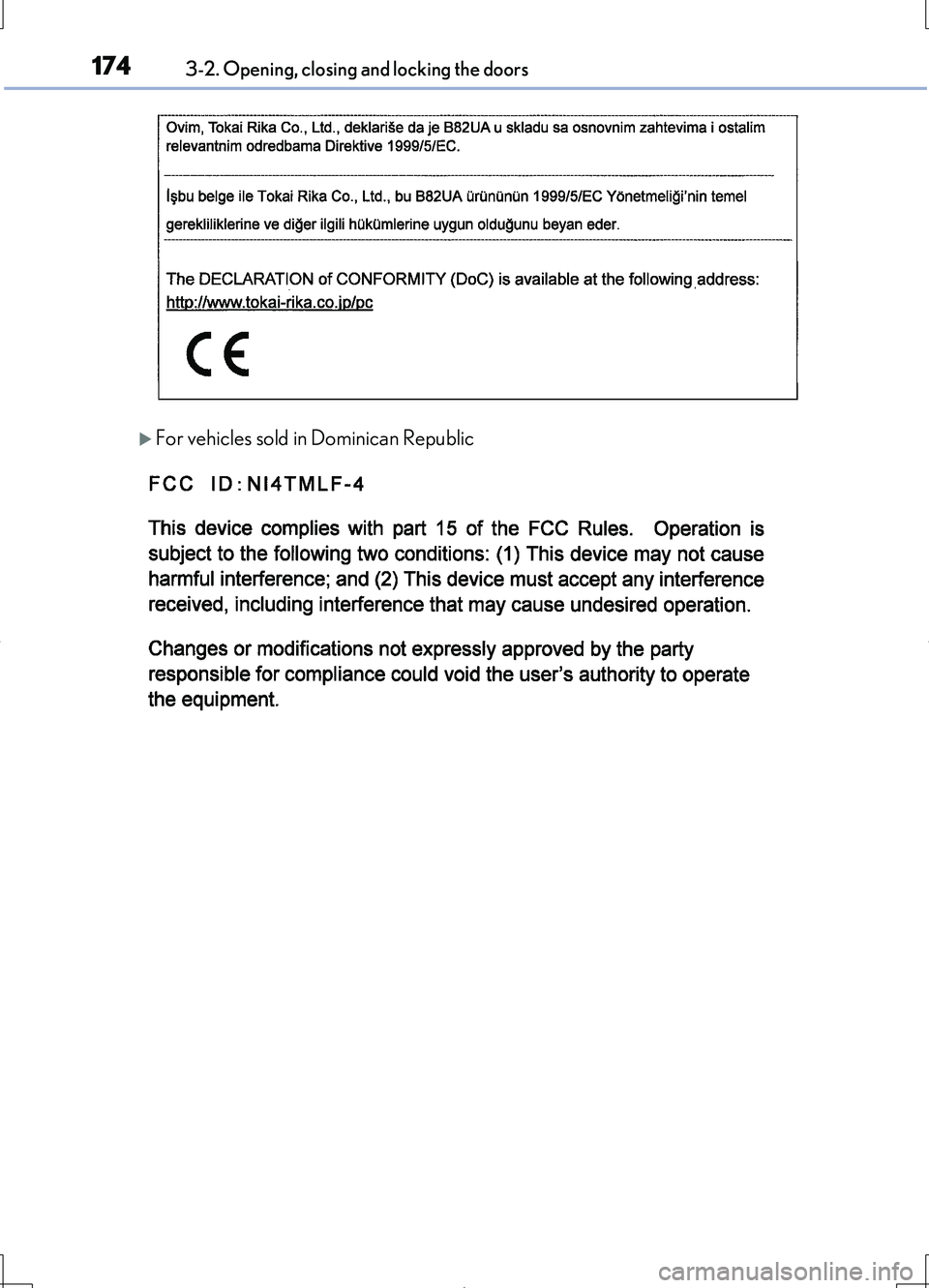

For vehicles sold in Dominican Republic

1753-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
CAUTION
■Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization therapy-
pacemakers or implantable cardioverter defibrillators should maintain a reason-
able distance between themselves and the smart entry & start system antennas.
( P. 156)
The radio waves may affect the operation of such devices. If necessary, the entry
function can be disabled. Ask your Lexus dealer for details, such as the frequency
of radio waves and timing of the emitted radio waves. Then, consult your doctor
to see if you should disable the entry function.
●Users of any electrical medical device other than implantable cardiac pacemak-
ers, cardiac resynchronization therapy-pacemakers or implantable cardioverter
defibrillators should consult the manufacturer of the device for information about
its operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical
devices.
Ask your Lexus dealer for details on disabling the entry function.
■When using the smart entry & start system and operating the power windows or
moon roof
Operate the power window or moon roof after checking to make sure that there is
no possibility of any passenger having any of their body parts caught in the window
or moon roof. Also, do not allow children to operate the smart entry & start system.
It is possible for children and other pa ssengers to get caught in the power window
or moon roof.

1763-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)

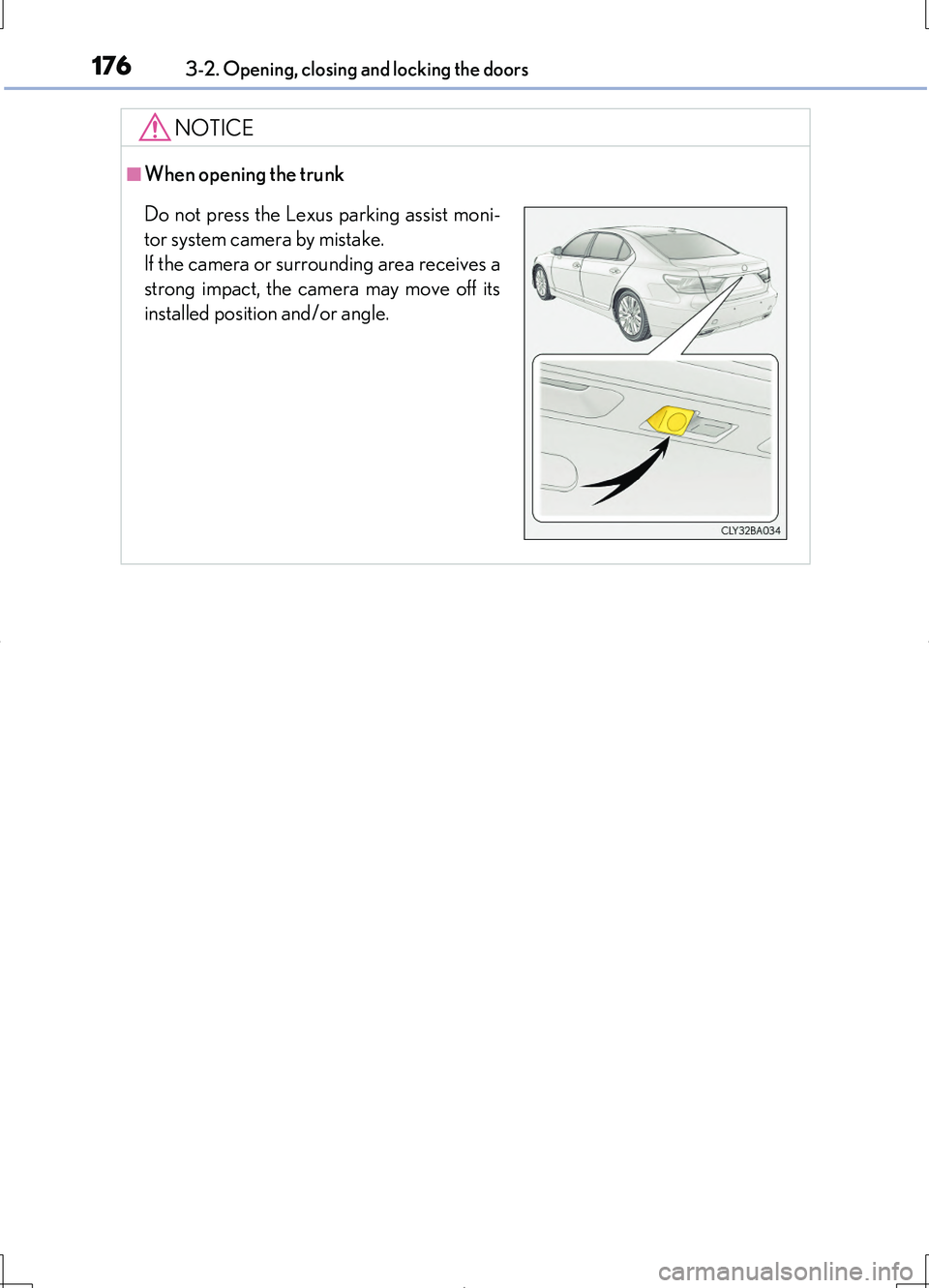

NOTICE
■When opening the trunk
Do not press the Lexus parking assist moni-
tor system camera by mistake.
If the camera or surrounding area receives a
strong impact, the camera may move off its
installed position and/or angle.

1773-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

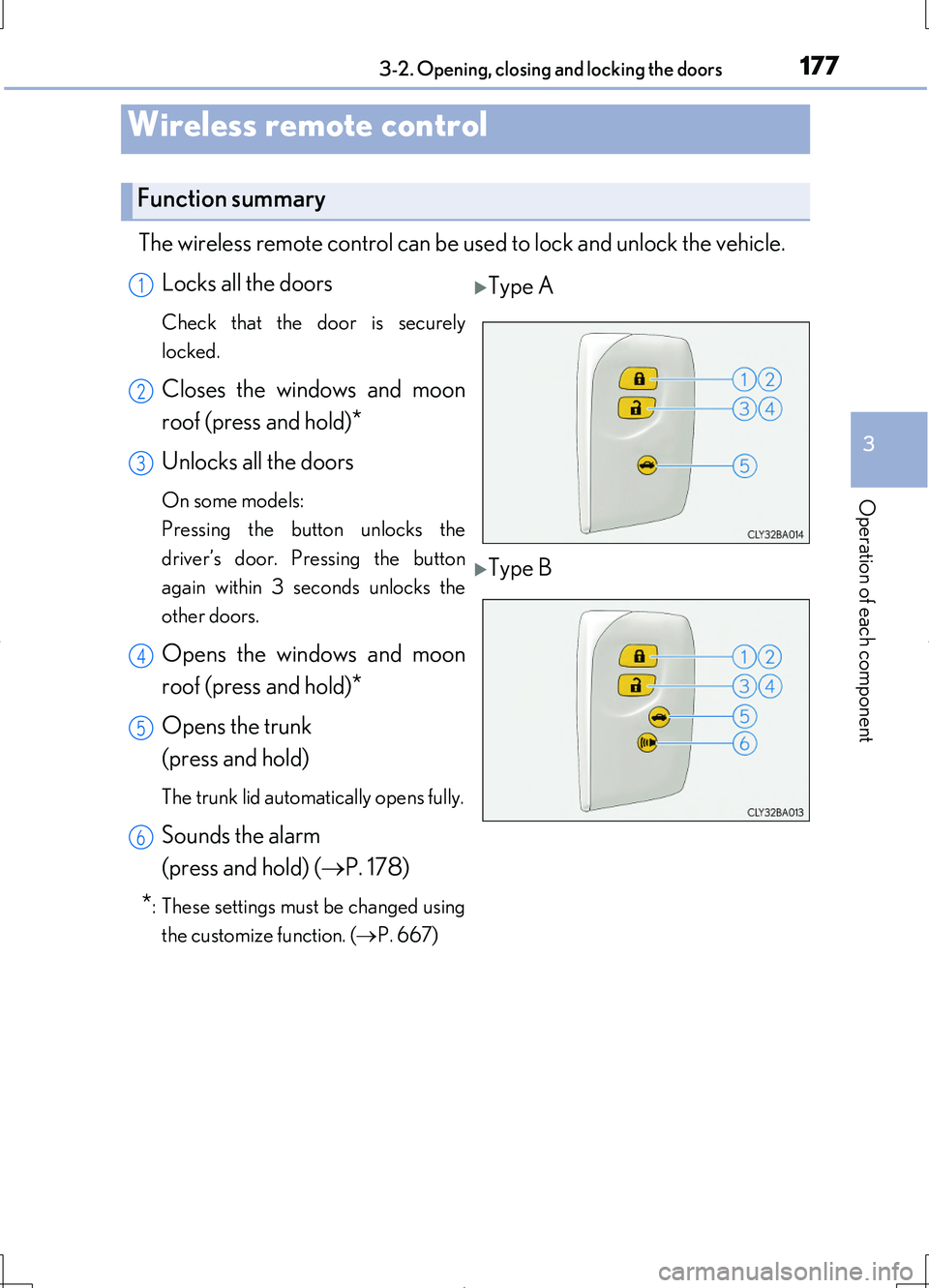

The wireless remote control can be used to lock and unlock the vehicle.
Locks all the doors
Check that the door is securely
locked.
Closes the windows and moon
roof (press and hold)*
Unlocks all the doors
On some models:
Pressing the button unlocks the
driver’s door. Pressing the button
again within 3 seconds unlocks the
other doors.
Opens the windows and moon
roof (press and hold)*
Opens the trunk
(press and hold)
The trunk lid automatically opens fully.
Sounds the alarm
(press and hold) ( P. 178)
*: These settings must be changed using
the customize function. ( P. 667)
Wireless remote control
Function summary
Type A
Type B
1
2
3
4
5
6

1783-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)

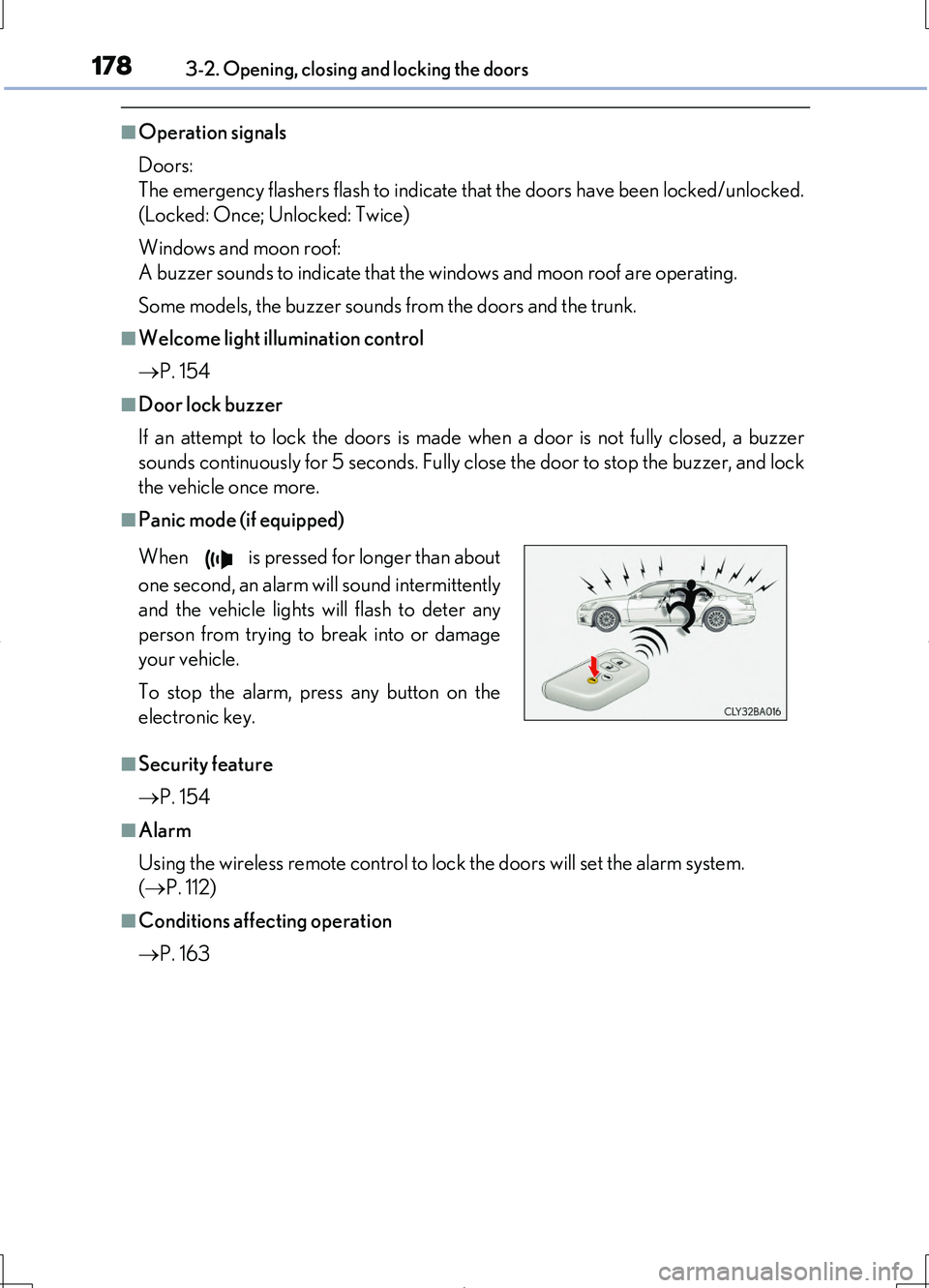

■Operation signals
Doors:
The emergency flashers flash to indicate that the doors have been locked/unlocked.
(Locked: Once; Unlocked: Twice)
Windows and moon roof:
A buzzer sounds to indicate that th e windows and moon roof are operating.
Some models, the buzzer sounds from the doors and the trunk.
■Welcome light illumination control
 P. 154
■Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a buzzer
sounds continuously for 5 seconds. Fully close the door to stop the buzzer, and lock
the vehicle once more.
■Panic mode (if equipped)
■Security feature
 P. 154
■Alarm
Using the wireless remote control to lock the doors will set the alarm system.
( P. 112)
■Conditions affecting operation
 P. 163
When is pressed for longer than about
one second, an alarm will sound intermittently
and the vehicle lights will flash to deter any
person from trying to break into or damage
your vehicle.
To stop the alarm, press any button on the
electronic key.

1793-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

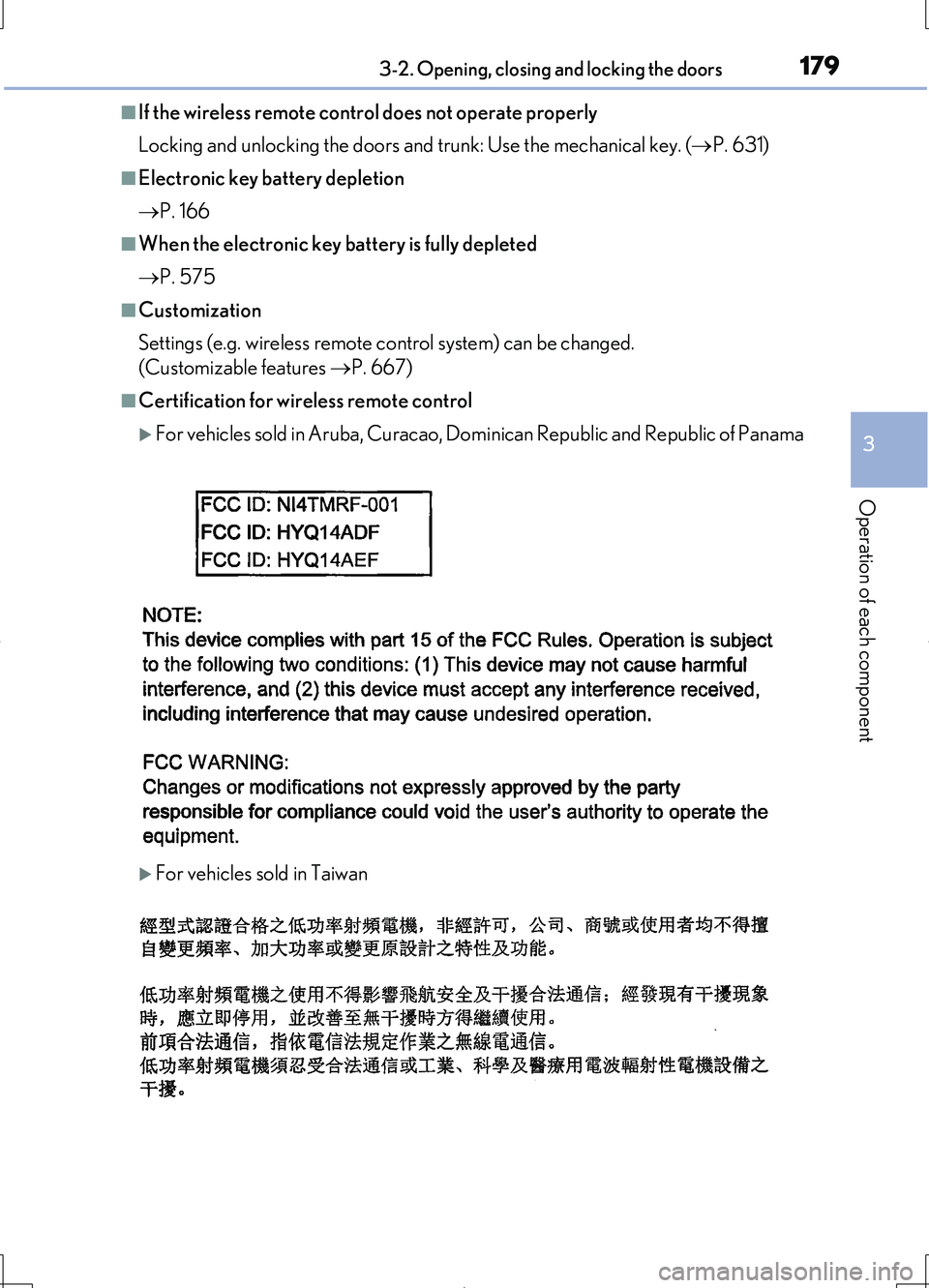

■If the wireless remote control does not operate properly
Locking and unlocking the doors and trunk: Use the mechanical key. ( P. 631)
■Electronic key battery depletion
 P. 166
■When the electronic key battery is fully depleted
 P. 575
■Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features P. 667)
■Certification for wireless remote control
For vehicles sold in Aruba, Curacao, Dominican Republic and Republic of Panama
For vehicles sold in Taiwan

1803-2. Opening, closing and locking the doors
LS460/LS460L_GE (OM50G06E)

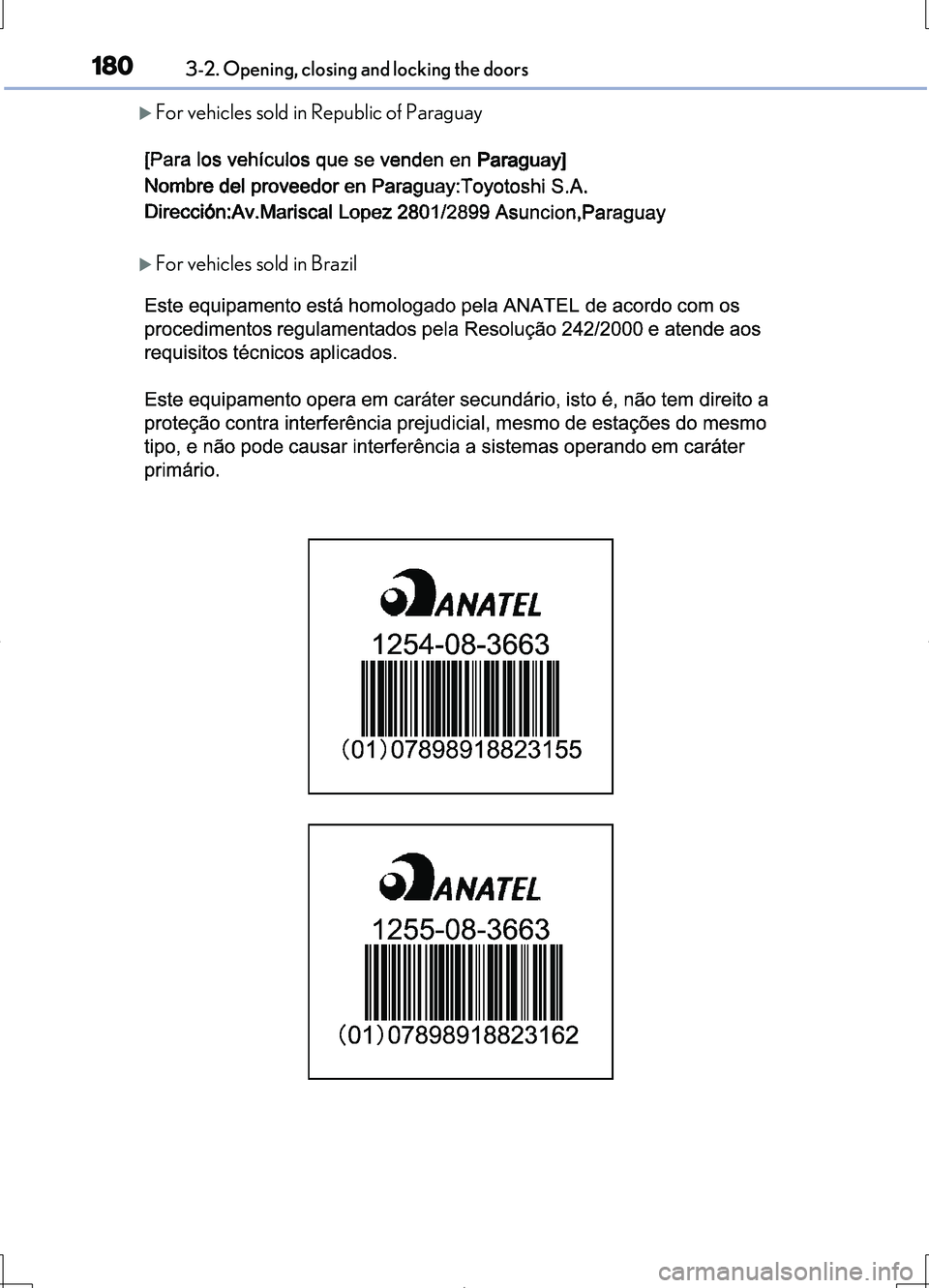

For vehicles sold in Republic of Paraguay
For vehicles sold in Brazil
