For safety and security
LS460/LS460L_GE (OM50G06E)

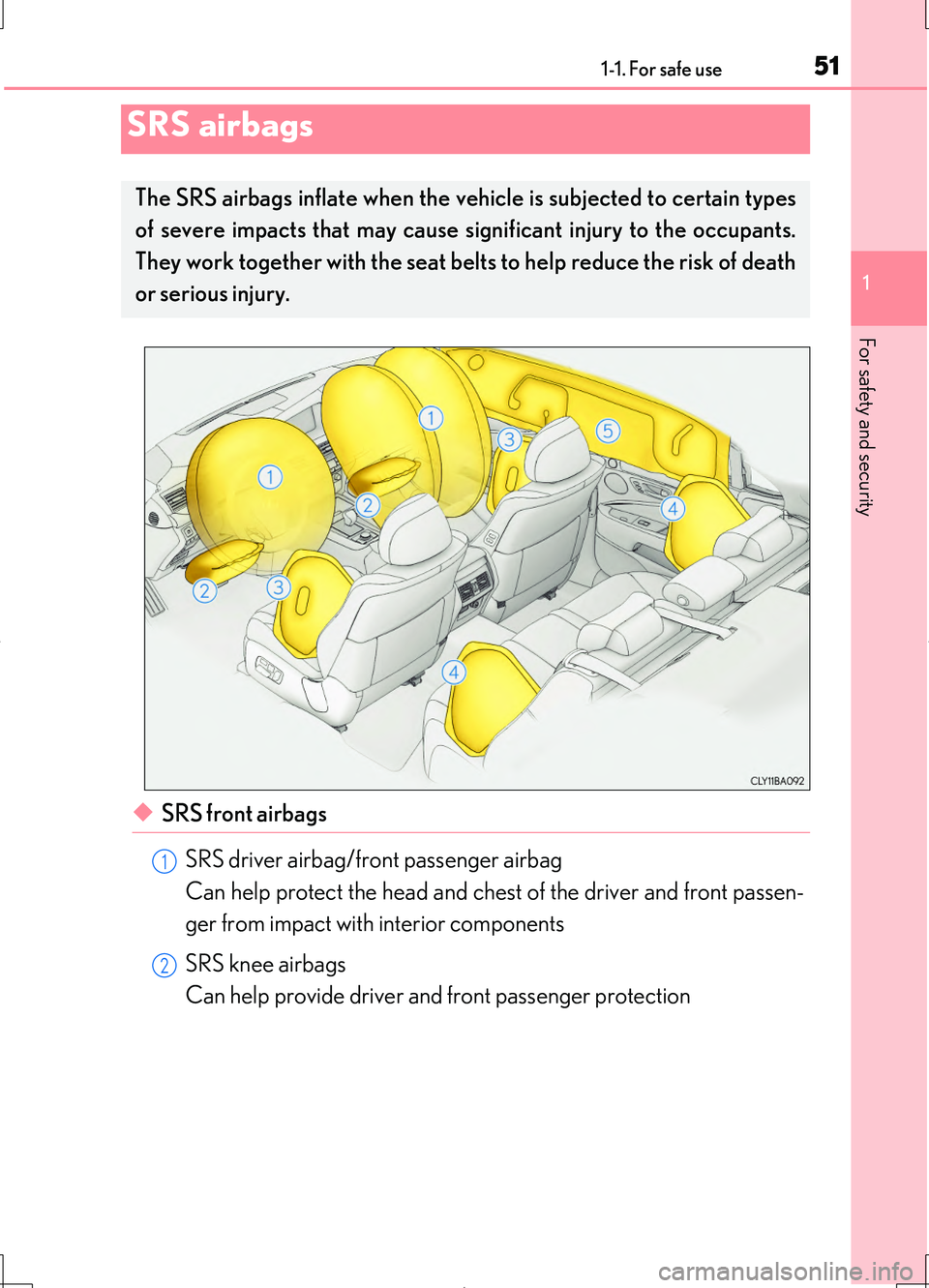

◆SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passen-
ger from impact with interior components
SRS knee airbags
Can help provide driver and front passenger protection
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain types
of severe impacts that may cause significant injury to the occupants.
They work together with the seat be lts to help reduce the risk of death
or serious injury.
1
2

521-1. For safe use
LS460/LS460L_GE (OM50G06E)
◆SRS side and curtain shield airbags
SRS front side airbags
Can help protect the torso of the front seat occupants
SRS rear side airbags (if equipped)
Can help protect the torso of occupants in the rear outer seats
SRS curtain shield airbags
Can help protect primarily the head of occupants in the outer seats
SRS seat cushion airbag (relaxation seat)
Can help restrain the relaxation seat occupant
3
4
5
6

531-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)

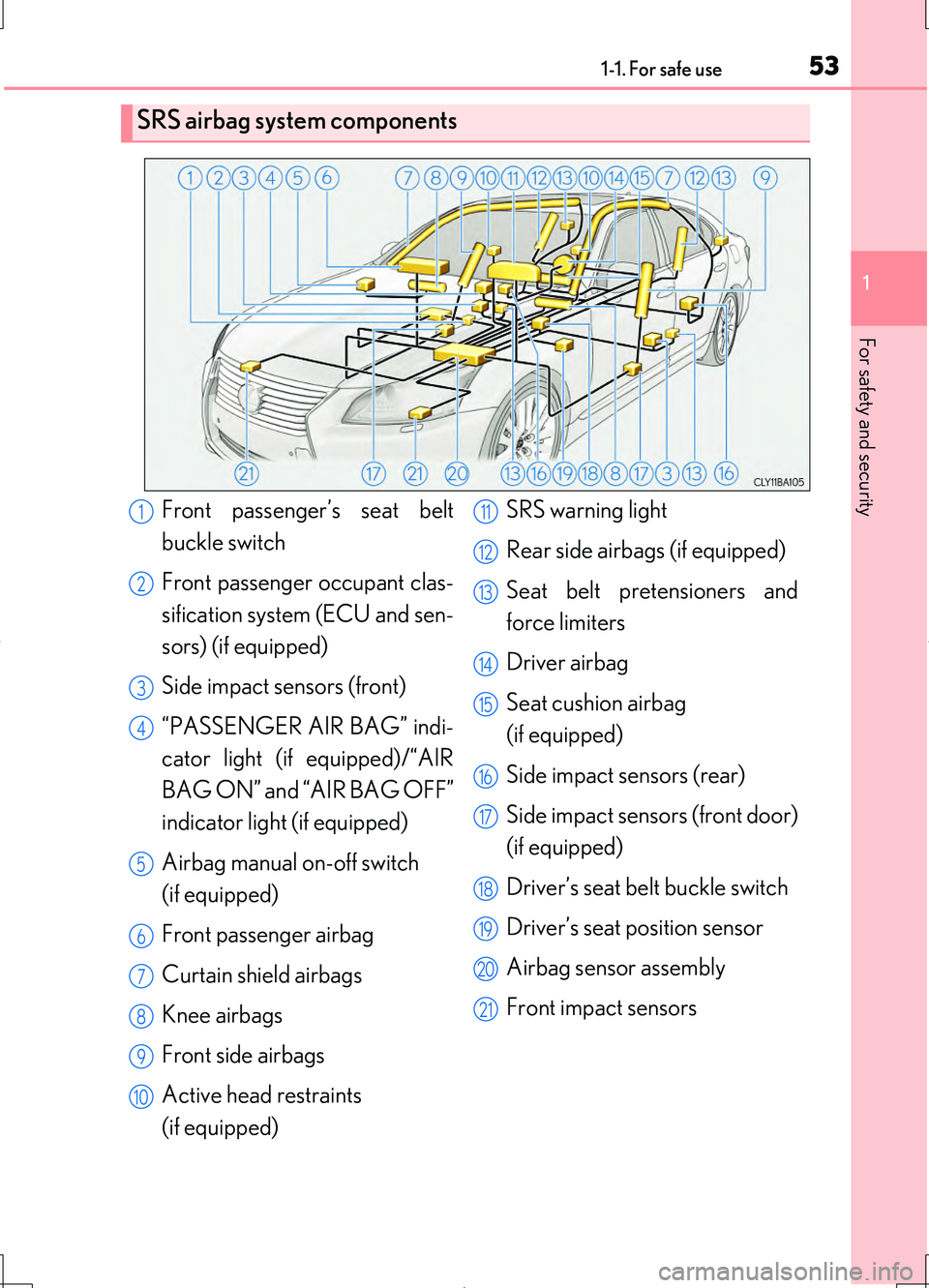

SRS airbag system components
Front passenger’s seat belt
buckle switch
Front passenger occupant clas-
sification system (ECU and sen-
sors) (if equipped)
Side impact sensors (front)
“PASSENGER AIR BAG” indi-
cator light (if equipped)/“AIR
BAG ON” and “AIR BAG OFF”
indicator light (if equipped)
Airbag manual on-off switch
(if equipped)
Front passenger airbag
Curtain shield airbags
Knee airbags
Front side airbags
Active head restraints
(if equipped)
SRS warning light
Rear side airbags (if equipped)
Seat belt pretensioners and
force limiters
Driver airbag
Seat cushion airbag
(if equipped)
Side impact sensors (rear)
Side impact sensors (front door)
(if equipped)
Driver’s seat belt buckle switch
Driver’s seat position sensor
Airbag sensor assembly
Front impact sensors
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

541-1. For safe use
LS460/LS460L_GE (OM50G06E)

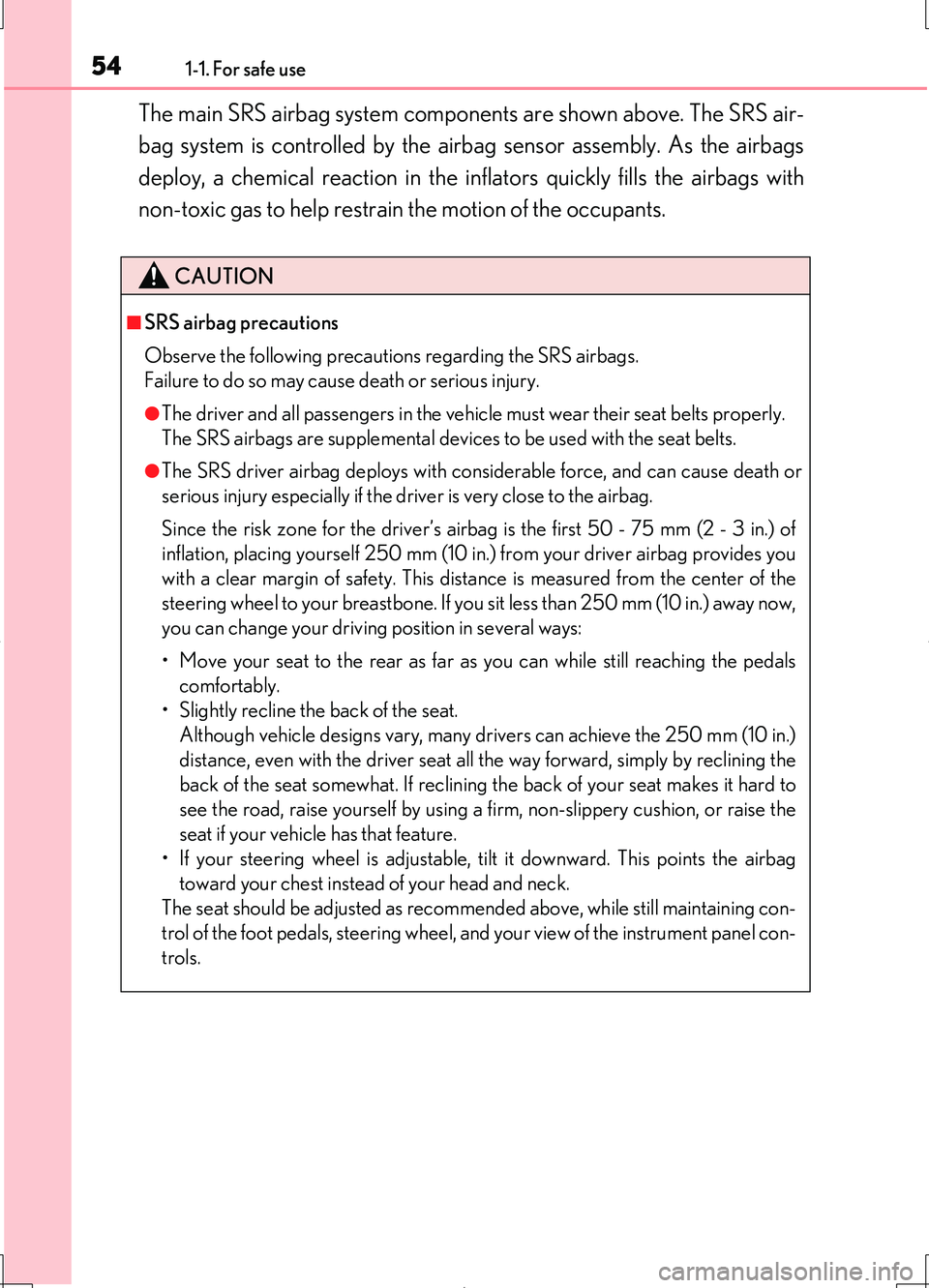

The main SRS airbag system components are shown above. The SRS air-
bag system is controlled by the airbag sensor assembly. As the airbags
deploy, a chemical reaction in the inflators quickly fills the airbags with
non-toxic gas to help restrain the motion of the occupants.
CAUTION
■SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
●The driver and all passengers in the vehicle must wear their seat belts properly.
The SRS airbags are supplemental devices to be used with the seat belts.
●The SRS driver airbag deploys with considerable force, and can cause death or
serious injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.) of
inflation, placing yourself 250 mm (10 in.) from your driver airbag provides you
with a clear margin of safety. This distance is measured from the center of the
steering wheel to your breastbone. If you sit less than 250 mm (10 in.) away now,
you can change your driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals
comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 250 mm (10 in.)
distance, even with the driver seat all the way forward, simply by reclining the
back of the seat somewhat. If reclining the back of your seat makes it hard to
see the road, raise yourself by using a fi rm, non-slippery cushion, or raise the
seat if your vehicle has that feature.
• If your steering wheel is adjustable, t ilt it downward. This points the airbag
toward your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintaining con-
trol of the foot pedals, steering wheel, and your view of the instrument panel con-
trols.

551-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
CAUTION
■SRS airbag precautions

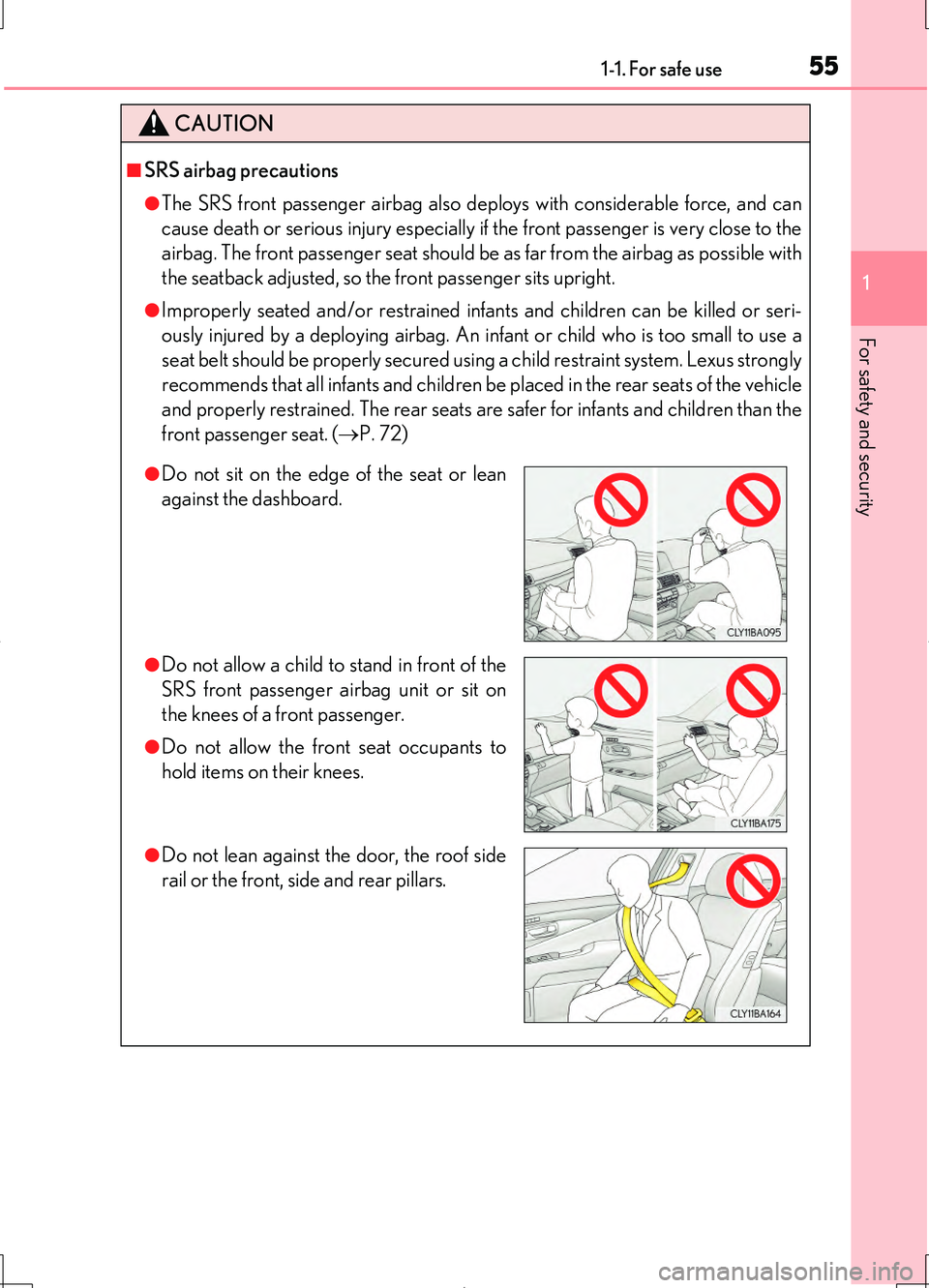

●The SRS front passenger airbag also deploys with considerable force, and can
cause death or serious injury especially if the front passenger is very close to the
airbag. The front passenger seat should be as far from the airbag as possible with
the seatback adjusted, so the front passenger sits upright.
●Improperly seated and/or restrained infants and children can be killed or seri-
ously injured by a deploying airbag. An infant or child who is too small to use a
seat belt should be properly secured using a child restraint system. Lexus strongly
recommends that all infants and children be placed in the rear seats of the vehicle
and properly restrained. The rear seats are safer for infants and children than the
front passenger seat. ( P. 72)
●Do not sit on the edge of the seat or lean
against the dashboard.
●Do not allow a child to stand in front of the
SRS front passenger airbag unit or sit on
the knees of a front passenger.
●Do not allow the front seat occupants to
hold items on their knees.
●Do not lean against the door, the roof side
rail or the front, side and rear pillars.

561-1. For safe use
LS460/LS460L_GE (OM50G06E)
CAUTION
■SRS airbag precautions

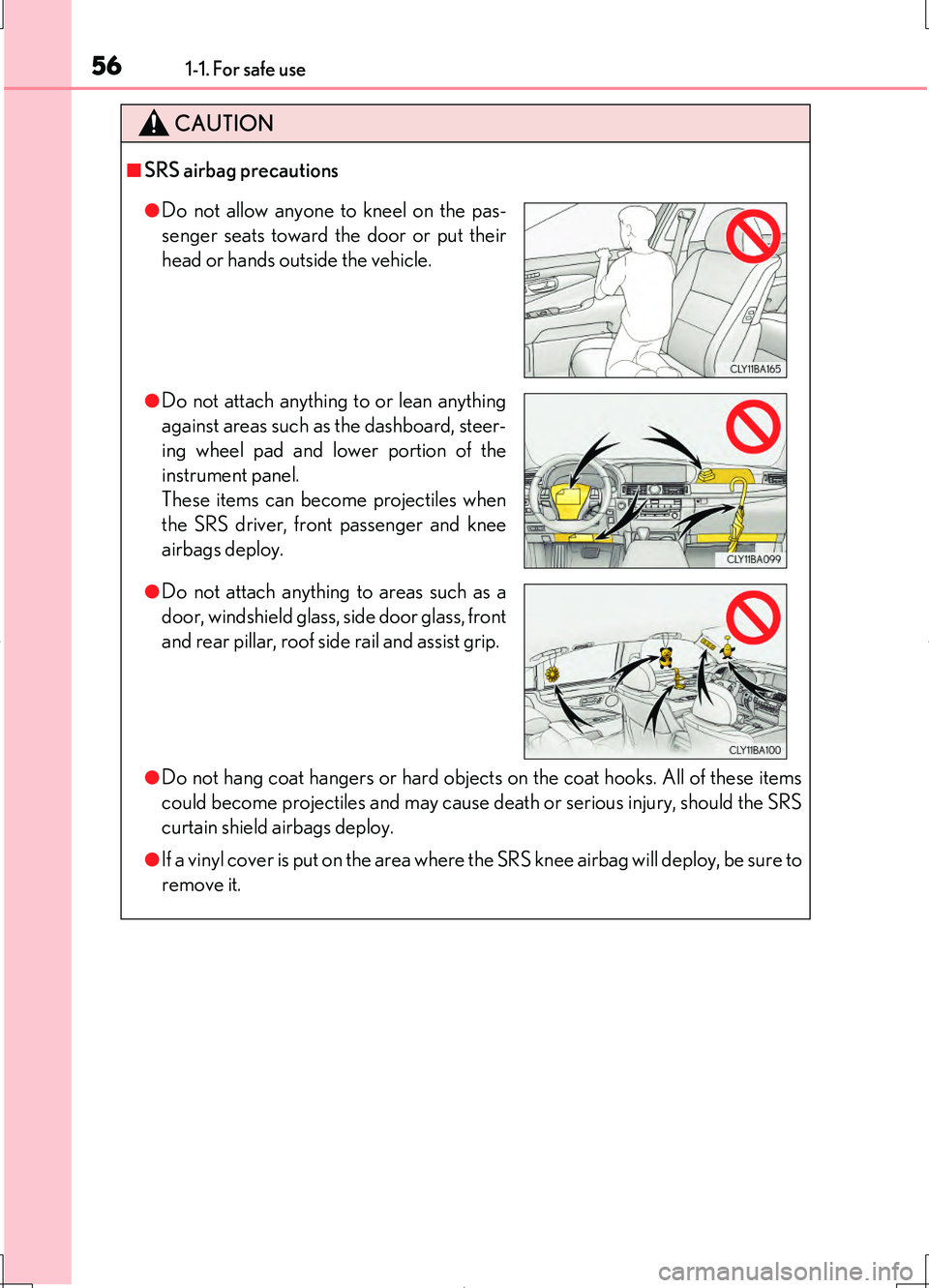

●Do not hang coat hangers or hard objects on the coat hooks. All of these items
could become projectiles and may cause death or serious injury, should the SRS
curtain shield airbags deploy.
●If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to
remove it.
●Do not allow anyone to kneel on the pas-
senger seats toward the door or put their
head or hands outside the vehicle.
●Do not attach anything to or lean anything
against areas such as the dashboard, steer-
ing wheel pad and lower portion of the
instrument panel.
These items can become projectiles when
the SRS driver, front passenger and knee
airbags deploy.
●Do not attach anything to areas such as a
door, windshield glass, side door glass, front
and rear pillar, roof side rail and assist grip.

571-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)

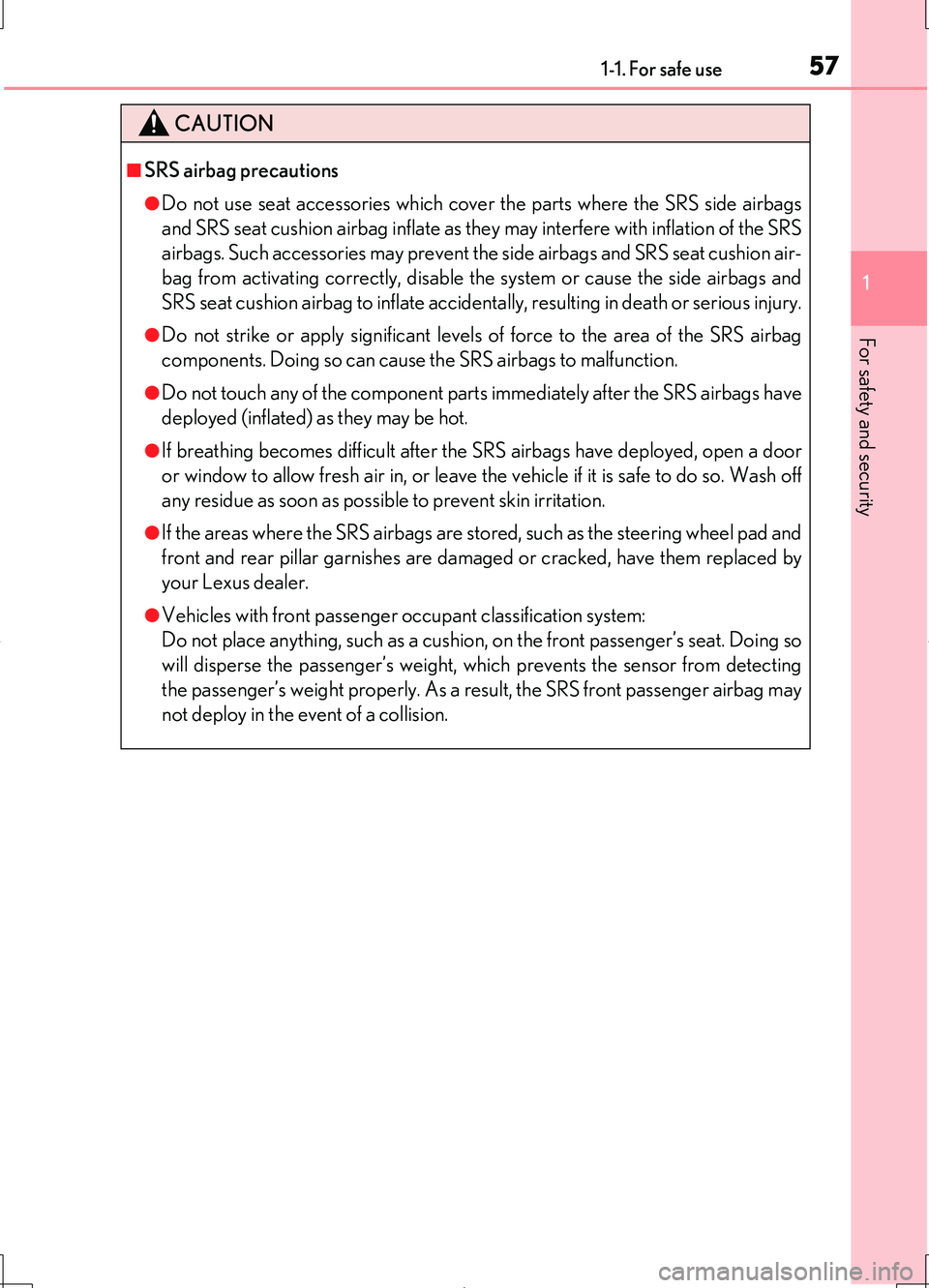

CAUTION
■SRS airbag precautions
●Do not use seat accessories which cover the parts where the SRS side airbags
and SRS seat cushion airbag inflate as they may interfere with inflation of the SRS
airbags. Such accessories may prevent the side airbags and SRS seat cushion air-
bag from activating correctly, disable th e system or cause the side airbags and
SRS seat cushion airbag to inflate accidentally, resulting in death or serious injury.
●Do not strike or apply significant levels of force to the area of the SRS airbag
components. Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component parts immediately after the SRS airbags have
deployed (inflated) as they may be hot.
●If breathing becomes difficult after the SRS airbags have deployed, open a door
or window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off
any residue as soon as possible to prevent skin irritation.
●If the areas where the SRS airbags are stored, such as the steering wheel pad and
front and rear pillar garnishes are damaged or cracked, have them replaced by
your Lexus dealer.
●Vehicles with front passenger occupant classification system:
Do not place anything, such as a cushion, on the front passenger’s seat. Doing so
will disperse the passenger’s weight, which prevents the sensor from detecting
the passenger’s weight properly. As a result, the SRS front passenger airbag may
not deploy in the event of a collision.

581-1. For safe use
LS460/LS460L_GE (OM50G06E)
CAUTION

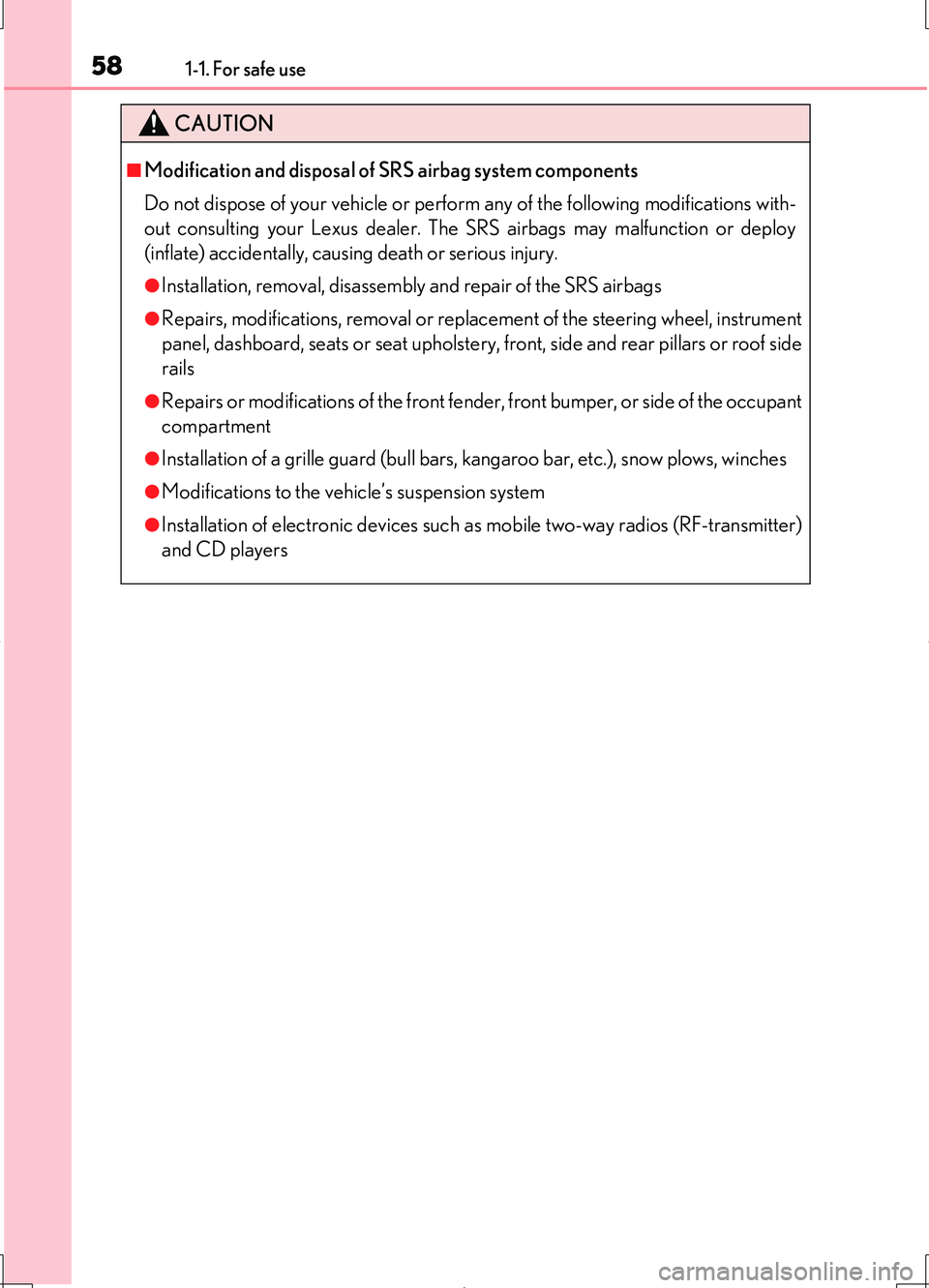

■Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perfor m any of the following modifications with-
out consulting your Lexus dealer. The SRS airbags may malfunction or deploy
(inflate) accidentally, causing death or serious injury.
●Installation, removal, disassembly and repair of the SRS airbags
●Repairs, modifications, removal or replacement of the steering wheel, instrument
panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side
rails
●Repairs or modifications of the front fend er, front bumper, or side of the occupant
compartment
●Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows, winches
●Modifications to the vehicle’s suspension system
●Installation of electronic devices such as mobile two-way radios (RF-transmitter)
and CD players

591-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)

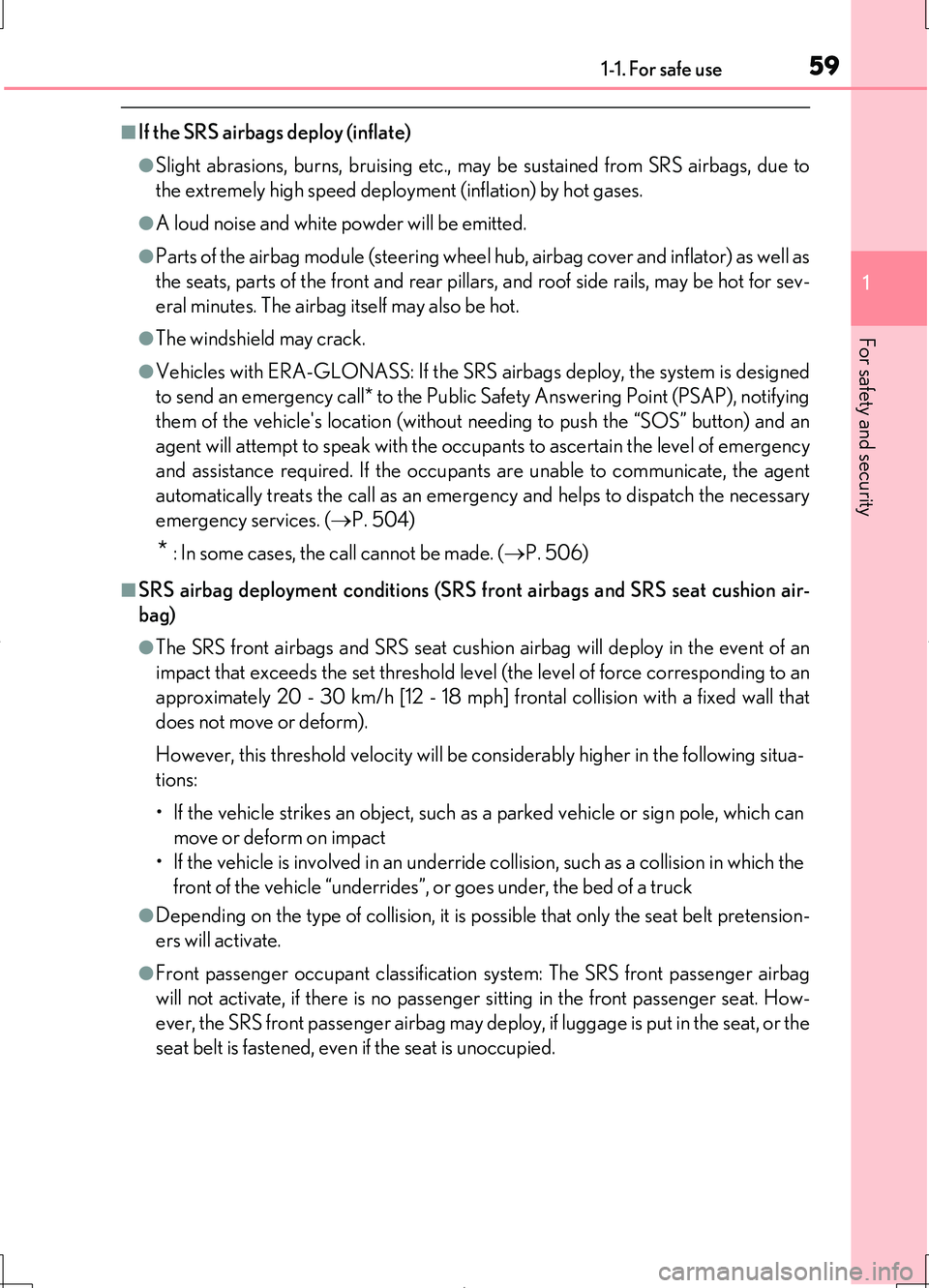

■If the SRS airbags deploy (inflate)
●Slight abrasions, burns, bruising etc., may be sustained from SRS airbags, due to
the extremely high speed deployment (inflation) by hot gases.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as
the seats, parts of the front and rear pillars, and roof side rails, may be hot for sev-
eral minutes. The airbag itself may also be hot.
●The windshield may crack.
●Vehicles with ERA-GLONASS: If the SRS airbags deploy, the system is designed
to send an emergency call* to the Public Safety Answering Point (PSAP), notifying
them of the vehicle's location (without needing to push the “SOS” button) and an
agent will attempt to speak with the occupants to ascertain the level of emergency
and assistance required. If the occupants are unable to communicate, the agent
automatically treats the call as an emergency and helps to dispatch the necessary
emergency services. ( P. 504)
*: In some cases, the call cannot be made. (P. 506)
■SRS airbag deployment conditions (SRS front airbags and SRS seat cushion air-
bag)
●The SRS front airbags and SRS seat cushion airbag will deploy in the event of an
impact that exceeds the set threshold level (the level of force corresponding to an
approximately 20 - 30 km/h [12 - 18 mph] frontal collision with a fixed wall that
does not move or deform).
However, this threshold velocity will be considerably higher in the following situa-
tions:
• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can
move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which the
front of the vehicle “underrides”, or goes under, the bed of a truck
●Depending on the type of collision, it is possible that only the seat belt pretension-
ers will activate.
●Front passenger occupant classification system: The SRS front passenger airbag
will not activate, if there is no passenger sitting in the front passenger seat. How-
ever, the SRS front passenger airbag may deploy, if luggage is put in the seat, or the
seat belt is fastened, even if the seat is unoccupied.

601-1. For safe use
LS460/LS460L_GE (OM50G06E)

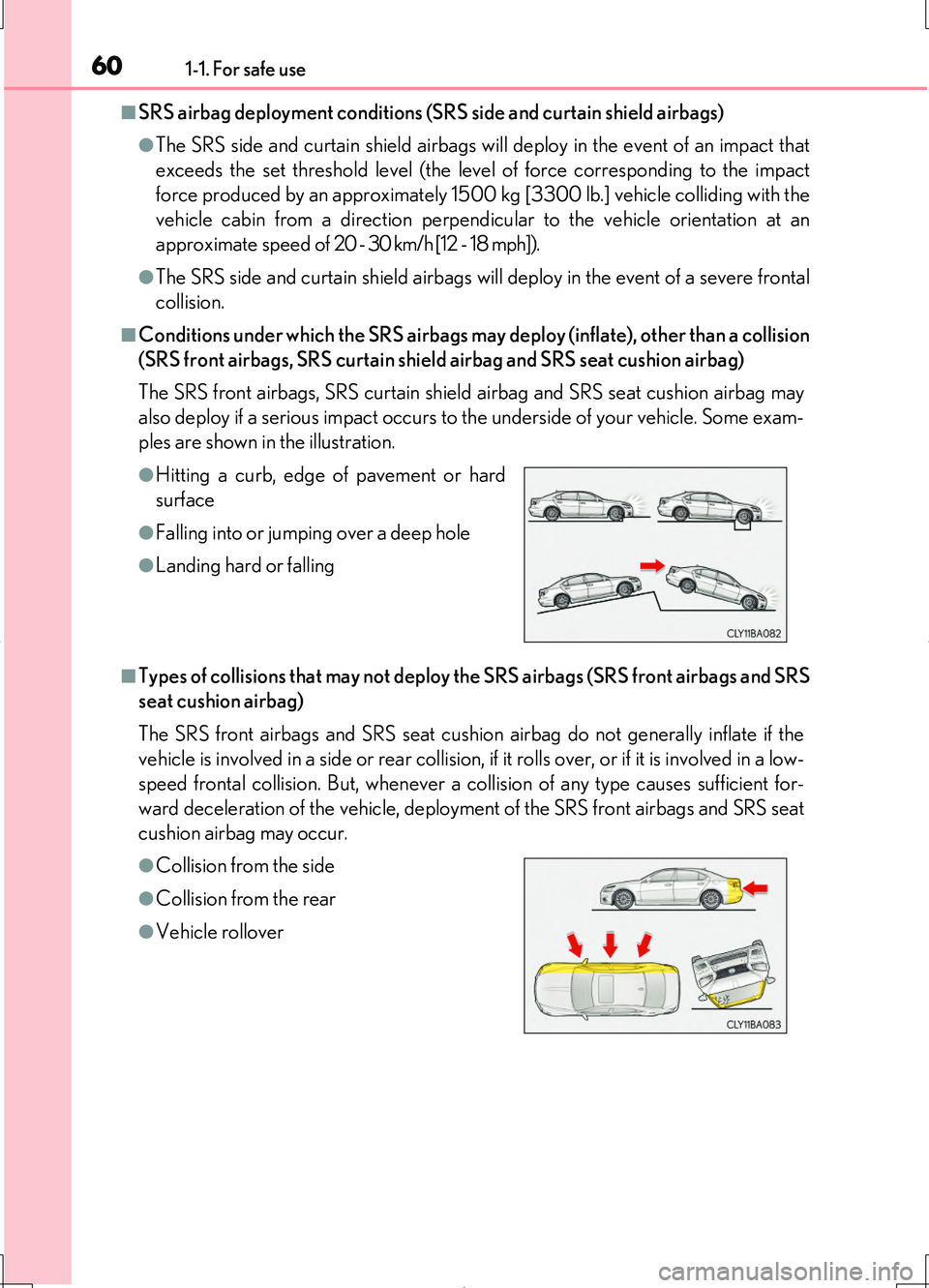

■SRS airbag deployment conditions (SRS side and curtain shield airbags)
●The SRS side and curtain shield airbags will deploy in the event of an impact that
exceeds the set threshold level (the level of force corresponding to the impact
force produced by an approximately 1500 kg [3300 lb.] vehicle colliding with the
vehicle cabin from a direction perpendicular to the vehicle orientation at an
approximate speed of 20 - 30 km/h [12 - 18 mph]).
●The SRS side and curtain shield airbags will deploy in the event of a severe frontal
collision.
■Conditions under which the SRS airbags may deploy (inflate), other than a collision
(SRS front airbags, SRS curtain shield airbag and SRS seat cushion airbag)
The SRS front airbags, SRS curtain shield airbag and SRS seat cushion airbag may
also deploy if a serious impact occurs to the underside of your vehicle. Some exam-
ples are shown in the illustration.
■Types of collisions that may not deploy the SRS airbags (SRS front airbags and SRS
seat cushion airbag)
The SRS front airbags and SRS seat cushion airbag do not generally inflate if the
vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-
speed frontal collision. But, whenever a collision of any type causes sufficient for-
ward deceleration of the vehicle, deployment of the SRS front airbags and SRS seat
cushion airbag may occur.
●Hitting a curb, edge of pavement or hard
surface
●Falling into or jumping over a deep hole
●Landing hard or falling
●Collision from the side
●Collision from the rear
●Vehicle rollover
