LEXUS LS460L 2016 Repair Manual

611-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)

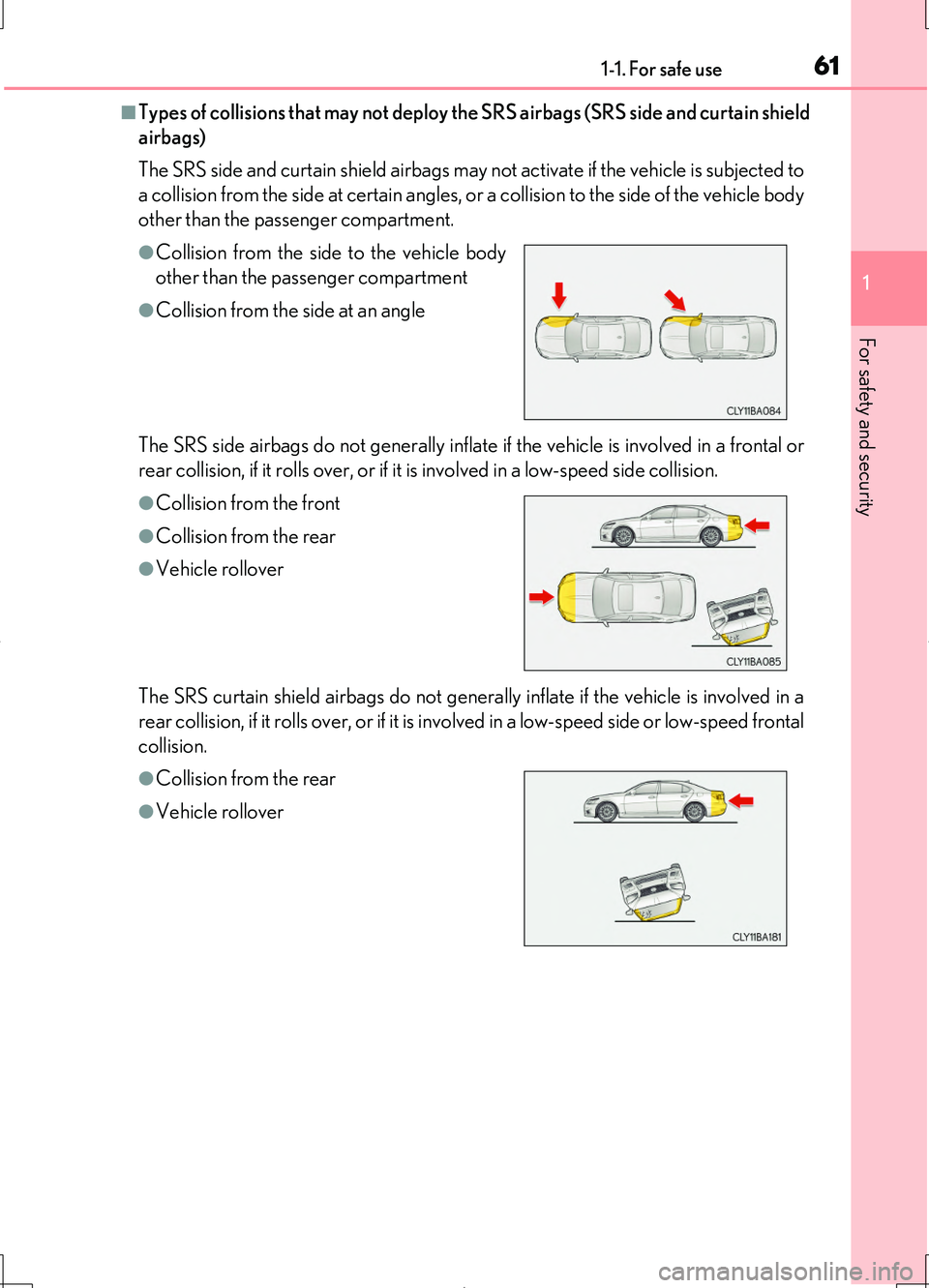

■Types of collisions that may not deploy the SRS airbags (SRS side and curtain shield
airbags)
The SRS side and curtain shield airbags may not activate if the vehicle is subjected to
a collision from the side at certain angles, or a collision to the side of the vehicle body
other than the passenger compartment.
The SRS side airbags do not generally inflate if the vehicle is involved in a frontal or
rear collision, if it rolls over, or if it is involved in a low-speed side collision.
The SRS curtain shield airbags do not generally inflate if the vehicle is involved in a
rear collision, if it rolls over, or if it is involved in a low-speed side or low-speed frontal
collision.
●Collision from the side to the vehicle body
other than the passenger compartment
●Collision from the side at an angle
●Collision from the front
●Collision from the rear
●Vehicle rollover
●Collision from the rear
●Vehicle rollover

621-1. For safe use
LS460/LS460L_GE (OM50G06E)
■When to contact your Lexus dealer
In the following cases, the vehicle will require inspection and/or repair. Contact your
Lexus dealer as soon as possible.
●Any of the SRS airbags have been inflated.
●The front of the vehicle is damaged or
deformed, or was involved in an accident
that was not severe enough to cause the
SRS airbags to inflate.
●A portion of a door is damaged or
deformed, or the vehicle was involved in an
accident that was not severe enough to
cause the SRS side and curtain shield air-
bags to inflate.
●The pad section of the steering wheel, dash-
board near the front passenger airbag or
lower portion of the instrument panel is
scratched, cracked, or otherwise damaged.
●Relaxation seat: The seat cushion surface is
scratched, cracked, or otherwise damaged.

631-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)

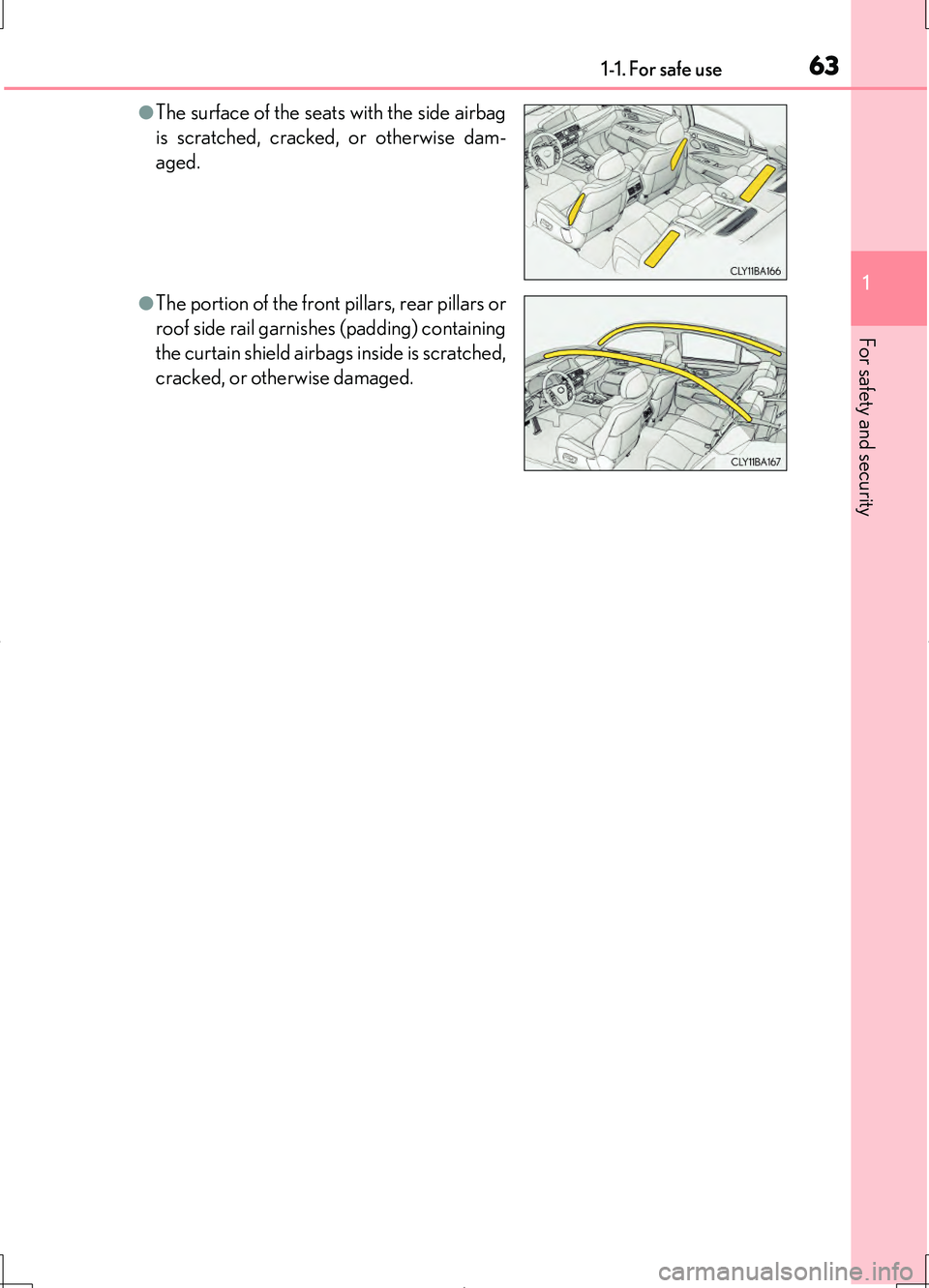

●The surface of the seats with the side airbag
is scratched, cracked, or otherwise dam-
aged.
●The portion of the front pillars, rear pillars or
roof side rail garnishes (padding) containing
the curtain shield airbags inside is scratched,
cracked, or otherwise damaged.

641-1. For safe use
LS460/LS460L_GE (OM50G06E)

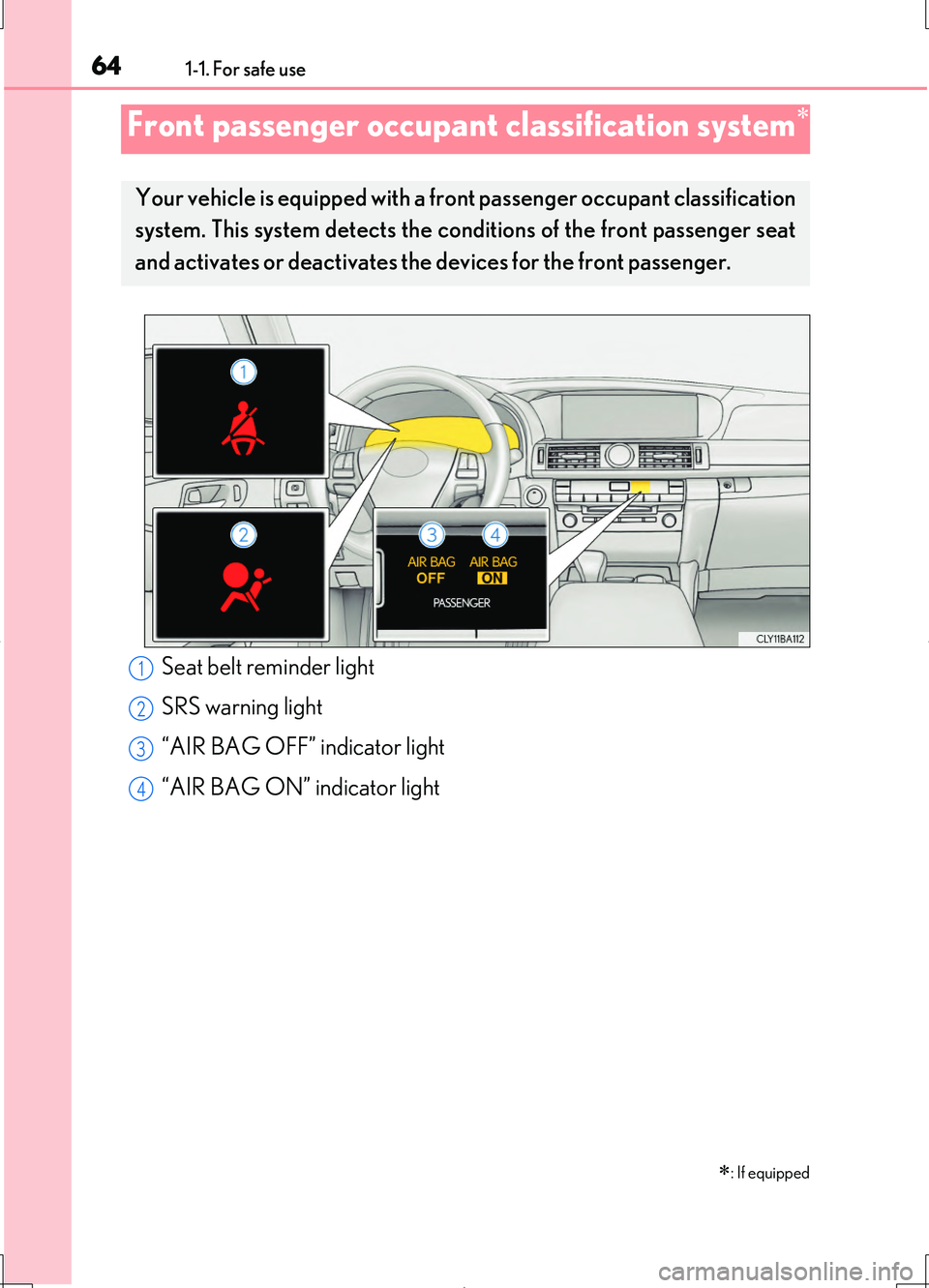

Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classification
system. This system detects the conditions of the front passenger seat
and activates or deactivates the devices for the front passenger.
Seat belt reminder light
SRS warning light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
1
2
3
4
: If equipped

651-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)

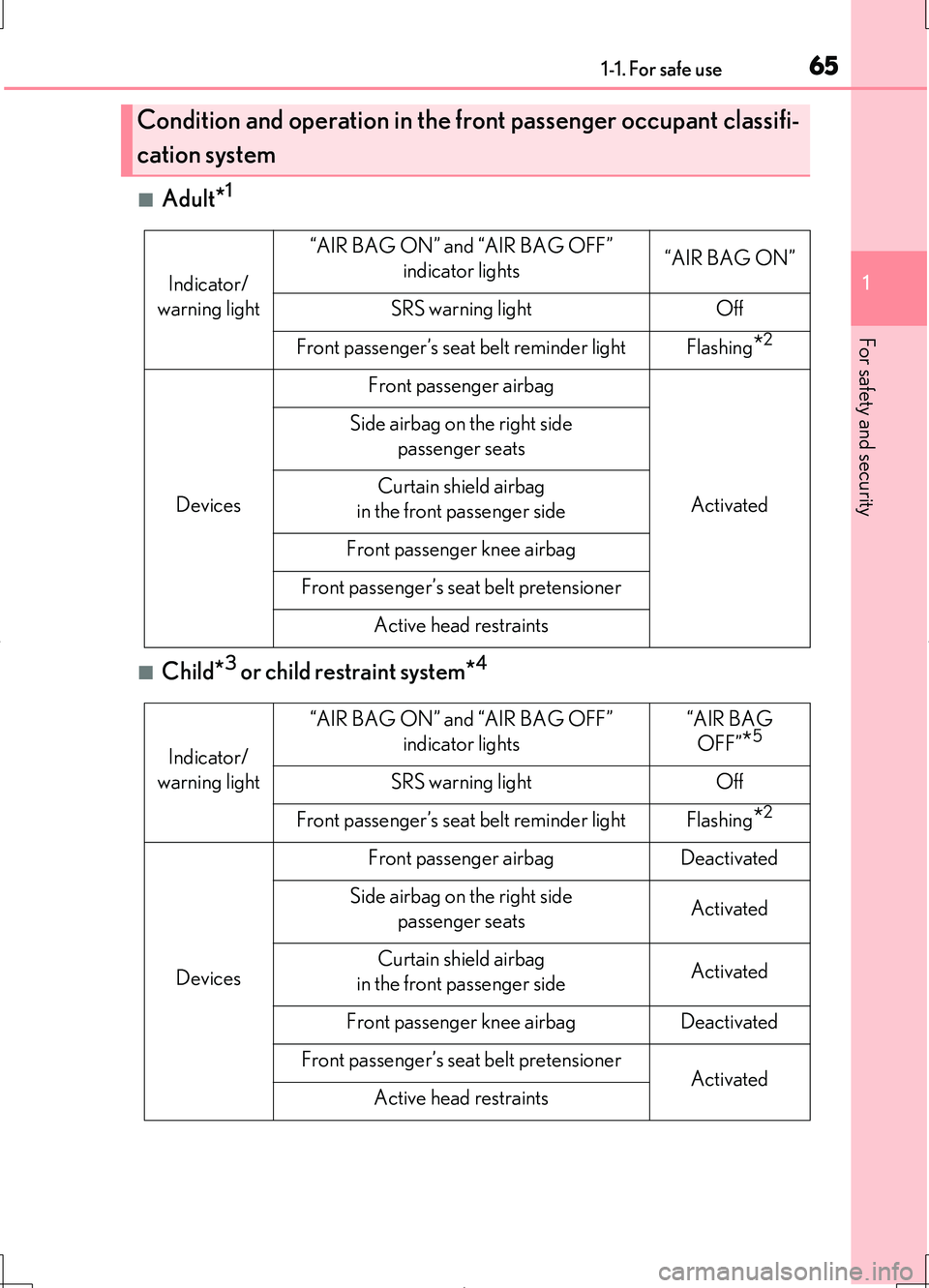

■Adult*1
■Child*3 or child restraint system*4
Condition and operation in the front passenger occupant classifi-
cation system
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG ON”
SRS warning light Off
Front passenger’s seat belt reminder light Flashing*2
Devices
Front passenger airbag
Activated
Side airbag on the right side
passenger seats
Curtain shield airbag
in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Active head restraints
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights
“AIR BAG
OFF”*5
SRS warning light Off
Front passenger’s seat belt reminder light Flashing*2
Devices
Front passenger airbag Deactivated
Side airbag on the right side
passenger seatsActivated
Curtain shield airbag
in the front passenger sideActivated
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensionerActivatedActive head restraints

661-1. For safe use
LS460/LS460L_GE (OM50G06E)

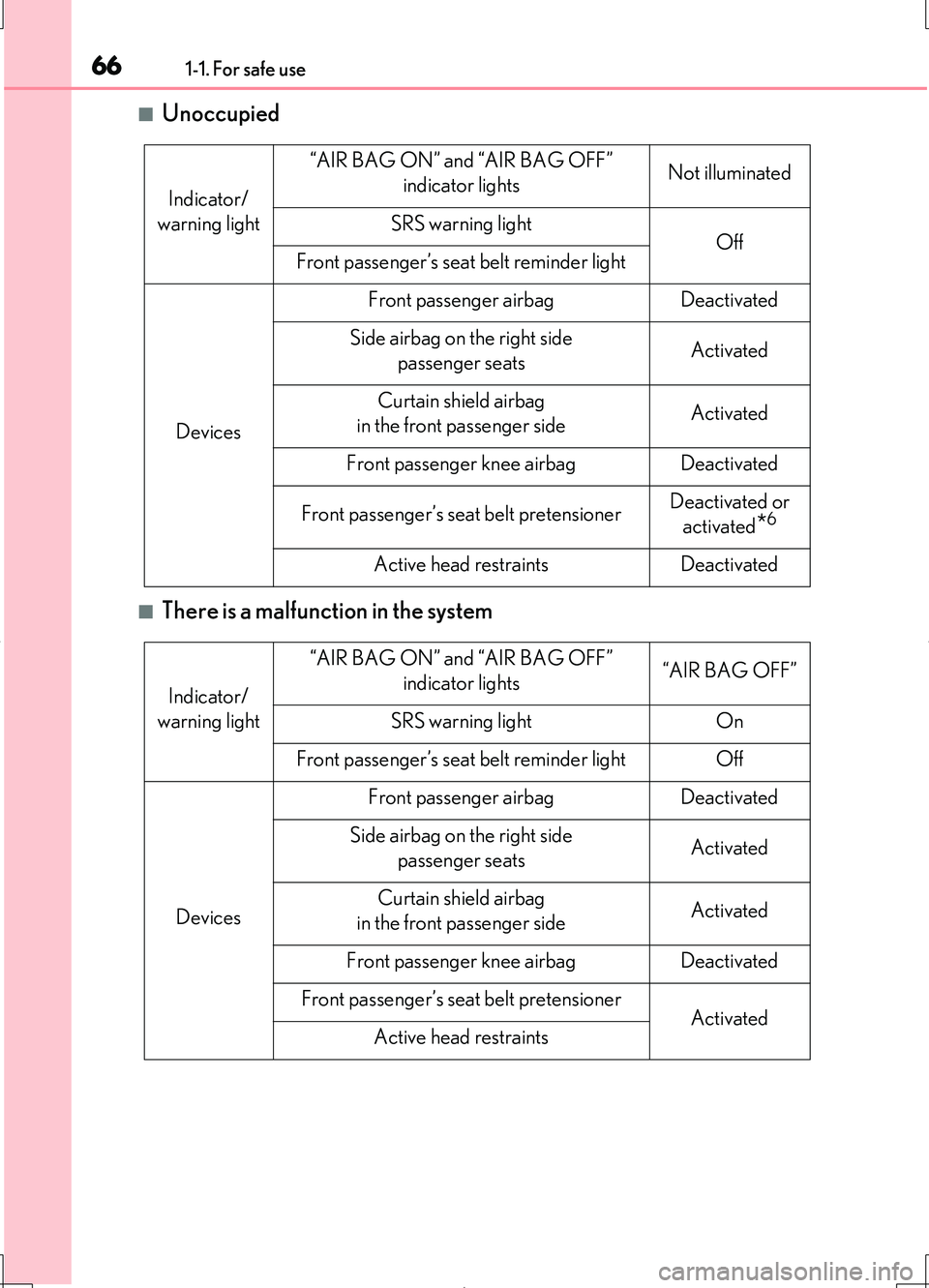

■Unoccupied
■There is a malfunction in the system
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights Not illuminated
SRS warning light OffFront passenger’s seat belt reminder light
Devices
Front passenger airbag Deactivated
Side airbag on the right side
passenger seatsActivated
Curtain shield airbag
in the front passenger side Activated
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensionerDeactivated or
activated*6
Active head restraintsDeactivated
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights “AIR BAG OFF”
SRS warning light On
Front passenger’s seat belt reminder light Off
Devices
Front passenger airbag Deactivated
Side airbag on the right side
passenger seatsActivated
Curtain shield airbag
in the front passenger sideActivated
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensionerActivatedActive head restraints

671-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)

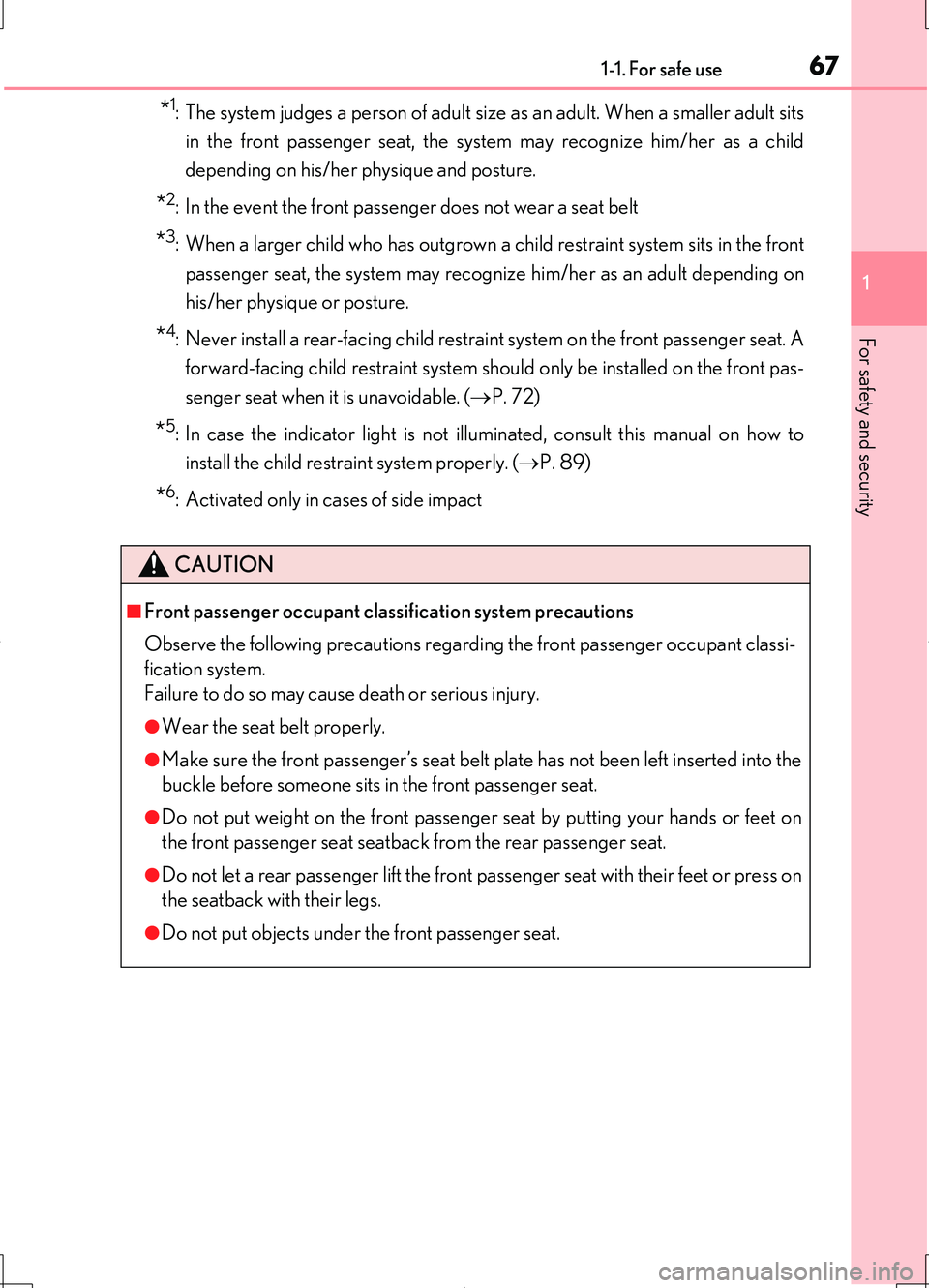

*1: The system judges a person of adult size as an adult. When a smaller adult sits
in the front passenger seat, the system may recognize him/her as a child
depending on his/her physique and posture.
*2: In the event the front passenger does not wear a seat belt
*3: When a larger child who has outgrown a child restraint system sits in the front
passenger seat, the system may recognize him/her as an adult depending on
his/her physique or posture.
*4: Never install a rear-facing child restraint system on the front passenger seat. A
forward-facing child restraint system should only be installed on the front pas-
senger seat when it is unavoidable. ( P. 72)
*5: In case the indicator light is not illuminated, consult this manual on how to
install the child restraint system properly. ( P. 89)
*6: Activated only in cases of side impact
CAUTION
■Front passenger occupant classification system precautions
Observe the following precautions regarding the front passenger occupant classi-
fication system.
Failure to do so may cause death or serious injury.
●Wear the seat belt properly.
●Make sure the front passenger’s seat belt plate has not been left inserted into the
buckle before someone sits in the front passenger seat.
●Do not put weight on the front passenger seat by putting your hands or feet on
the front passenger seat seatback from the rear passenger seat.
●Do not let a rear passenger lift the front passenger seat with their feet or press on
the seatback with their legs.
●Do not put objects under the front passenger seat.

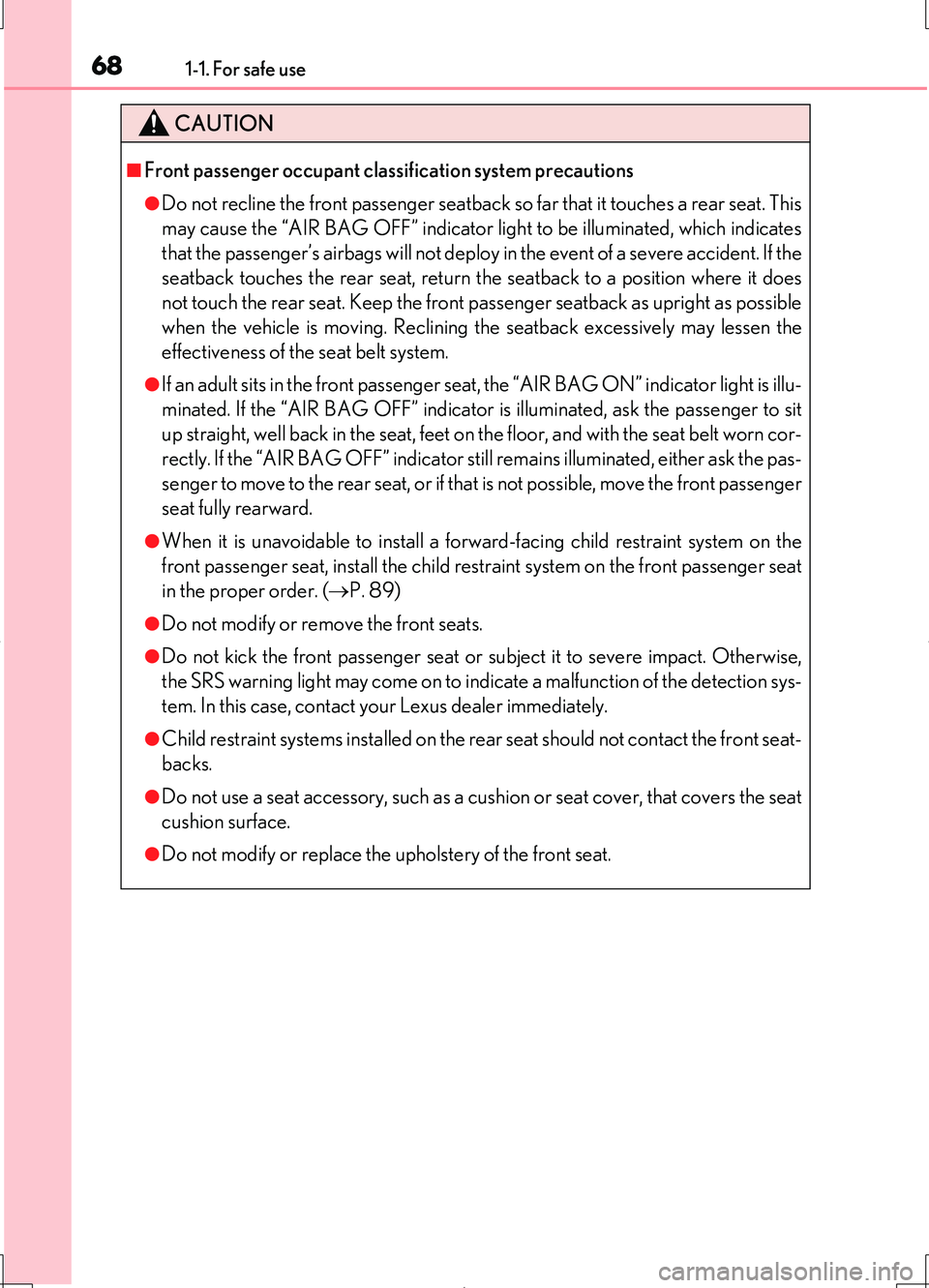

681-1. For safe use
LS460/LS460L_GE (OM50G06E)
CAUTION
■Front passenger occupant classification system precautions
●Do not recline the front passenger seatback so far that it touches a rear seat. This
may cause the “AIR BAG OFF” indicator light to be illuminated, which indicates
that the passenger’s airbags will not deploy in the event of a severe accident. If the
seatback touches the rear seat, return the seatback to a position where it does
not touch the rear seat. Keep the front passenger seatback as upright as possible
when the vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.
●If an adult sits in the front passenger seat, the “AIR BAG ON” indicator light is illu-
minated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit
up straight, well back in the seat, feet on the floor, and with the seat belt worn cor-
rectly. If the “AIR BAG OFF” indicator still remains illuminated, either ask the pas-
senger to move to the rear seat, or if that is not possible, move the front passenger
seat fully rearward.
●When it is unavoidable to install a forward-facing child restraint system on the
front passenger seat, install the child restraint system on the front passenger seat
in the proper order. ( P. 89)
●Do not modify or remove the front seats.
●Do not kick the front passenger seat or subject it to severe impact. Otherwise,
the SRS warning light may come on to indicate a malfunction of the detection sys-
tem. In this case, contact your Lexus dealer immediately.
●Child restraint systems installed on the rear seat should not contact the front seat-
backs.
●Do not use a seat accessory, such as a cushion or seat cover, that covers the seat
cushion surface.
●Do not modify or replace the upholstery of the front seat.

691-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)

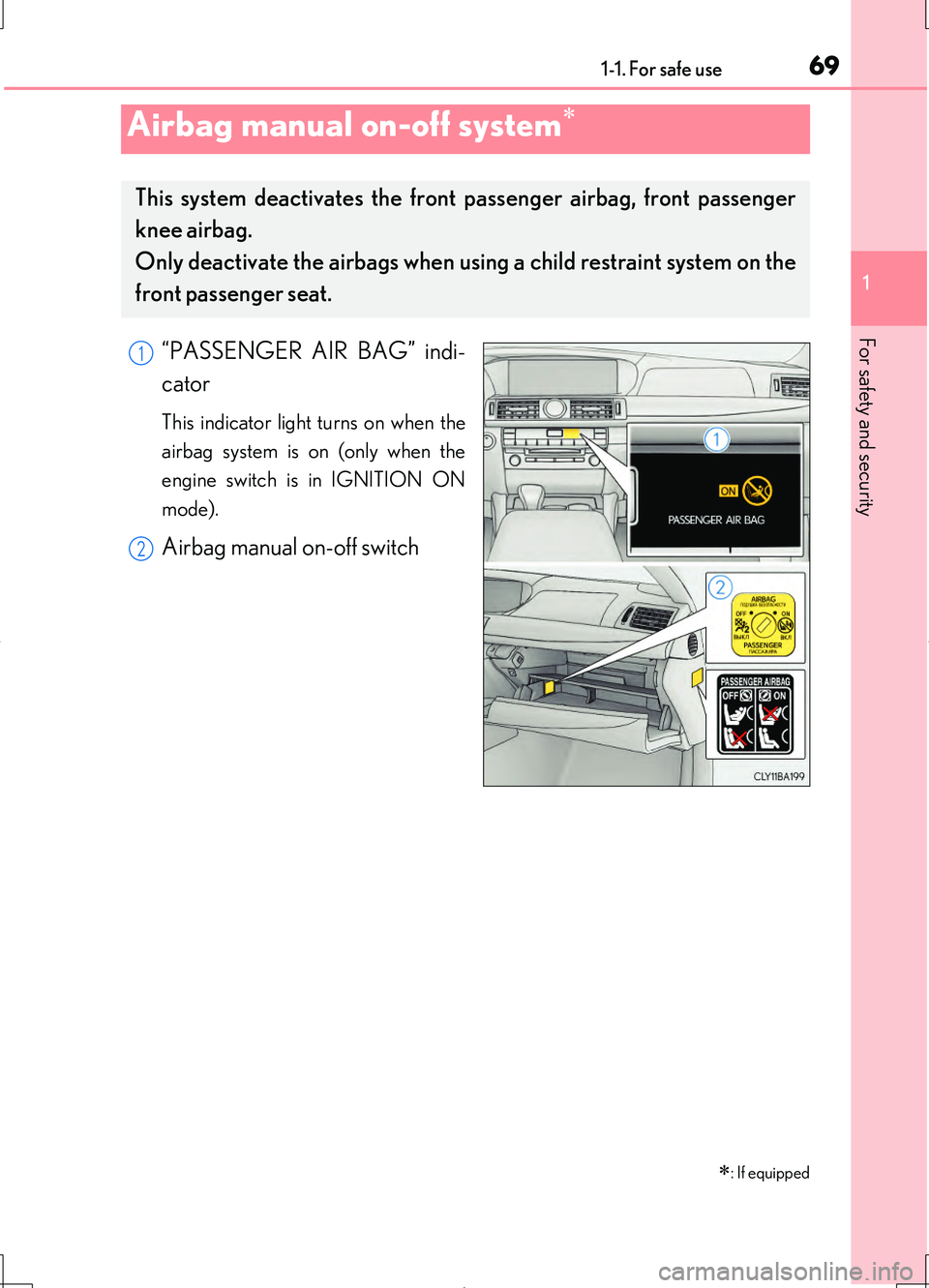

“PASSENGER AIR BAG” indi-
cator
This indicator light turns on when the
airbag system is on (only when the
engine switch is in IGNITION ON
mode).
Airbag manual on-off switch
Airbag manual on-off system
This system deactivates the front passenger airbag, front passenger
knee airbag.
Only deactivate the airbags when us ing a child restraint system on the
front passenger seat.
: If equipped
1
2

701-1. For safe use
LS460/LS460L_GE (OM50G06E)

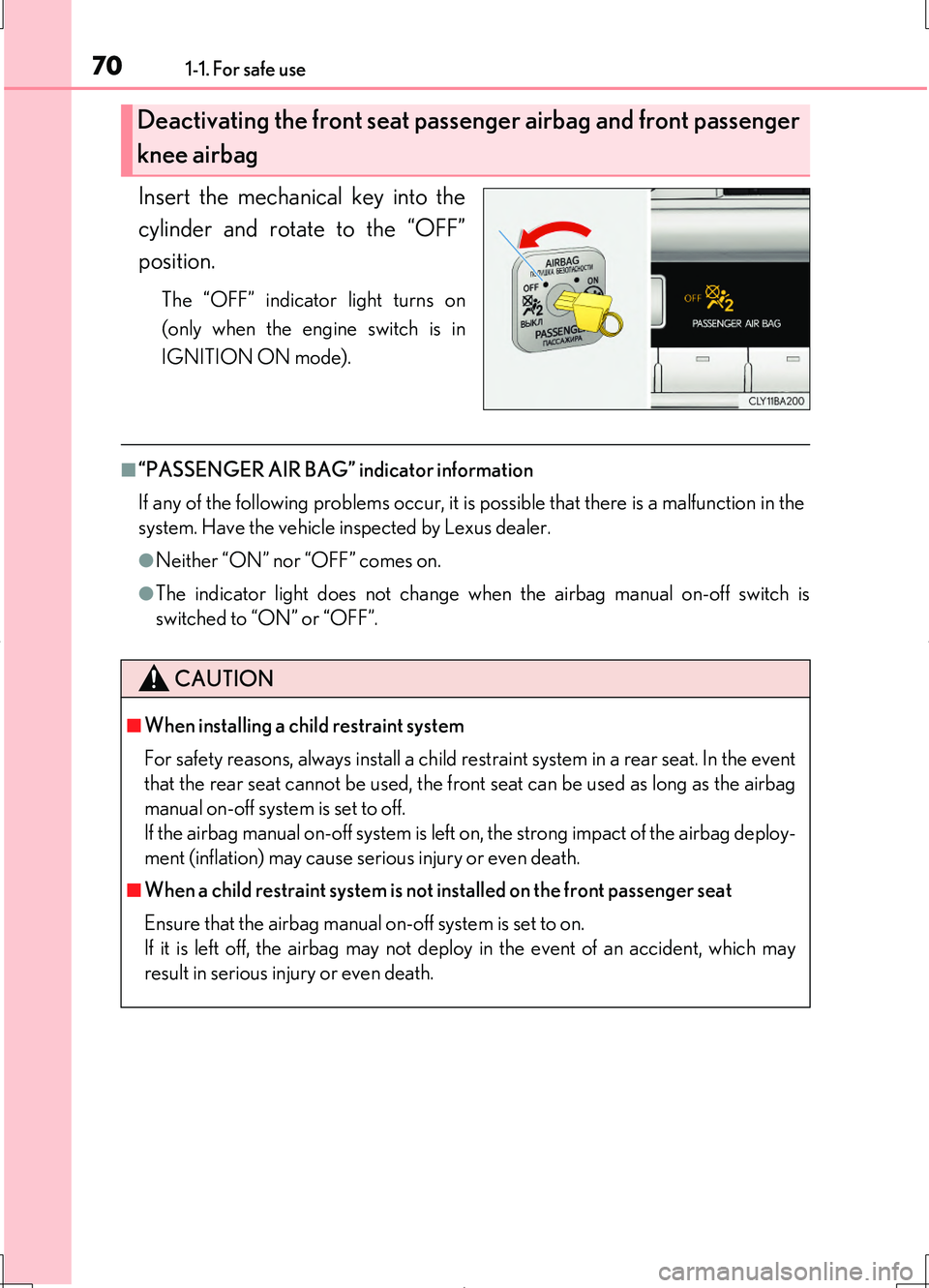

Insert the mechanical key into the
cylinder and rotate to the “OFF”
position.
The “OFF” indicator light turns on
(only when the engine switch is in
IGNITION ON mode).
■“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction in the
system. Have the vehicle inspected by Lexus dealer.
●Neither “ON” nor “OFF” comes on.
●The indicator light does not change when the airbag manual on-off switch is
switched to “ON” or “OFF”.
Deactivating the front seat passenger airbag and front passenger
knee airbag
CAUTION
■When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In the event
that the rear seat cannot be used, the front seat can be used as long as the airbag
manual on-off system is set to off.
If the airbag manual on-off system is left on, the strong impact of the airbag deploy-
ment (inflation) may cause serious injury or even death.
■When a child restraint system is not installed on the front passenger seat
Ensure that the airbag manual on-off system is set to on.
If it is left off, the airbag may not deploy in the event of an accident, which may
result in serious injury or even death.
