811-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)

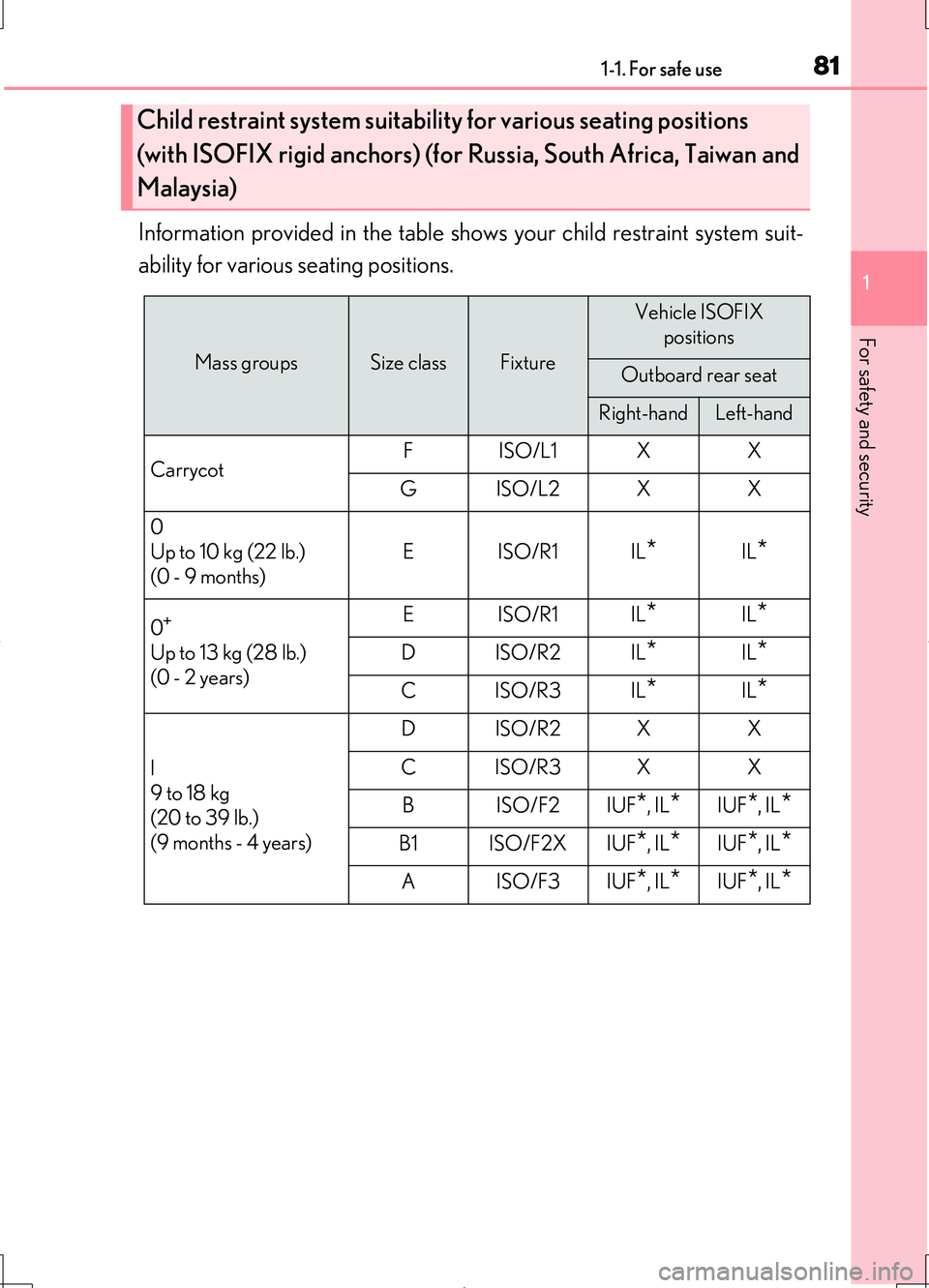

Information provided in the table shows your child restraint system suit-
ability for various seating positions.
Child restraint system suitability for various seating positions
(with ISOFIX rigid anchors) (for Russia, South Africa, Taiwan and
Malaysia)
Mass groupsSize classFixture
Vehicle ISOFIX
positions
Outboard rear seat
Right-handLeft-hand
Carrycot FISO/L1X X
GISO/L2X X
0
Up to 10 kg (22 lb.)
(0 - 9 months)
EISO/R1IL*IL*
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
EISO/R1IL*IL*
DISO/R2IL*IL*
CISO/R3IL*IL*
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)
DISO/R2X X
CISO/R3X X
BISO/F2IUF*, IL*IUF*, IL*
B1 ISO/F2X IUF*, IL*IUF*, IL*
AISO/F3IUF*, IL*IUF*, IL*

821-1. For safe use
LS460/LS460L_GE (OM50G06E)

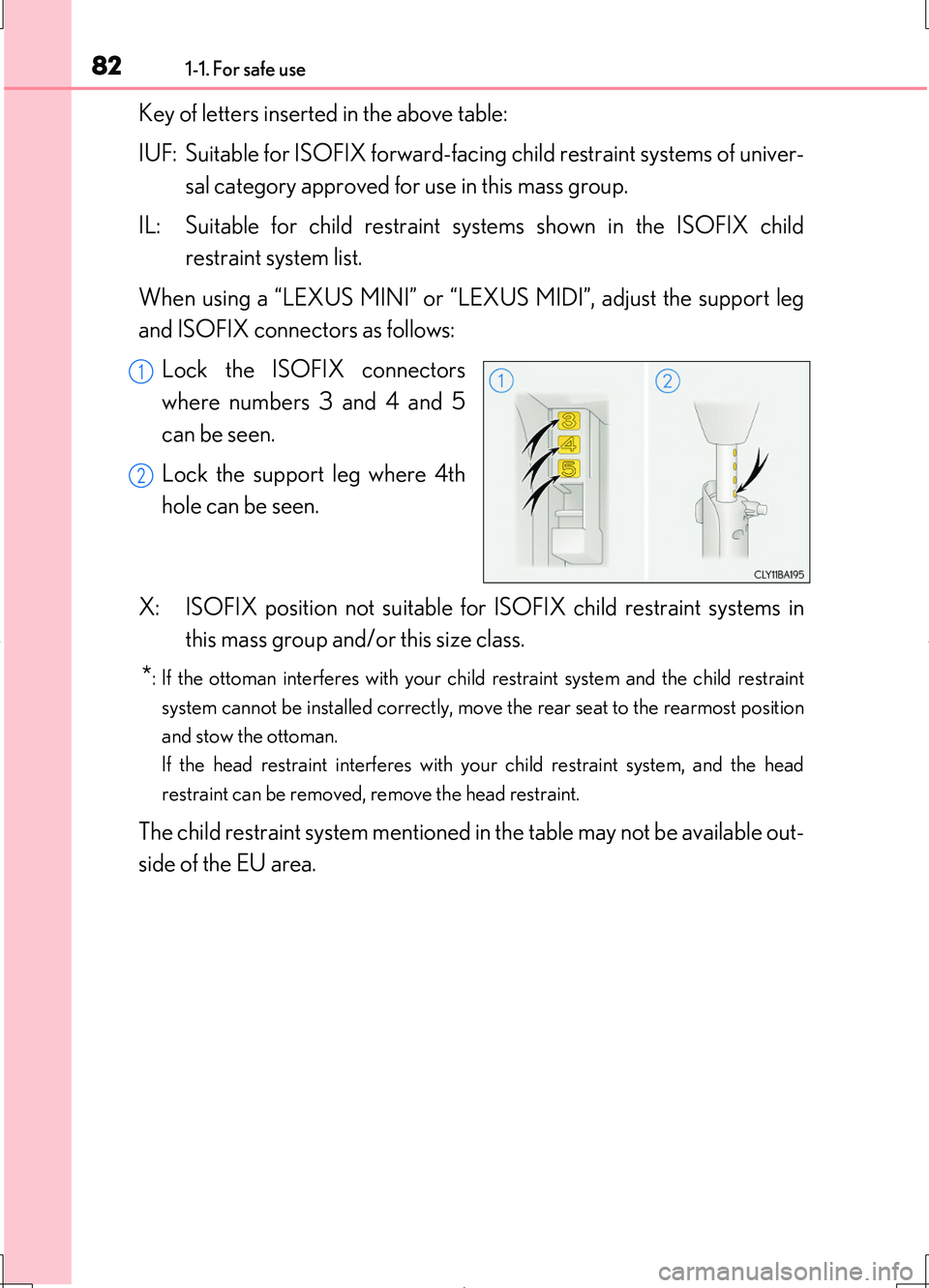

Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of univer-
sal category approved for use in this mass group.
IL: Suitable for child restraint systems shown in the ISOFIX child
restraint system list.
When using a “LEXUS MINI” or “LEXUS MIDI”, adjust the support leg
and ISOFIX connectors as follows:
Lock the ISOFIX connectors
where numbers 3 and 4 and 5
can be seen.
Lock the support leg where 4th
hole can be seen.
X: ISOFIX position not suitable for ISOFIX child restraint systems in
this mass group and/or this size class.
*: If the ottoman interferes with your child restraint system and the child restraint
system cannot be installed correctly, move the rear seat to the rearmost position
and stow the ottoman.
If the head restraint interferes with your child restraint system, and the head
restraint can be removed, remove the head restraint.
The child restraint system mentioned in the table may not be available out-
side of the EU area.
1
2

831-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)

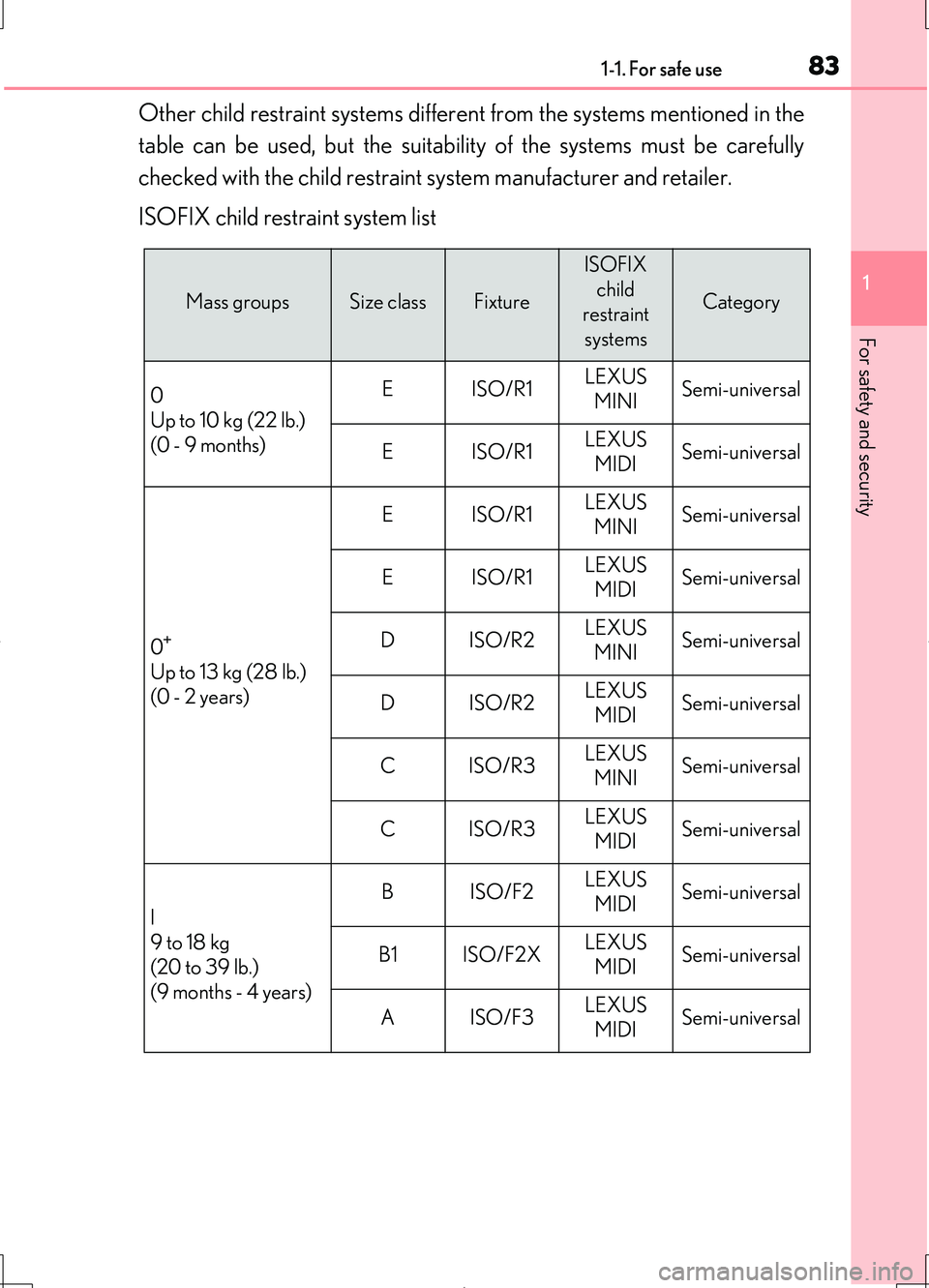

Other child restraint systems different from the systems mentioned in the
table can be used, but the suitability of the systems must be carefully
checked with the child restraint system manufacturer and retailer.
ISOFIX child restraint system list
Mass groupsSize classFixture
ISOFIX
child
restraint
systems
Category
0
Up to 10 kg (22 lb.)
(0 - 9 months)
EISO/R1 LEXUS
MINI Semi-universal
EISO/R1 LEXUS
MIDI Semi-universal
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
EISO/R1 LEXUS
MINI Semi-universal
EISO/R1 LEXUS
MIDI Semi-universal
DISO/R2 LEXUS
MINI Semi-universal
DISO/R2 LEXUS
MIDI Semi-universal
CISO/R3 LEXUS
MINI Semi-universal
CISO/R3 LEXUS
MIDI Semi-universal
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)
BISO/F2 LEXUS
MIDI Semi-universal
B1 ISO/F2X LEXUS
MIDI Semi-universal
AISO/F3 LEXUS
MIDI Semi-universal

841-1. For safe use
LS460/LS460L_GE (OM50G06E)
■When installing a child restraint system on the front passenger seat (except for
Taiwan)
■Selecting an appropriate child restraint system
●Use a child restraint system appropriate for the child until the child becomes large
enough to properly wear the vehicle’s seat belt.
●If the child is too large for a child restraint system, sit the child on a rear seat and use
the vehicle’s seat belt. ( P. 46)
When you have to use a child restraint system
on the front passenger seat, adjust the follow-
ing:
●The seatback to the most upright position
●The seat cushion to the highest position
●The seat to the rearmost position
CAUTION
■Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not properly
secure the infant or child. It may result in death or serious injury (in the event of
sudden braking or an accident).

851-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
CAUTION

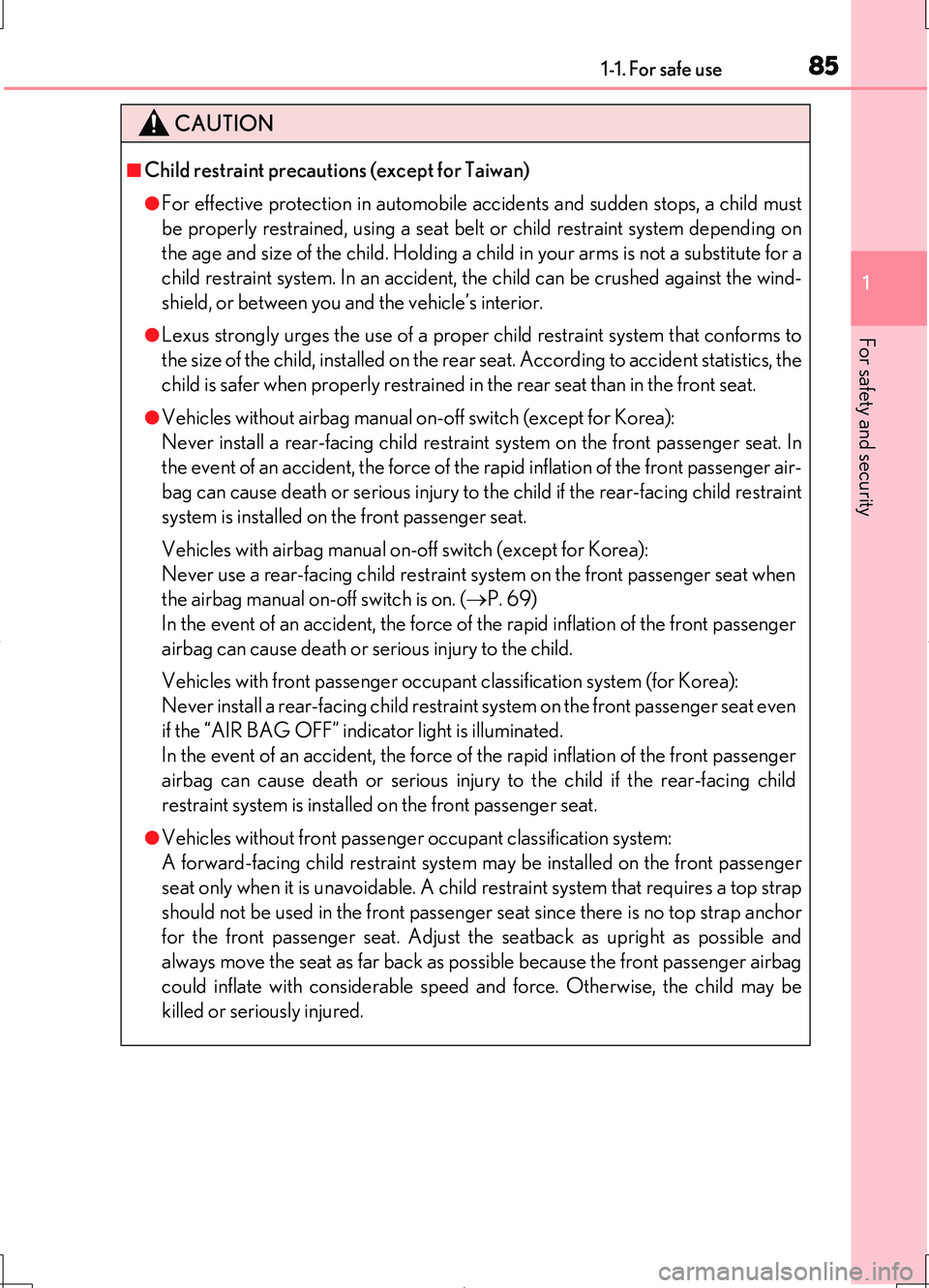

■Child restraint precautions (except for Taiwan)
●For effective protection in automobile accidents and sudden stops, a child must
be properly restrained, using a seat belt or child restraint system depending on
the age and size of the child. Holding a child in your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the wind-
shield, or between you and the vehicle’s interior.
●Lexus strongly urges the use of a proper child restraint system that conforms to
the size of the child, installed on the rear seat. According to accident statistics, the
child is safer when properly restrained in the rear seat than in the front seat.
●Vehicles without airbag manual on-off switch (except for Korea):
Never install a rear-facing child restraint system on the front passenger seat. In
the event of an accident, the force of the rapid inflation of the front passenger air-
bag can cause death or serious injury to the child if the rear-facing child restraint
system is installed on the front passenger seat.
Vehicles with airbag manual on-off switch (except for Korea):
Never use a rear-facing child restraint system on the front passenger seat when
the airbag manual on-off switch is on. ( P. 69)
In the event of an accident, the force of the rapid inflation of the front passenger
airbag can cause death or serious injury to the child.
Vehicles with front passenger occupant classification system (for Korea):
Never install a rear-facing child restraint system on the front passenger seat even
if the “AIR BAG OFF” indicator light is illuminated.
In the event of an accident, the force of the rapid inflation of the front passenger
airbag can cause death or serious injury to the child if the rear-facing child
restraint system is installed on the front passenger seat.
●Vehicles without front passenger occupant classification system:
A forward-facing child restraint system may be installed on the front passenger
seat only when it is unavoidable. A child restraint system that requires a top strap
should not be used in the front passenger seat since there is no top strap anchor
for the front passenger seat. Adjust the seatback as upright as possible and
always move the seat as far back as possible because the front passenger airbag
could inflate with considerable speed and force. Otherwise, the child may be
killed or seriously injured.

861-1. For safe use
LS460/LS460L_GE (OM50G06E)
CAUTION

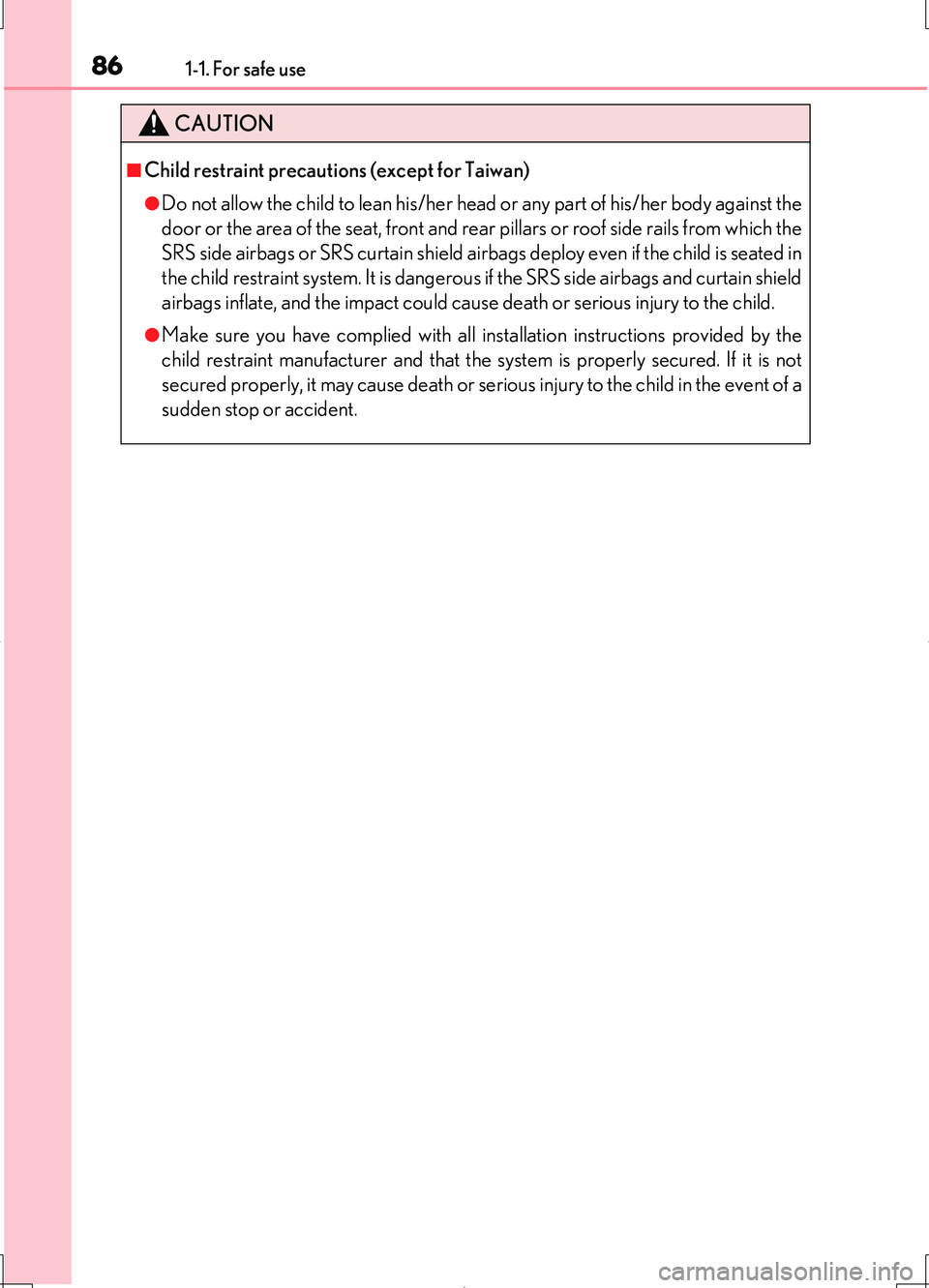

■Child restraint precautions (except for Taiwan)
●Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front and rear pillars or roof side rails from which the
SRS side airbags or SRS curtain shield airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the SRS side airbags and curtain shield
airbags inflate, and the impact could cause death or serious injury to the child.
●Make sure you have complied with all installation instructions provided by the
child restraint manufacturer and that the system is properly secured. If it is not
secured properly, it may cause death or serious injury to the child in the event of a
sudden stop or accident.

871-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
CAUTION
■Child restraint precautions (for Taiwan)
●For effective protection in automobile accidents and sudden stops, a child must
be properly restrained, using a seat belt or child restraint system depending on
the age and size of the child. Holding a child in your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the wind-
shield, or between you and the vehicle’s interior. This may cause death or serious
injury to the child in the event of a sudden stop, sudden swerve or accident.
●Never install a child restraint system on the front passenger seat. In the event of
an accident, the force of the rapid inflation of the front passenger airbag can
cause death or serious injury to the child if the child restraint system is installed on
the front passenger seat.
●Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front, center and rear pillars or roof side rails from
which the SRS side airbags or SRS curtain shield airbags deploy even if the child
is seated in the child restraint system. It is dangerous if the SRS side airbags and
curtain shield airbags inflate, and the impact could cause death or serious injury
to the child.
●Make sure you have complied with all installation instructions provided by the
child restraint manufacturer and that the system is properly secured. If it is not
secured properly, it may cause death or serious injury to the child in the event of a
sudden stop, sudden swerve or accident.

881-1. For safe use
LS460/LS460L_GE (OM50G06E)
CAUTION

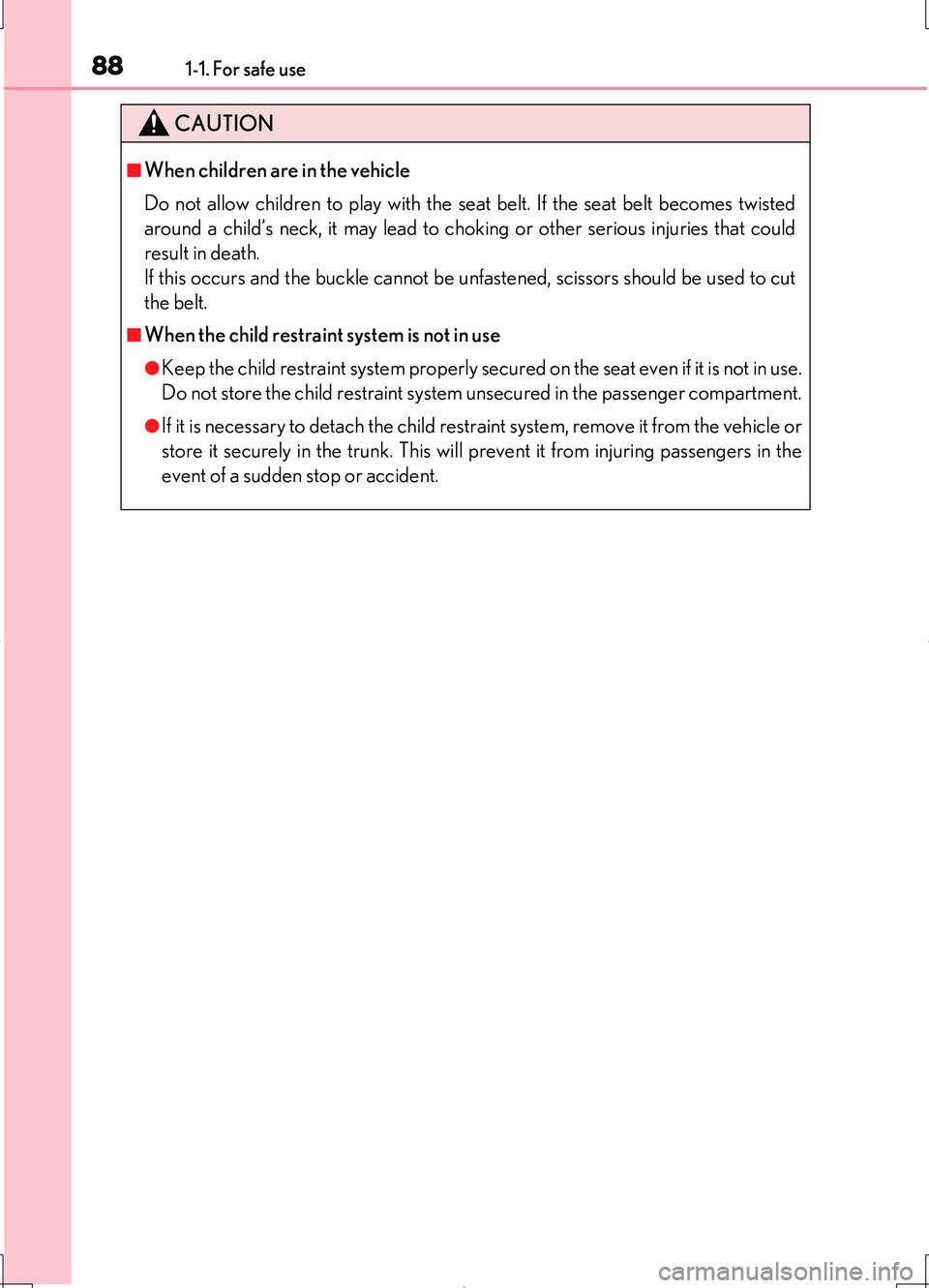

■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
■When the child restraint system is not in use
●Keep the child restraint system properly secured on the seat even if it is not in use.
Do not store the child restraint system unsecured in the passenger compartment.
●If it is necessary to detach the child restraint system, remove it from the vehicle or
store it securely in the trunk. This will prevent it from injuring passengers in the
event of a sudden stop or accident.

891-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)

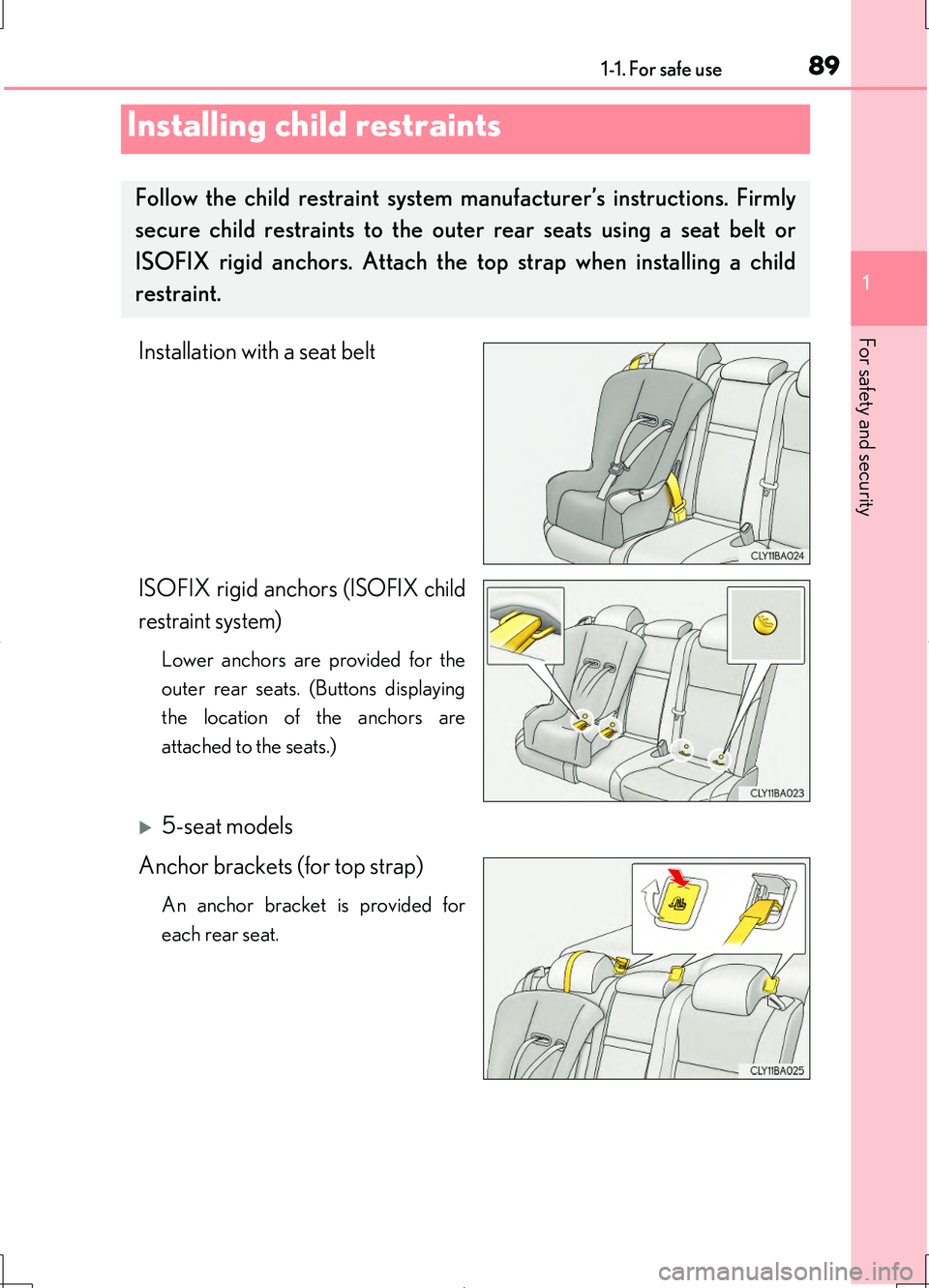

Installation with a seat belt
ISOFIX rigid anchors (ISOFIX child
restraint system)
Lower anchors are provided for the
outer rear seats. (Buttons displaying
the location of the anchors are
attached to the seats.)
5-seat models
Anchor brackets (for top strap)
An anchor bracket is provided for
each rear seat.
Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the outer rear seats using a seat belt or
ISOFIX rigid anchors. Attach the top strap when installing a child
restraint.

901-1. For safe use
LS460/LS460L_GE (OM50G06E)

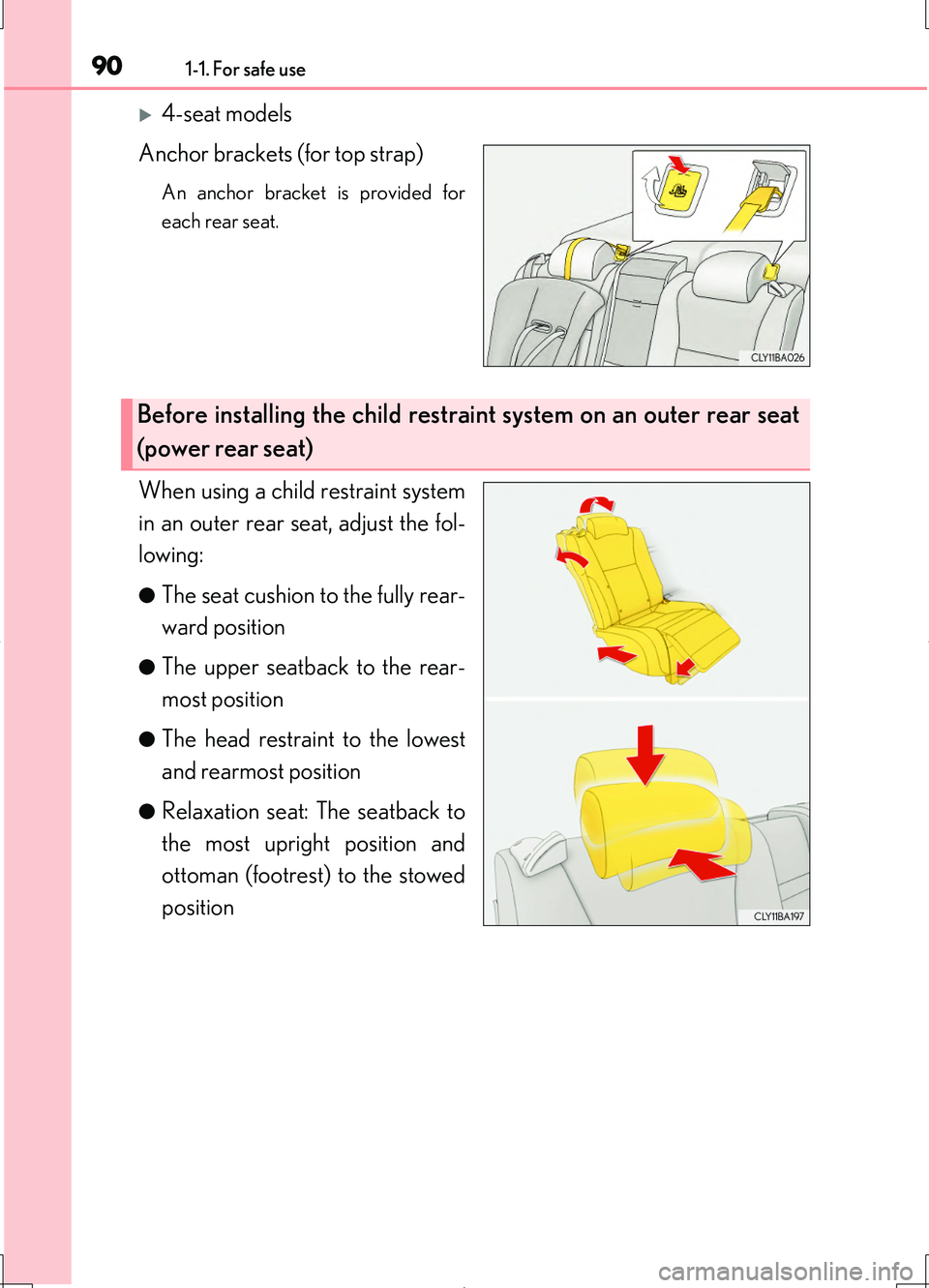

4-seat models
Anchor brackets (for top strap)
An anchor bracket is provided for
each rear seat.
When using a child restraint system
in an outer rear seat, adjust the fol-
lowing:
●The seat cushion to the fully rear-
ward position
●The upper seatback to the rear-
most position
●The head restraint to the lowest
and rearmost position
●Relaxation seat: The seatback to
the most upright position and
ottoman (footrest) to the stowed
position
Before installing the child restraint system on an outer rear seat
(power rear seat)
