6417-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
●The needle of the engine coolant temperature gauge ( P. 125) enters
the red zone or a loss of engine po wer is experienced. (For example,
the vehicle speed does not increase.)
●Steam comes out from under the hood.
Stop the vehicle in a safe place and turn off the air conditioning system,
and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radia-
tor) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
If your vehicle overheats
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2

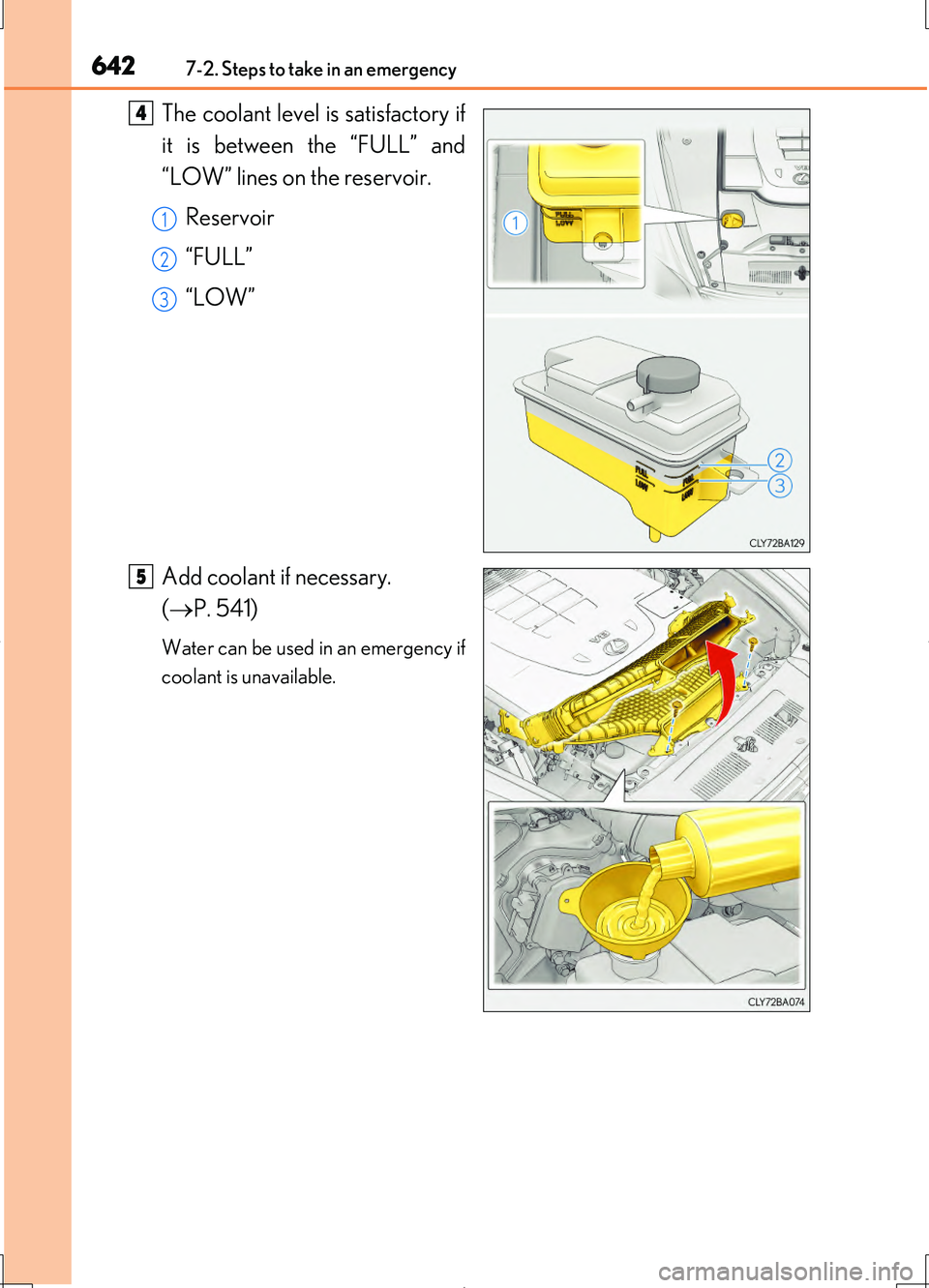

6427-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
The coolant level is satisfactory if
it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL”
“LOW”
Add coolant if necessary.
( P. 541)
Water can be used in an emergency if
coolant is unavailable.
4
1
2
3
5

6437-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
Start the engine and turn the air conditioning system on to check that
the radiator cooling fan operates and to check for coolant leaks from
the radiator or hoses.
The fan operates when the air conditioning system is turned on immediately after
a cold start. Confirm that the fan is operating by checking the fan sound and air
flow. If it is difficult to check these, turn the air conditioning system on and off
repeatedly.
(The fan may not operate in freezing temperatures.)
If the fan is not operating:
Stop the engine immediately and contact your Lexus dealer.
If the fan is operating:
Have the vehicle inspected at the nearest Lexus dealer.
6
7

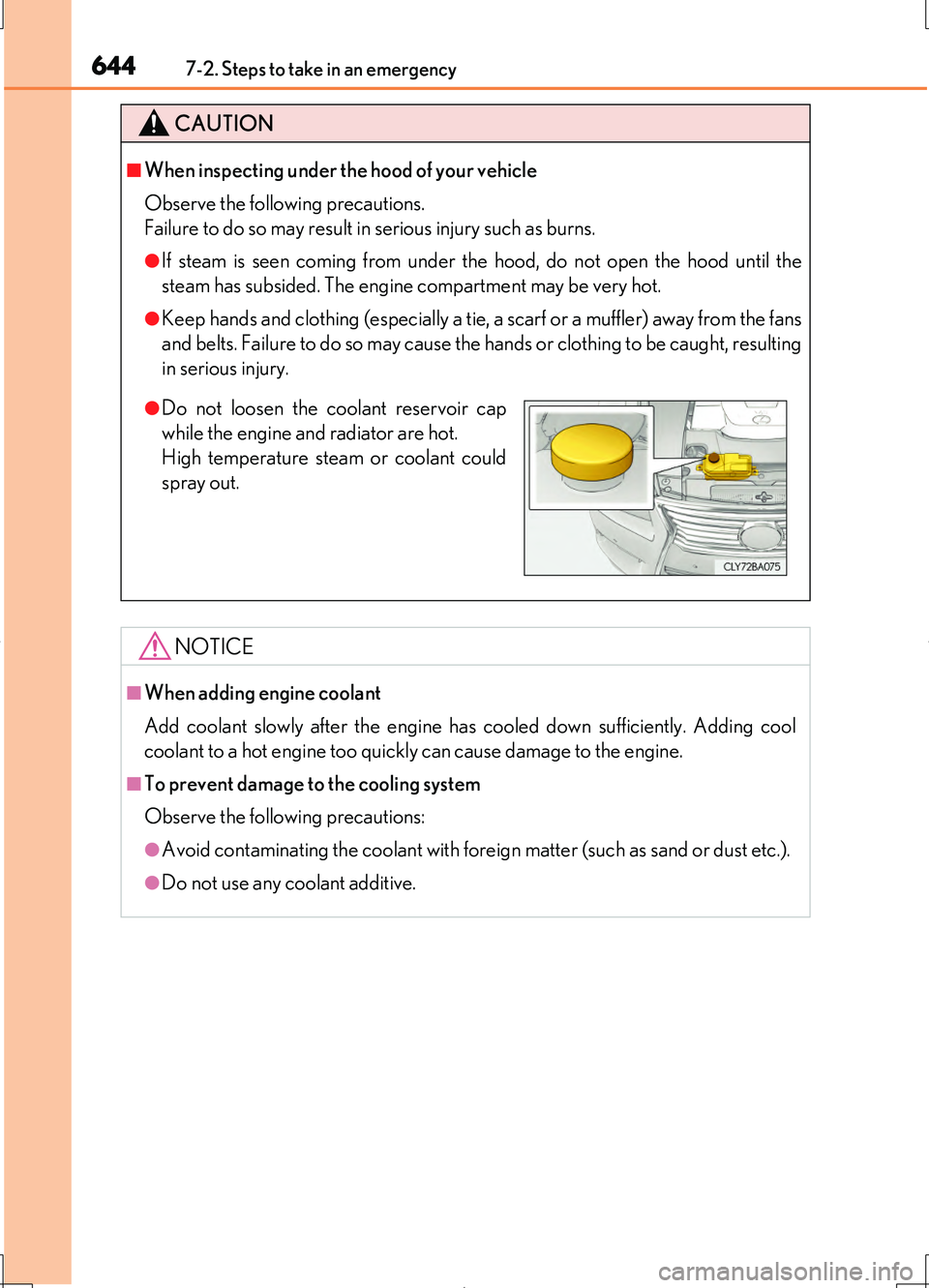

6447-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
CAUTION
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans
and belts. Failure to do so may cause the hands or clothing to be caught, resulting
in serious injury.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding cool
coolant to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
●Do not use any coolant additive.
●Do not loosen the coolant reservoir cap
while the engine and radiator are hot.
High temperature steam or coolant could
spray out.

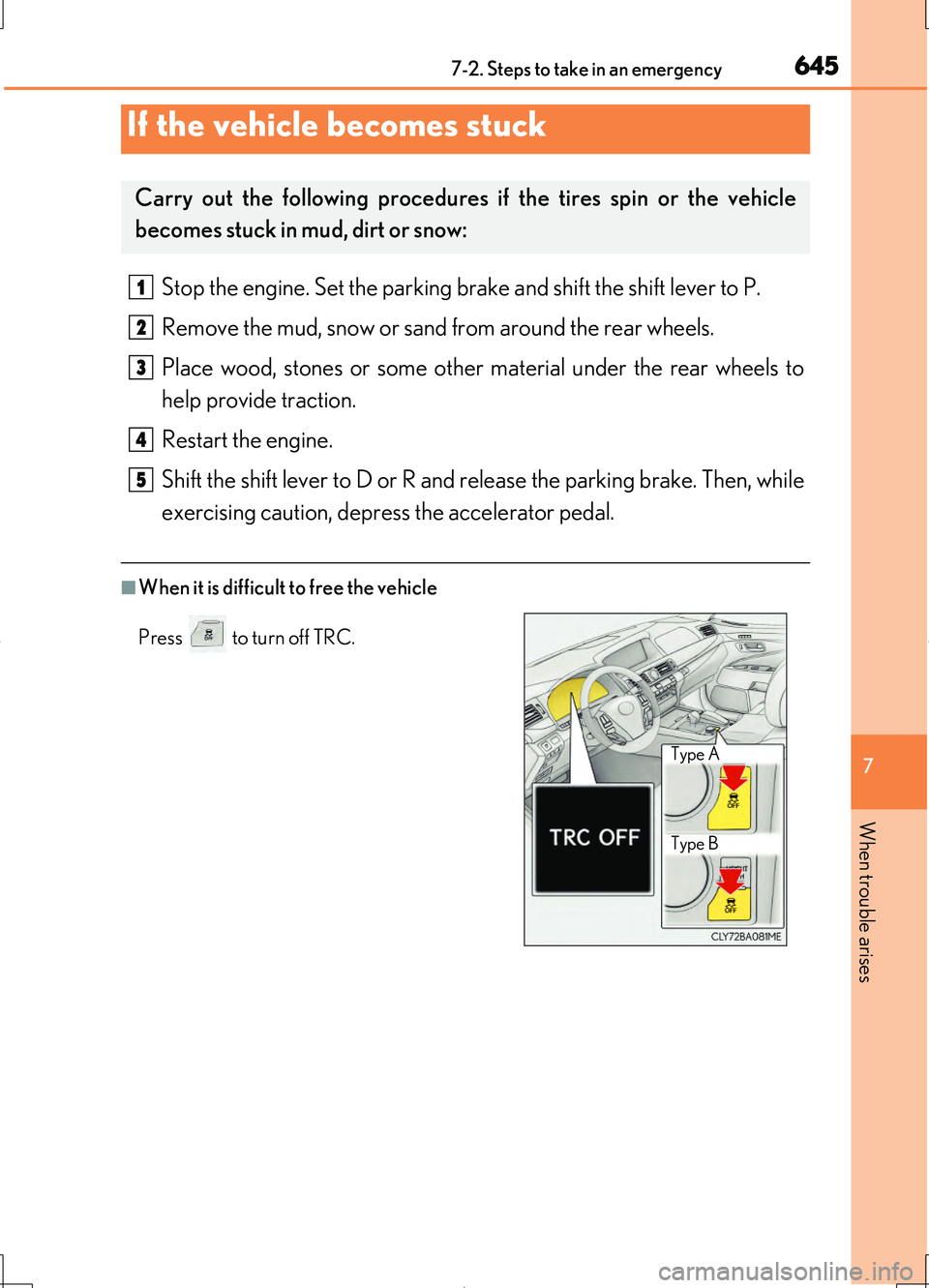

6457-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other material under the rear wheels to
help provide traction.
Restart the engine.
Shift the shift lever to D or R and release the parking brake. Then, while
exercising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRC.
1
2
3
4
5
Type A
Type B

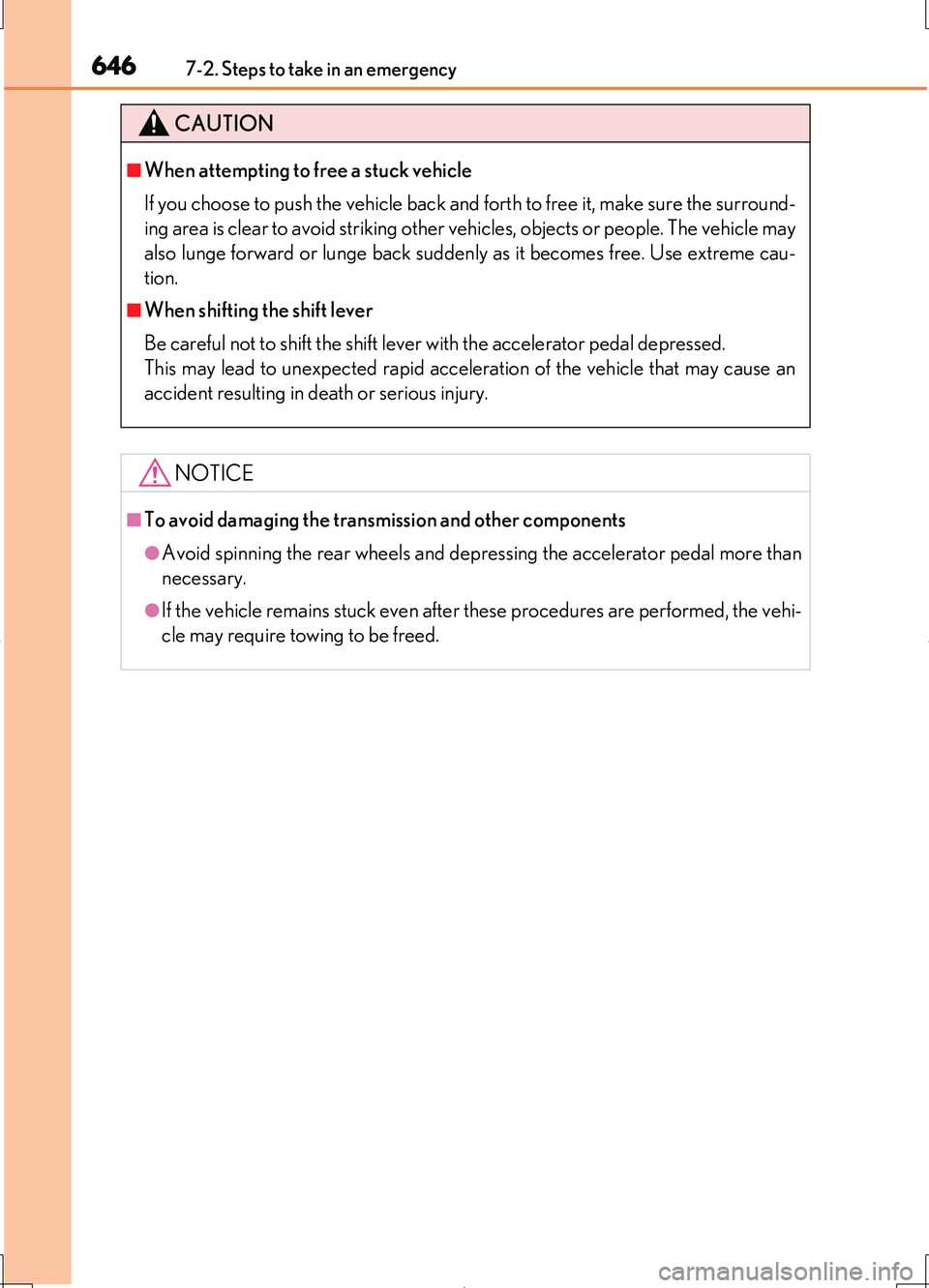

6467-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
CAUTION
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surround-
ing area is clear to avoid striking other vehicles, objects or people. The vehicle may
also lunge forward or lunge back suddenly as it becomes free. Use extreme cau-
tion.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than
necessary.
●If the vehicle remains stuck even after these procedures are performed, the vehi-
cle may require towing to be freed.

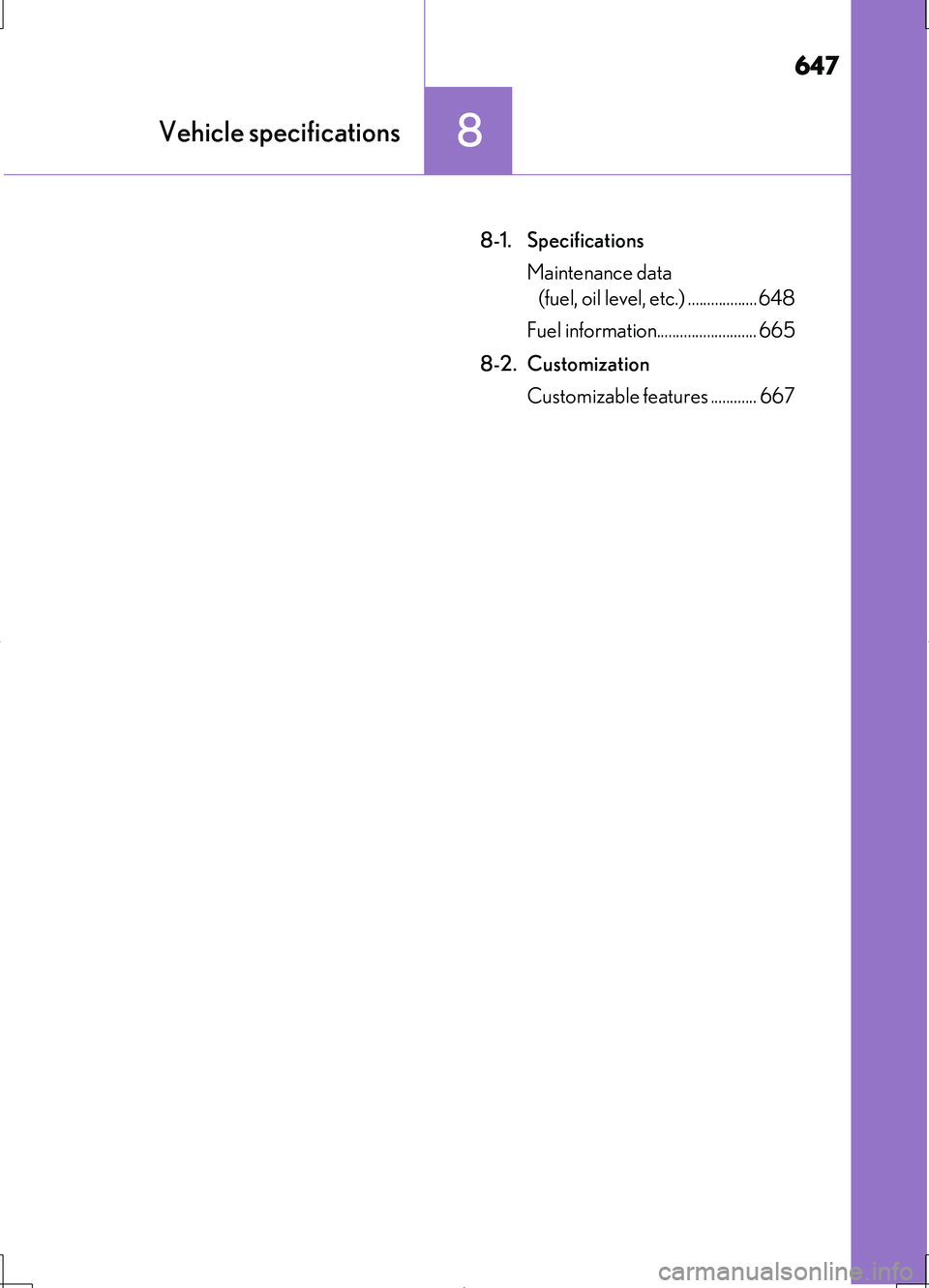

647
8Vehicle specifications
LS460/LS460L_GE (OM50G06E)
8-1. Specifications
Maintenance data
(fuel, oil level, etc.) ..................648
Fuel information.......................... 665
8-2. Customization
Customizable features ............ 667

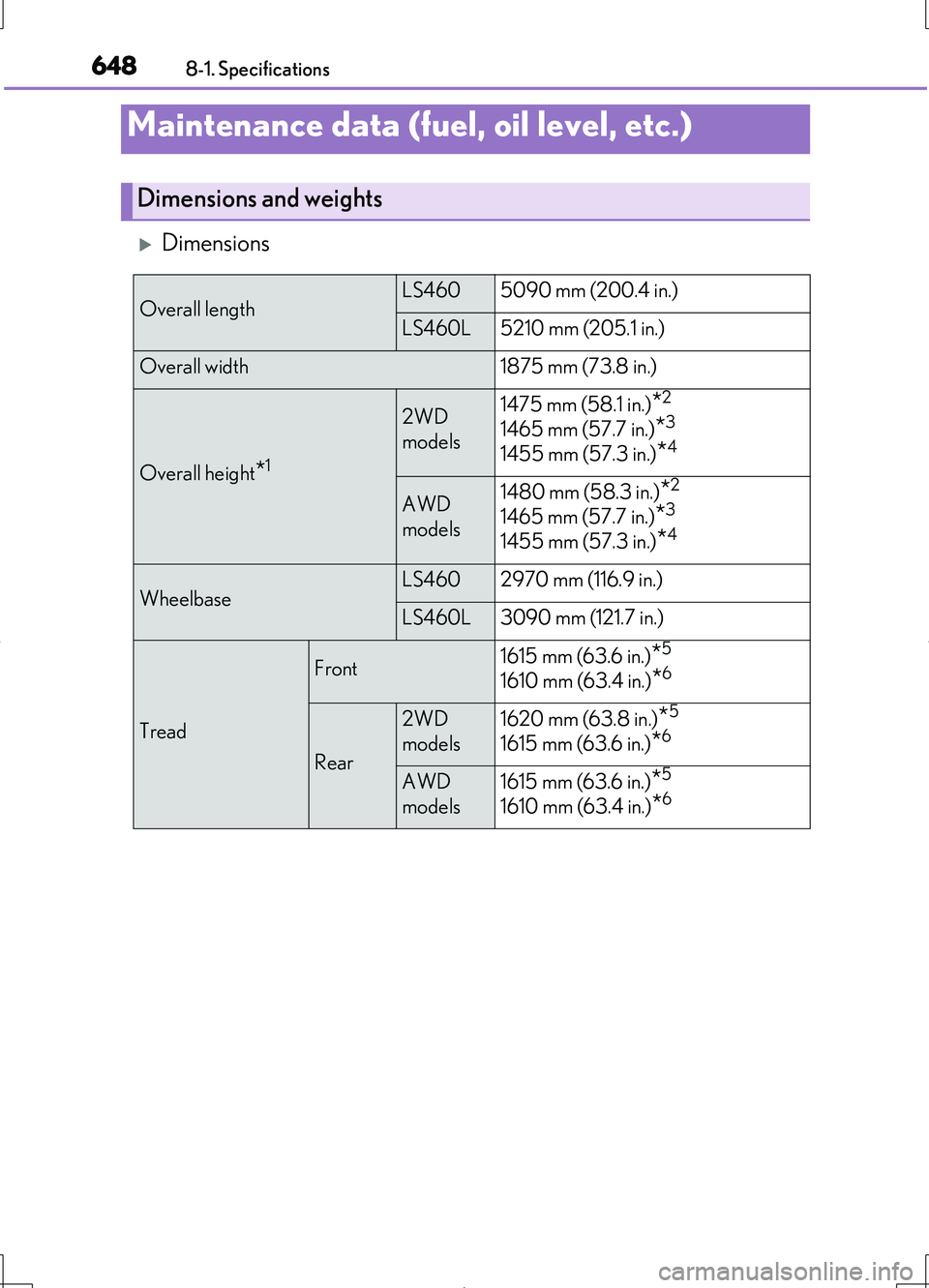

648
LS460/LS460L_GE (OM50G06E)
8-1. Specifications
Dimensions
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall lengthLS460 5090 mm (200.4 in.)
LS460L 5210 mm (205.1 in.)
Overall width1875 mm (73.8 in.)
Overall height*1
2WD
models
1475 mm (58.1 in.)*2
1465 mm (57.7 in.)*3
1455 mm (57.3 in.)*4
AWD
models
1480 mm (58.3 in.)*2
1465 mm (57.7 in.)*3
1455 mm (57.3 in.)*4
WheelbaseLS4602970 mm (116.9 in.)
LS460L3090 mm (121.7 in.)
Tread
Front1615 mm (63.6 in.)*5
1610 mm (63.4 in.)*6
Rear
2WD
models
1620 mm (63.8 in.)*5
1615 mm (63.6 in.)*6
AWD
models
1615 mm (63.6 in.)*5
1610 mm (63.4 in.)*6

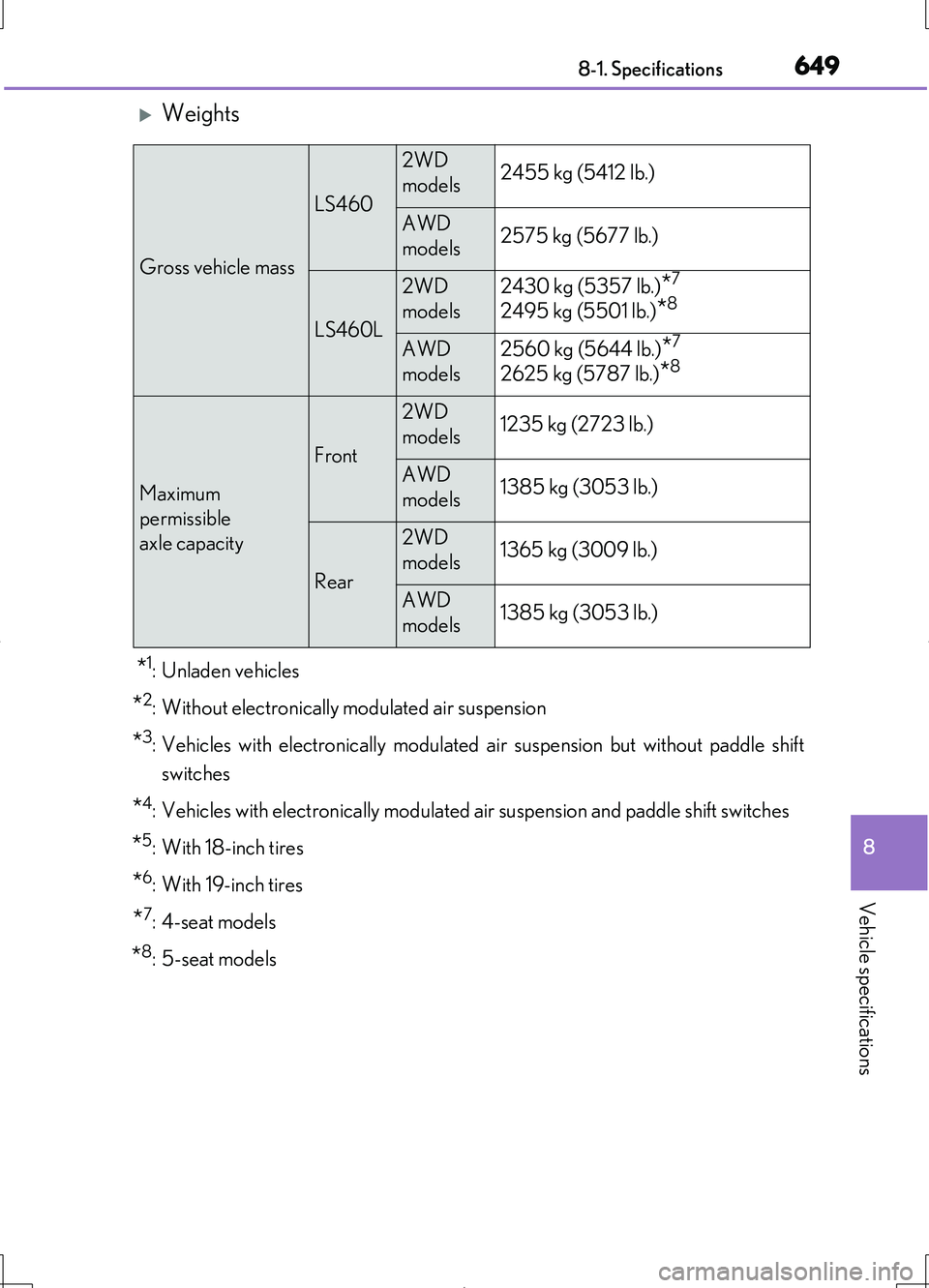

649
8
8-1. Specifications
Vehicle specifications
LS460/LS460L_GE (OM50G06E)
Weights
*1: Unladen vehicles
*2: Without electronically modulated air suspension
*3: Vehicles with electronically modulated air suspension but without paddle shift
switches
*4: Vehicles with electronically modulated air suspension and paddle shift switches
*5: With 18-inch tires
*6: With 19-inch tires
*7: 4-seat models
*8:5-seat models
Gross vehicle mass
LS460
2WD
models2455 kg (5412 lb.)
AWD
models2575 kg (5677 lb.)
LS460L
2WD
models
2430 kg (5357 lb.)*7
2495 kg (5501 lb.)*8
AWD
models
2560 kg (5644 lb.)*7
2625 kg (5787 lb.)*8
Maximum
permissible
axle capacity
Front
2WD
models1235 kg (2723 lb.)
AWD
models1385 kg (3053 lb.)
Rear
2WD
models1365 kg (3009 lb.)
AWD
models1385 kg (3053 lb.)

6508-1. Specifications
LS460/LS460L_GE (OM50G06E)
■Vehicle identification number
The vehicle identification number (V IN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and in
the engine compartment.
This number is also on the Certifi-
cation Regulation label*1 or the
manufacturer’s label*2.
*1: For Korea, GCC countries*3, Yemen and Lebanon
*2: Except for Korea, GCC countries*3, Yemen and Lebanon
*3: Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar,
Kuwait
Vehicle identification
