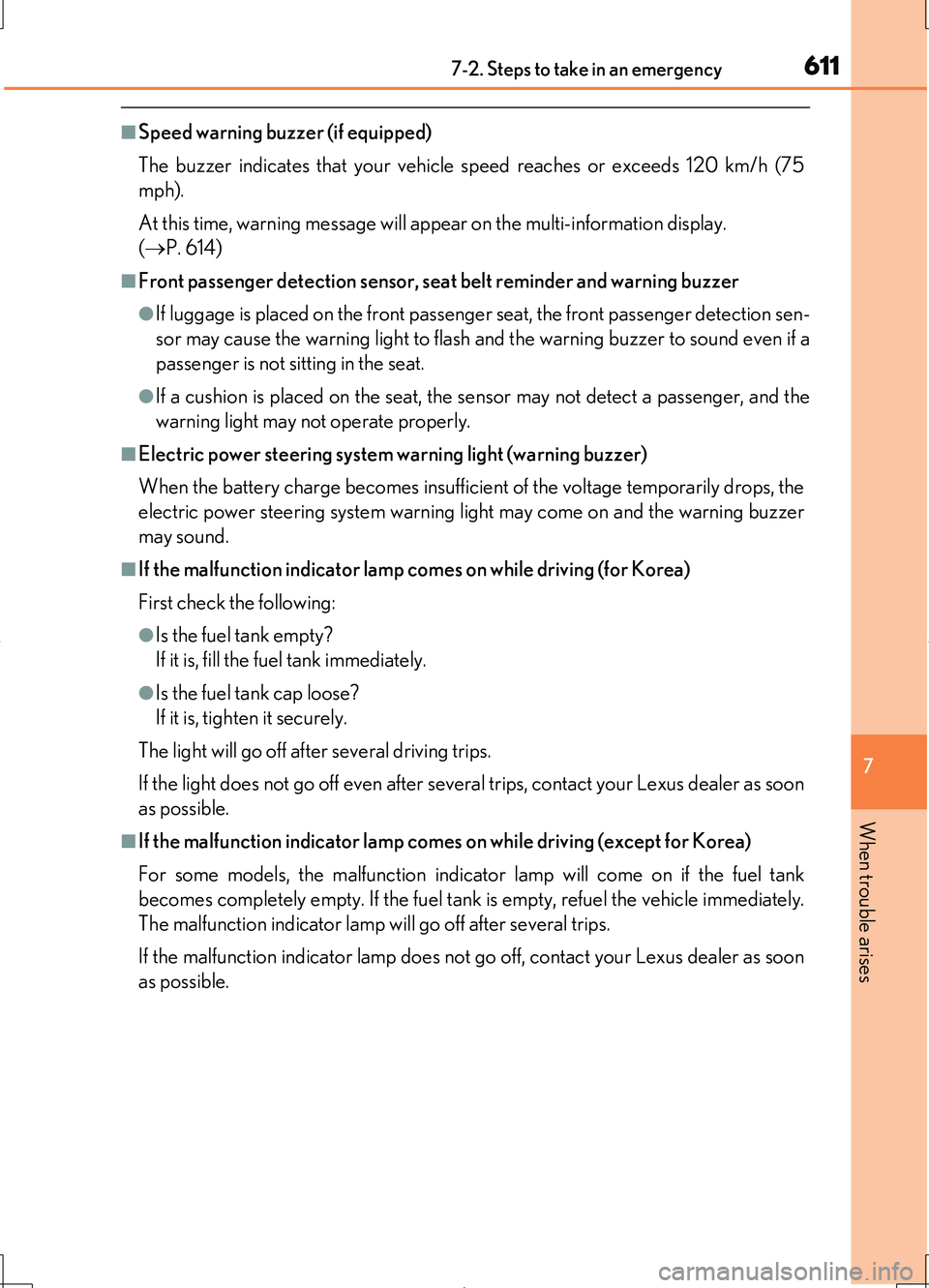

6117-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
■Speed warning buzzer (if equipped)
The buzzer indicates that your vehicle speed reaches or exceeds 120 km/h (75
mph).
At this time, warning message will appear on the multi-information display.
( P. 614)
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger detection sen-
sor may cause the warning light to flash and the warning buzzer to sound even if a
passenger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
■Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient of the voltage temporarily drops, the
electric power steering system warning light may come on and the warning buzzer
may sound.
■If the malfunction indicator lamp comes on while driving (for Korea)
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.
■If the malfunction indicator lamp come s on while driving (except for Korea)
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle immediately.
The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact your Lexus dealer as soon
as possible.

6127-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
■When the tire pressure warning light comes on (vehicles with the tire pressure
warning system)
Carry out the following procedure after the tire temperature has lowered sufficiently.
●Check the tire inflation pressure and adjust it to the appropriate level.
●If the warning light does not go out after several minutes, check that the tire infla-
tion pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted without
first allowing the tire temperature to lower sufficiently.
■The tire pressure warning light may come on due to natural causes (vehicles with
the tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as natural
air leaks and tire inflation pressure changes caused by temperature. In this case,
adjusting the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire (vehicles with the tire pressure warning
system)
The spare tire is also equipped with a tire pressure warning valve and transmitter. The
tire pressure warning light will turn on if the tire inflation pressure of the spare tire is
low. If a tire goes flat, the tire pressure warning light will not turn off even though the
flat tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly (vehi-
cles with the tire pressure warning system)
 P. 561
■If the tire pressure warning light frequently comes on after blinking for 1 minute
(vehicles with the tire pressure warning system)
If the tire pressure warning light frequently comes on after blinking for 1 minute when
the engine switch is turned to IGNITION ON mode, have it checked by your Lexus
dealer.
■Warning buzzer
In some cases, the buzzer may not be heard due to ambient noise or sounds from the
audio system.
■Customization (for GCC countries* and Yemen)
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features P. 678)
*: Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar, Kuwait

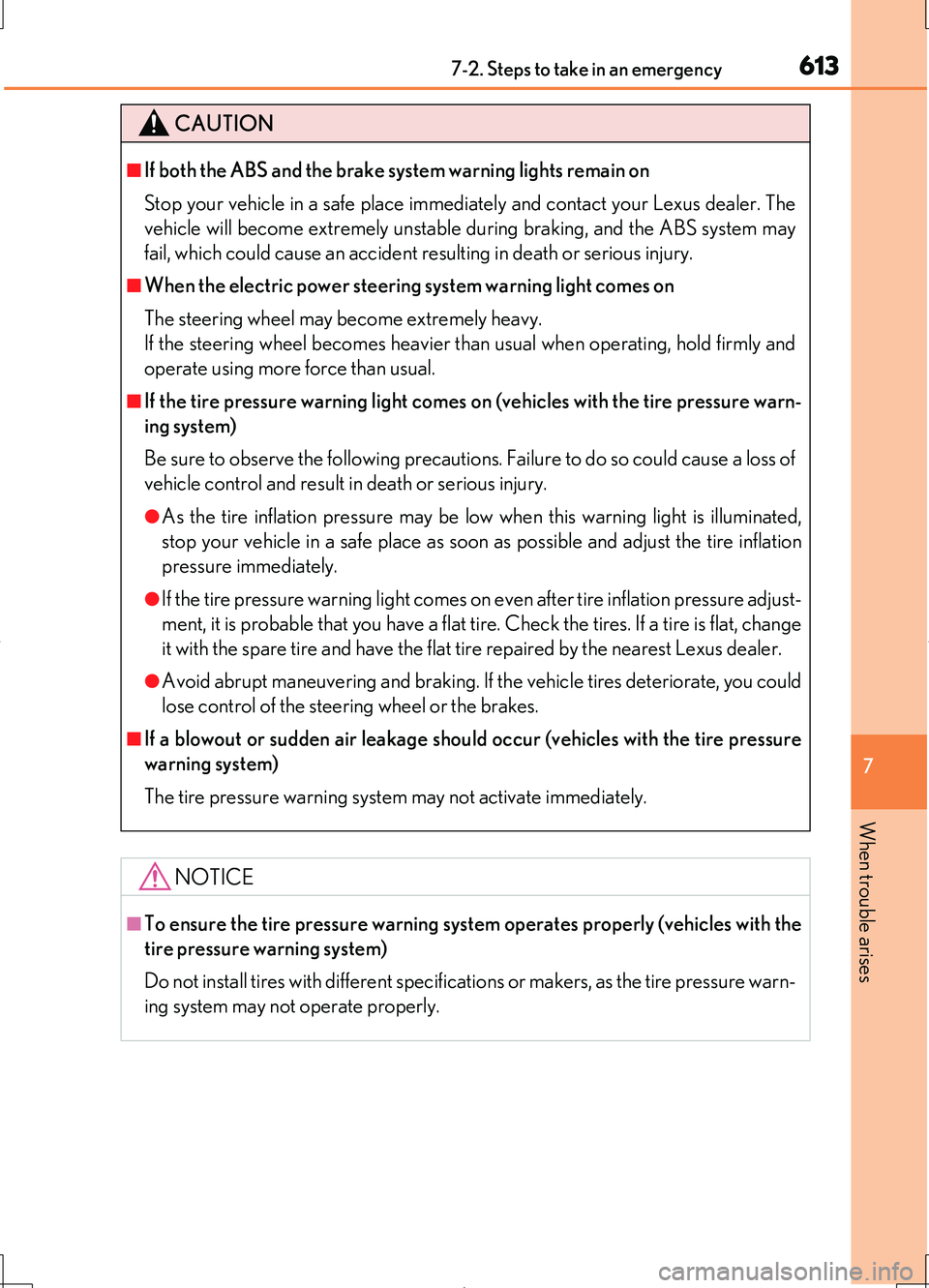

6137-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
CAUTION
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact your Lexus dealer. The
vehicle will become extremely unstable during braking, and the ABS system may
fail, which could cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold firmly and
operate using more force than usual.
■If the tire pressure warning light comes on (vehicles with the tire pressure warn-
ing system)
Be sure to observe the following precautions. Failure to do so could cause a loss of
vehicle control and result in death or serious injury.
●As the tire inflation pressure may be low when this warning light is illuminated,
stop your vehicle in a safe place as soon as possible and adjust the tire inflation
pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change
it with the spare tire and have the flat tire repaired by the nearest Lexus dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur (vehicles with the tire pressure
warning system)
The tire pressure warning system may not activate immediately.
NOTICE
■To ensure the tire pressure warning system operates properly (vehicles with the
tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pressure warn-
ing system may not operate properly.

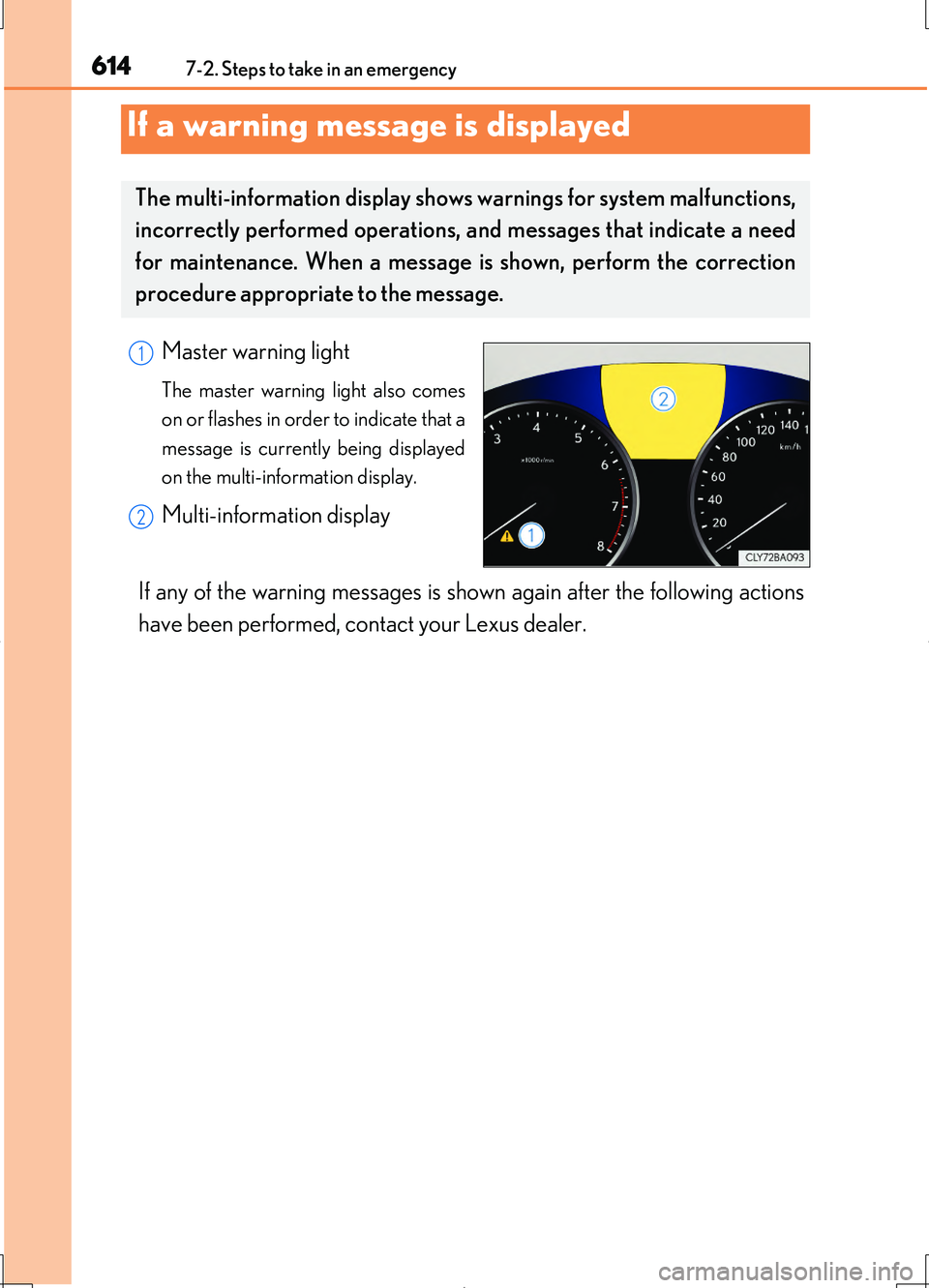

6147-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
Master warning light
The master warning light also comes
on or flashes in order to indicate that a
message is currently being displayed
on the multi-information display.
Multi-information display
If any of the warning messages is shown again after the following actions
have been performed, co ntact your Lexus dealer.
If a warning message is displayed
The multi-information display shows warnings for system malfunctions,
incorrectly performed operations, and messages that indicate a need
for maintenance. When a message is shown, perform the correction
procedure appropriate to the message.
1
2

6157-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
The warning lights and warning buzzers operate as follows depending on
the content of the message. If a message indicates the need for inspection
by a dealer, have the vehicle inspecte d by your Lexus dealer immediately.
*: A buzzer sounds the first time a message is shown on the multi-information
display.
Messages and warnings
System warn-
ing light
Warning
buzzer*Warning
Remains onSounds
Indicates an important situation
such as the malfunction of the
system related to driving that
may result in danger
Remains on or
flashesSounds
Indicates an important situation
such as the malfunction of the
system shown on the multi-infor-
mation display
FlashesSounds
Indicates a situation such as
damage to the vehicle that may
result in danger
Remains onDoes not
sound
Indicates a condition such as a
malfunction of electrical compo-
nents and the need for mainte-
nance
FlashesDoes not
sound
Indicates a situation such as the
incorrect performance of an
operation and how to perform
the operation correctly

6167-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
■Warning message in radar cruise mode (if equipped)
In the following cases, the warning message may not be displayed even if vehicle-to-
vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■The LKA (Lane-Keeping Assist) lane de parture warning function (if equipped)
In the following cases, the warning message will not be displayed even if a lane line is
crossed.
●When the vehicle speed deviates from the operating range of the LKA system
functions
●When the lane lines cannot be recognized
●When the steering wheel is turned as far as necessary to cause the vehicle to
change lanes
■System warning lights
The master warning light does not come on or flash in the following cases. Instead, a
separate system warning light will come on or flash along with the message shown
on the multi-information display.
●Malfunction of the brake system
The brake system warning light (red indicator) comes on. ( P. 605)
●Malfunction of the electronically controlled brake system or electric parking brake
The brake system warning light (yellow indicator) comes on. ( P. 607)
●Malfunction of the ABS
The ABS warning light comes on. ( P. 606)
●Malfunction of the charging system
The charging system warning light comes on. ( P. 606)
●Indicates that a door or the trunk is not fully closed
The open door warning light comes on. ( P. 608)
●High engine coolant temperature
The needle of the engine coolant temperature gauge enters the red zone.
( P. 641)

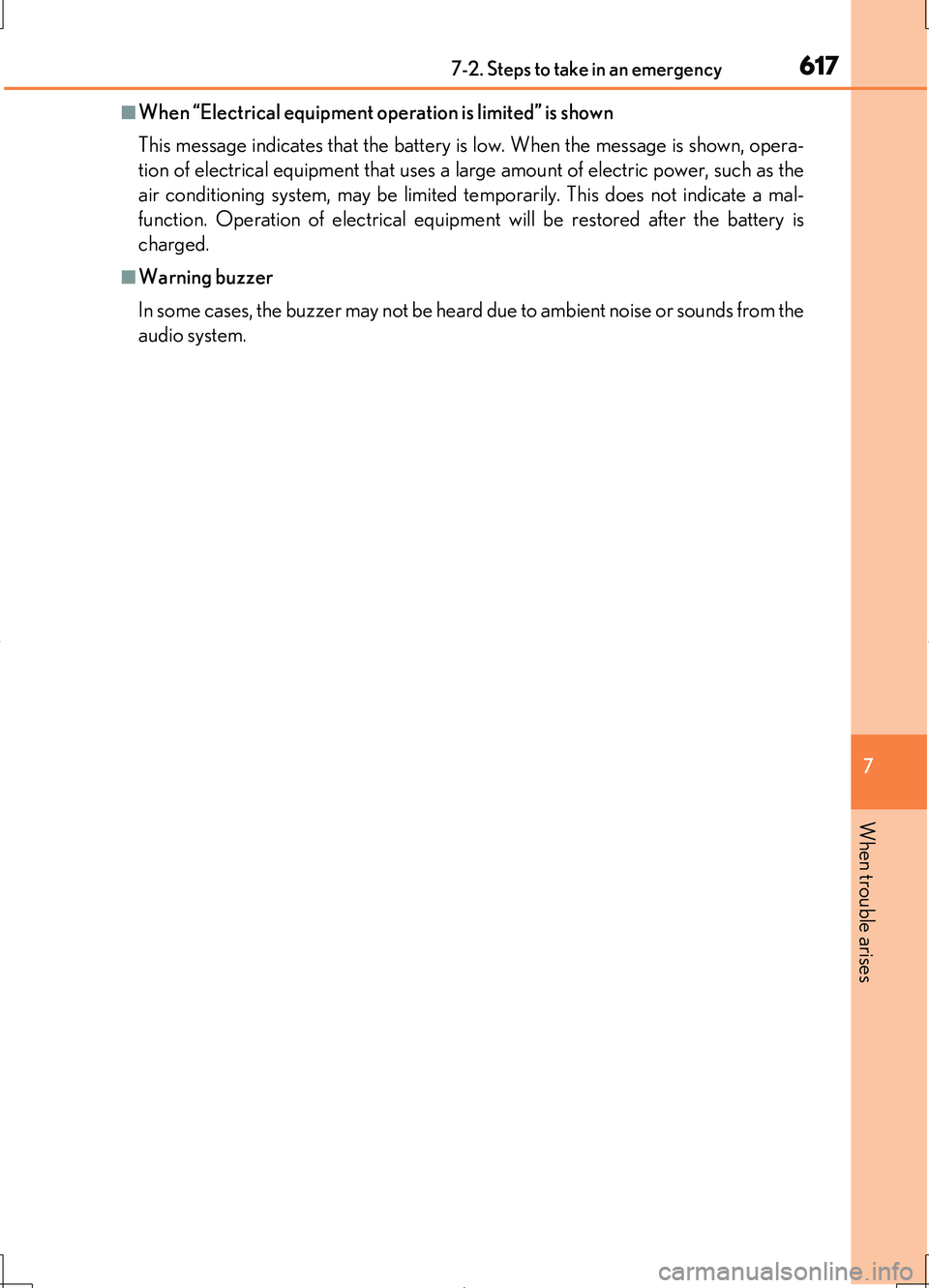

6177-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)
■When “Electrical equipment operation is limited” is shown
This message indicates that the battery is low. When the message is shown, opera-
tion of electrical equipment that uses a large amount of electric power, such as the
air conditioning system, may be limited temporarily. This does not indicate a mal-
function. Operation of electrical equipment will be restored after the battery is
charged.
■Warning buzzer
In some cases, the buzzer may not be heard due to ambient noise or sounds from the
audio system.

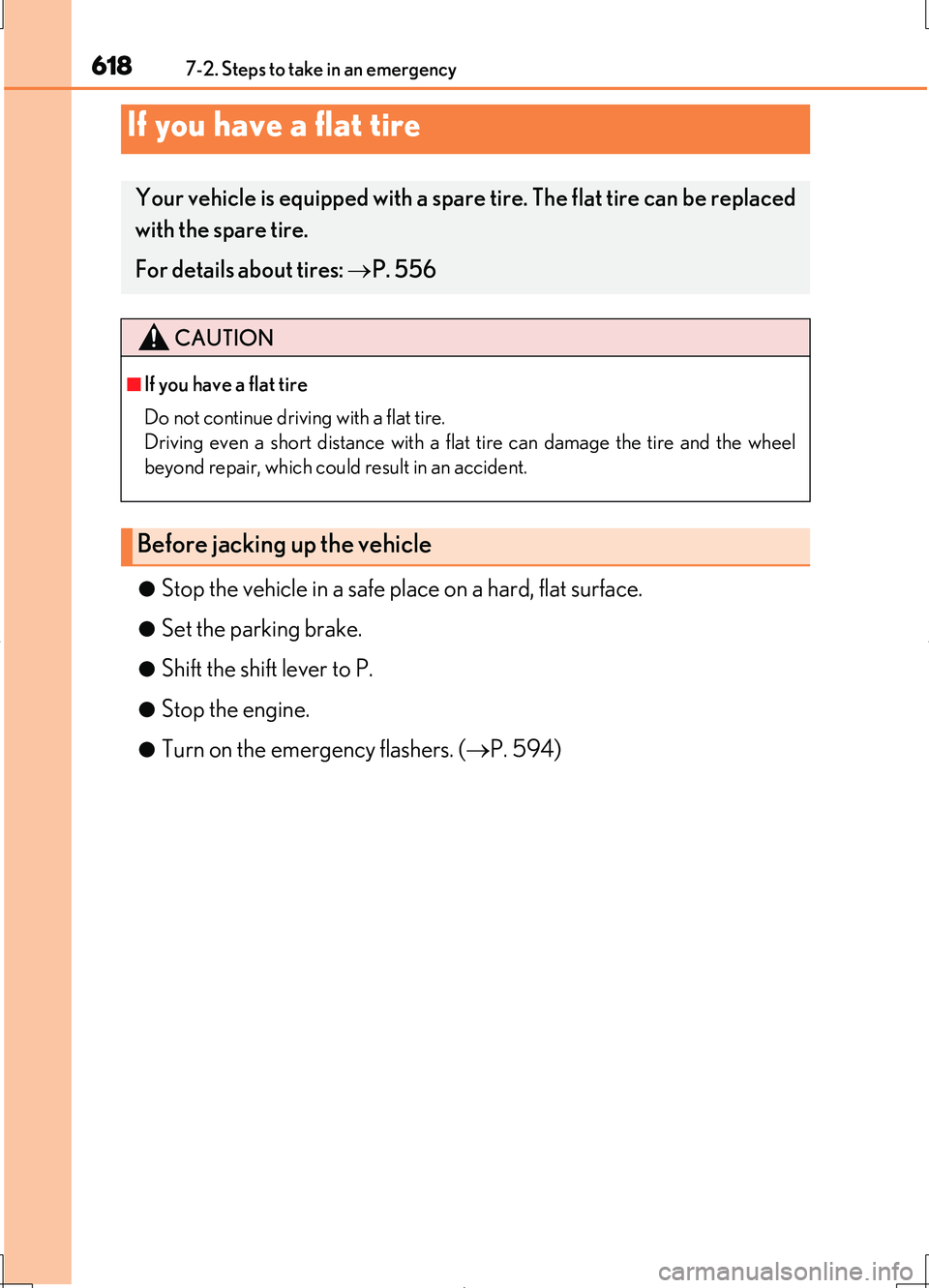

6187-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
●Stop the vehicle in a safe place on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the engine.
●Turn on the emergency flashers. ( P. 594)
If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be replaced
with the spare tire.
For details about tires: P. 556
CAUTION
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair, which could result in an accident.
Before jacking up the vehicle

6197-2. Steps to take in an emergency
7
When trouble arises
LS460/LS460L_GE (OM50G06E)

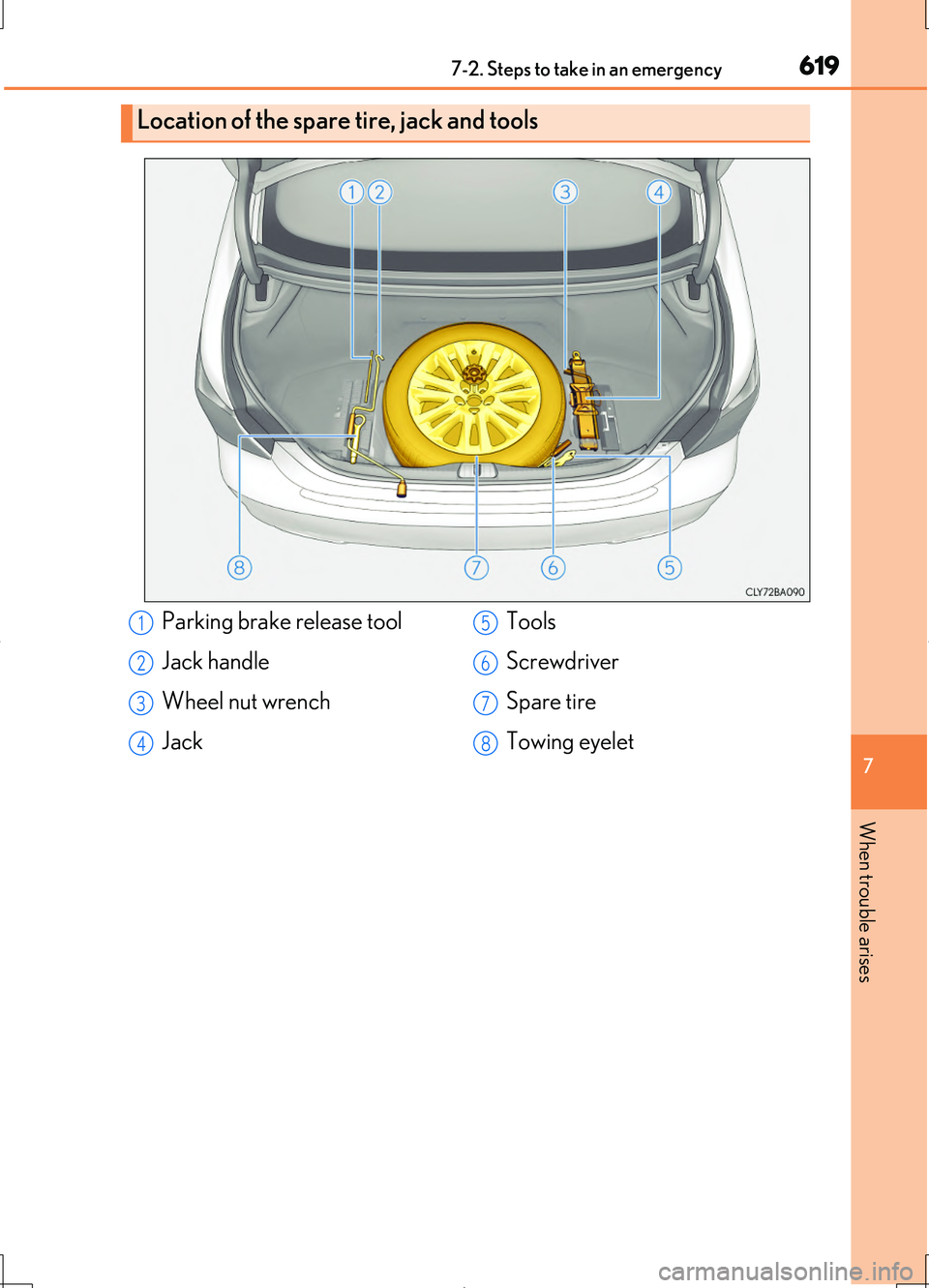

Location of the spare tire, jack and tools
Parking brake release tool
Jack handle
Wheel nut wrench
Jack
Tools
Screwdriver
Spare tire
Towing eyelet
1
2
3
4
5
6
7
8

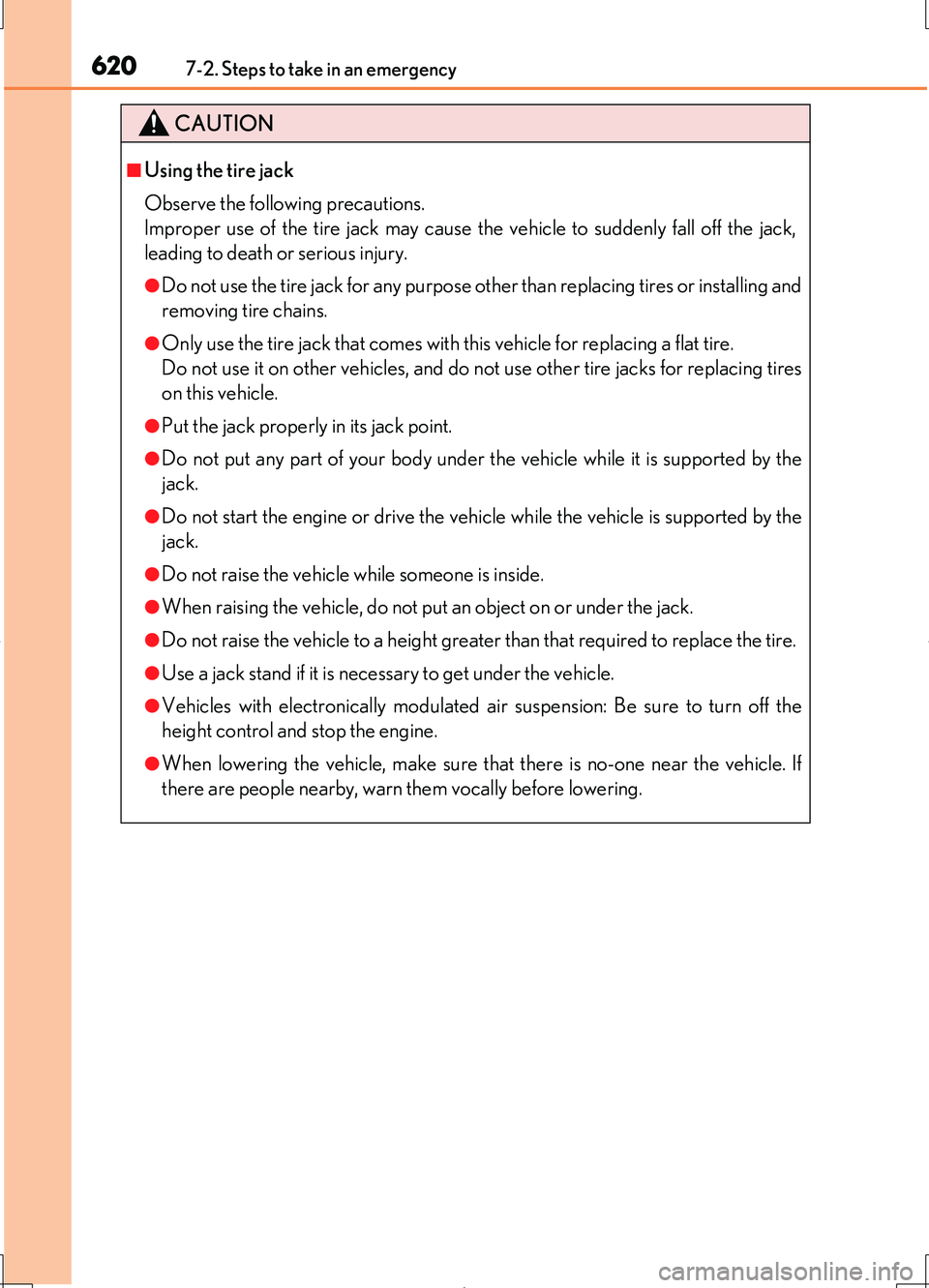

6207-2. Steps to take in an emergency
LS460/LS460L_GE (OM50G06E)
CAUTION
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack,
leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires
on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by the
jack.
●Do not start the engine or drive the vehicle while the vehicle is supported by the
jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●Vehicles with electronically modulated air suspension: Be sure to turn off the
height control and stop the engine.
●When lowering the vehicle, make sure that there is no-one near the vehicle. If
there are people nearby, warn them vocally before lowering.
