LS460/LS460L_GE (OM50G06E)
6-1. Maintenance and care
Cleaning and protecting
the vehicle exterior.................. 510
Cleaning and protecting
the vehicle interior ................... 514
6-2. Maintenance
Maintenance
requirements.............................. 517
Scheduled maintenance ........ 520
6-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ................................533
Hood ...............................................536
Positioning a floor jack............. 537
Engine compartment................539
Tires .................................................556
Tire inflation pressure.............. 568
Wheels............................................570
Air conditioning filter................ 572
Electronic key battery ..............575
Checking and
replacing fuses ......................... 579
Light bulbs .................................... 584
7-1. Essential information
Emergency flashers ..................594
If your vehicle has to be
stopped in an
emergency.................................595
7-2. Steps to take in an
emergency
If your vehicle needs to
be towed .....................................596
If you think something is
wrong .......................................... 603
Fuel pump shut off system ......604
If a warning light turns on
or a warning
buzzer sounds ......................... 605
If a warning message is
displayed...................................... 614
If you have a flat tire.................... 618
If the engine will not start ........ 627
If the parking brake
cannot be released................. 629
If the electronic key does
not operate properly .............. 631
If the vehicle battery is
discharged .................................636
If your vehicle overheats .......... 641
If the vehicle becomes
stuck..............................................645
6Maintenance and care7When trouble arises

8
LS460/LS460L_GE (OM50G06E)
Please note that this manual applies to all models and explains all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not installed
on your vehicle.
All specifications provided in this manual are current at the time of printing. How-
ever, because of the Lexus policy of continual product improvement, we reserve the
right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ from
your vehicle in terms of color and equipment.
Approximately five hours after the engine is turned off, you may hear sound coming
from under the vehicle for several minutes. This is the sound of a fuel evaporation
leakage check and, it does not indicate a malfunction.
A wide variety of non-genuine spare parts and accessories for Lexus vehicles are
currently available in the market. Using these spare parts and accessories which are
not genuine Lexus products may adversely affect the safety of your vehicle, even
though these parts may be approved by ce rtain authorities in your country. Toyota
Motor Corporation therefore cannot accept any liability or guarantee spare parts
and accessories which are not genuine Lexus products, nor for replacement or
installation involving such parts.
This vehicle should not be modified with non-genuine Lexus products. Modification
with non-genuine Lexus products could affect its performance, safety or durability,
and may even violate governmental regulations. In addition, damage or perfor-
mance problems resulting from the modification may not be covered under war-
ranty.
For your information
Main Owner’s Manual
Noise from under vehicle after turning off the engine (for Korea)
Accessories, spare parts and modification of your Lexus

17Pictorial index
LS460/LS460L_GE (OM50G06E)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 300
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 399
To prevent freezing (windshield wiper de-icer)*. . . . . . . . . . . . . . . . . . . .P. 446
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 512
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P . 305
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 305
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 652
Tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 556
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 660, 662
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 399
Checking/rotation/tire pressure warning system* . . . . . . . . . . . . . . . . P. 556
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 618
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 536
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 536
Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 541
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 653
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 641
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 614
Headlights/front position lights/daytime running lights . . . . . . . . . . .P. 285
Front fog lights/rear fog lights*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 298
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2 78
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 285
Stop lights
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 360
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 285
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 264, 269
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 584, Watts: P. 664)
*: If equipped
8
9
10
11
12
13
14

431-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the
pedals while driving. An unexpectedly high speed may result or it may become diffi-
cult to stop the vehicle. This could lead to an accident, resulting in death or serious
injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips) provided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
●Check that the floor mat is securely fixed in
the correct place with all the provided
retaining hooks (clips). Be especially care-
ful to perform this check after cleaning the
floor.
●With the engine stopped and the shift lever
in P, fully depress each pedal to the floor to
make sure it does not interfere with the
floor mat.

1031-1. For safe use
1
For safety and security
LS460/LS460L_GE (OM50G06E)

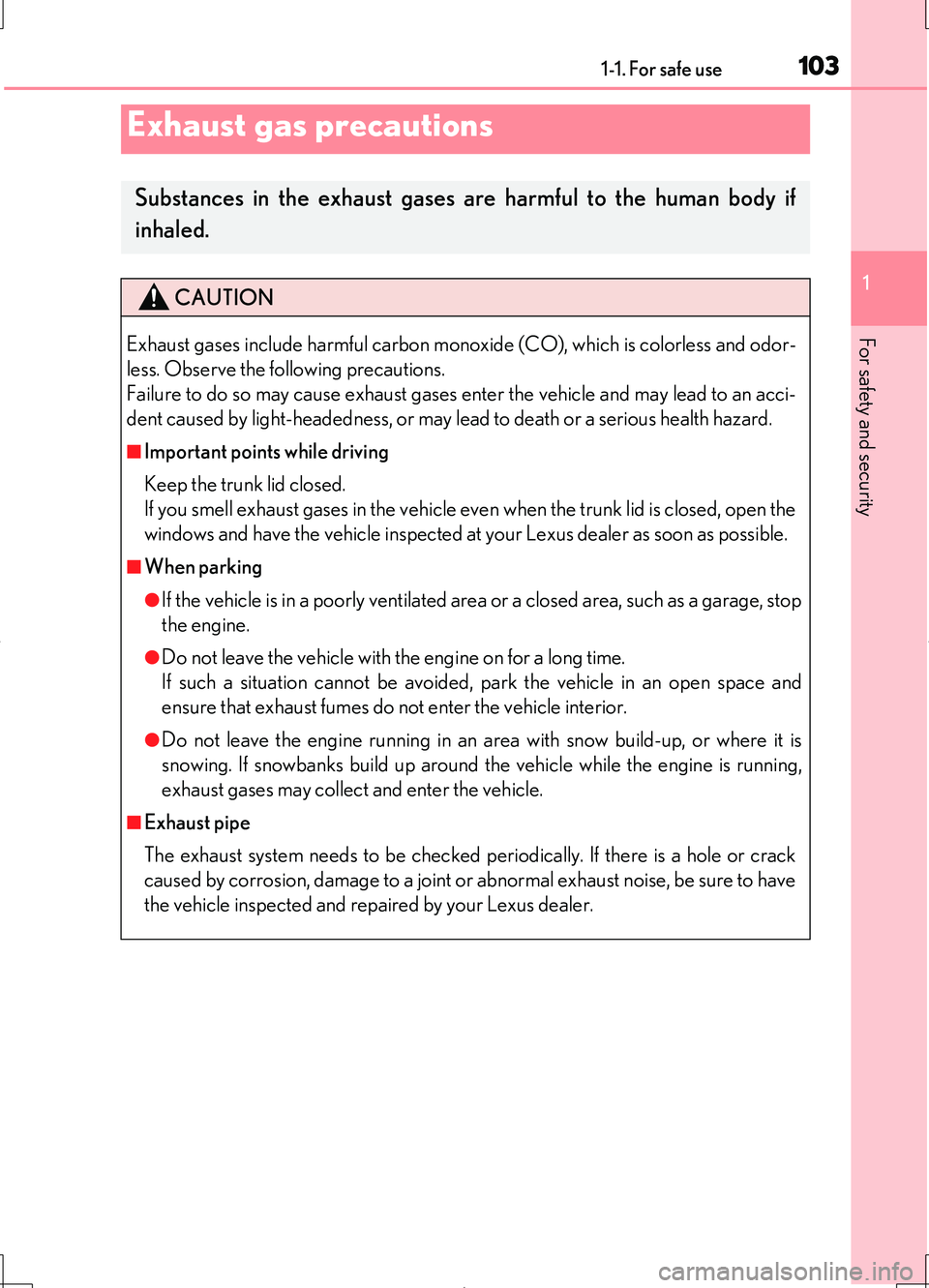

Exhaust gas precautions
Substances in the exhaust gases are harmful to the human body if
inhaled.
CAUTION
Exhaust gases include harmful carbon monoxide (CO), which is colorless and odor-
less. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an acci-
dent caused by light-headedness, or may lead to death or a serious health hazard.
■Important points while driving
Keep the trunk lid closed.
If you smell exhaust gases in the vehicle even when the trunk lid is closed, open the
windows and have the vehicle inspected at your Lexus dealer as soon as possible.
■When parking
●If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop
the engine.
●Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and
ensure that exhaust fumes do not enter the vehicle interior.
●Do not leave the engine running in an area with snow build-up, or where it is
snowing. If snowbanks build up around the vehicle while the engine is running,
exhaust gases may collect and enter the vehicle.
■Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack
caused by corrosion, damage to a joint or abnormal exhaust noise, be sure to have
the vehicle inspected and repaired by your Lexus dealer.

1131-2. Theft deterrent system
1
For safety and security
LS460/LS460L_GE (OM50G06E)

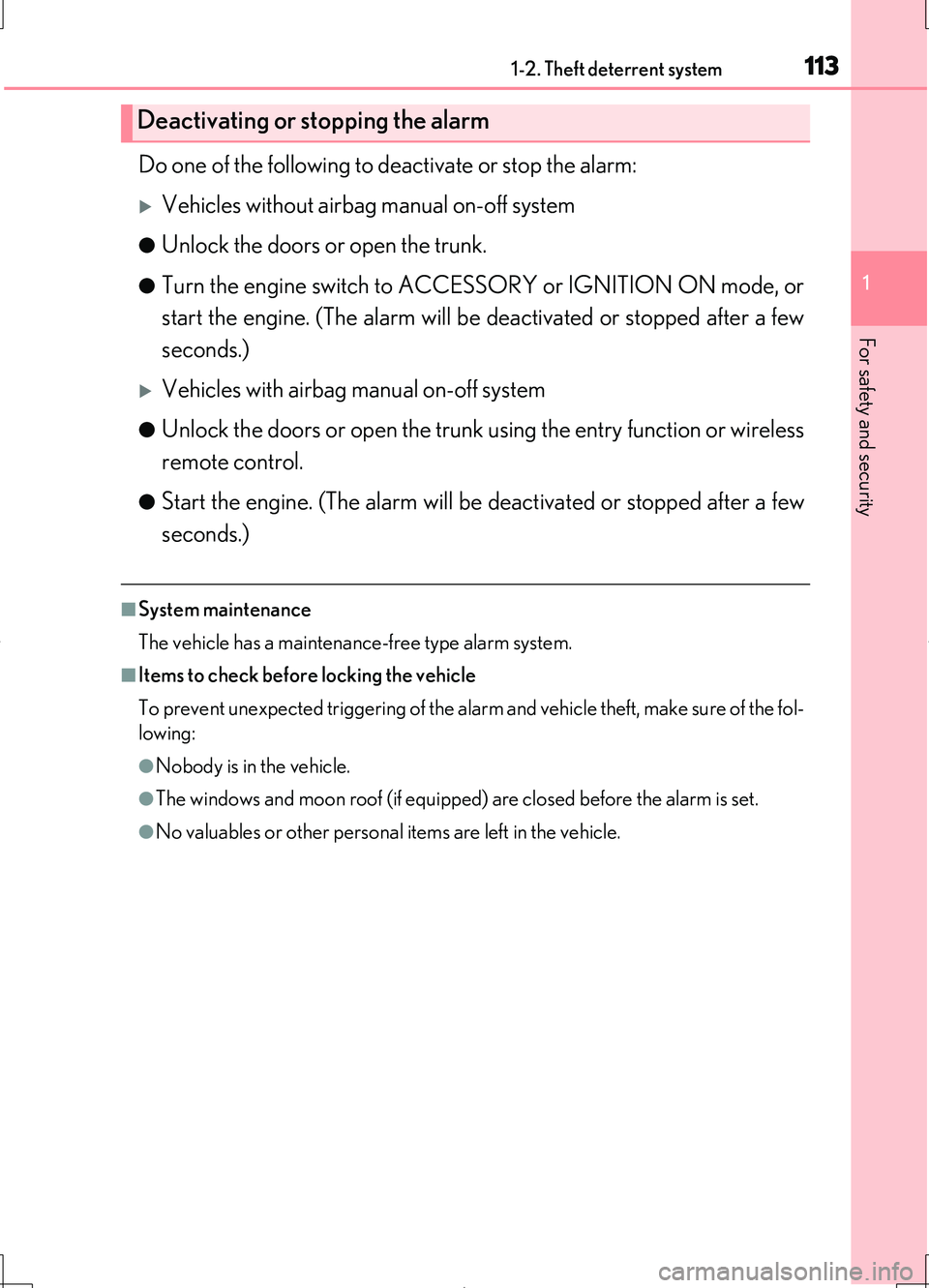

Do one of the following to deactivate or stop the alarm:
Vehicles without airbag manual on-off system
●Unlock the doors or open the trunk.
●Turn the engine switch to ACCESSORY or IGNITION ON mode, or
start the engine. (The alarm will be deactivated or stopped after a few
seconds.)
Vehicles with airbag manual on-off system
●Unlock the doors or open the trunk using the entry function or wireless
remote control.
●Start the engine. (The alarm will be deactivated or stopped after a few
seconds.)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the fol-
lowing:
●Nobody is in the vehicle.
●The windows and moon roof (if equipped) are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
Deactivating or stopping the alarm

1222. Instrument cluster
LS460/LS460L_GE (OM50G06E)

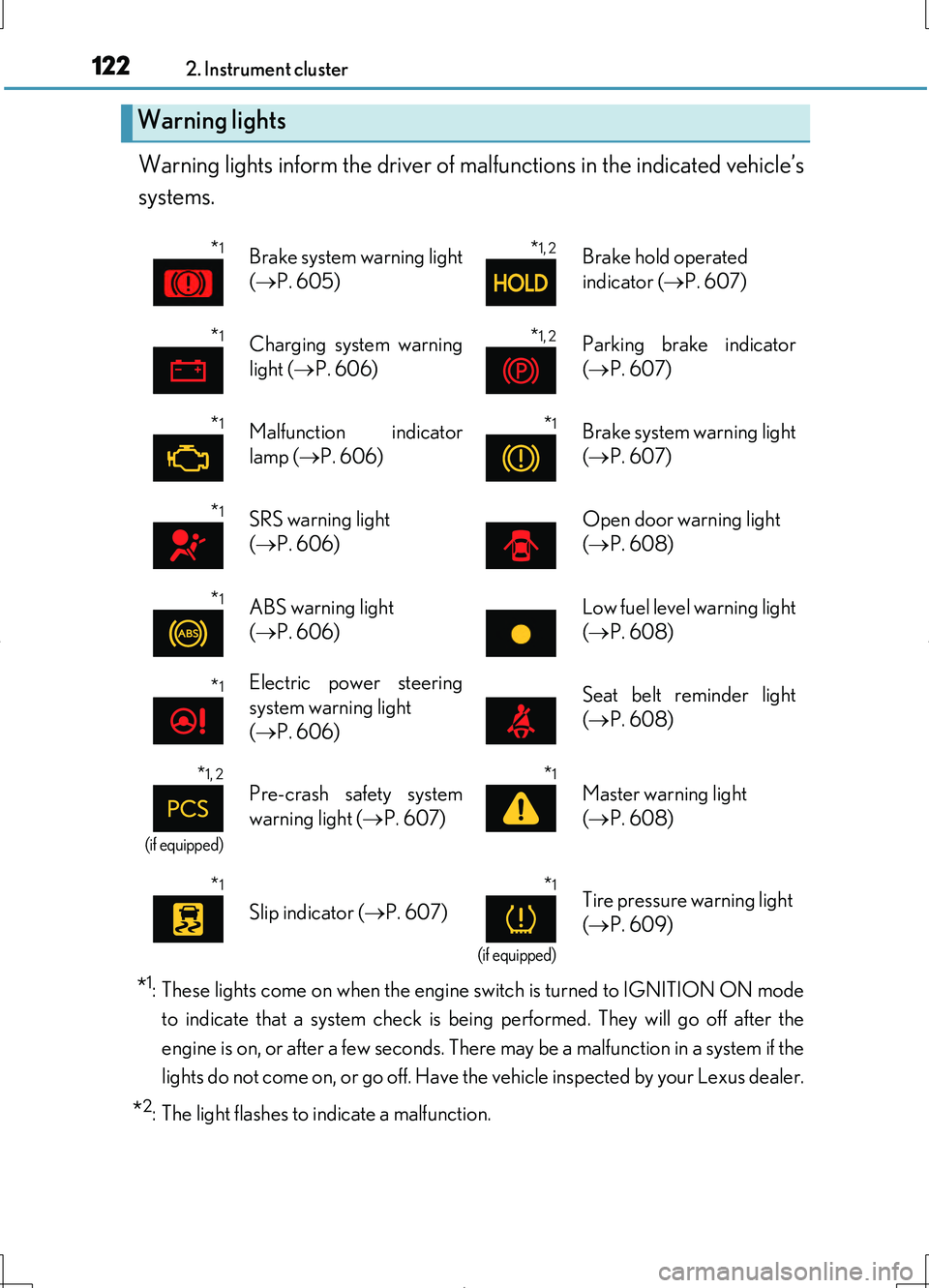

Warning lights inform the driver of malfunctions in the indicated vehicle’s
systems.
*1: These lights come on when the engine switch is turned to IGNITION ON mode
to indicate that a system check is being performed. They will go off after the
engine is on, or after a few seconds. There may be a malfunction in a system if the
lights do not come on, or go off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
Warning lights
*1Brake system warning light
( P. 605)
*1, 2Brake hold operated
indicator ( P. 607)
*1Charging system warning
light ( P. 606)
*1, 2Parking brake indicator
( P. 607)
*1Malfunction indicator
lamp ( P. 606)
*1Brake system warning light
( P. 607)
*1SRS warning light
( P. 606)
Open door warning light
( P. 608)
*1ABS warning light
( P. 606)
Low fuel level warning light
( P. 608)
*1Electric power steering
system warning light
( P. 606)
Seat belt reminder light
( P. 608)
*1, 2
(if equipped)
Pre-crash safety system
warning light ( P. 607)
*1
Master warning light
( P. 608)
*1
Slip indicator (P. 607)
*1
(if equipped)
Tire pressure warning light
( P. 609)

1242. Instrument cluster
LS460/LS460L_GE (OM50G06E)

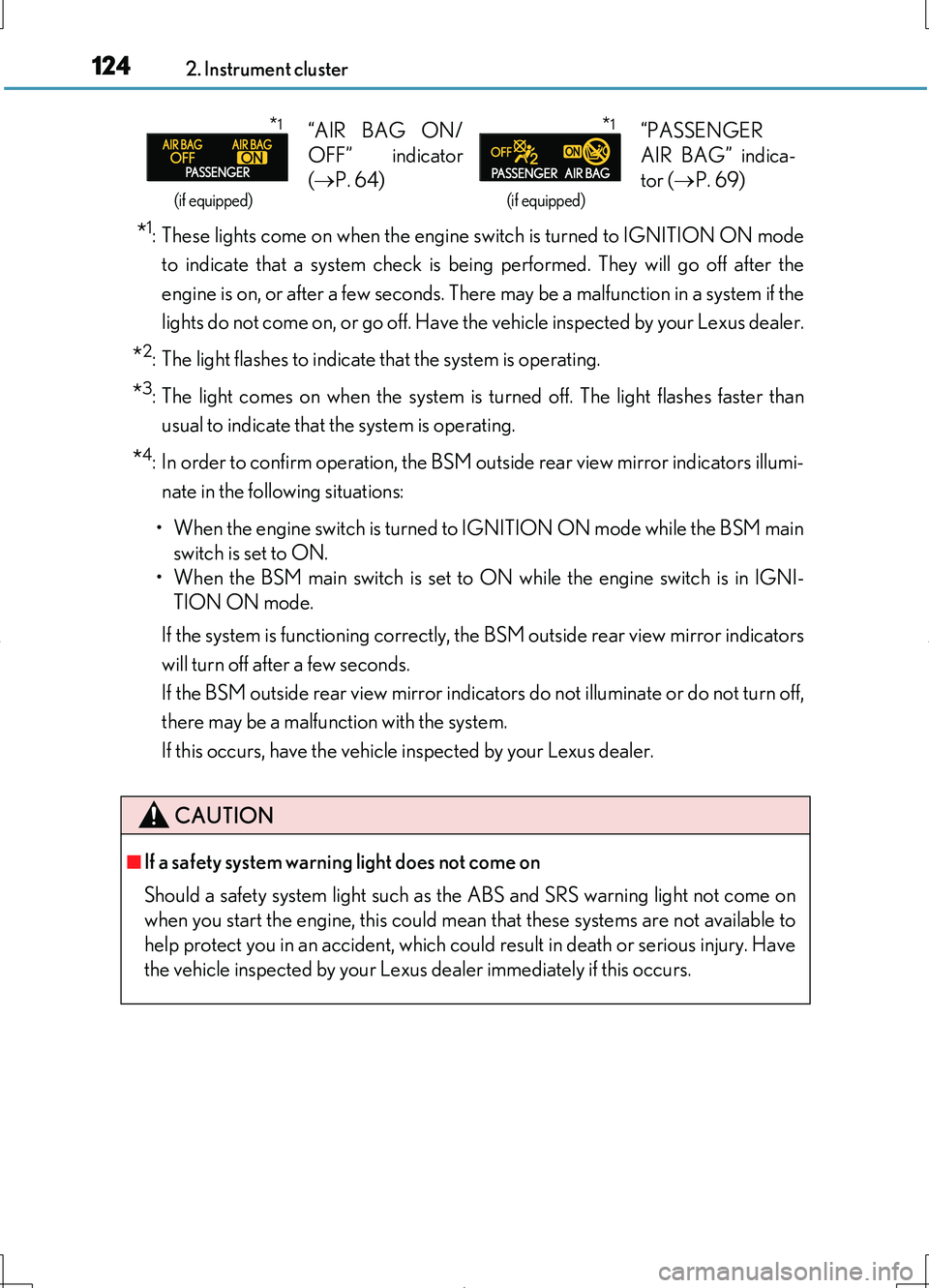

*1: These lights come on when the engine switch is turned to IGNITION ON mode
to indicate that a system check is being performed. They will go off after the
engine is on, or after a few seconds. There may be a malfunction in a system if the
lights do not come on, or go off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off. The light flashes faster than
usual to indicate that the system is operating.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illumi-
nate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the BSM main
switch is set to ON.
• When the BSM main switch is set to ON while the engine switch is in IGNI-
TION ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*1
(if equipped)
“AIR BAG ON/
OFF” indicator
( P. 64)
*1
(if equipped)
“PASSENGER
AIR BAG” indica-
tor ( P. 69)
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine, this could mean that these systems are not available to
help protect you in an accident, which could result in death or serious injury. Have
the vehicle inspected by your Lexus dealer immediately if this occurs.

1282. Instrument cluster
LS460/LS460L_GE (OM50G06E)

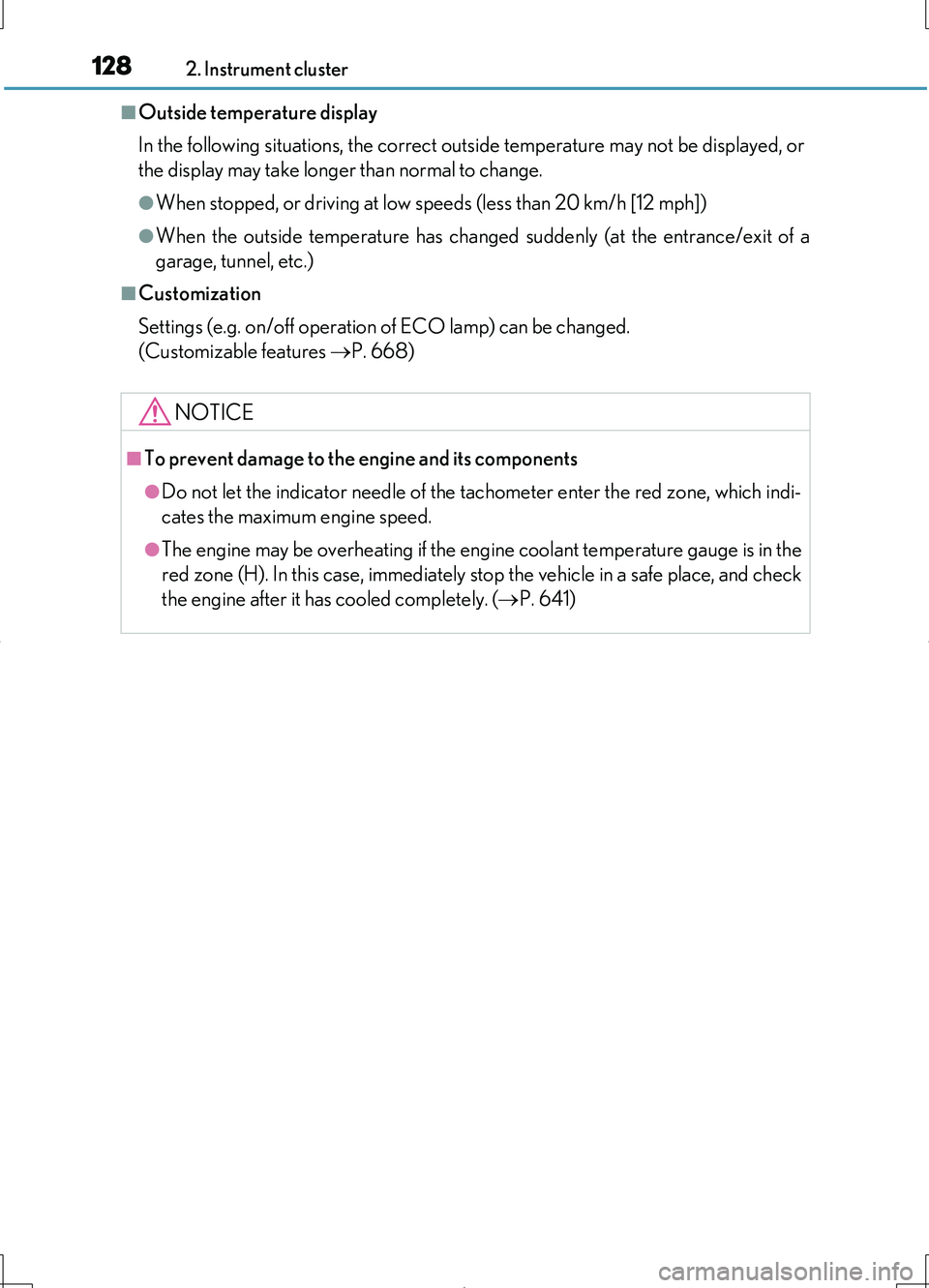

■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 20 km/h [12 mph])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■Customization
Settings (e.g. on/off operation of ECO lamp) can be changed.
(Customizable features P. 668)
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( P. 641)

1362. Instrument cluster
LS460/LS460L_GE (OM50G06E)

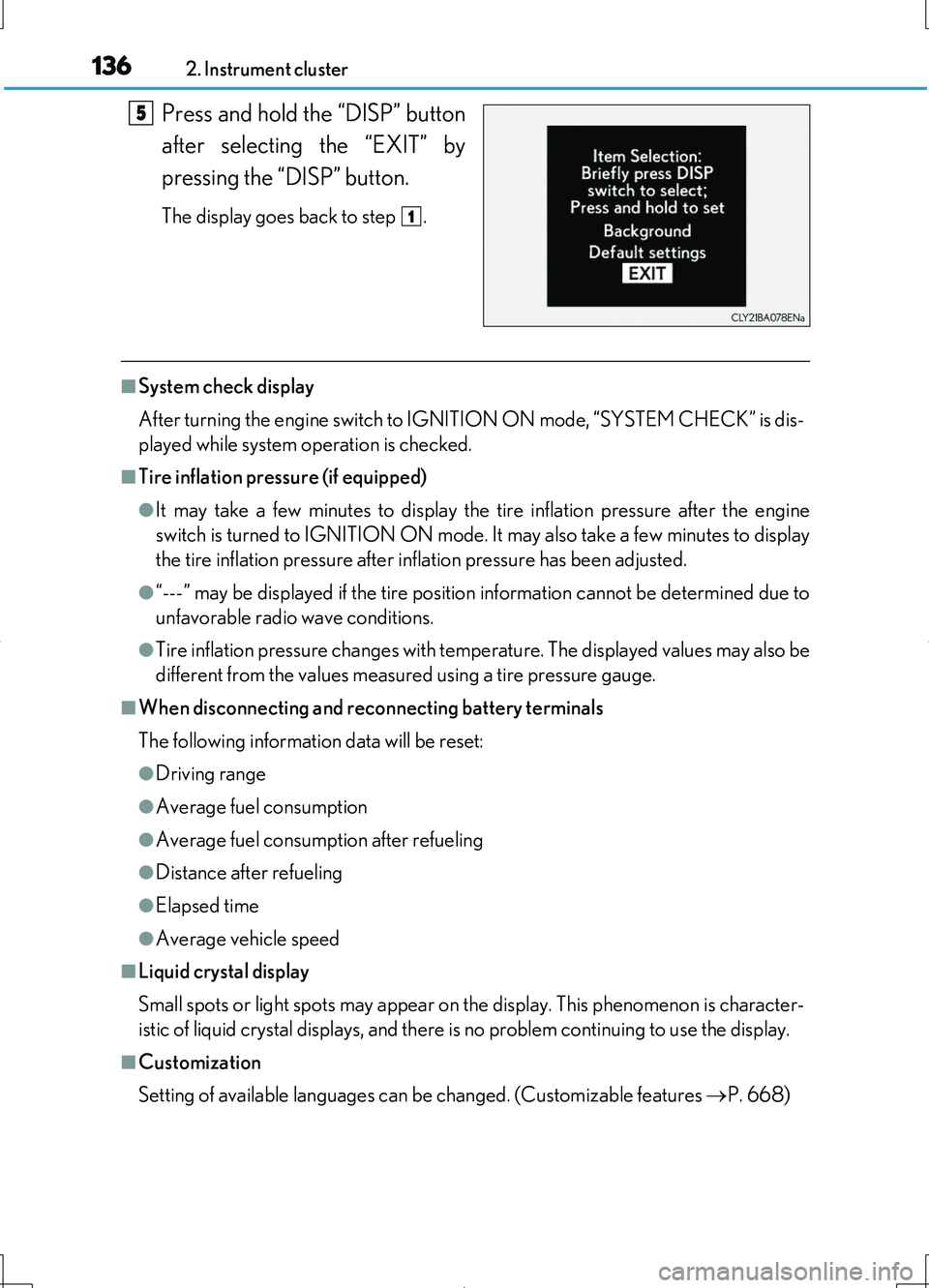

Press and hold the “DISP” button
after selecting the “EXIT” by
pressing the “DISP” button.
The display goes back to step .
■System check display
After turning the engine switch to IGNITION ON mode, “SYSTEM CHECK” is dis-
played while system operation is checked.
■Tire inflation pressure (if equipped)
●It may take a few minutes to display the tire inflation pressure after the engine
switch is turned to IGNITION ON mode. It may also take a few minutes to display
the tire inflation pressure after inflation pressure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■When disconnecting and reconnecting battery terminals
The following information data will be reset:
●Driving range
●Average fuel consumption
●Average fuel consumption after refueling
●Distance after refueling
●Elapsed time
●Average vehicle speed
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Customizable features P. 668)
5
1
