LEXUS LS500 2020 Owners Manual

4798-2. Customization
8
Vehicle specifications
■RSA (Road Sign Assist)* ( P.238)
*:If equipped
■Dynamic radar cruise contro l with full-speed range (P.241)
*: Vehicles with Lexus Safety System + A
■BSM (Blind Spot Monitor)* ( P.251)
*:If equipped
FunctionDefault settingCustomized set-
ting
RSA (Road Sign Assist)OnOff—O——
Excess speed notification
methodDisplay only
No notification
—O——Display and buzzer
Excess speed notification
level1 mph (2 km/h)3 mph (5 km/h)—O——5 mph (10 km/h)
Other notifications method
(Do Not Enter notification)Display only
No notification
—O——Display and buzzer
FunctionDefault settingCustomized set- ting
Curve speed reduction func-
tion strength
*HighLow—O——Off
FunctionDefault settingCustomized set- ting
BSM (Blind Spot Monitor)OnOff—O——
Outside rear view mirror indi-
cator brightnessBrightDim—O——
Alert timing for presence of
approaching vehicle (sensitiv-
ity)
Intermediate
Early
—O——
Late
Only when vehi-cle detected in blind spot
ABCD
ABCD
ABCD

4808-2. Customization
■PKSA (Parking Support Alert)* ( P.257)
*:If equipped
■Intuitive parking assist* ( P.259)
*:If equipped
■RCTA (Rear cross traffic alert) function* ( P.266)
*:If equipped
■RCD (Rear camera detection) function* ( P.270)
*:If equipped
■PKSB (Parking Support Brake)* ( P.273)
*:If equipped
FunctionDefault settingCustomized set-
ting
Buzzer volumeLevel2Level1—O——Level3
FunctionDefault settingCustomized set-ting
Intuitive parking assistOnOff—O——
FunctionDefault settingCustomized set-ting
RCTA (Rear cross traffic
alert) functionOnOff—O——
FunctionDefault settingCustomized set-ting
RCD (Rear camera detec-
tion) functionOnOff—O——
FunctionDefault settingCustomized set-ting
PKSB (Parking Support
Brake) functionOnOff—O——
ABCD
ABCD
ABCD
ABCD
ABCD

4818-2. Customization
8
Vehicle specifications
■Driving mode select switch (P.292)
*:If equipped
■Electronically modulated air suspension* ( P.294)
*:If equipped
■Automatic air conditioning system ( P.317)
■Seat heater/seat ventilators*1 ( P.330)
FunctionDefault settingCustomized set-
ting
Powertrain control in custom
mode
*NormalPowerO———Eco
Chassis control in custom
mode
*NormalSportO———Comfort
Air conditioning operation in
custom mode
*NormalEcoO———
FunctionDefault settingCustomized set-ting
Vehicle height controlOnOff—O——
Ingress/egress height control
functionOnOff—O——
Vehicle height when parkedNormalHigh—O——
FunctionDefault settingCustomized set-ting
A/C auto switch operationOnOffO——O
Exhaust gas sensor sensitivityStandard-3 to 3O——O
FunctionDefault settingCustomized set-ting
Driver’s seat temperature
preference in automatic
mode
Standard-2 (cooler) to 2 (warmer)O——O
Passenger’s seat tempera-
ture preference in automatic
mode
Standard-2 (cooler) to 2 (warmer)O——O
ABCD
ABCD
ABCD
ABCD

4828-2. Customization
*1: If equipped
*2: Vehicles without power rear seat
■Heated steering wheel* ( P.330)
*:If equipped
■Illumination ( P.334)
Left-hand rear seat tempera-
ture preference in automatic
mode
*1Standard-2 (cooler) to 2
(warmer)O——O
Right-hand rear seat tem-
perature preference in auto-
matic mode
*1Standard-2 (cooler) to 2 (warmer)O——O
Engine switch linked auto-
matic activation of the
left-hand rear seat
heater/ventilator
*2
OffOnO——O
Engine switch linked auto-
matic activation of the
right-hand rear seat
heater/ventilator
*2
OffOnO——O
FunctionDefault settingCustomized set- ting
Steering wheel heating pref-
erence in automatic modeStandard-2 (low) to 2 (high)O——O
FunctionDefault settingCustomized set- ting
Time elapsed before the inte-
rior lights turn off15 seconds
Off
O——O7.5 seconds
30 seconds
Operation after the engine
switch is turned offOnOff———O
Operation when the doors
are unlockedOnOff———O
FunctionDefault settingCustomized set-tingABCD
ABCD
ABCD

4838-2. Customization
8
Vehicle specifications
■Vehicle customization
●When the smart access system with
push-button start is off, the entry unlock
function cannot be customized.
●When the doors remain closed after
unlocking the doors and the timer acti-
vated automatic door lock function acti-
vates, signals will be generated in
accordance with the operation buzzer
volume and operational signal (Emer-
gency flashers) function settings.
●Some settings can be changed using a
switch or the audio system screen. If a
setting is changed using a switch, the
changed setting will not be reflected on
the audio system screen until the engine
switch is turned off and then to IGNI- TION ON mode.
■Clock settings screen
If the clock adjustment screen is displayed
continuously when attempting to change
the clock settings, the system may be mal-
functioning. Have the vehicle inspected by
your Lexus dealer.
Operation when you
approach the vehicle with the
electronic key on your person
OnOff———O
Footwell lightsOnOff———O
Instrument panel ornament
light and door trim ornament
lights
OnOff———O
Time elapsed before the outer
foot lights turn off15 seconds
Off
O——O7.5 seconds
30 seconds
Operation of the outer foot
lights when you approach the
vehicle with the electronic
key on your person
OnOff———O
Operation of the outer foot
lights when the doors are
unlocked
OnOff———O
Operation of the outer foot
lights when a door is openedOnOff———O
Fading out of the outer foot
lights when they turn offLongShort———O
FunctionDefault settingCustomized set-
tingABCD

4848-3. Initialization
8-3.Initialization
*:If equipped

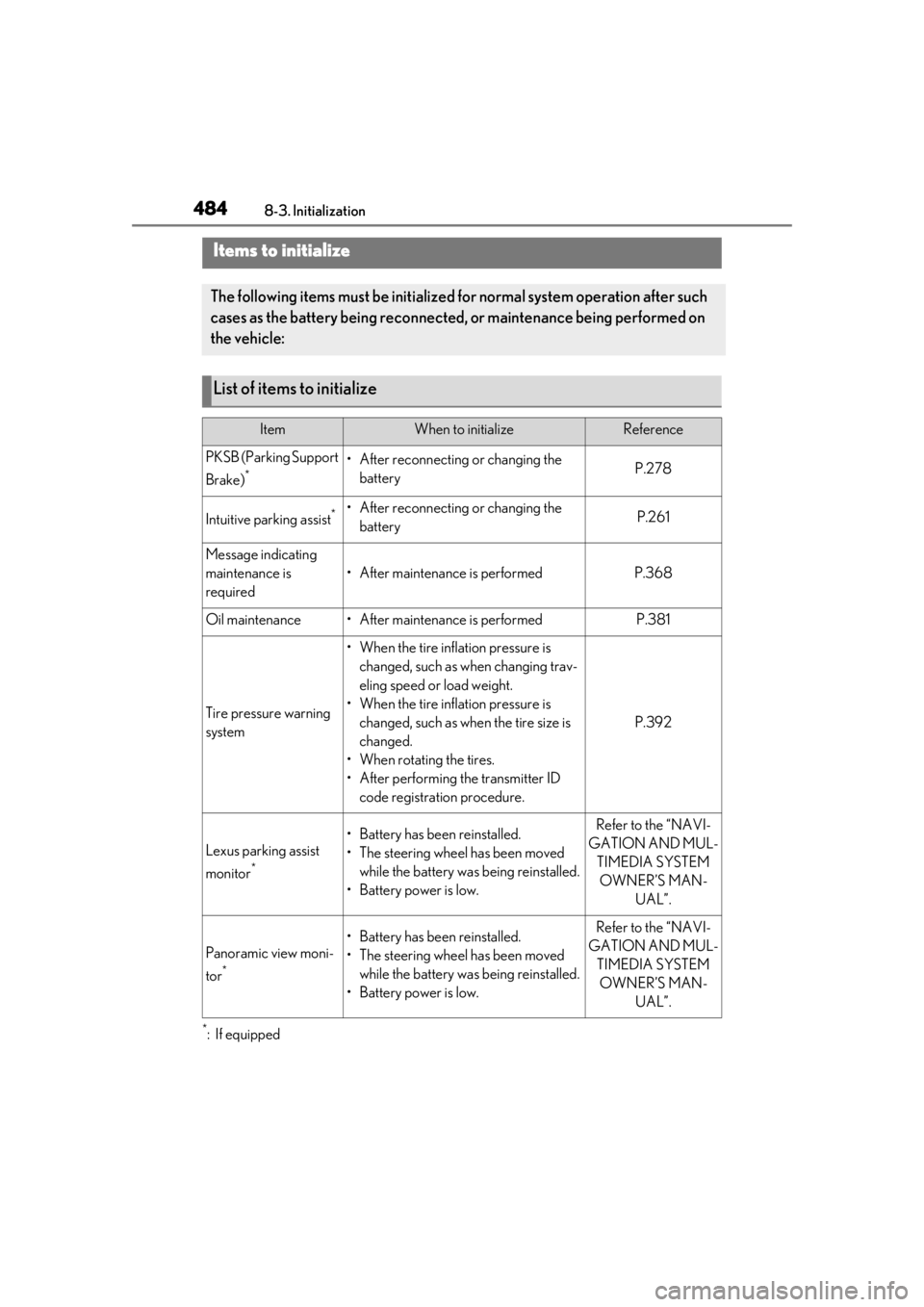

Items to initialize
The following items must be initialized for normal system operation after such
cases as the battery being reconnected, or maintenance being performed on
the vehicle:
List of items to initialize
ItemWhen to initializeReference
PKSB (Parking Support
Brake)
*• After reconnecting or changing the batteryP.278
Intuitive parking assist*• After reconnecting or changing the batteryP.261
Message indicating
maintenance is
required
• After maintenance is performedP.368
Oil maintenance• After maintenance is performedP.381
Tire pressure warning
system
• When the tire inflation pressure is changed, such as when changing trav-
eling speed or load weight.
• When the tire inflation pressure is changed, such as when the tire size is
changed.
• When rotating the tires.
• After performing the transmitter ID code registration procedure.
P.392
Lexus parking assist
monitor
*
• Battery has been reinstalled.
• The steering wheel has been moved while the battery was being reinstalled.
• Battery power is low.Refer to the “NAVI-
GATION AND MUL- TIMEDIA SYSTEM OWNER’S MAN- UAL”.
Panoramic view moni-
tor
*
• Battery has been reinstalled.
• The steering wheel has been moved while the battery was being reinstalled.
• Battery power is low.Refer to the “NAVI-
GATION AND MUL- TIMEDIA SYSTEM OWNER’S MAN- UAL”.

485
9
9
For owners
For owners
.9-1. For ownersReporting safety defects for U.S. owners ........................................ 486
Seat belt instructions for Cana- dian owners (in French)....... 486
SRS airbag instructions for Cana- dian owners (in French)....... 488

4869-1. For owners
9-1.For owners
Déroulez la sangle diagonale de
telle sorte qu'elle passe bien sur
l'épaule, sans pour autant être en
contact avec le cou ou glisser de
l'épaule.
 Placez la sangle abdominale le plus
bas possible sur les hanches.
 Réglez la position du dossier de
siège. Asseyez-vous le dos droit et
calez-vous bien dans le siège.
 Ne vrillez pas la ceinture de sécu-
rité.
Reporting safety defects for
U.S. owners
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition
to notifying the Lexus Division of
Toyota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-25-LEXUS).
If NHTSA receives similar com-
plaints, it may open an investigation,
and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.
However, NHTSA cannot become
involved in individual problems
between you, your dealer, or Lexus
Division of Toyota Motor Sales,
U.S.A., Inc.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY:
1-800-424-9153); go to
http://www.safercar.gov ; or write to:
Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC
20590. You can also obtain other
information about motor vehicle
safety from
http://www.safercar.gov.
Seat belt instructions for
Canadian owners (in French)
The following is a French explana-
tion of seat belt instructions
extracted from the seat belt section
in this manual.
See the seat belt section for more
detailed seat belt instructions in
English.
Utilisation correcte des cein-
tures de sécurité

4879-1. For owners
9
For owners
■Traitement des ceintures de sécu-
rité
Nettoyez avec un chiffon ou une
éponge humidifiés avec de l'eau savon-
neuse tiède. Vérifiez régulièrement
que les ceintures ne sont pas usées,
effilochées ou entaillées excessive-
ment.
Entretien et soin
ATTENTION
■Détérioration et usure des ceintures
de sécurité
Inspectez le système de ceintures de
sécurité régulière ment. Contrôlez
l'absence de coupures, d'effilochages et
de pièces desserrées. N'utilisez pas une
ceinture de sécurité endommagée avant
qu'elle ne soit remplacée. Une ceinture
de sécurité endommagée ne permet pas
de protéger un occupant de blessures
graves ou mortelles.

4889-1. For owners
■Emplacement des coussins gonflables SRS
Coussins gonflables frontaux SRS
Coussin gonflable conducteur/coussi n gonflable du passager avant SRS
Participe à la protection de la tête et du thorax du conducteur et du passager
avant contre les chocs contre les éléments de l'habitacle
Coussins gonflables de genoux SRS
Participent à la protection du co nducteur et du passager avant
Coussins gonflables latéraux et rideaux SRS
Coussins gonflables latéraux avant SRS
Participent à la protection du to rse des occupants de siège avant
Coussins gonflables latéraux arrière SRS
Participent à la protection du torse des occupants des sièges latéraux arrière
SRS airbag instructions for Canadian owners (in French)
The following is a French explanation of SRS airbag instructions extracted
from the SRS airbag section in this manual.
See the SRS airbag section for more deta iled SRS airbag instructions in English.
Système de coussins gonflables SRS
A
B
C
D
