712-1. Instrument cluster
2
Vehicle status information and indicators
Warning lights inform the driver of mal-
functions in the indicated vehicle’s sys-
tems.
*1: These lights come on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is
Warning lights
(U.S.A.)
Brake system warning light*1
(  P.427)
(red)
(Canada)
Brake system warning light*1
(  P.427)
(yellow)
Brake system warning light*1
(  P.427)
High coolant temperature
warning light
*2 (  P.427)
Charging system warning
light
*2 (  P.428)
Low engine oil pressure warn-
ing light
*2 (  P.428)
(U.S.A.)
Malfunction indicator lamp*1
(  P.428)
(Canada)
Malfunction indicator lamp*1
(  P.428)
SRS warning light
*1 (  P.428)
Pop Up Hood warning light
*1
(  P.429)
(U.S.A.)
ABS warning light*1 ( P.429)
(Canada)
ABS warning light*1 ( P.429)
Inappropriate pedal operation
warning light
*2 (  P.429)
(red)
Electric power steering system
warning light
*1 ( P.430)
(yellow)
Electric power st eering system
warning light
*1 (  P.430)
Low fuel level warning light
(  P.430)
Driver’s and front passenger’s
seat belt re minder light
(  P.430)
Rear passengers’ seat
belt reminder lights
(except F SPORT mod-
els) ( P.431)
Rear passengers’ seat belt
reminder lights (F SPORT mod-
els) ( P.431)
Tire pressure warning light
*1
(  P.431)
(orange)
LTA indicator ( P.431)
(flashes)
RCD OFF indicator (if
equipped) ( P.432)
(flashes or
illuminates)PCS warning light*1 (  P.432)
Slip indicator
*1 (  P.432)
(flashes)
(U.S.A.)
Parking brake indicator
(  P.433)
(flashes)
(Canada)
Parking brake indicator
(  P.433)
(flashes)
Brake hold operated indicator*1
(  P.433)

722-1. Instrument cluster
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2: This light illuminates on the multi-infor-mation display.
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
WARNING
■If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS warning light not come on
when you start the engine, this could
mean that these systems are not available
to help protect you in an accident, which
could result in death or serious injury.
Have the vehicle inspected by your
Lexus dealer immediately if this occurs.

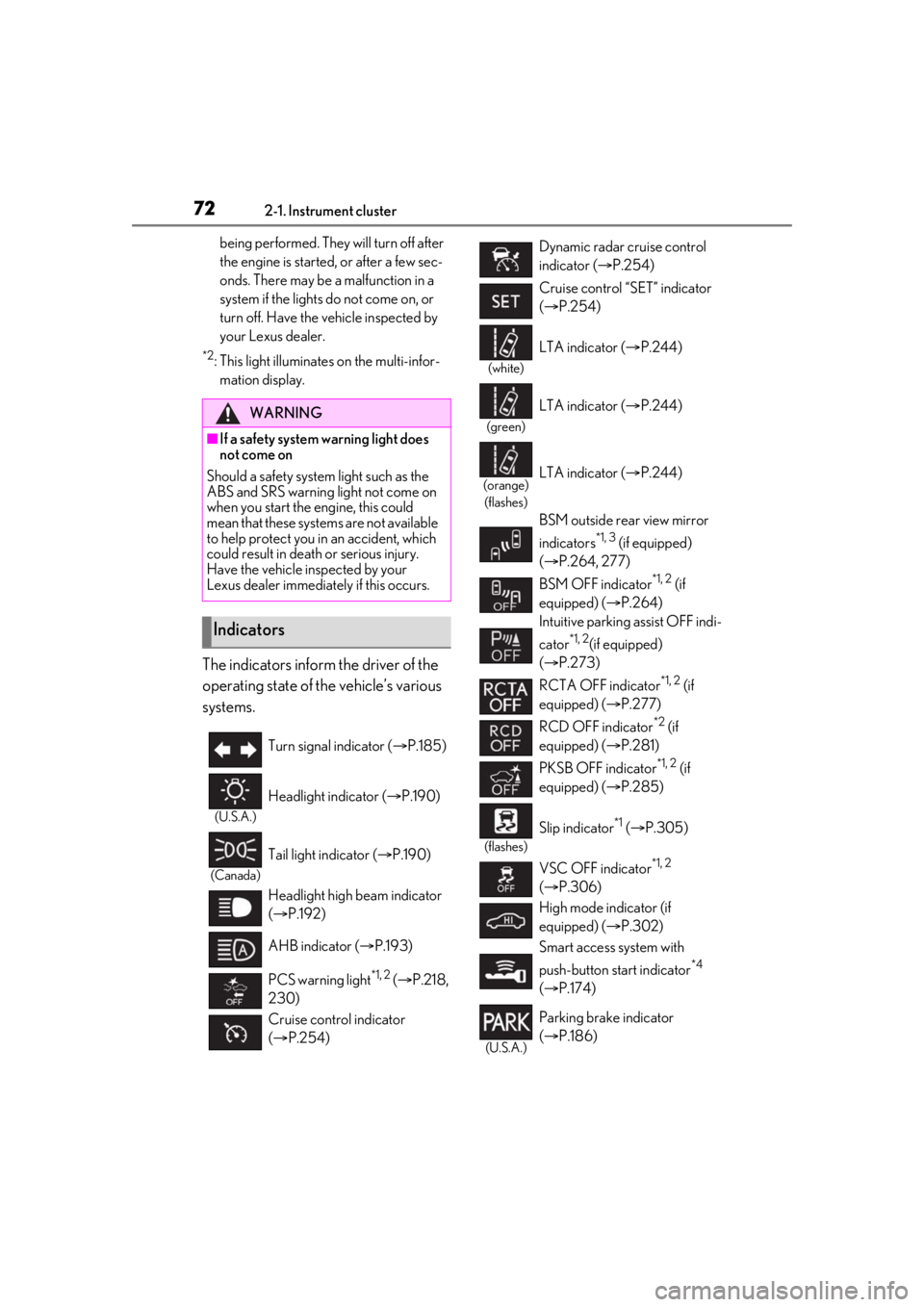

Indicators
Turn signal indicator ( P.185)
(U.S.A.)
Headlight indicator ( P.190)
(Canada)
Tail light indicator ( P.190)
Headlight high beam indicator
(  P.192)
AHB indicator ( P.193)
PCS warning light
*1, 2 (  P.218,
230)
Cruise control indicator
(  P.254)
Dynamic radar cruise control
indicator ( P.254)
Cruise control “SET” indicator
(  P.254)
(white)
LTA indicator ( P.244)
(green)
LTA indicator ( P.244)
(orange)
(flashes)LTA indicator ( P.244)
BSM outside rear view mirror
indicators
*1, 3 (if equipped)
(  P.264, 277)
BSM OFF indicator
*1, 2 (if
equipped) ( P.264)
Intuitive parking assist OFF indi-
cator
*1, 2(if equipped)
(  P.273)
RCTA OFF indicator
*1, 2 (if
equipped) ( P.277)
RCD OFF indicator
*2 (if
equipped) ( P.281)
PKSB OFF indicator
*1, 2 (if
equipped) ( P.285)
(flashes)
Slip indicator*1 ( P.305)
VSC OFF indicator
*1, 2
(  P.306)
High mode indicator (if
equipped) ( P.302)
Smart access system with
push-button start indicator
*4
(  P.174)
(U.S.A.)
Parking brake indicator
( P.186)

732-1. Instrument cluster
2
Vehicle status information and indicators
Drive mode indicators
Except F SPORT models
F SPORT models
*1: These lights come on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2: This light comes on when the system is turned off.
*3: This light illuminates on the outside rear view mirrors.
*4: This light illuminates on the multi-infor- mation display.
*5: When the outside temperature is approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.
(Canada)
Parking brake indicator
( P.186)
Brake hold standby indicator
*1
(  P.188)
Brake hold operated indicator
*1
(  P.188)
Eco Driving Indicator Light
*1
(  P.85)
Low outside temperature indi-
cator
*5 (  P.75, 78)
Security indicator
*6 (  P.64,
66)
“AIR BAG ON/OFF”
indicator
*1, 6 ( P.40)
Snow mode indicator ( P.182)
Normal mode indicator
(  P.299)
Custom mode indicator (if
equipped) ( P.299)
Comfort mode indicator (if
equipped) ( P.299)
Eco drive mode indicator
(  P.299)
Sport mode indicator (if
equipped) ( P.299)
Sport S mode indicator (if
equipped) ( P.299)
Sport S+ mode indicator (if
equipped) ( P.299)
Snow mode indicator ( P.182)
Normal mode indicator
(  P.299)
Custom mode indicator
(  P.299)
Comfort mode indicator
(  P.299)
Eco drive mode indicator
(  P.299)
Sport S mode indicator
(  P.299)
Sport S+ mode indicator
(  P.299)

742-1. Instrument cluster
*6: This light illuminates on the center panel.

752-1. Instrument cluster
2
Vehicle status information and indicators
■Locations of gauges and meters
The units of measure may differ depending on the intended destination of the vehicle.
Engine coolant temperature gauge
Displays the engine coolant temperature
Odometer and trip meter display (P.76)
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Tachometer
Displays the engine speed in revolutions per minute
When sport mode is se lected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.
Speedometer
Clock
Time displayed is linked to the analog clock on the center panel. (P.354)
Shift position indicator ( P.180)
Shift range/gear position ( P.178)
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of vehicle data ( P.82)
Gauges and meters (except F SPORT models)
Meter display
A
B
C
D
E
F
G
H
I
J

762-1. Instrument cluster
Displays warning messages if a malfunction occurs (P.436)
■Outside temperature display
●In the following situations, the correct
outside temperature may not be dis-
played, or the display may take longer
than normal to change:
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has
changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
●When “--” or “E” is displayed, the system
may be malfunctioning. Take your vehicle
to your Lexus dealer.
■Liquid crystal display
 P.83
■Customization
The gauges and meters can be customized
on of the multi-information display.
(  P.87)
■Display items
 Odometer
Displays the total distance the vehicle has
been driven.
Trip meter A/trip meter B
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.
Distance until next engine oil
change
Displays the distance the vehicle can be
driven until an oil change is necessary.
■Changing the display
Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.
WARNING
■The information display at low tem-
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal infor-
mation display. At extremely low tem-
peratures, the in formation display
monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine brak-
ing and possibly an accident resulting in
death or injury.
NOTICE
■To prevent damage to the engine and
its components
●Do not let the indicator needle of the
tachometer enter the red zone, which
indicates the maximum engine speed.
●The engine may be overheating if the
engine coolant temperature gauge is
in the red zone (H). In this case, imme-
diately stop the vehicle in a safe place,
and check the engine after it has
cooled completely. ( P.449)
Odometer and trip meter dis-
play

772-1. Instrument cluster
2
Vehicle status information and indicators
■Pop-up display
Distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

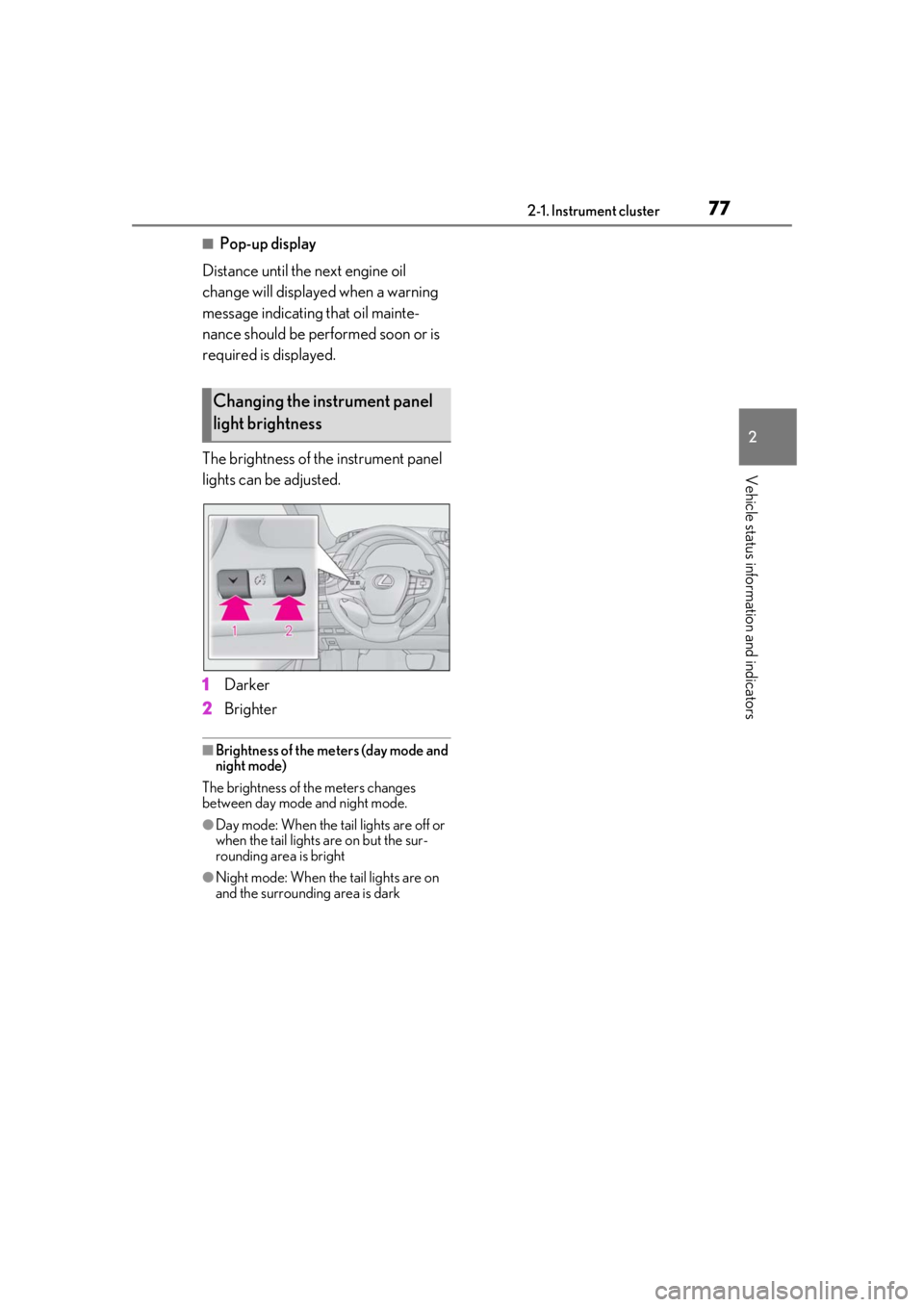

The brightness of the instrument panel
lights can be adjusted.
1 Darker
2 Brighter
■Brightness of the meters (day mode and
night mode)
The brightness of th e meters changes
between day mode and night mode.
●Day mode: When the tail lights are off or
when the tail lights are on but the sur-
rounding area is bright
●Night mode: When the tail lights are on
and the surrounding area is dark
Changing the instrument panel
light brightness

782-1. Instrument cluster
■Locations of gauges and meters
When the main meter is moved to the righ t, some of the meter displays and the
gauge layout will change. ( P.82)
Main meter in center position
The units of measure may differ depending on the intended destination of the vehicle.
Odometer and trip meter display (P.81)
Engine coolant temperature gauge
Displays the engine coolant temperature
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Tachometer
Displays the engine speed in revolutions per minute
When sport mode is se lected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.

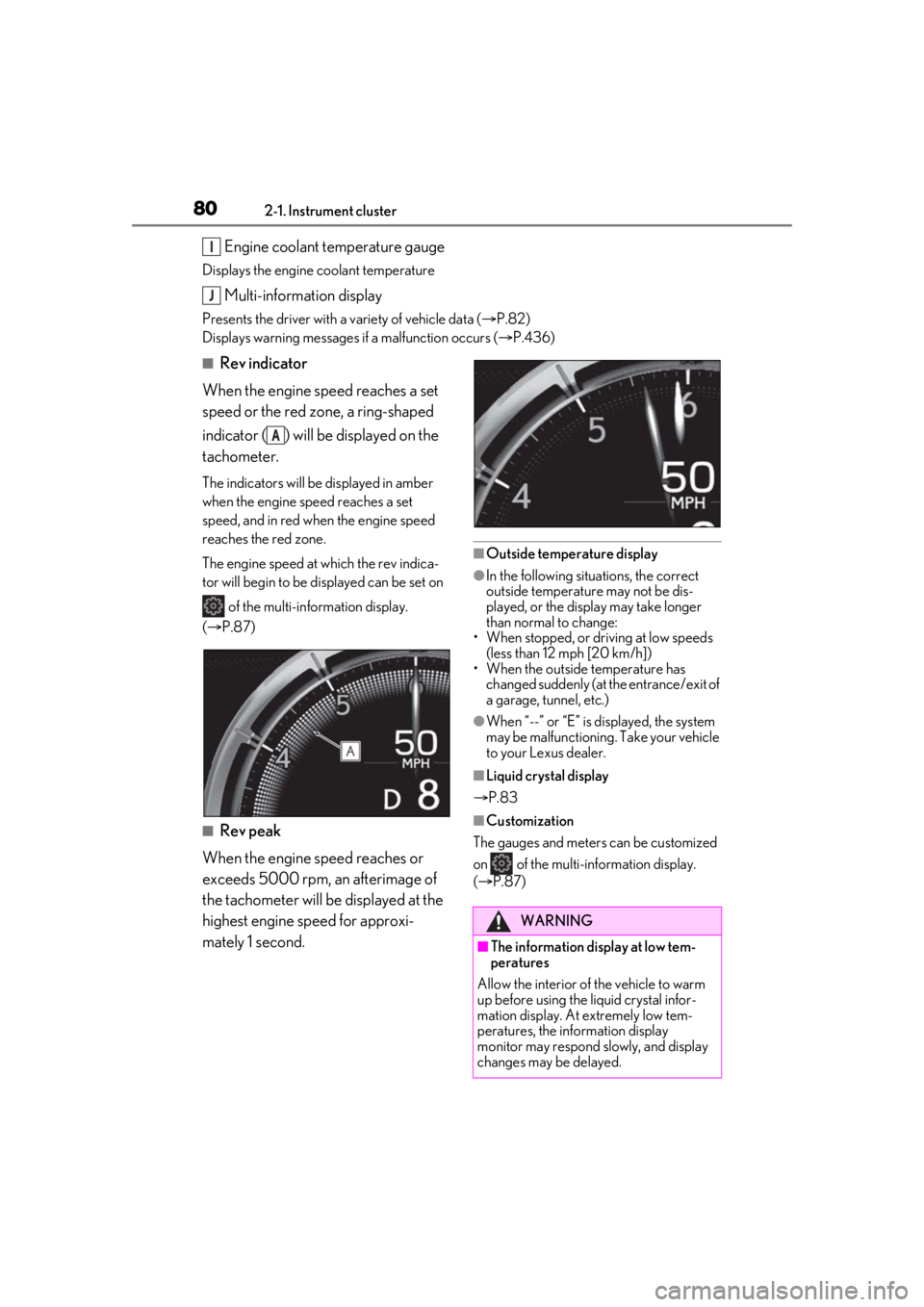

• Rev indicator ( P.80)
•Rev peak ( P.80)
Shift position/shift range/gear position ( P.178)
Speedometer
Clock
Time displayed is linked to the analog clock on the center panel. (P.354)

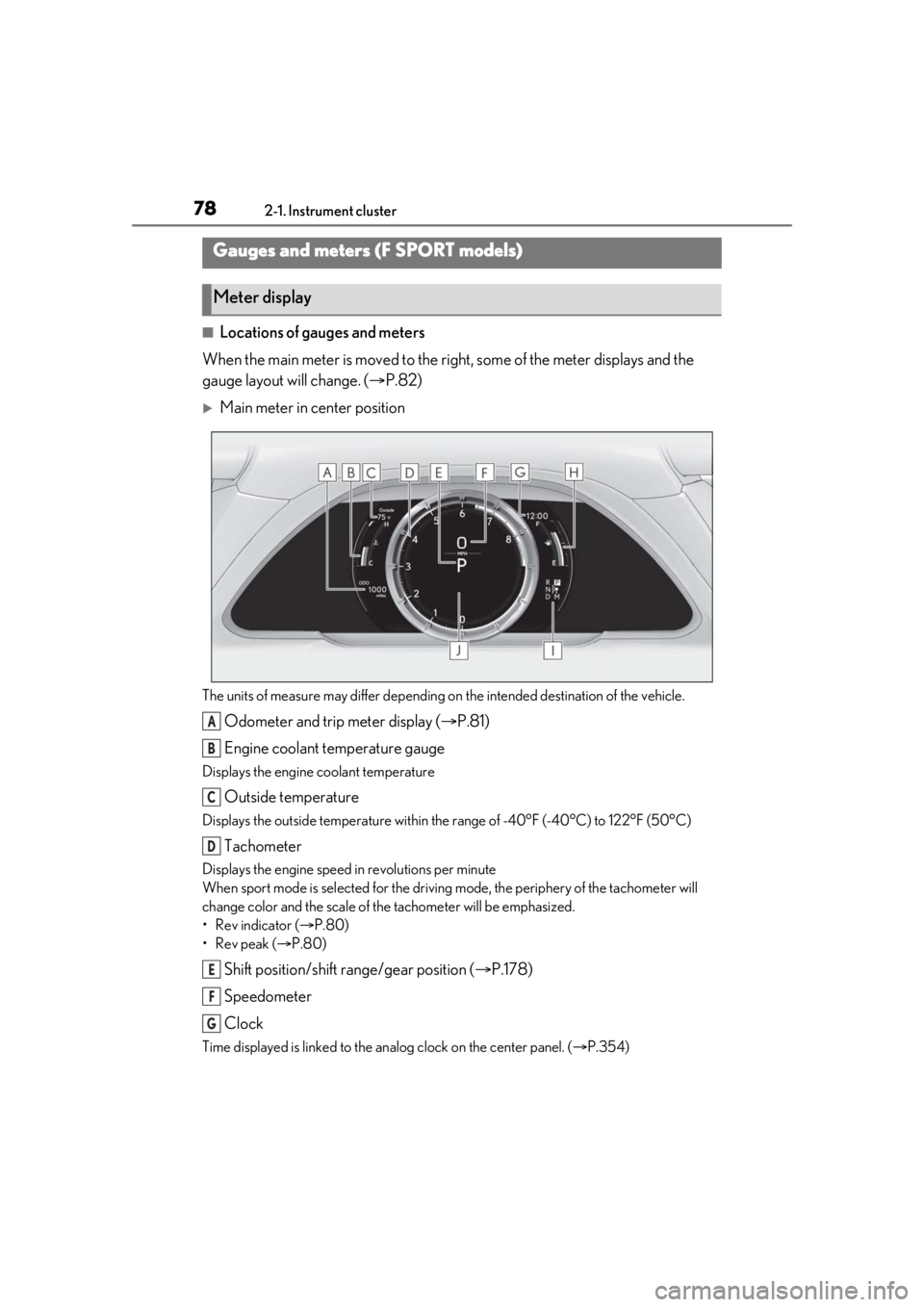

Gauges and meters (F SPORT models)
Meter display
A
B
C
D
E
F
G

792-1. Instrument cluster
2
Vehicle status information and indicators
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position indicator (P.180)
Multi-information display
Presents the driver with a variety of vehicle data ( P.82)
Displays warning messages if a malfunction occurs ( P.436)

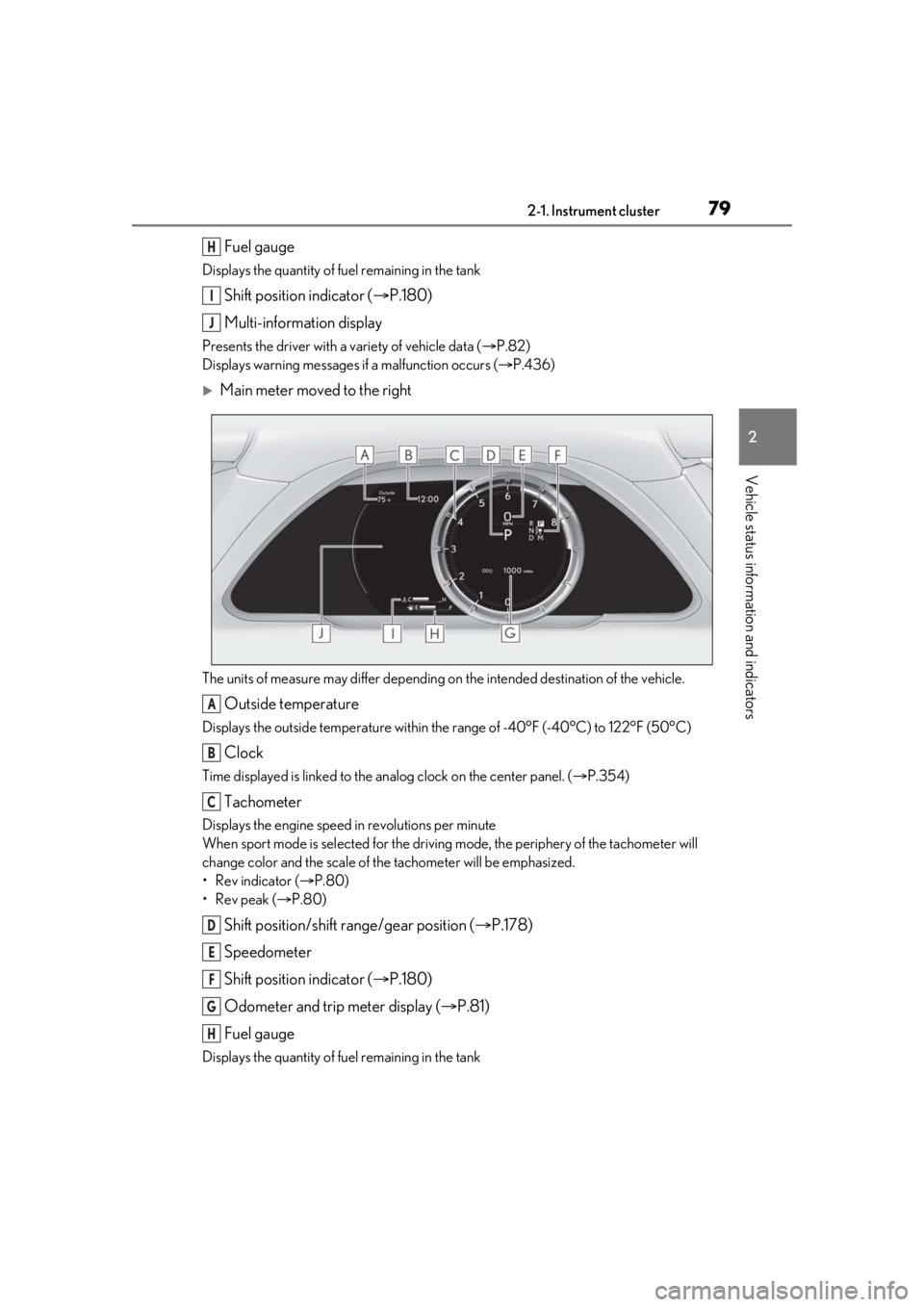

Main meter moved to the right
The units of measure may differ depending on the intended destination of the vehicle.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Clock
Time displayed is linked to the analog clock on the center panel. (P.354)
Tachometer
Displays the engine speed in revolutions per minute
When sport mode is se lected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.
• Rev indicator ( P.80)
•Rev peak ( P.80)
Shift position/shift range/gear position ( P.178)
Speedometer
Shift position indicator ( P.180)
Odometer and trip meter display ( P.81)
Fuel gauge
Displays the quantity of fuel remaining in the tank
H
I
J
A
B
C
D
E
F
G
H

802-1. Instrument cluster
Engine coolant temperature gauge
Displays the engine coolant temperature
Multi-information display
Presents the driver with a variety of vehicle data (P.82)
Displays warning messages if a malfunction occurs ( P.436)
■Rev indicator
When the engine speed reaches a set
speed or the red zone, a ring-shaped
indicator ( ) will be displayed on the
tachometer.
The indicators will be displayed in amber
when the engine speed reaches a set
speed, and in red when the engine speed
reaches the red zone.
The engine speed at which the rev indica-
tor will begin to be displayed can be set on of the multi-information display.
(  P.87)
■Rev peak
When the engine speed reaches or
exceeds 5000 rpm, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.
■Outside temperature display
●In the following situations, the correct
outside temperature may not be dis-
played, or the display may take longer
than normal to change:
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has
changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
●When “--” or “E” is displayed, the system
may be malfunctioning. Take your vehicle
to your Lexus dealer.
■Liquid crystal display
 P.83
■Customization
The gauges and meters can be customized
on of the multi-information display.
(  P.87)
I
J
A
WARNING
■The information display at low tem-
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal infor-
mation display. At extremely low tem-
peratures, the information display
monitor may respond slowly, and display
changes may be delayed.
