LEXUS LS500 2022 Owner's Manual

20
LS500_QG_U
Each electronic key (including a card key) can be registered to recall your preferred driving
position.
■Registering procedure
Record your driving position to button “1”, “2” or “3” before performing the following:
Carry only the key you want to regist er, and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be recorded properly.
1Turn the engine switch to IGNITION ON mode.
2Check that the shift position is in P.
3Recall the driving position that you want to record.
4While pressing the recalled button,
press and hold the door lock switch
(either lock or unlock) until the buzzer
sounds.
If the button could not be registered,
the buzzer sounds continuously for
approximately 3 seconds.
Memory recall function (driver’s side only)

21
LS500_QG_U
Camera indicator
Indicates that the camera is operating
normally.
Icon display area
Displays icons, adjusting gauge, etc.
Select button
Press to change the setting of the item
you want to adjust.
Menu button
Press to display the icon display area an d select the item you want to adjust.
Lever
Operate to change between digital mirror mode and optical mirror mode.
Operate the lever to change between digital mirror mode and optical mirror mode.
1Digital mirror mode
Displays an image of the area behind
the vehicle.
will illuminate in this mode.
2Optical mirror mode
Turns off the display of the Digital Rear-
view Mirror allows it to be used as an
optical mirror.
Digital Rearview Mirror (if equipped)
The Digital Rearview Mirror is a system that uses the camera on the rear of the vehicle
and displays its image on the disp lay of the Digital Rearview Mirror.
The Digital Rearview Mirror allows the driver to see the rear view despite obstructions,
such as the head restraints, lu ggage or rear sunshade ensuring rear visibility. Also, the rear
seats are not displayed and privacy of the passengers is enhanced.
System components
A
B
C
Changing modes
D
E

22
LS500_QG_U
1Press the parking brake switch to check that the parking brake is set.
The parking brake indicator will come on.
2Firmly depress the brake pedal.
and a message will be displayed on the multi-information display.
If it is not displayed, th e engine cannot be started.
3Press the engine switch shortly and
firmly.
When operating the engine switch,
one short, firm press is enough. It is not
necessary to press an d hold the switch.
The engine will crank until it starts or
for up to 30 second s, whichever is less.
Continue depressing the brake pedal
until the engine is completely started.
The engine can be started from any
engine switch mode.
Engine (Ignition) Switch
Performing the following operations when carrying the electronic key on your person
starts the engine or changes engine switch modes.
Starting the engine

23
LS500_QG_U

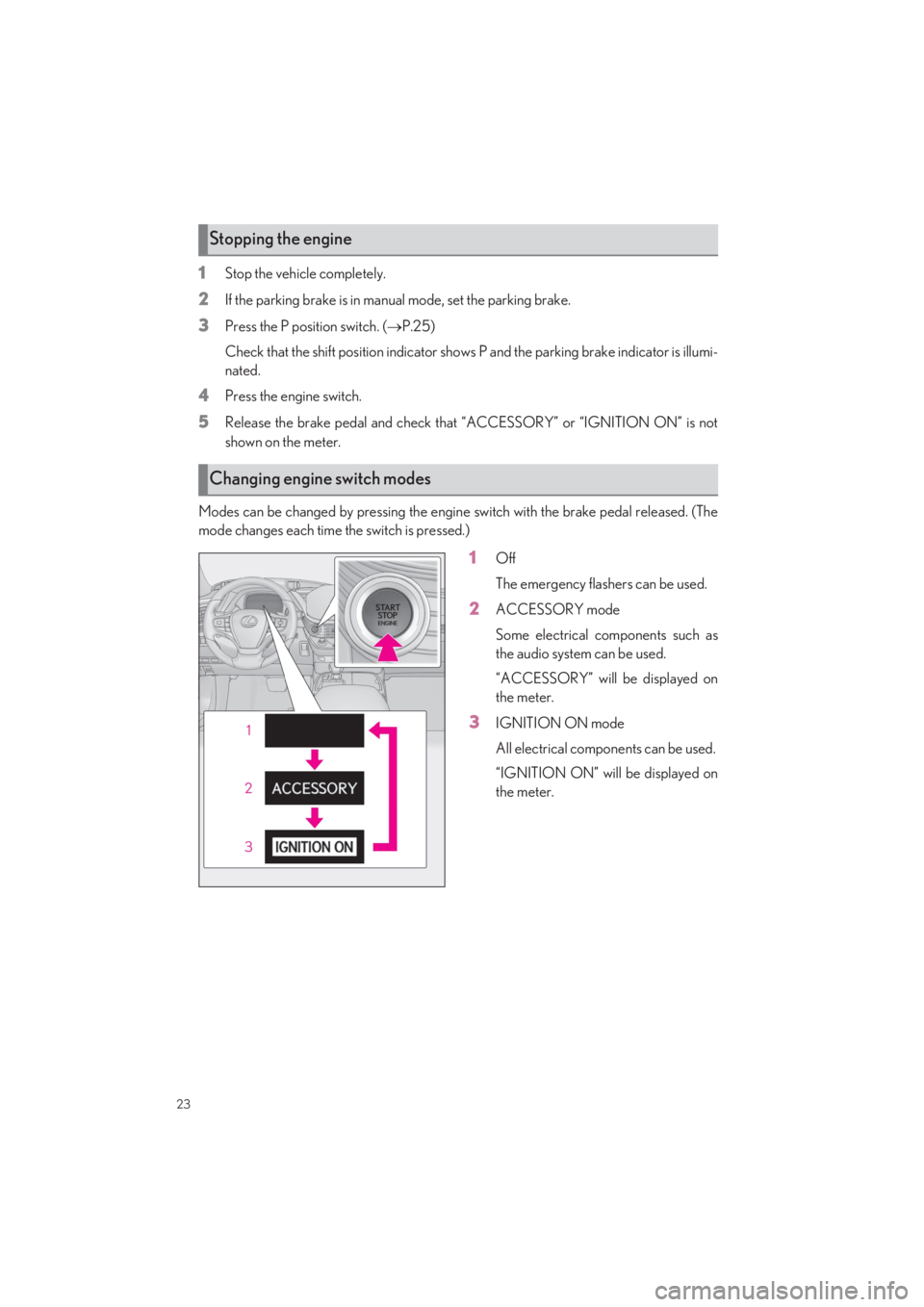

1Stop the vehicle completely.
2If the parking brake is in manual mode, set the parking brake.
3Press the P position switch. (P.25)
Check that the shift position indicator shows P and the parking brake indicator is illumi-
nated.
4Press the engine switch.
5Release the brake pedal and check that “ACCESSORY” or “IGNITION ON” is not
shown on the meter.
Modes can be changed by pressing the engine switch with the brake pedal released. (The
mode changes each time the switch is pressed.)
1Off
The emergency flashers can be used.
2ACCESSORY mode
Some electrical components such as
the audio system can be used.
“ACCESSORY” will be displayed on
the meter.
3IGNITION ON mode
All electrical components can be used.
“IGNITION ON” will be displayed on
the meter.
Stopping the engine
Changing engine switch modes

24
LS500_QG_U

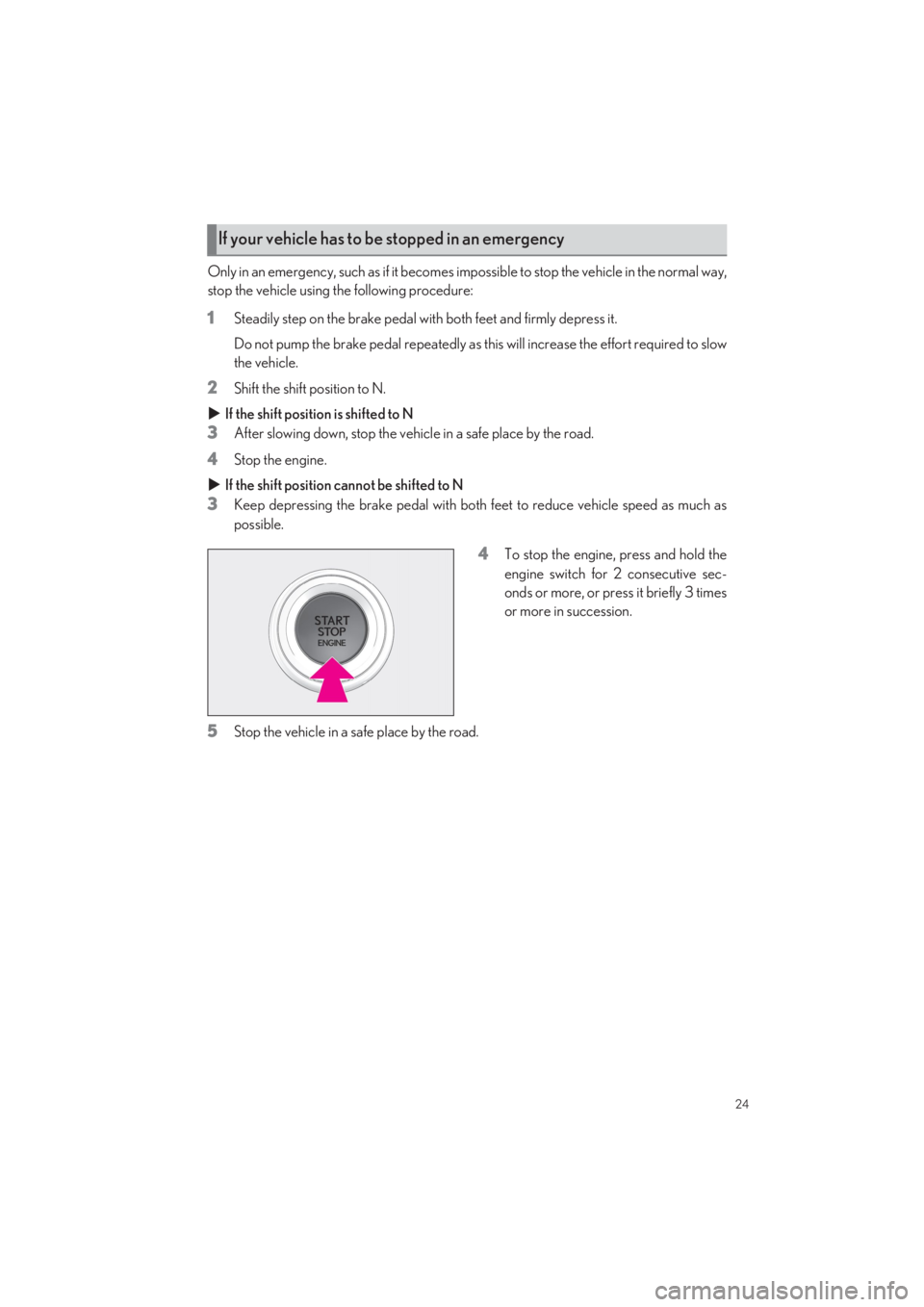

Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way,
stop the vehicle using the following procedure:
1Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal re peatedly as this will increase the effort required to slow
the vehicle.
2Shift the shift position to N.
 If the shift position is shifted to N
3After slowing down, stop the vehicle in a safe place by the road.
4Stop the engine.
 If the shift position cannot be shifted to N
3Keep depressing the brake pedal with both feet to reduce vehicle speed as much as
possible.
4To stop the engine, press and hold the
engine switch for 2 consecutive sec-
onds or more, or press it briefly 3 times
or more in succession.
5Stop the vehicle in a sa fe place by the road.
If your vehicle has to be stopped in an emergency

25
LS500_QG_U

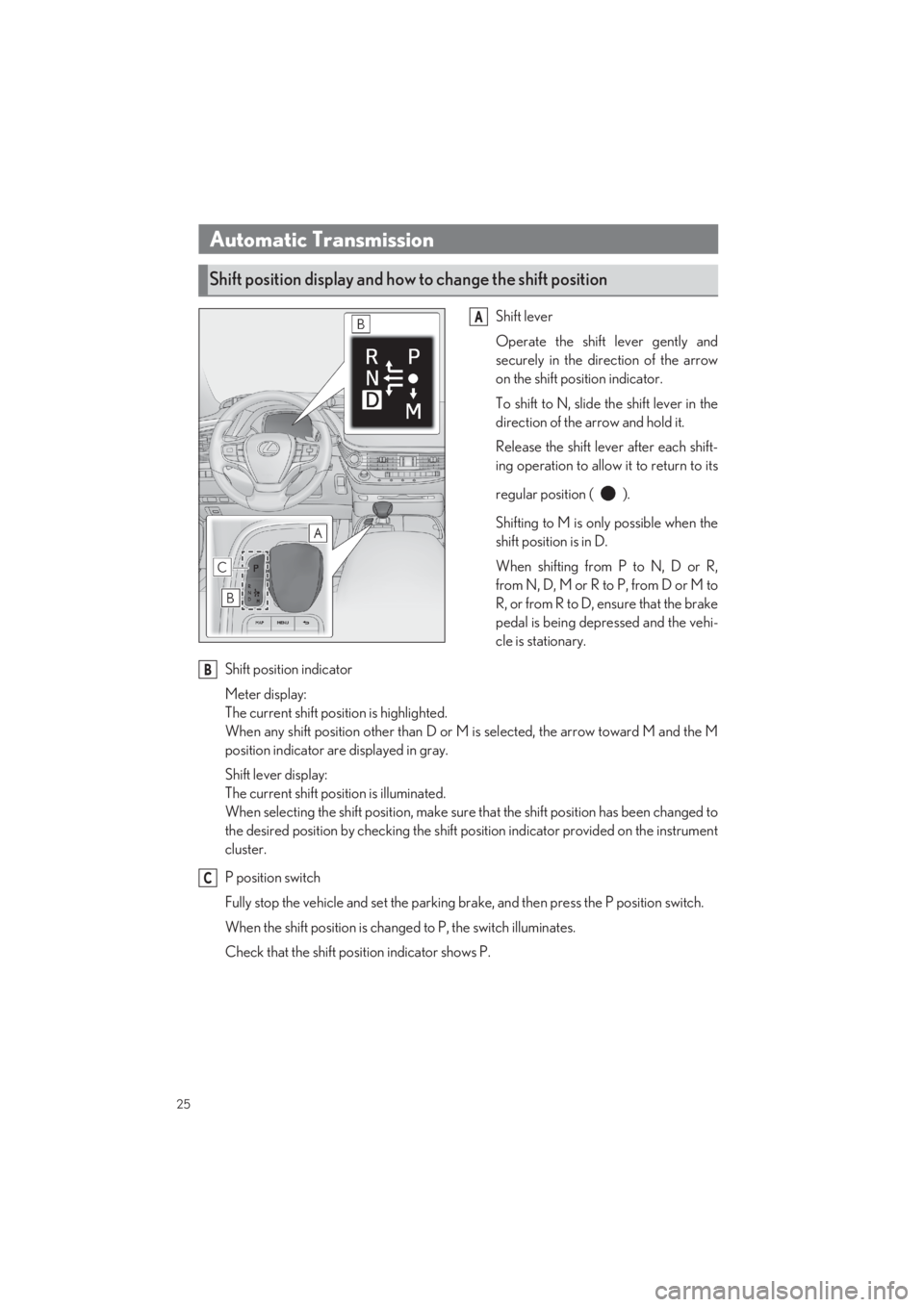

Shift lever
Operate the shift lever gently and
securely in the dire ction of the arrow
on the shift position indicator.
To shift to N, slide the shift lever in the
direction of the arrow and hold it.
Release the shift leve r after each shift-
ing operation to allow it to return to its
regular position ( ).
Shifting to M is only possible when the
shift position is in D.
When shifting from P to N, D or R,
from N, D, M or R to P, from D or M to
R, or from R to D, ensure that the brake
pedal is being depressed and the vehi-
cle is stationary.
Shift position indicator
Meter display:
The current shift position is highlighted.
When any shift position other than D or M is selected, the arrow toward M and the M
position indicator ar e displayed in gray.
Shift lever display:
The current shift position is illuminated.
When selecting the shift positi on, make sure that the shift position has been changed to
the desired position by checking the shift position indicator provided on the instrument
cluster.
P position switch
Fully stop the vehicle and set the parking br ake, and then press the P position switch.
When the shift position is changed to P, the switch illuminates.
Check that the shift posi tion indicator shows P.
Automatic Transmission
Shift position display and how to change the shift position
A
B
C

26
LS500_QG_U

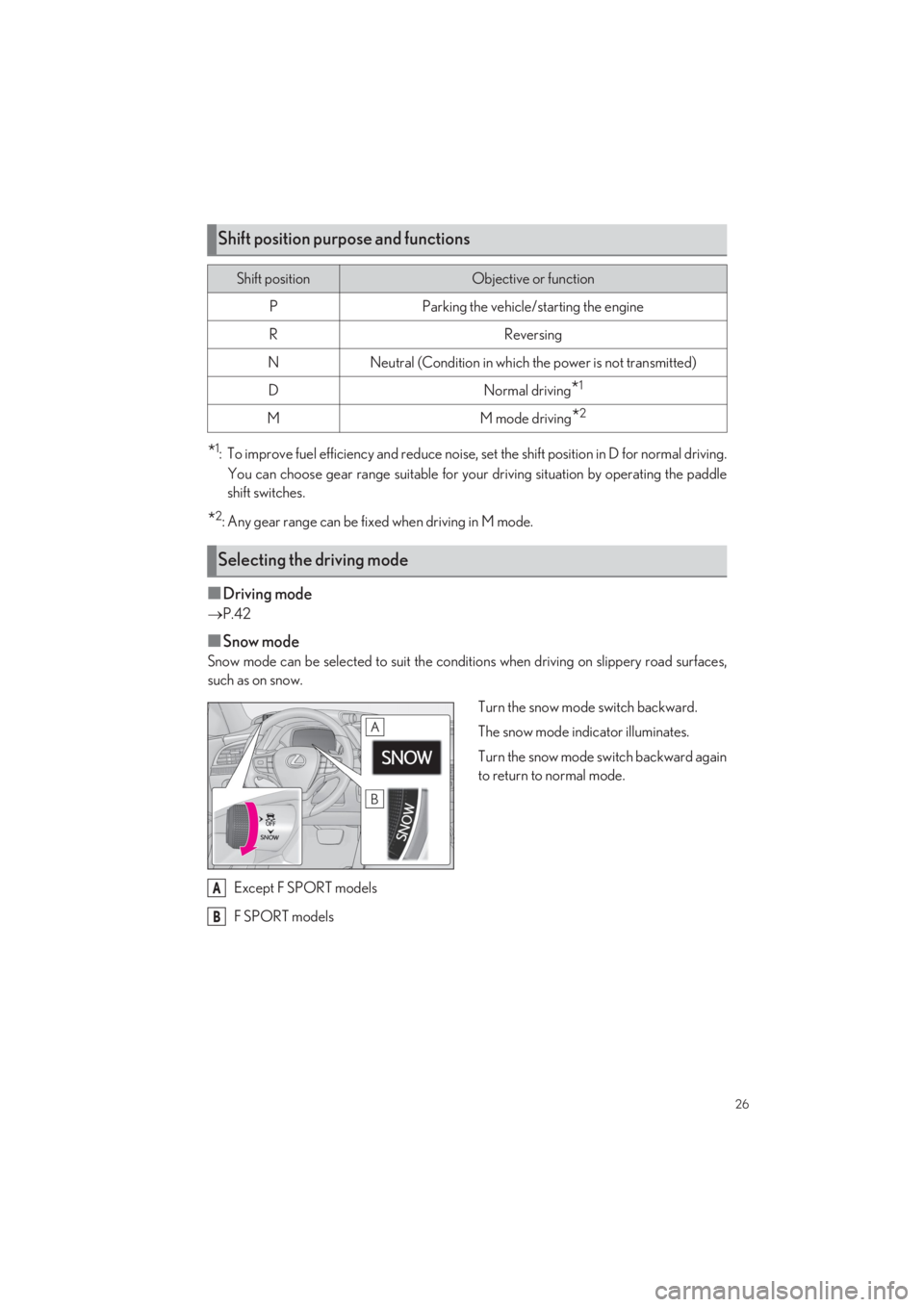

*1: To improve fuel efficiency and reduce noise, set the shift position in D for normal driving.
You can choose gear range suitable for your driving situation by operating the paddle
shift switches.
*2: Any gear range can be fixed when driving in M mode.
■Driving mode
 P.42
■Snow mode
Snow mode can be selected to suit the conditions when driving on slippery road surfaces,
such as on snow.
Turn the snow mode switch backward.
The snow mode indicator illuminates.
Turn the snow mode switch backward again
to return to normal mode.
Except F SPORT models
F SPORT models
Shift position purpose and functions
Shift positionObjective or function
PParking the vehicle/starting the engine
RReversing
NNeutral (Condition in which the power is not transmitted)
DNormal driving*1
MM mode driving*2
Selecting the driving mode
A
B

27
LS500_QG_U

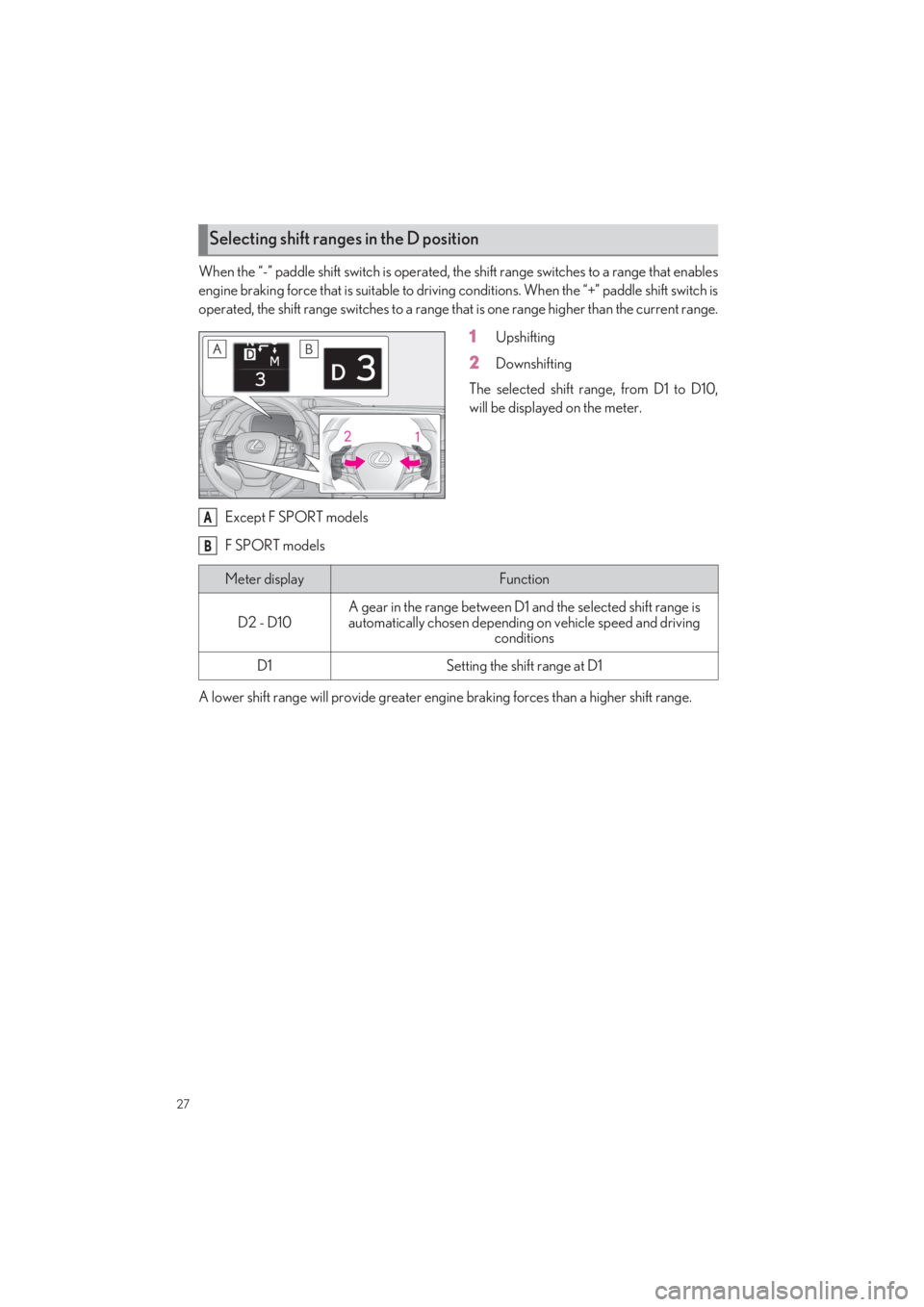

When the “-” paddle shift switch is operated, the shift range switches to a range that enables
engine braking force that is suit able to driving conditions. When the “+” paddle shift switch is
operated, the shift range switches to a range that is one range higher than the current range.
1Upshifting
2Downshifting
The selected shift range, from D1 to D10,
will be displayed on the meter.
Except F SPORT models
F SPORT models
A lower shift range will provid e greater engine braking forces than a higher shift range.
Selecting shift ranges in the D position
A
B
Meter displayFunction
D2 - D10
A gear in the range between D1 and the selected shift range is
automatically chosen depending on vehicle speed and driving
conditions
D1Setting the shift range at D1

28
LS500_QG_U

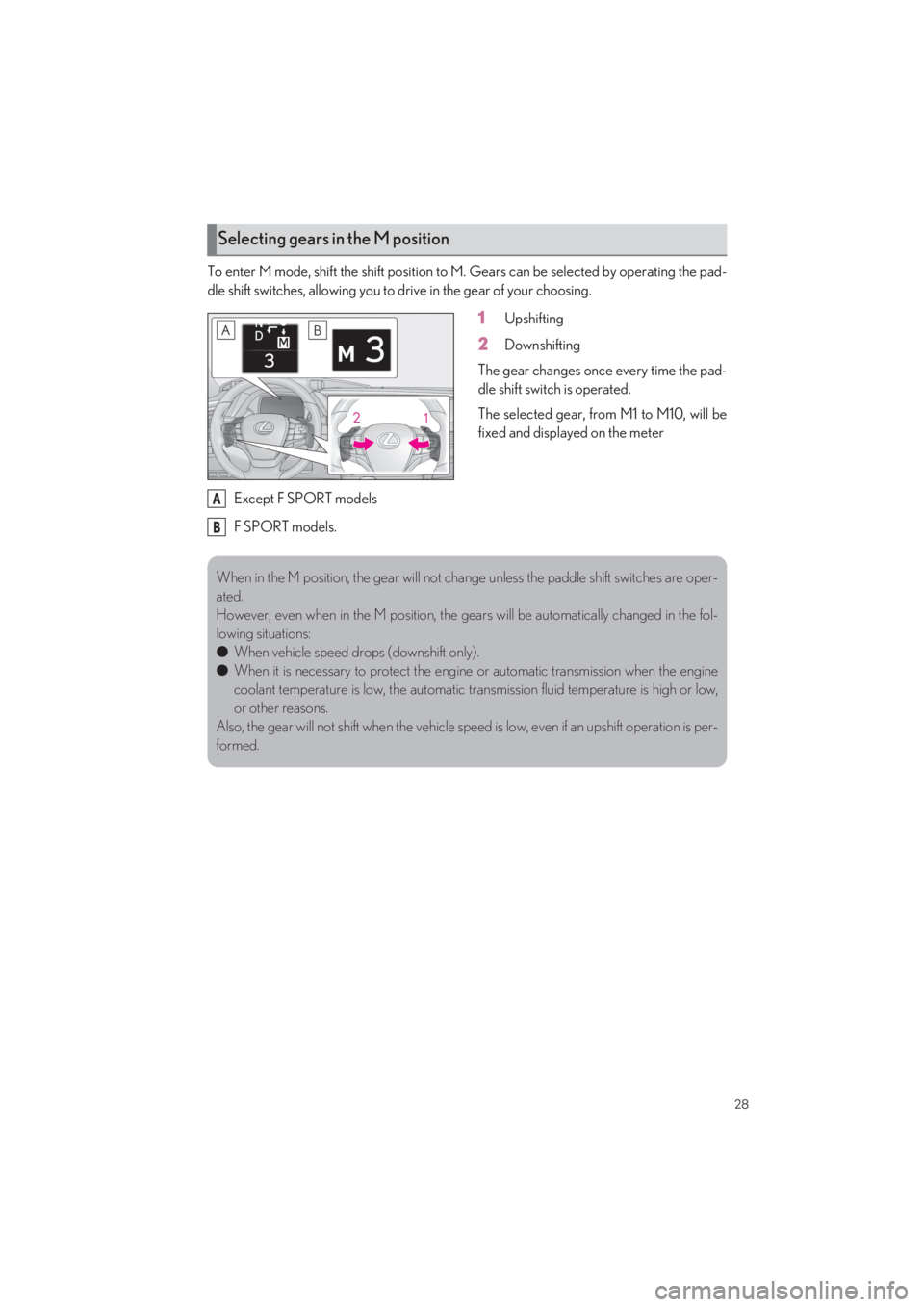

To enter M mode, shift the shift position to M. Gears can be selected by operating the pad-
dle shift switches, allowing you to drive in the gear of your choosing.
1Upshifting
2Downshifting
The gear changes once every time the pad-
dle shift switch is operated.
The selected gear, from M1 to M10, will be
fixed and displayed on the meter
Except F SPORT models
F SPORT models.
Selecting gears in the M position
When in the M position, the gear will not change unless the paddle shift switches are oper-
ated.
However, even when in the M position, the g ears will be automatically changed in the fol-
lowing situations:
● When vehicle speed drops (downshift only).
● When it is necessary to protect the engine or automatic transmission when the engine
coolant temperature is low, th e automatic transmission fluid temperature is high or low,
or other reasons.
Also, the gear will not shift when the vehicle speed is low, even if an upshift operation is per-
formed.
A
B

29
LS500_QG_U

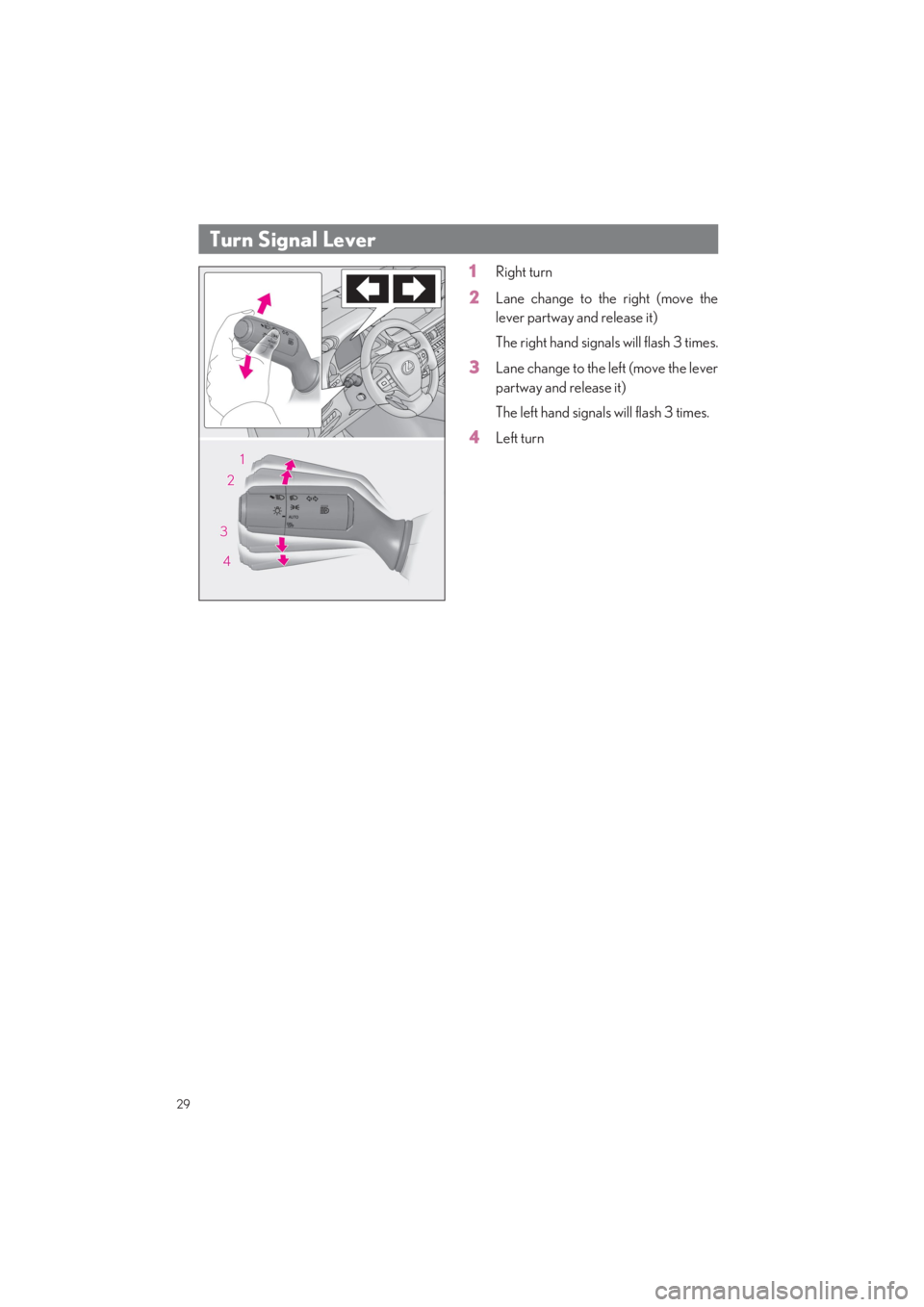

1Right turn
2Lane change to the right (move the
lever partway an d release it)
The right hand signal s will flash 3 times.
3Lane change to the left (move the lever
partway and release it)
The left hand signals will flash 3 times.
4Left turn
Turn Signal Lever
