4217-1. Essential information
LS500h_OM_OM50F42U_(U) 7
When trouble arises press it briefly 3 times or more in
succession.
5 Stop the vehicle in a safe place by
the road. WARNING■
If the hybrid system has to be turned
off while driving
Power assist for the steering wheel will
be lost, making th e steering wheel
heavier to turn. Decelerate as much as
possible before turning off the hybrid sys-
tem.

422 7-2. Steps to take in an emergency
LS500h_OM_OM50F42U_(U) 7-2.Steps to take in an emergency
If your vehicle needs to be
towed If towing is ne cessary, we recom-
mend having your vehicle towed by
your Lexus dealer or commercial
towing service, using a wheel-lift
type truck or flatbed truck.
Use a safety chain system for all
towing, and abide by all state/pro-
vincial and local laws. WARNING
Observe the following precautions.
Failure to do so may result in death or
serious injury. ■
When towing the vehicle 
2WD models
Be sure to transport the vehicle with all
four wheels raised off the ground. If the
vehicle is towed with the tires contacting
the ground, the driv etrain and related
parts may be damaged, an accident may
occur due to a change in direction of the
vehicle or electricity generated by the
operation of the motor may cause a fire
to occur depending on the nature of the
damage or malfunction. 
AWD models
Be sure to transport the vehicle with all
four wheels raised off the ground. If the
vehicle is towed with the tires contacting
the ground, the driv etrain or related
parts may be damaged, the vehicle may
fly off the truck, or electricity generated
by the operation of the motor may cause
a fire to occur depending on the nature
of the damage or malfunction.
■
While towing ●
When towing using cables or chains,
avoid sudden starts, etc. which place
excessive stress on the towing eyelets,
cables or chains. The towing eyelets,
cables or chains may become dam-
aged, broken debris may hit people,
and cause serious damage.
●
Make sure to disable all functions of
the vehicle height control of the elec-
tronically modulated air suspension.
Otherwise, the vehicle height may
change and part of your body may be
caught under the vehicle, possibly
causing injury. ( → P.301)
●
Do not turn the power switch off.
This may lead to an accident as the
rear wheels will be locked by the park-
ing lock.
Also, there is a possibility that the
steering wheel is locked and cannot be
operated.

4237-2. Steps to take in an emergency
LS500h_OM_OM50F42U_(U) 7
When trouble arises
In the following situations, it is not pos-
sible to be towed by another vehicle
using cables or chains, as the rear
wheels may be locked due to the park-
ing lock. Contact your Lexus dealer or
commercial towing service.
 There is a malfunction in the shift control system. ( → P.171, 437)
 There is a malfunction in the immo-
bilizer system. ( → P.66)
 There is a malfunction in the smart
access system with push-button
start. ( → P.445)
 The 12-volt battery is discharged.
( → P.447)
The following may indicate a problem
with your transmission. Contact your
Lexus dealer or commercial towing
service before towing.
 The hybrid system warning message
is shown on the multi-information
display and the vehicle does not
move.
 The vehicle makes an abnormal
sound.
Do not tow with a sling-type truck to
prevent body damage.WARNING■
Installing towing eyelets to the vehi-
cle
Make sure that towing eyelets are
installed securely.
If not securely installed, towing eyelets
may come loose during towing.
NOTICE■
To prevent damage to the vehicle
when towing using a wheel-lift type
truck●
Do not tow the vehicle from the rear
when the power switch is off. The
steering lock mechanism is not strong
enough to hold the front wheels
straight.●
When raising the vehicle, ensure ade-
quate ground clearance for towing at
the opposite end of the raised vehicle.
Without adequate clearance, the vehi-
cle could be damaged while being
towed.■
To prevent damage to the vehicle
when towing with a sling-type truck
Do not tow with a sling-type truck, either
from the front or rear.
■
To prevent damage to the vehicle
during emergency towing
Do not secure cables or chains to the
suspension components.
Situations when it is not possible
to be towed by another vehicle Situations when it is necessary to
contact dealers before towing
Towing with a sling-type truck

424 7-2. Steps to take in an emergency
LS500h_OM_OM50F42U_(U) 
From the front
Use a towing dolly under the rear
wheels. 
From the rear
Use a towing dolly under the front
wheels.
If your vehicle is transported by a flat-
bed truck, it should be tied down at the
locations shown in the illustration. If you use chains or cables to tie down
your vehicle, the angles shaded in
black must be 45°.
Do not overly tighten the tie downs or
the vehicle may be damaged.
Make sure to disable all functions of
the vehicle height control of the elec-
tronically modulated air suspension.
Otherwise, the vehicle height may
change and the vehicle may be dam-
aged. ( → P.301)
If a tow truck is not available in an
emergency, your vehicle may be tem-
porarily towed using cables or chains
secured to the emergency towing eye-
lets. This should only be attempted on
hard surfaced roads for short distances
at under 18 mph (30 km/h).
A driver must be in the vehicle to steer
and operate the brakes. The vehicle’s Towing with a wheel-lift type
truck
Using a flatbed truck
Emergency towing

4257-2. Steps to take in an emergency
LS500h_OM_OM50F42U_(U) 7
When trouble arises wheels, drive train, axles, steering and
brakes must be in good condition.
To have your vehicle towed by another
vehicle, the towing eyelet must be
installed to your vehicle. Install the tow-
ing eyelet using the following proce-
dure.
1 Take out the phillips-head screw-
driver and towing eyelet.
Phillips-head screwdriver
Towing eyelet
2 Remove the eyelet cover using a
flathead screwdriver.To protect the bodywork, place a rag
between the screwdriver and the vehicle
body as shown in the illustration. 3 Insert the towing eyelet into the
hole and tighten partially by hand.
4 Tighten down the towing eyelet
securely using a phillips-head
screwdriver or hard metal bar.
5 Securely attach cables or chains to
the towing eyelet. Take care not to damage the vehicle body.
6 Enter the vehicle being towed and
start the hybrid system. If the hybrid system does not start, turn the
power switch to ON mode.
7 Shift the shift position to N and
release the parking brake. ■
While towing
If the hybrid system is off, the power assist
for the brakes and steering will not function,
making steering and braking more difficult.Emergency towing procedure
A
B

426 7-2. Steps to take in an emergency
LS500h_OM_OM50F42U_(U)  Fluid leaks under the vehicle.
(Water dripping from the air condi-
tioning after use is normal.)
 Flat-looking tires or uneven tire
wear
 Engine coolant temperature gauge
needle continually points higher
than normal.
 Changes in exhaust sound
 Excessive tire squeal when corner-
ing
 Strange noises related to the sus-
pension system
 Pinging or other noises related to
the hybrid system
 Engine missing, stumbling or run-
ning roughly
 Appreciable loss of power
 Vehicle pulls heavily to one side
when braking  Vehicle pulls heavily to one side
when driving on a level road
 Loss of brake effectiveness, spongy
feeling, pedal almost touches the
floor
If you think something is
wrong If you notice any of the following
symptoms, your vehicle probably
needs adjustment or repair. Con-
tact your Lexus dealer as soon as
possible.
Visible symptoms
Audible symptoms
Operational symptoms

4277-2. Steps to take in an emergency
LS500h_OM_OM50F42U_(U) 7

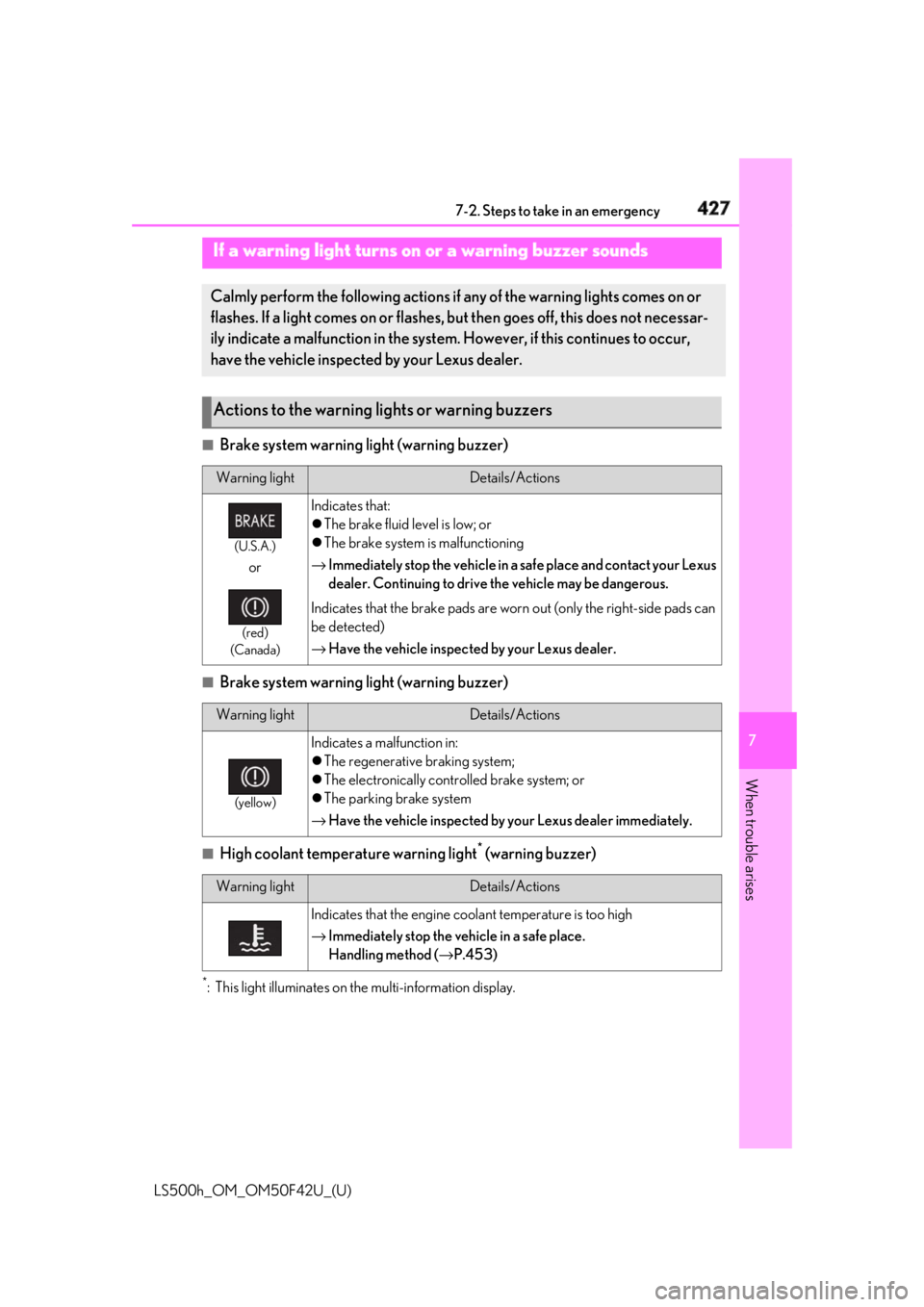

When trouble arises ■
Brake system warning light (warning buzzer)
■
Brake system warning light (warning buzzer)
■
High coolant temperature warning light *
(warning buzzer)
*
: This light illuminates on the multi-information display.If a warning light turns on or a warning buzzer soundsCalmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, bu t then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by your Lexus dealer.
Actions to the warning lights or warning buzzers Warning light Details/Actions(U.S.A.)
or (red)
(Canada) Indicates that:
 The brake fluid level is low; or
 The brake system is malfunctioning
→ Immediately stop the vehicle in a safe place and contact your Lexus
dealer. Continuing to drive the vehicle may be dangerous.
Indicates that the brake pads are worn out (only the right-side pads can
be detected)
→ Have the vehicle inspected by your Lexus dealer.
Warning light Details/Actions
(yellow) Indicates a malfunction in:
 The regenerative braking system;
 The electronically controlled brake system; or
 The parking brake system
→ Have the vehicle inspected by your Lexus dealer immediately.
Warning light Details/Actions
Indicates that the engine coolant temperature is too high
→ Immediately stop the vehicle in a safe place.
Handling method ( → P.453)

428 7-2. Steps to take in an emergency
LS500h_OM_OM50F42U_(U) ■
Charging system warning light *
(warning buzzer)*
: This light illuminates on the multi-information display. ■
Low engine oil pressure warning light *
(warning buzzer)*
: This light illuminates on the multi-information display. ■
Malfunction indicator lamp (warning buzzer)
■
SRS warning light (warning buzzer) Warning light Details/Actions
Indicates a malfunction in the vehicle’s charging system
→ Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
Warning light Details/Actions
Indicates that the engine oil pressure is too low
→ Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
Warning light Details/Actions
(U.S.A.)
or
(Canada) Indicates a malfunction in:
 The hybrid system;
 The electronic engine control system;
 The electronic throttle control system; or
 The electronic hybrid transmission control system
→ Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
Warning light Details/Actions
Indicates a malfunction in:
 The SRS airbag system;
 The front passenger occupant classification system; or
 The seat belt pr etensioner system
→ Have the vehicle inspected by your Lexus dealer immediately.

4297-2. Steps to take in an emergency
LS500h_OM_OM50F42U_(U) 7
When trouble arises ■
Pop Up Hood warning light (warning buzzer)
■
ABS warning light (warning buzzer)
■
Brake Override System warning light/Drive-Start Control warning light *

(warning buzzer)
*
: This light illuminates on the multi-information display. Warning light Details/Actions
Indicates that the Pop Up Hood system has operated
→ The Pop Up Hood system cannot be reused once it has operated.
Have it replaced by your Lexus dealer.
Indicates a malfunction in the Pop Up Hood system
→ Have the vehicle inspected by your Lexus dealer immediately.
Warning light Details/Actions(U.S.A.)
or (Canada) Indicates a malfunction in:
 The ABS; or
 The brake assist system
→ Have the vehicle inspected by your Lexus dealer immediately.
Warning light Details/Actions
When a buzzer sounds:
 Brake Override System is malfunctioning;
 Drive-Start Control is operating;
 Drive-Start Control is malfunctioning; or
 Parking Support Brake function (for static objects) is operating
→ Follow the instructions displayed on the multi-information display.
When a buzzer does not sound:
Brake Override System is operating
→ Release the accelerator pedal and depress the brake pedal.

430 7-2. Steps to take in an emergency
LS500h_OM_OM50F42U_(U) ■
Electric power steering system warning light (warning buzzer)
■
Low fuel level warning light
■
Driver’s and front passenger’s seat belt reminder light (warning buzzer) *
*
: Driver’s seat belt warning buzzer:
The driver’s seat belt warning buzzer sounds to al ert the driver that his or her seat belt is not
fastened. Once the power switch is turned to ON mode, the buzzer sounds for 6 seconds.
If the vehicle reaches a speed of 12 mph (20 km/h), the buzzer sounds once. If the seat belt
is still unfastened after 24 seconds, the buzzer will sound intermittently for 6 seconds. Then,
if the seat belt is st ill unfastened, the buzzer will sound in a different tone for 90 more sec-
onds.
Front passenger’s seat belt warning buzzer:
The front passenger’s seat belt warning buzzer sounds to alert the front passenger that his
or her seat belt is not fastened. The buzzer sounds once if the vehicle reaches a speed of 12
mph (20 km/h). If the seat belt is still unfastened after 24 seconds, the buzzer will sound
intermittently for 6 seconds. Th en, if the seat belt is still un fastened, the buzzer will sound in
a different tone for 90 more seconds. Warning light Details/Actions(red)
or (yellow)
Indicates a malfunction in the EPS (Electric Power Steering) system
→ Have the vehicle inspected by your Lexus dealer immediately.
Warning light Details/Actions
Indicates that remaining fuel is approximately 3.4 gal. (13 L, 2.8 Imp.
gal.) or less
→ Refuel the vehicle.
Warning light Details/Actions
Warns the driver and/or front pass enger to fasten their seat belts
→ Fasten the seat belt.
If the front passenger’s seat is occupied, the front passenger’s seat
belt also needs to be fastened to make the warning light (warning
buzzer) turn off.
